Article-No.:
94669
Plug & Shine
LED Wallwasher
Ocos
IP67 3000K 6,1W Anthracite
IP67 3000K 6,1W Anthracite
- IP Protection: IP67 - protected against temporary immersion
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)

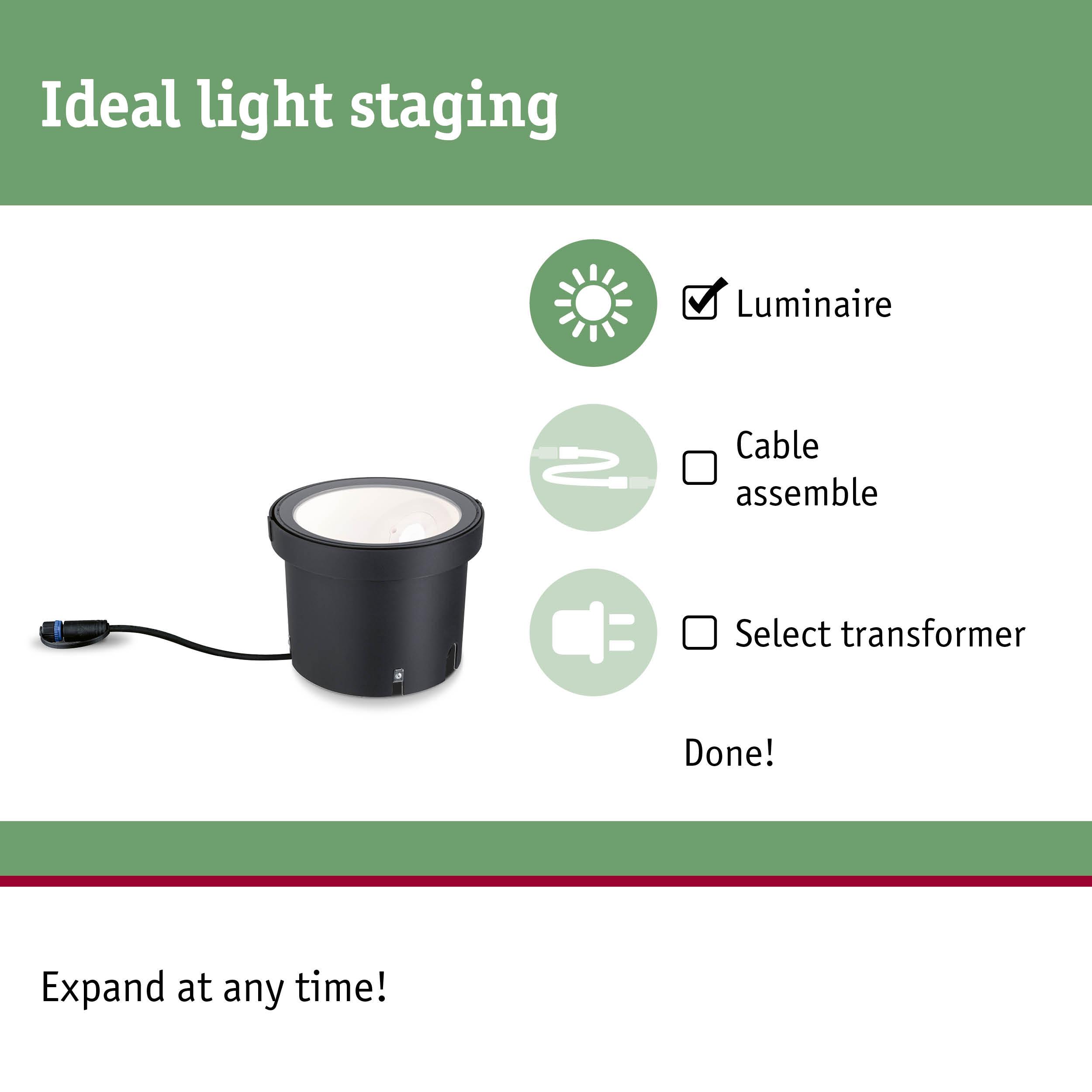

Plug & Shine LED Wallwasher Ocos Single luminaire IP67 3000K 6,1W Anthracite

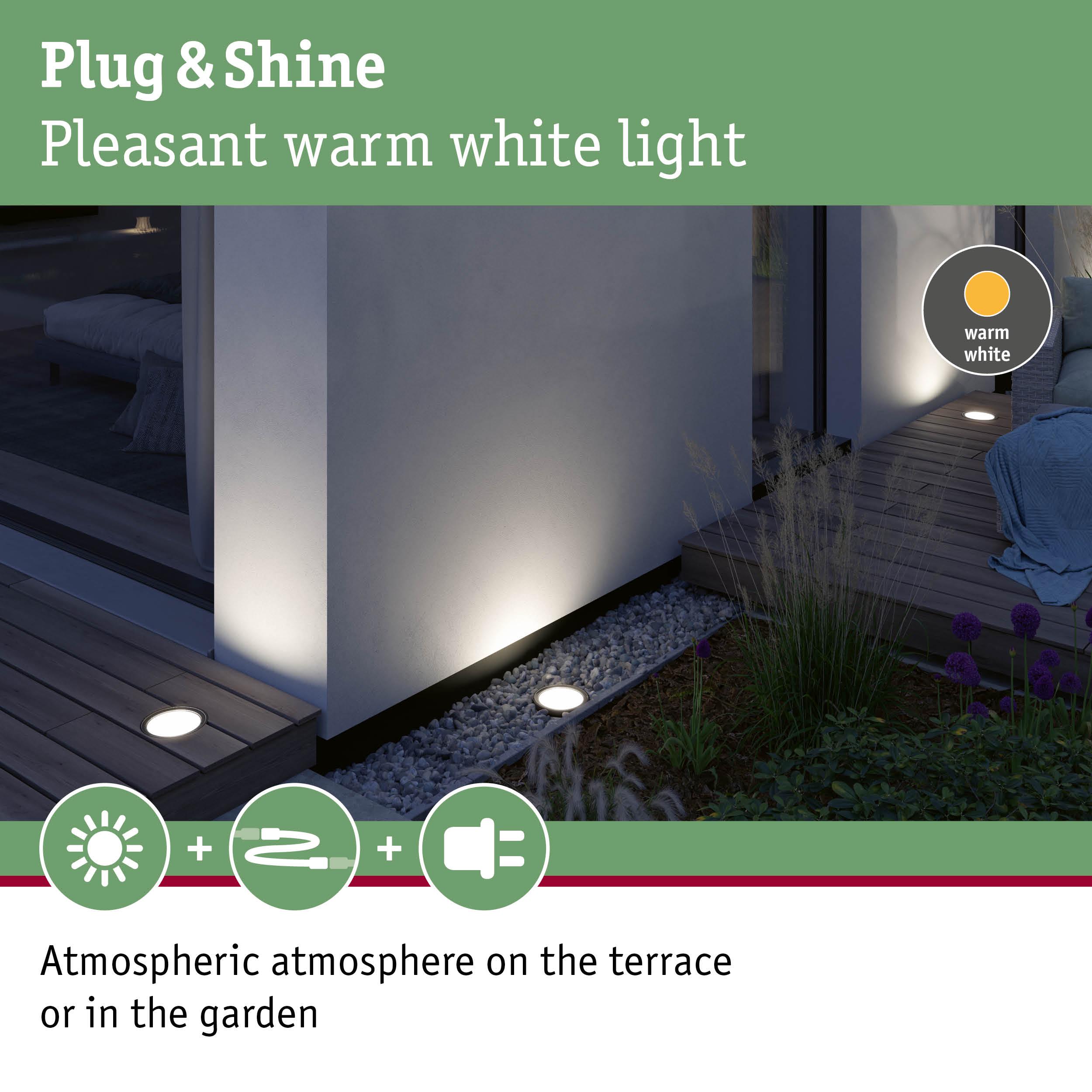

With its modern design in a simple metal housing, the Plug & Shine Ocos recessed floor luminaire fits perfectly into any outdoor area and optimally illuminates walls and plants. The IP67-protected luminaire enables targeted lighting effects in warm white. Thanks to its hardened safety glass, the spotlight can withstand weights of up to 1000 kg, making it suitable for installation in footpaths or patios. Combine with transformers, connectors and other luminaires from the Plug & Shine series to create an individual lighting installation for outdoor areas.
- IP Protection: IP67 - protected against temporary immersion
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Compatible with all luminaires and accessories in the Plug & Shine series
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 135 mm |
| Ø | 155 mm |
| Mounting hole | 110 mm |
| Design and Material | |
|---|---|
| Colour | Anthracite |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 75 ° |
| Usable luminous flux | 210 lm |
| Luminous flux LED module | 510 lm |
| color temp | 3.000 K |
| Color rendering index | > 90 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6,1 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 42 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6,1 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
