Article-No.:
98848
Plug & ShinePower supply

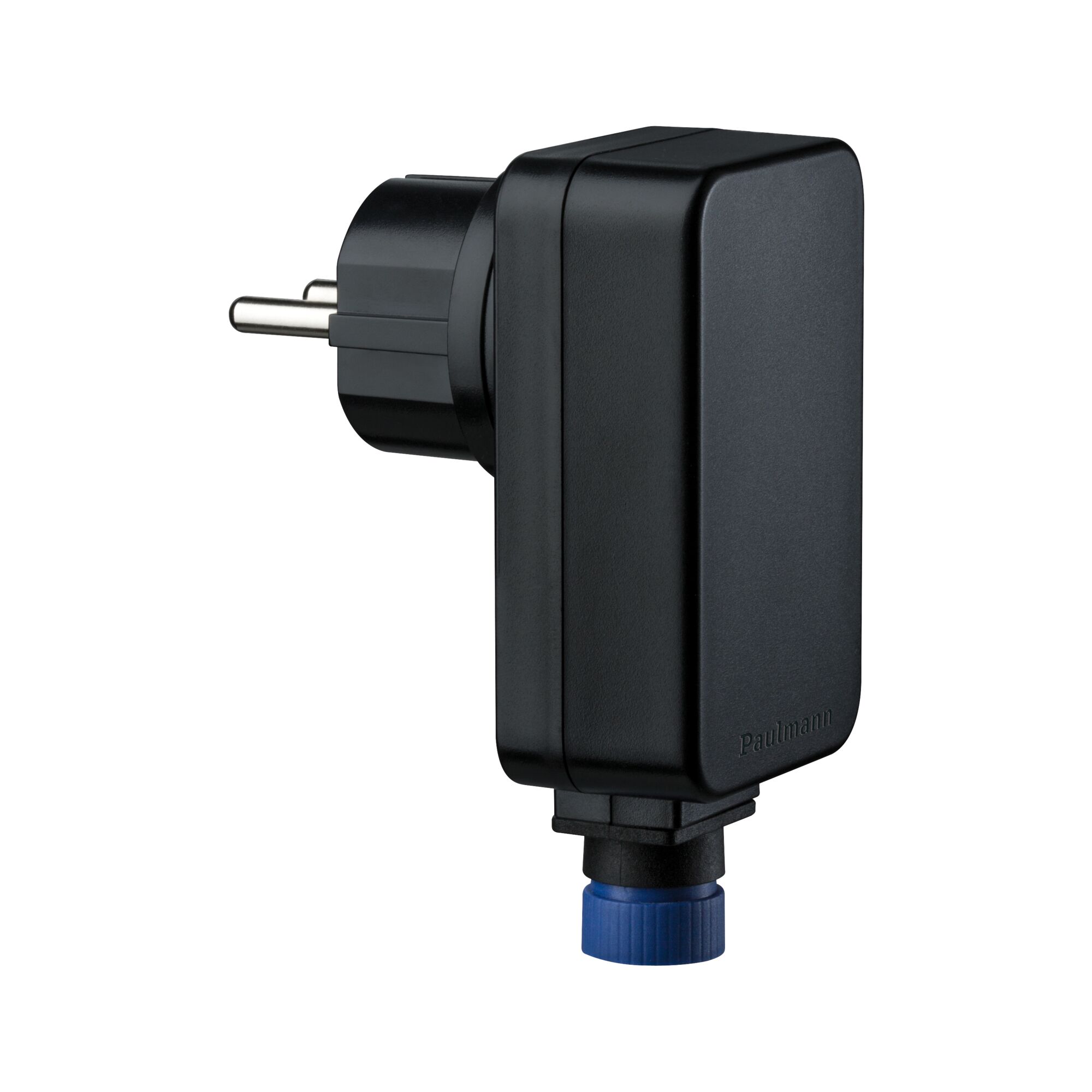

Power supply 230/24V DC
IP44 230/24V 21VA Black
IP44 230/24V 21VA Black
- 24 V power supply
- IP protection: IP44 splash-protected
- Compatible with all luminaires and accessories in the Plug & Shine series

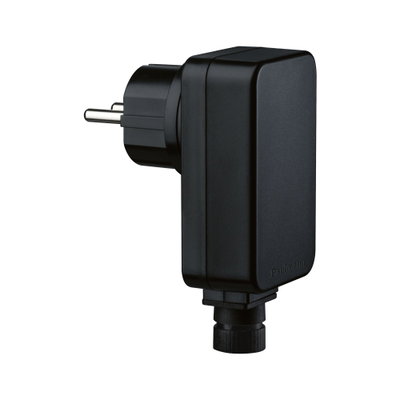

Plug & Shine Power supply 230/24V DC IP44 230/24V 21VA Black

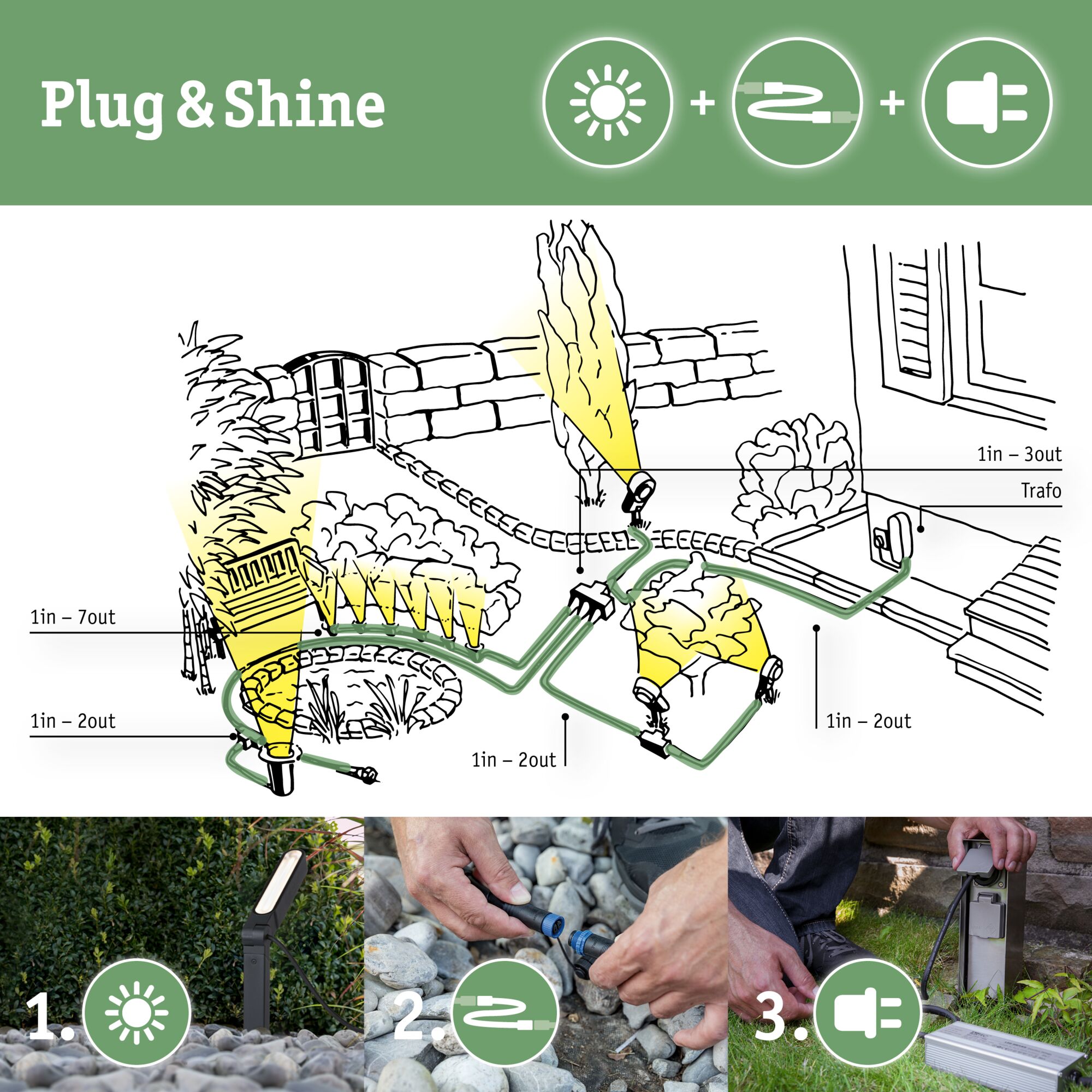

The Plug & Shine transformer with 21 watts is the ideal base for your outdoor lighting installation around the house, patio and garden. Combine different Plug & Shine luminaires and connectors any way you like, up to a maximum system length of 50 metres.
- 24 V power supply
- IP protection: IP44 splash-protected
- Compatible with all luminaires and accessories in the Plug & Shine series
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 103 x B: 50 x T: 30 mm |
| Plug depth | 48 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Plastic |
| Installation | |
|---|---|
| Maximum cable length | 50 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Technique | LED |
| IP protection | IP44 |
| Dimmable | No |
| Inclusive lamp | no |
| Adjustability | fixed |
| Maximum wattage range | max. 21 W |
| protection class | protection class II |
| Replacable | 4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Transformer | |
|---|---|
| Transformer power | 21 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
