Article-No.:
93922
Plug & ShineLED Surface-mounted floor luminaire
Surface-mounted light bar
IP67 elongated 856x52mm 3000K 8,1W 660lm 24V Anthracite Die cast aluminium
IP67 elongated 856x52mm 3000K 8,1W 660lm 24V Anthracite Die cast aluminium
- IP Protection: IP67 - protected against temporary immersion
- 24 V surface-mounted luminaire
- Indirect and area lighting
Plug & Shine LED Surface-mounted floor luminaire Surface-mounted light bar IP67 elongated 856x52mm 3000K 8,1W 660lm 24V Anthracite Die cast aluminium

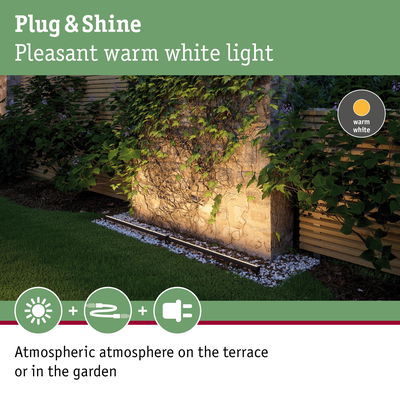

The Plug & Shine light bar for surface-mounted floor installation provides wide-coverage lighting for hedges, fences and house walls. Weather-resistant pressure-cast aluminium and IP67 immersion protection make the bar a durable companion for outdoor spaces. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile individual outdoor lighting installations.
- IP Protection: IP67 - protected against temporary immersion
- 24 V surface-mounted luminaire
- Indirect and area lighting
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 58 x B: 856 x T: 52 mm |
| Form | elongated |
| Design and Material | |
|---|---|
| Colour | Anthracite |
| Material | Die cast aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11 |
| Application | For wide-area illumination of hedges, fences and house walls |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | 3000 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 115 ° |
| Usable luminous flux | 660 lm |
| Luminous flux LED module | 875 lm |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 120 ° |
| Lamp Features | |
|---|---|
| Component parts | 8,1 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 64 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 8 W |
| Transformer | |
|---|---|
| apparent power | 8 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
