Article-No.:
94751
Plug & ShineLED Recessed floor luminaireSmart Home Zigbee 3.0
Floor Single Luminaire
IP67 RGBW+ 2W Stainless steel
IP67 RGBW+ 2W Stainless steel
- Can be controlled with the Smart Home Zigbee remote control

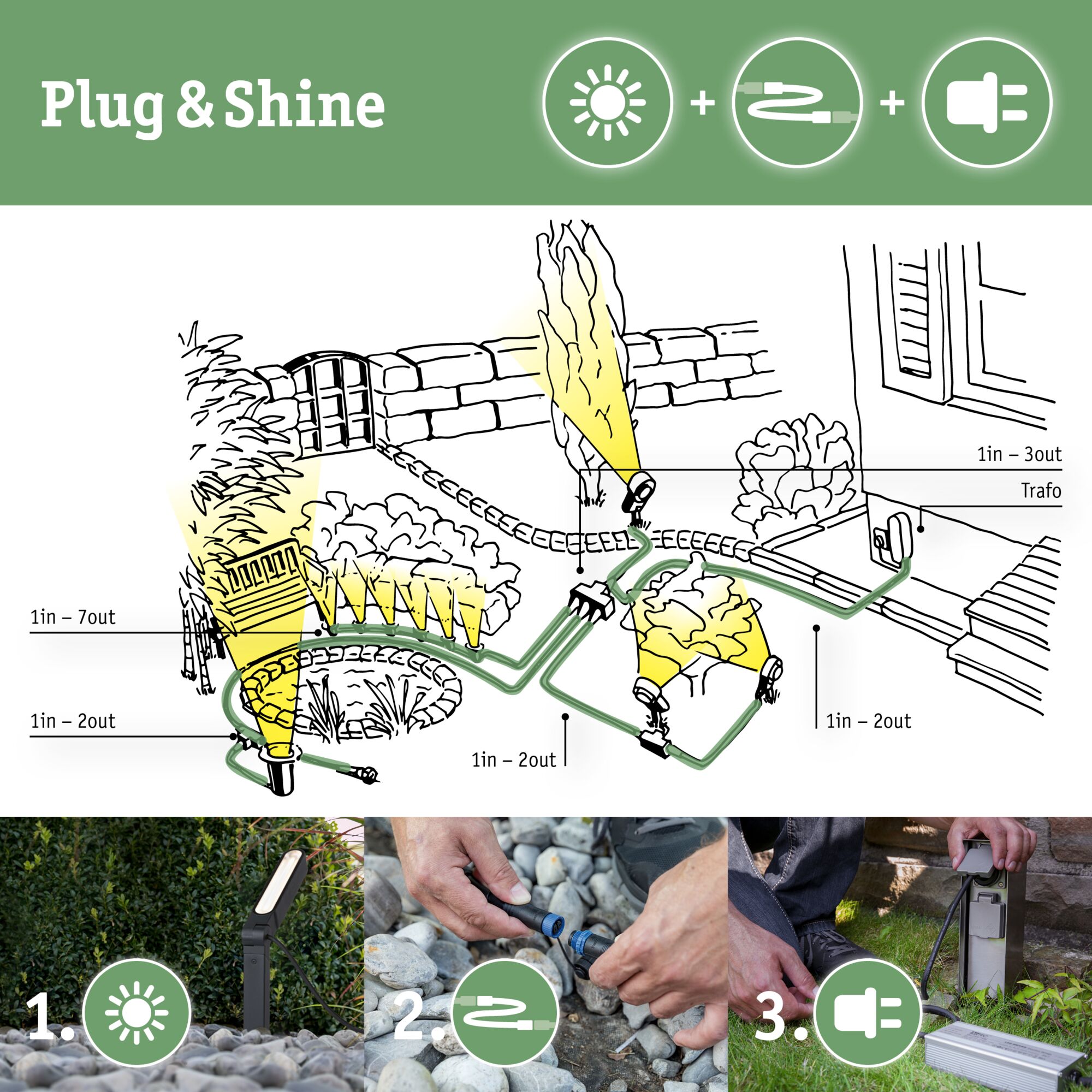

- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 Floor RGBW Single Luminaire IP67 RGBW+ 2W Stainless steel

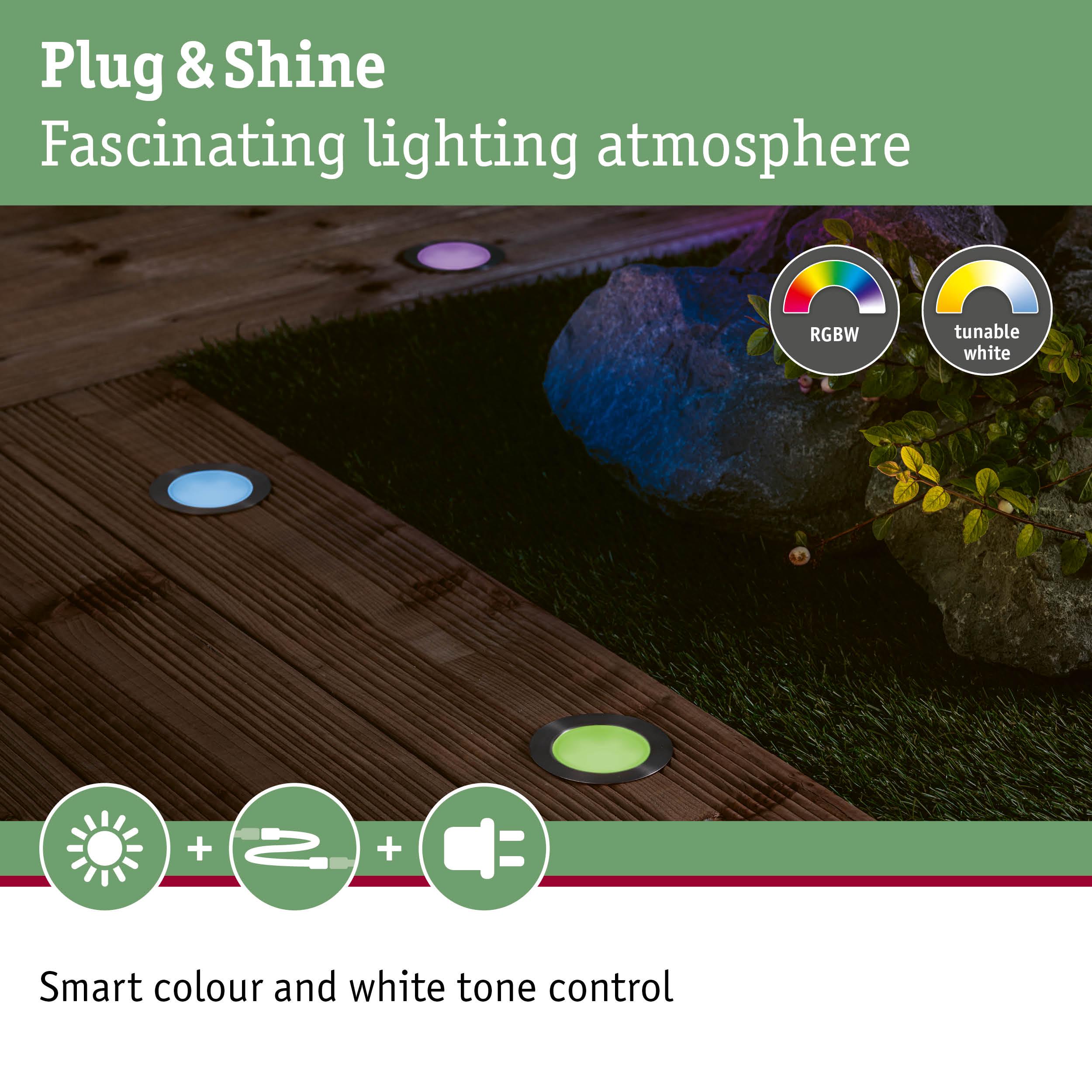

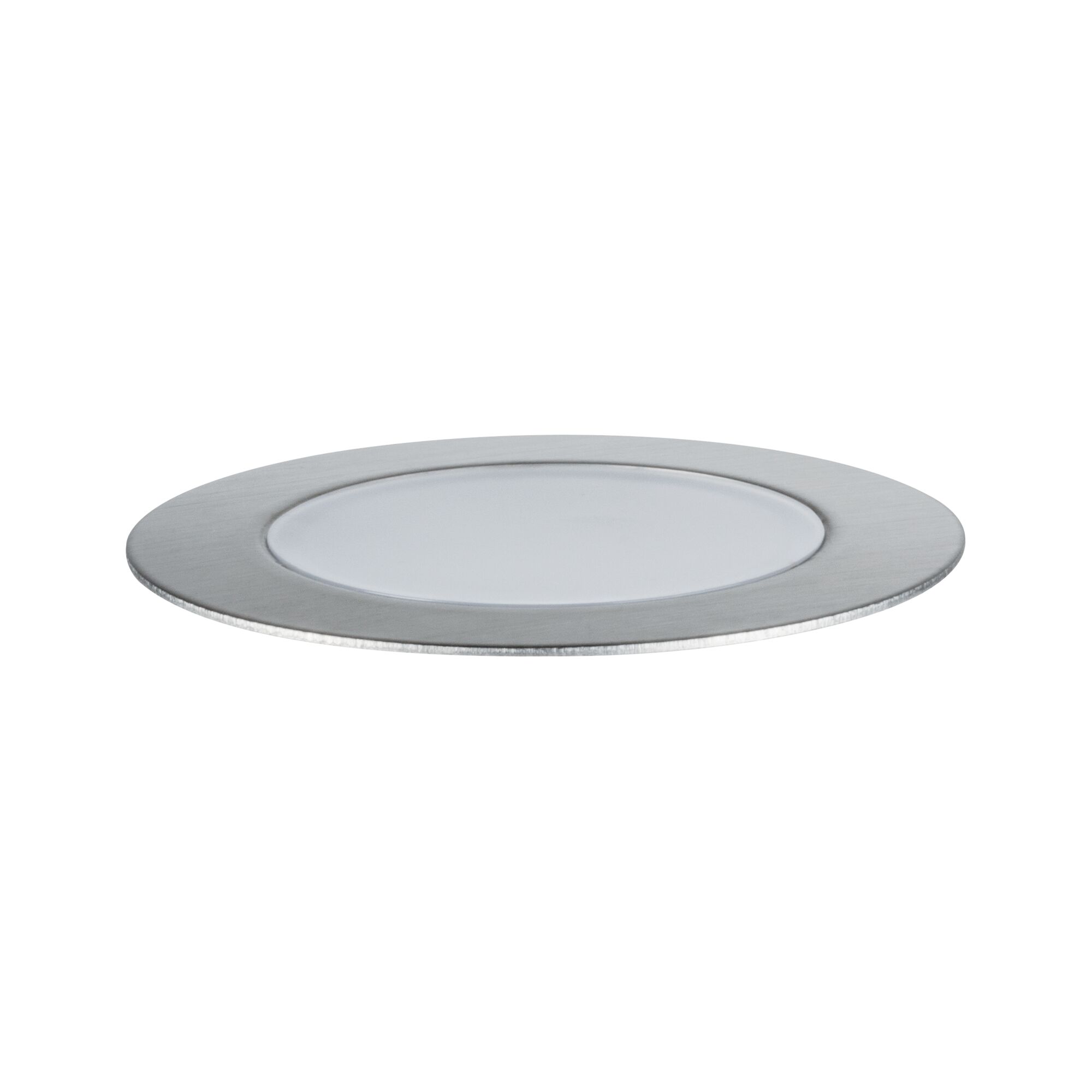

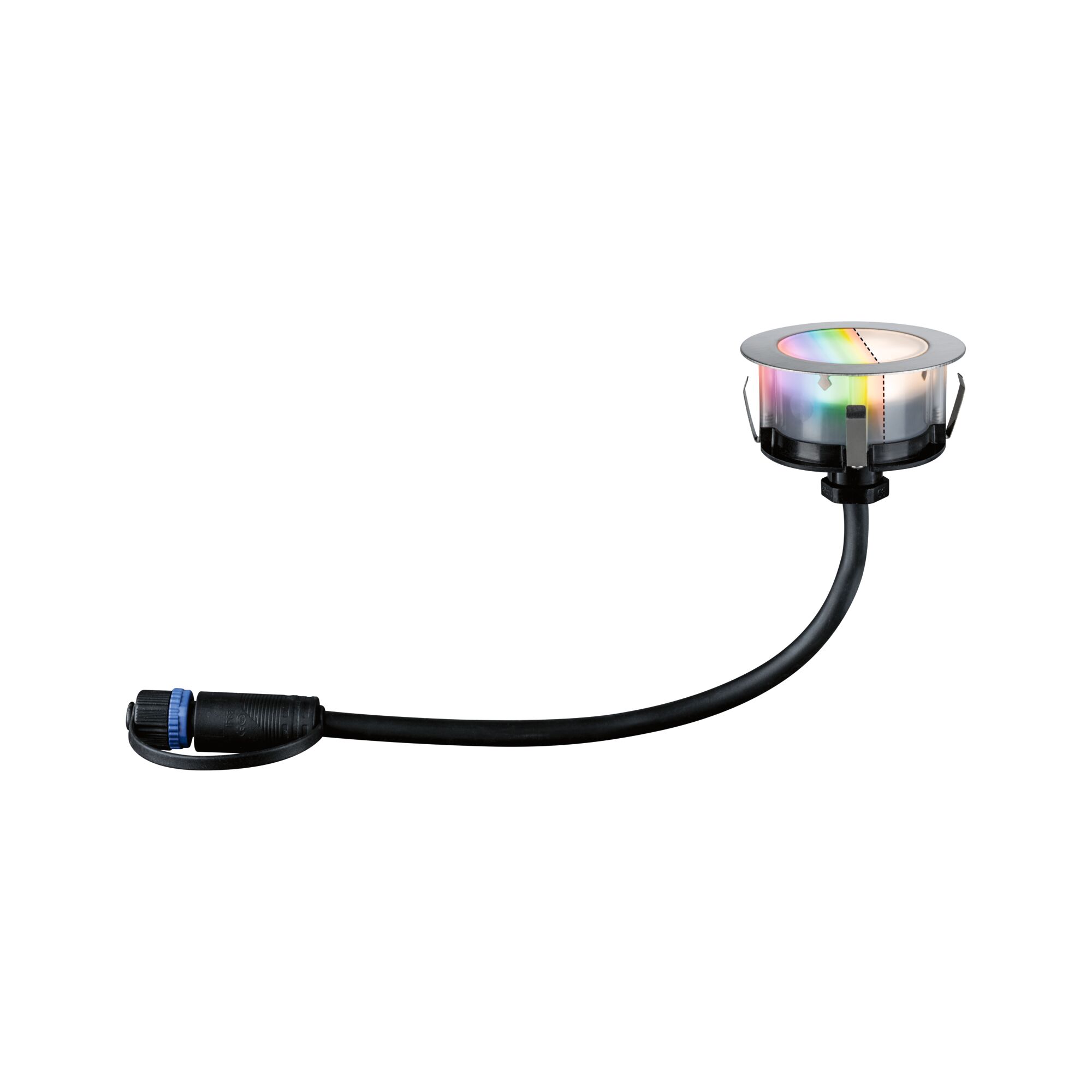

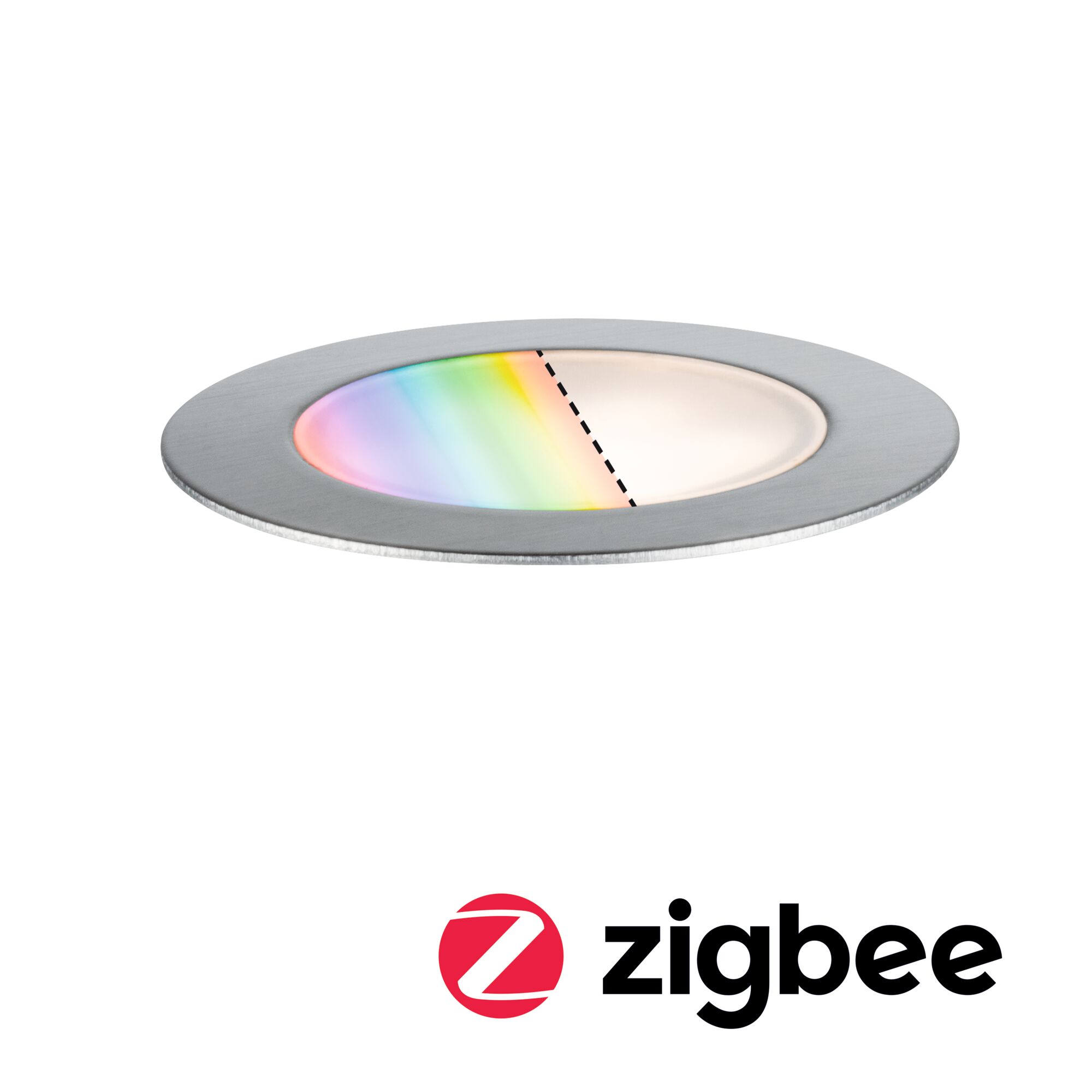

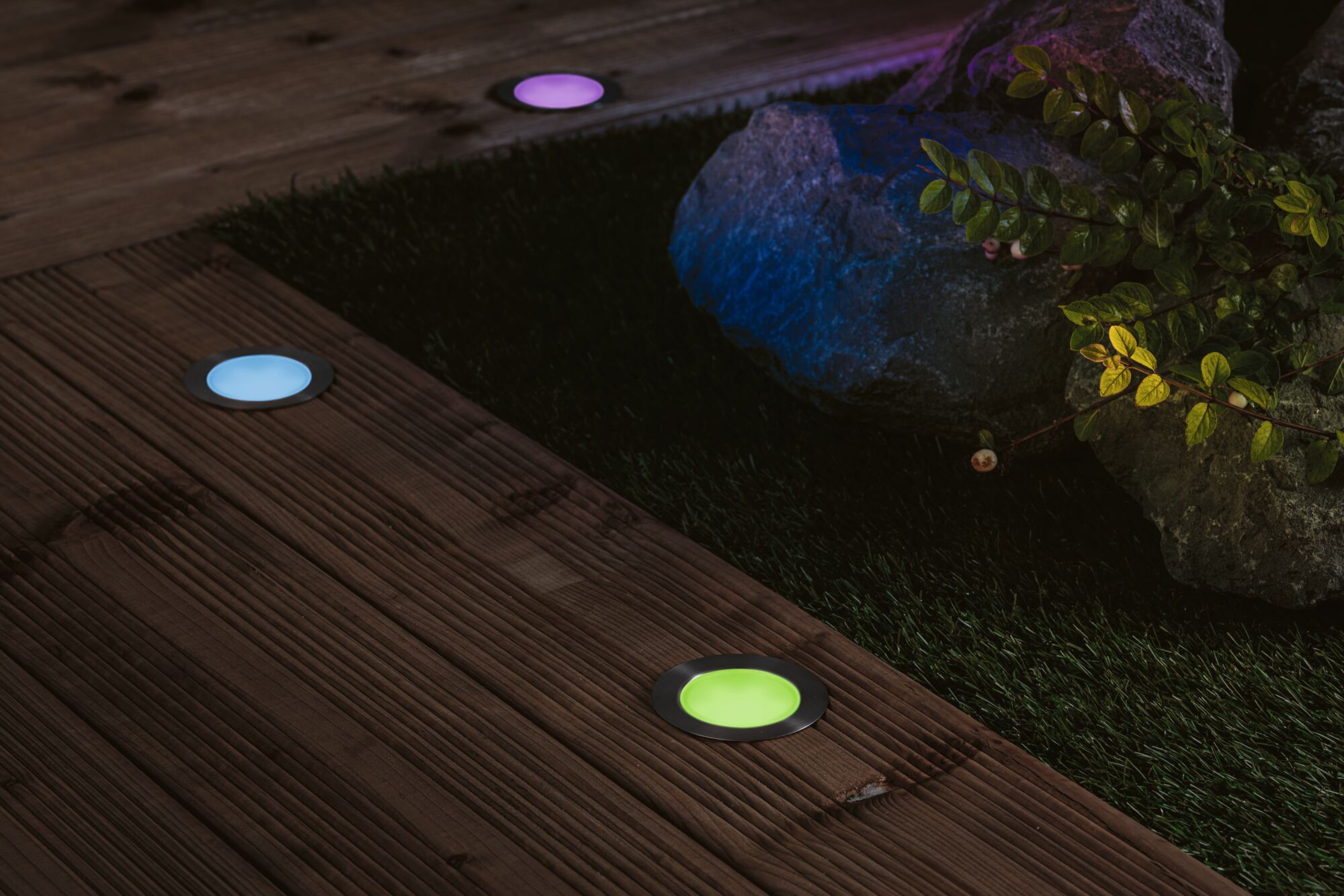

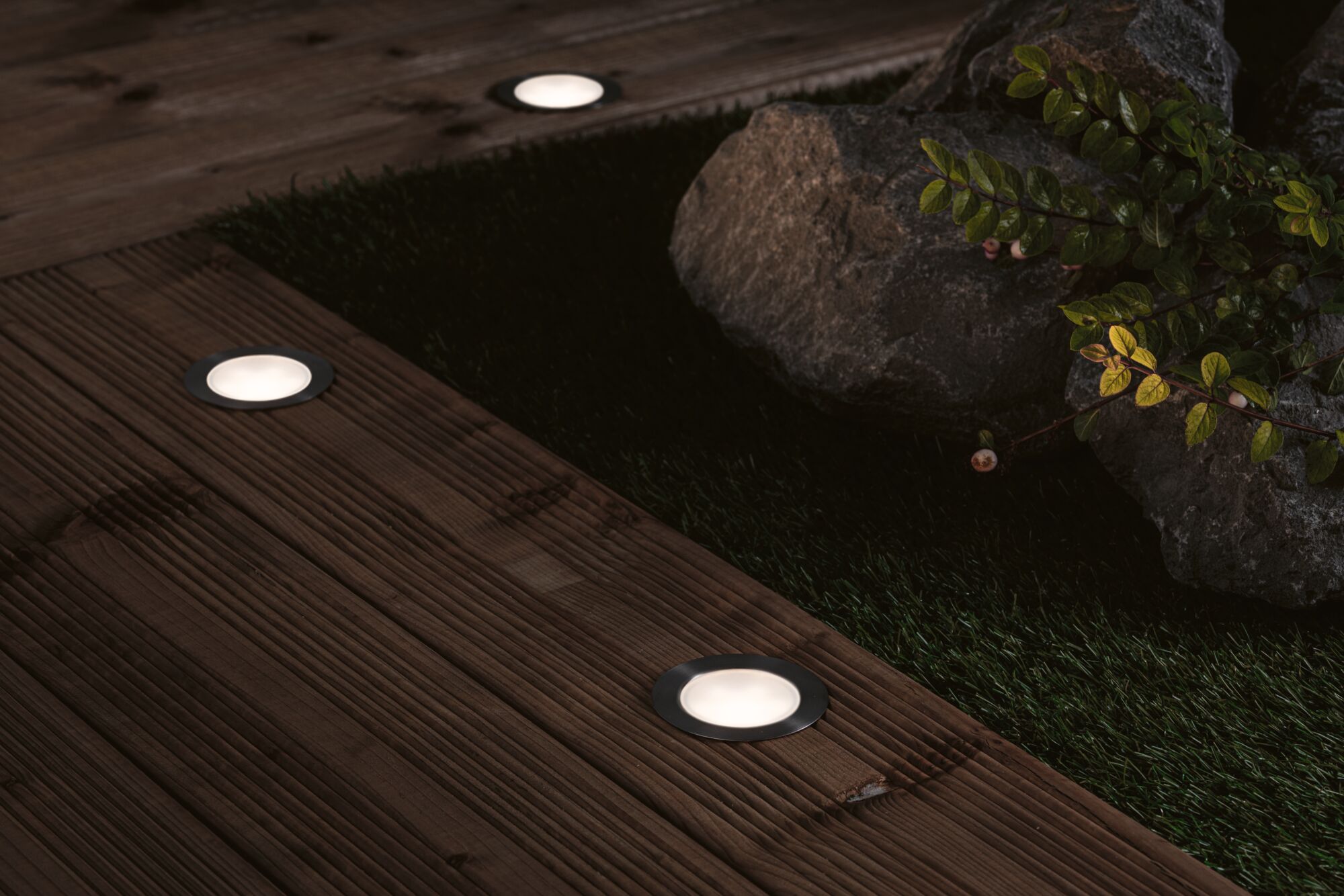

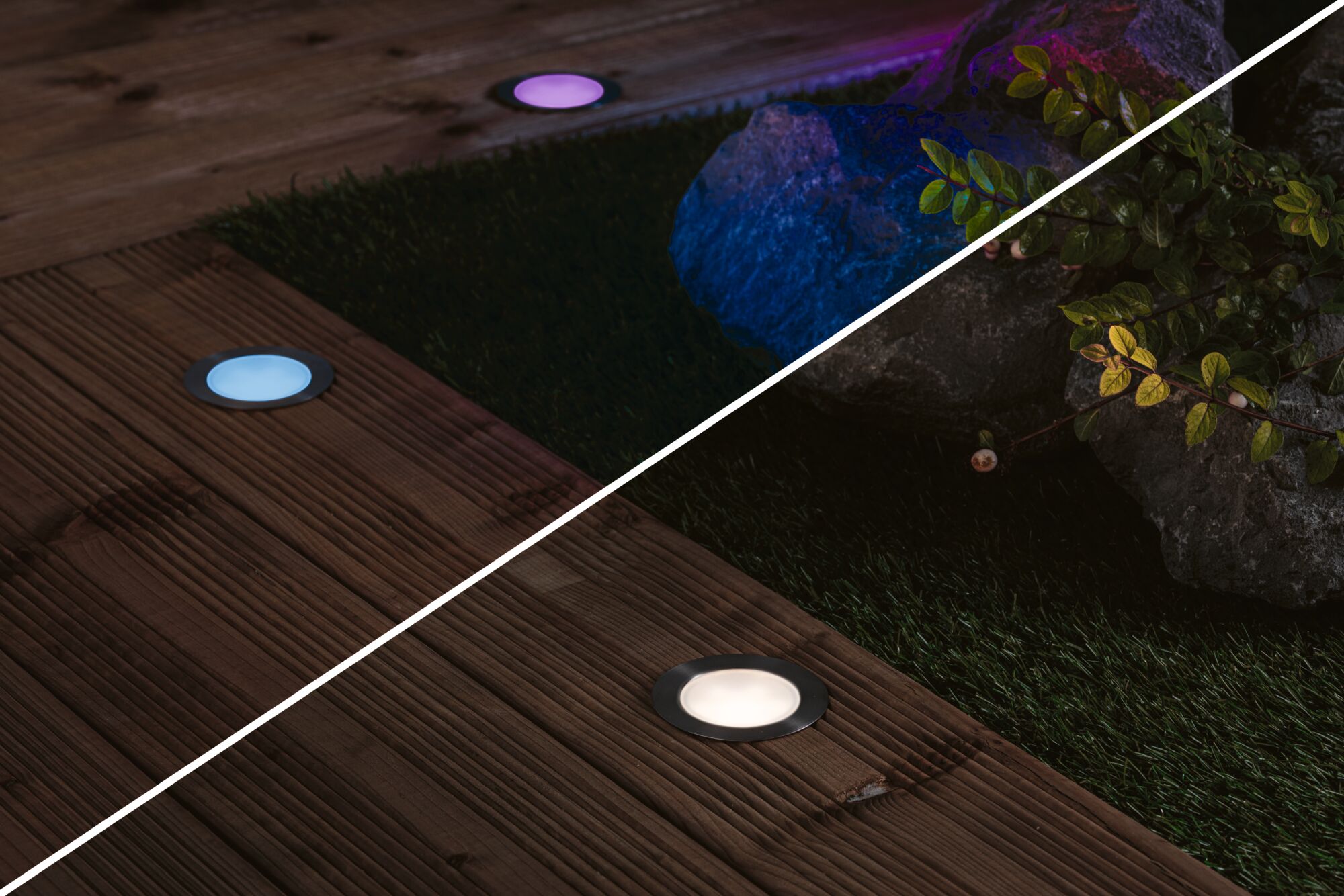

The round Plug & Shine in-ground spotlight with a 70 mm diameter creates decorative light points along foot paths or patio boundaries. The permanently installed LED module delivers coloured or white light depending on your choice. Colour settings are done via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed. This spotlight is perfectly suited for an integration in wood floor patios.
- Can be controlled with the Smart Home Zigbee remote control
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery

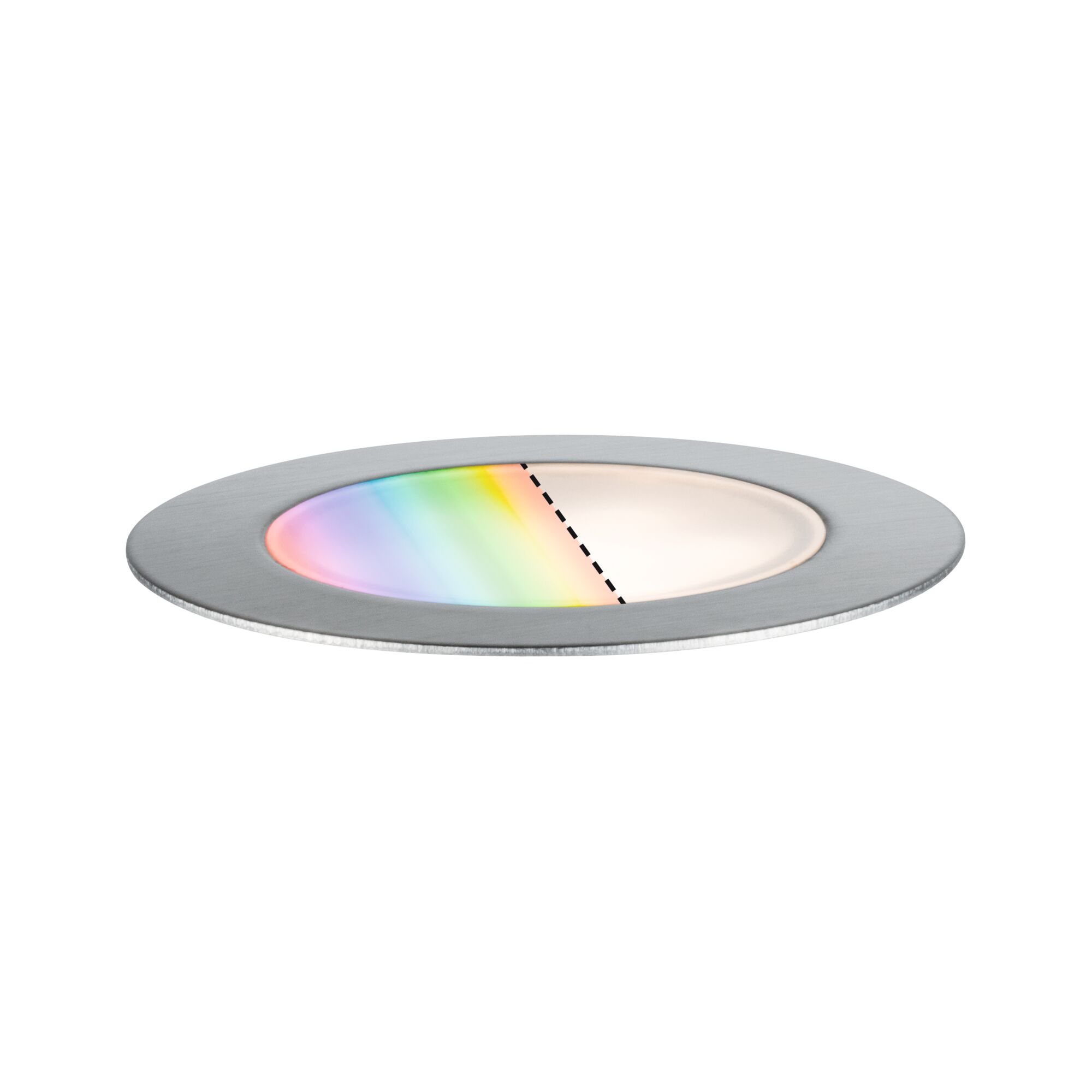

- RGBW multicolour colour change

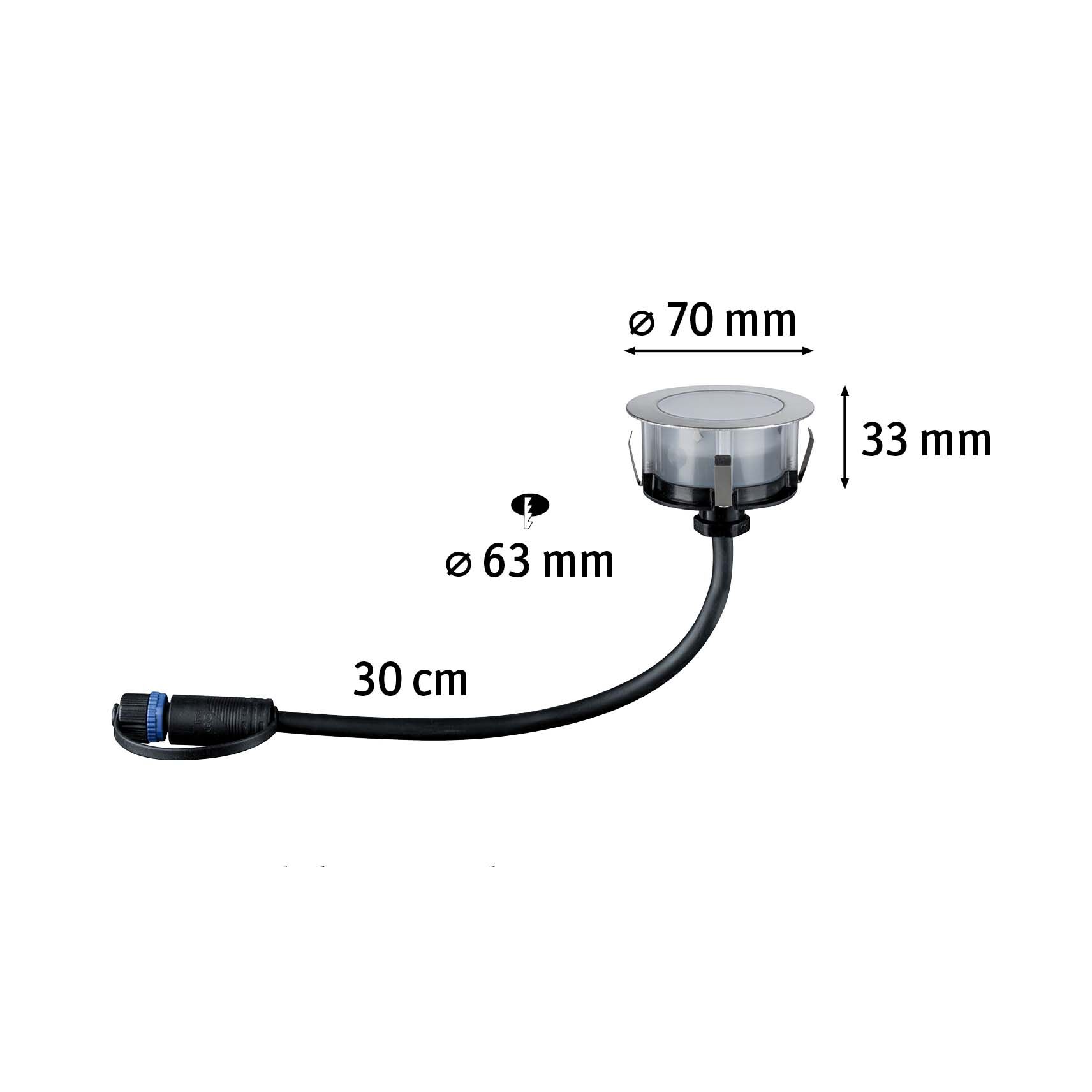

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Einbaudurchmesser | 63 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Diameter | 70 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal, Plastic |
| Form | round |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Beam angle | 90 ° |
| Nominal luminous flux | 65 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 100 lm |
| colour temperature to | 6500 K |
| color temp | Warm white to Daylight white |
| Lamp Features | |
|---|---|
| Component parts | 2 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 5.5 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel fest integriert |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 1x |
| protection class | Protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2 W |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
Downloads
Flyer and Safety instructions
Safety instructions
- Plug & Shine
- Controller
Ready to ship
