Article-No.:
93953

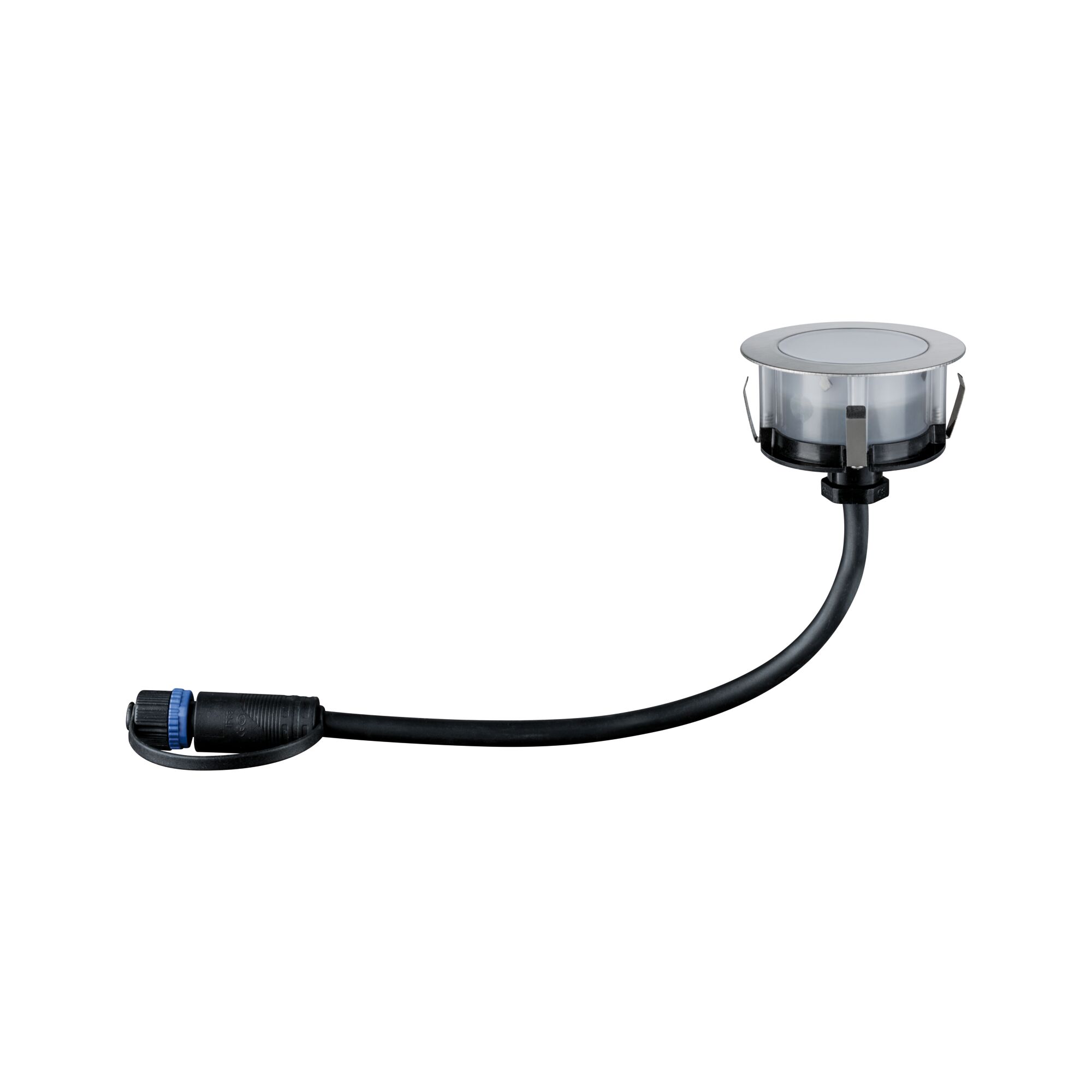

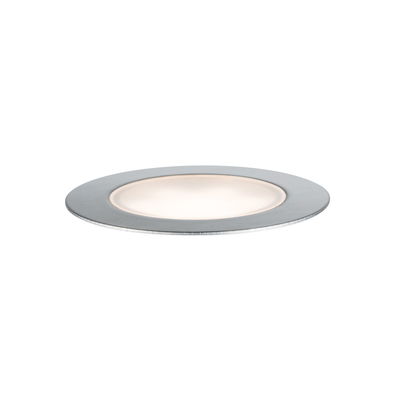

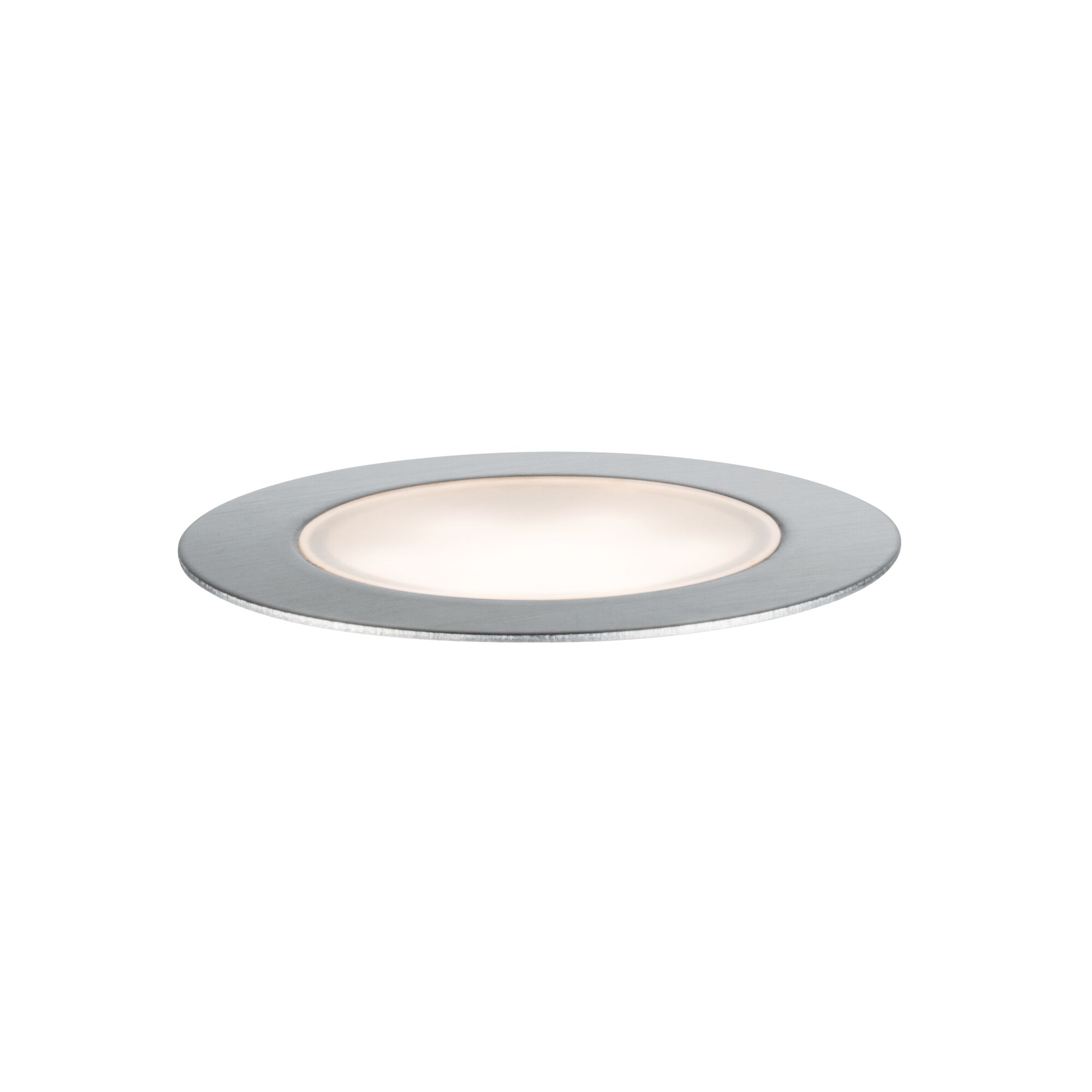

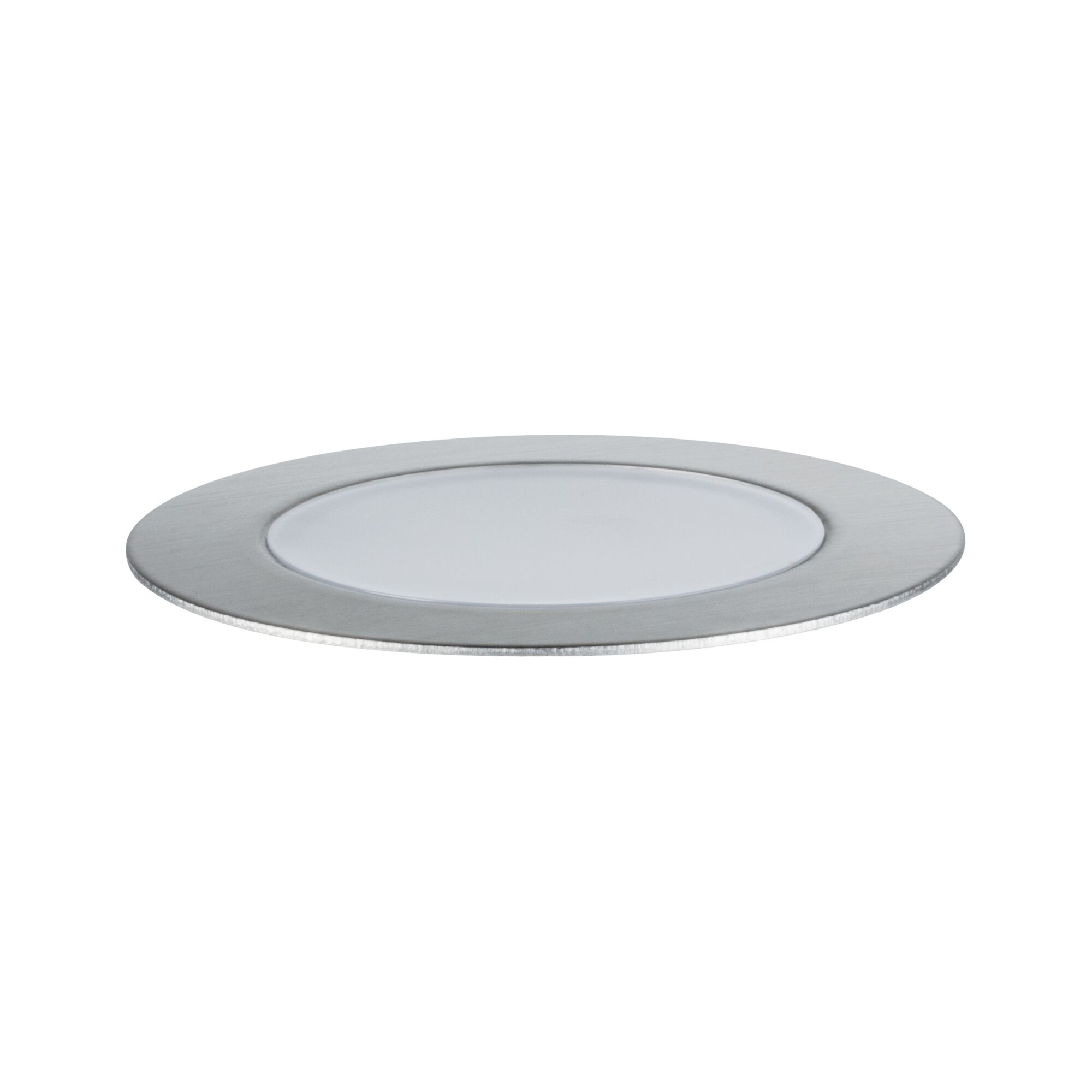

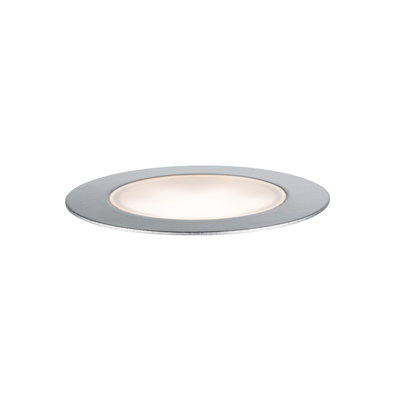

Plug & ShineLED Recessed floor luminaire
Floor Eco Individual Spot
IP67 3000K 2W Silver
IP67 3000K 2W Silver
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor luminaire Floor Eco Individual Spot IP67 3000K 2W Silver

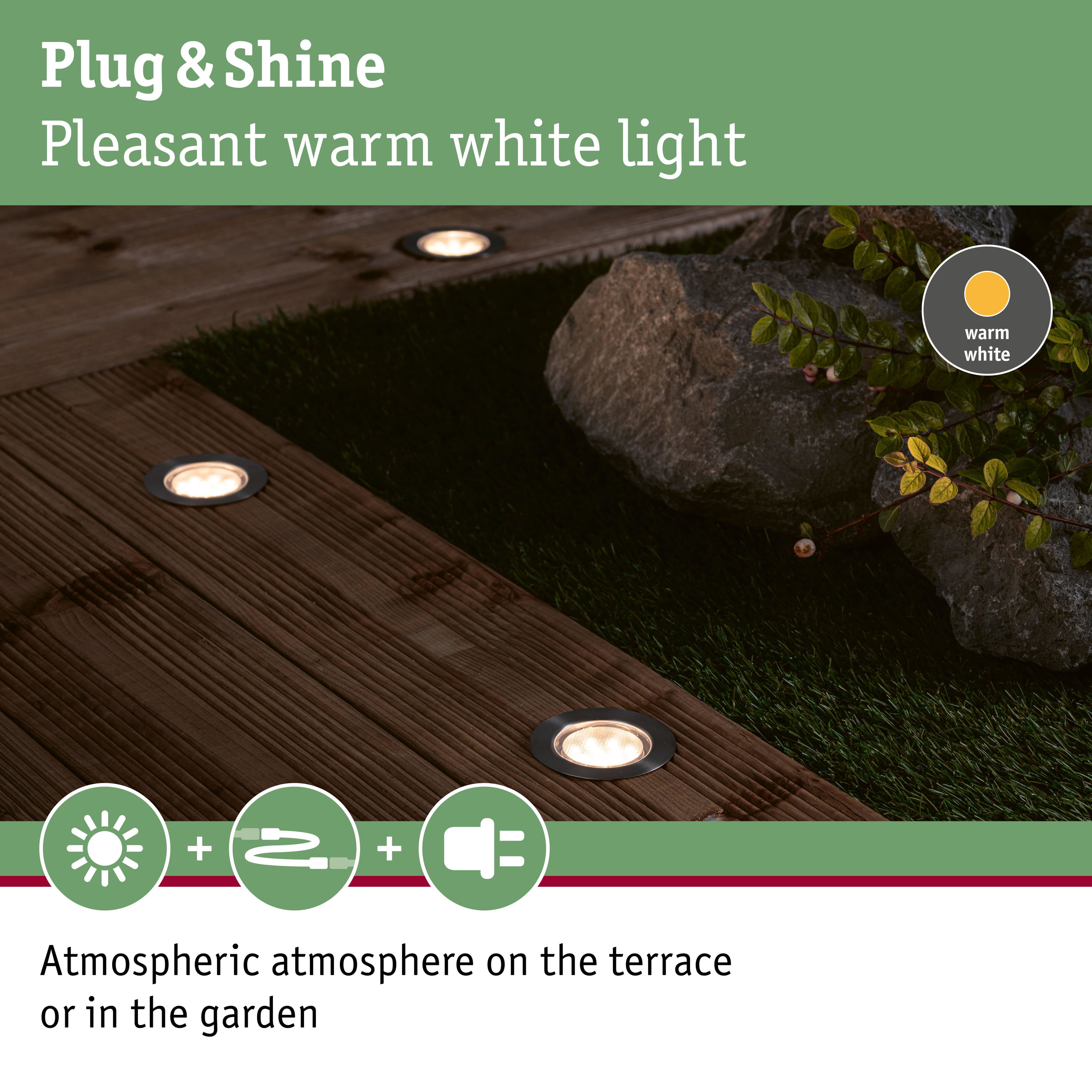

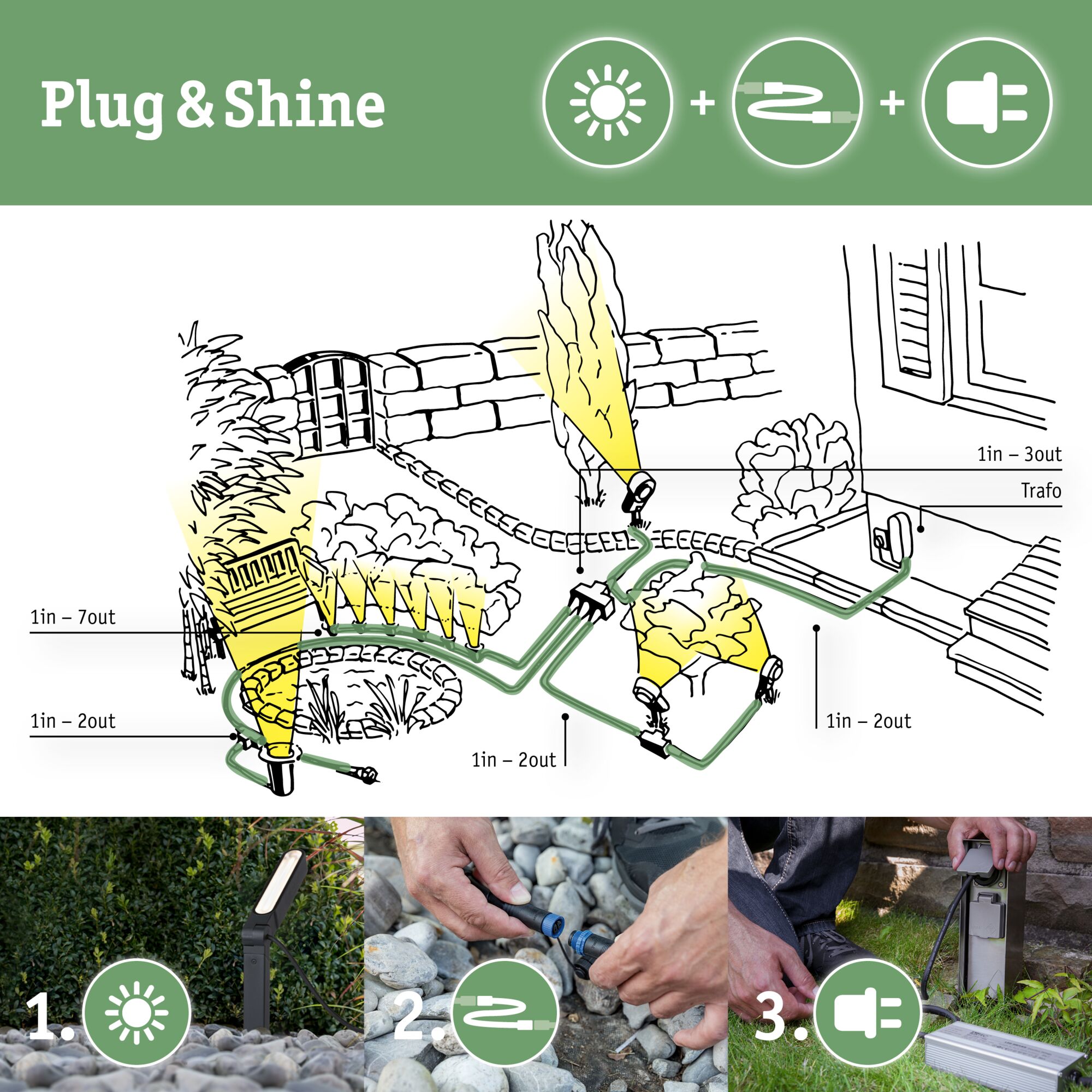

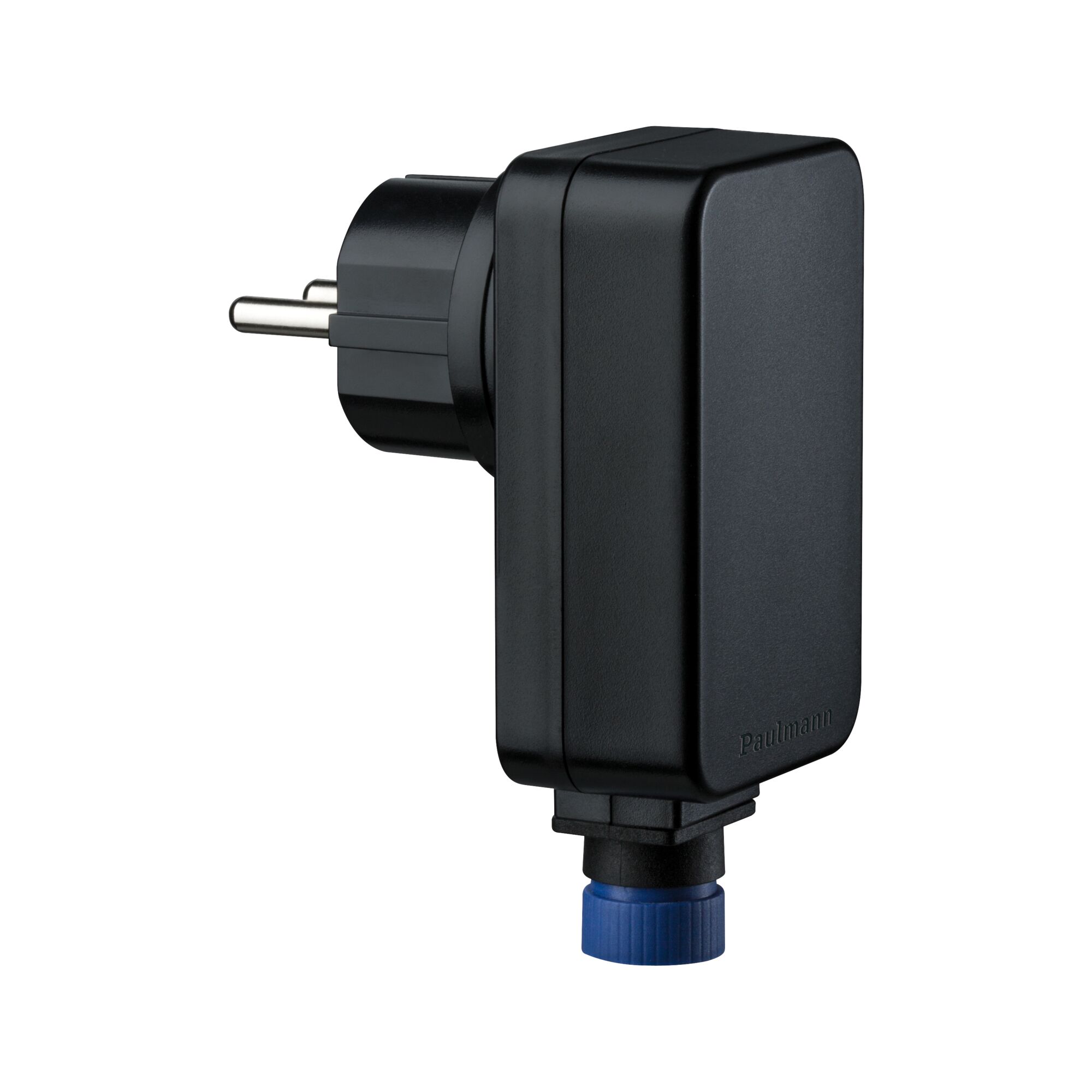

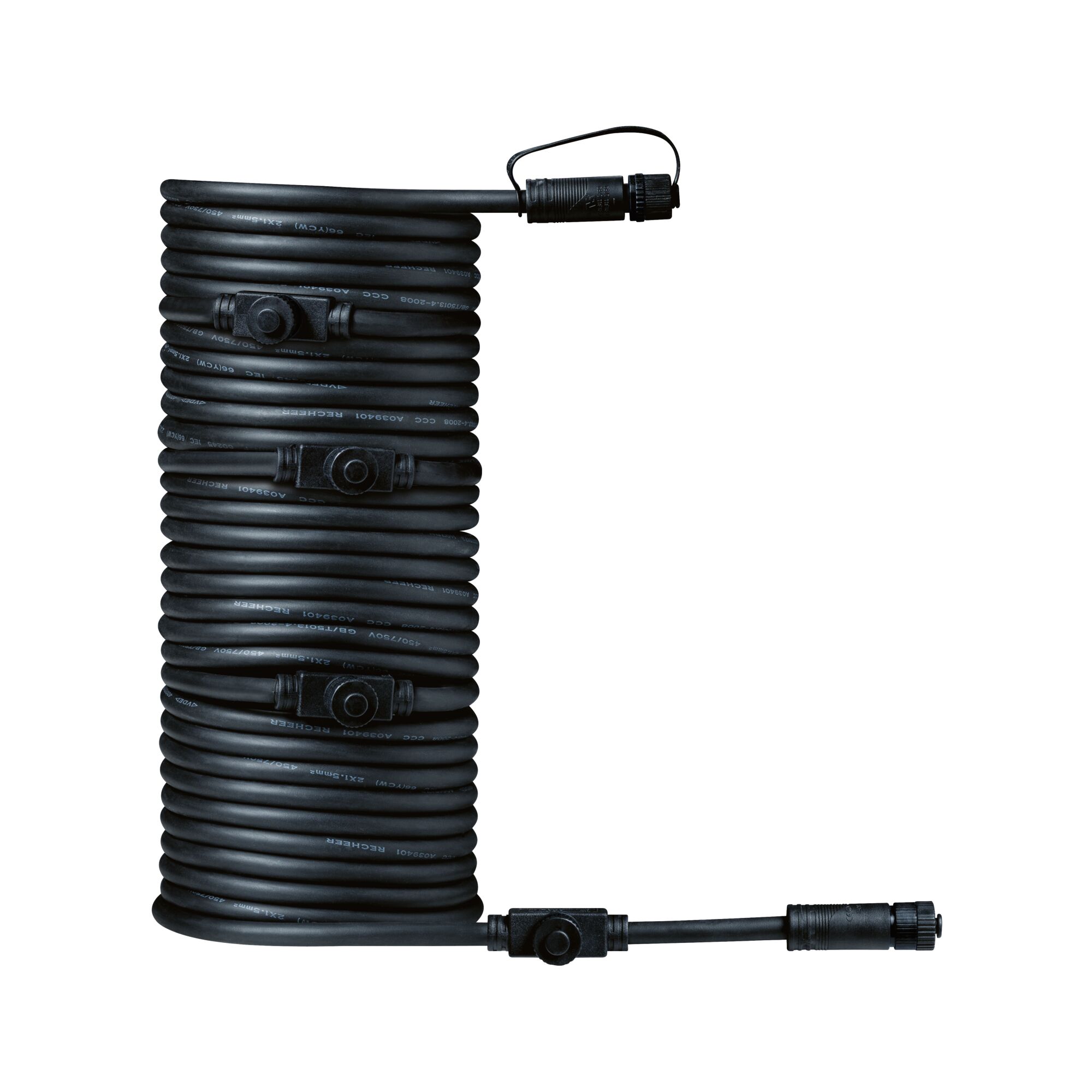

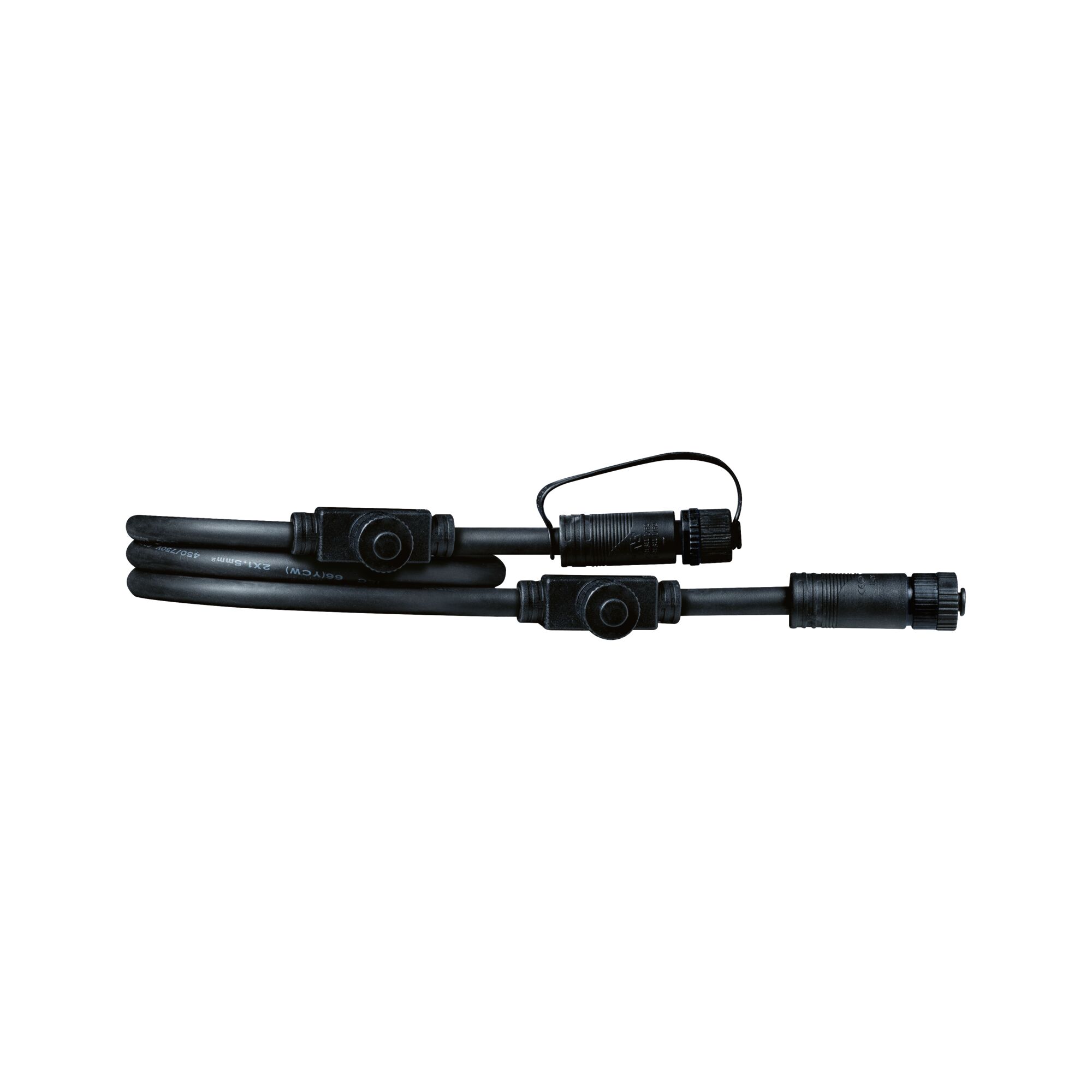

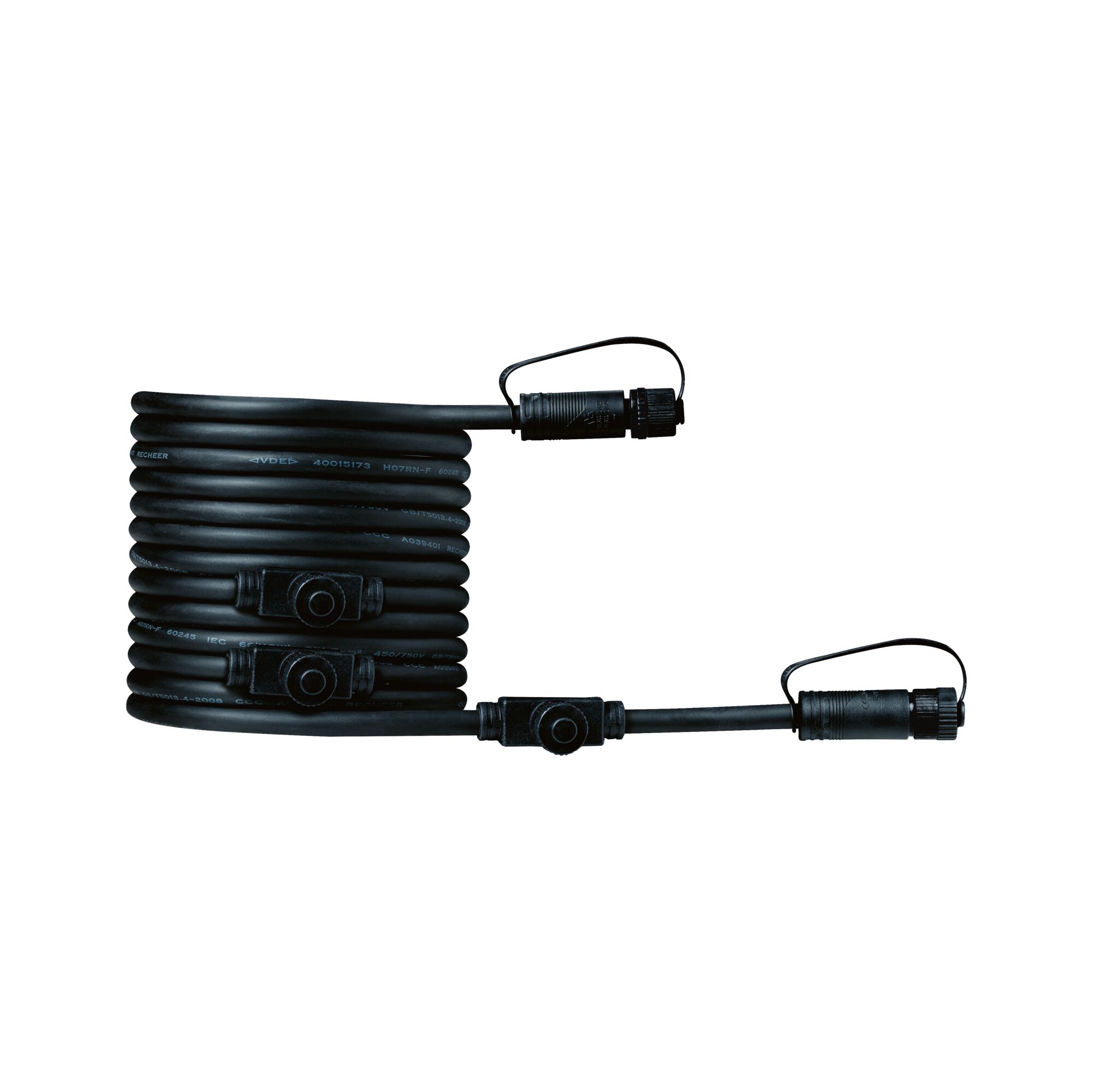

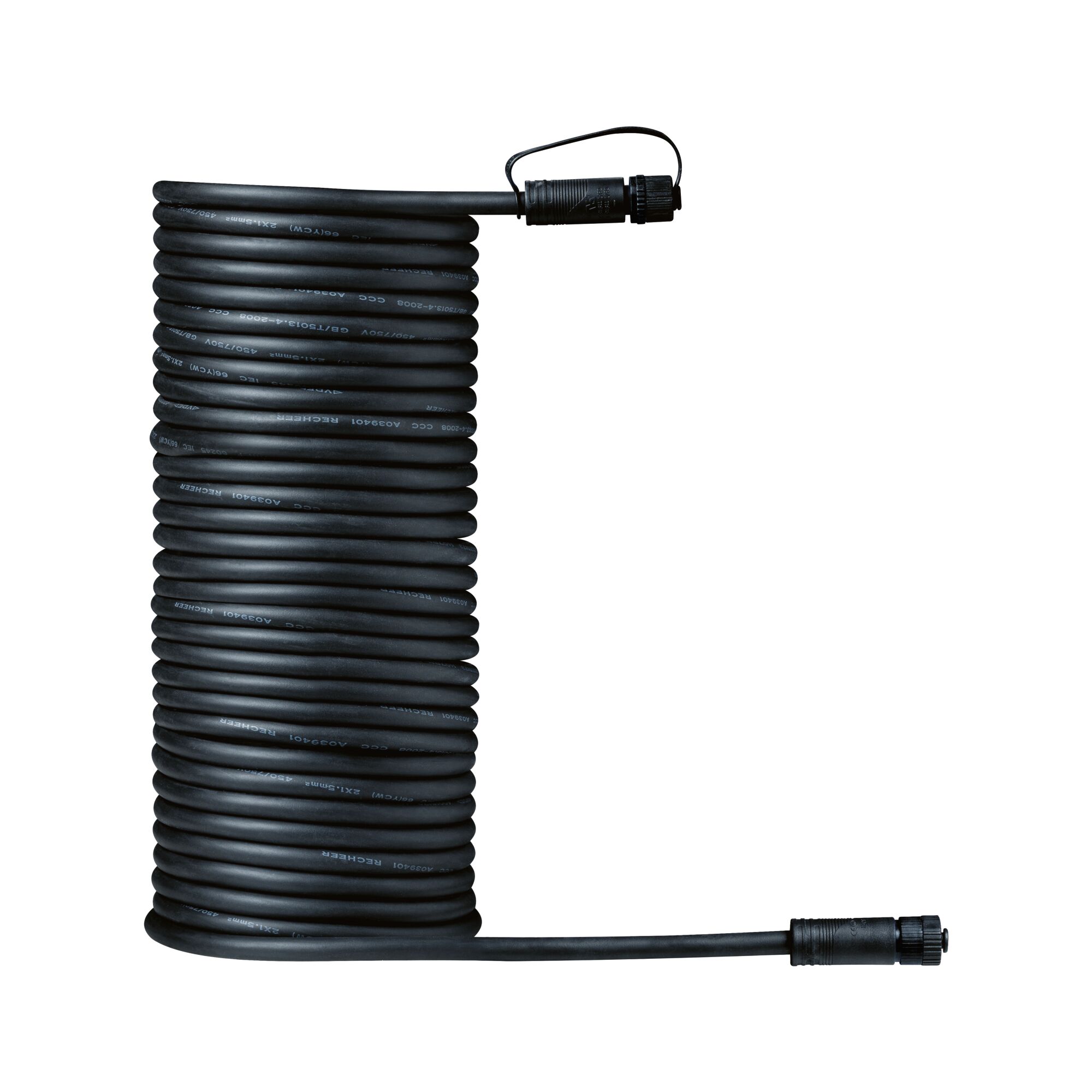

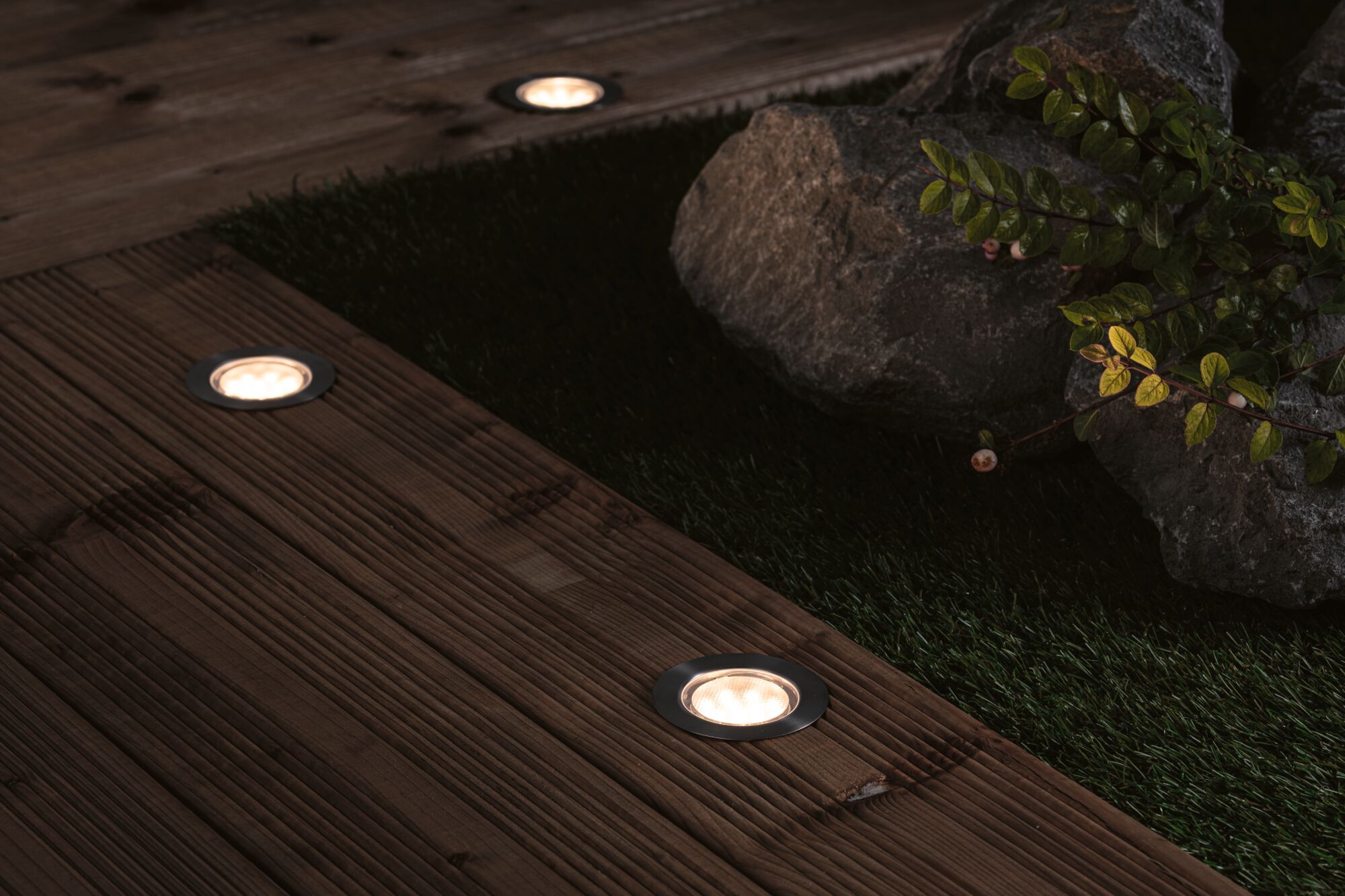

Plug & Shine Floor Eco floor recessed spotlights with water jet protection create decorative light points in warm white on paths, driveways and patios. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile an individual lighting installation for your outdoor spaces.
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white

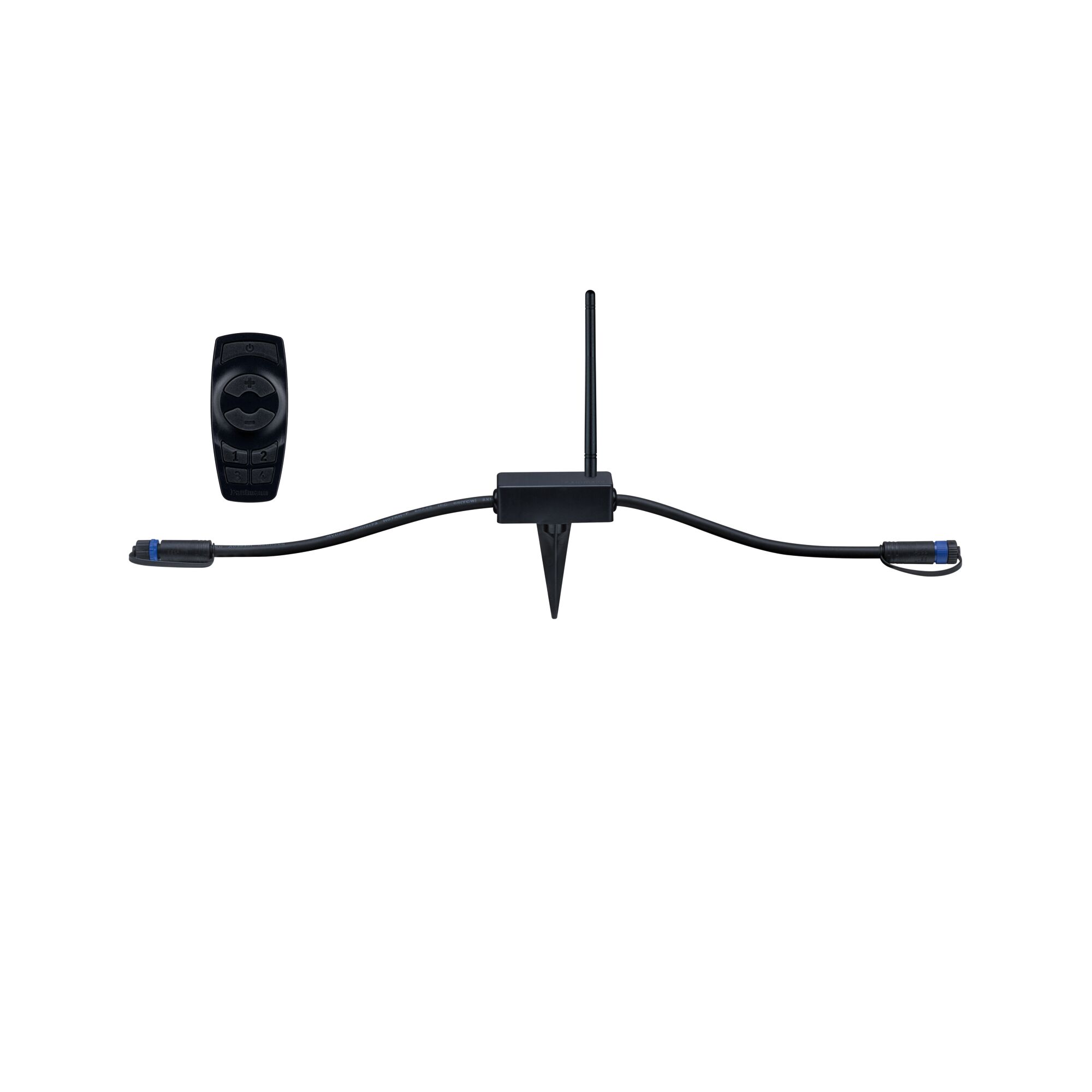

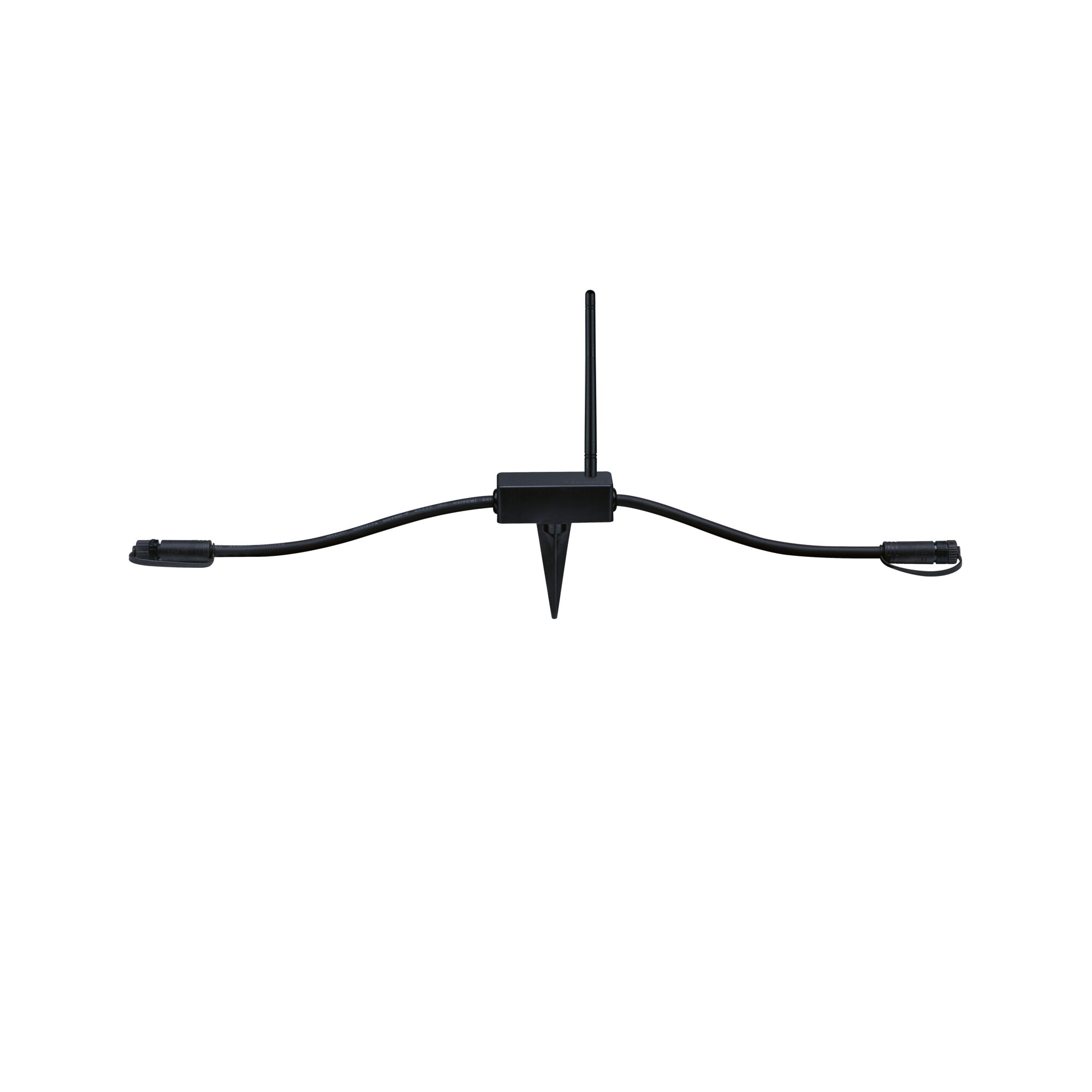

- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 70 mm |
| Mounting hole | 63 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Installation | |
|---|---|

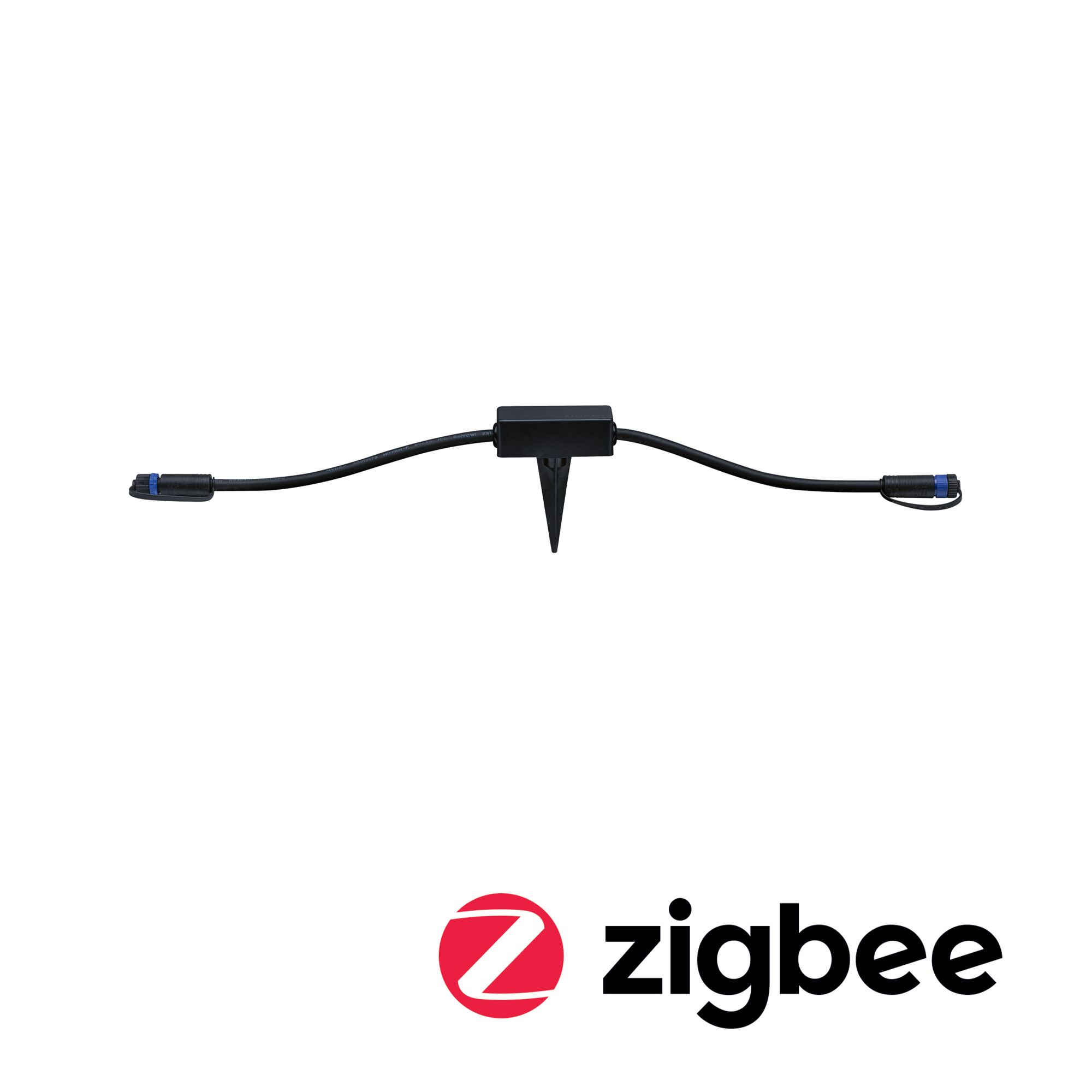

| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For decorative light points on paths, driveways and patios |
| Installation site (recommendation) | Floor mounting |
| Connections | |
|---|---|

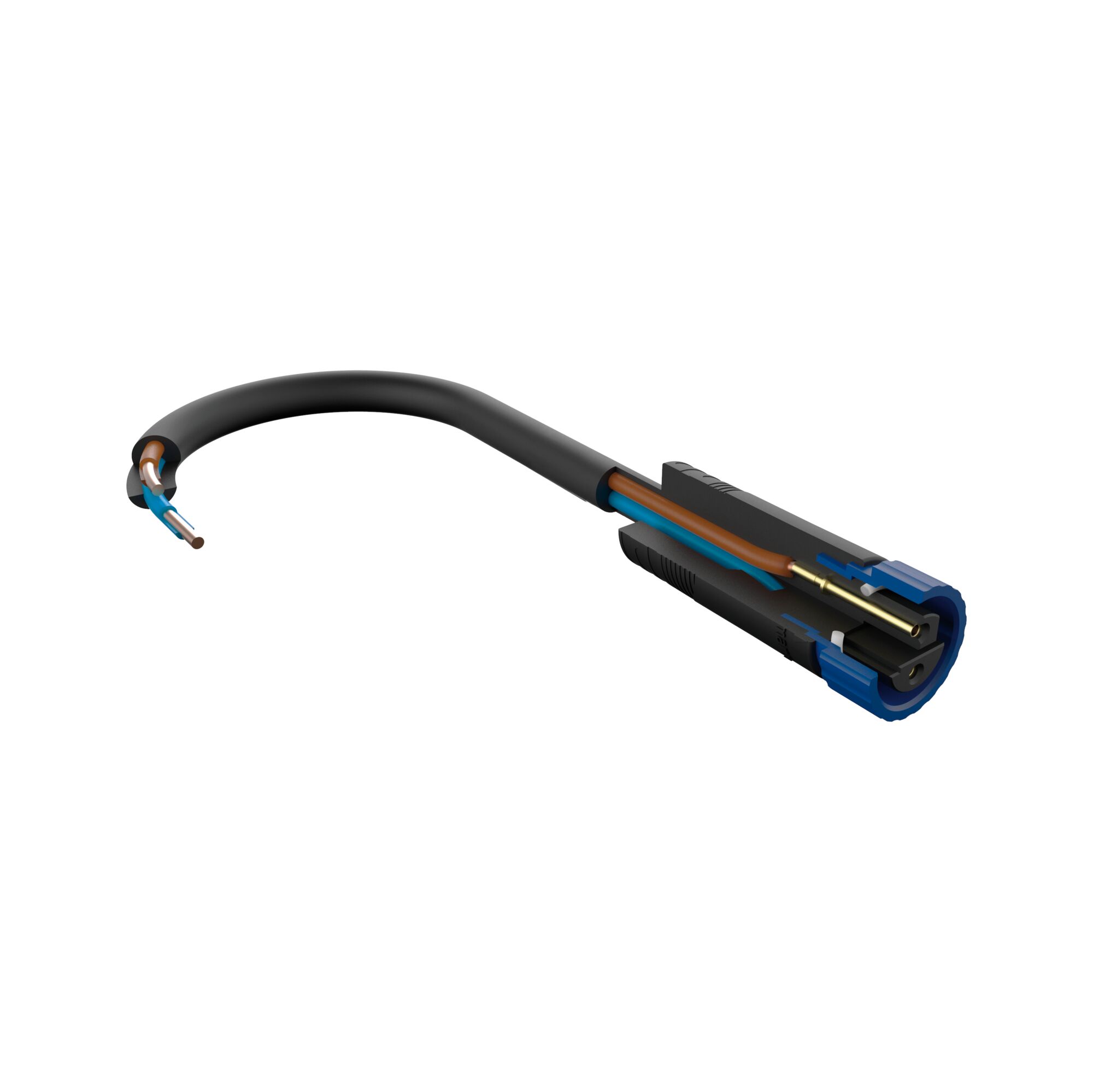

| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Beam angle | 90 ° |
| Usable luminous flux | 50 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 100 lm |
| Beam angle LED module | 110 ° |
| Lamp Features | |
|---|---|
| Component parts | 2 W |
| Technique | LED |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 1x |
| protection class | Protection class III |
| Maximum load | 100 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
