Article-No.:
94750
Plug & Shine
LED Bollard luminaire
Smart Home Zigbee 3.0
Plate
IP44 RGBW+ 5W Anthracite
IP44 RGBW+ 5W Anthracite
- Efficient LED technology
- IP protection: IP44 splash-protected
- Bollard light for optimum footpath lighting

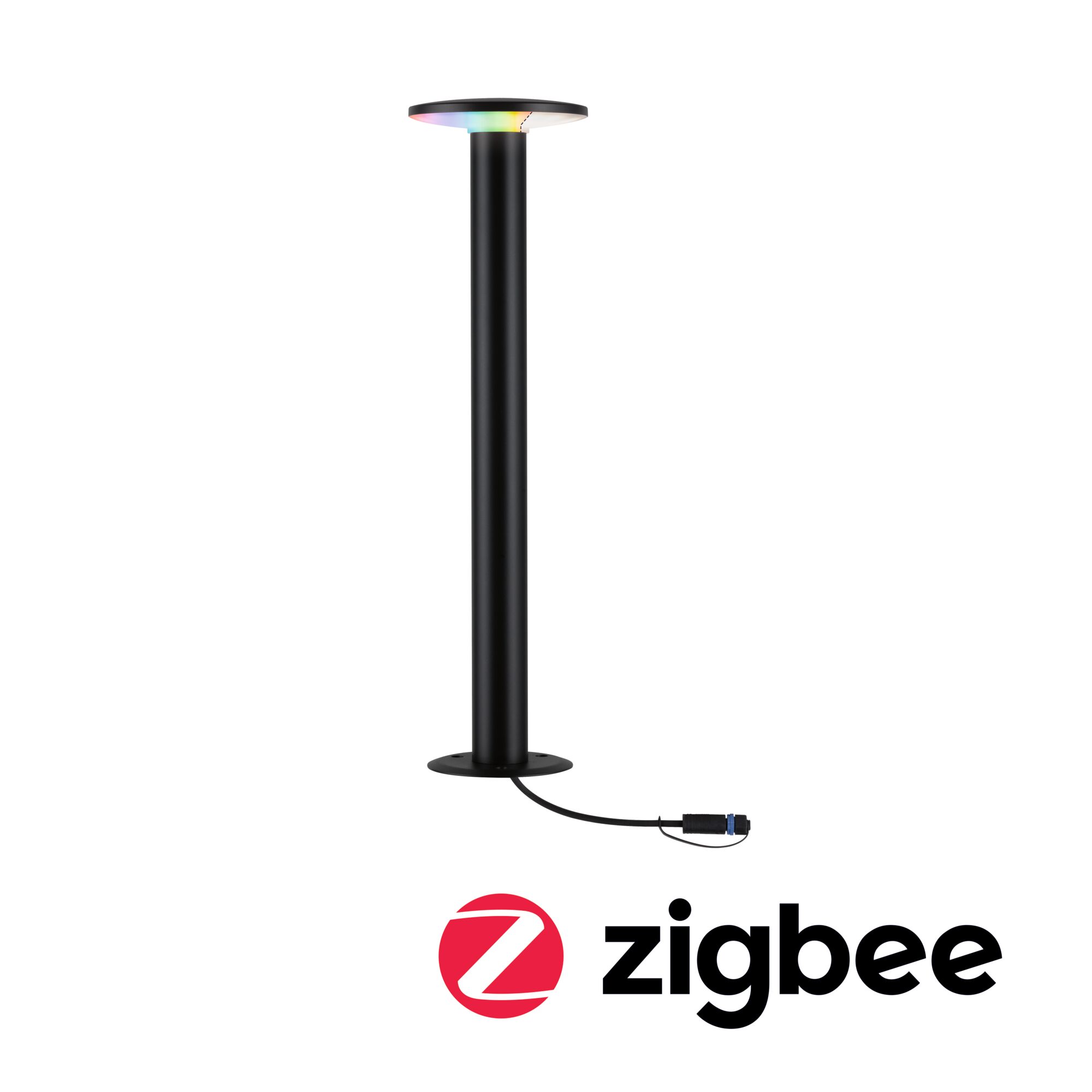

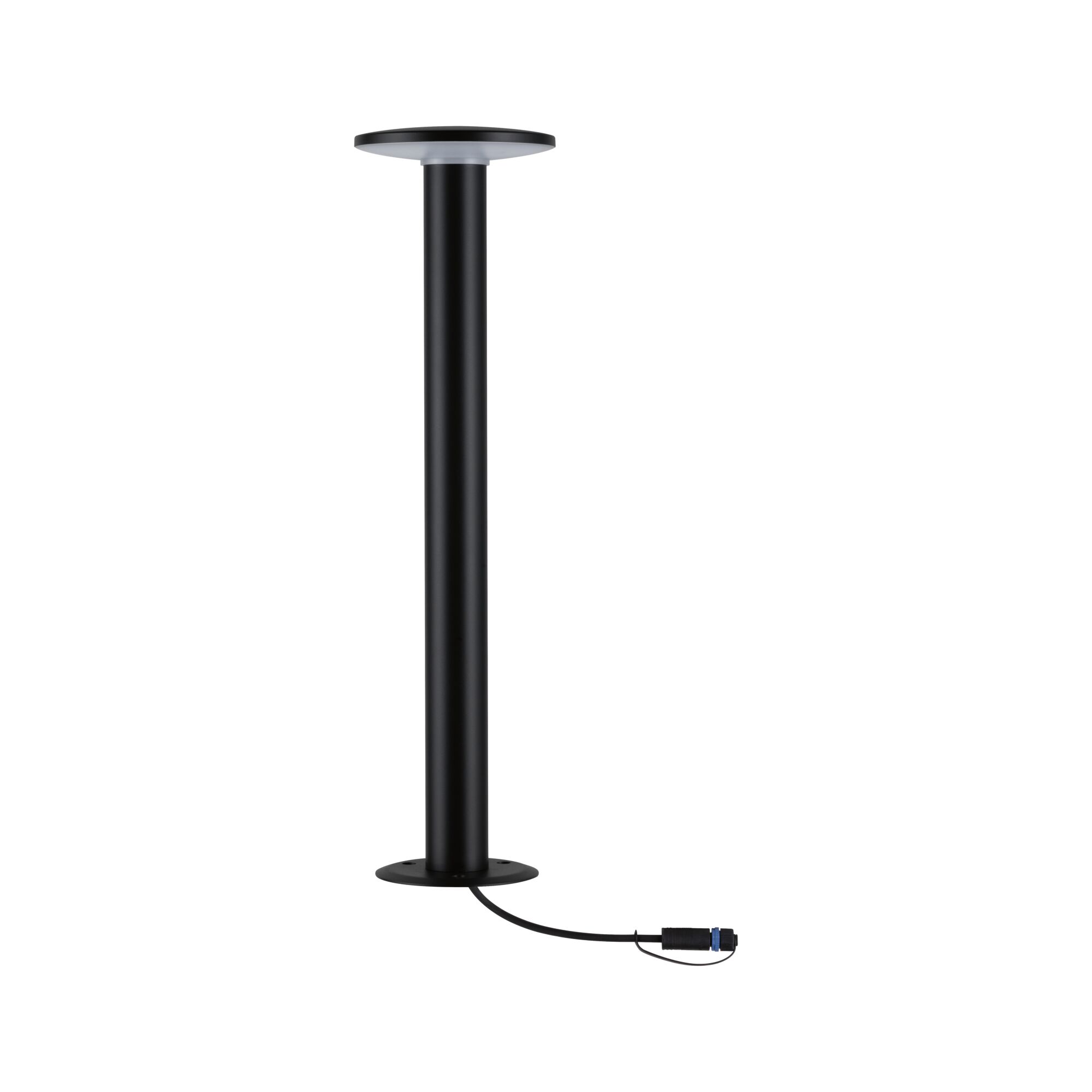

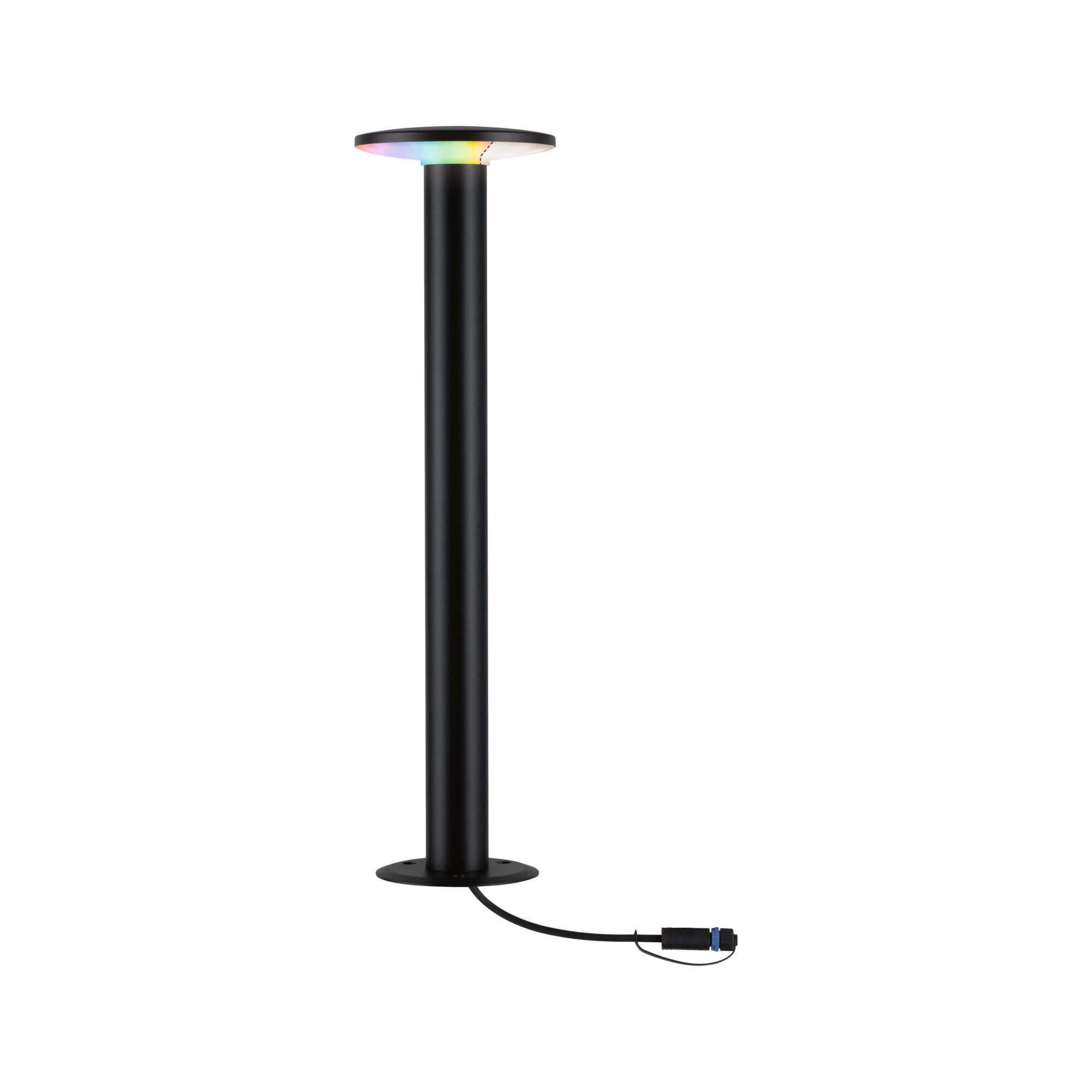

Plug & Shine LED Bollard luminaire Smart Home Zigbee 3.0 Plate IP44 RGBW+ 5W Anthracite

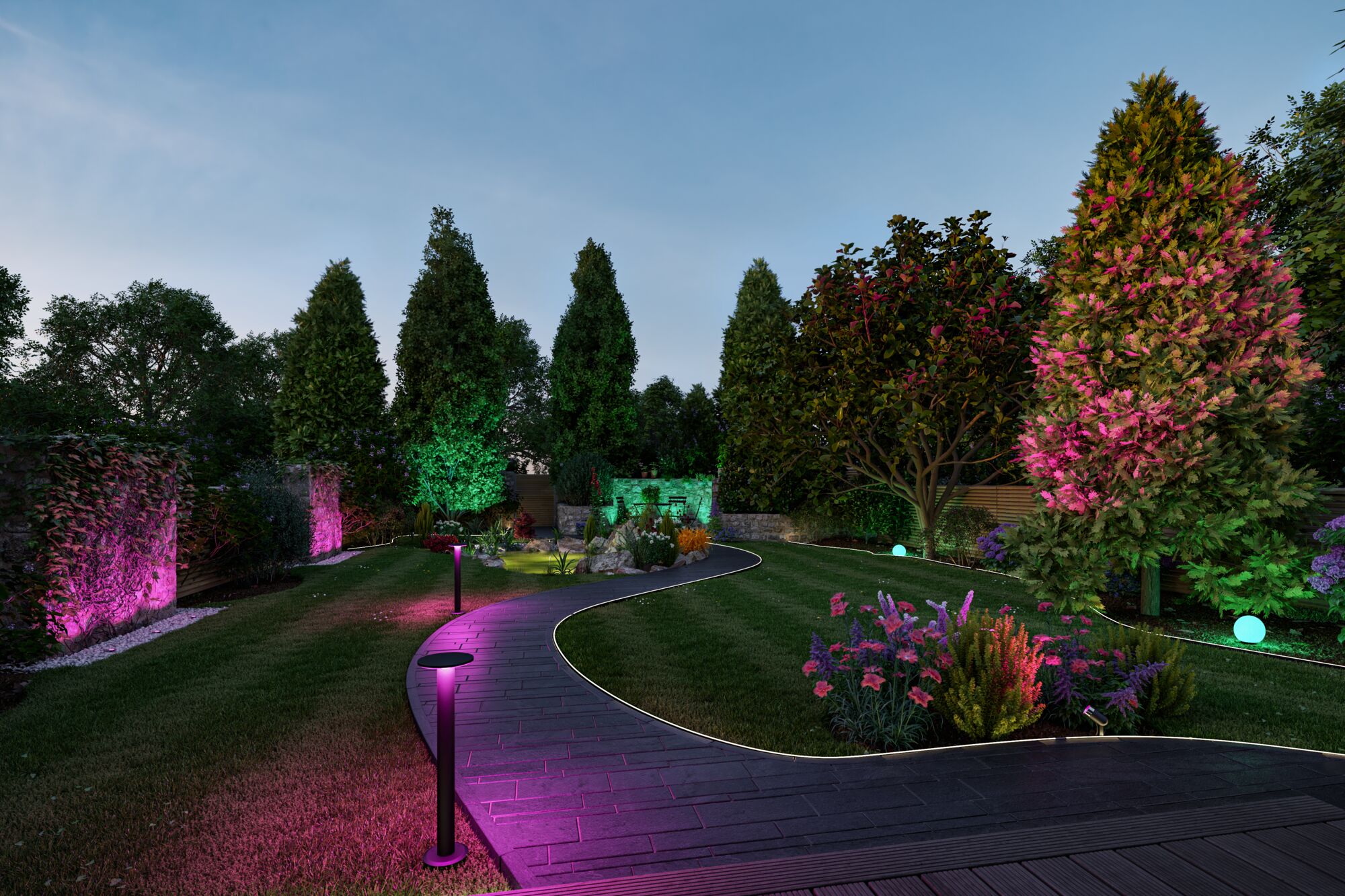

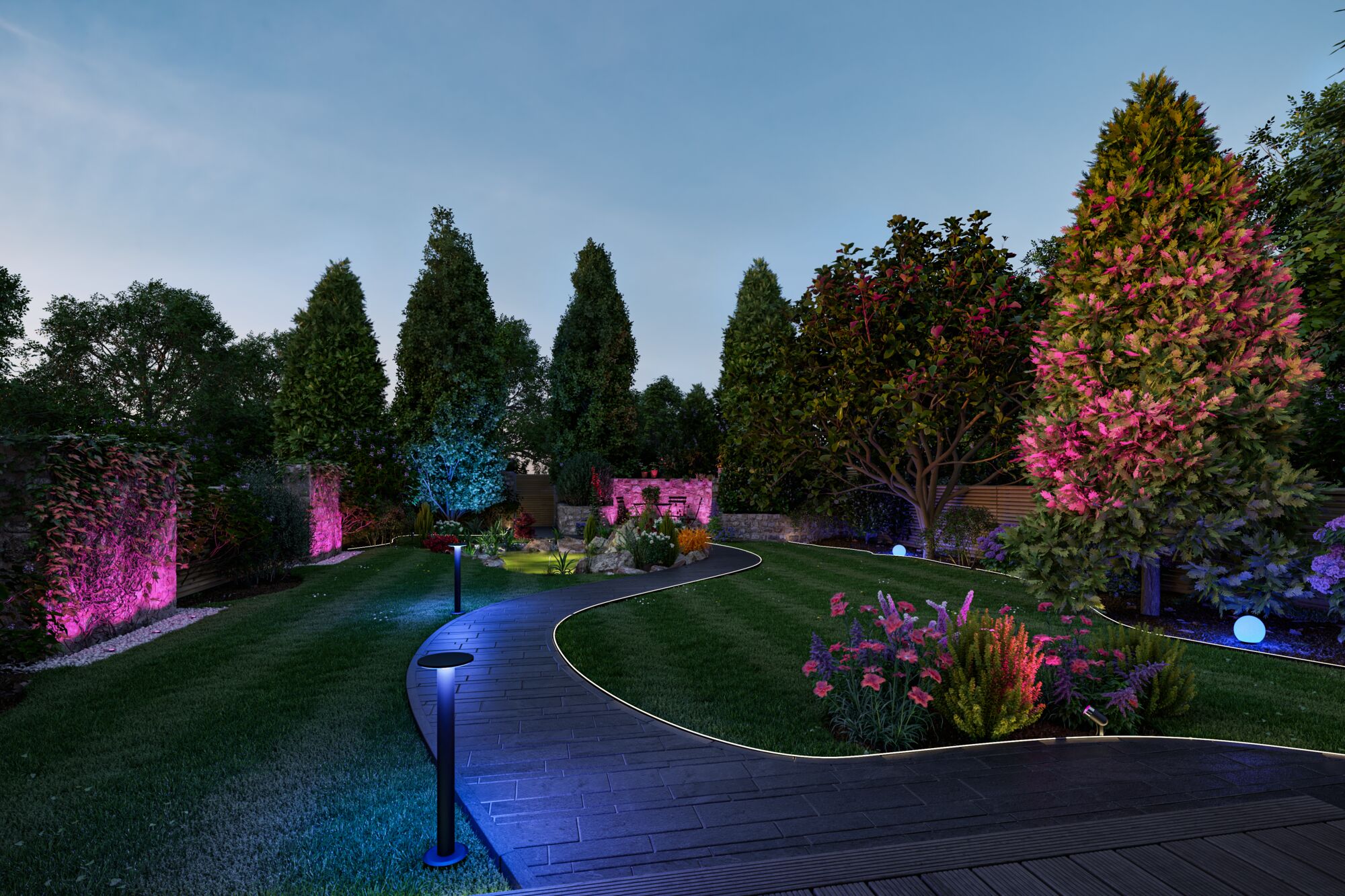

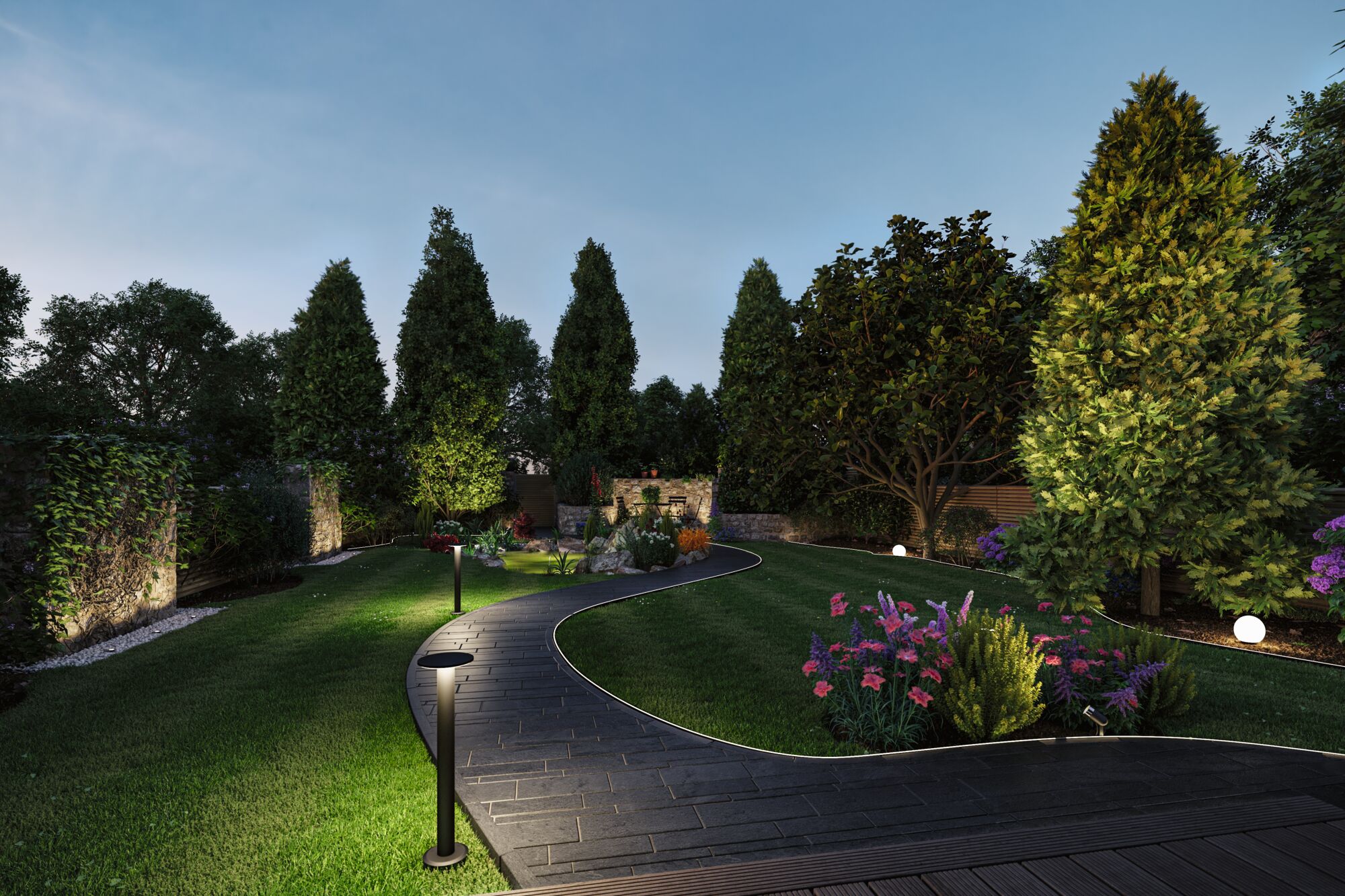

The bollard light Plug & Shine features 360° illumination and lights paths, driveways and favourite garden spots. Its 360-degree beam angle and high lumen output cast a broad light. The permanently installed LED modules can emit either coloured or white light. Colour settings are conveniently done via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed.
- Efficient LED technology
- IP protection: IP44 splash-protected
- Bollard light for optimum footpath lighting
- RGBW function offers a free choice of light colour
- LED lamp included in scope of delivery
- Don't forget: Order compatible transformers as well!
- Compatible with all accessories in the Plug & Shine series
| Dimension | |
|---|---|

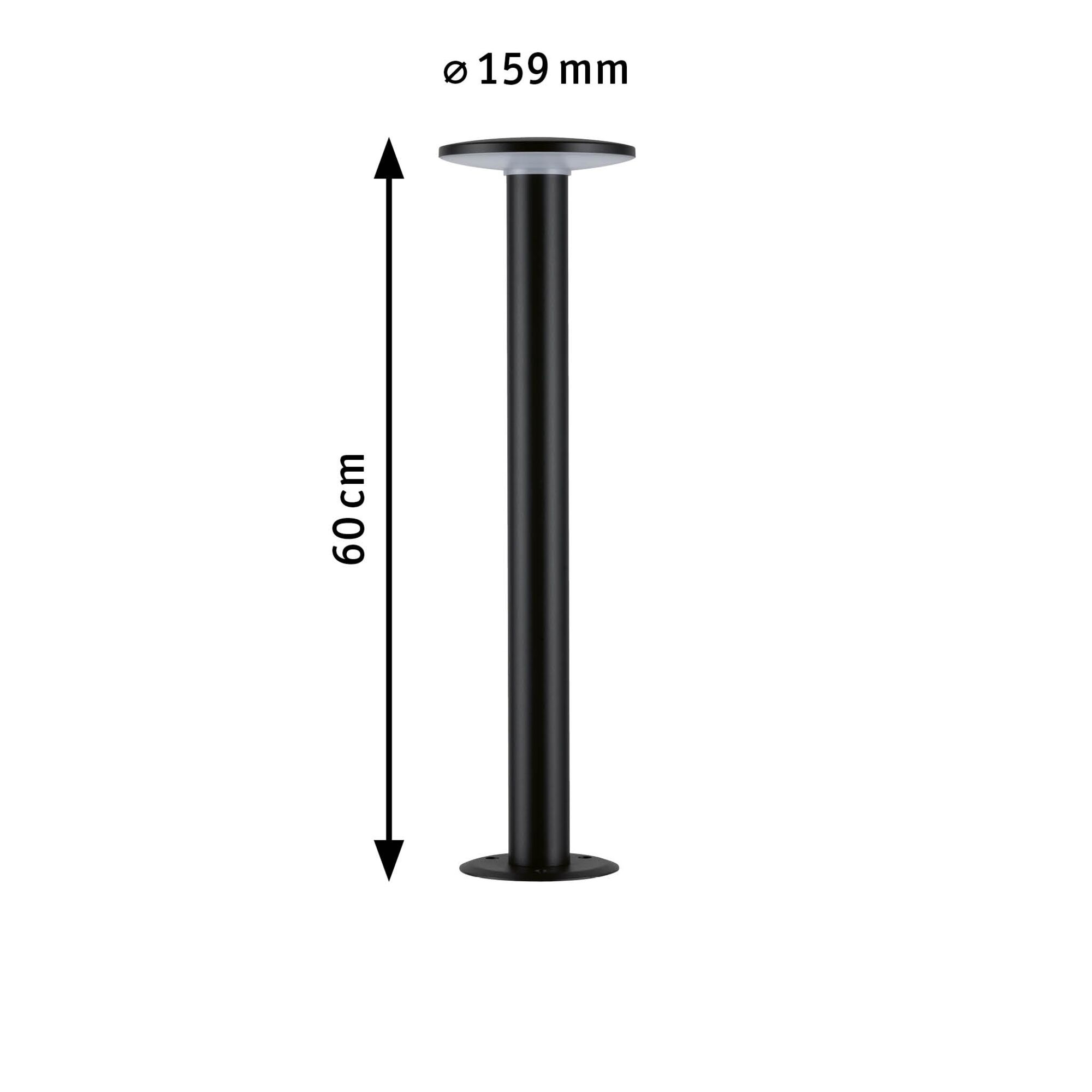

| Dimensions (Height x Width x Depth) | H: 600 mm |
| Ø | 159 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Usable luminous flux | 200 lm |
| Luminous flux LED module | 420 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 37 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,5 W |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
