Article-No.:
93418
- Warmdimm function
- Color temperatur: 2700K - Warm white

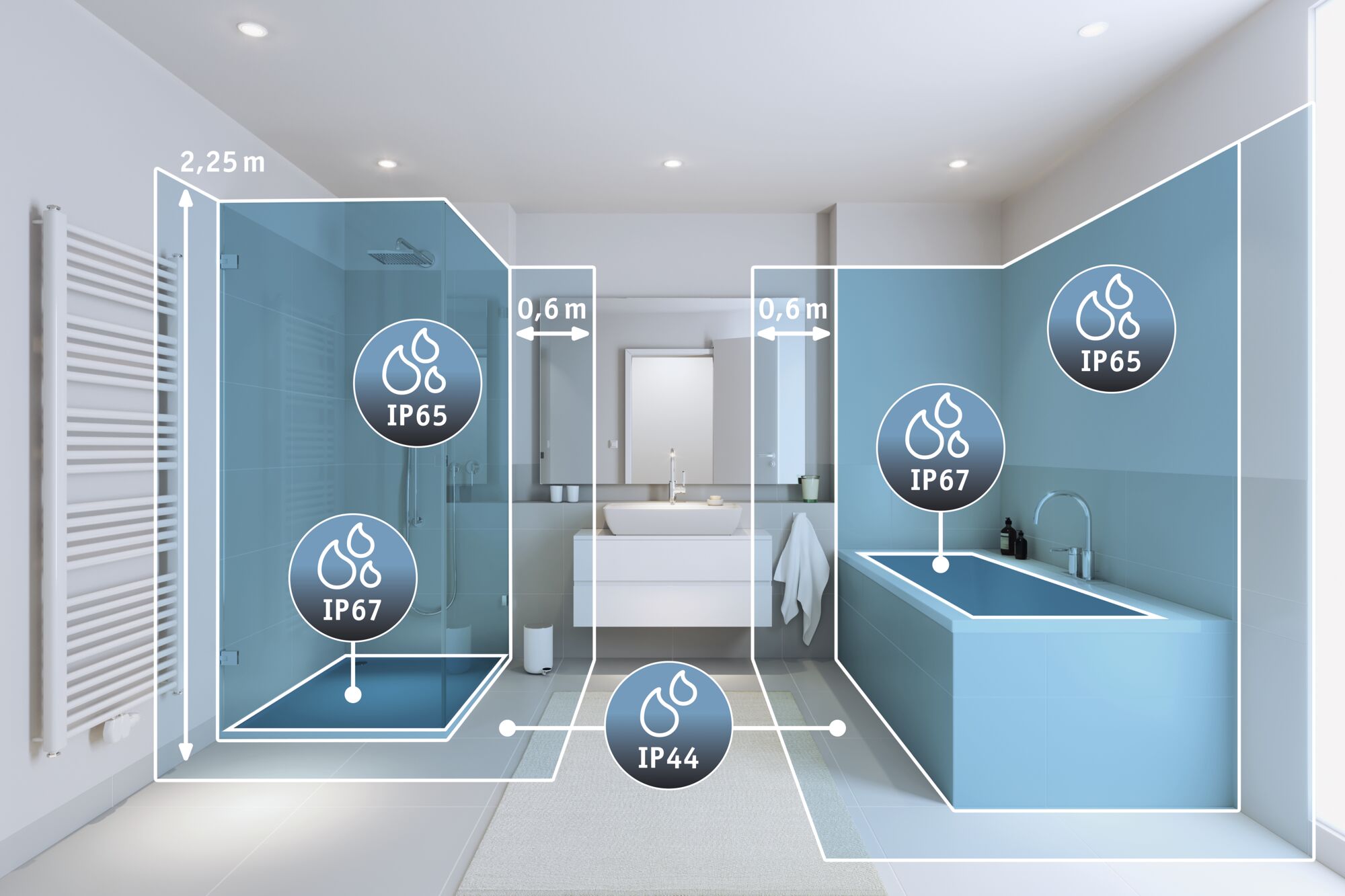

- IP protection: IP44 splash-protected

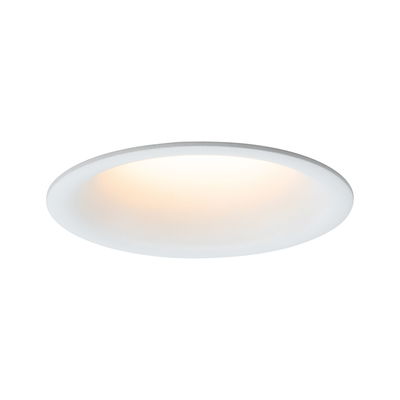

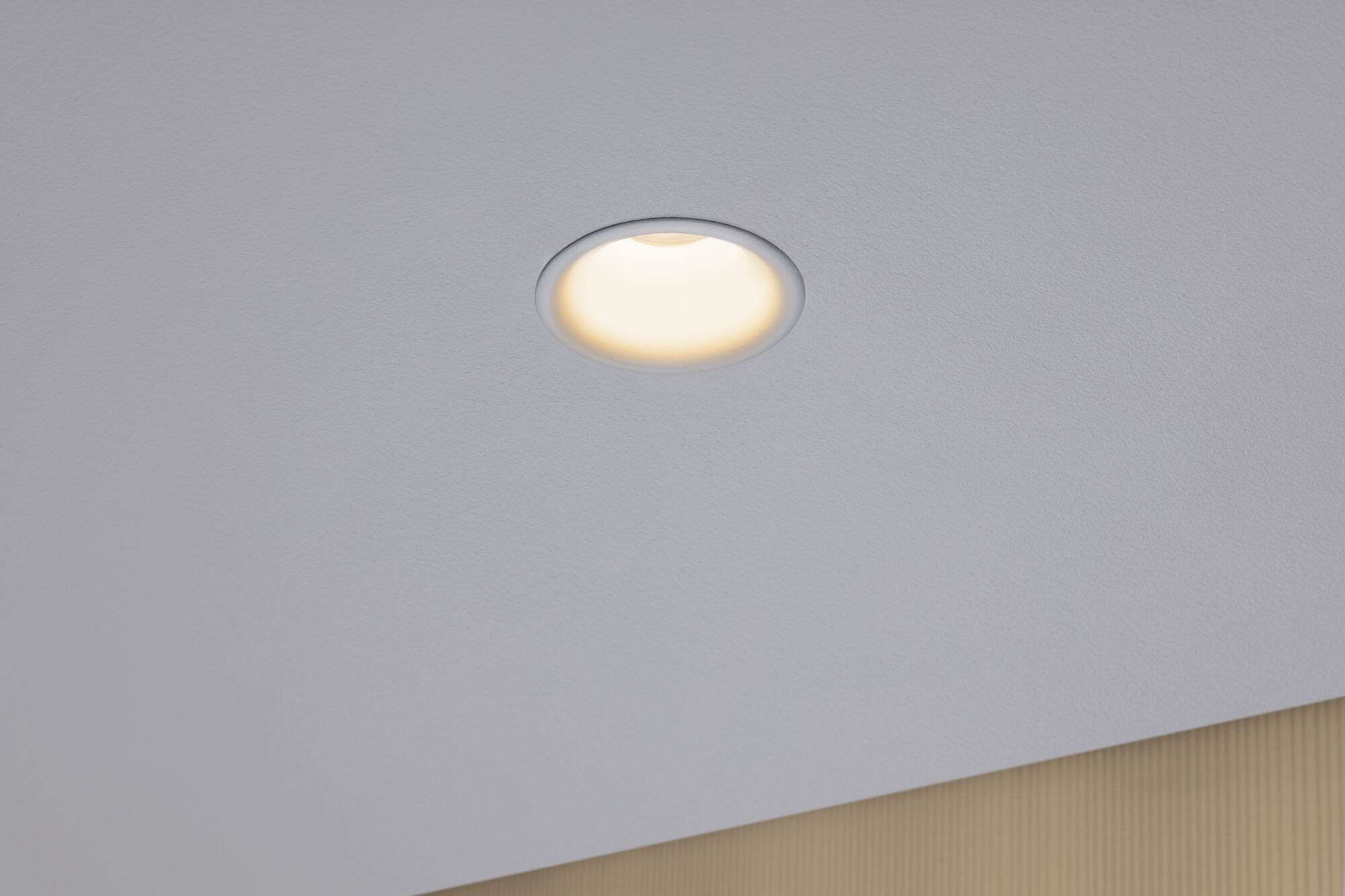

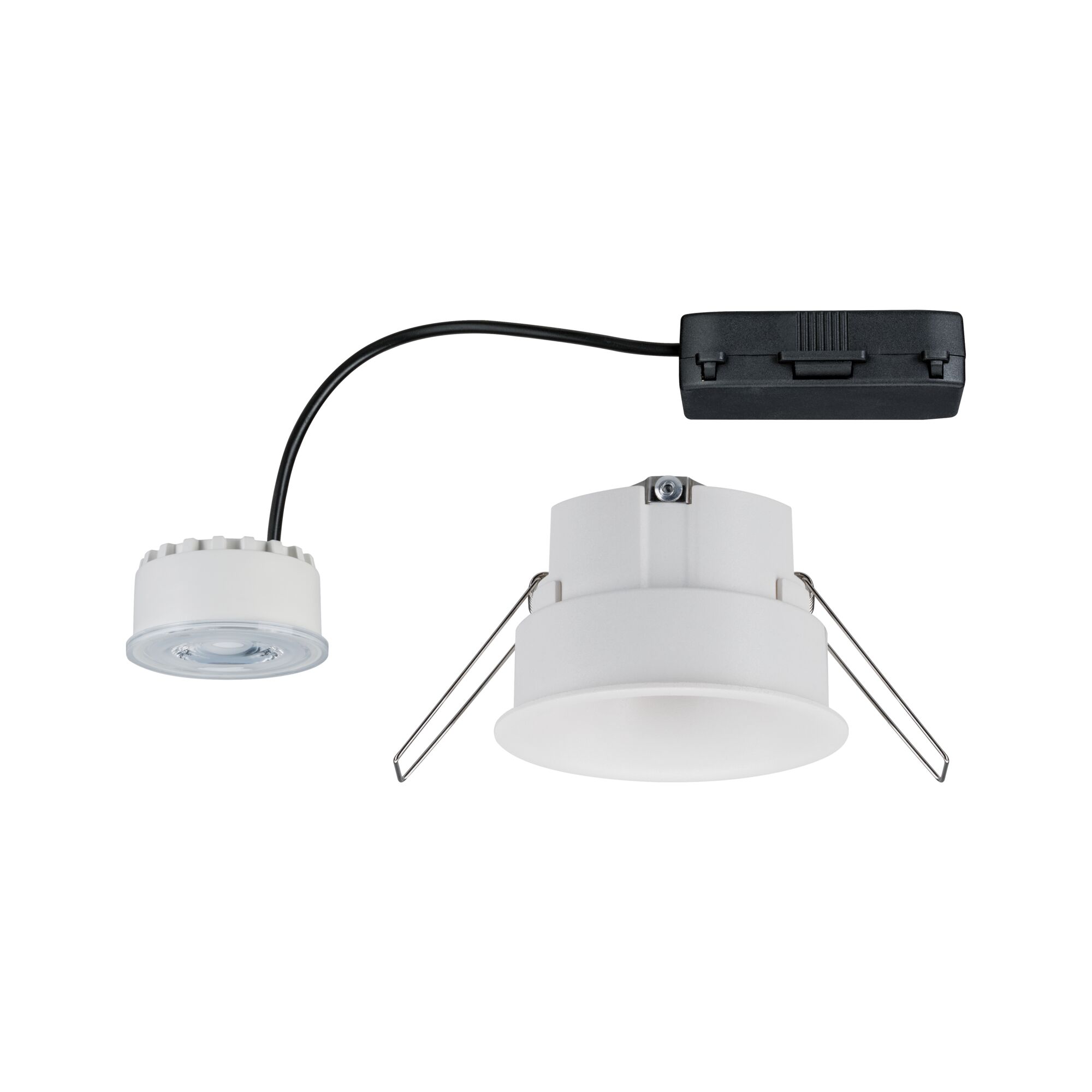

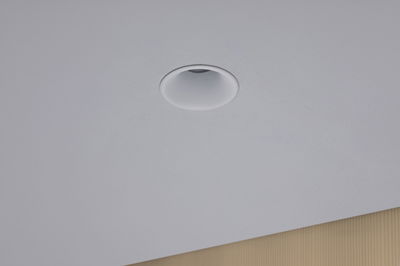

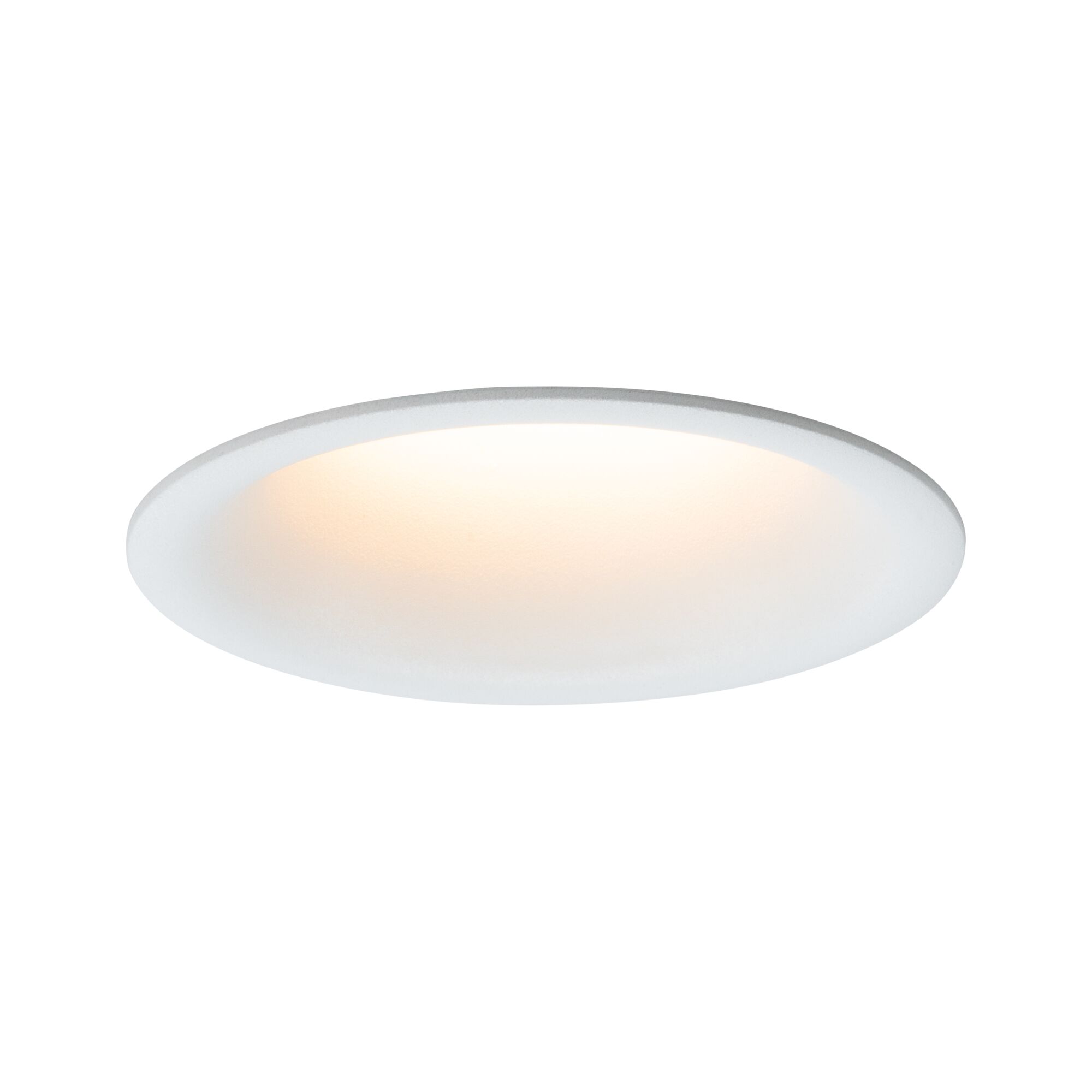

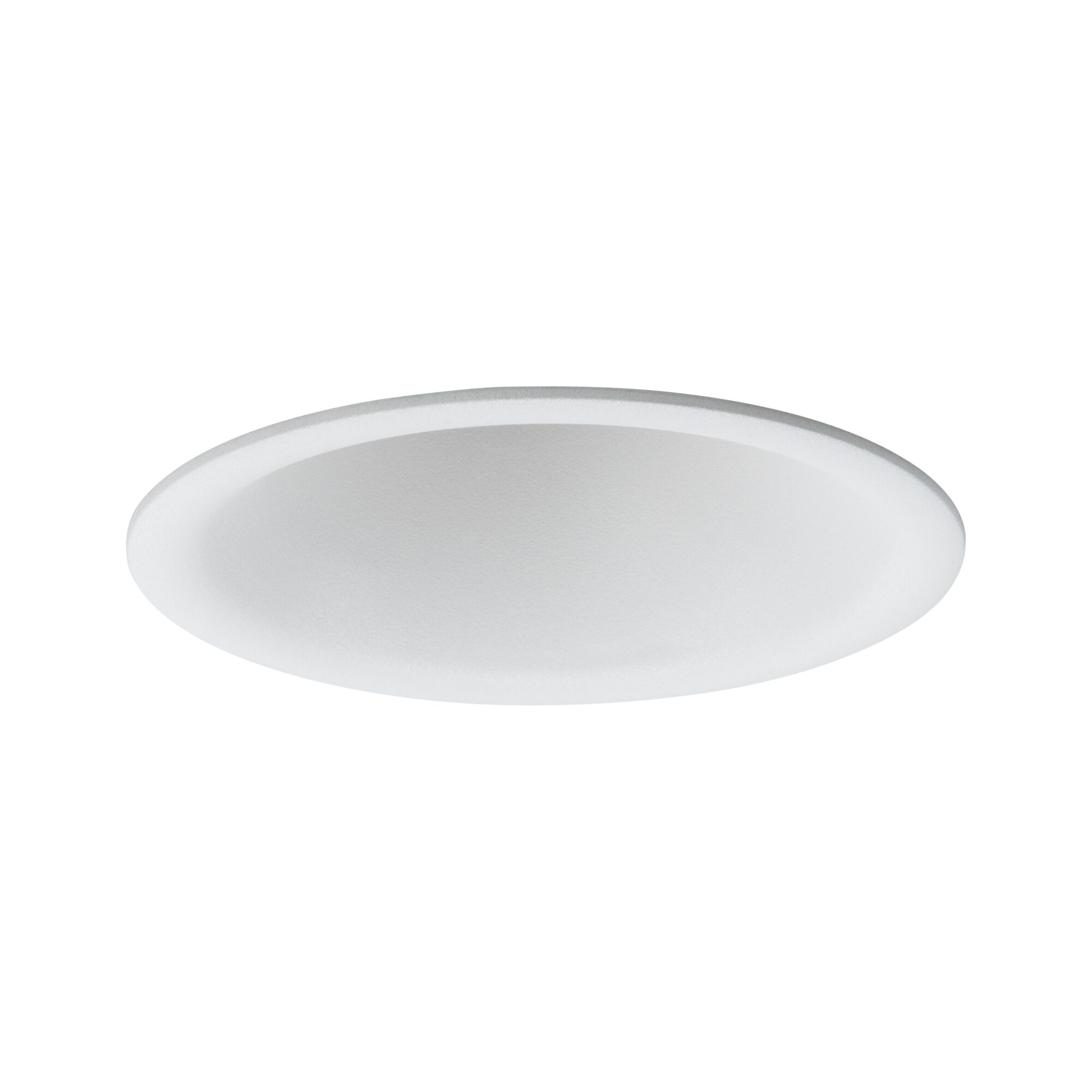

LED Recessed luminaire Cymbal Coin IP44 round 77mm Coin 6W 440lm 230V dimmable Dim to warm Matt white

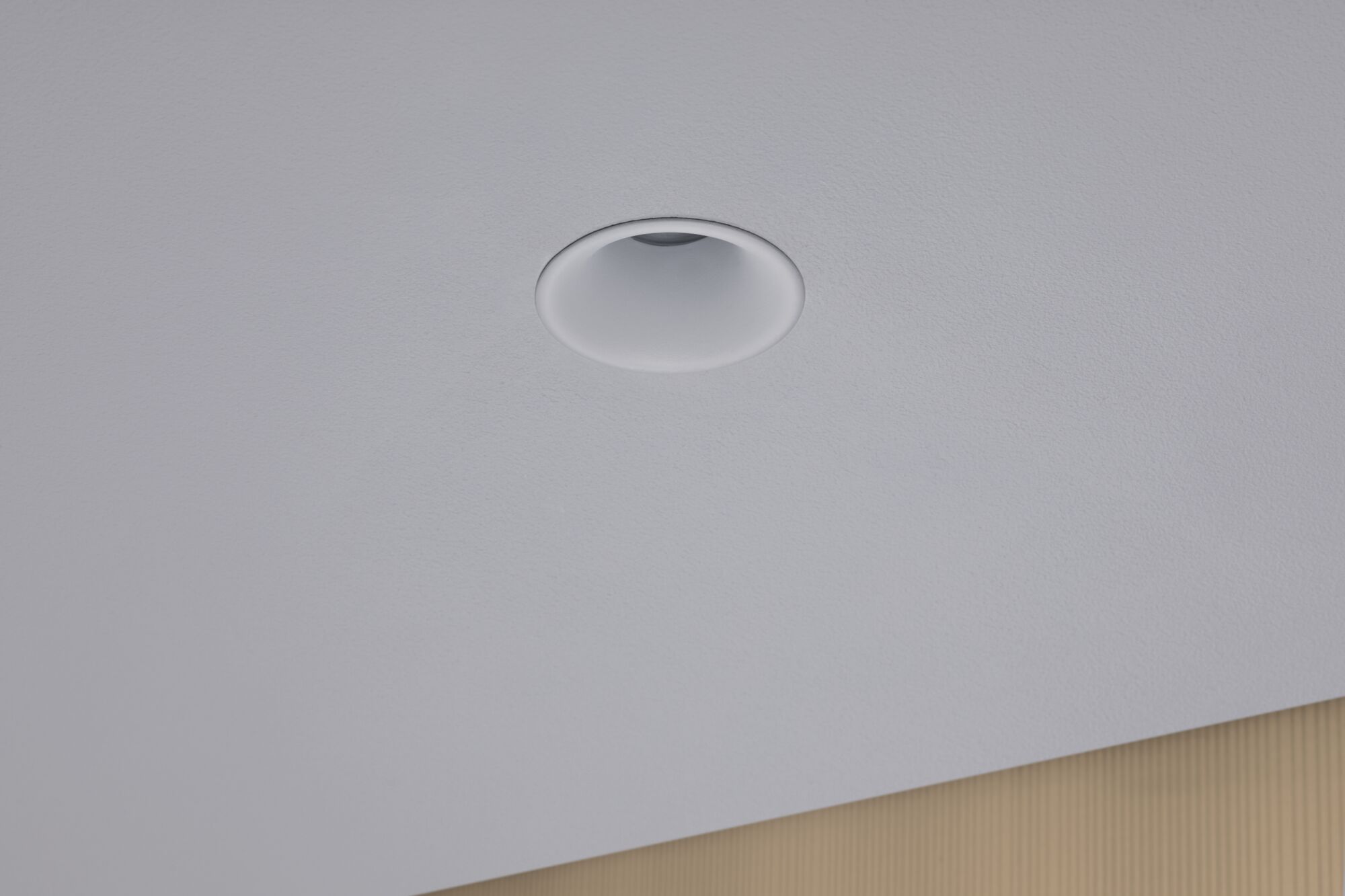

100% minimalist – the transparent material of the premium frameless recessed luminaire Cymbal makes it almost invisible when it is not lit. The slightly offset lamp ensures glare-free illumination. The light colour is steplessly dimmable between 2,000 Kelvin (gold light) and 2,700 Kelvin (warm white light). Use it to match the ambiance in your home to your mood.
- Warmdimm function
- Color temperatur: 2700K - Warm white
- IP protection: IP44 splash-protected
- For 230 V direct connection

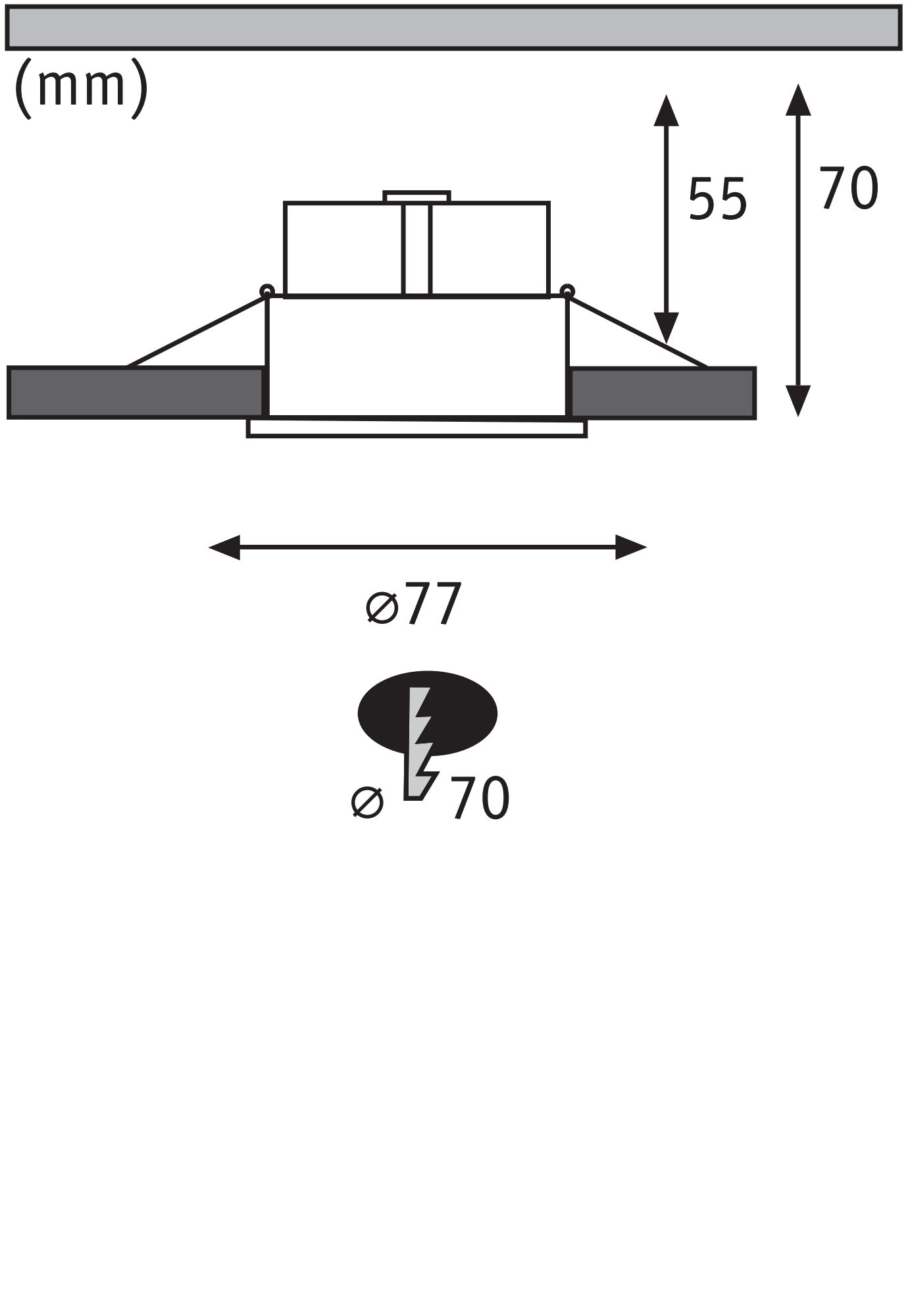

| Dimension | |
|---|---|
| Diameter | 77 mm |
| Dimensions (Height x Width x Depth) | H: 50 mm |
| Built-in diameter | 70 mm |
| Mounting depth | 70 mm |
| Depth of hollow wall | 55 mm |
| net weight | 156 g |
| Design and Material | |
|---|---|
| Form | round |
| Light source shape | Coin |
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 30000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 440 lm |
| Colour change | Dim to warm |
| Color rendering index | > 80 Ra |
| Beam angle | 45 ° |
| Colour temperature to | 2700 K |
| Colour temperature | Gold light to Warm white, 2000 K |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Without light source |
| Incandescent Equivalent | 40 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Maximum wattage range | max. 10 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads

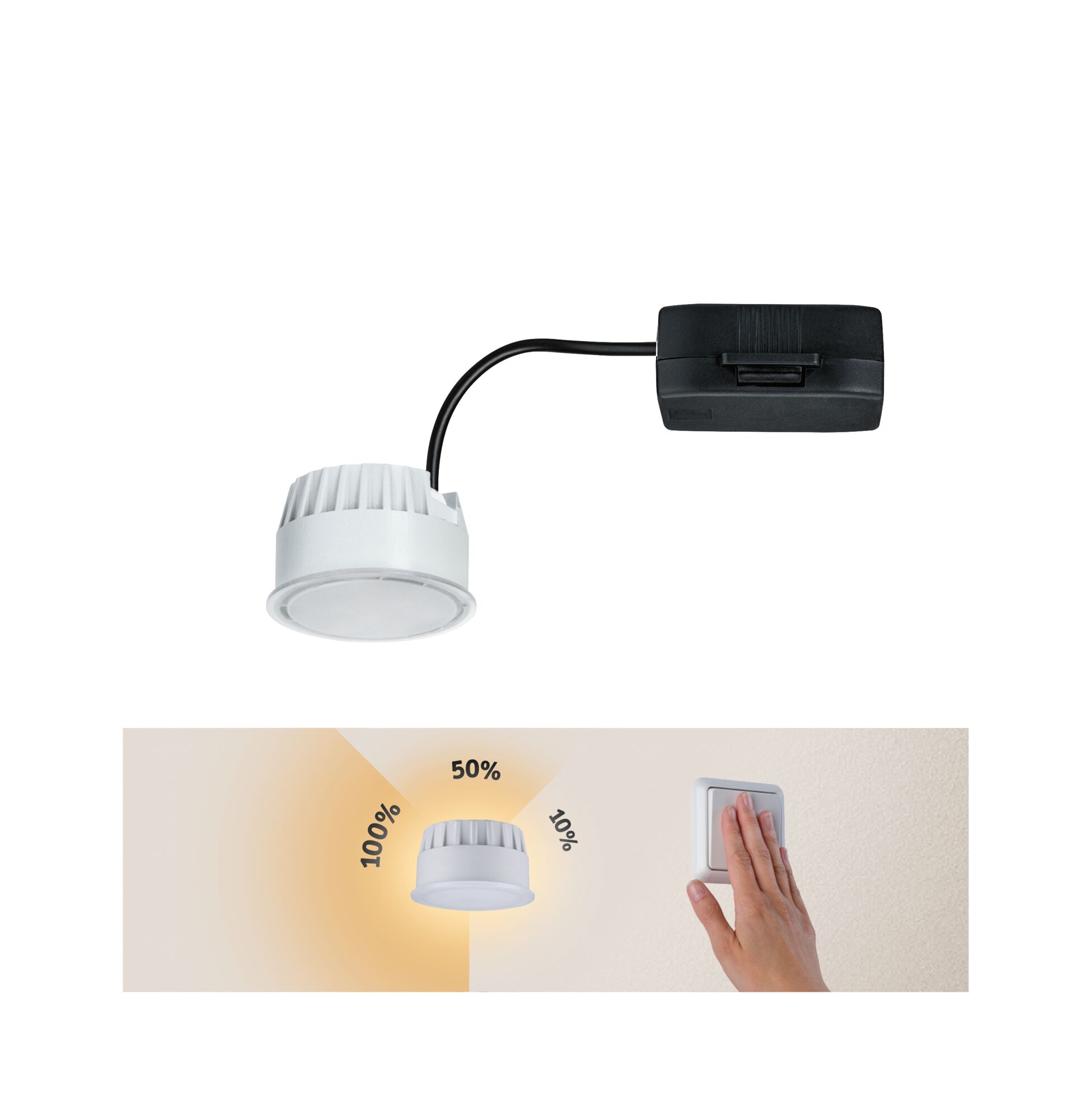

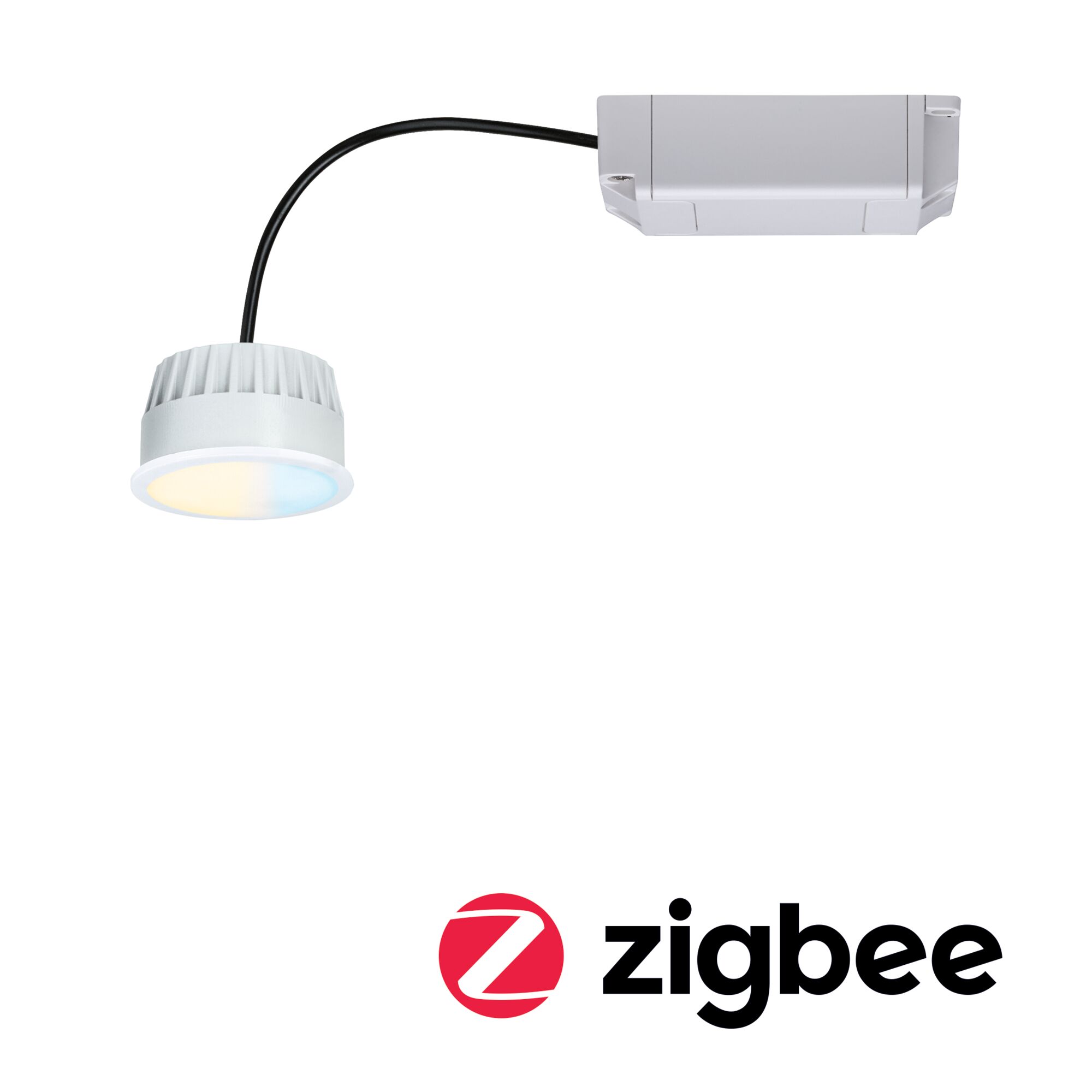

- LED Module recessed luminaire
