Article-No.:
93075
LED Module recessed luminaire
Smart Home Zigbee 3.0
RGBW Coin
round 50mm Coin 5,2W 400lm 230V dimmable RGBW+ Satin
round 50mm Coin 5,2W 400lm 230V dimmable RGBW+ Satin
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Very flat – can also be mounted in small cavities of only 30 mm depth

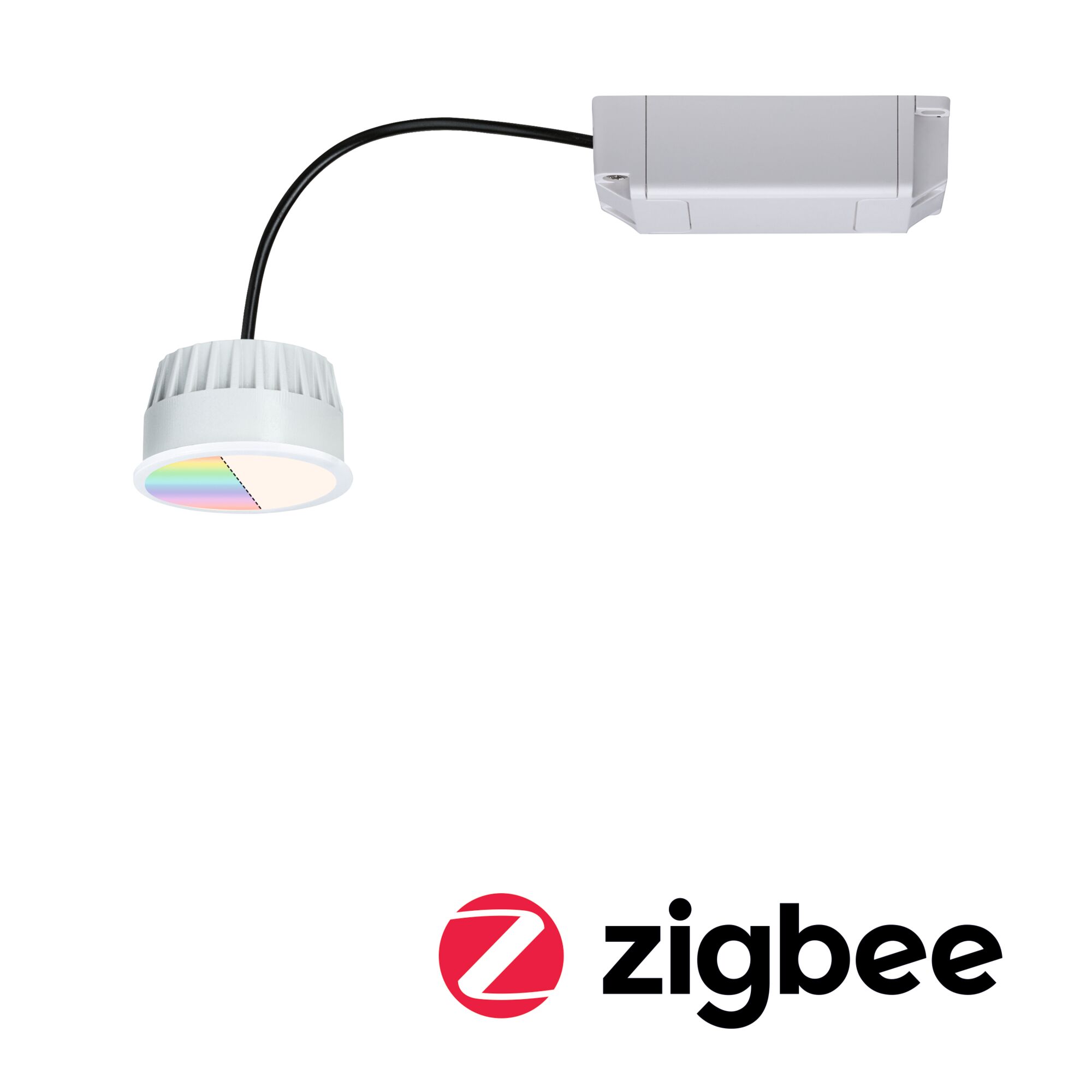

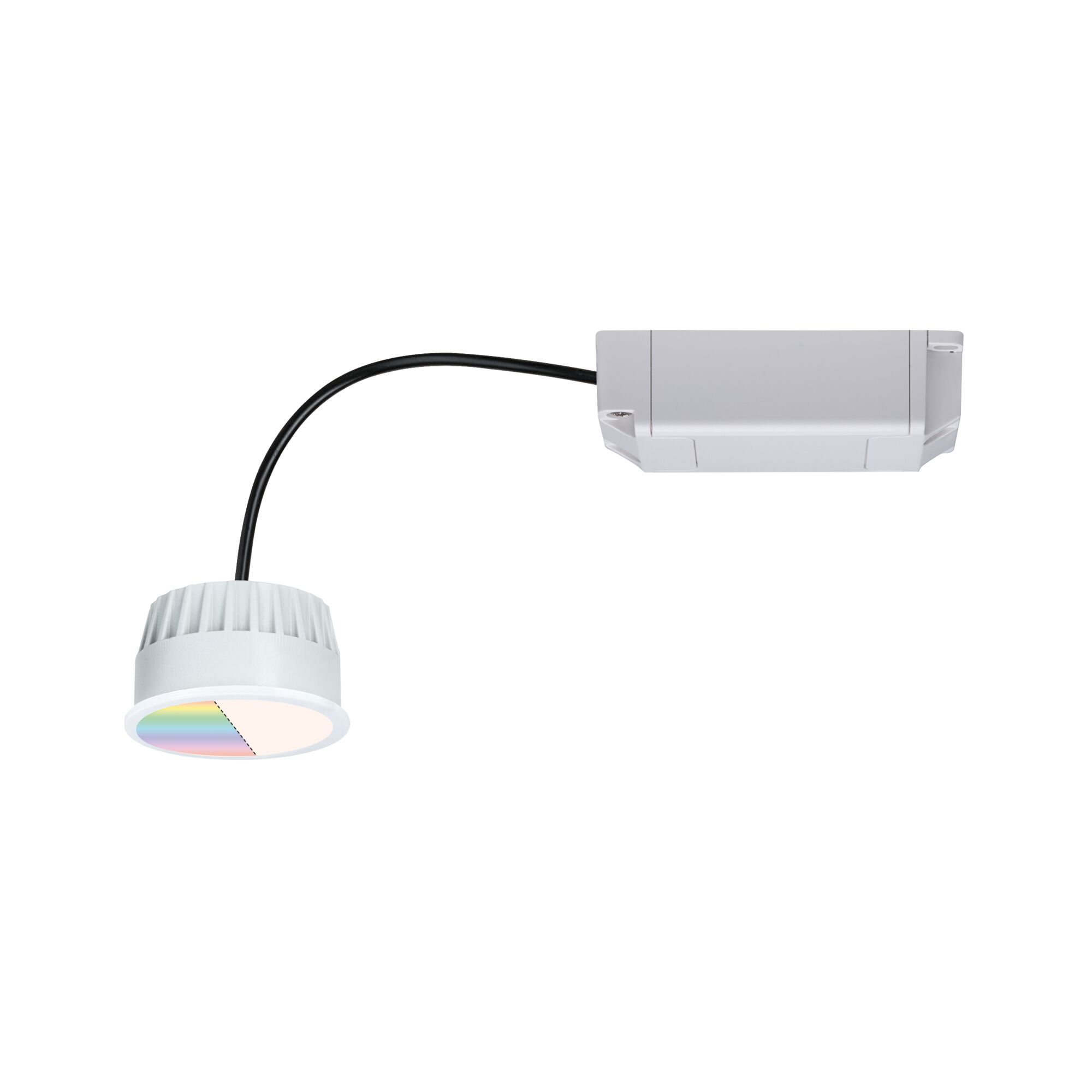

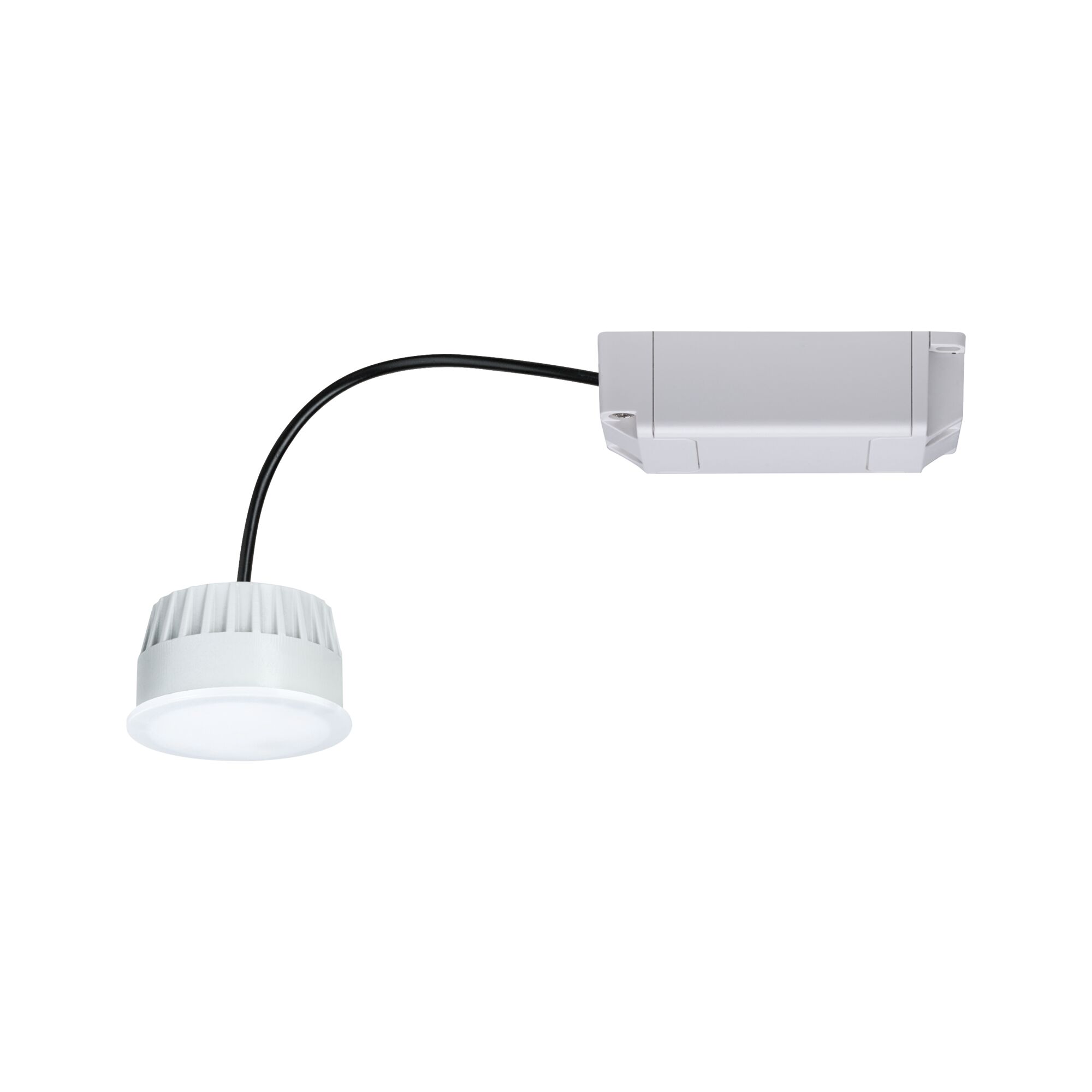

LED Module recessed luminaire Smart Home Zigbee 3.0 RGBW Coin 1-piece set round 50mm Coin 5,2W 400lm 230V dimmable RGBW+ Satin
The innovative, smart coins can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51Â mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the RGBW coin connected with quick clips and you are ready to go! Depending on your mood, you can select between daylight white, coloured light and various other effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interconnects devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To control the coins, you can choose between a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Individual components can be addressed, or switched on and off in groups as lighting scenarios.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- Efficient LED technology
- Infinitely dimmable
- RGBW multicolour colour change
- Color temperatur: 2700K - Warm white - 6500K -Daylight white

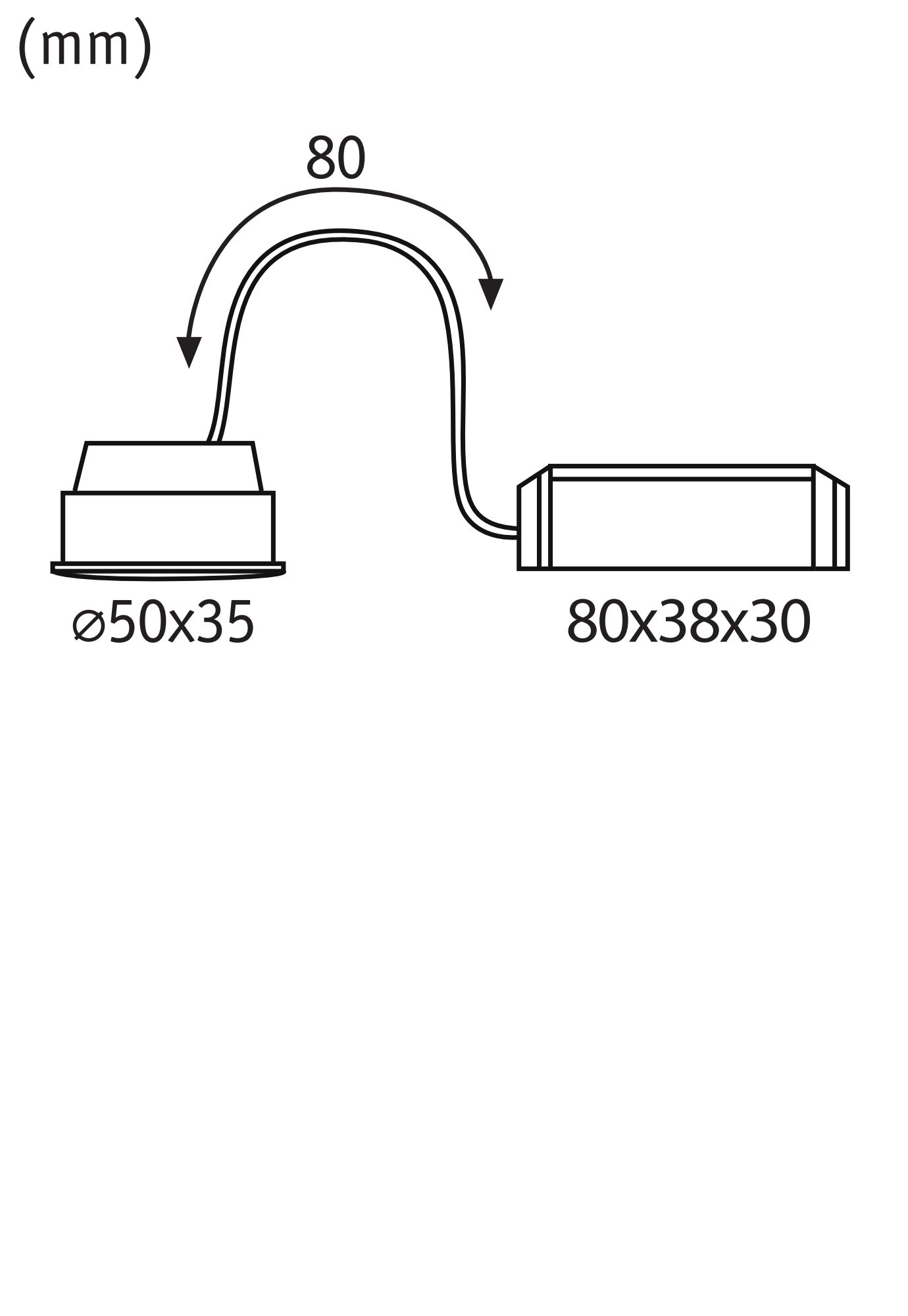

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 35 mm |
| Ø | 50 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 100 ° |
| Usable luminous flux | 400 lm |
| color temp | 2700 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 400 lm |
| Lamp Features | |
|---|---|
| Component parts | 5,2 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Socket | Coin |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 35 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 7 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
