Article-No.:
93074

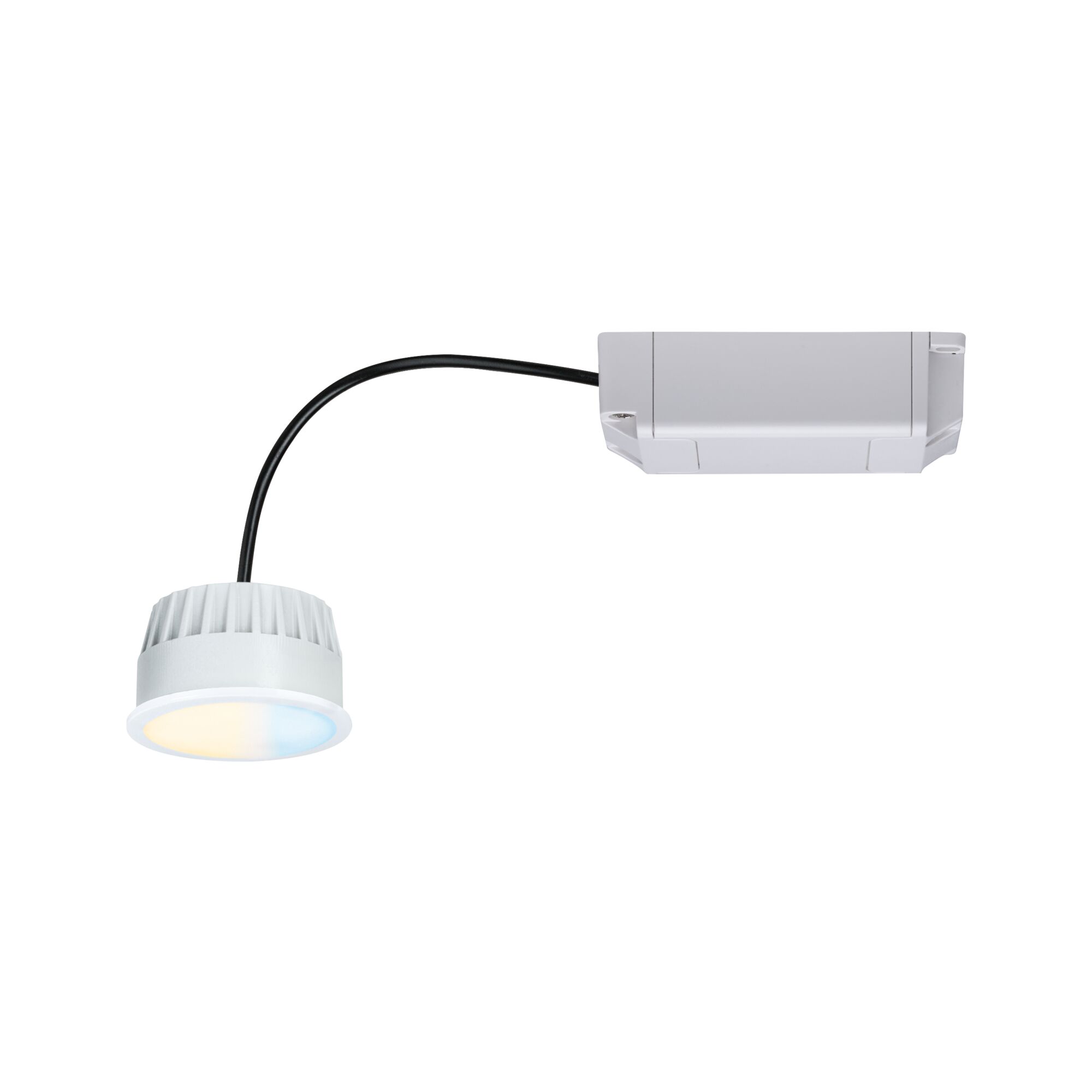

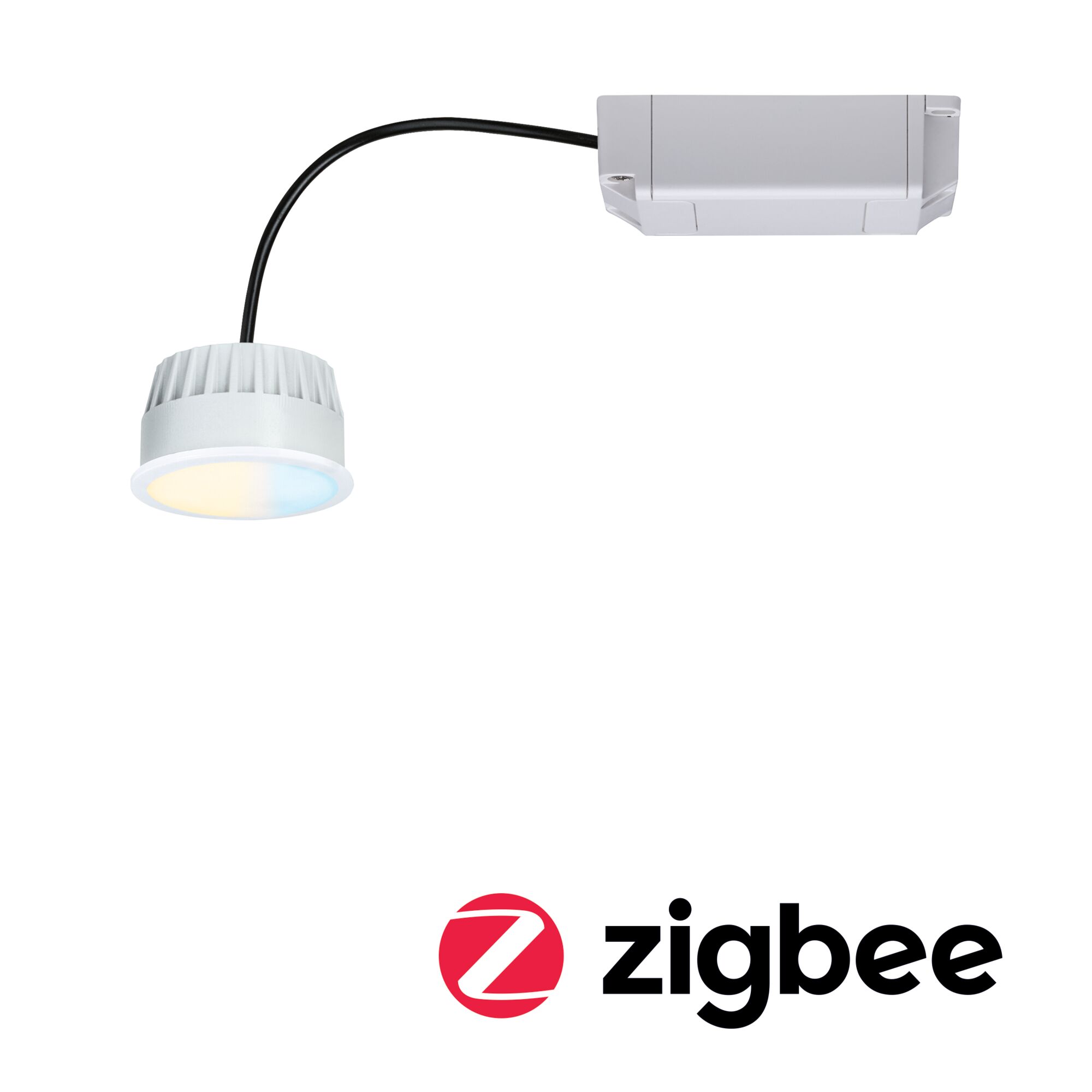

LED Module recessed luminaire
Smart Home Zigbee 3.0
Tunable White Coin
round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
LED Module recessed luminaire Smart Home Zigbee 3.0 Tunable White Coin 1-piece set round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
The innovative, smart coins can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51Â mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all! The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interconnects devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- Efficient LED technology
- Variable dimming
- Color temperatur: 2700K - Warm white - 6500K -Daylight white

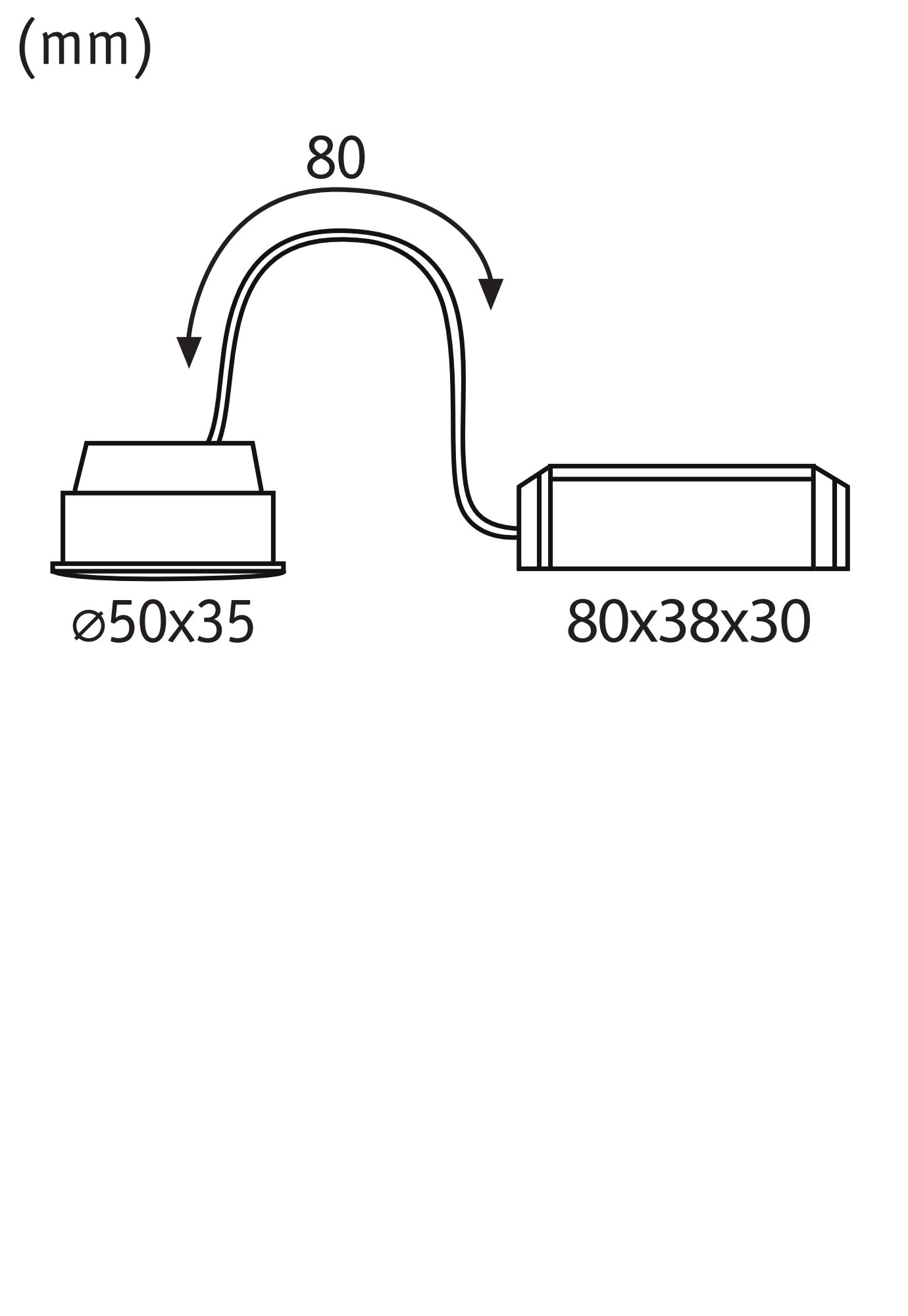

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 35 mm |
| Ø | 50 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Rated luminous flux (Lumen) | 470 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Socket | Coin |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 39 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 7 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
