Article-No.:
954730

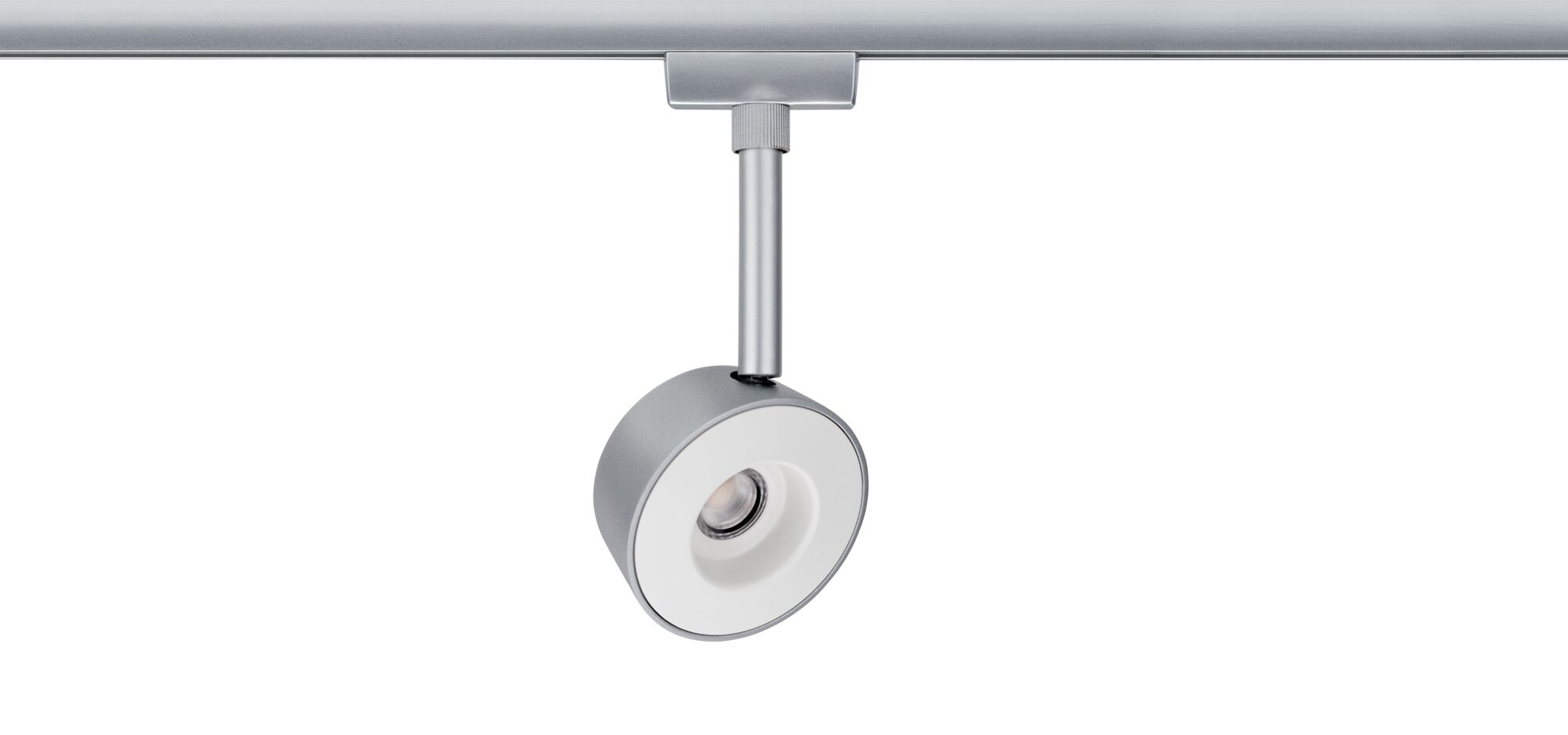

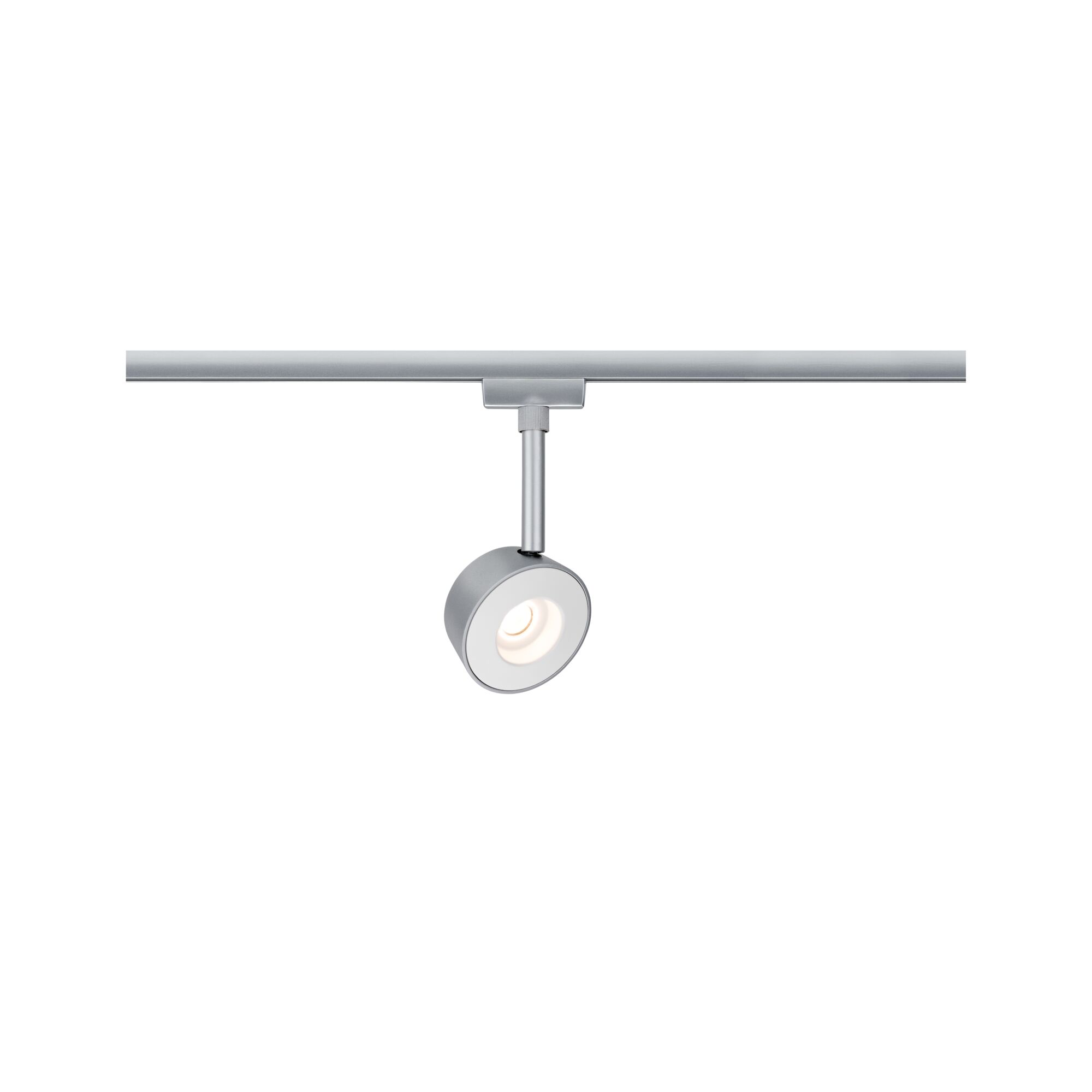

URail LED spot Pellet 4 W chrome matt/white Dimmable
- URail system lamp incl. assembly instructions
- Directional light sets light accents by shining on objects.
- With swivelling spots for ideal illumination
URail LED spot Pellet 4 W chrome matt/white Dimmable
The Pellet spotlight provides direct and directed light and is especially low-glare thanks to its recessed light point. With its clear and reduced design, it suits every interior furnishing style. The non-replaceable LED lamp is variably dimmable.
- URail system lamp incl. assembly instructions
- Directional light sets light accents by shining on objects.
- With swivelling spots for ideal illumination
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
- Dimmable
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 180 x B: 80 x T: 40 mm |
| Design and Material | |
|---|---|
| Colour | White, Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RL Merten MEG5133-0000, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 40 ° |
| Usable luminous flux | 360 lm |
| Luminous flux LED module | 370 lm |
| color temp | 2700 K |
| Beam angle LED module | 95 ° |
| Rated luminous flux (Lumen) | 240 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,7 W |
| Technique | LED |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Total Width | 80 mm |
| Incandescent Equivalent | 33 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6,7 W |
| Transformer | |
|---|---|
| apparent power | 4.2 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
