Article-No.:
97648
URail
Connector
L-part
62x62mm max. 1000W Chrome matt
62x62mm max. 1000W Chrome matt

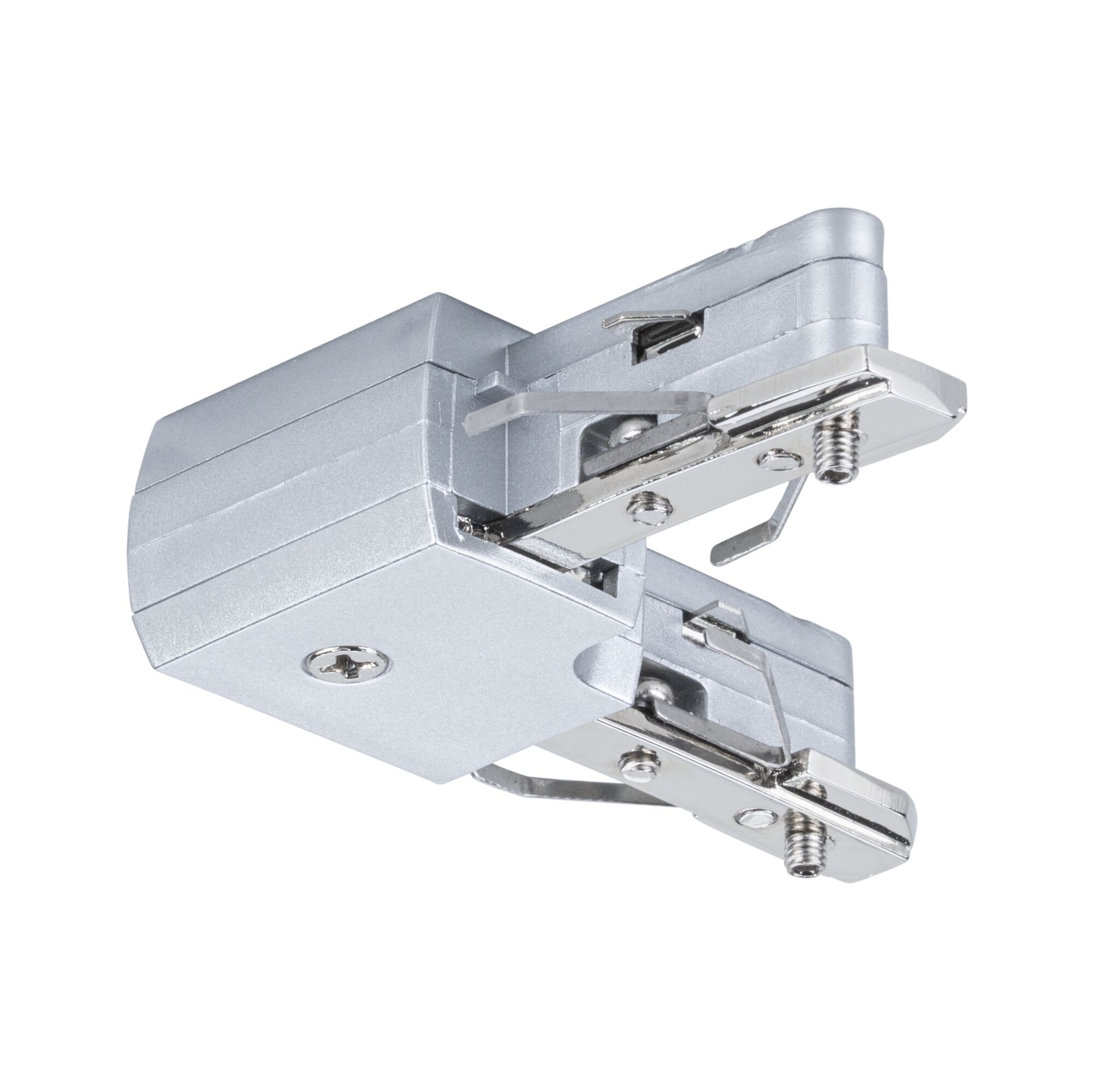

URail Connector L-part 62x62mm max. 1000W Chrome matt
You can design L-shaped installations with this connector. It is one of many modular parts from the URail series. Used together with additional components, it allows you to design your own ideal personal 230 volt URail rail system. The system is designed for a total output of 1,000 W and for the operation of LED luminaires, luminaires with energy-saving lamps and halogen luminaires.
- Surface/color: Chrome matt
- URail L cover incl. assembly instructions
| Dimension | |
|---|---|

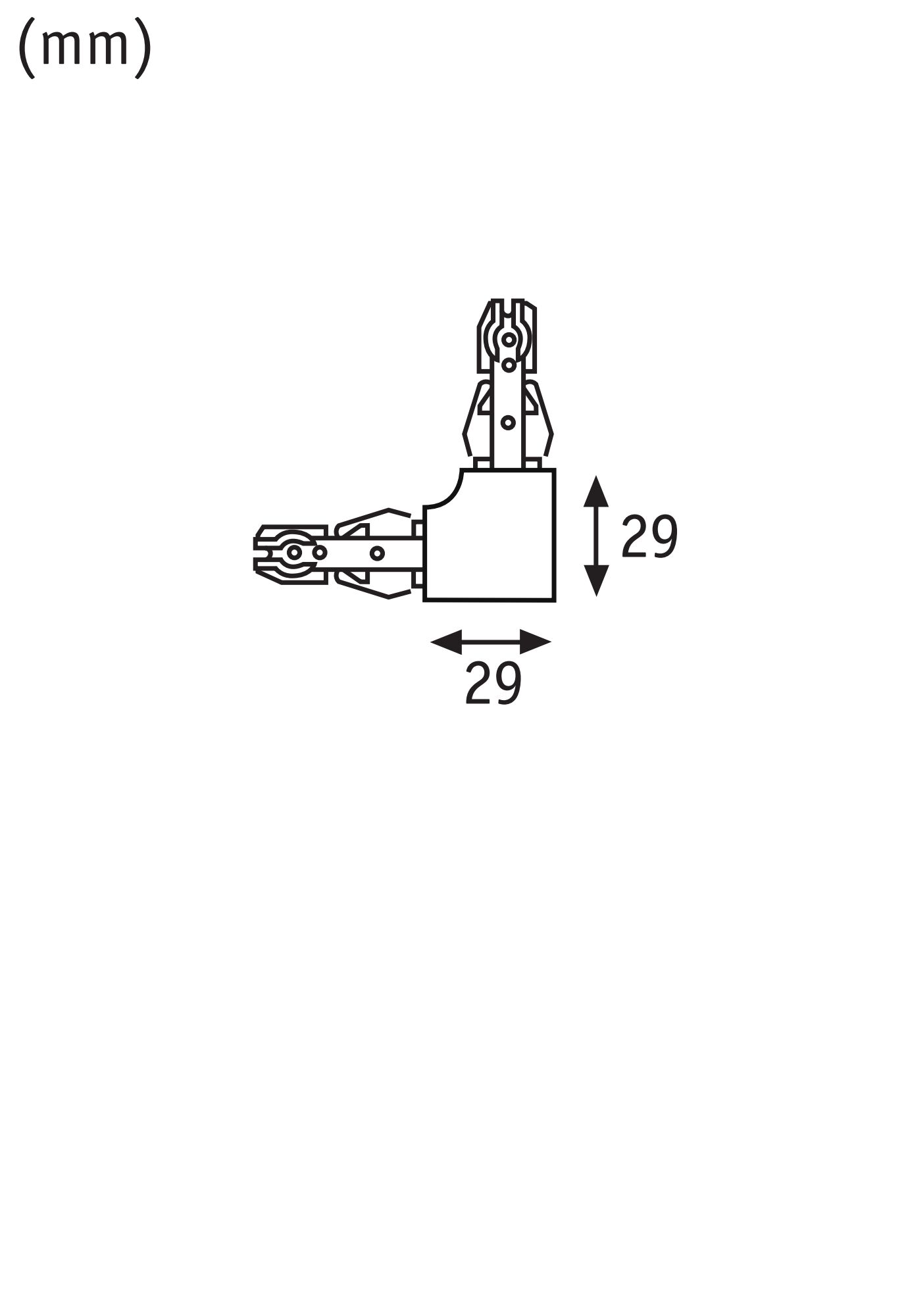

| Dimensions (Height x Width x Depth) | H: 18 x B: 62 x T: 62 mm |
| Usable length | 29 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 62 mm |
| Maximum wattage range | max. 1000 W |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
