Article-No.:
95469
URail
LED Rail spot
Dipper
2x650lm 2x8W 2700K dimmable 230V Chrome matt/White
2x650lm 2x8W 2700K dimmable 230V Chrome matt/White
- URail system lamp incl. assembly instructions
- Directional light sets light accents by shining on objects.

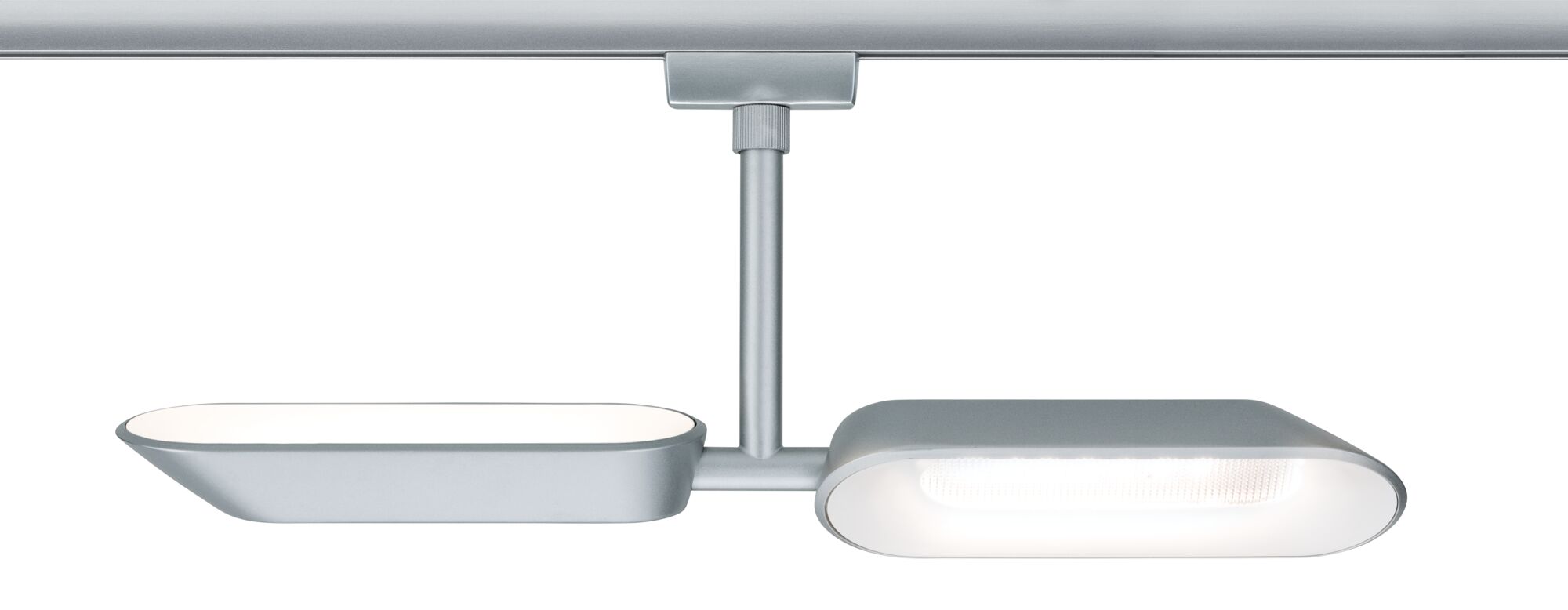

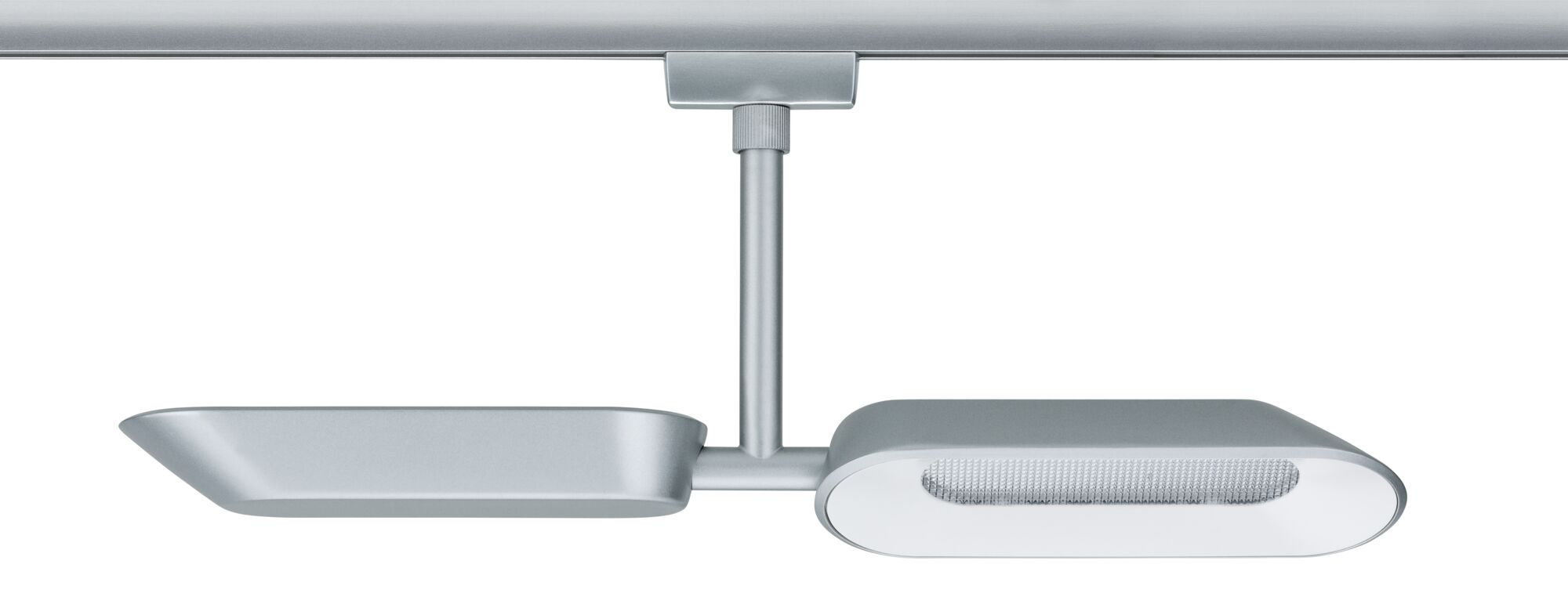

- With swivelling spots for ideal illumination

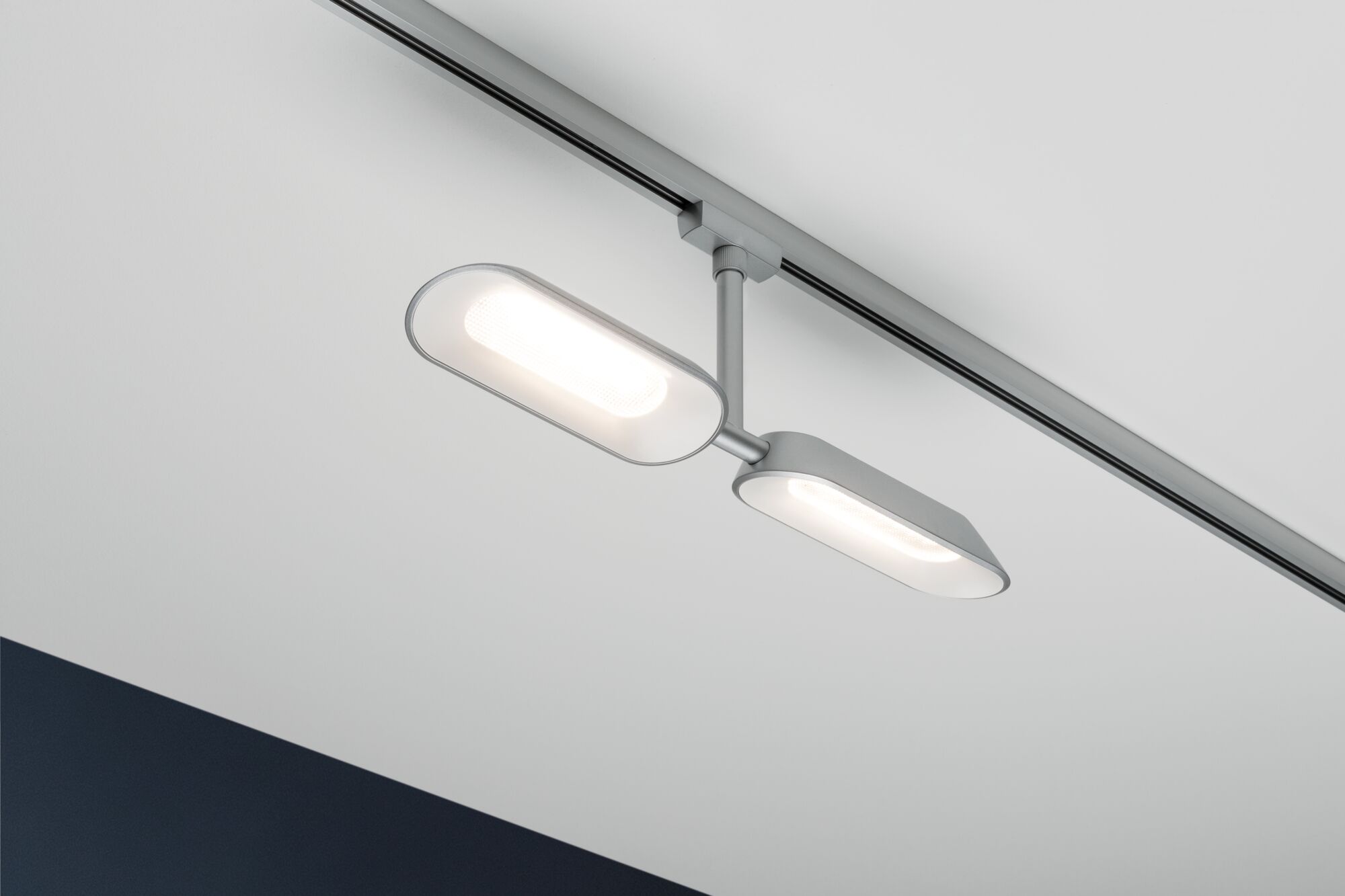

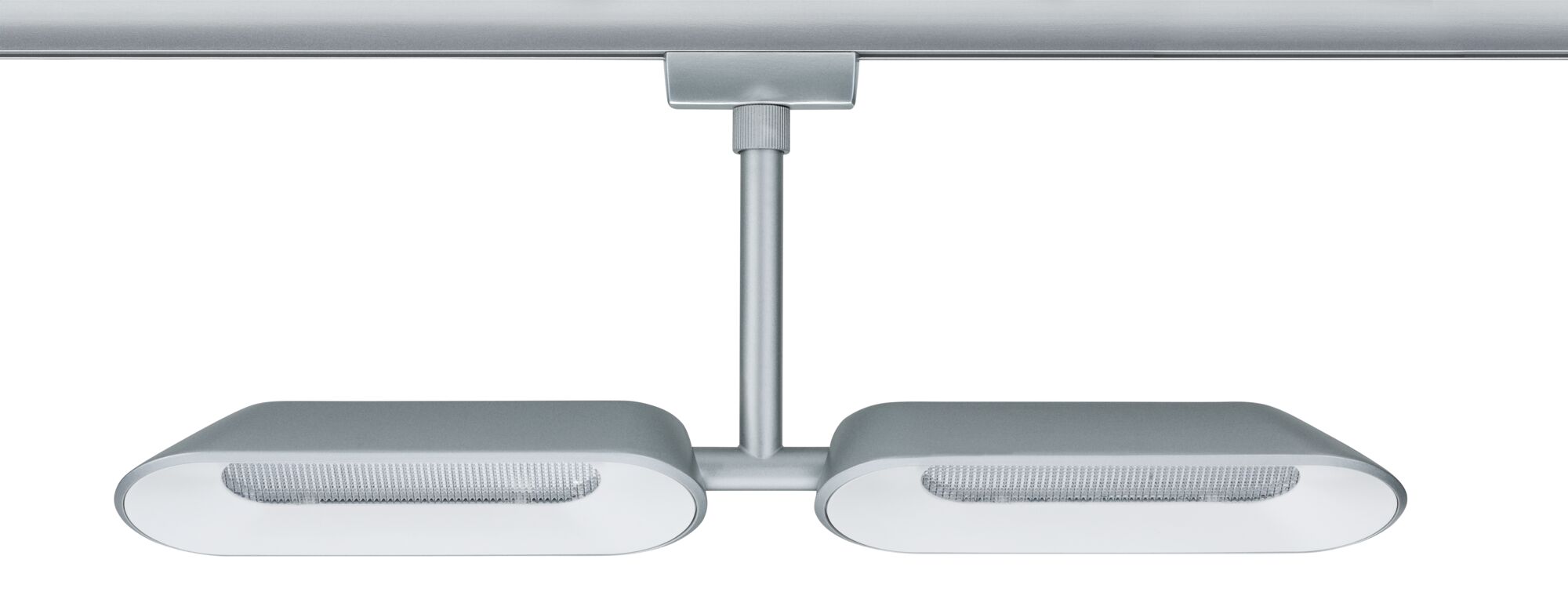

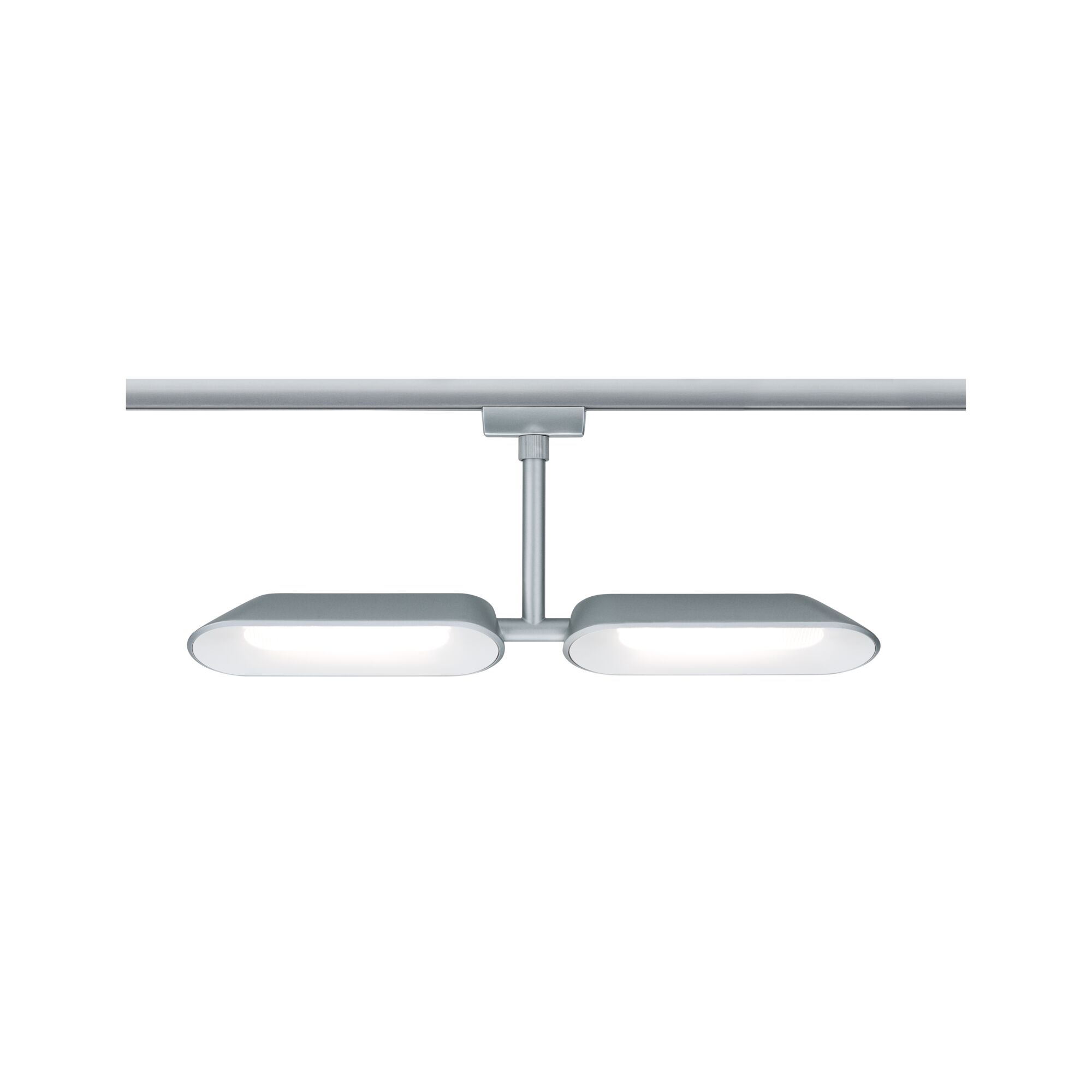

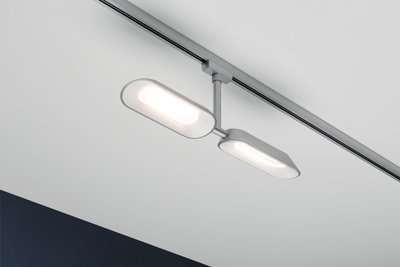

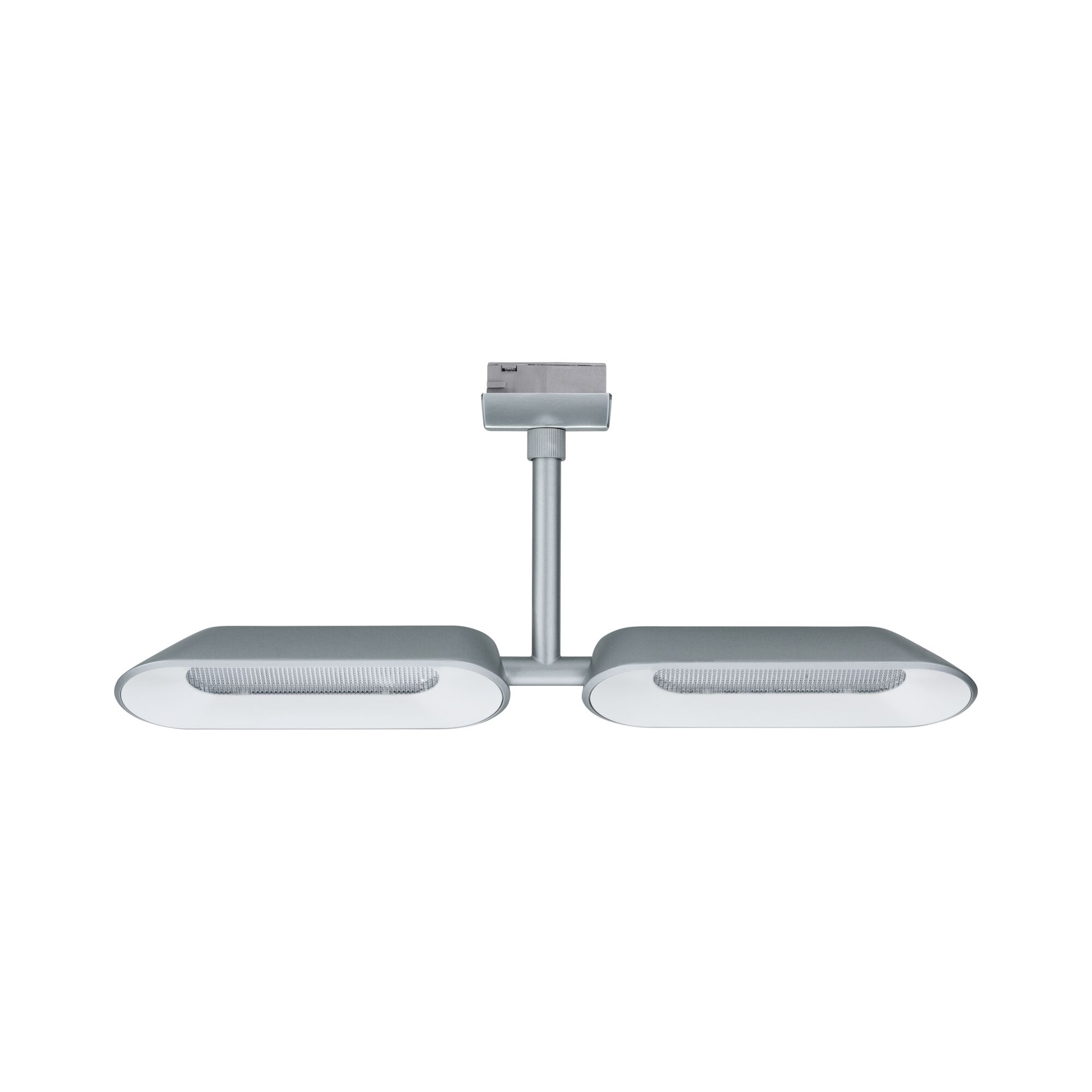

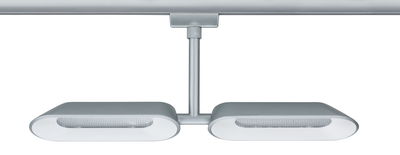

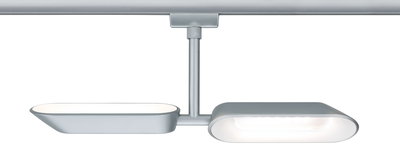

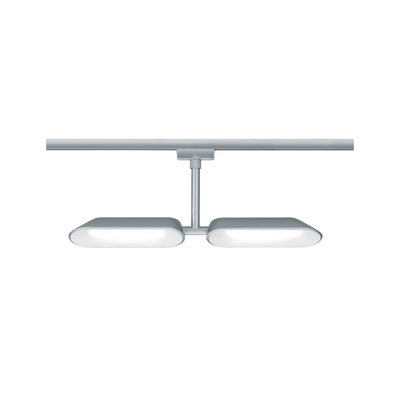

URail LED Rail spot Dipper Individual Spot 2x650lm 2x8W 2700K dimmable 230V Chrome matt/White

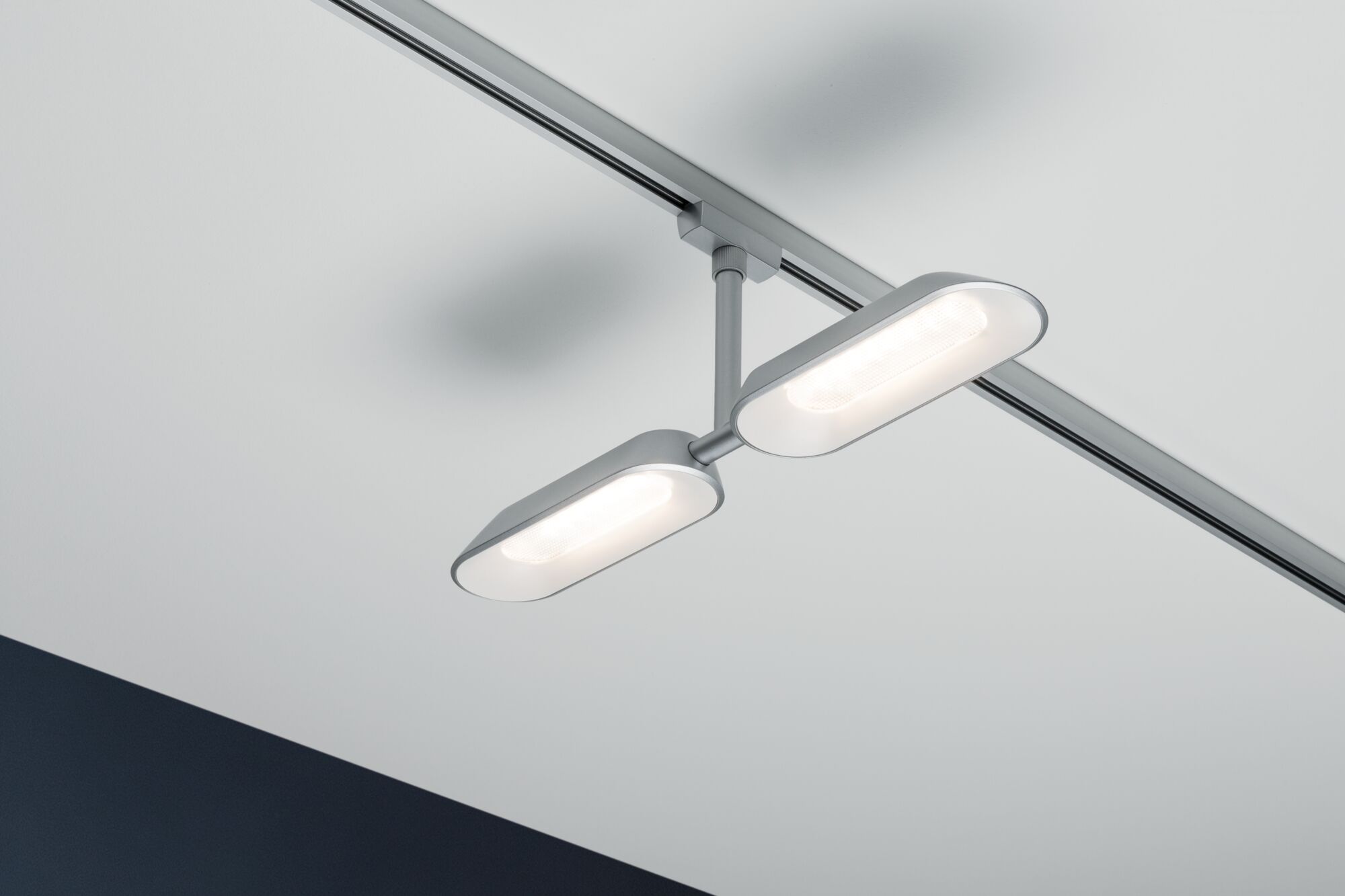

The Dipper spotlight with twin head ensures direct, strong and directed light. Thanks to its recessed light points, it is especially low-glare. With its clear and reduced design, it suits every interior furnishing style. The non-replaceable LED lamps are variably dimmable.
- URail system lamp incl. assembly instructions
- Directional light sets light accents by shining on objects.
- With swivelling spots for ideal illumination
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
- Dimmable
| Dimension | |
|---|---|

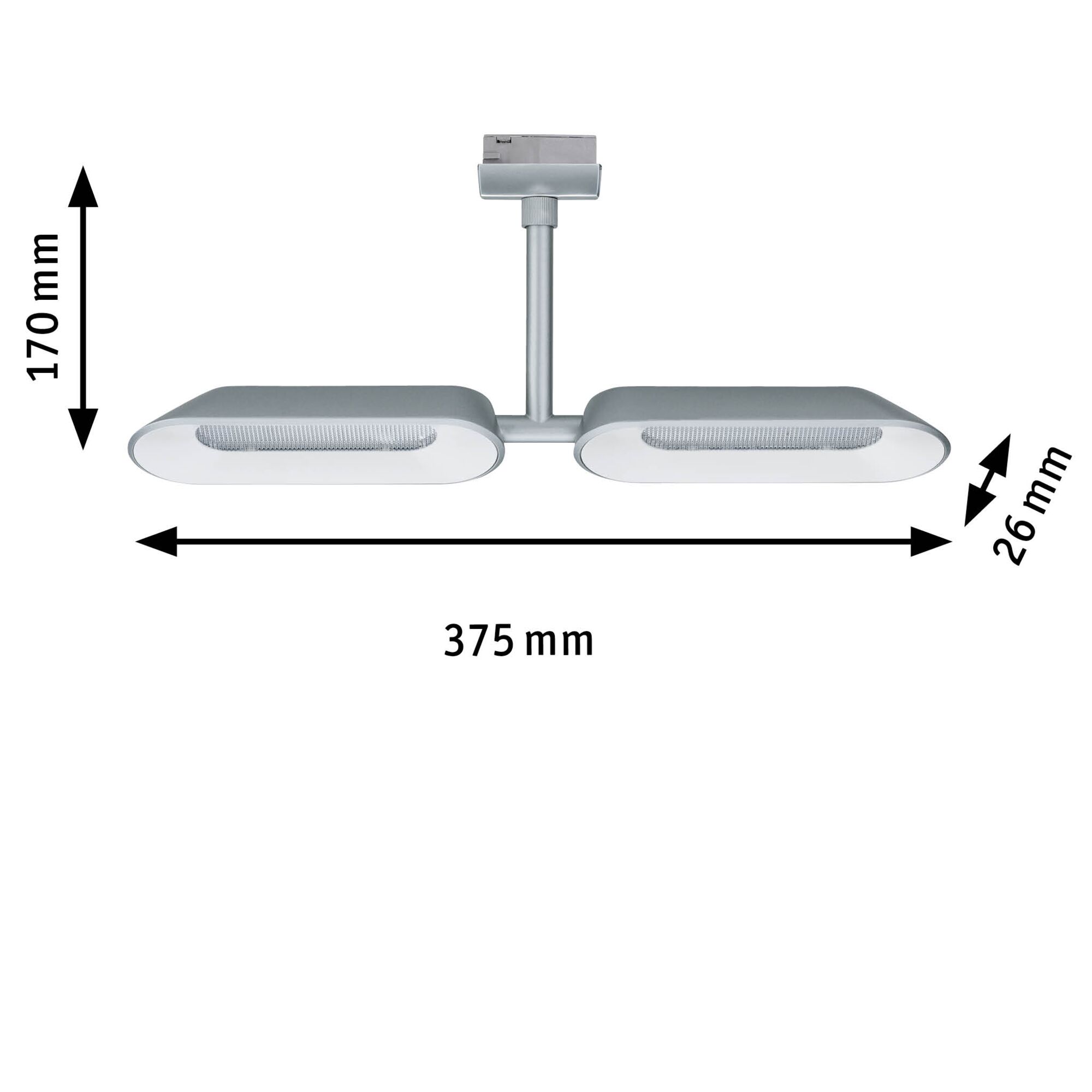

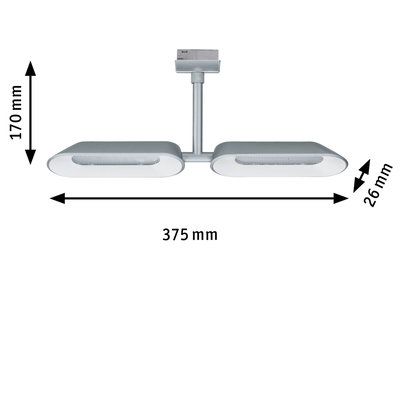

| Dimensions (Height x Width x Depth) | H: 170 x B: 375 x T: 26 mm |
| Design and Material | |
|---|---|
| Colour | White, Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann URail ZB Adapter On/Off/Dimm, RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, Paulmann URail ZB Middle-Feed 501.20/501.21/968.19, RLC Müller Paladin 873 030 LED, Paulmann URail 500.50/-51/968.15, RL Merten MEG5133-0000, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 83 ° |
| Usable luminous flux | 650 lm |
| Luminous flux LED module | 790 lm |
| color temp | 2700 K |
| Beam angle LED module | 92 ° |
| Rated luminous flux (Lumen) | 2x425 lm |
| Lamp Features | |
|---|---|
| Component parts | 8 W |
| Technique | LED |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 375 mm |
| Incandescent Equivalent | 51 W |
| Number of component parts | 2x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 16 W |
| Transformer | |
|---|---|
| apparent power | 16 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
