Article-No.:
98462

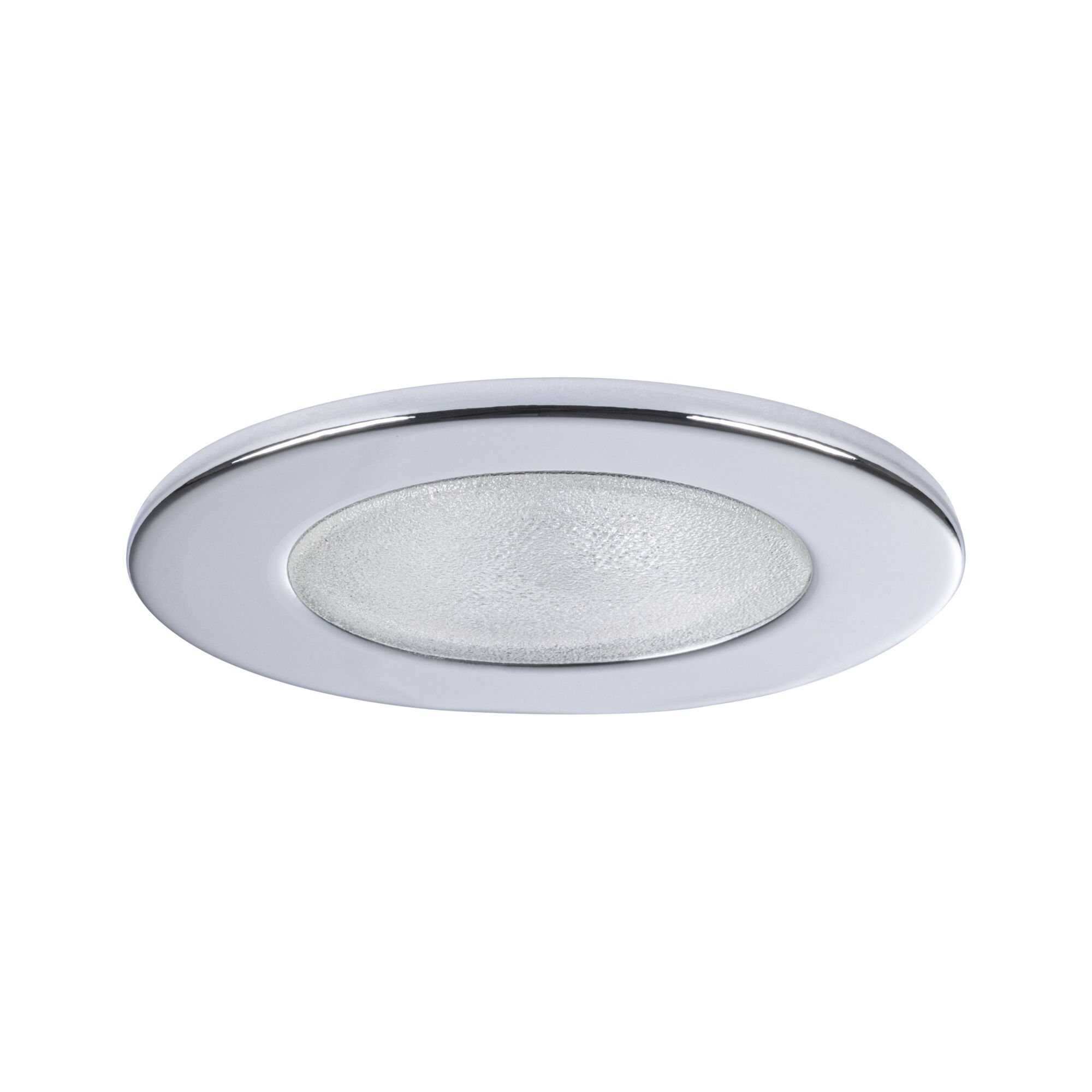

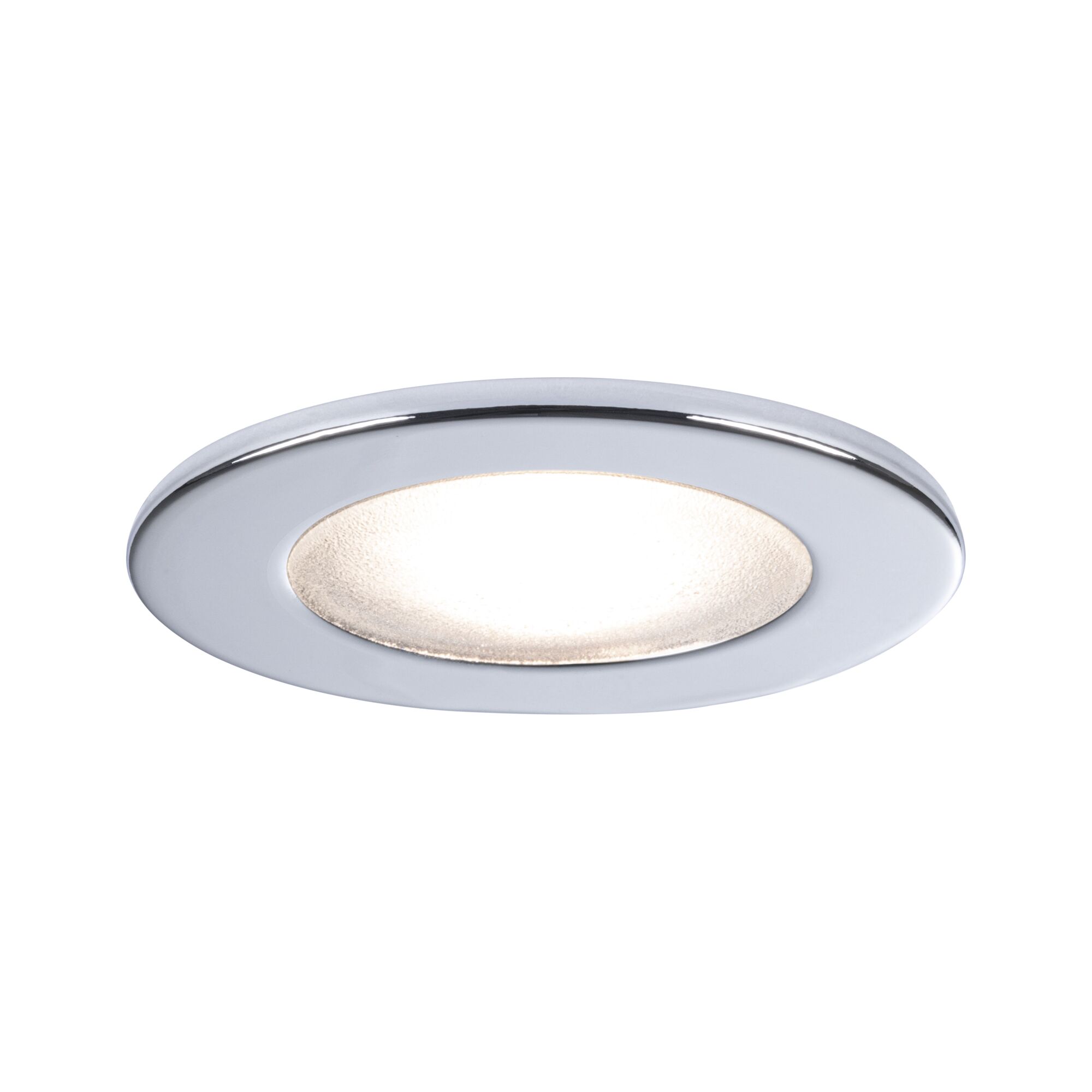

Recessed furniture luminaires
Micro Line Structure
round 66mm max. 20W 12V dimmable Chrome
round 66mm max. 20W 12V dimmable Chrome
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Chrome
Recessed furniture luminaires Micro Line Structure round 66mm max. 20W 12V dimmable Chrome
The Structure furniture recessed luminaire is suitable for all situations where the installation depth is at least 25 mm. Its 12-V halogen technology gives off a brilliant light, which is also dimmable as an added extra. Its installation diameter of 54 mm makes this luminaire particularly suitable for use in mirror bathroom cabinets.
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Chrome
- LED and halogen pin base bulbs fit in this lamp,
- Low mounting depth: only 25 mm
- Diameter: 66mm
- Operating voltage: 12 V
- protection class III

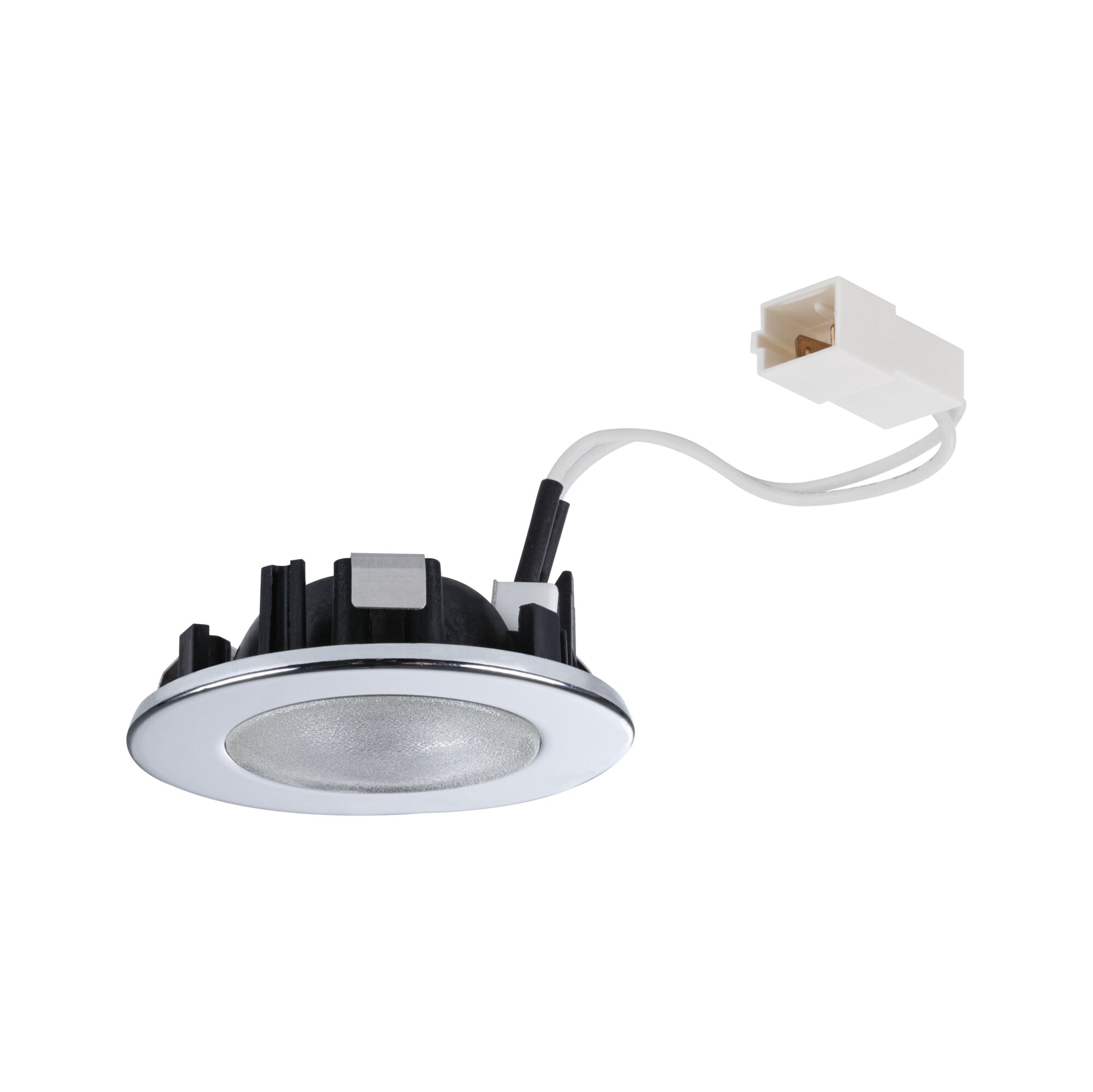

- Incl. plug-in connection
- Don't forget: Order compatible bulbs and transformers as well!
| Dimension | |
|---|---|
| Total Mounting depth | 25 mm |
| Dimensions (Height x Width x Depth) | H: 20 mm |
| Ø | 66 mm |
| Mounting hole | 54 mm |
| Form | round |
| Depth of hollow wall | 10 mm, 10 mm |
| Design and Material | |
|---|---|
| Colour | Chrome |
| Material | Metal, Glass |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Lamp Features | |
|---|---|
| Technique | Lamp without bulb |
| Socket | G4 |
| IP protection | IP20 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 20 W |
| protection class | protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
