Article-No.:
97781
VDE

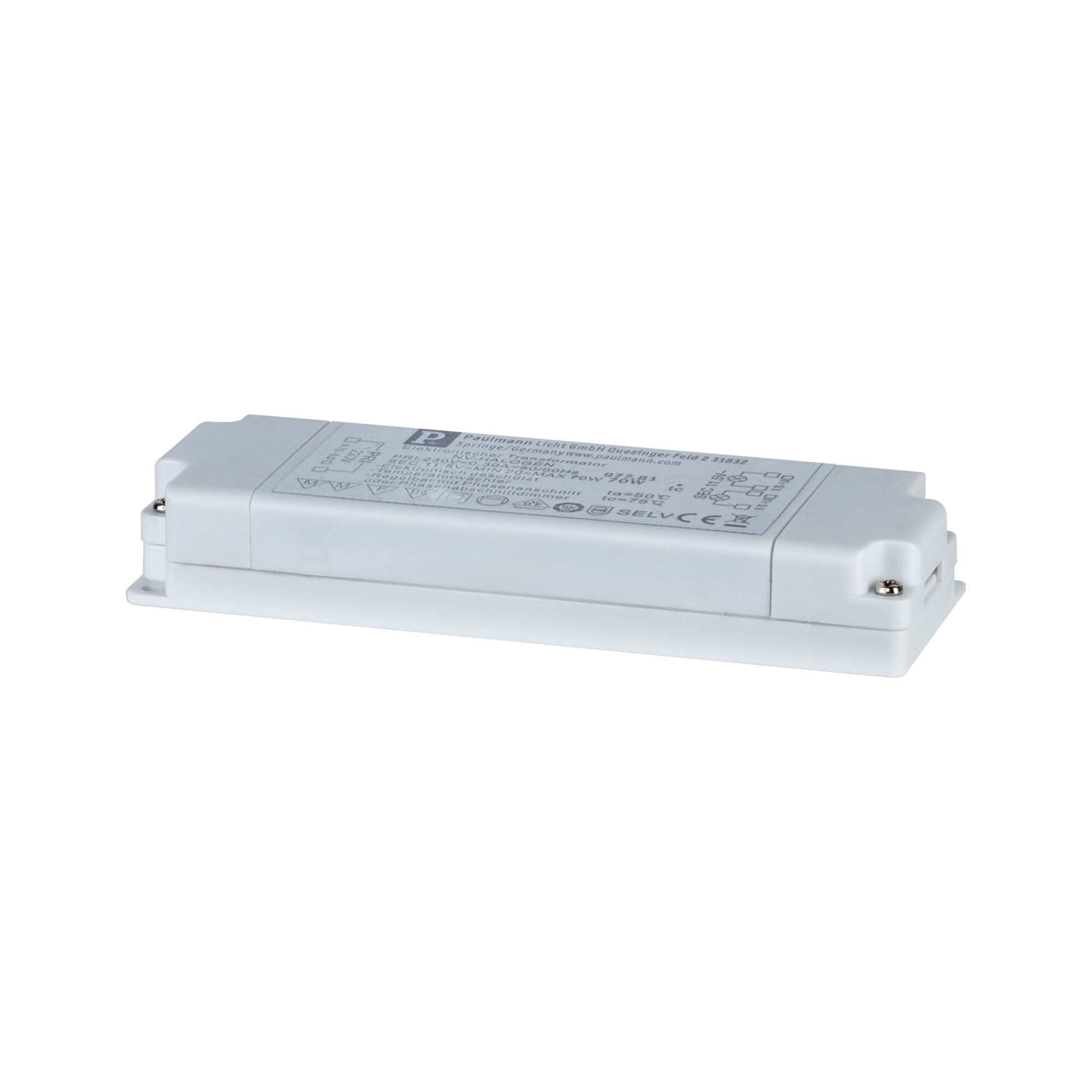

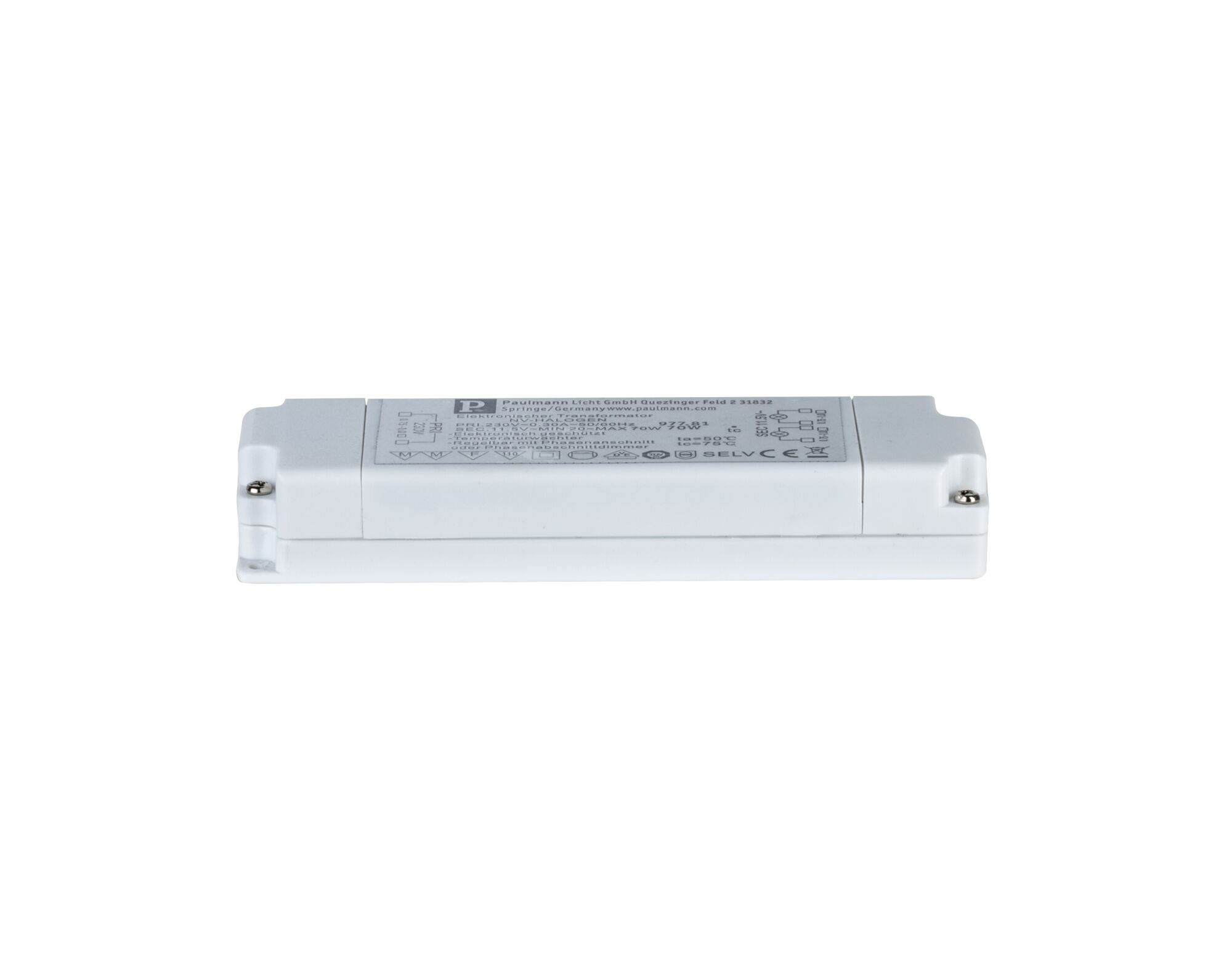

Electronic transformer
Flat Halogen AC
max. 20-70W 230/12V 70VA White
max. 20-70W 230/12V 70VA White
- VDE certificated
- protection class II
- Dimmable with universal dimmer for all transformers (R,L,C)
VDE Electronic transformer Flat Halogen AC max. 20-70W 230/12V 70VA White
Living up to their name, our Flat transformers are particularly flat. Their height of only 24 mm makes them ideal for use with suspended ceilings.
- VDE certificated
- protection class II
- Dimmable with universal dimmer for all transformers (R,L,C)
- Integrated fire protection
- Temperature monitor and electronic fuse
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 24 x B: 50 x T: 147 mm |
| Mounting hole | 55 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Features | |
|---|---|
| Softstart | Softstart |
| Integrated thermal protection | integrated thermal protection |
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Service life, electronic ballast | 50000 h |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | no |
| Total Width | 50 mm |
| Maximum wattage range | max. 20-70 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 70 VA |
| Integrated fire protection | Integrated fire protection |
| elevated spike protection | elevated spike protection |
| Integrated spark protection | Integrated spark protection |
| integrated overload protection | integrated overload protection |
| Labelling | |
|---|---|
| VDE | VDE certificated |
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
