Article-No.:
17953
Premium
Recessed luminaire
Recessed luminaire Swivelling
round 83mm 30° GU5,3 max. 50W 230/12V dimmable White
round 83mm 30° GU5,3 max. 50W 230/12V dimmable White
- Recessed light, suitable for 12V GU5.3 LED or halogen bulbs (see suitable bulbs)
- Material: Aluminium Zinc
- Color: White
Premium Recessed luminaire Swivelling round 83mm 30° GU5,3 max. 50W 230/12V dimmable White
Elegant material – high-quality finish. The individually swivelling halogen 12 V recessed luminaires of the Premium Line offer brilliant light and fulfil even the highest expectations for material quality and design.
- Recessed light, suitable for 12V GU5.3 LED or halogen bulbs (see suitable bulbs)
- Material: Aluminium Zinc
- Color: White
- LED lights and bulbs with brilliant halogen technology fit in this lamp,
- Can be swivelled up to 30° – put the focus on individual spots.
- Type of protection: IP23 (ceiling mounting)
- Mounting depth: 60mm
- protection class III
- Incl. plug-in connection

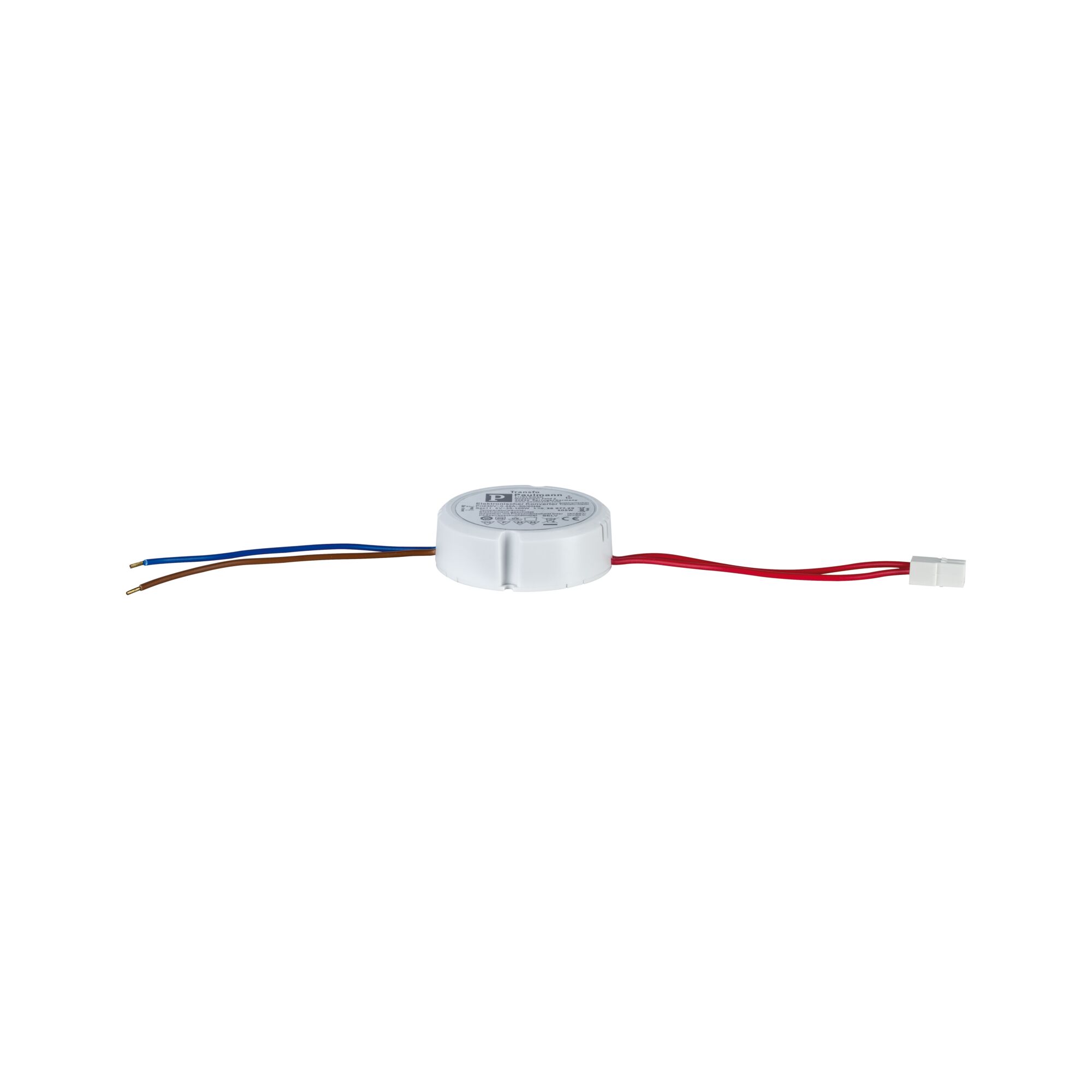

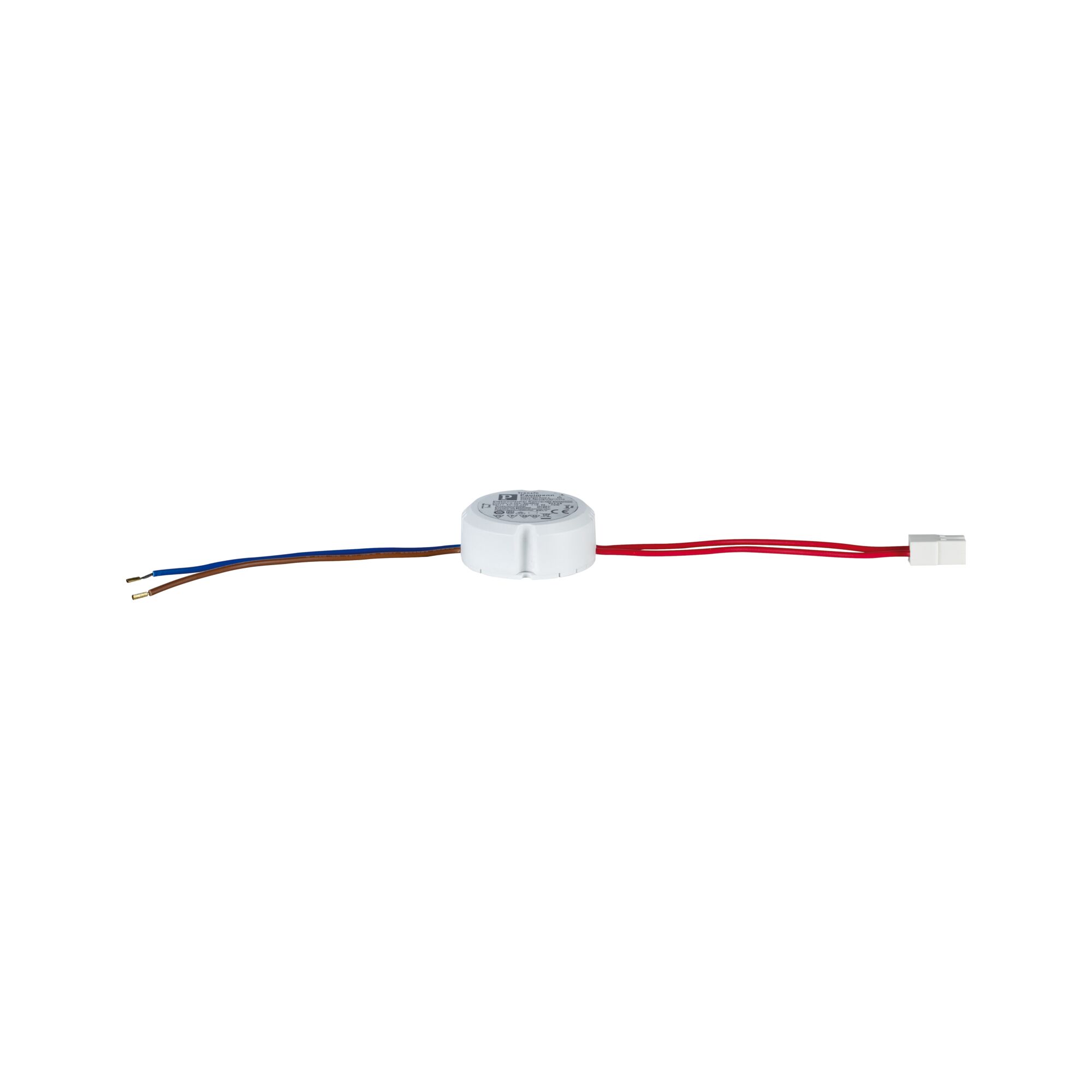

- Don't forget: Order compatible bulbs and transformers as well!
- Extremely quick and easy bulb change thanks to the clever Easy-Click system.
| Dimension | |
|---|---|
| Total Mounting depth | 60 mm |
| Ø | 83 mm |
| Mounting hole | 68 mm |
| Form | round |
| Depth of hollow wall | 45 mm, 45 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | White |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Lamp Features | |
|---|---|
| Swivel range | 30 ° |
| Technique | Lamp without bulb |
| Socket | GU5,3 |
| IP protection | IP23 ceiling mounting |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 50 W |
| protection class | protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
