Article-No.:
97729
VDE
Electronic transformer
Disc
max. 35-105W 230/12V 105VA White
max. 35-105W 230/12V 105VA White
- VDE certificated
- Dimmable with universal dimmer for all transformers (R,L,C)
- Integrated fire protection

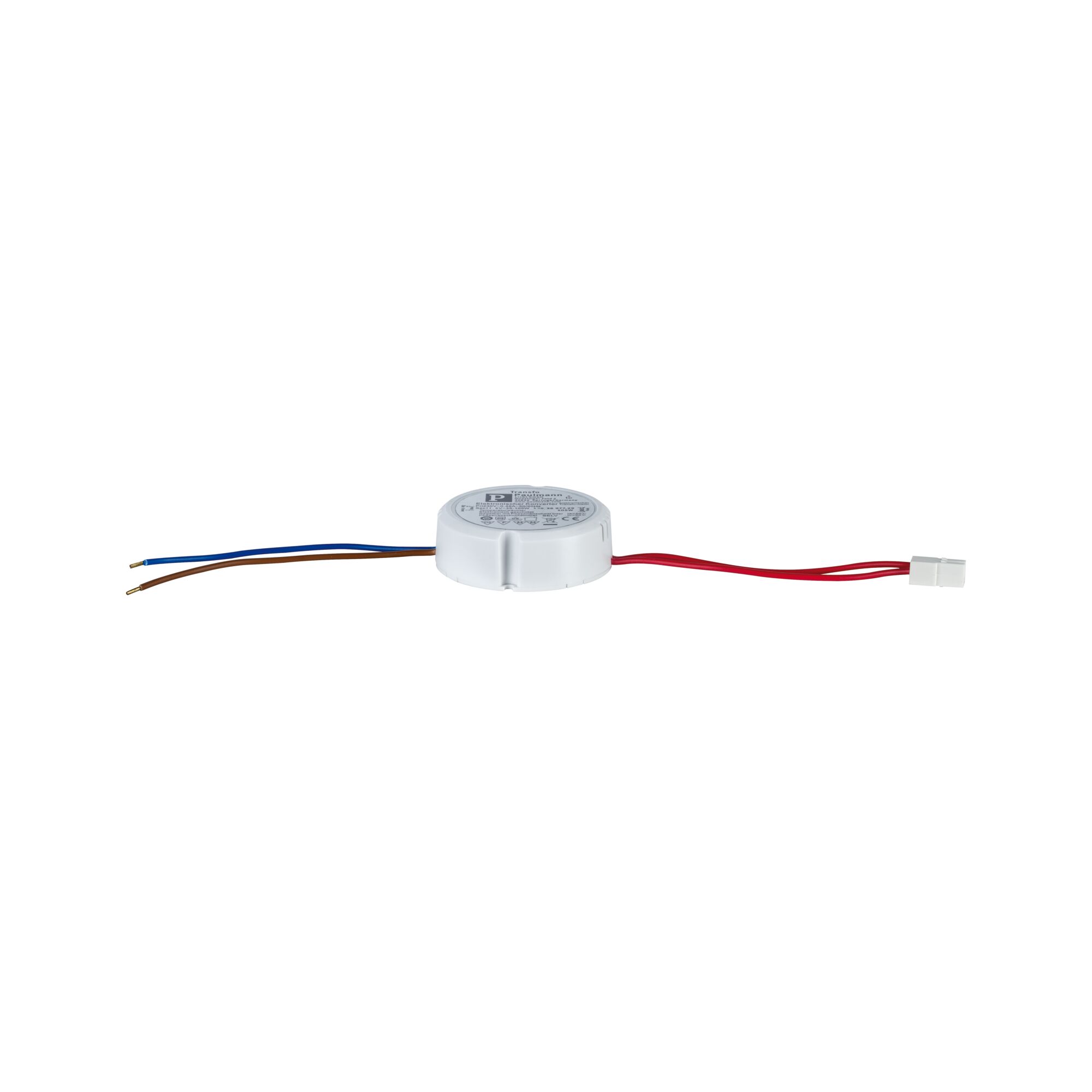

VDE Electronic transformer Disc max. 35-105W 230/12V 105VA White
The VDE electronic transformer Disc in the colour White is a highly efficient transformer that offers a maximum output of 35–105W at a voltage of 230/12V and a VA of 105. This transformer is not only VDE-certified, but is also dimmable using a universal dimmer for all transformers (R,L,C). It also features integrated fire protection, as well as a temperature monitor and an electronic fuse. With its diverse functions and robust design, this transformer provides optimal safety and reliability. Be it in private or commercial spaces, this electronic transformer ensures an efficient power supply to your electrical devices.
- VDE certificated
- Dimmable with universal dimmer for all transformers (R,L,C)
- Integrated fire protection
- Temperature monitor and electronic fuse
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 25 mm |
| Ø | 75 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Features | |
|---|---|
| Softstart | Softstart |
| Integrated thermal protection | integrated thermal protection |
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Service life, electronic ballast | 50000 h |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | no |
| Maximum wattage range | max. 35-105 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 105 VA |
| Integrated fire protection | Integrated fire protection |
| elevated spike protection | elevated spike protection |
| Integrated spark protection | Integrated spark protection |
| integrated overload protection | integrated overload protection |
| Labelling | |
|---|---|
| VDE | VDE certificated |
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
