Article-No.:
94689

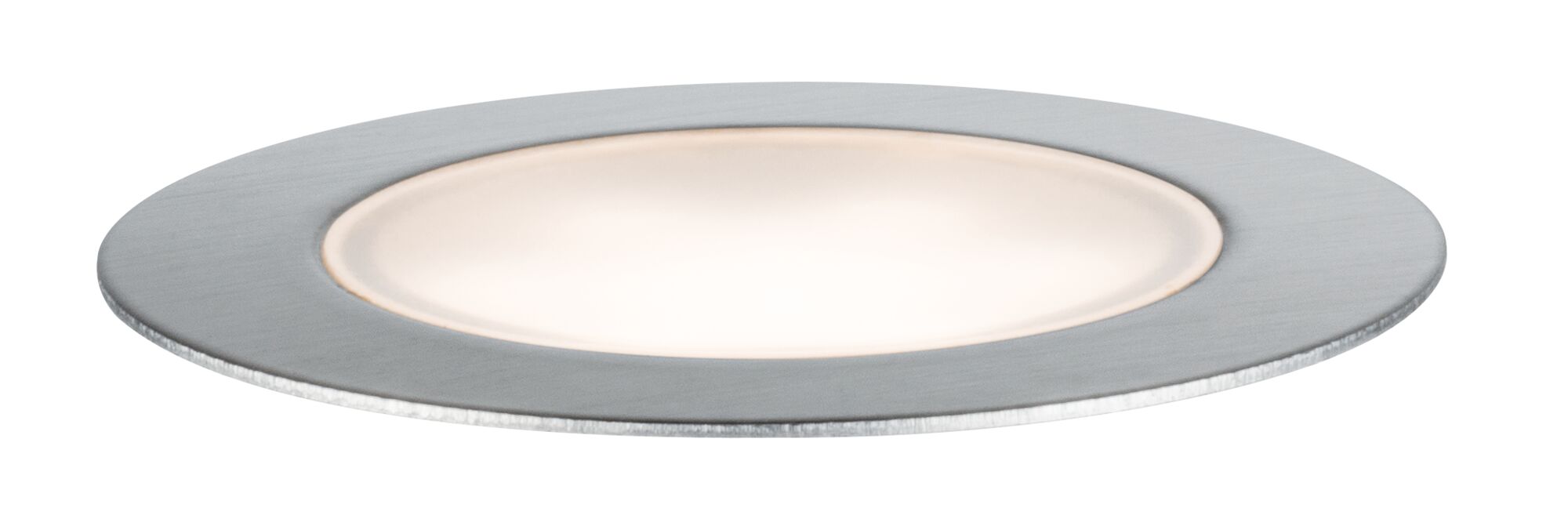

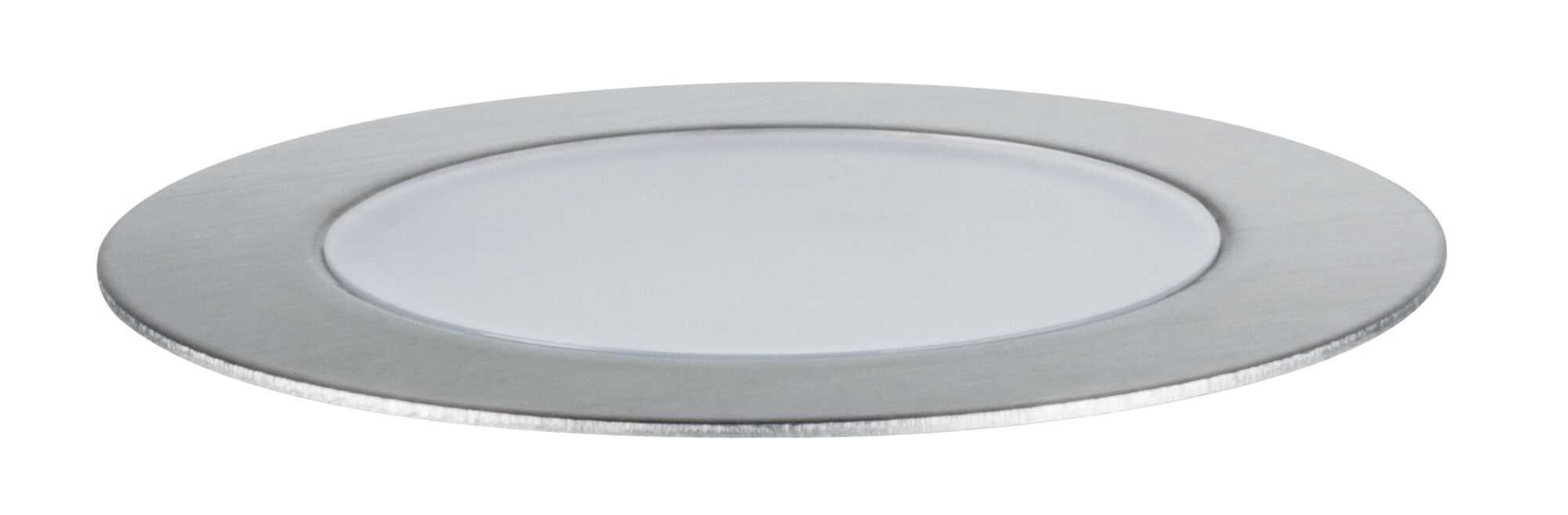

Plug & ShineLED Recessed floor luminaire
Floor CH
IP67 3000K 3x2W 30VA Silver
IP67 3000K 3x2W 30VA Silver

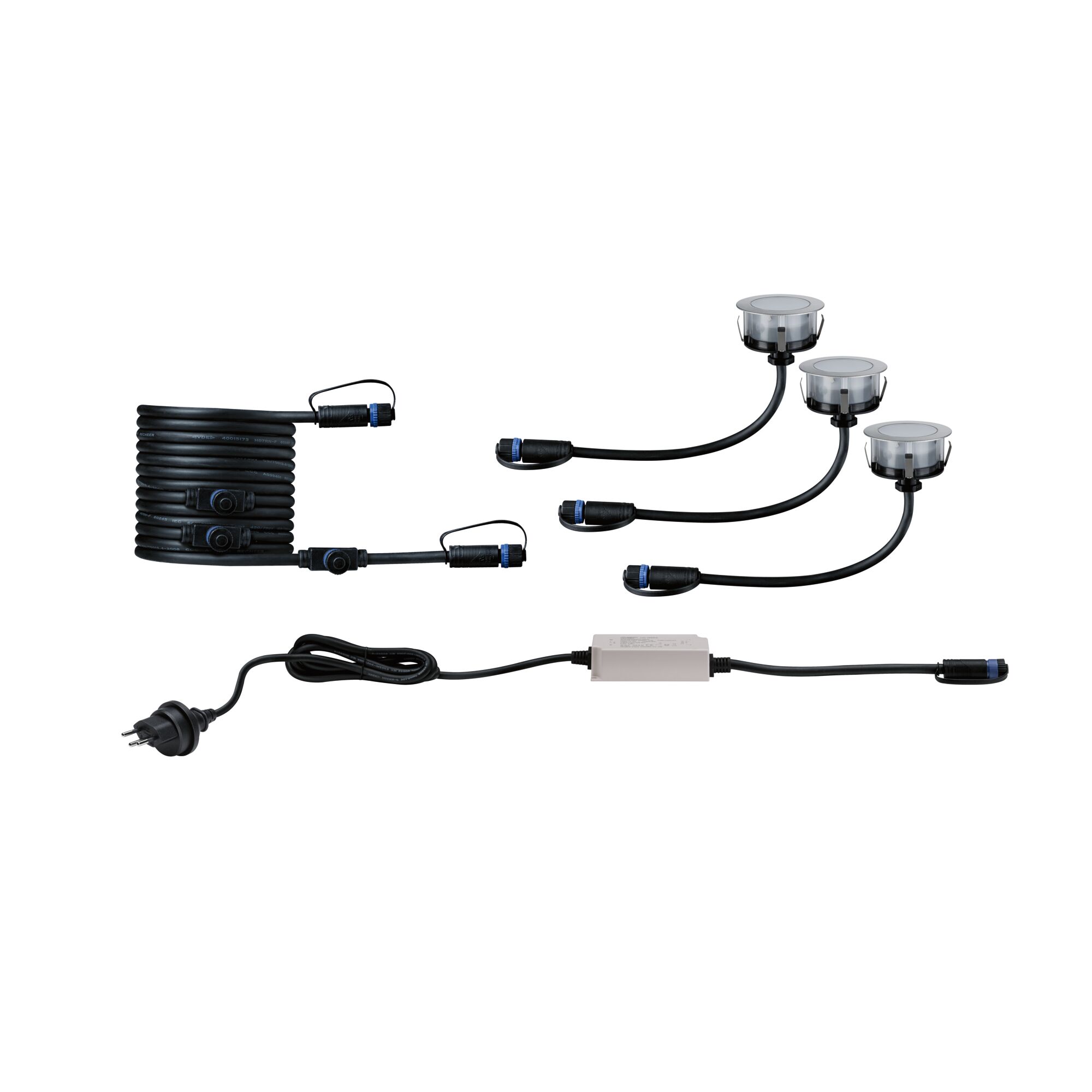

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor luminaire Floor CH Basic Set IP67 3000K 3x2W 30VA Silver

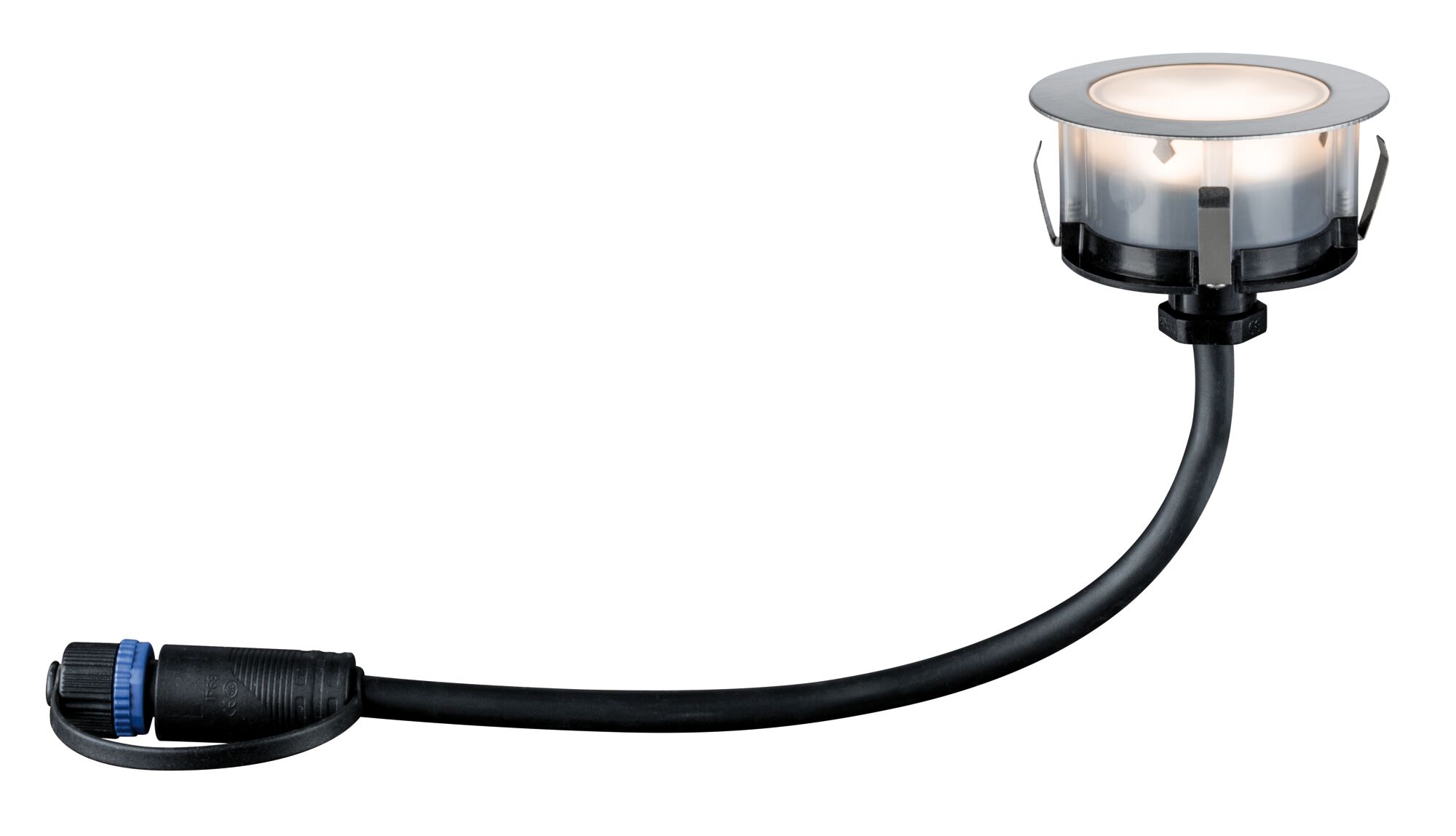

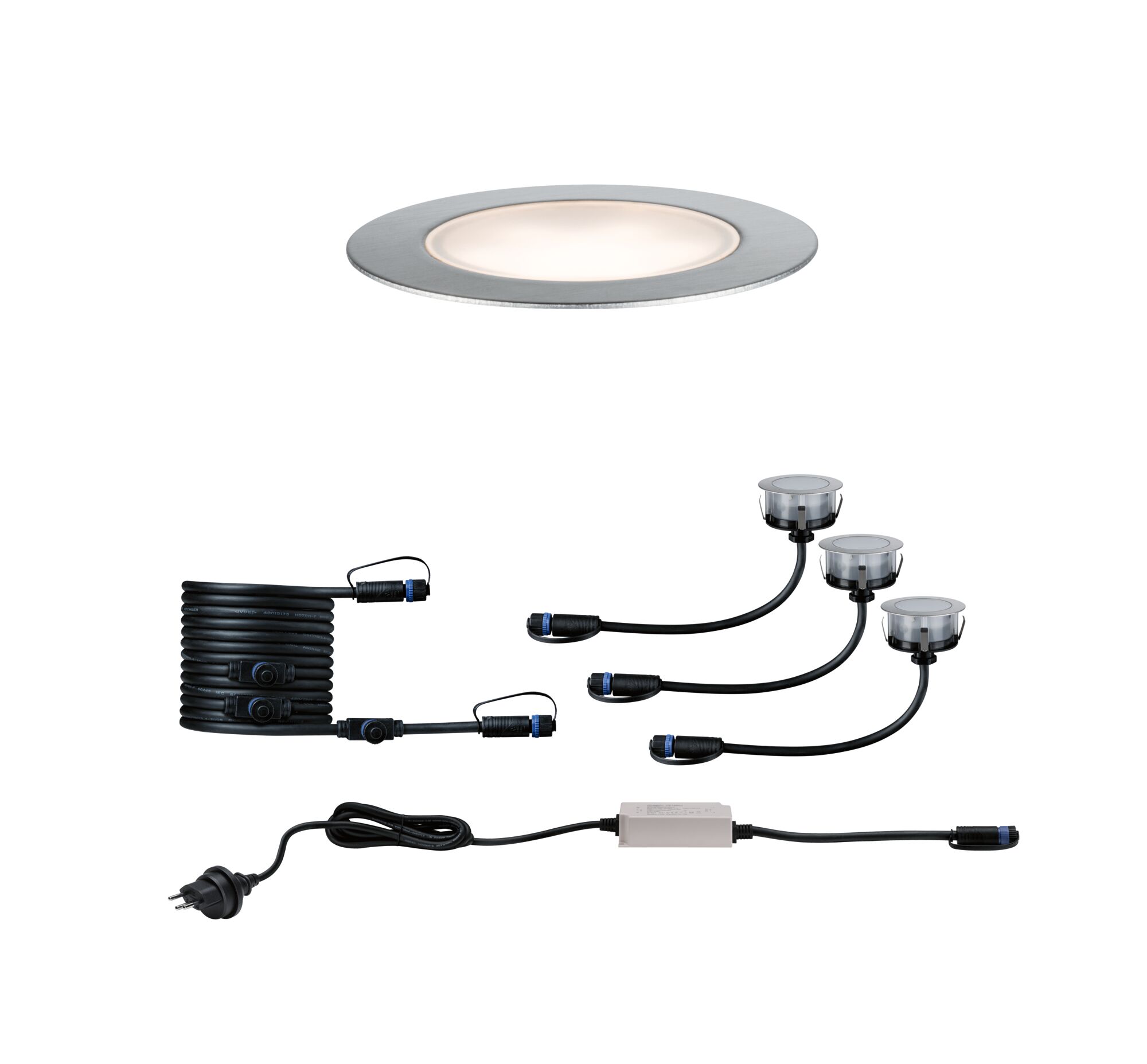

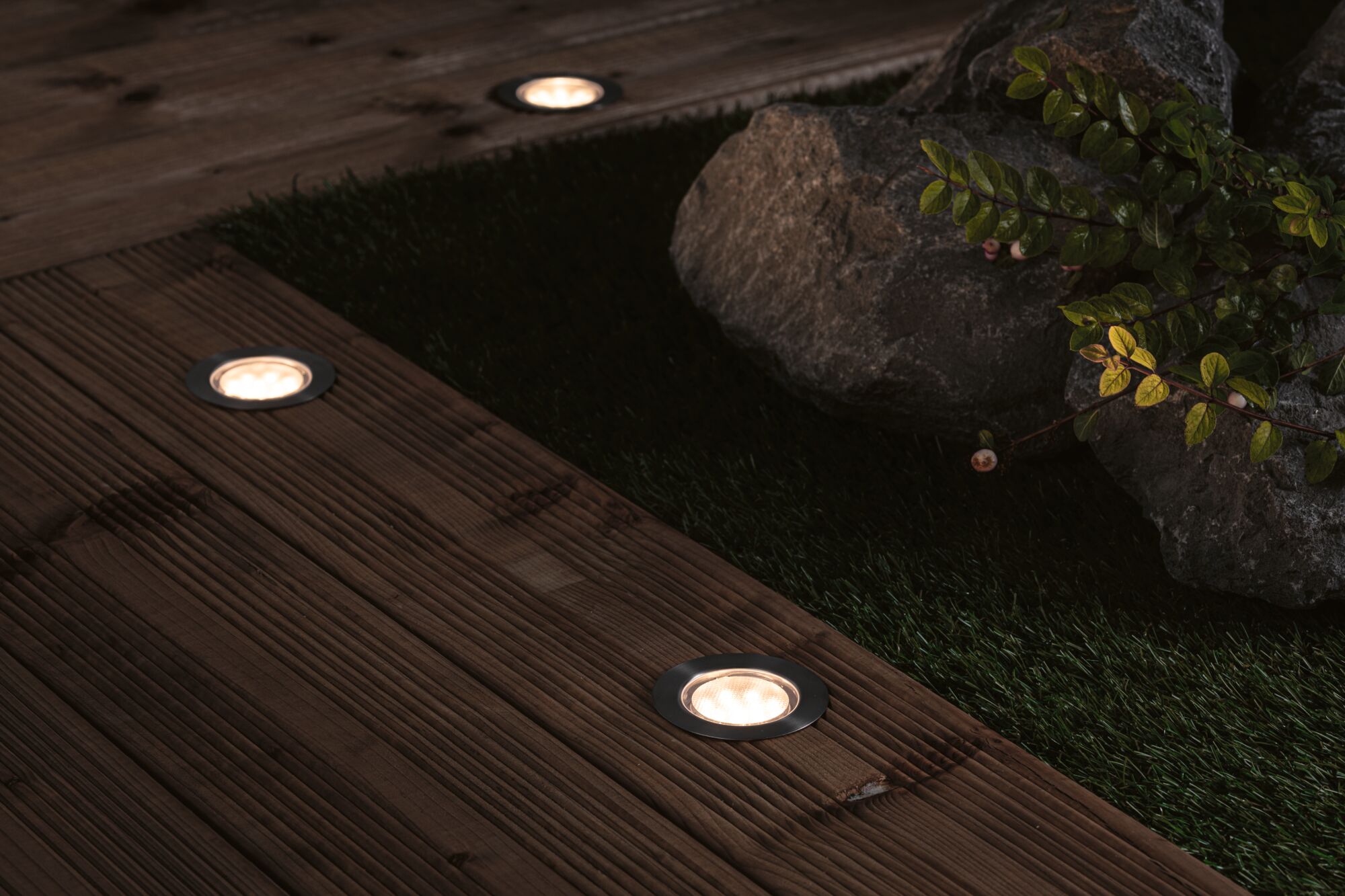

Plug & Shine Floor recessed spotlights provide decorative warm white light points at path or patio boundaries. This starter set contains three luminaires, one plug-in transformer and a connecting cable with three sockets. Unused connection ports can be sealed with the cover caps provided to guarantee IP68 immersion protection of the connector. The system can be expanded with additional Plug & Shine components, if required. They are not suitable for walking or driving over.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

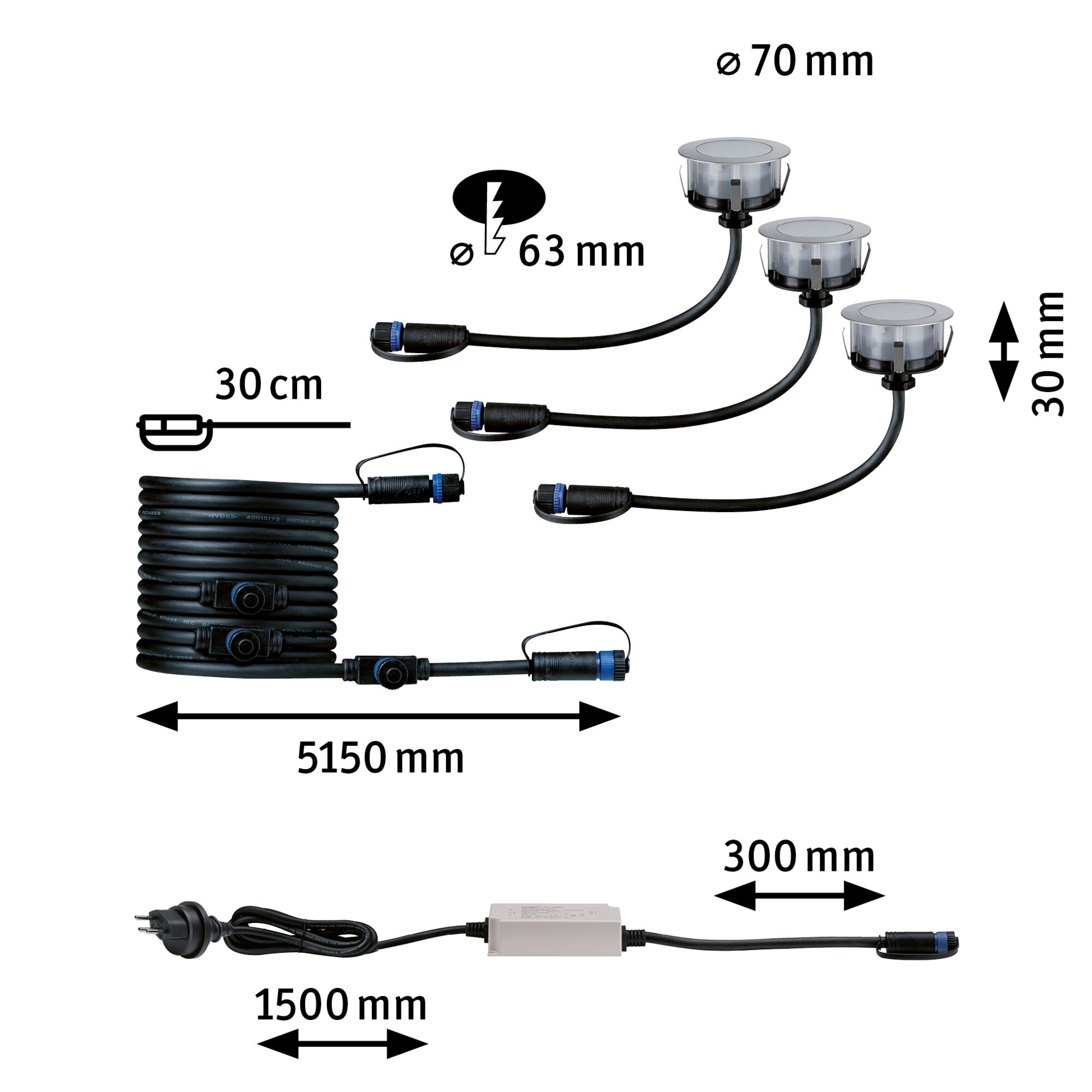

| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 70 mm |
| Mounting hole | 63 mm |
| Length | 5 m |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Plug | CH-IP55 |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Beam angle | 90 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| Beam angle LED module | 110 ° |
| Lamp Features | |
|---|---|
| Component parts | 2 W |
| Technique | LED |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 3x |
| protection class | Protection class II |
| Maximum load | 100 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 4,5 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
