Article-No.:
70776

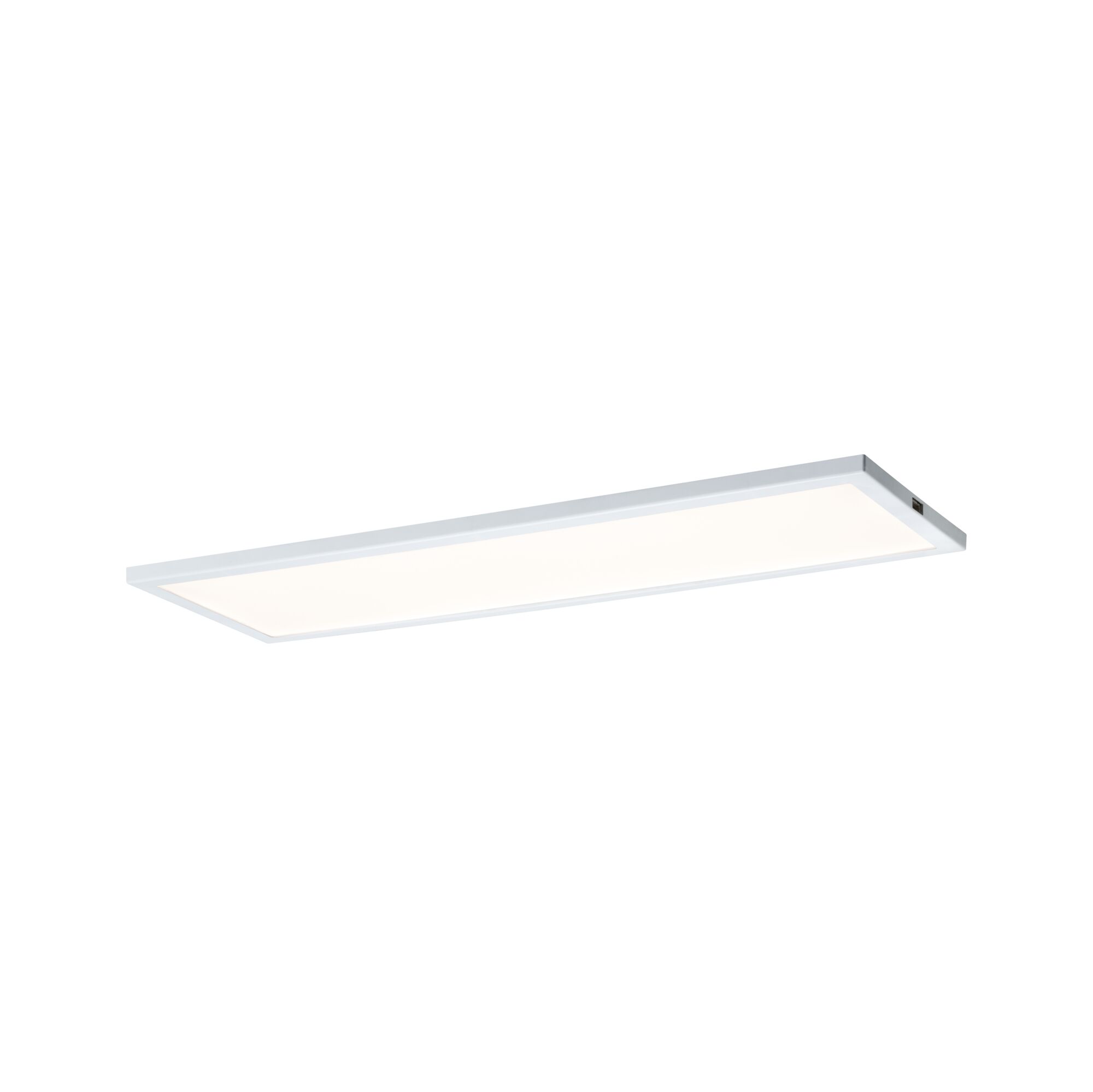

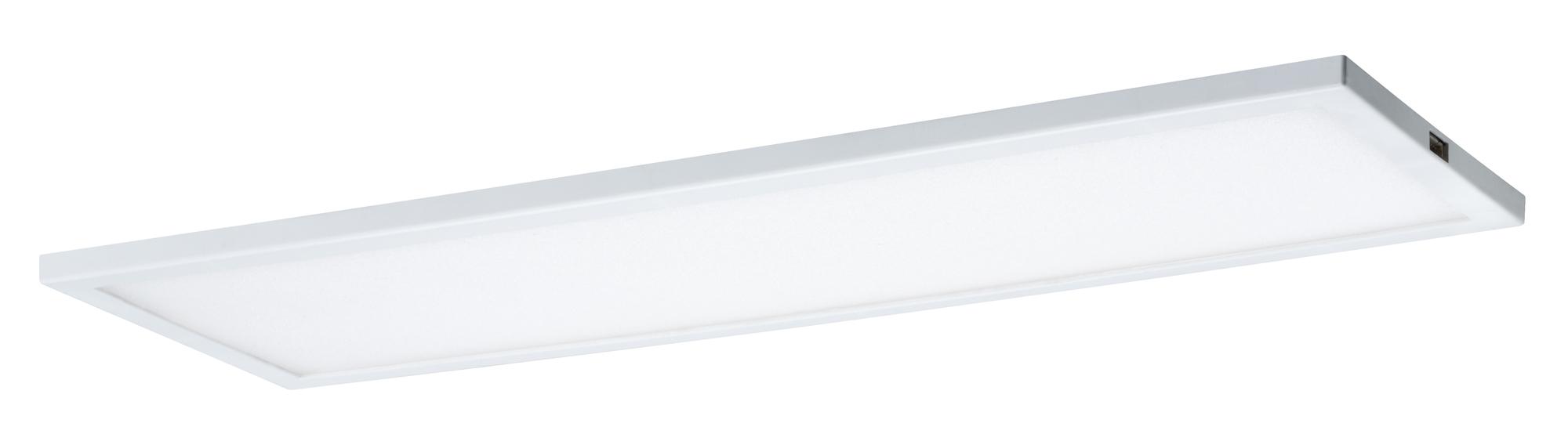

LED Under-cabinet luminaire
Ace
square 300x7mm 520lm 2700K White/Satin dimmable
square 300x7mm 520lm 2700K White/Satin dimmable
- Large-area lighting for optimum illumination of the working surface

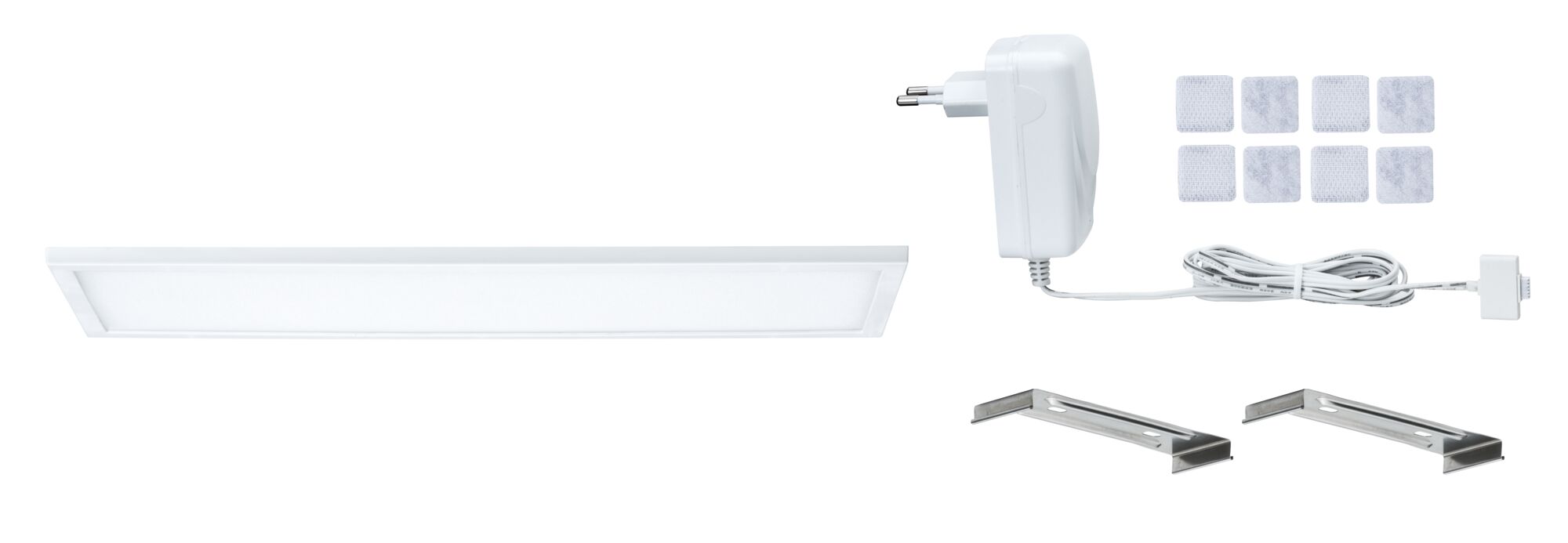

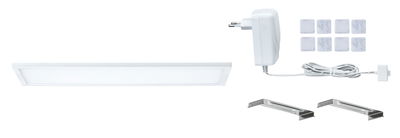

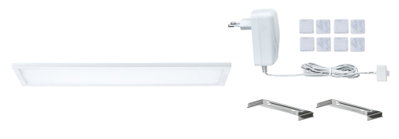

- Complete set incl. panel, supply line and fixation material
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
LED Under-cabinet luminaire Ace square 300x7mm 520lm 2700K White/Satin dimmable

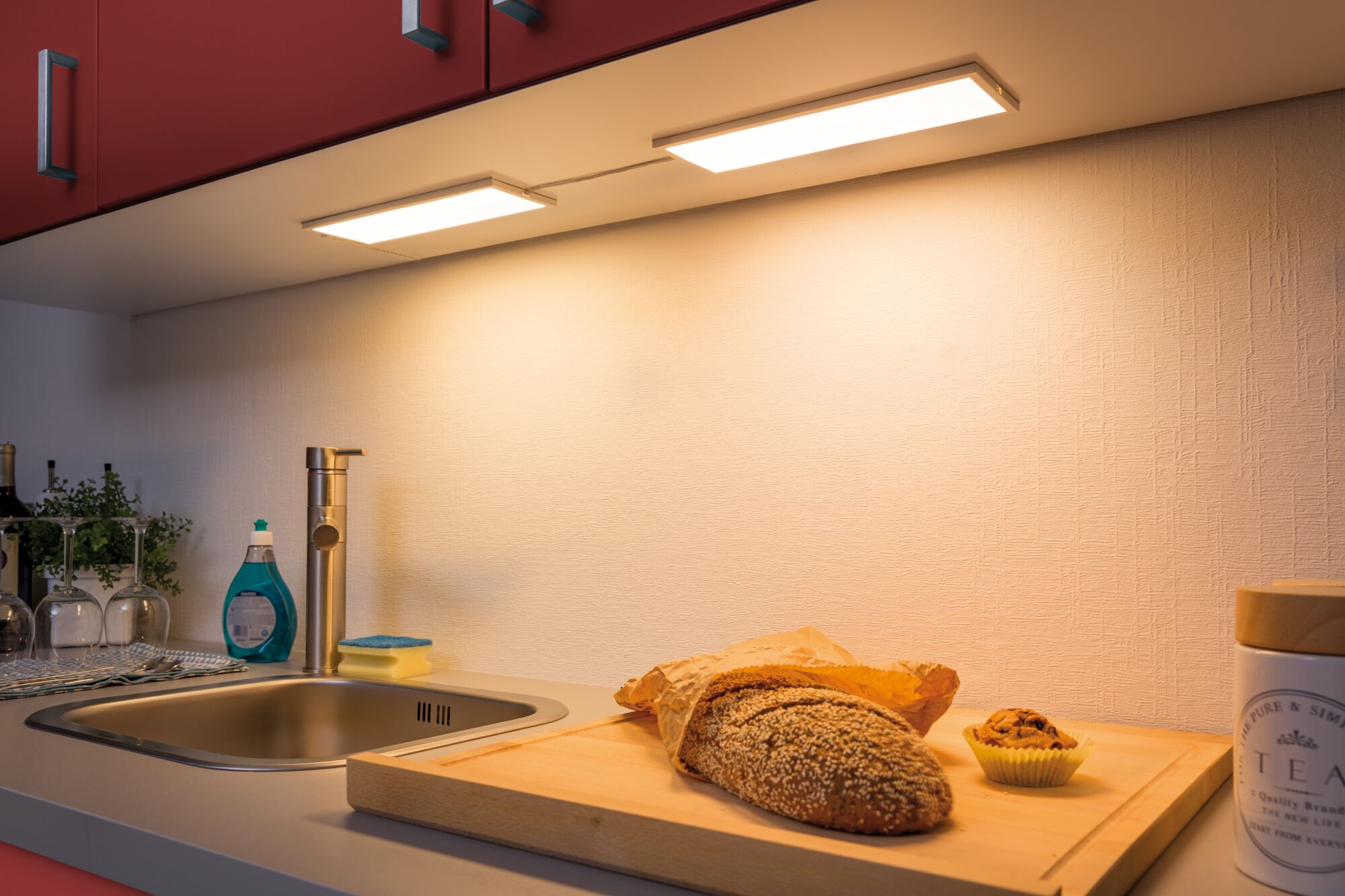

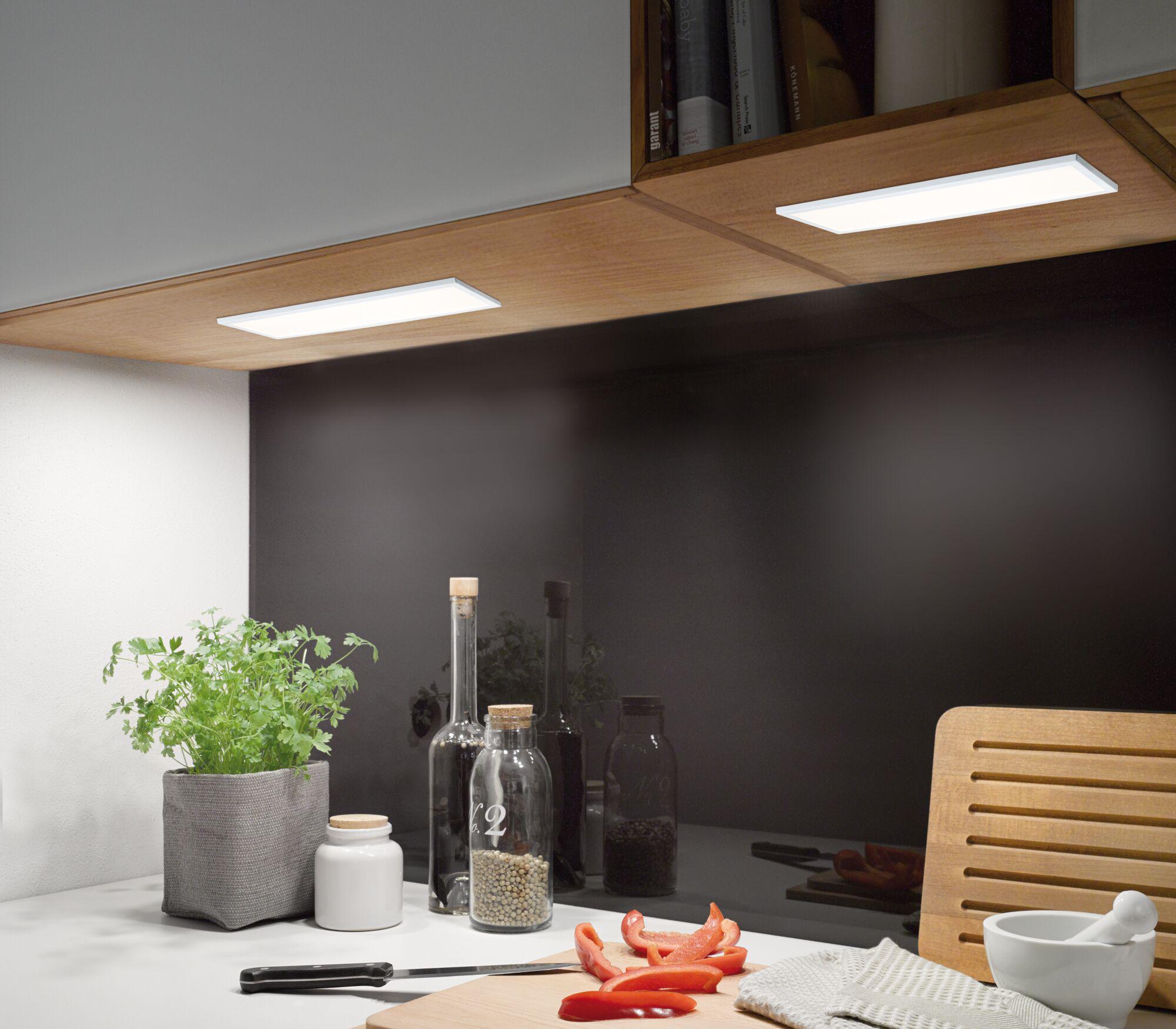

Especially in the kitchen, under-cabinet luminaires cast direct light on all working surfaces and make sure you have a good view of everything. The innovative Ace panel provides wide-area light without forming shadows. It is quickly and easily mounted using the supplied Velcro pads, or is inserted in the permanently bolted clip holder. The basic set can be extended to a total of three panels, so that larger surfaces can also be illuminated. The system can be switched and dimmed as you wish by means of a touch sensor.
- Large-area lighting for optimum illumination of the working surface
- Complete set incl. panel, supply line and fixation material
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white

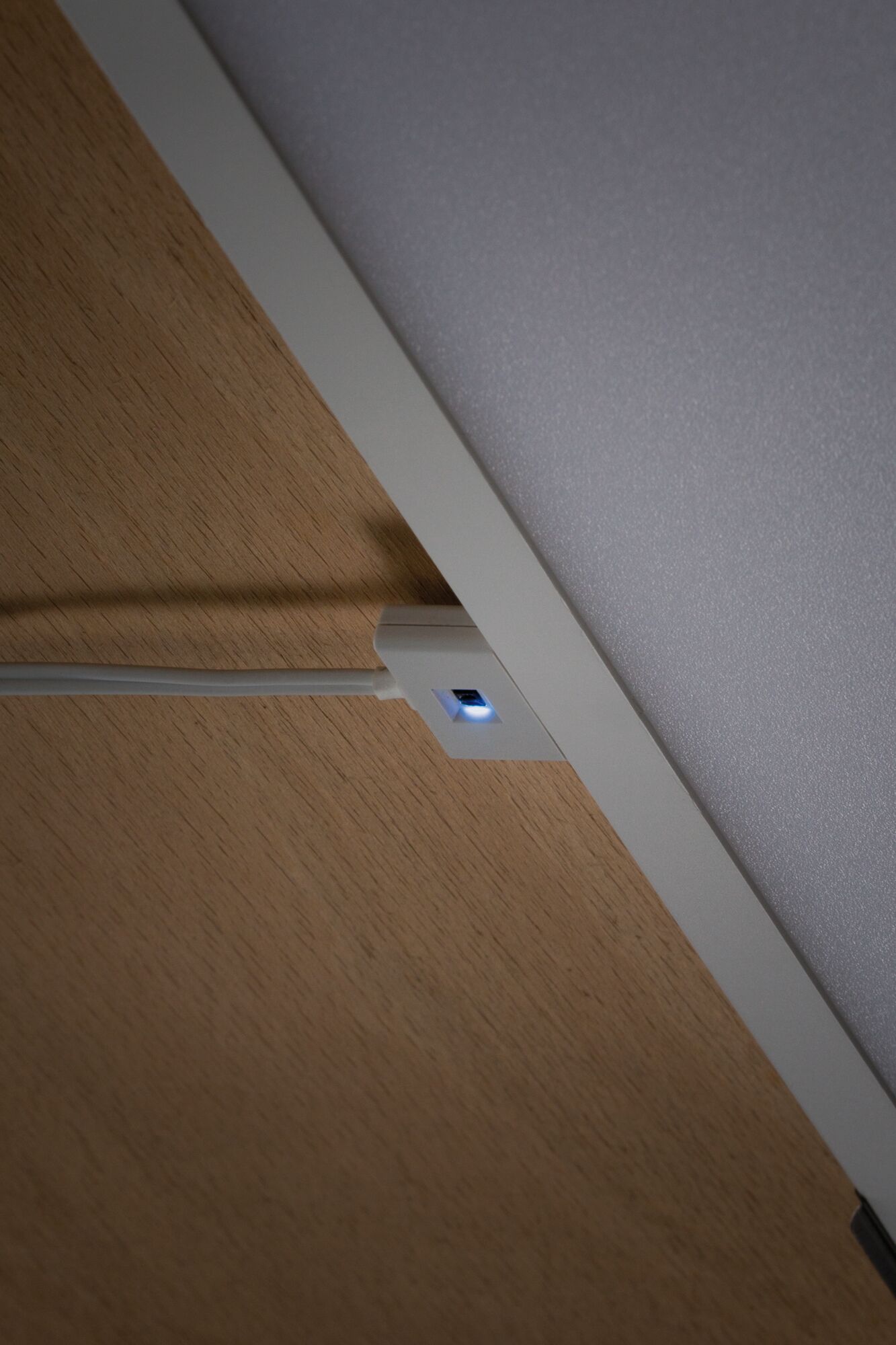

- With touch switch and touch dimmer
- Can be extended individually to up to three panels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 300 x T: 7 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | White, Satin |
| Material | Metal, Plastic |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 520 lm |
| Luminous flux LED module | 580 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 520 lm |
| Lamp Features | |
|---|---|
| Component parts | 7,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | with touch dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 300 mm |
| Incandescent Equivalent | 46.5 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 10 W |
| Transformer | |
|---|---|
| Transformer power | 24 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
