Article-No.:
70777

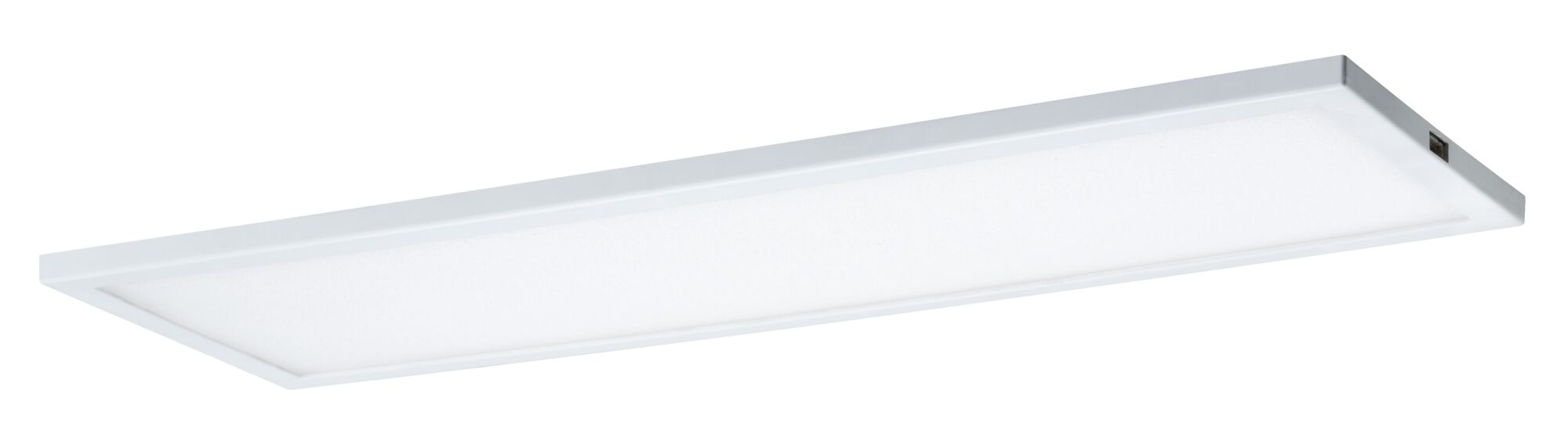

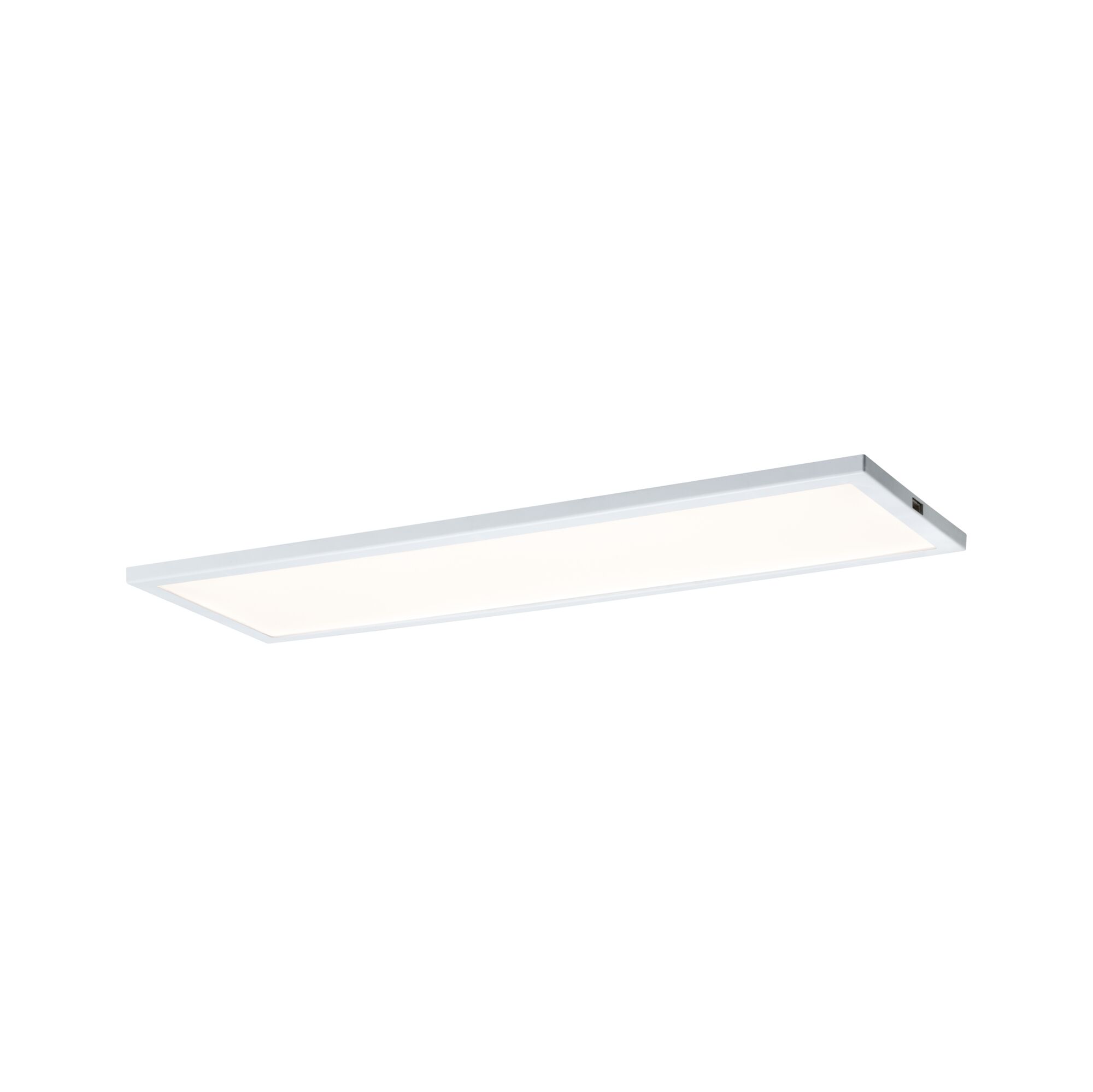

LED Under-cabinet light
Ace
angular 300x100mm 520lm 2700K White/Satin dimmable
angular 300x100mm 520lm 2700K White/Satin dimmable
- Large-area lighting for optimum illumination of the working surface
- Single panel for extending the basic Ace set
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
LED Under-cabinet light Ace angular 300x100mm 520lm 2700K White/Satin dimmable

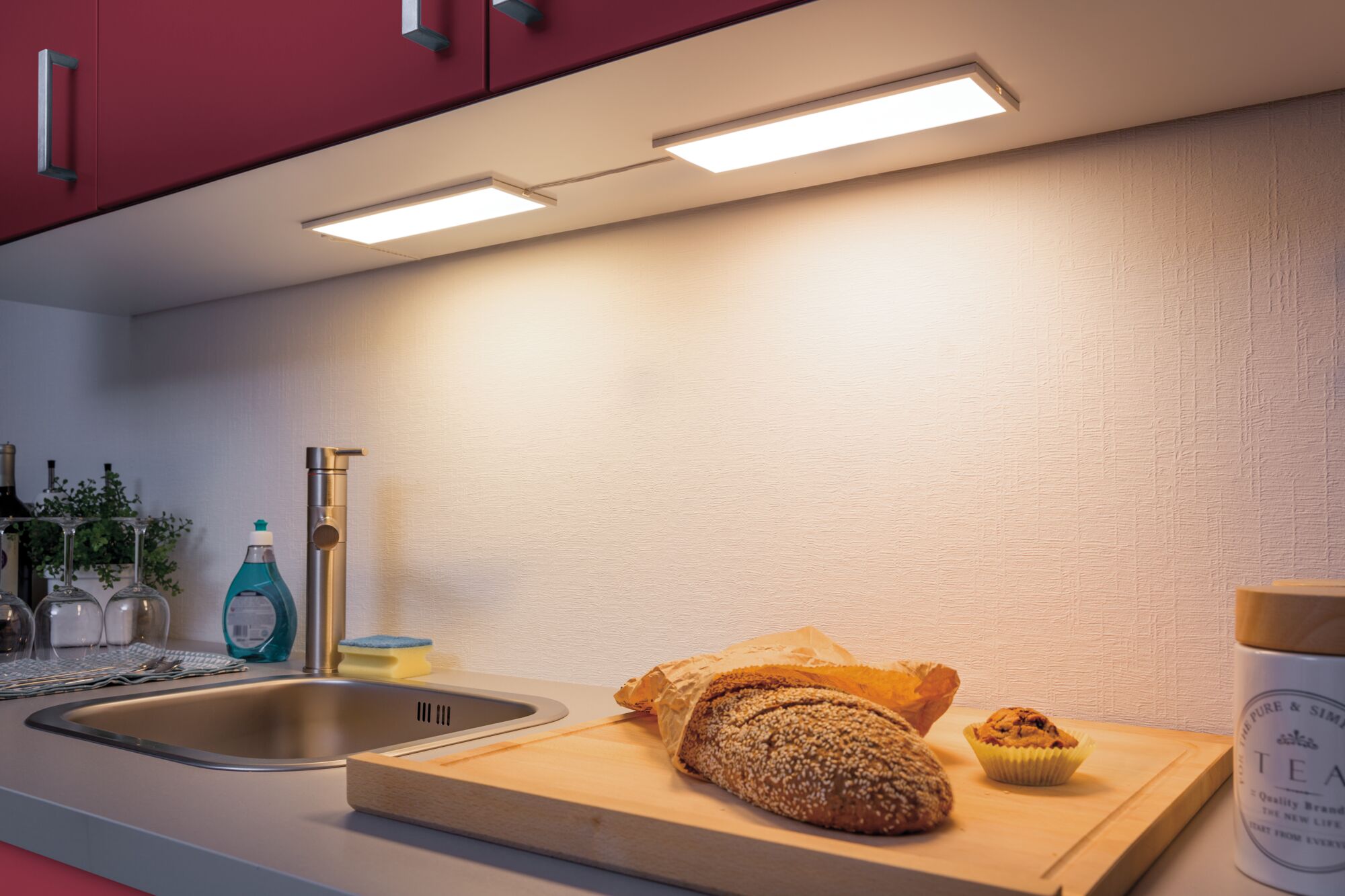

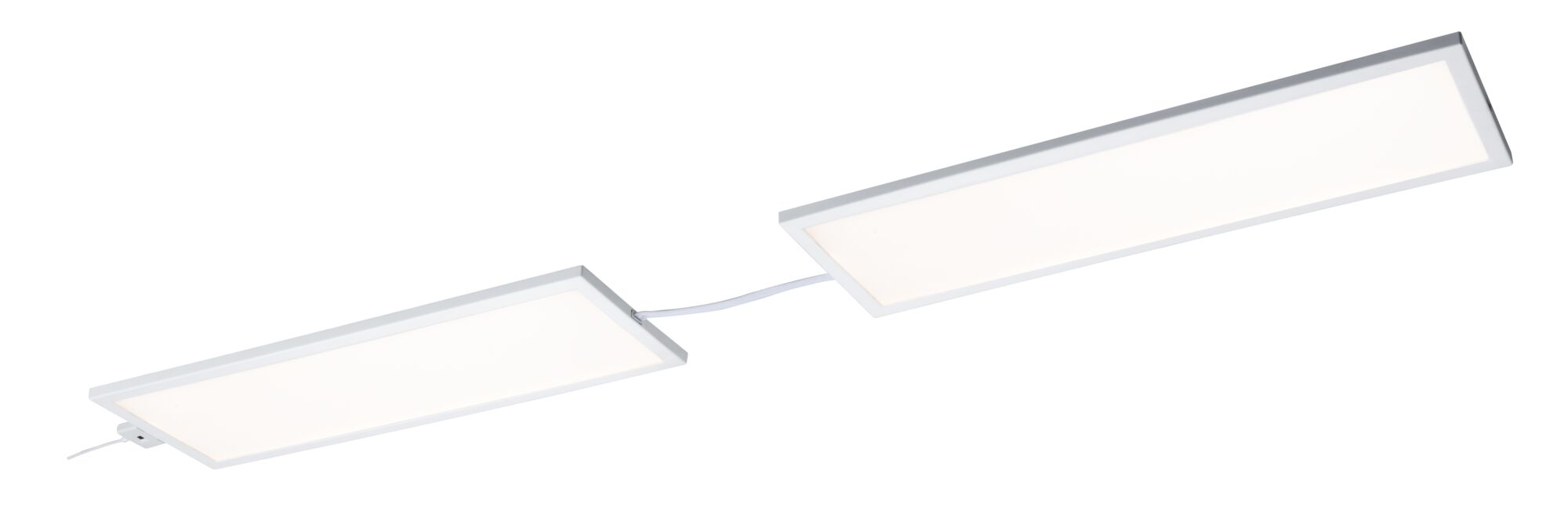

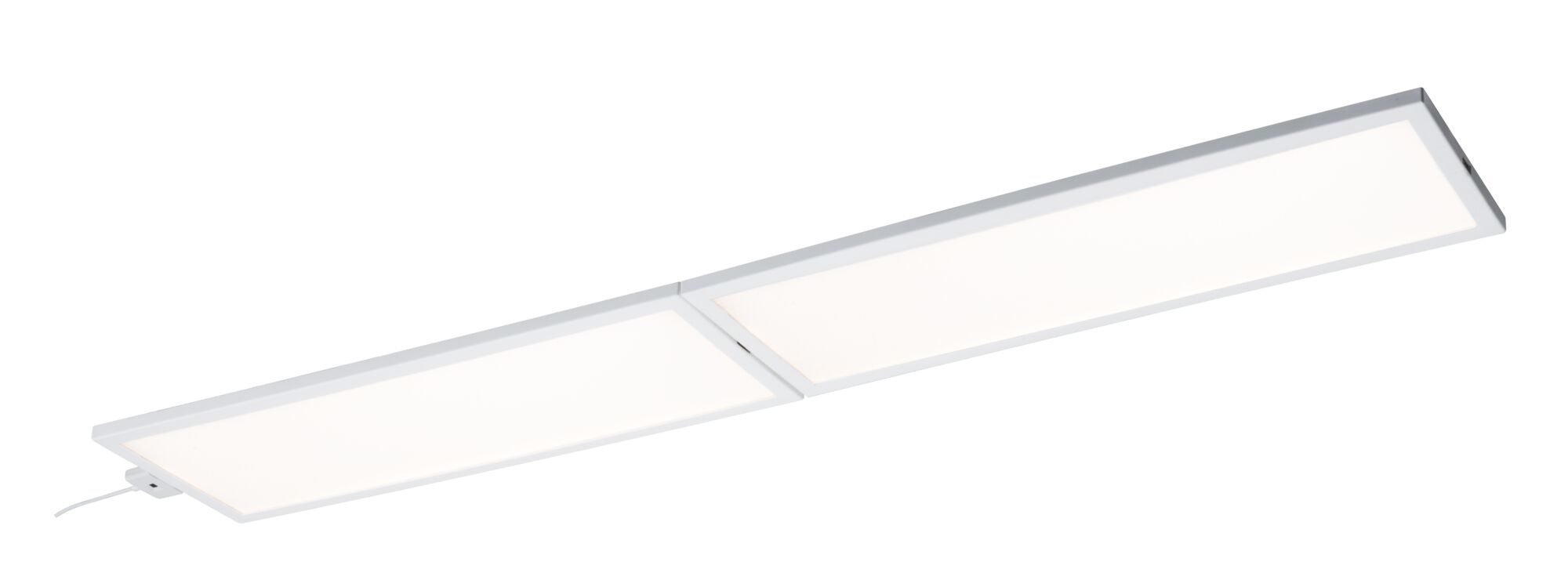

Under cabinet lights provide direct lighting onto all work surfaces, particularly in the kitchen, ensuring a clear view of the area. The innovative Panel Ace provides even, shadow-free lighting. It can be fixed quickly and easily using the Velcro pads supplied or inserted into fixed clip holders. The basic set can be expanded to a total of three panels, allowing even larger areas to be illuminated. A touch sensor allows the installation to be switched on and performed as required for dimming.
- Large-area lighting for optimum illumination of the working surface
- Single panel for extending the basic Ace set
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

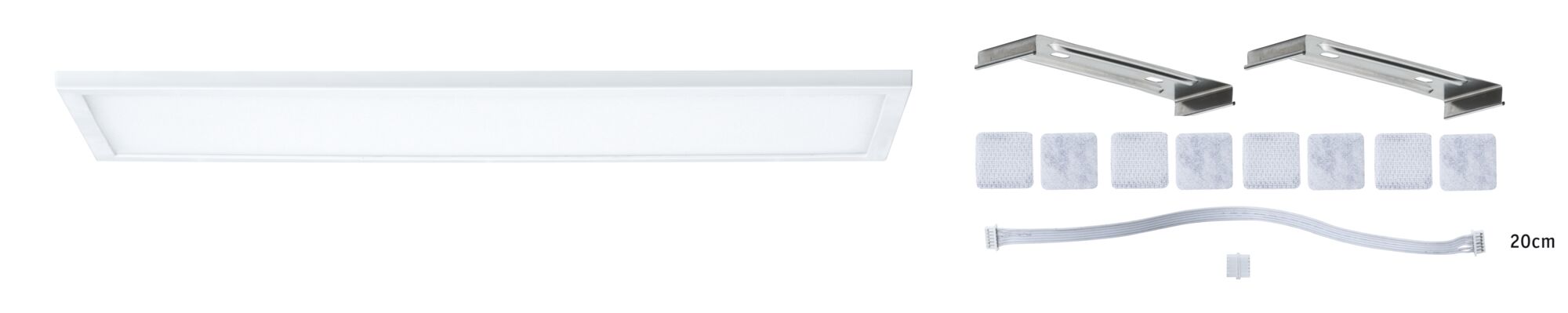

- Incl. 20 cm connecting cable
- Colour temperature: 2700K - Warm white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 300 x T: 7 mm |
| Net weight | 261 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White, Satin |
| Material | Metal, Plastic |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with touch dimmer |
| Inclusive lamp | yes |
| Component parts | 7,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 46.5 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class III |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 520 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 580 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 100 x 300 x 7 mm |
