Article-No.:
70777
LED Under-cabinet luminaire
Ace
angular 300x7mm 520lm 2700K White/Satin dimmable
angular 300x7mm 520lm 2700K White/Satin dimmable
- Large-area lighting for optimum illumination of the working surface

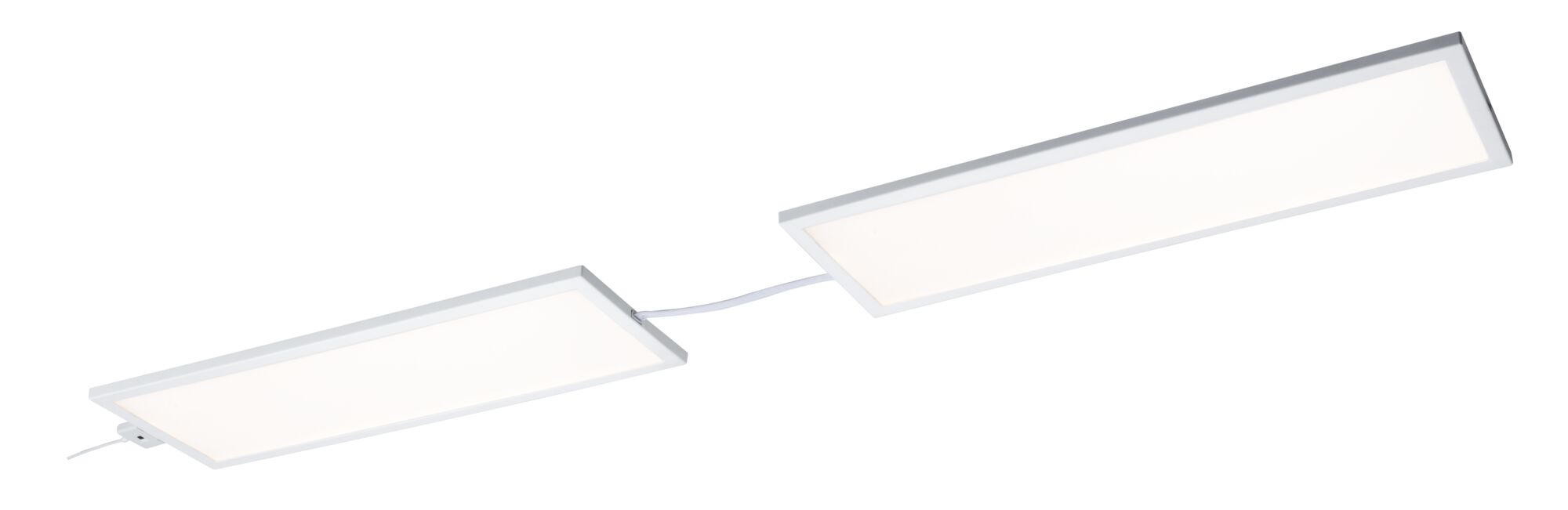

- Single panel for extending the basic Ace set
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
LED Under-cabinet luminaire Ace angular 300x7mm 520lm 2700K White/Satin dimmable

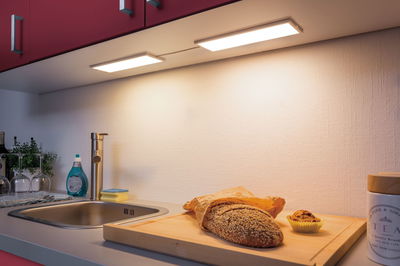

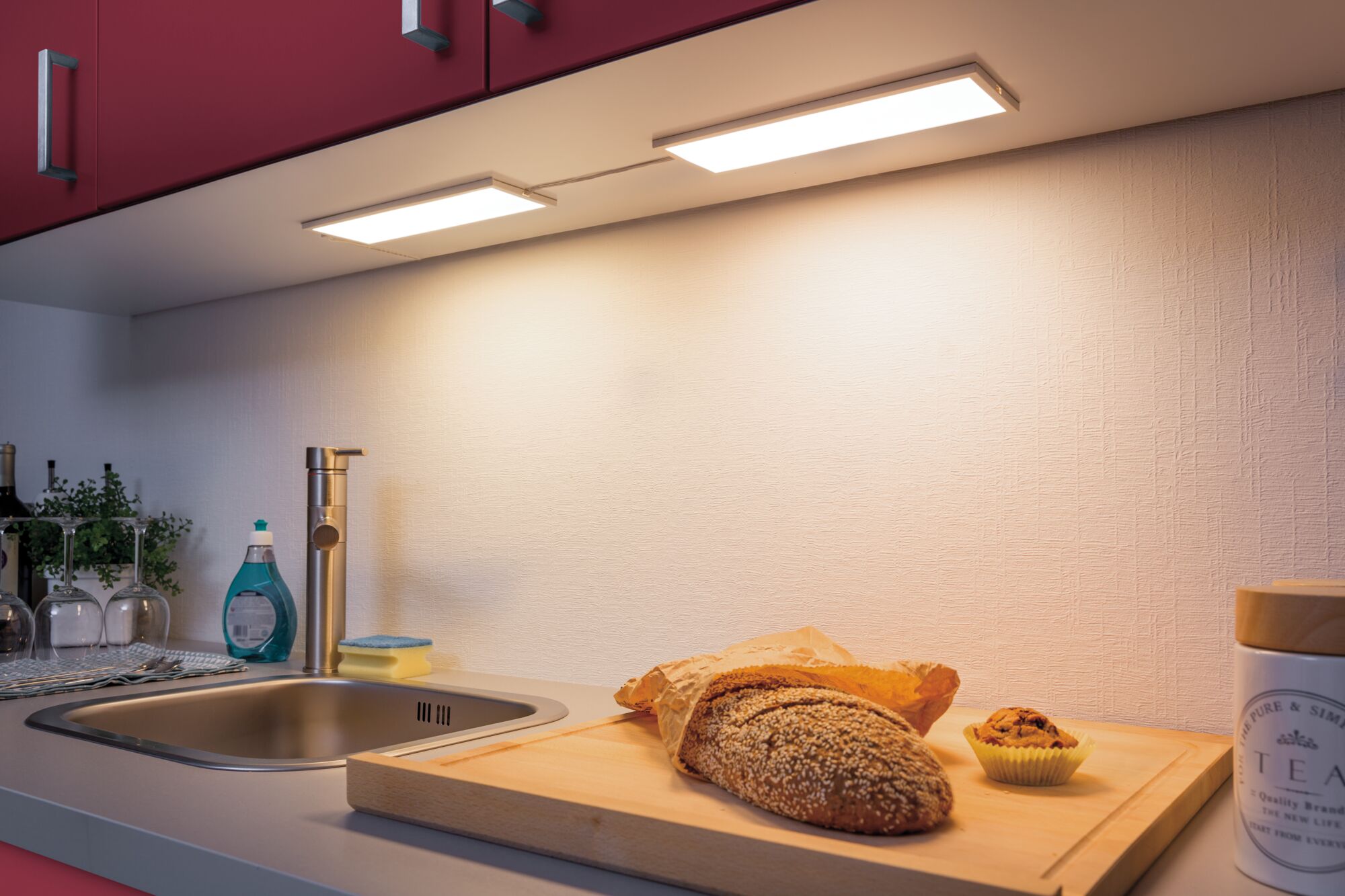

Especially in the kitchen, under-cabinet luminaires cast direct light on all working surfaces and make sure you have a good view of everything. The innovative Ace panel provides wide-area light without forming shadows. It is quickly and easily mounted using the supplied Velcro pads, or is inserted in the permanently bolted clip holder. The basic set can be extended to a total of three panels, so that larger surfaces can also be illuminated. The system can be switched and dimmed as you wish by means of a touch sensor.
- Large-area lighting for optimum illumination of the working surface
- Single panel for extending the basic Ace set
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white

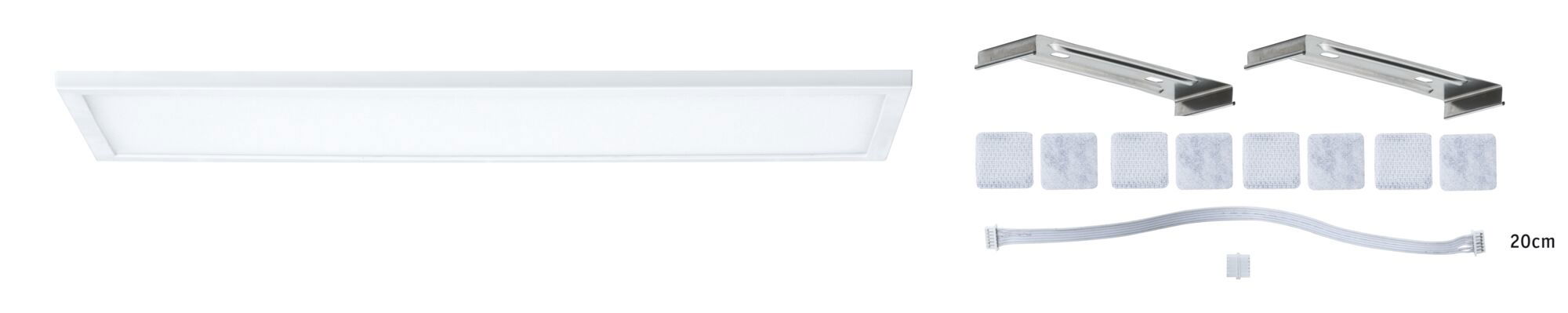

- Incl. 20 cm connecting cable
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 300 x T: 7 mm |
| Form | angular |
| Design and Material | |
|---|---|
| Colour | White, Satin |
| Material | Metal, Plastic |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 520 lm |
| Luminous flux LED module | 580 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 520 lm |
| Lamp Features | |
|---|---|
| Component parts | 7,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | with touch dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 46.5 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
