Article-No.:
70776

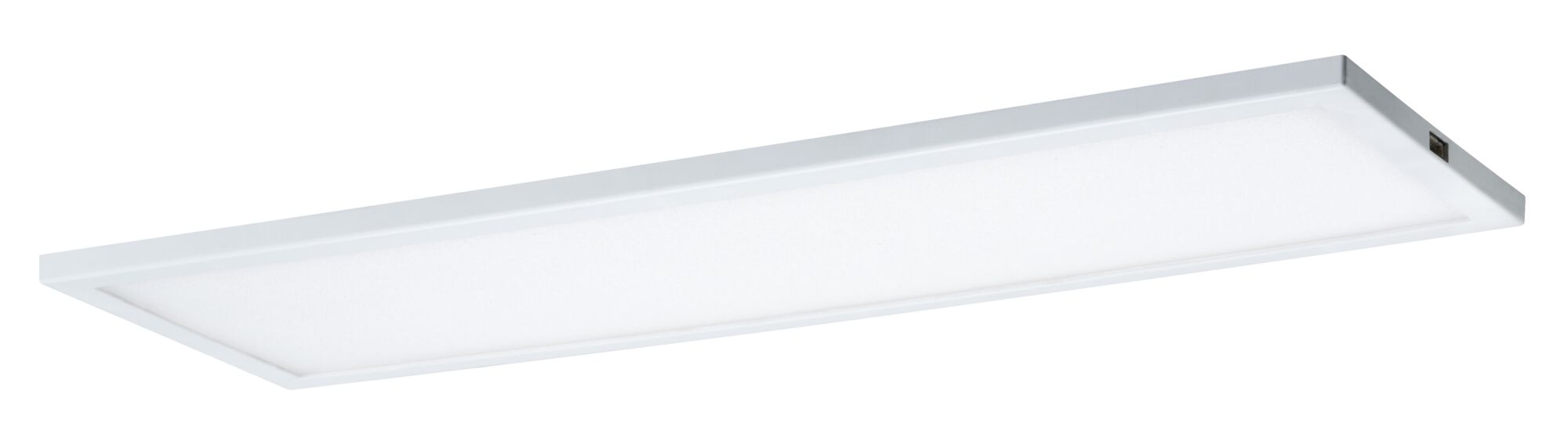

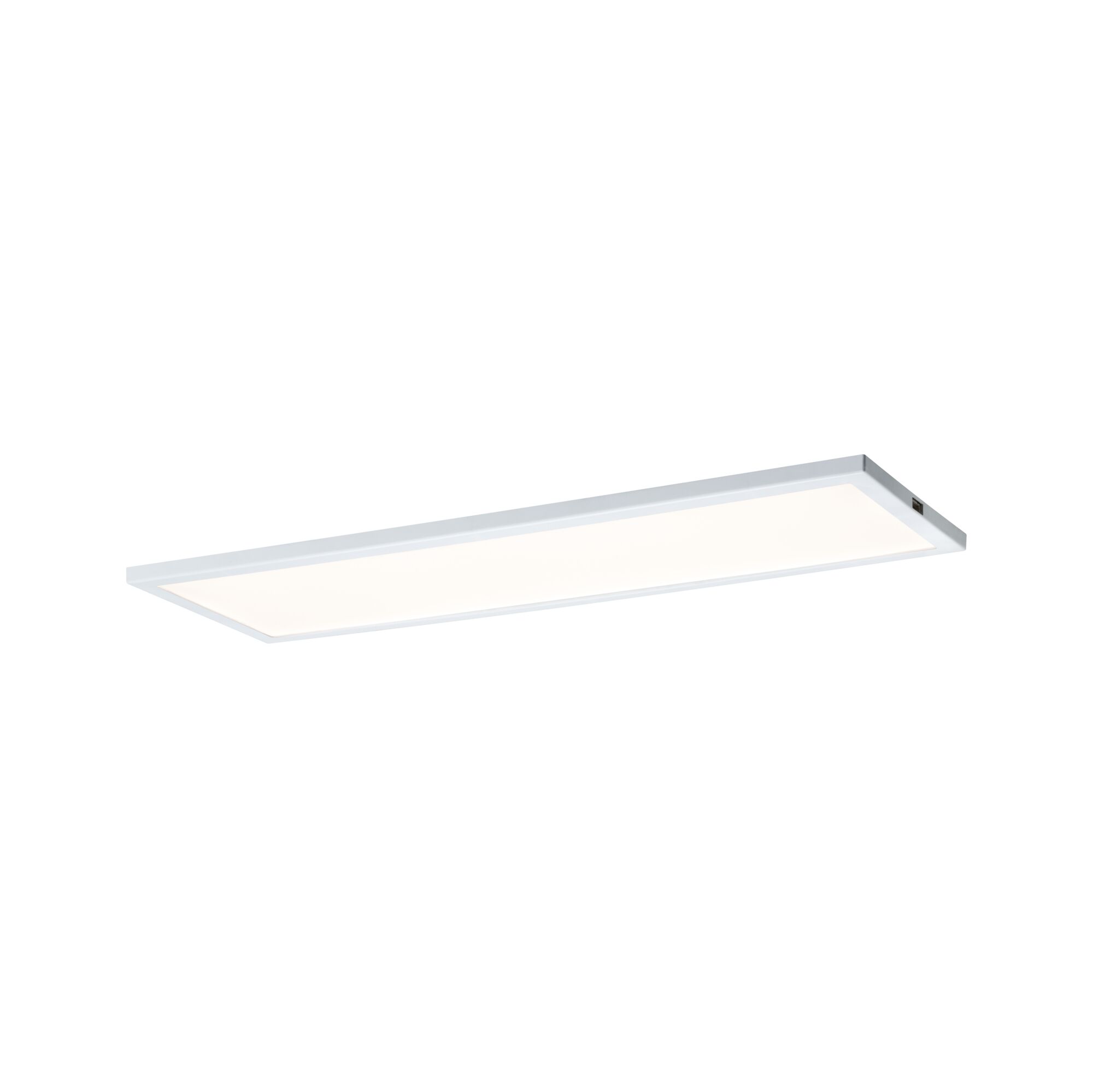

LED Under-cabinet luminaire
Ace
angular 300x7mm 520lm 2700K White/Satin dimmable
angular 300x7mm 520lm 2700K White/Satin dimmable
- Large-area lighting for optimum illumination of the working surface

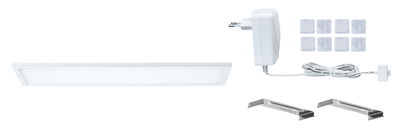

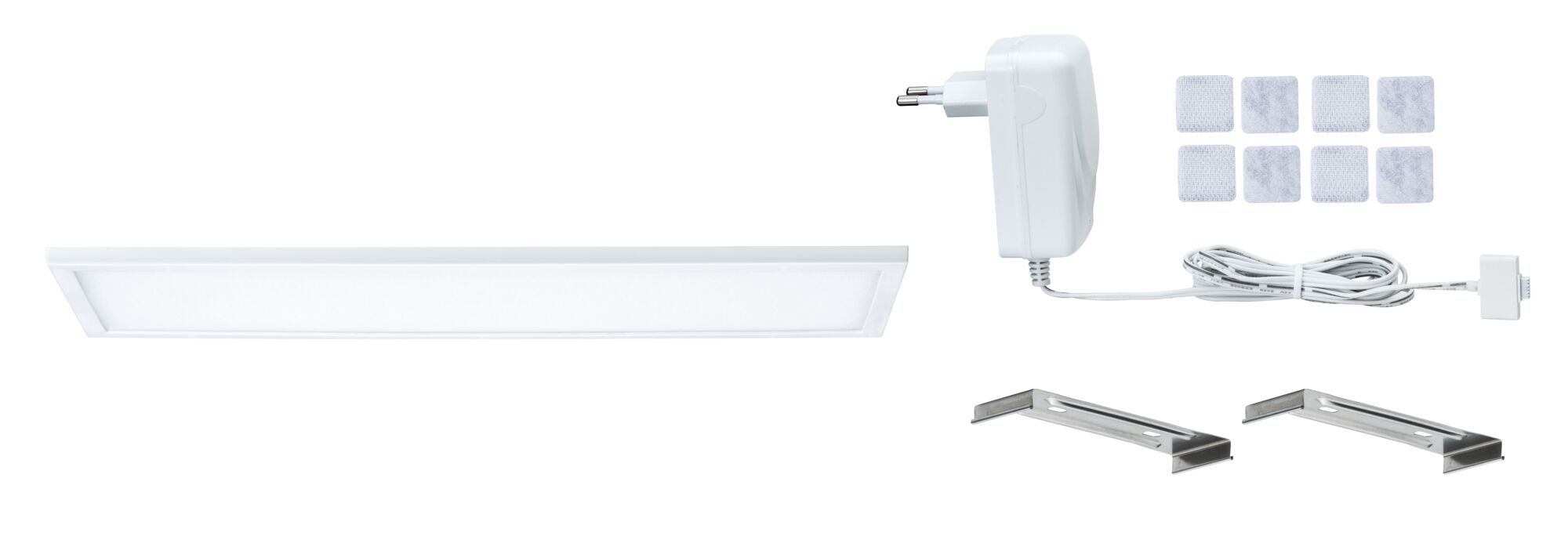

- Complete set incl. panel, supply line and fixation material
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
LED Under-cabinet luminaire Ace angular 300x7mm 520lm 2700K White/Satin dimmable

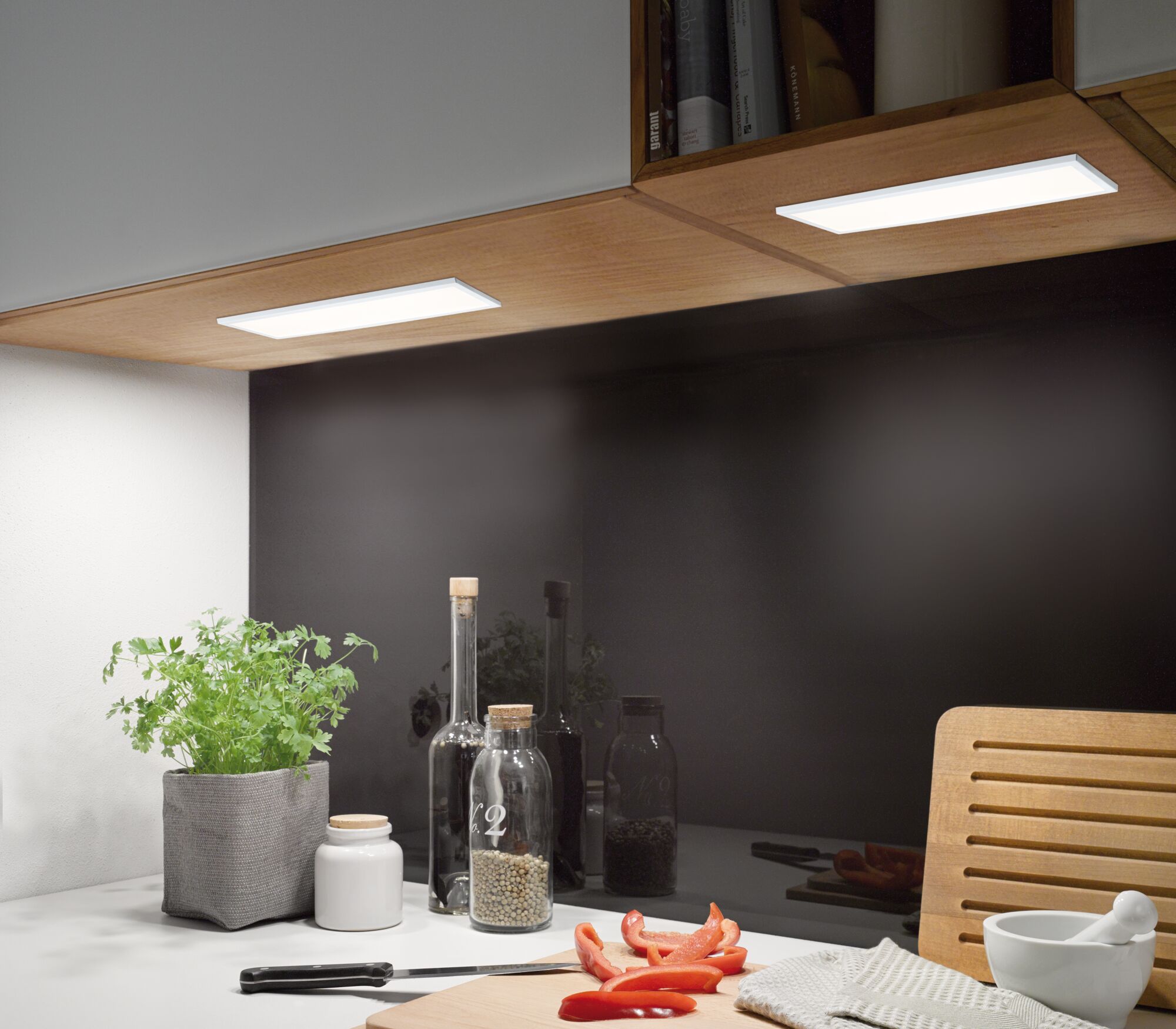

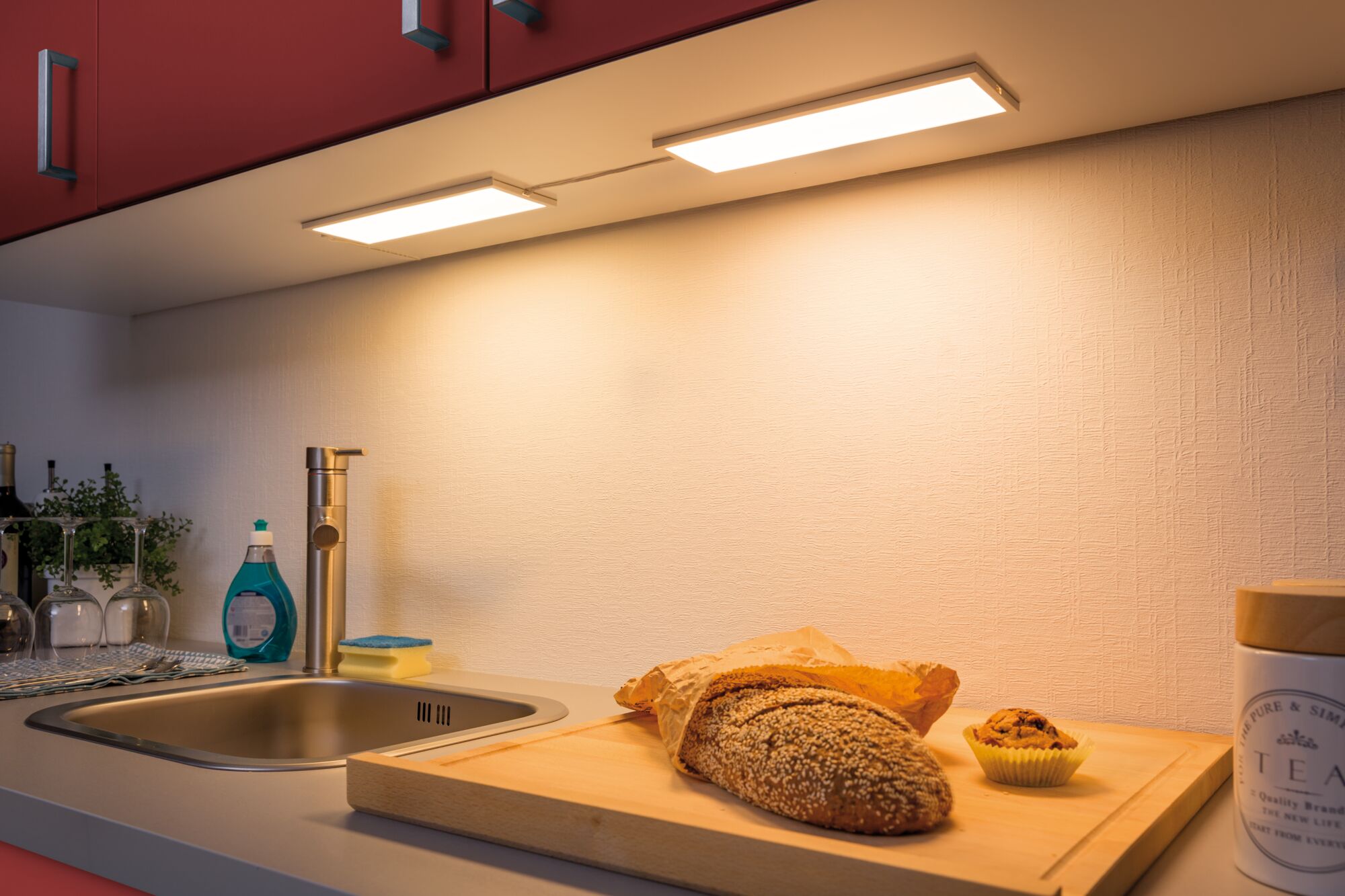

Especially in the kitchen, under-cabinet luminaires cast direct light on all working surfaces and make sure you have a good view of everything. The innovative Ace panel provides wide-area light without forming shadows. It is quickly and easily mounted using the supplied Velcro pads, or is inserted in the permanently bolted clip holder. The basic set can be extended to a total of three panels, so that larger surfaces can also be illuminated. The system can be switched and dimmed as you wish by means of a touch sensor.
- Large-area lighting for optimum illumination of the working surface
- Complete set incl. panel, supply line and fixation material
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white

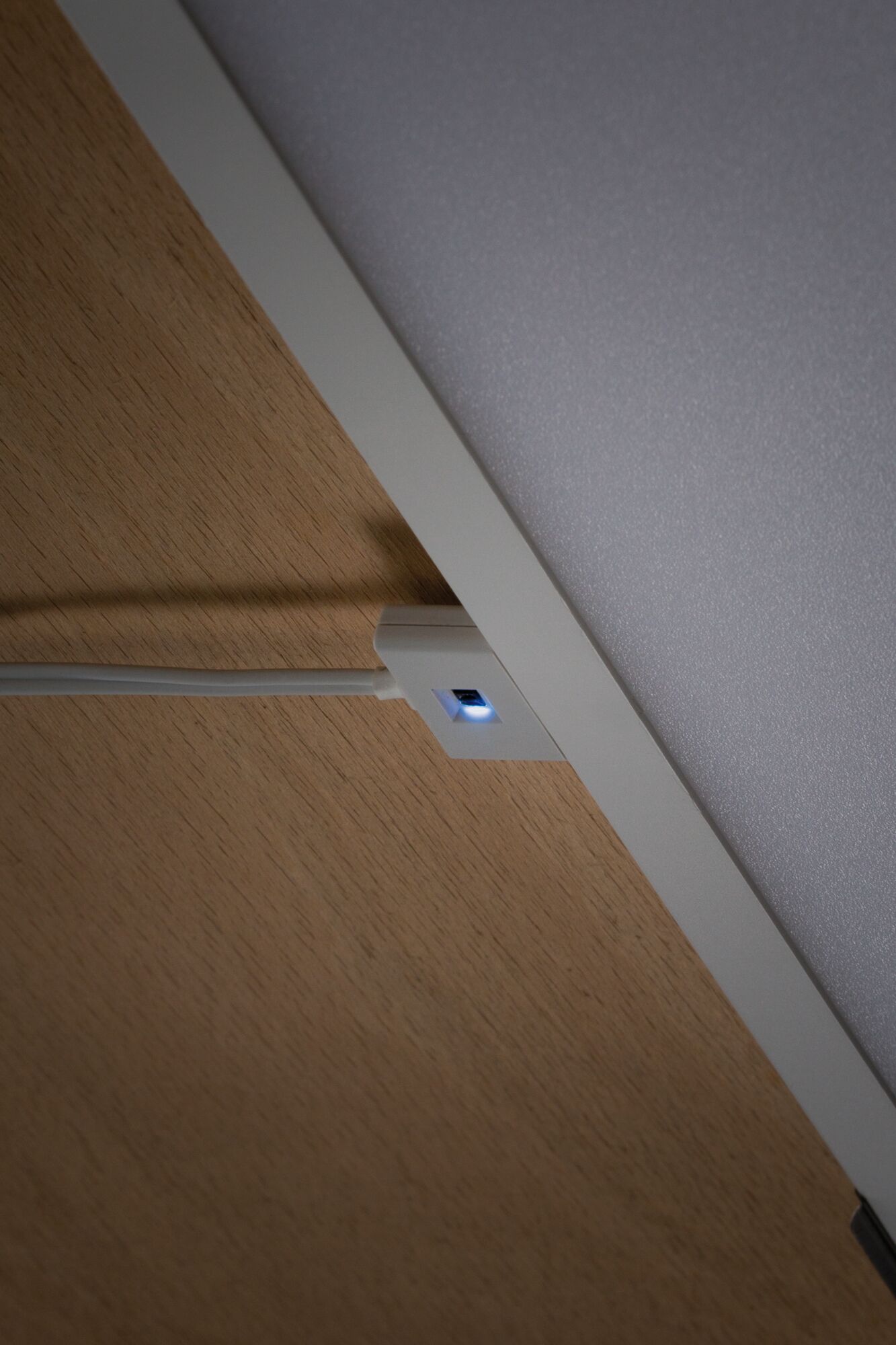

- With touch switch and touch dimmer
- Can be extended individually to up to three panels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 300 x T: 7 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White, Satin |
| Material | Metal, Plastic |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 520 lm |
| Luminous flux LED module | 900 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with touch dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 66 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 8 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11,5 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
