Article-No.: 70777

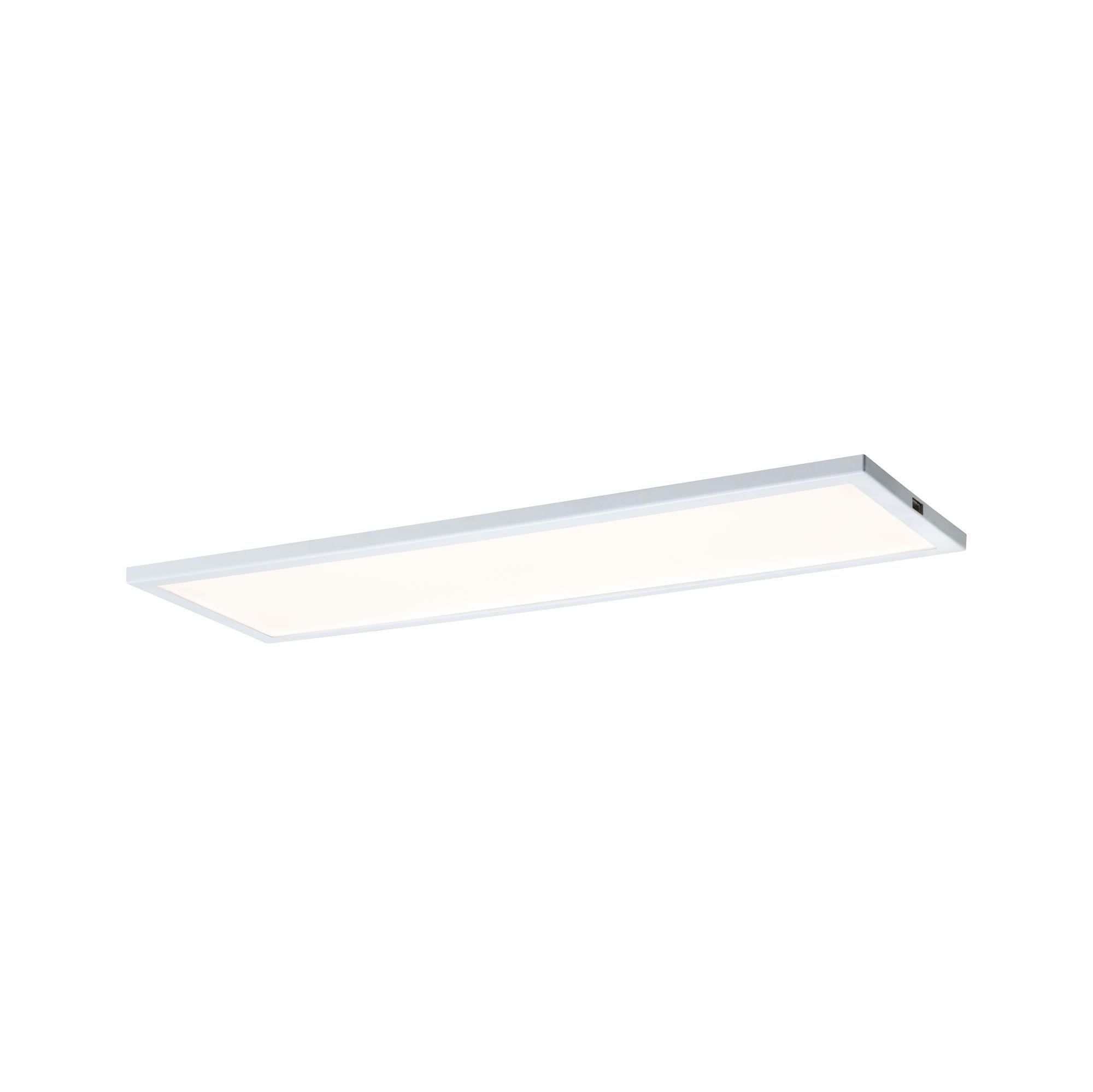

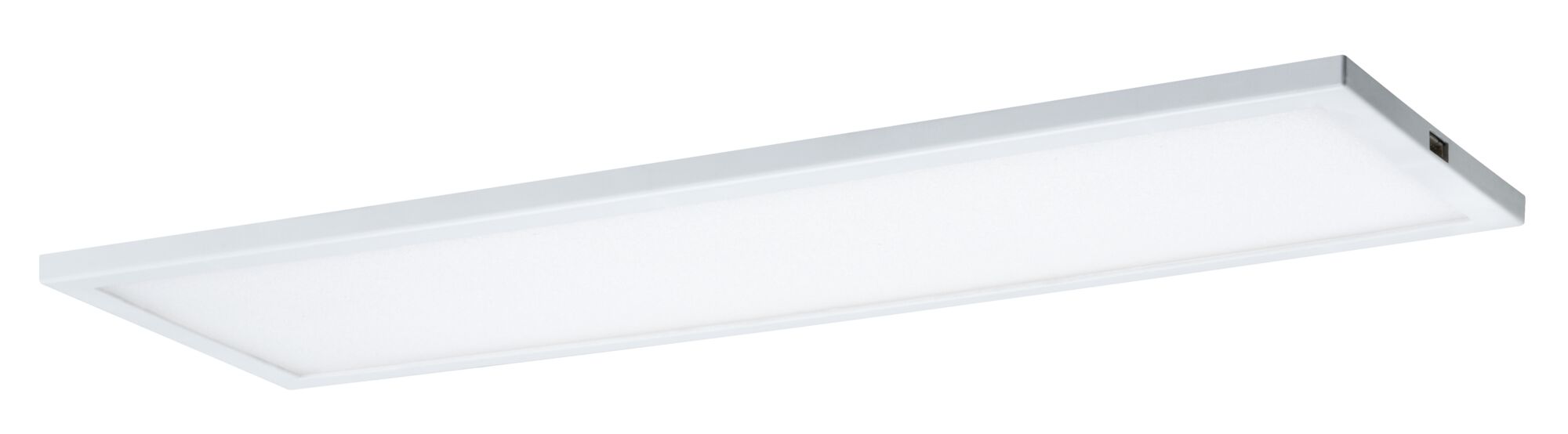

LED Under-cabinet luminaire Ace

square 300x7mm 520lm 2700K White/Satin dimmable

Version: Individual panel

  • Large-area lighting for optimum illumination of the working surface
  • Single panel for extending the basic Ace set
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

LED Under-cabinet luminaire Ace square 300x7mm 520lm 2700K White/Satin dimmable

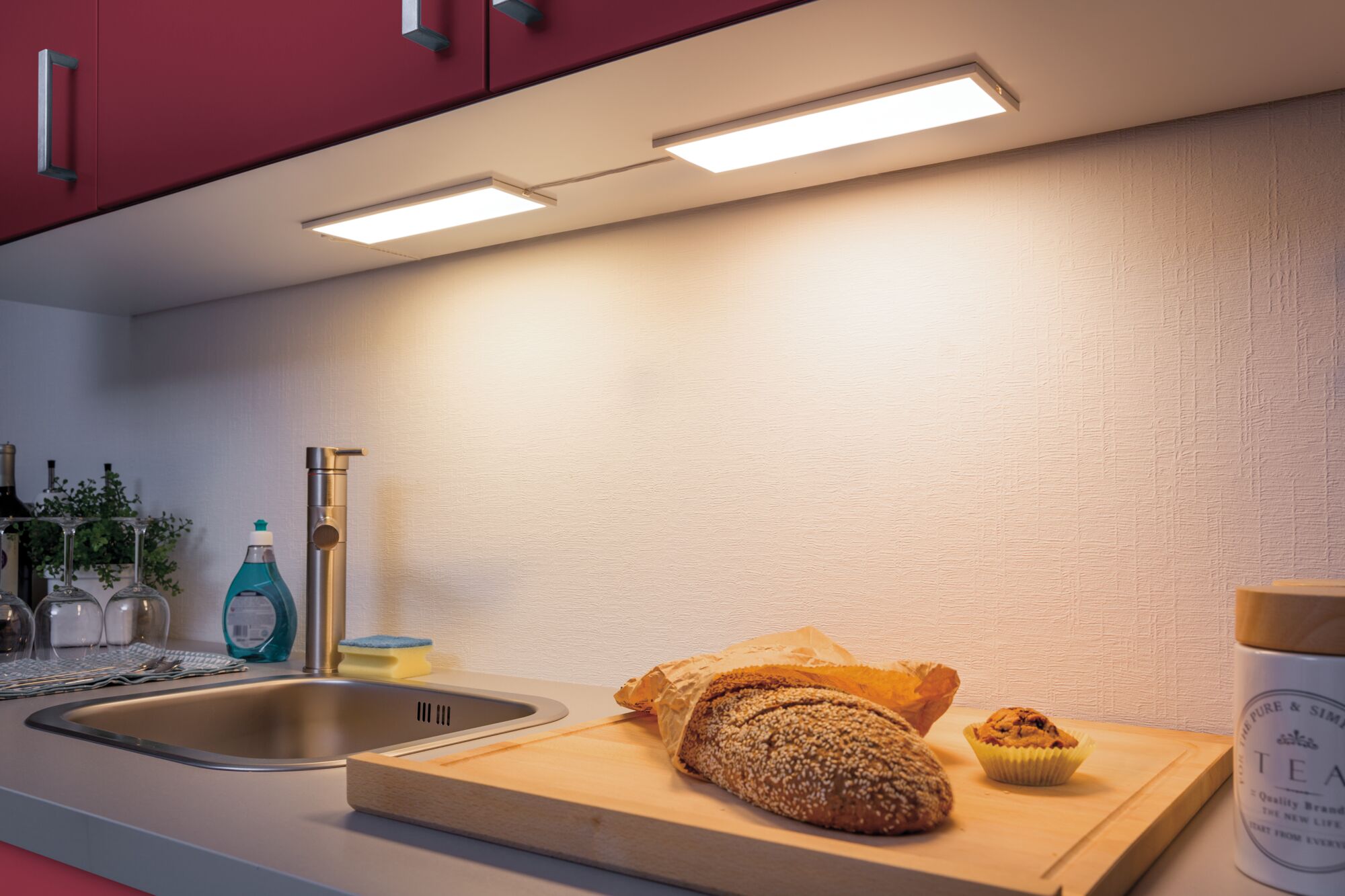

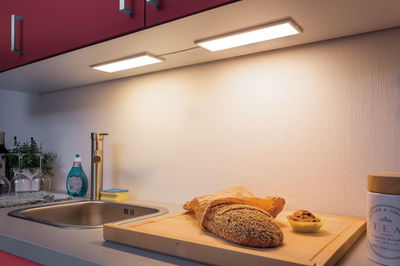

Especially in the kitchen, under-cabinet luminaires cast direct light on all working surfaces and make sure you have a good view of everything. The innovative Ace panel provides wide-area light without forming shadows. It is quickly and easily mounted using the supplied Velcro pads, or is inserted in the permanently bolted clip holder. The basic set can be extended to a total of three panels, so that larger surfaces can also be illuminated. The system can be switched and dimmed as you wish by means of a touch sensor.
  • Large-area lighting for optimum illumination of the working surface

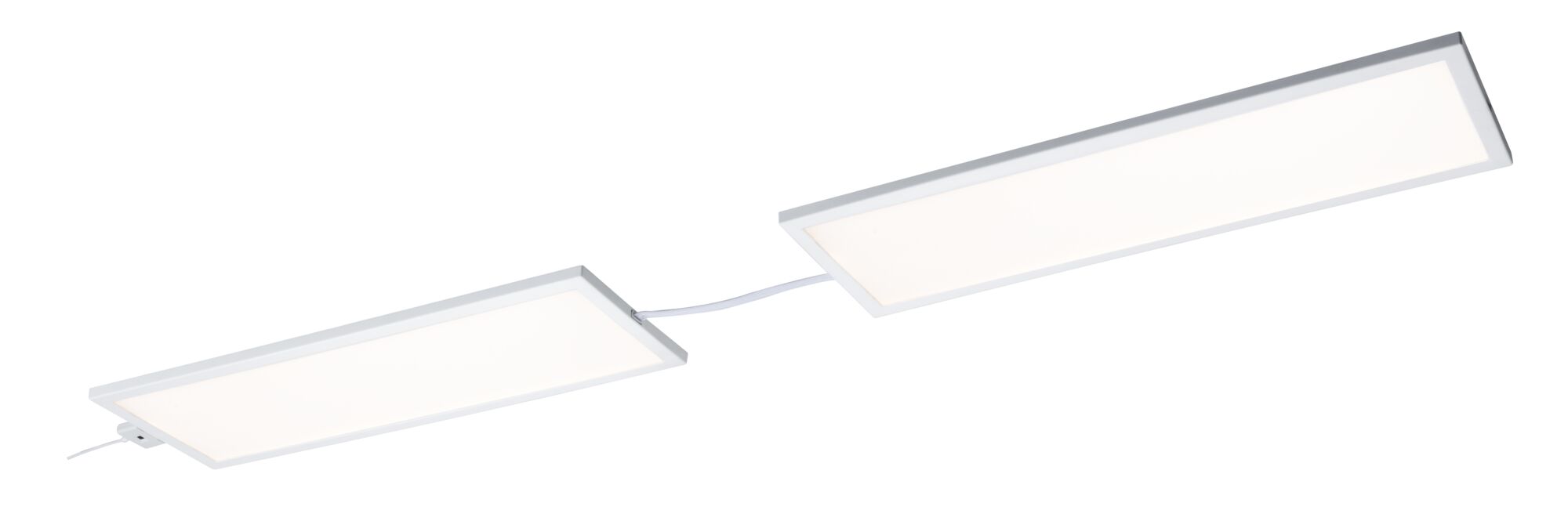

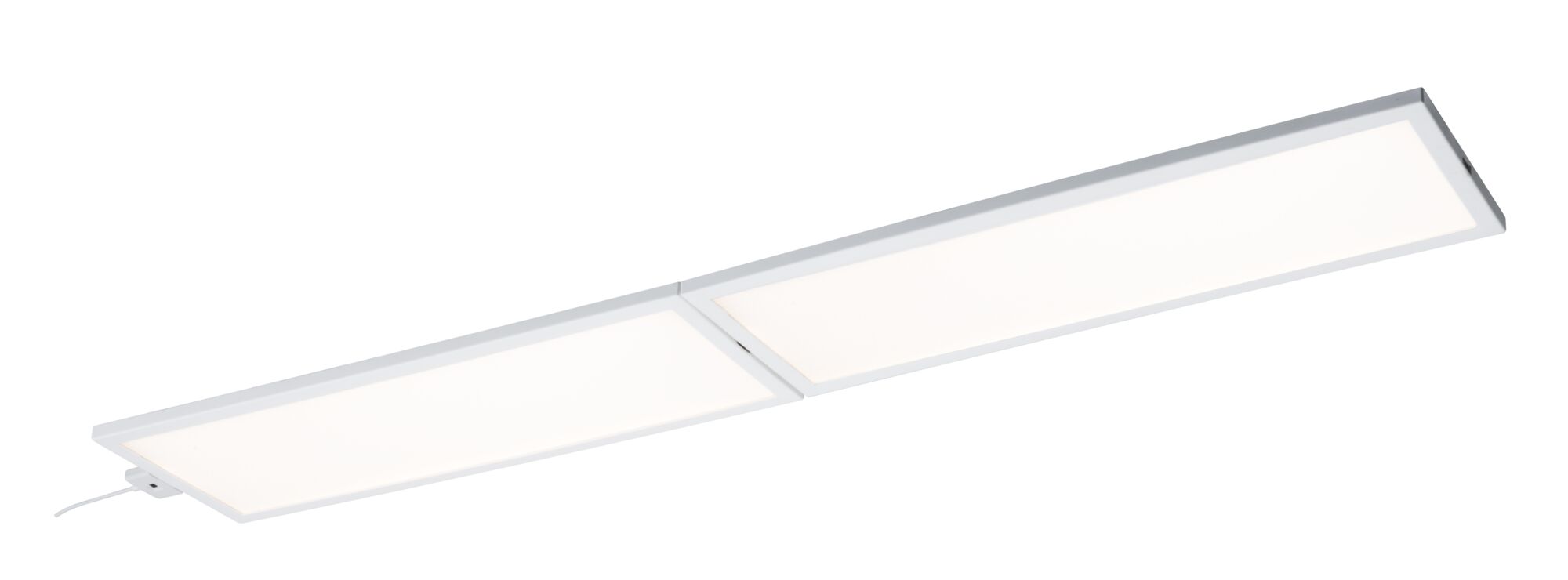

  • Single panel for extending the basic Ace set
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
  • Color temperatur: 2700K - Warm white

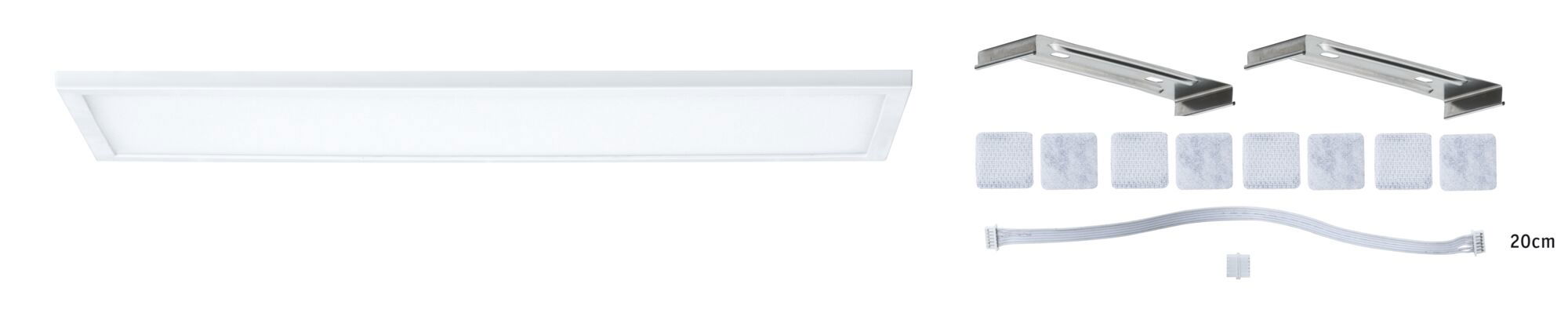

  • Incl. 20 cm connecting cable
Dimension
Dimensions (Height x Width x Depth) H: 100 x B: 300 x T: 7 mm
Form square
Design and Material
Colour White, Satin
Material Metal, Plastic
Connections
Plug-and-socket connector Plug-and-socket connector
Energy consumption
Energy efficiency (A to G) F
Service life
Lifetime 30000 h
Rated life time 30000 h
Light Characteristics
Colour temp. 2700 K
Usable luminous flux 520 lm
Luminous flux LED module 580 lm
color temp 2700 K
Color rendering index > 80 Ra
Rated luminous flux (Lumen) 520 lm
Lamp Features
Component parts 7,5 W
Technique LED
Dim with touchdimmer
Dimmable Yes
Inclusive lamp yes
Total Width 300 mm
Incandescent Equivalent 46.5 W
Number of component parts 1x
protection class protection class III
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser.
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
