Article-No.:
92962

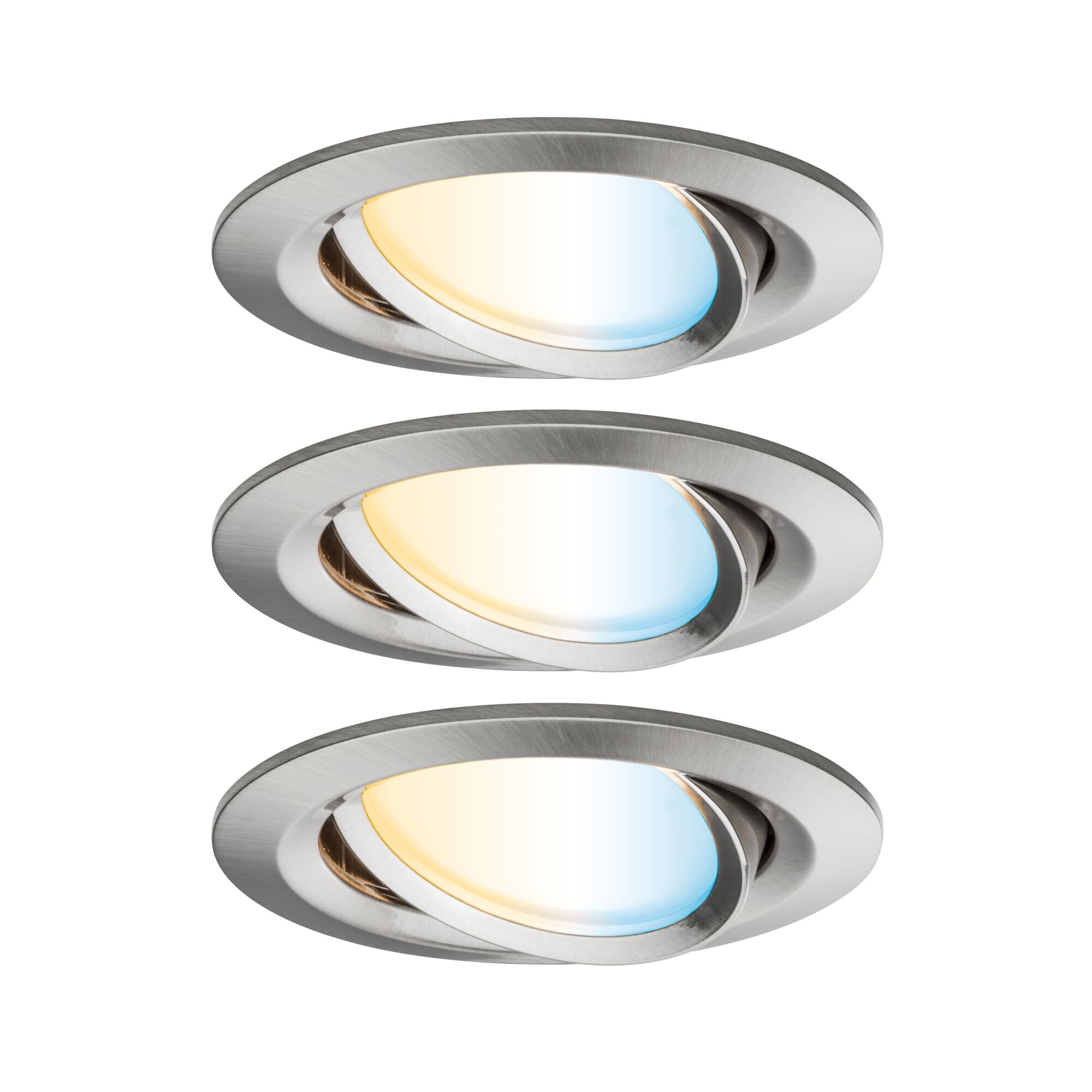

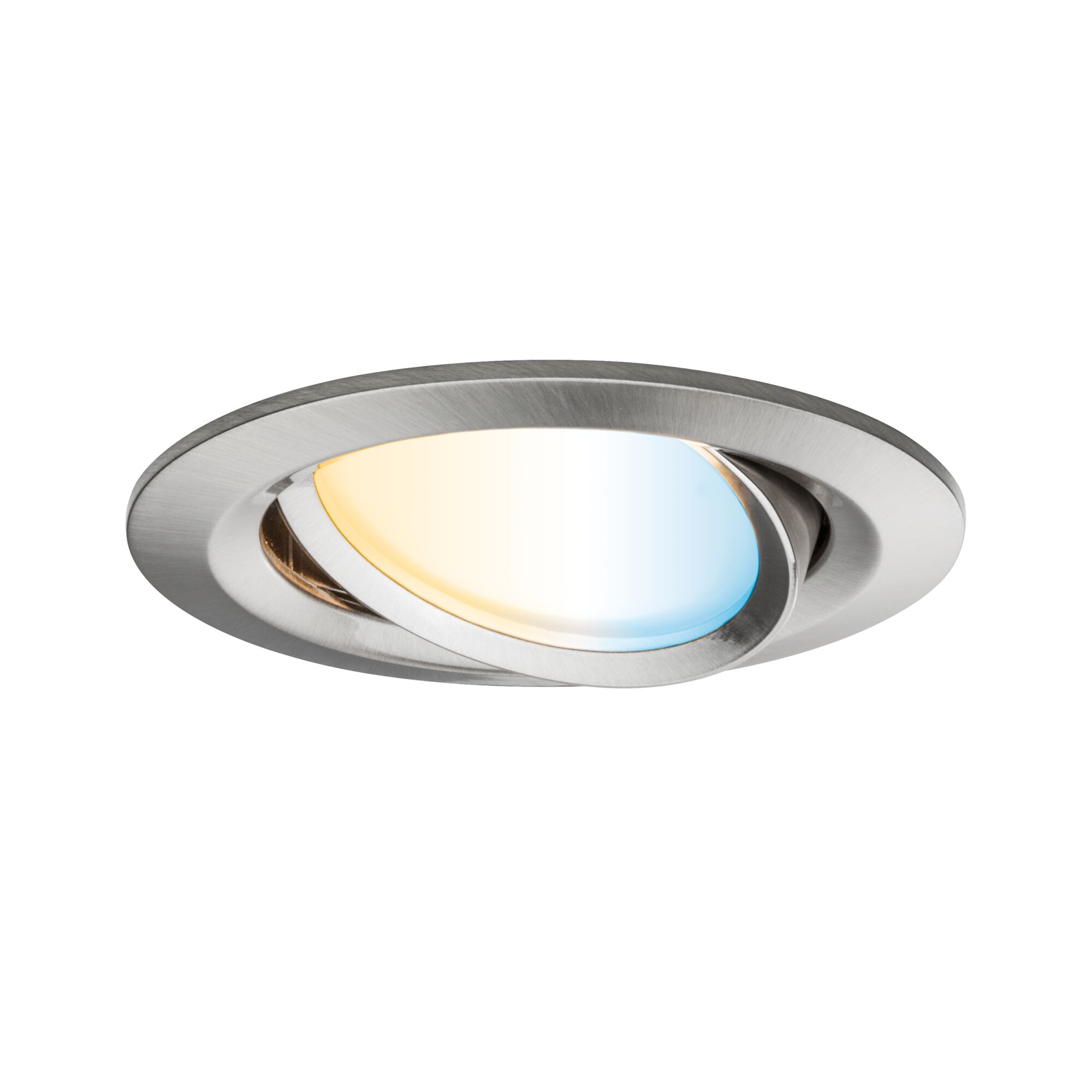

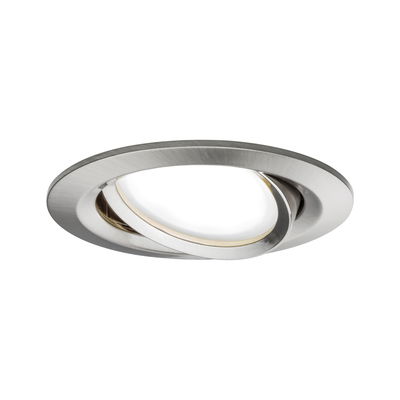

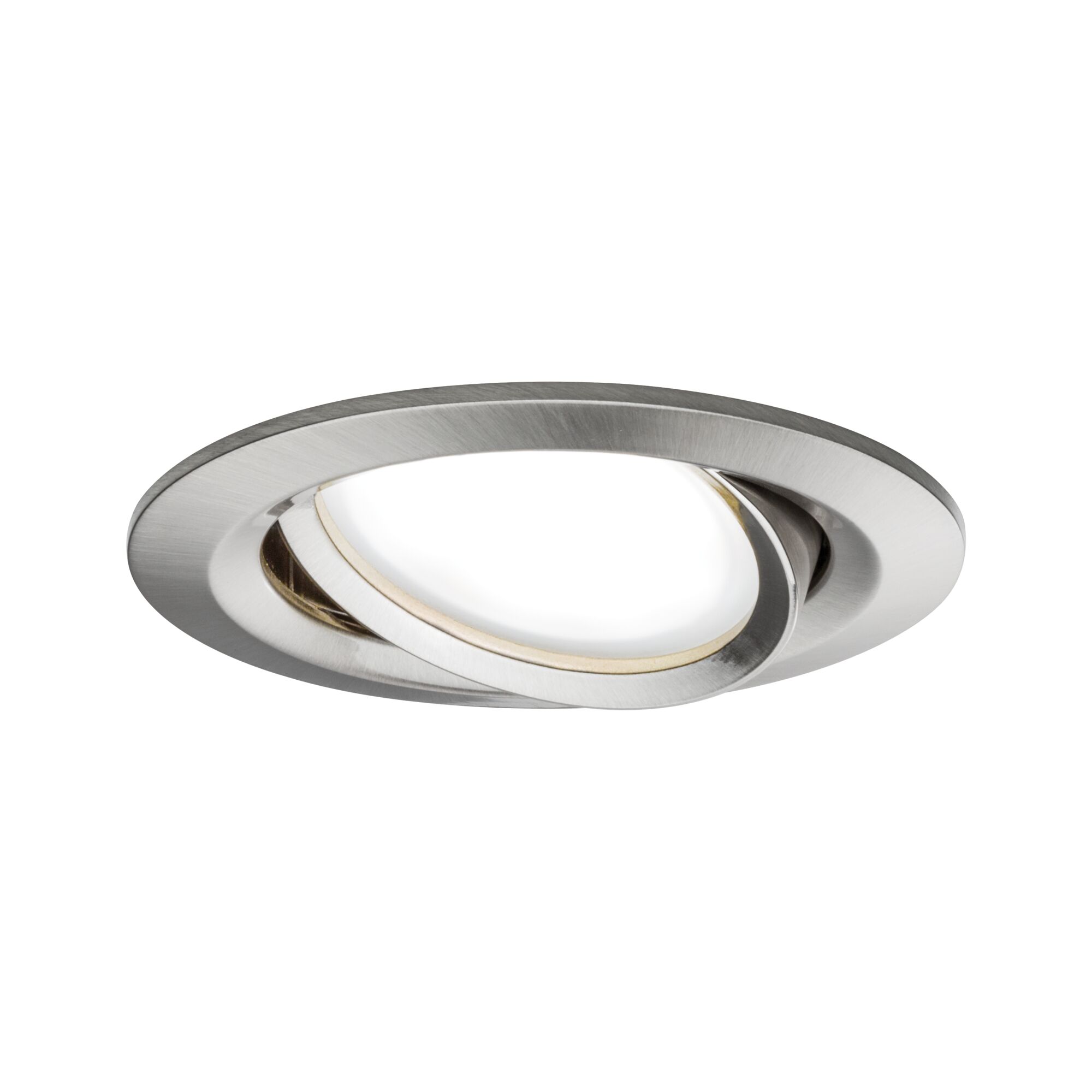

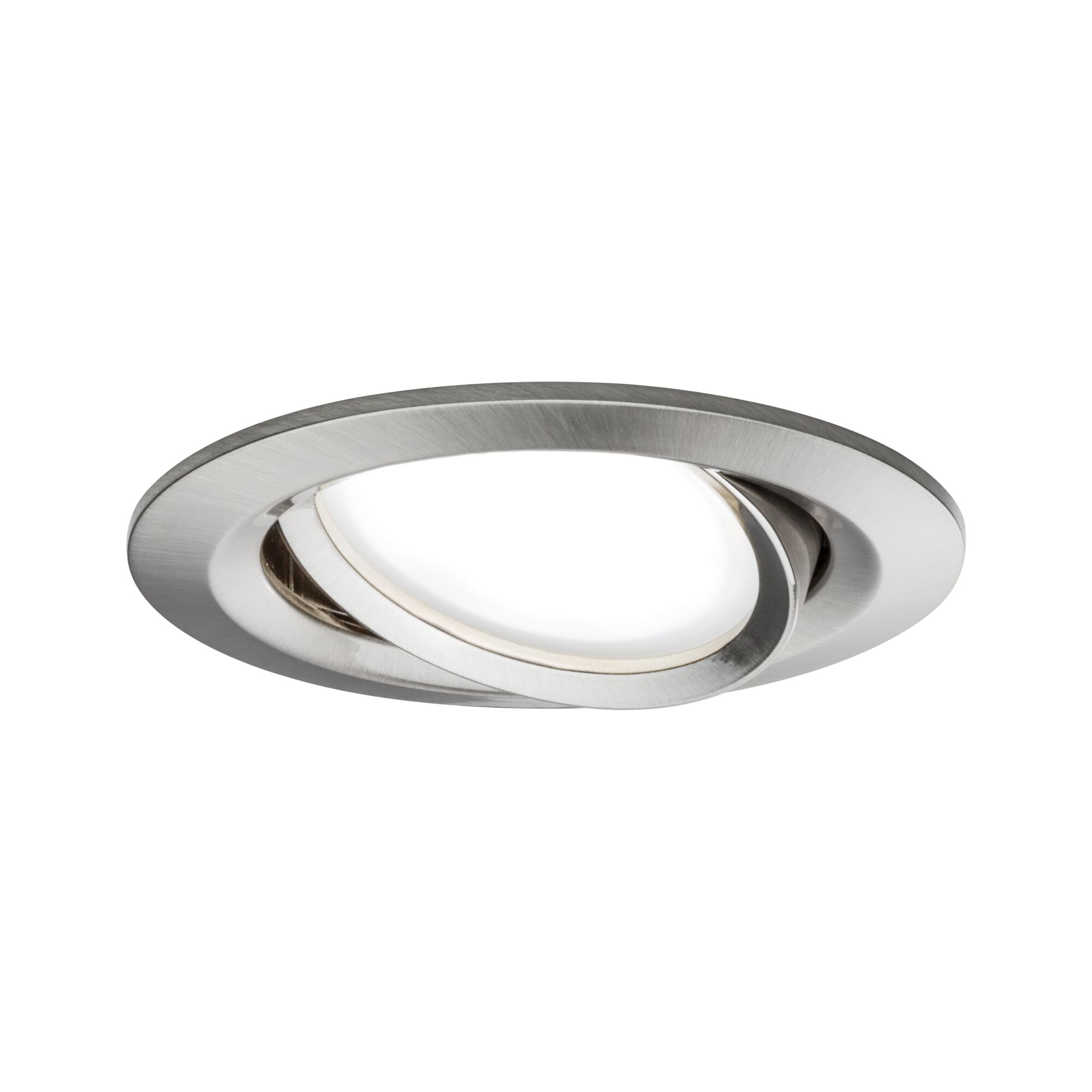

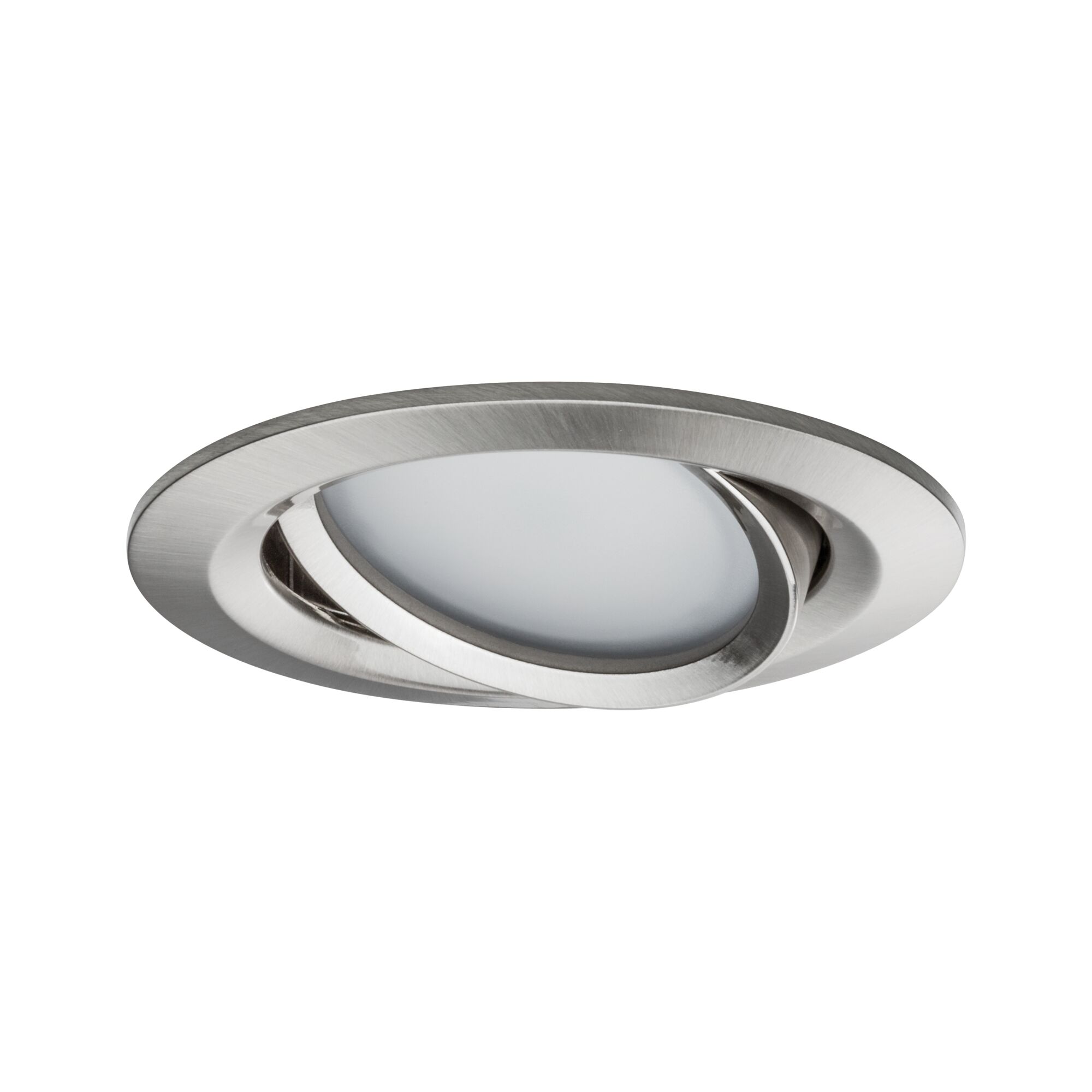

LED Recessed luminaire

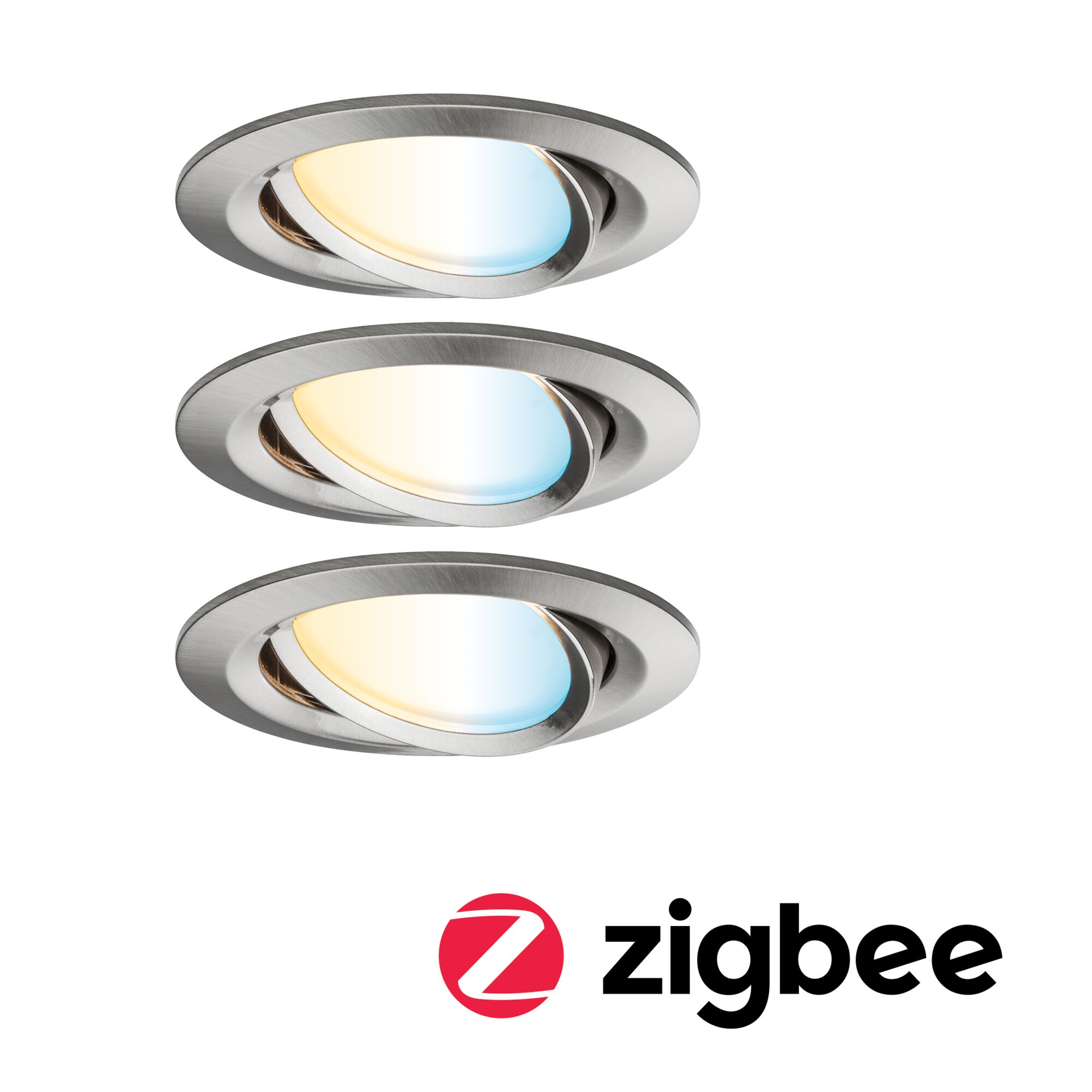

Smart Home Zigbee 3.0
Nova Plus Coin Basic Set Swivelling
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable Tunable White Brushed iron
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable Tunable White Brushed iron
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
LED Recessed luminaire Smart Home Zigbee 3.0 Nova Plus Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable Tunable White Brushed iron
The Nova Plus recessed spotlight set, made of aluminium in brushed iron, offers excellent lighting, an attractive design and high energy efficiency. The recessed spotlight is suitable for new installations as well as for replacing existing installations. The 230 V direct connection means easy and unlimited interlinking of the luminaires; no transformer required. Use the tunable white function to set the light colour to suit your needs: from daylight white working light to relaxing, warm white lighting. The luminaires are Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Individual components can be addressed, or switched on and off in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- For 230 V direct connection
- Bidirectional data transfer
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Set of 3 luminaires incl. LED module
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |

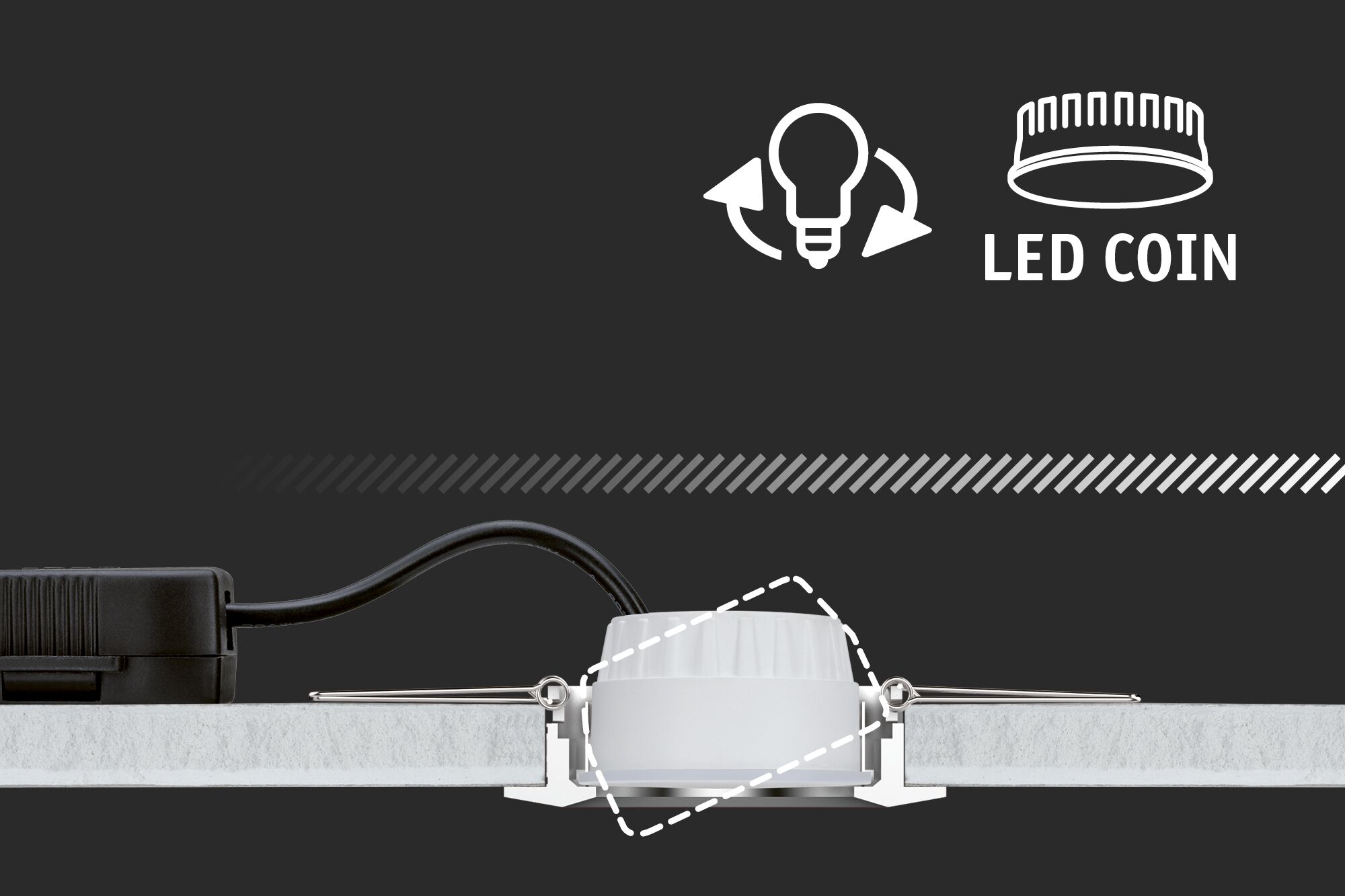

| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Brushed iron |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |

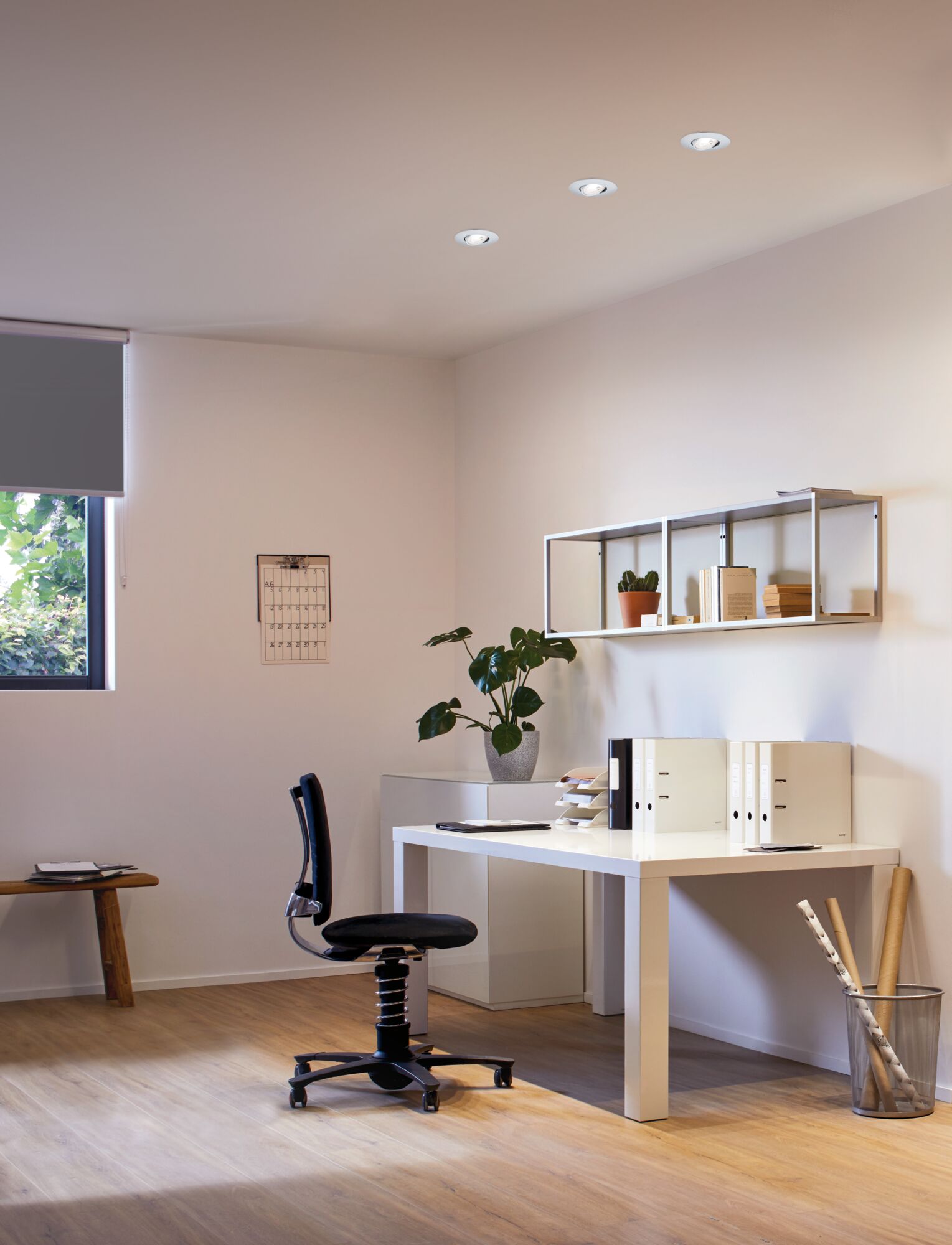

| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Compatible Smart Home technology | Zigbee |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 ceiling mounting |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 39 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 13.11 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
