Article-No.:
70726
YourLED
Sensor
YourLED Sensor DC 12V max. 60W White
DC 12V max. 60W White
DC 12V max. 60W White
- Controls uni-coloured YourLED strips
- Max. 60 W capacitive load (electronic ballasts)
- Simple plug-in system for easy installation

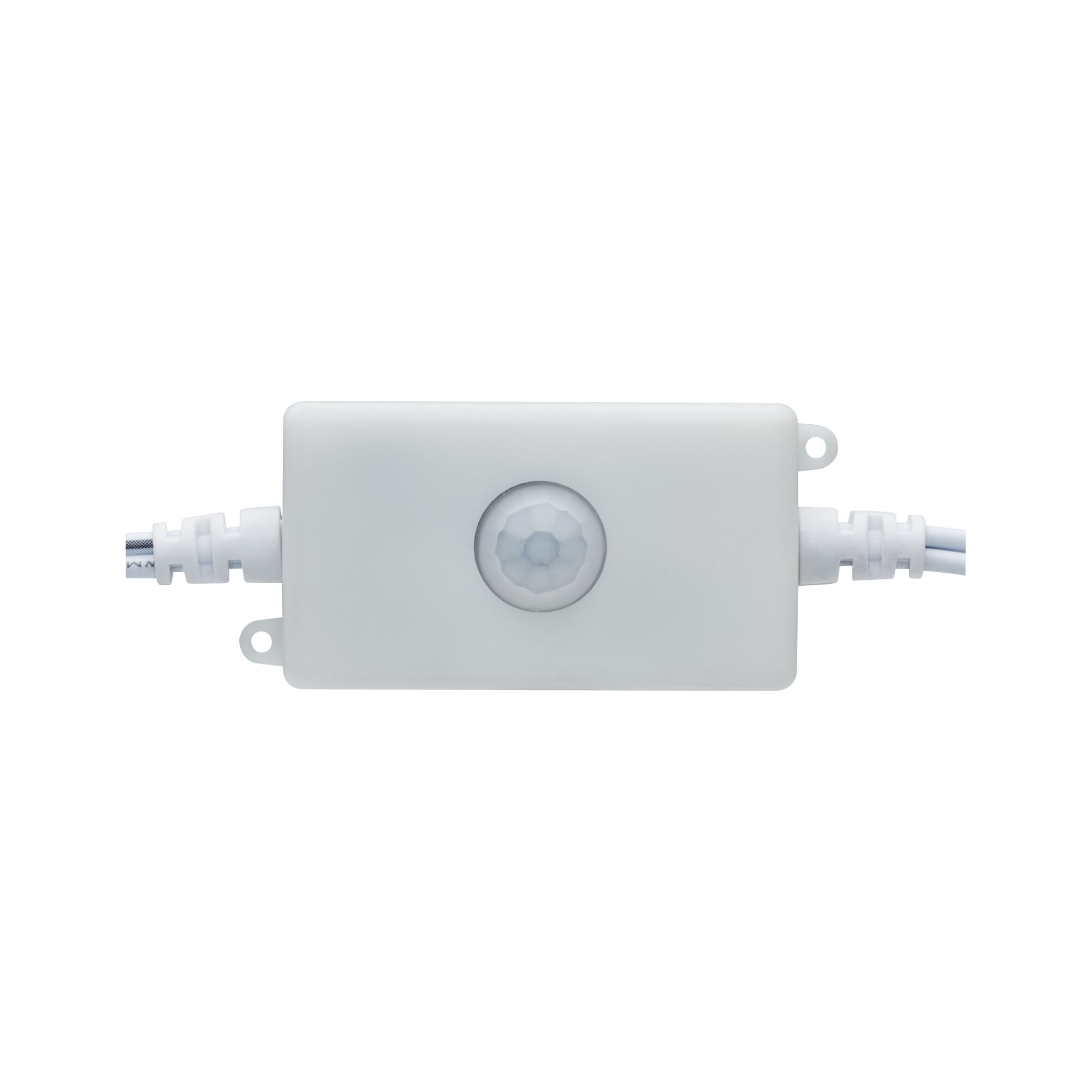

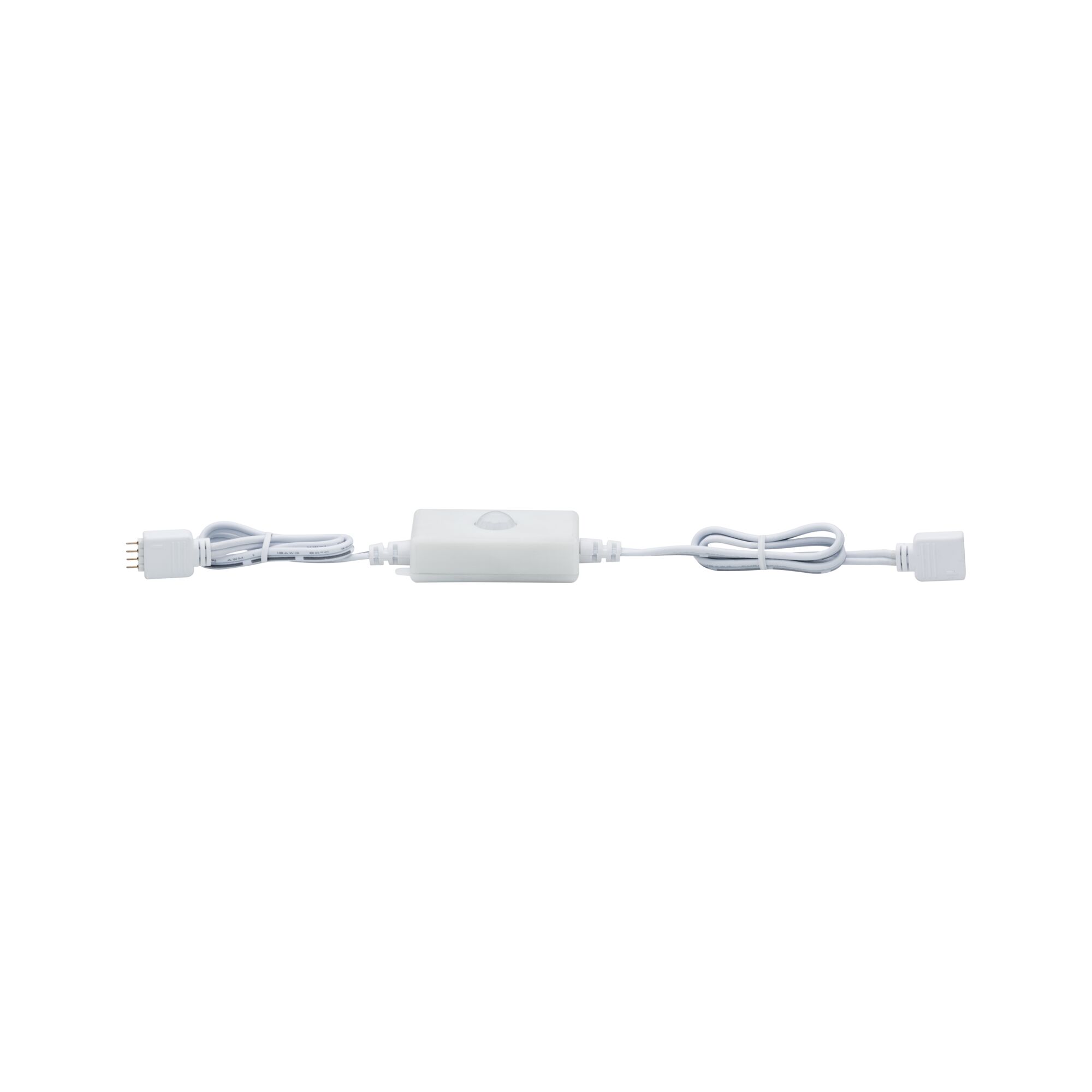

YourLED Sensor DC 12V max. 60W White

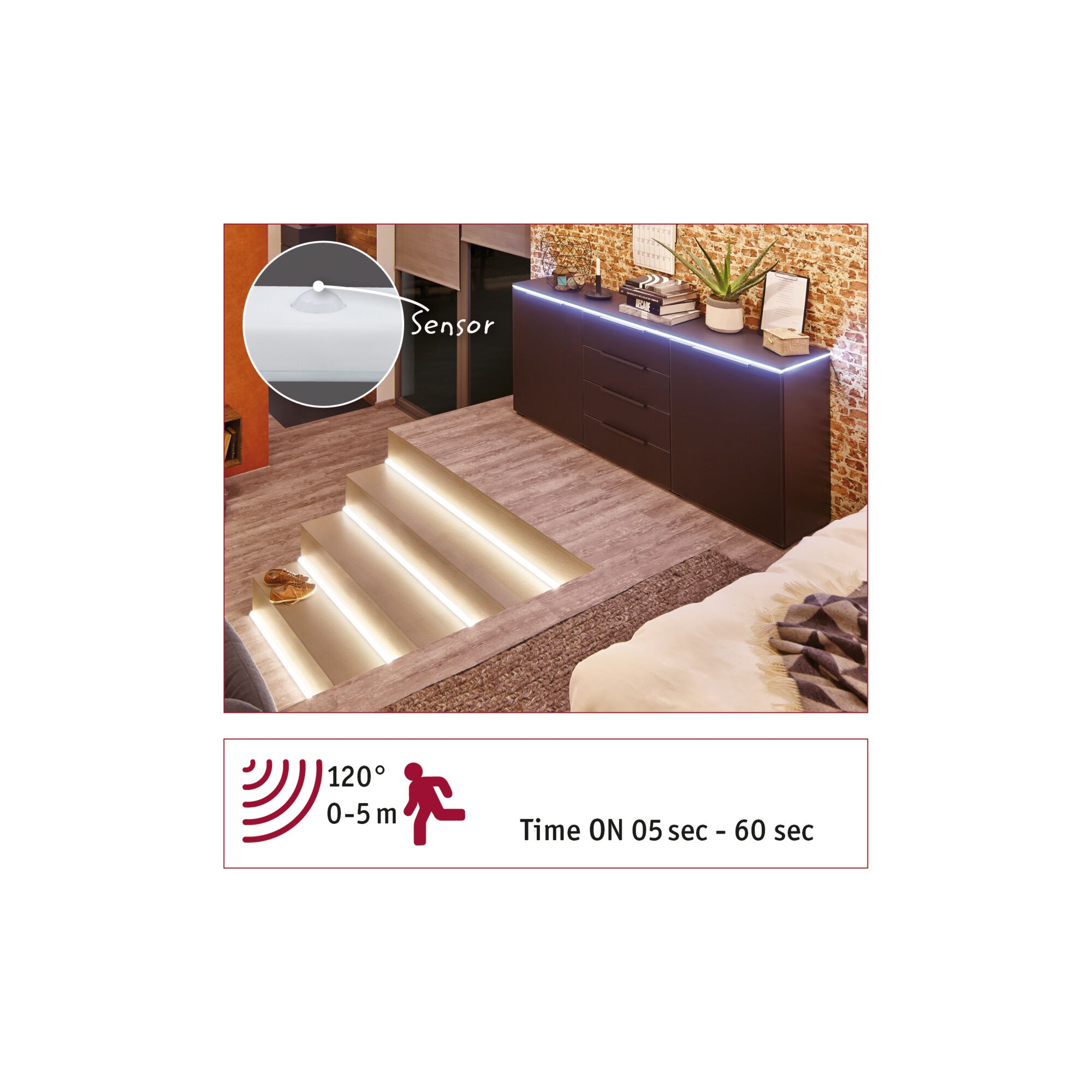

With the YourLED IR sensor, your YourLED installation has a contact-free switching function thanks to the motion sensor. This is installed between the power supply and the LED strip. You can define the detection range as well as the duration of the switching cycle individually, between 5 and 60 seconds. As soon as you come closer, the light goes on automatically.
- Controls uni-coloured YourLED strips
- Max. 60 W capacitive load (electronic ballasts)
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 50 x T: 36 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Features | |
|---|---|
| Sensors | Twilight-controlled motion detector (IR) |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dimmable | No |
| Inclusive lamp | no |
| Total Width | 50 mm |
| Maximum wattage range | max. 60 W |
| protection class | protection class III |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
