Article-No.:
70428
YourLED ECO
LED Strip
Warm white Basic Set
3m 6,8W 160lm/m 30 LEDs/m 3000K 12VA
3m 6,8W 160lm/m 30 LEDs/m 3000K 12VA
- Rear self-adhesive for simple installation
- Easy plug-in system for hassle-free assembly
- Can be shortened as needed (at marked points)

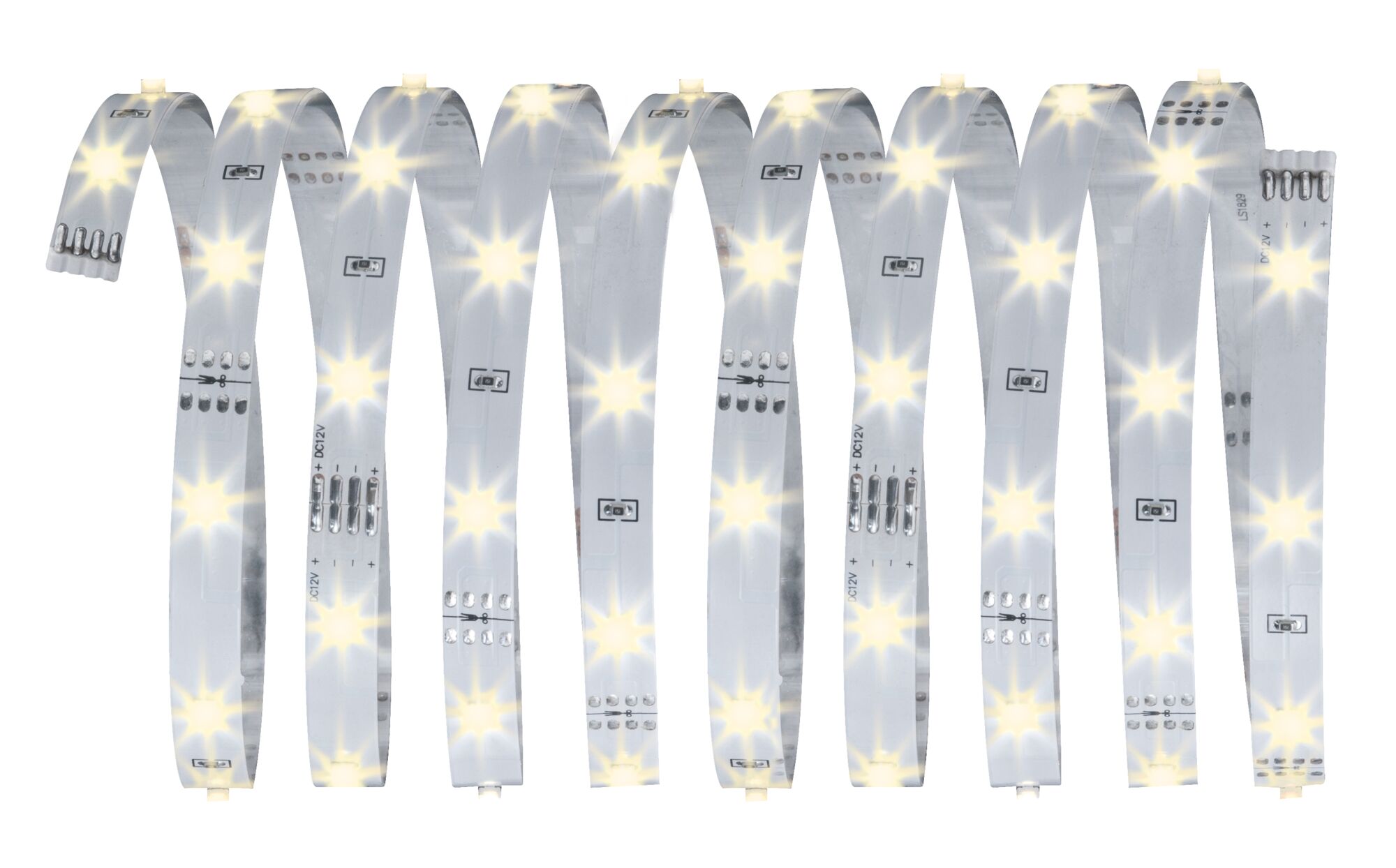

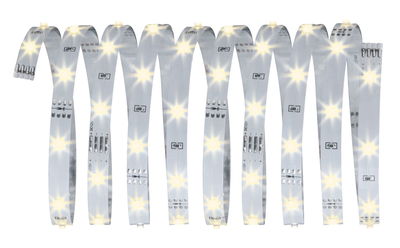

YourLED ECO LED Strip Warm white Basic Set 3m 6,8W 160lm/m 30 LEDs/m 3000K 12VA

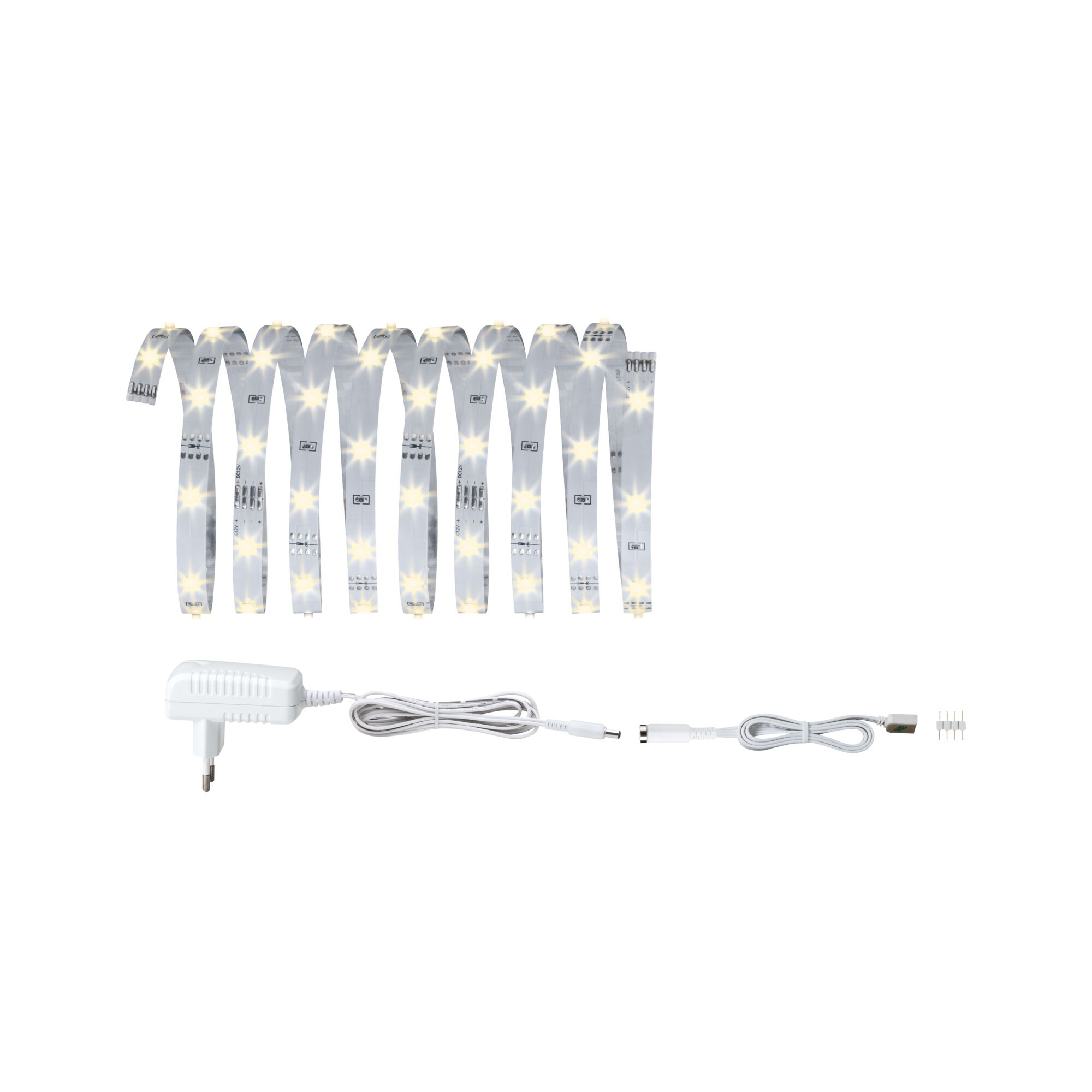

Plug-ready YourLED ECO set with power supply and uncoated LED strip in warm white light colour for homely ambient and useful lighting. Easy installation thanks to adhesive backing and plug-in system. Strips can be shortened. Extendable with YourLED ECO strips up to 6Â m.
- Rear self-adhesive for simple installation
- Easy plug-in system for hassle-free assembly
- Can be shortened as needed (at marked points)

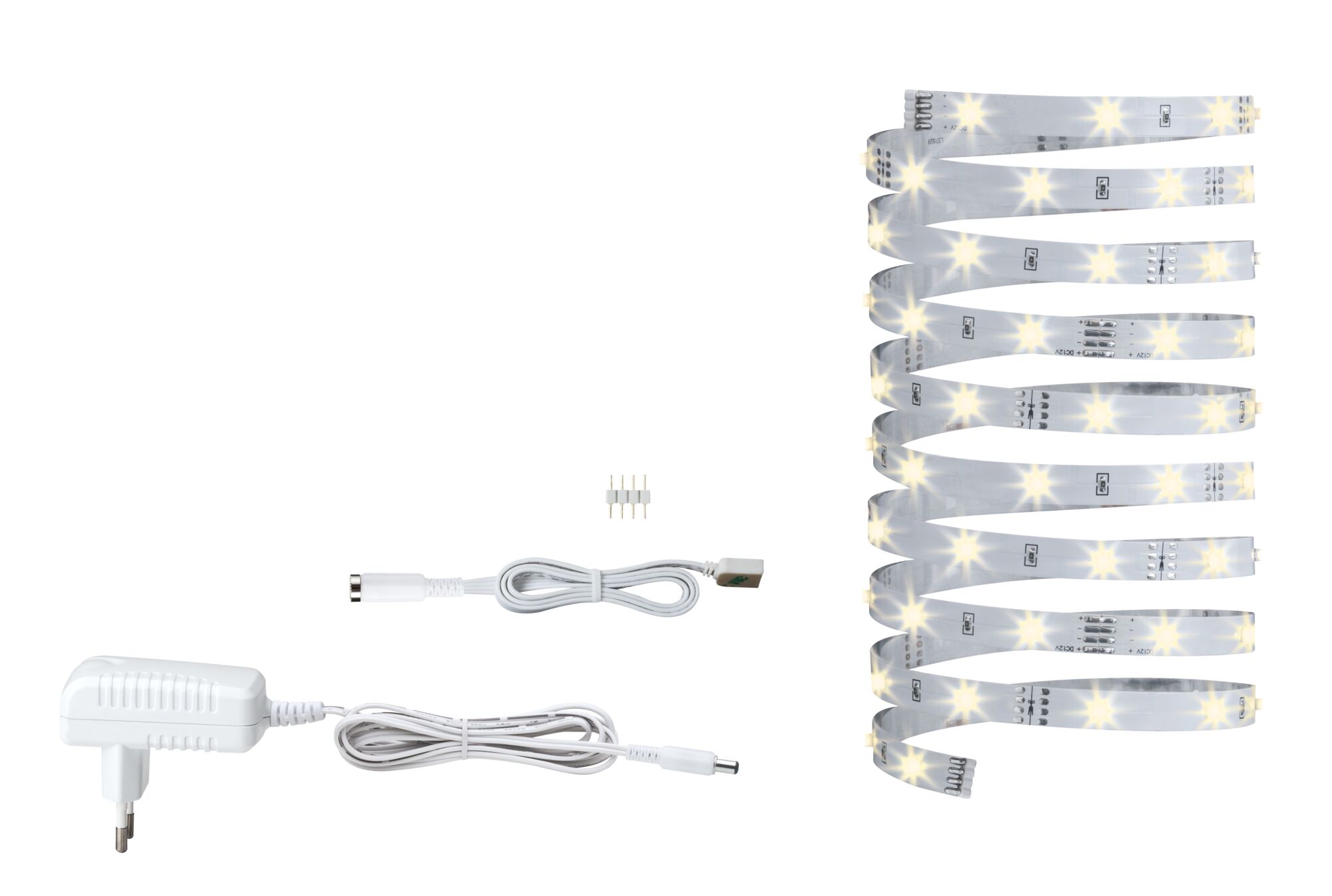

- Ready-to-use set including 230/12V power supply with power cable and plug
- Pleasant warm white LED light
- Flexible material for mounting on flat or curved surfaces
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)

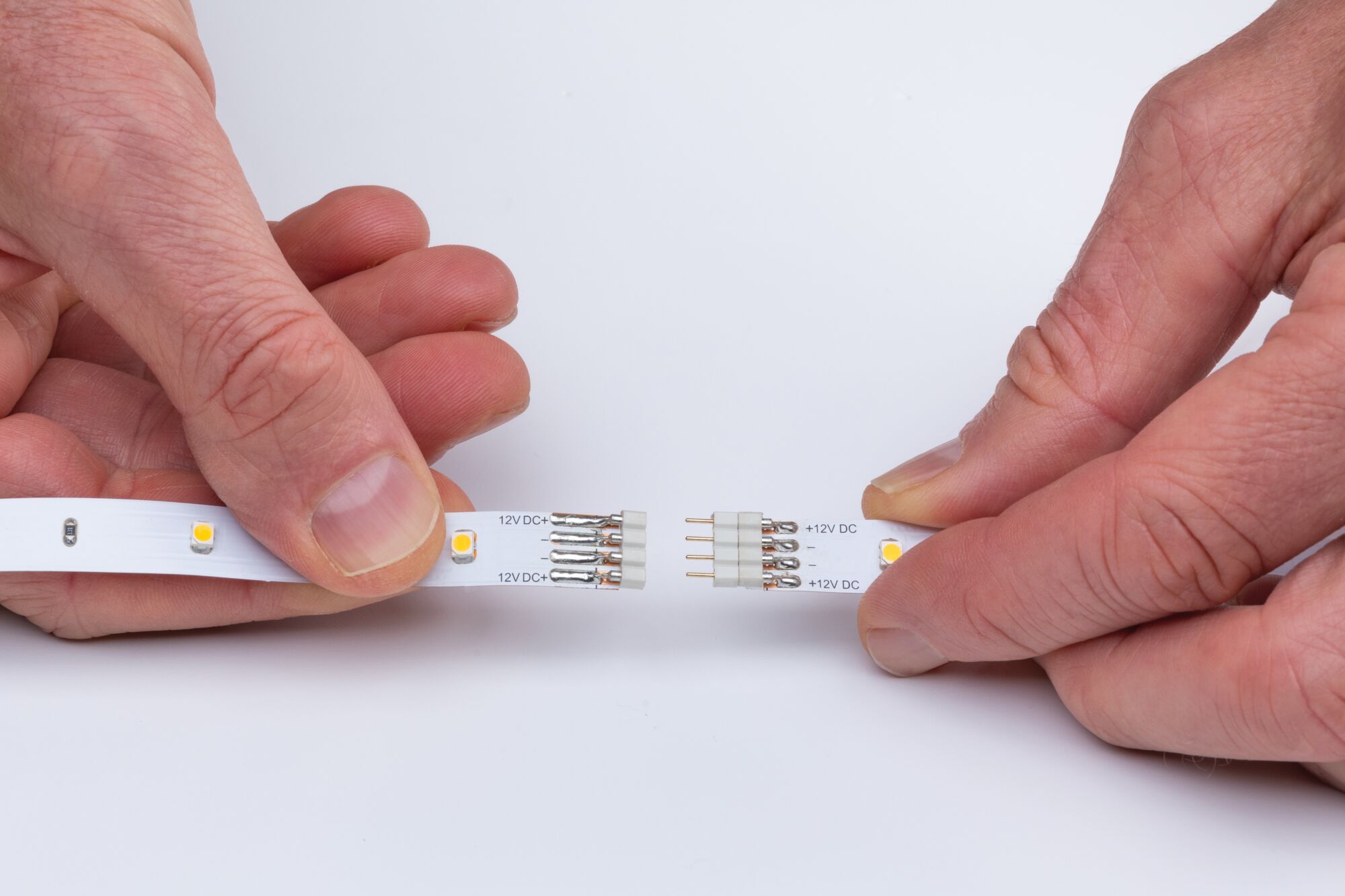

- Incl. 4-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 2,5 T: 10,5 mm |
| Plug depth | 38 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Length max. | 6 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 120 ° |
| Usable luminous flux | 480 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 6,8 W |
| Technique | LED |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 30 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 9 W |
| Transformer | |
|---|---|
| Transformer power | 12 VA |
| Transformer height | 72 mm |
| Transformer width | 41 mm |
| Transformer depth | 31 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
