Article-No.:
79958
VariFitLED Recessed panelSmart Home Zigbee 3.0
Veluna Edge
IP44 angular 160x160mm 15,5W 1000lm Tunable White White dimmable
IP44 angular 160x160mm 15,5W 1000lm Tunable White White dimmable
- Especially flat construction
- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology
VariFit LED Recessed panel Smart Home Zigbee 3.0 Veluna Edge IP44 angular 160x160mm 15,5W 1000lm Tunable White White dimmable

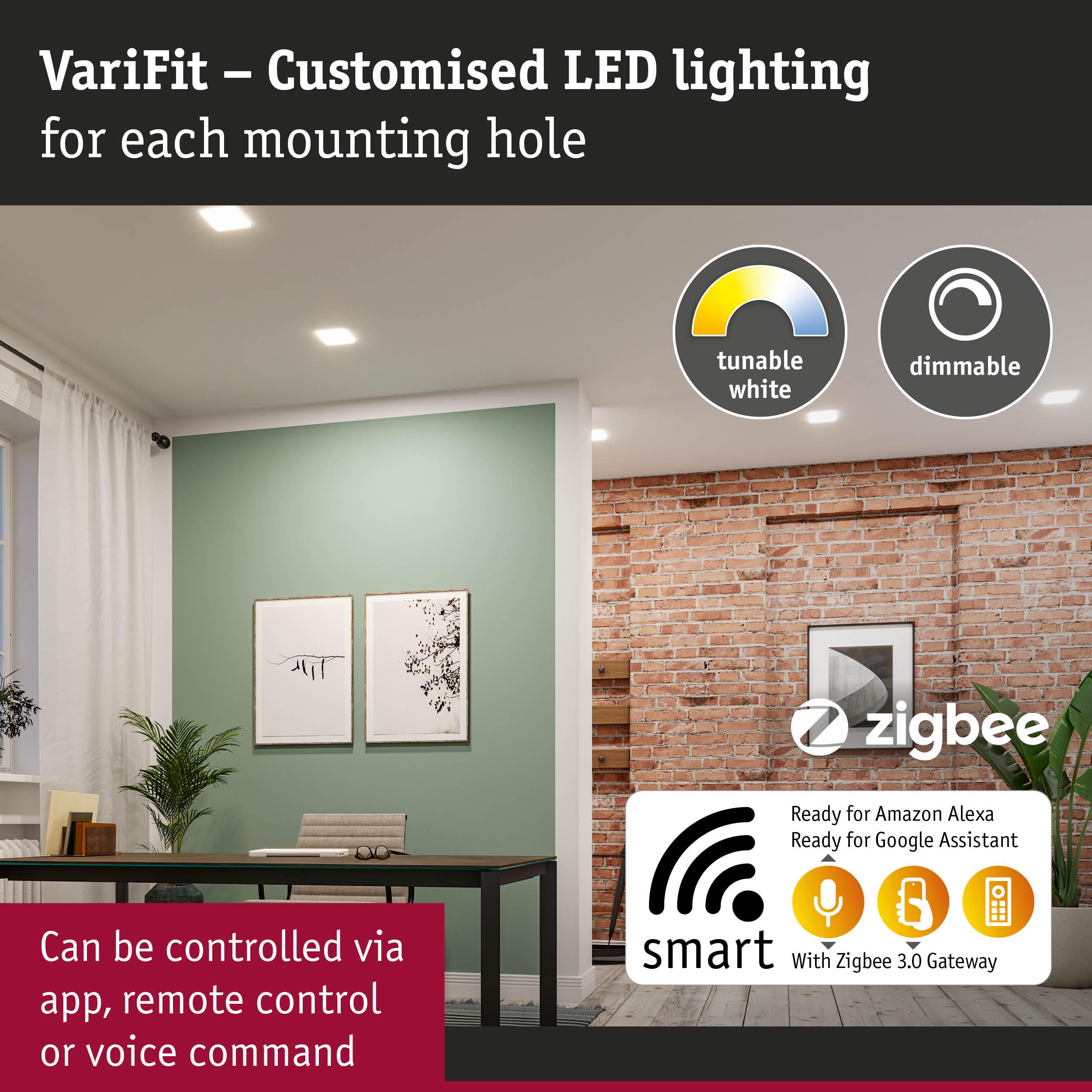

The Veluna VariFit Edge rectangular recessed panel impresses with a modern, frameless design. The panel with a size of 160x160 mm provides a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 100 mm is needed. The satined plastic cover creates a delicately diffuse light. The Tunable White light control allows a custom, continuous selection of the light colour – anything from daylight white work light to warm white relaxation light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Especially flat construction
- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting

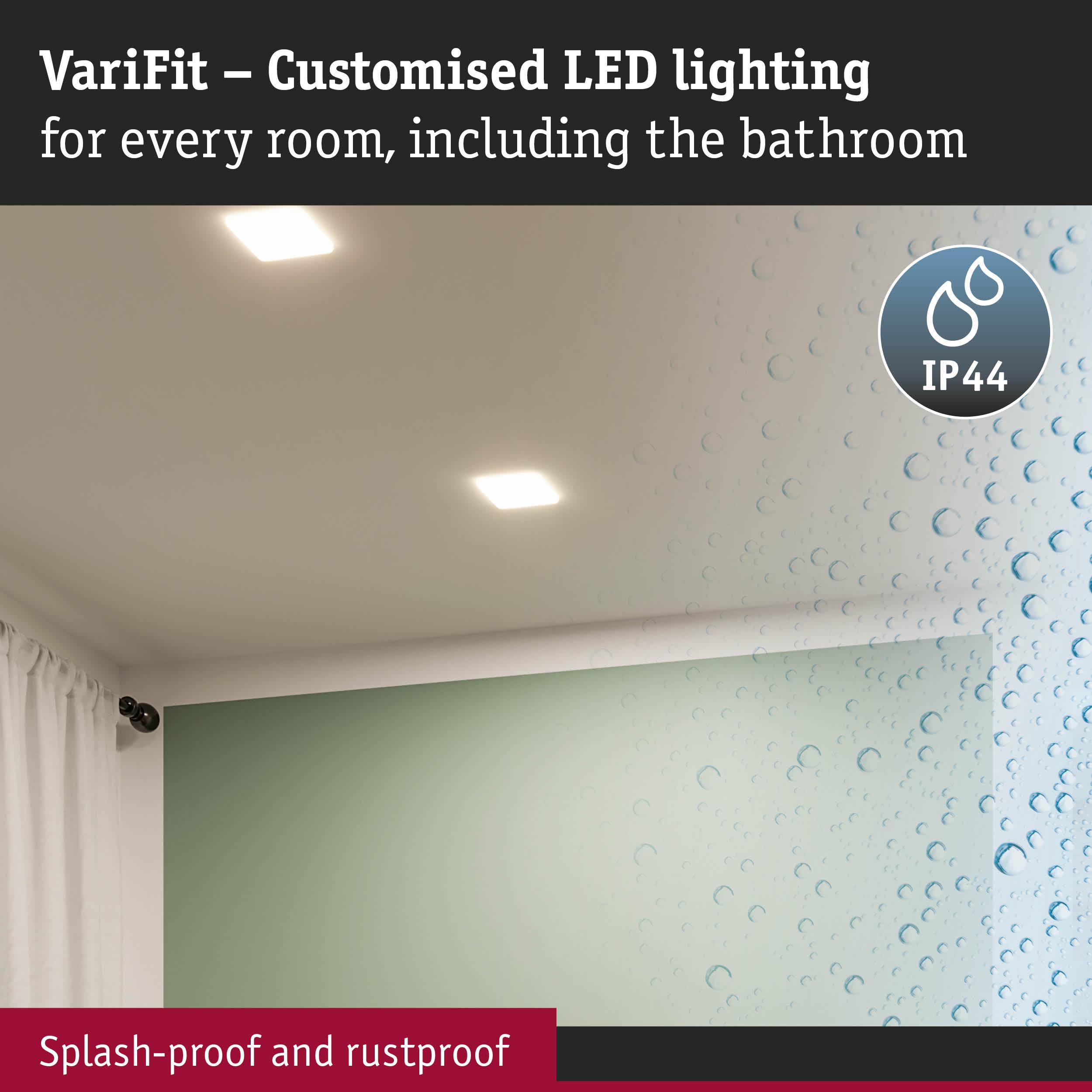

- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light

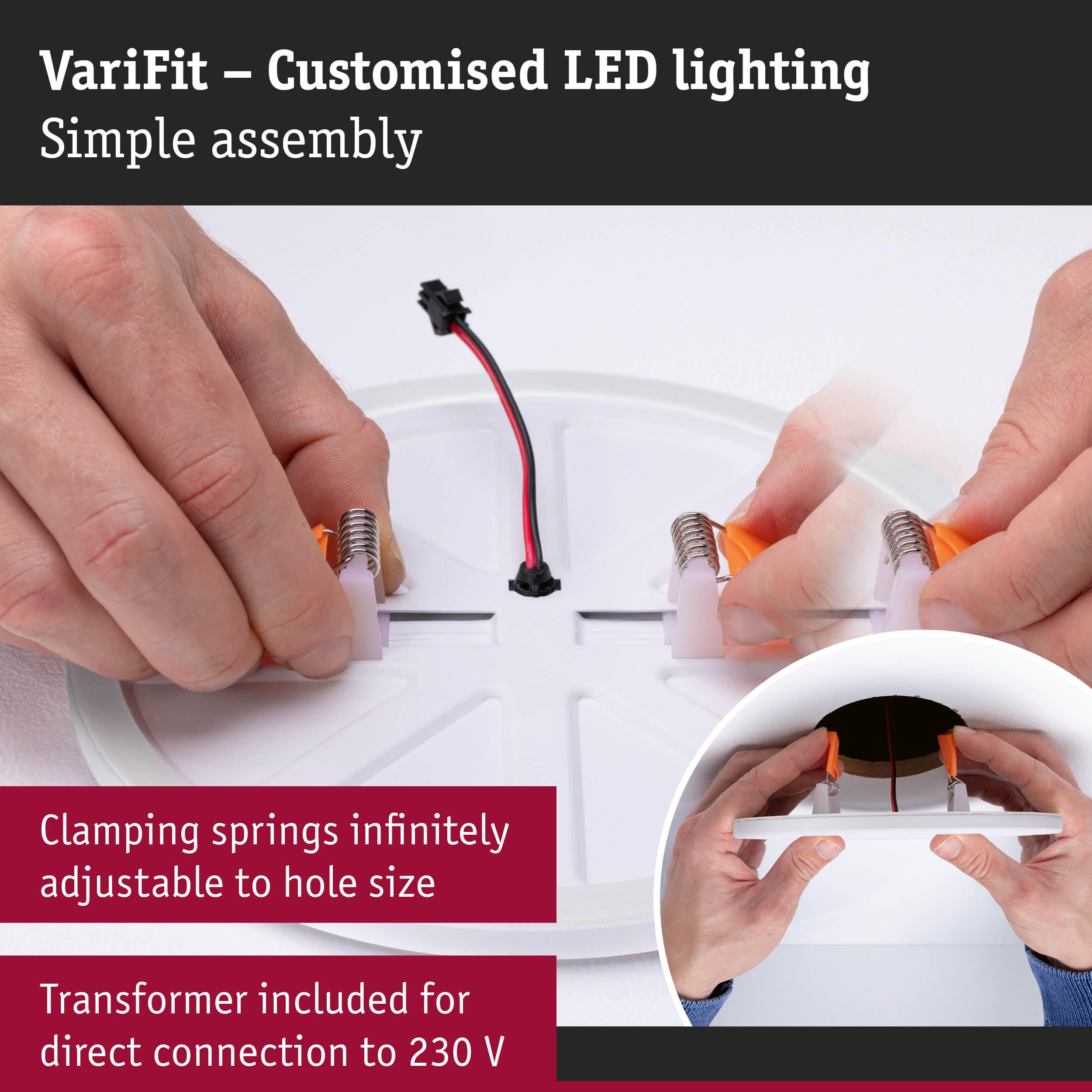

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 9 x B: 160 x T: 160 mm |
| Built-in diameter | 68 - 140 mm |
| Mounting depth | 100 mm |
| Depth of hollow wall | 85 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 1000 lm |
| Luminous flux LED module | 1700 lm |
| Color rendering index | > 80 Ra |
| Colour change | Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 109.6 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 15,5 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 18 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 19.1 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
