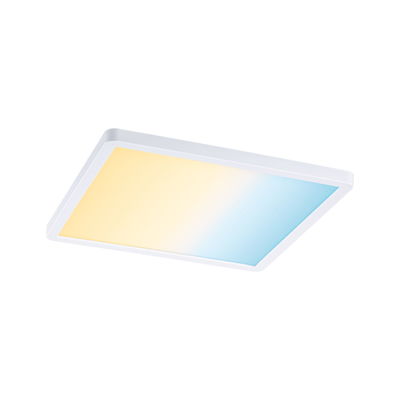

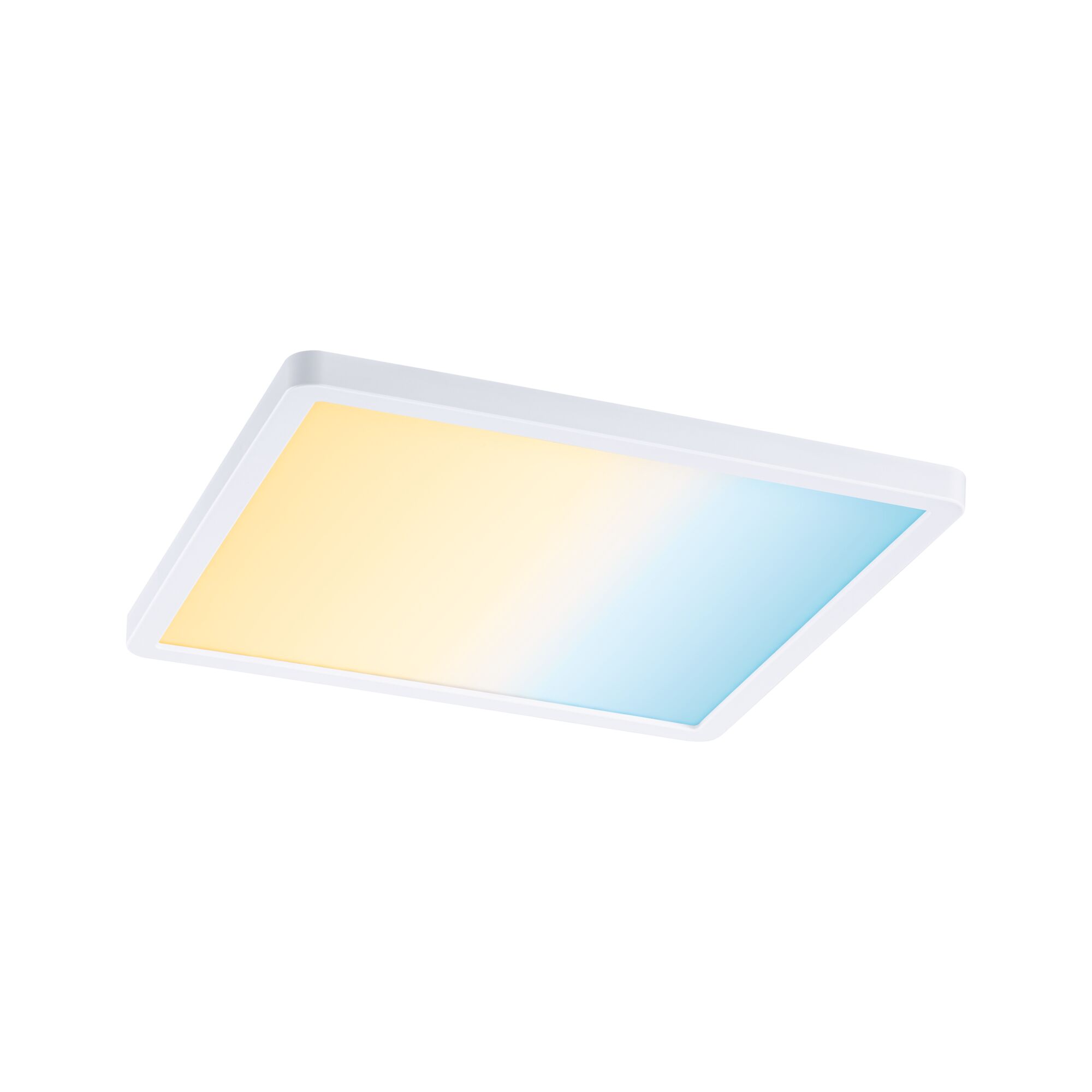

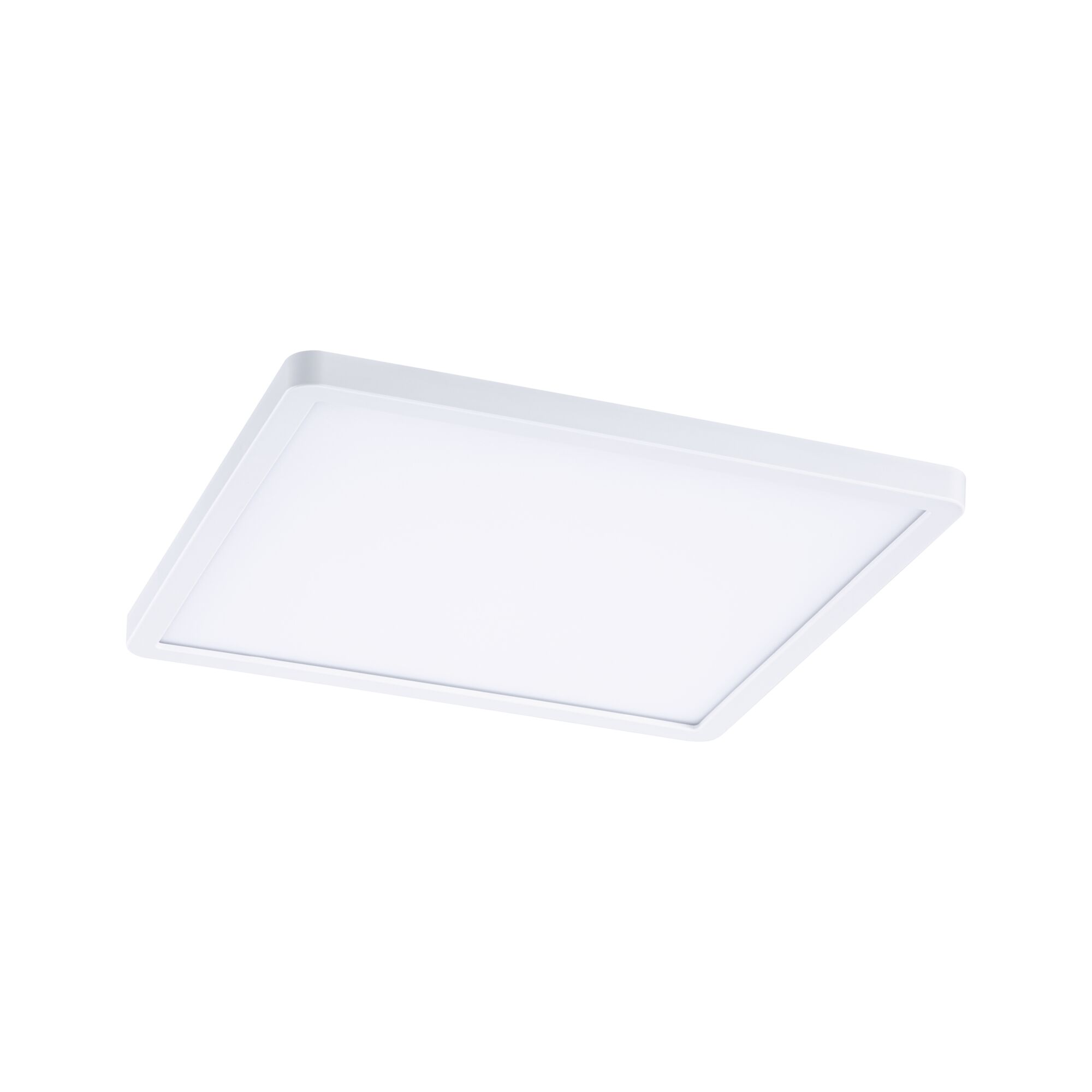

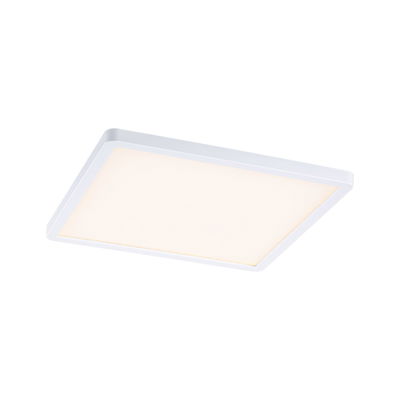

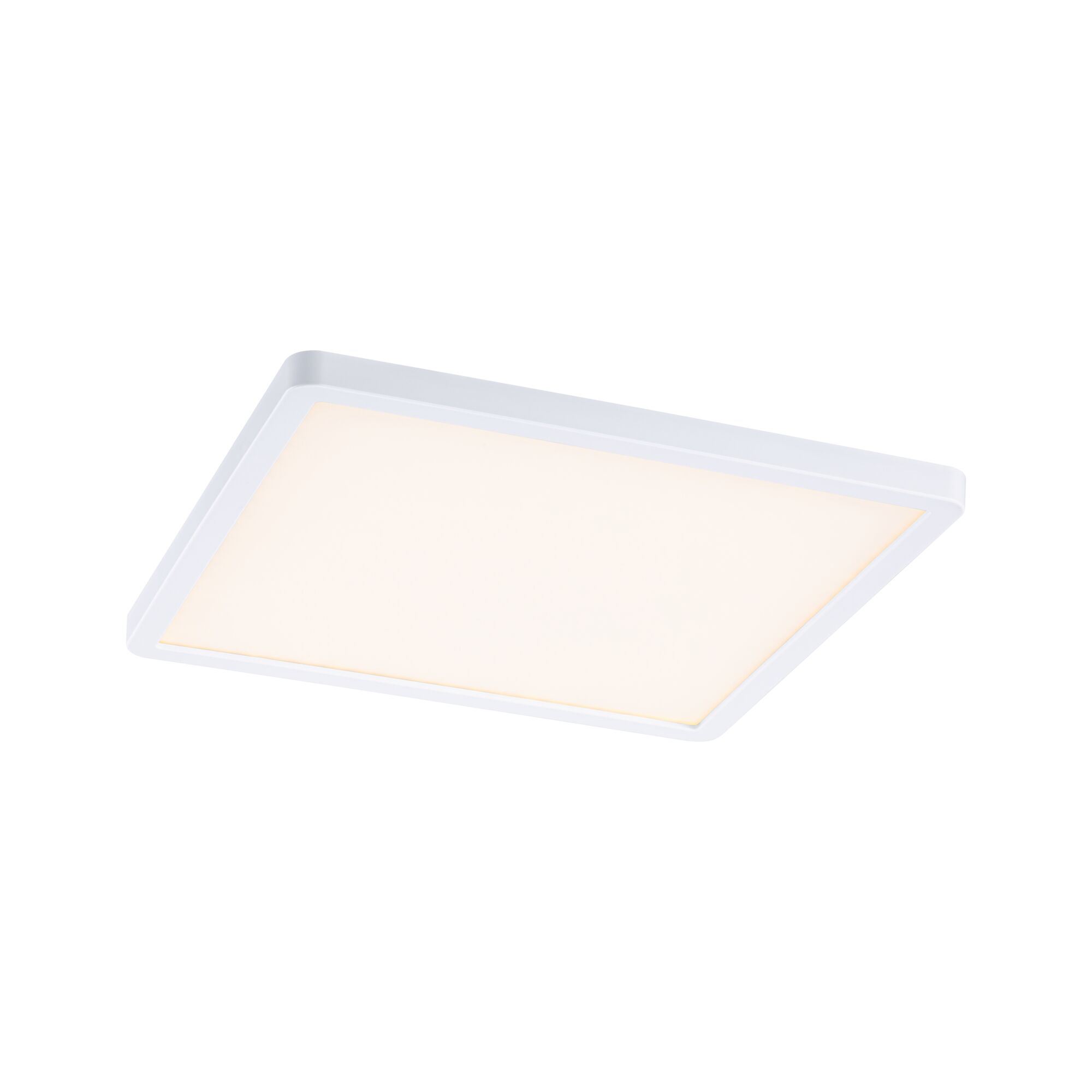

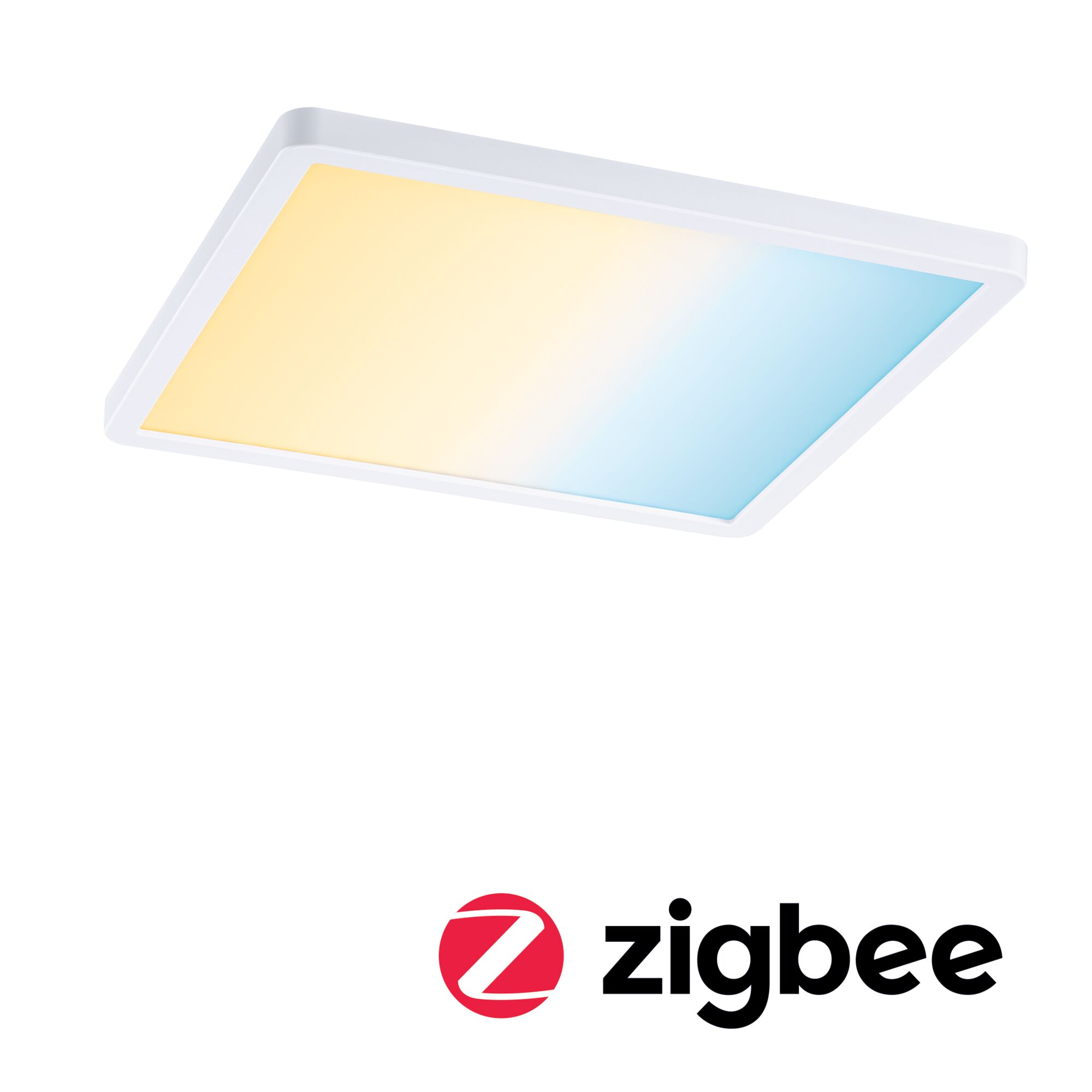

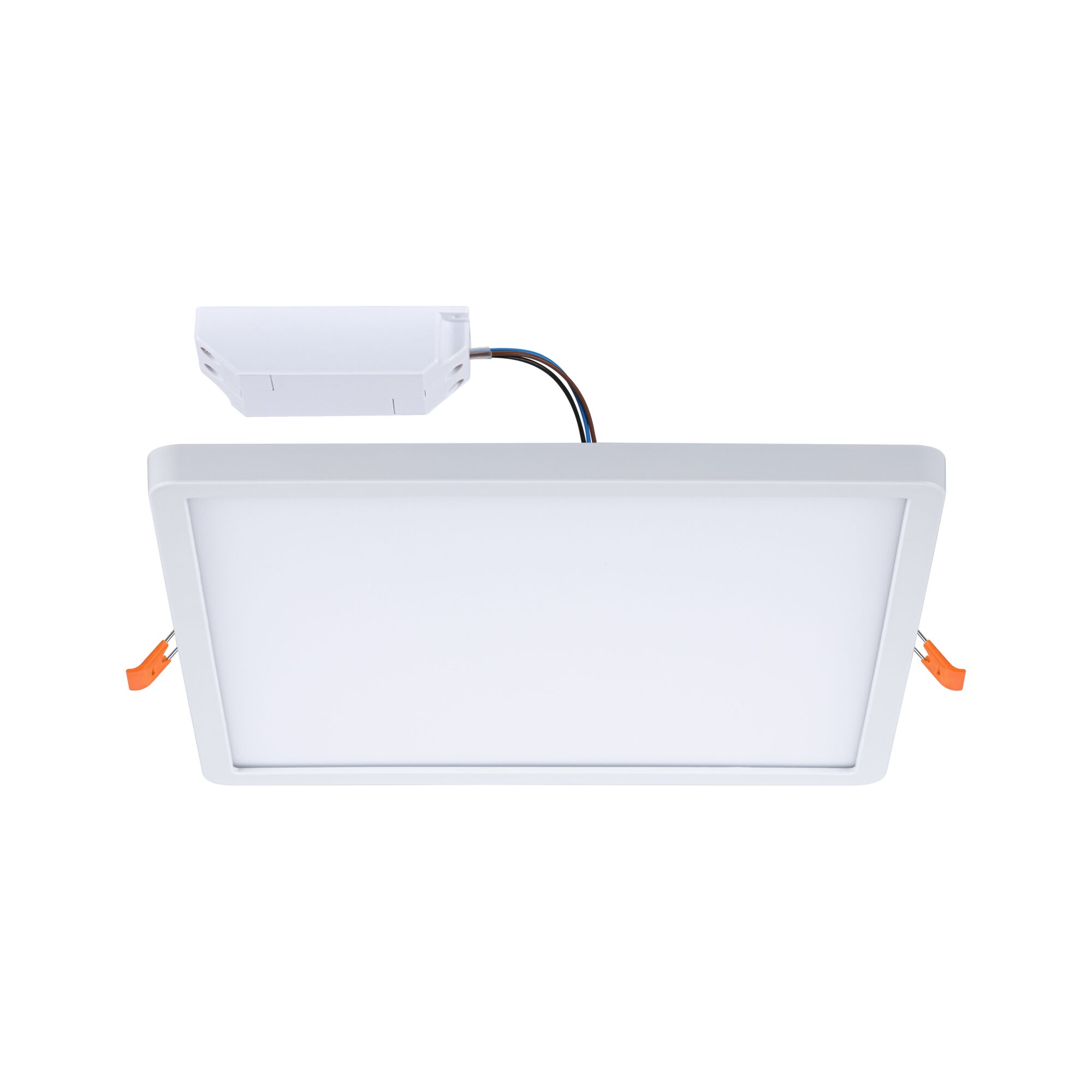

VariFit LED Recessed panel Smart Home Zigbee 3.0 Areo IP44 angular 230x230mm 16W 1400lm Tunable White White dimmable

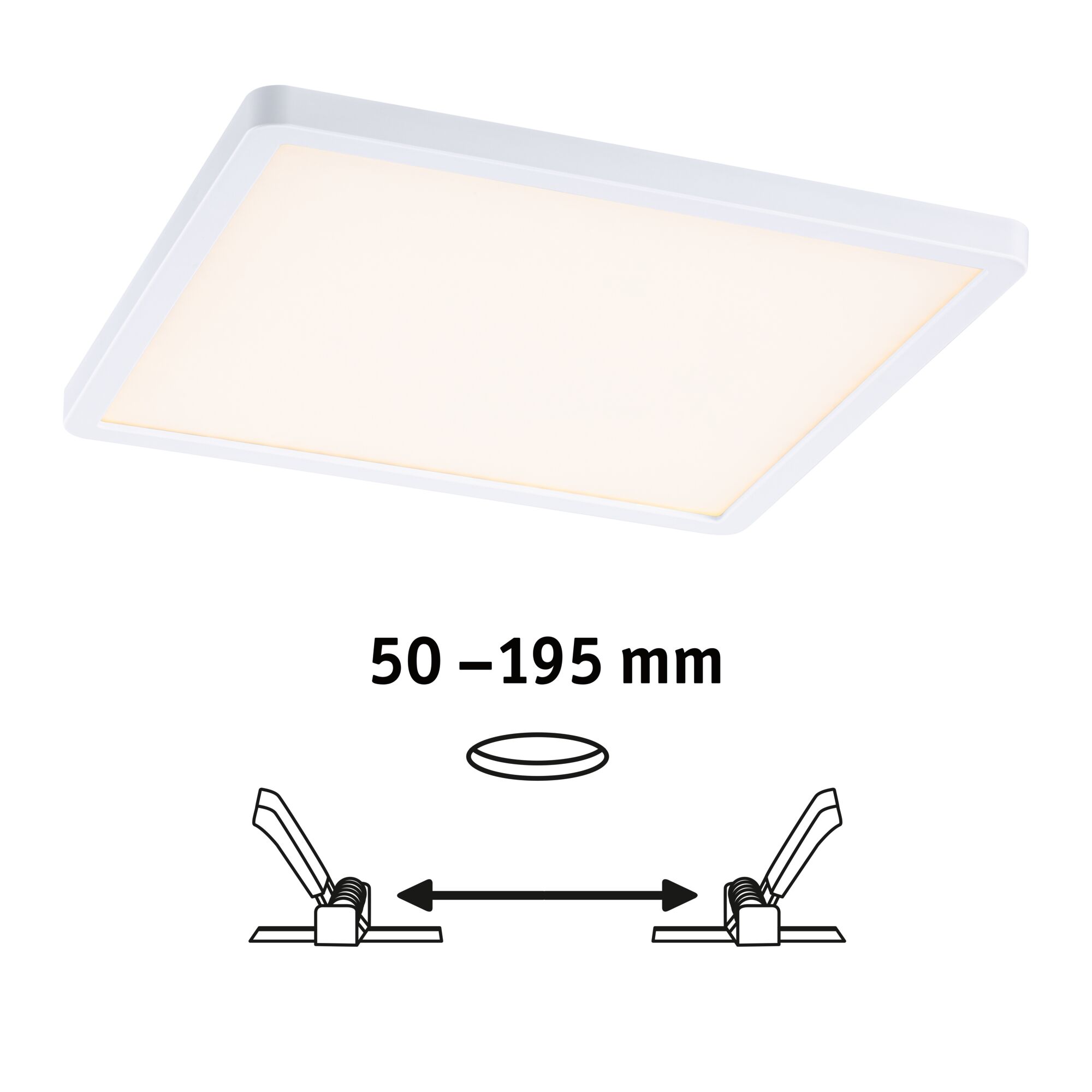

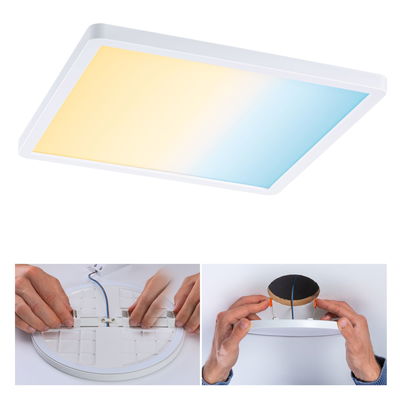

The rectangular Areo recessed panel with a size of 230x230 mm and an output of 16 watts in White provides extensive, glare-free light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 195 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The lamp is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
  • Usable with smart home gateways that have a Zigbee interface

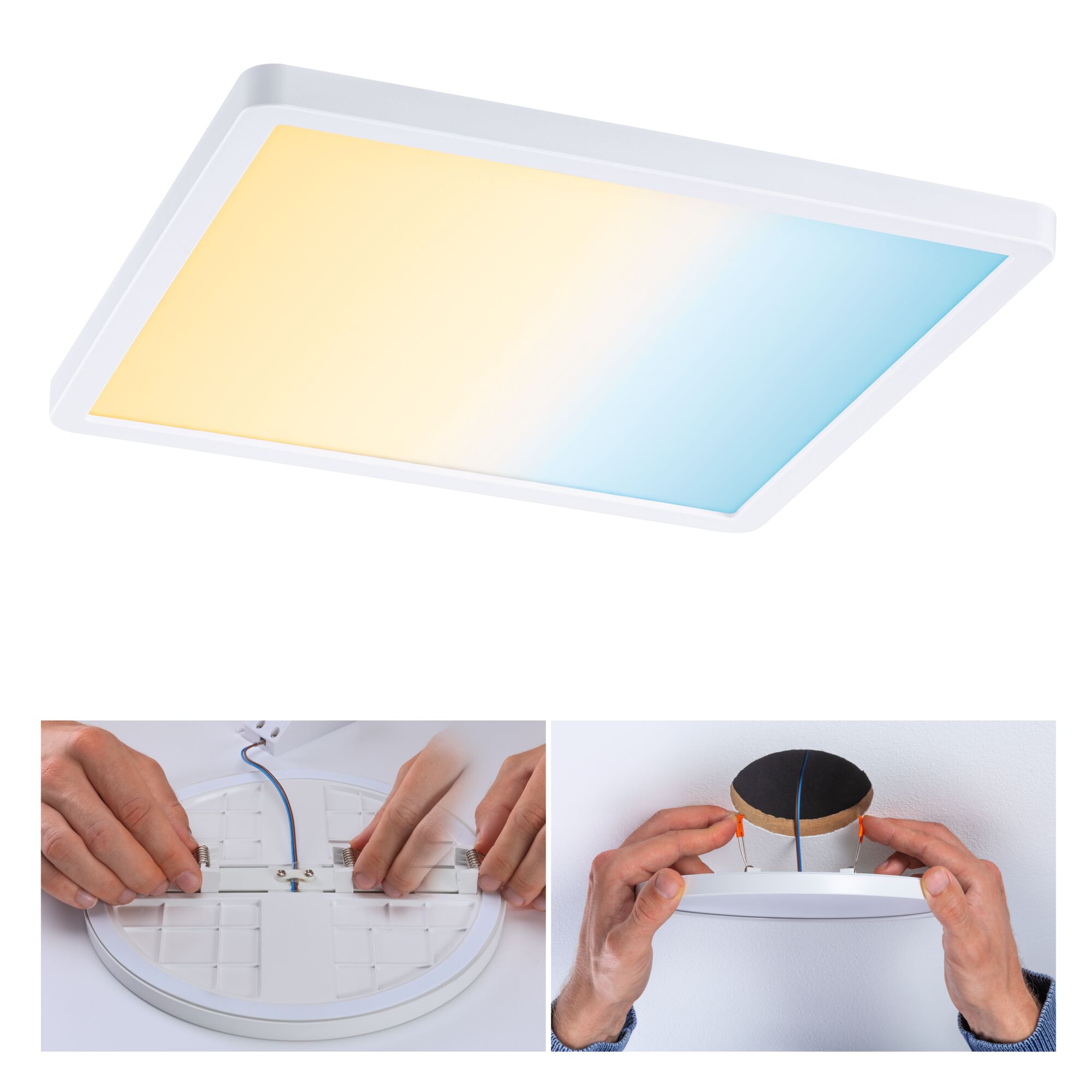

  • VariFit – flexible installation with infinitely adjustable clamping springs
  • IP protection: IP44 splash-protected
  • Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white
  • With white-light control (Tunable White)
  • Made of easy-care plastic
  • For 230 V direct connection
  • With integrated LED bulb

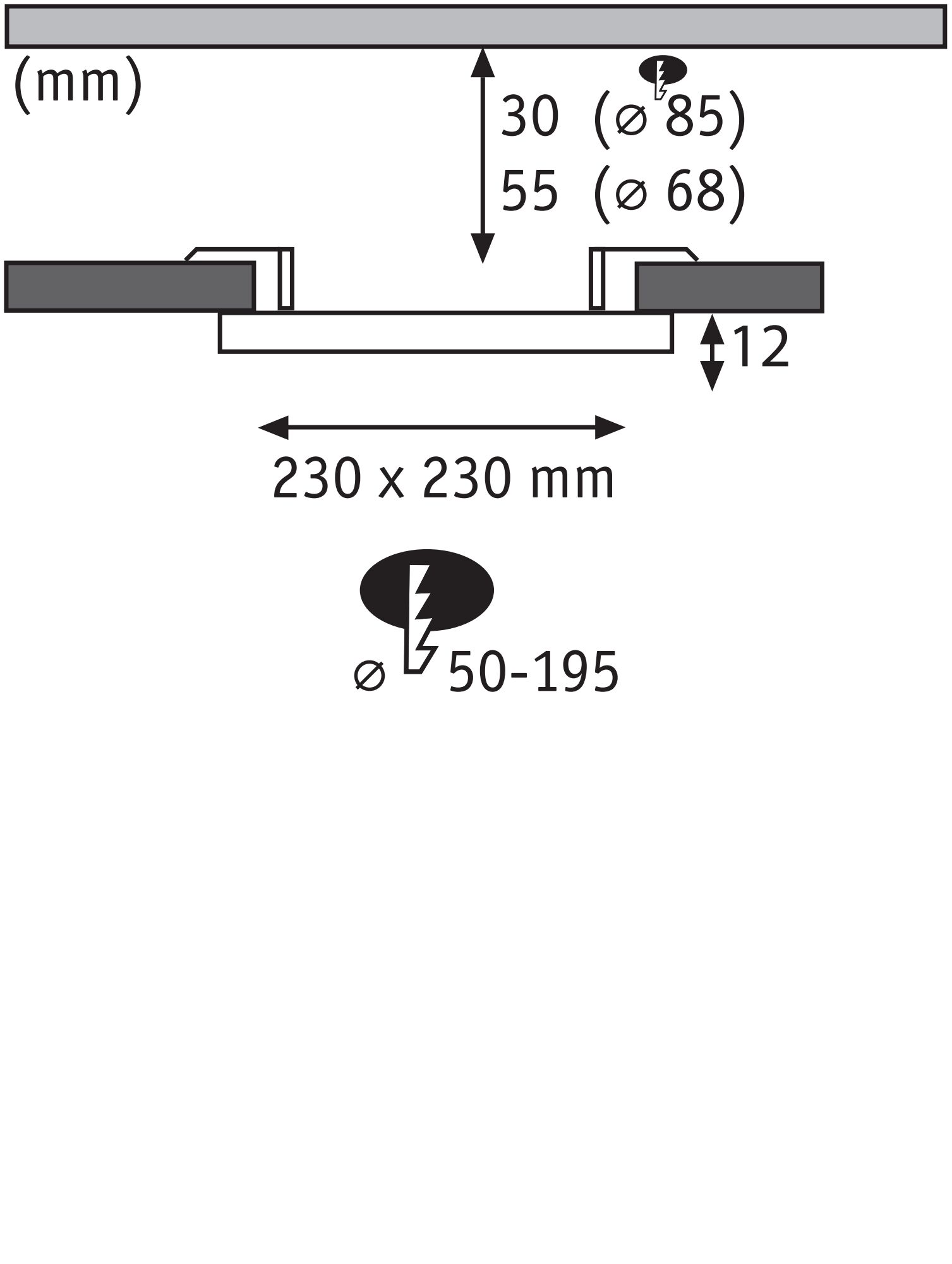

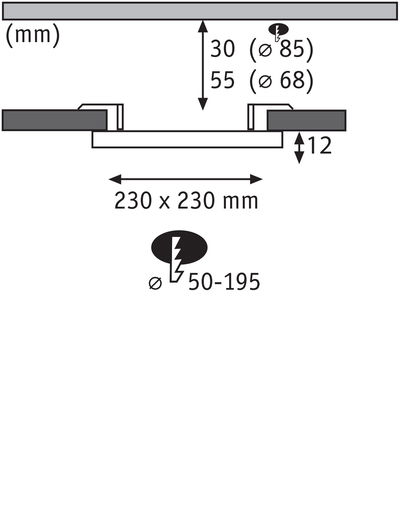

Dimension
mounting hole 2195 mm
Total Mounting depth45-85 mm
Dimensions (Height x Width x Depth)H: 12/26 x B: 230 x T: 230 mm
Mounting hole50 mm
Formangular
Depth of hollow wall30 mm, 30-70 mm
Design and Material
ColourWhite
MaterialPlastic
Installation
can be used with the following dimmersPaulmann SmartHome Zigbee Gent2 501.40
Energy consumption
Energy efficiency (A to G)E
Service life
Lifetime30000 h
Light Characteristics
Colour temp.3000 K
Colour changeTunable White
Usable luminous flux1400 lm
Luminous flux LED module2000 lm
color temp3000 - 6500 K
Color rendering index> 80 Ra
Lamp Features
Component parts16 W
Compatible Smart Home technologyZigbee
TechniqueLED
IP protectionIP44
Dimwith Smart Home
DimmableYes
Inclusive lampyes
Incandescent Equivalent137 W
Number of component parts1x
protection classprotection class II
Replacable3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption18 W
Transformer
apparent power36 VA
Labelling
WEEE-Reg.-NoDE 39236390
Smart Home
Protocol typeZigbee 3.0
Zigbee certificationZigbee zertifiziert
Radio frequency2,4 GHz
Radio range (Open field)20 m
