Article-No.:
93067
VariFit
LED Recessed panel
3-Step-Dim
Veluna
IP44 round 185mm 17,5W 1400lm 4000K Satin dimmable
IP44 round 185mm 17,5W 1400lm 4000K Satin dimmable
- VariFit – flexible installation with infinitely adjustable clamping springs

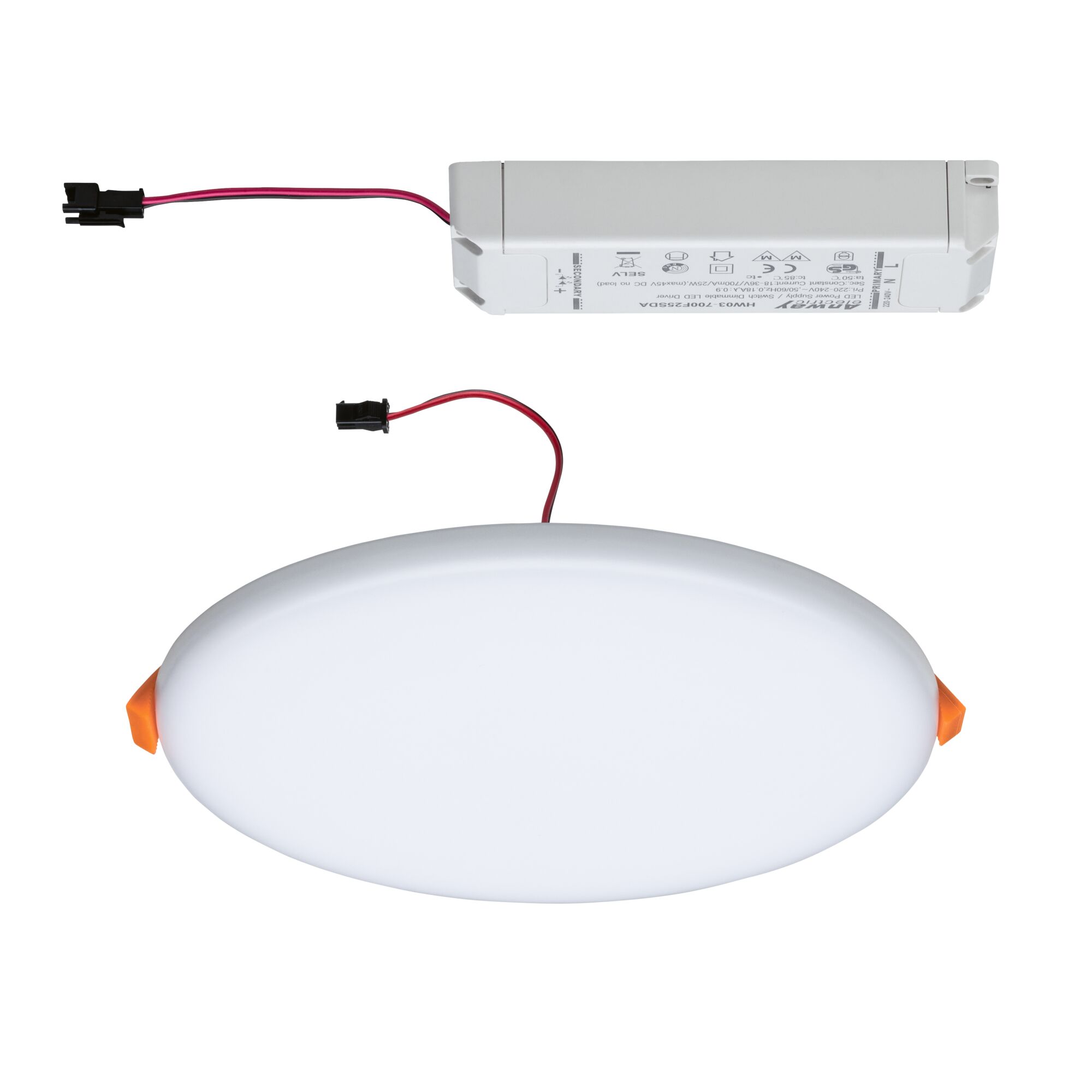

- With integrated LED bulb
- Color temperatur: 4000K - Neutral white
VariFit LED Recessed panel 3-Step-Dim Veluna IP44 round 185mm 17,5W 1400lm 4000K Satin dimmable

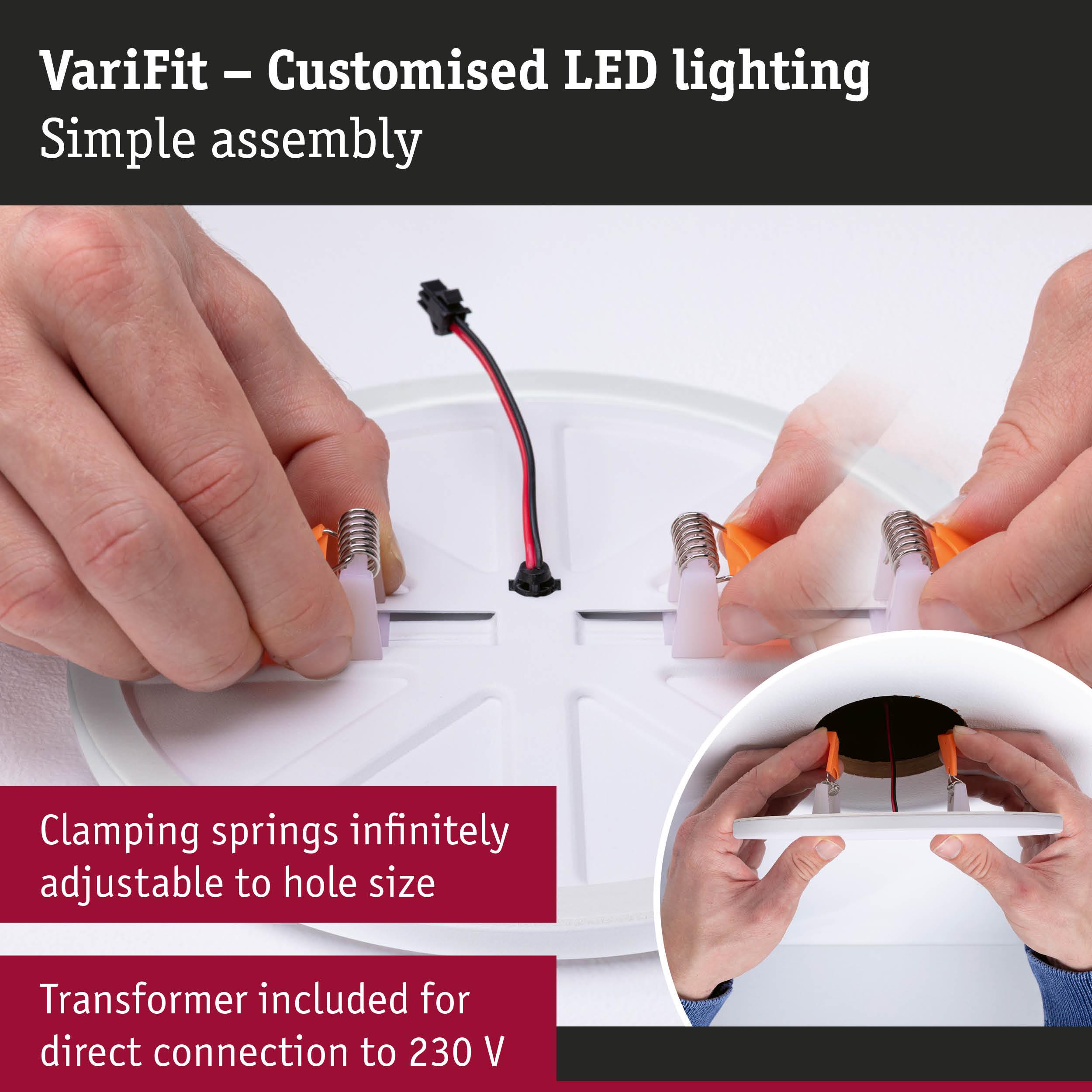

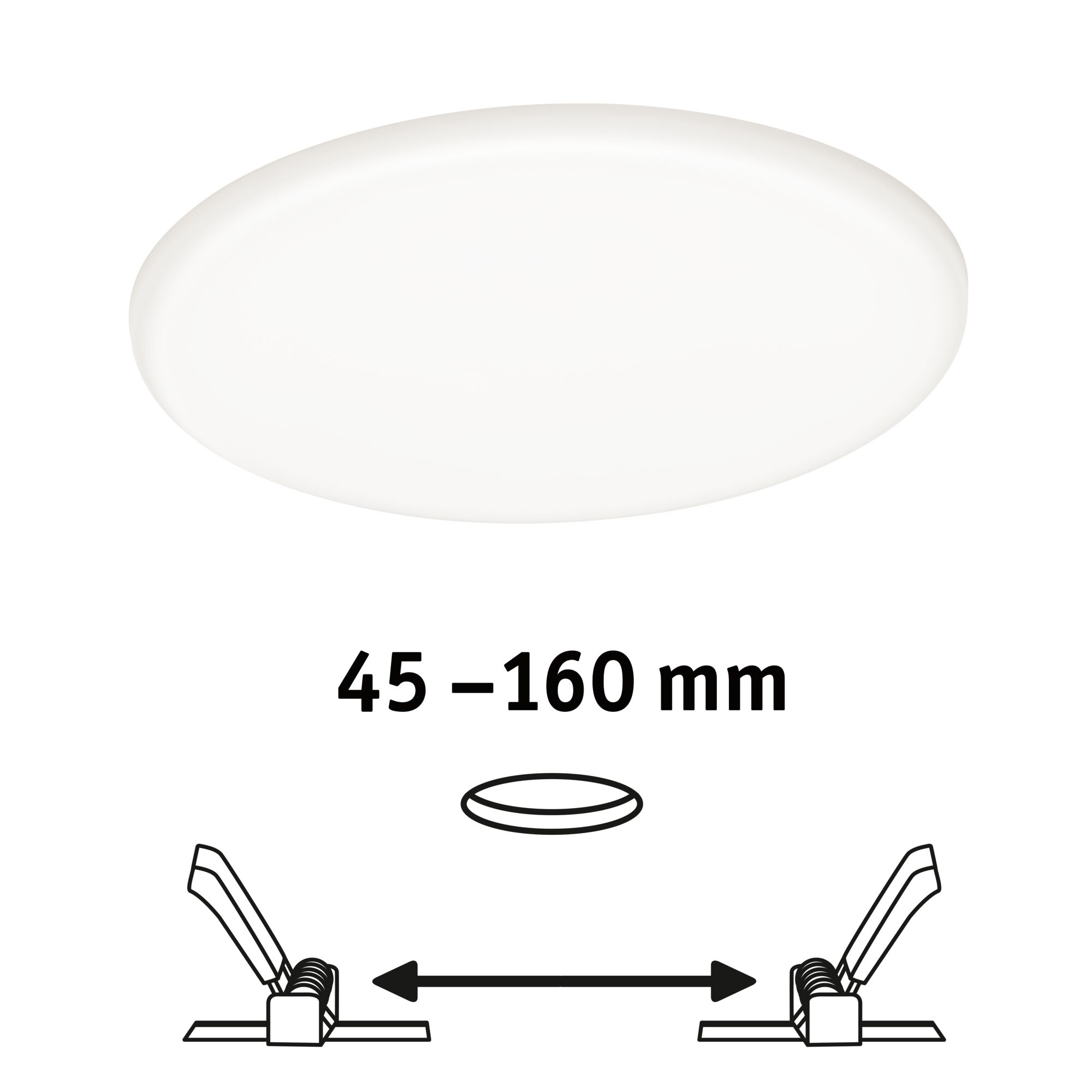

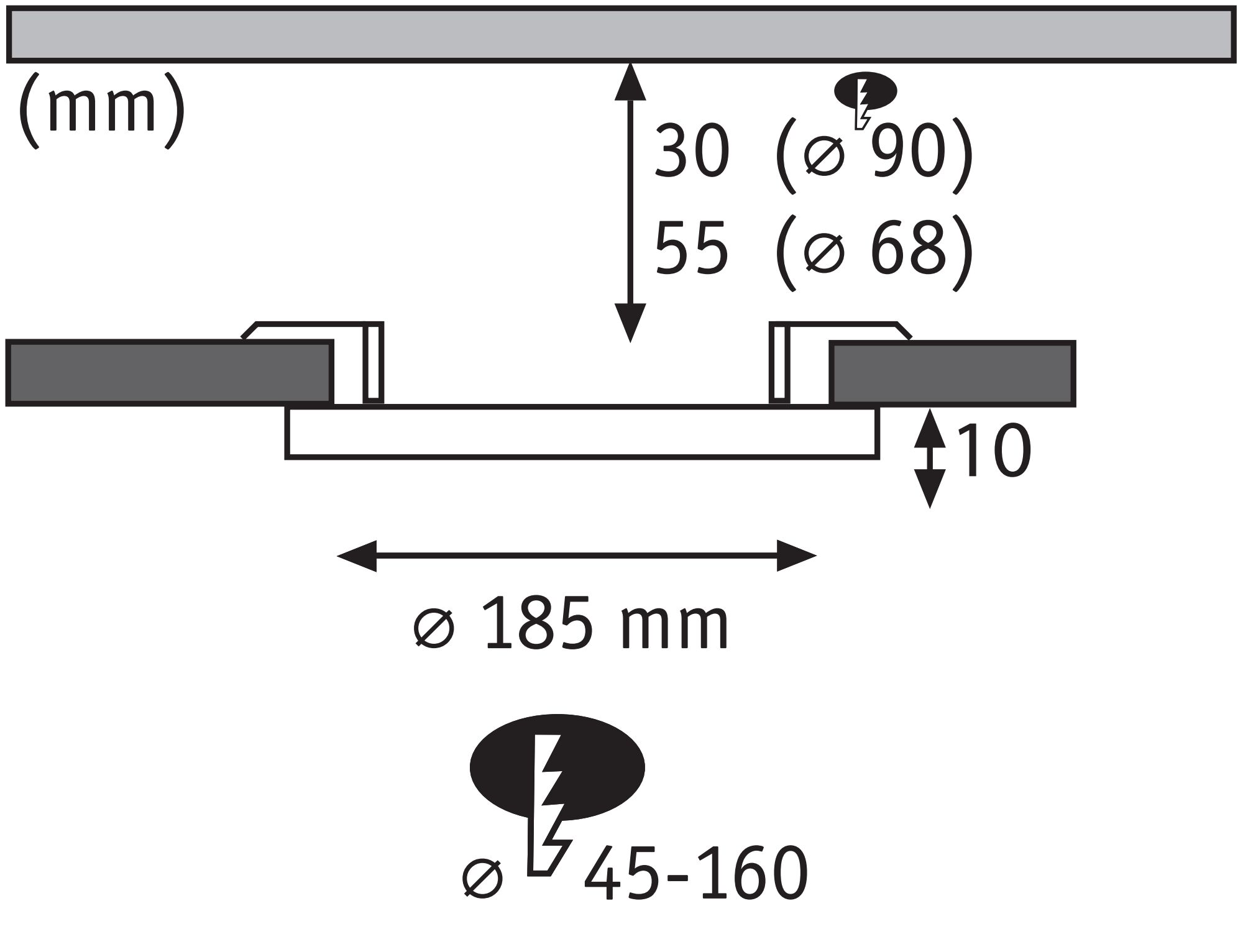

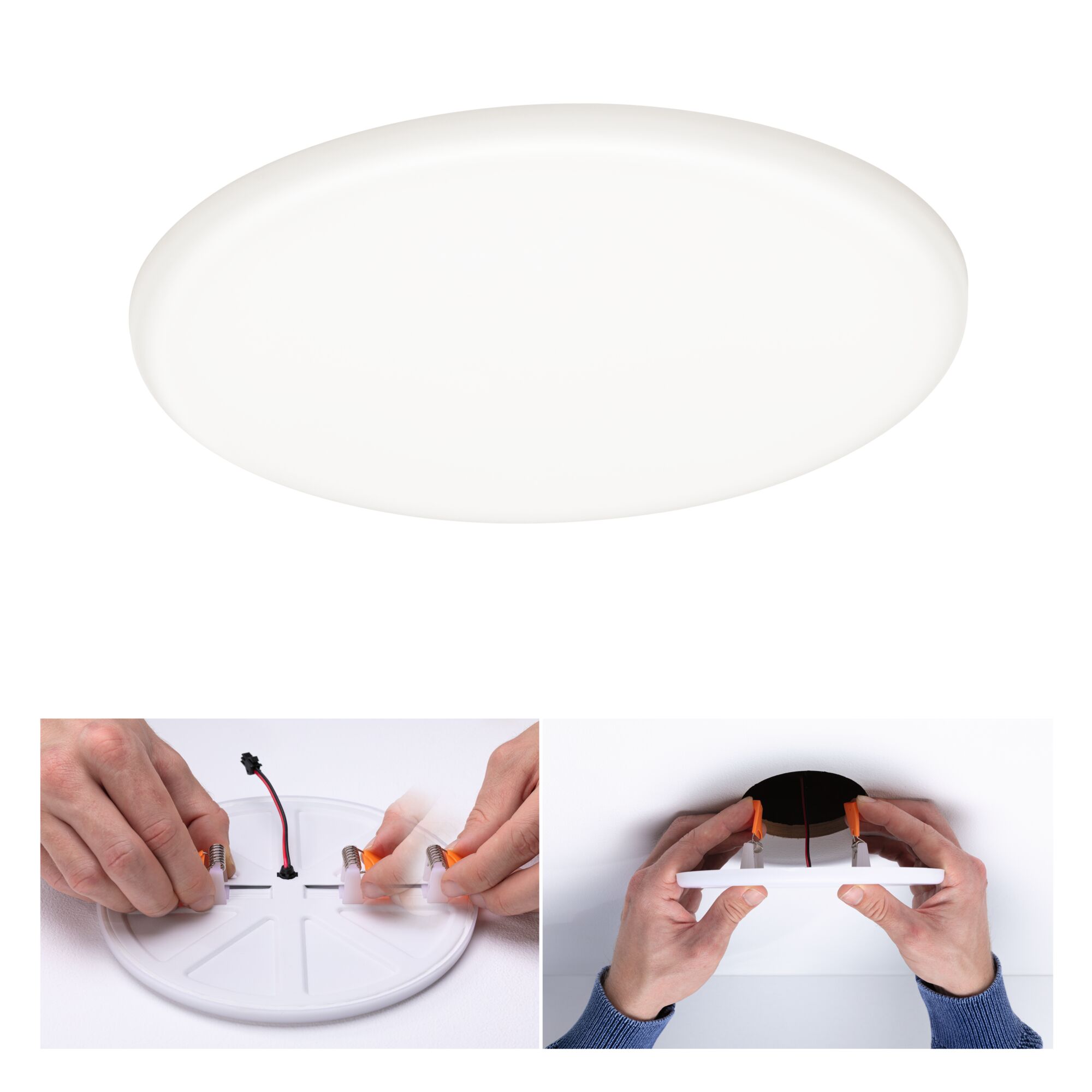

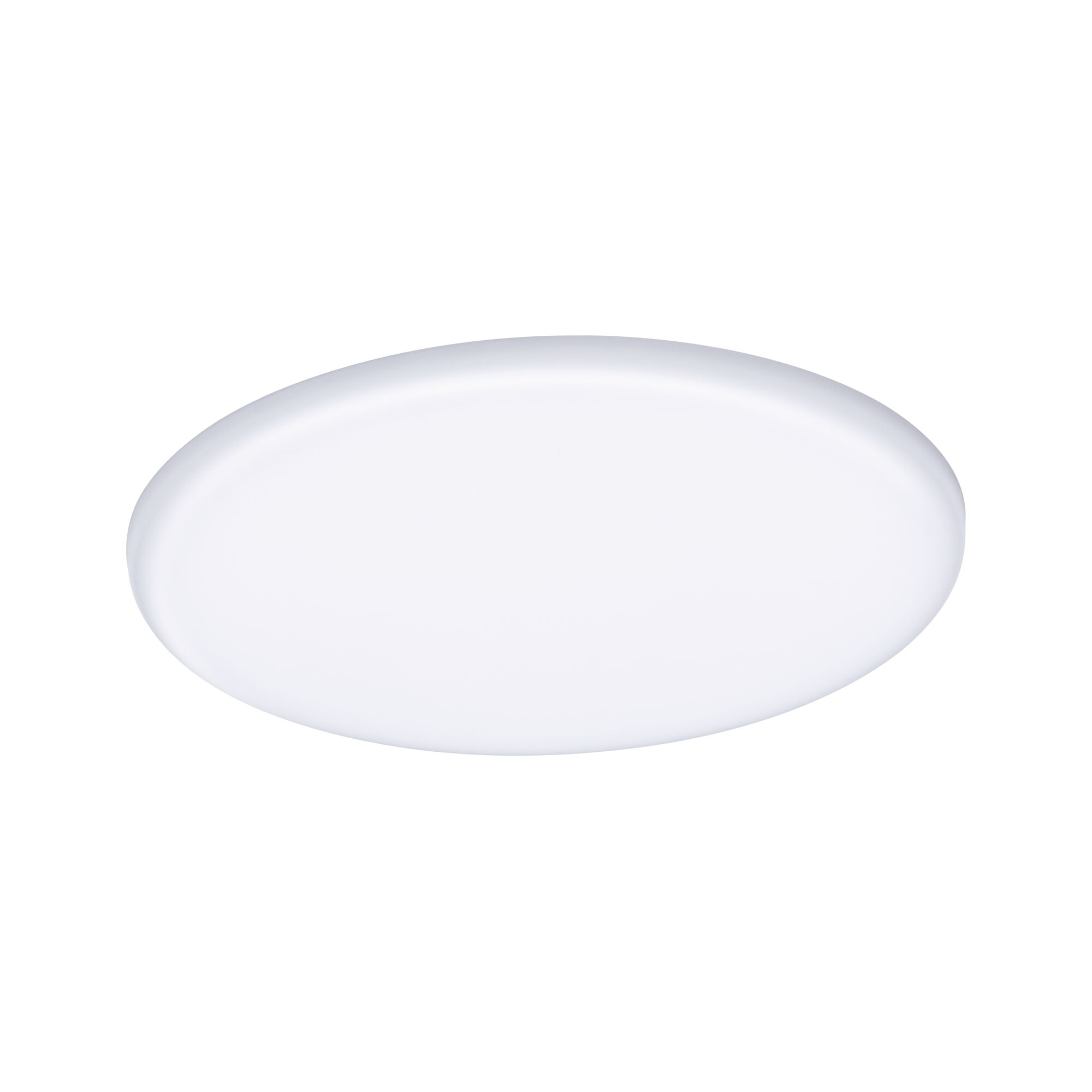

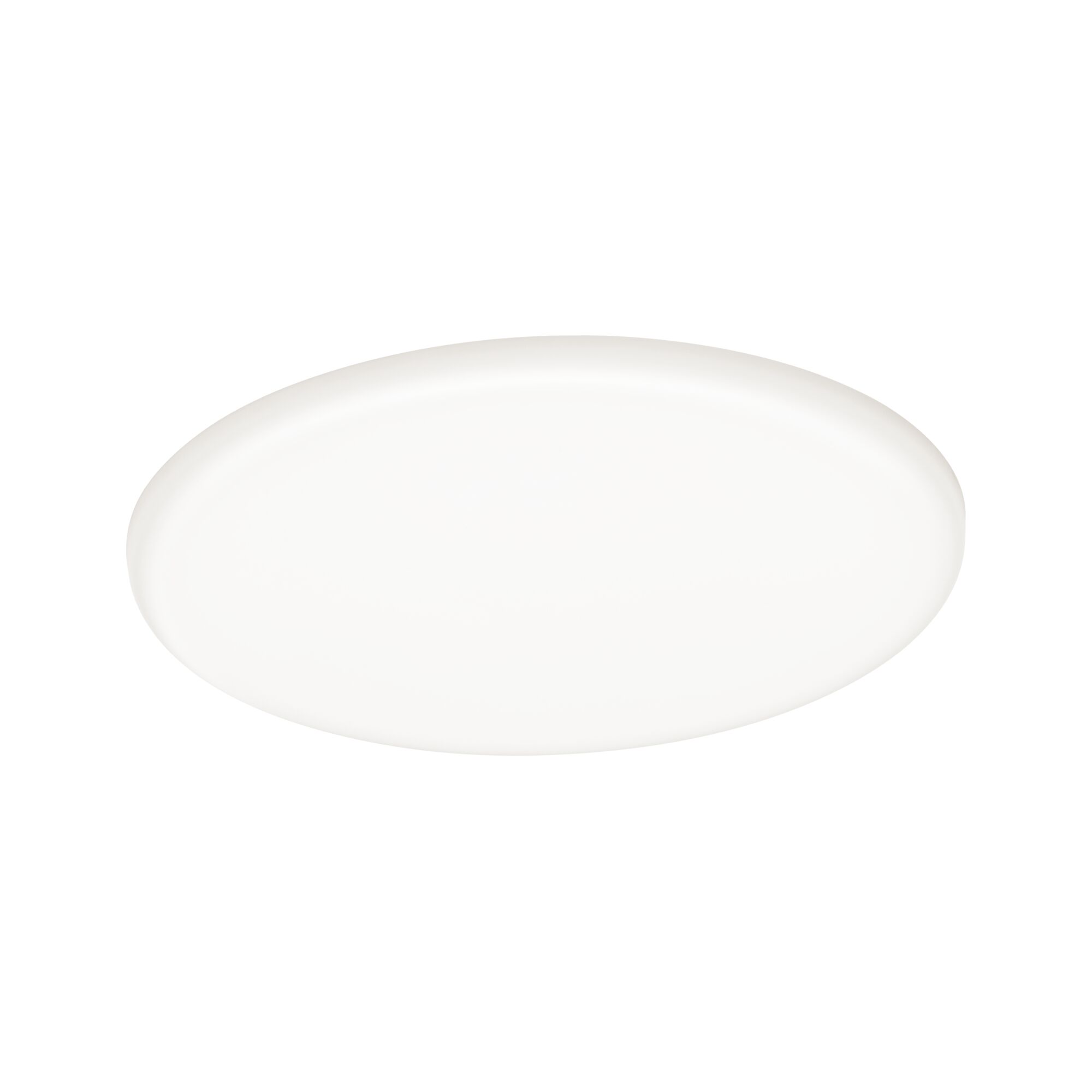

The frameless Veluna panel with an output of 17,5 watts provides extensive neutral white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 160 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The integrated 3-step dimming function offers three dimming levels in combination with a regular commercial light switch. The memory function stores the most recently used level until next activation.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white

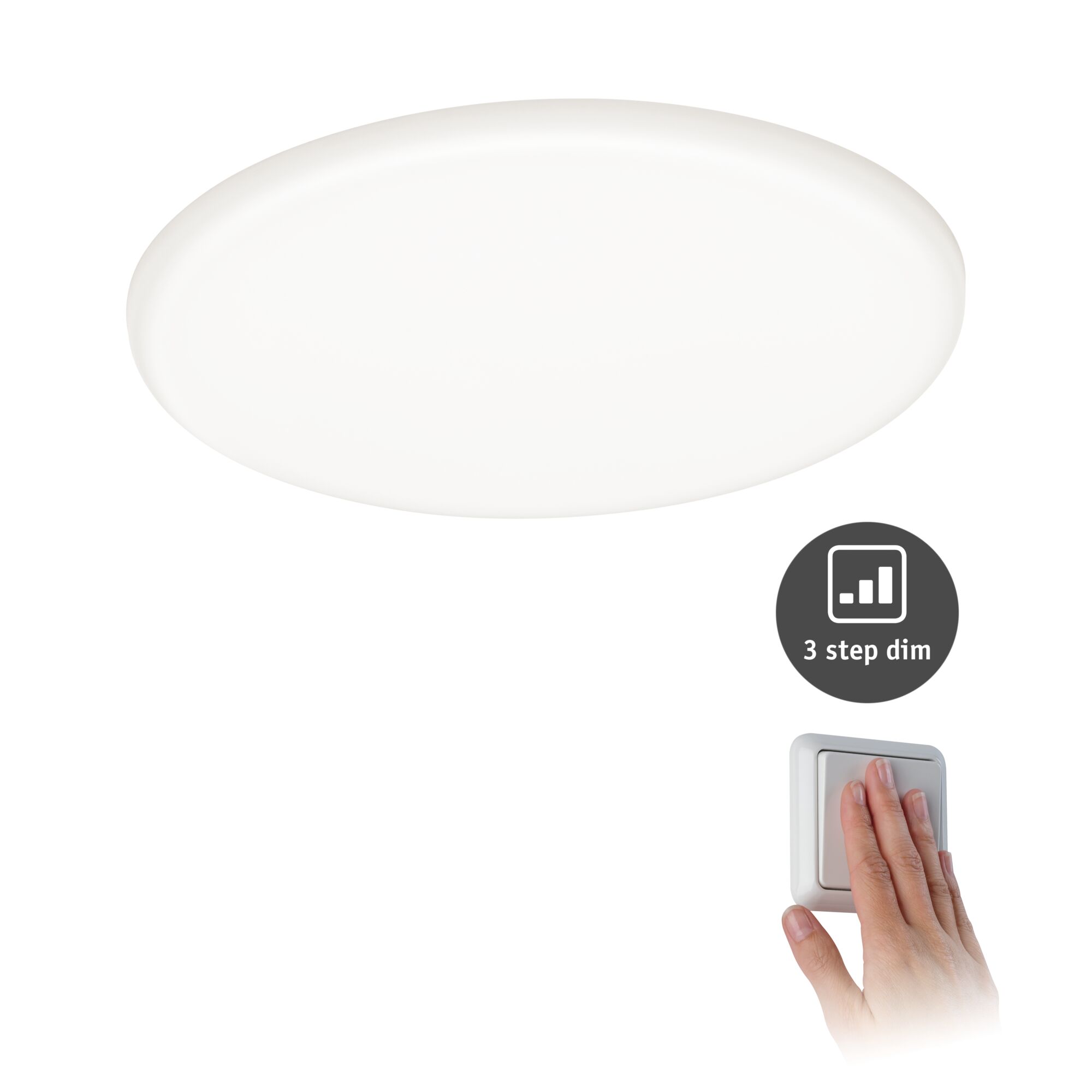

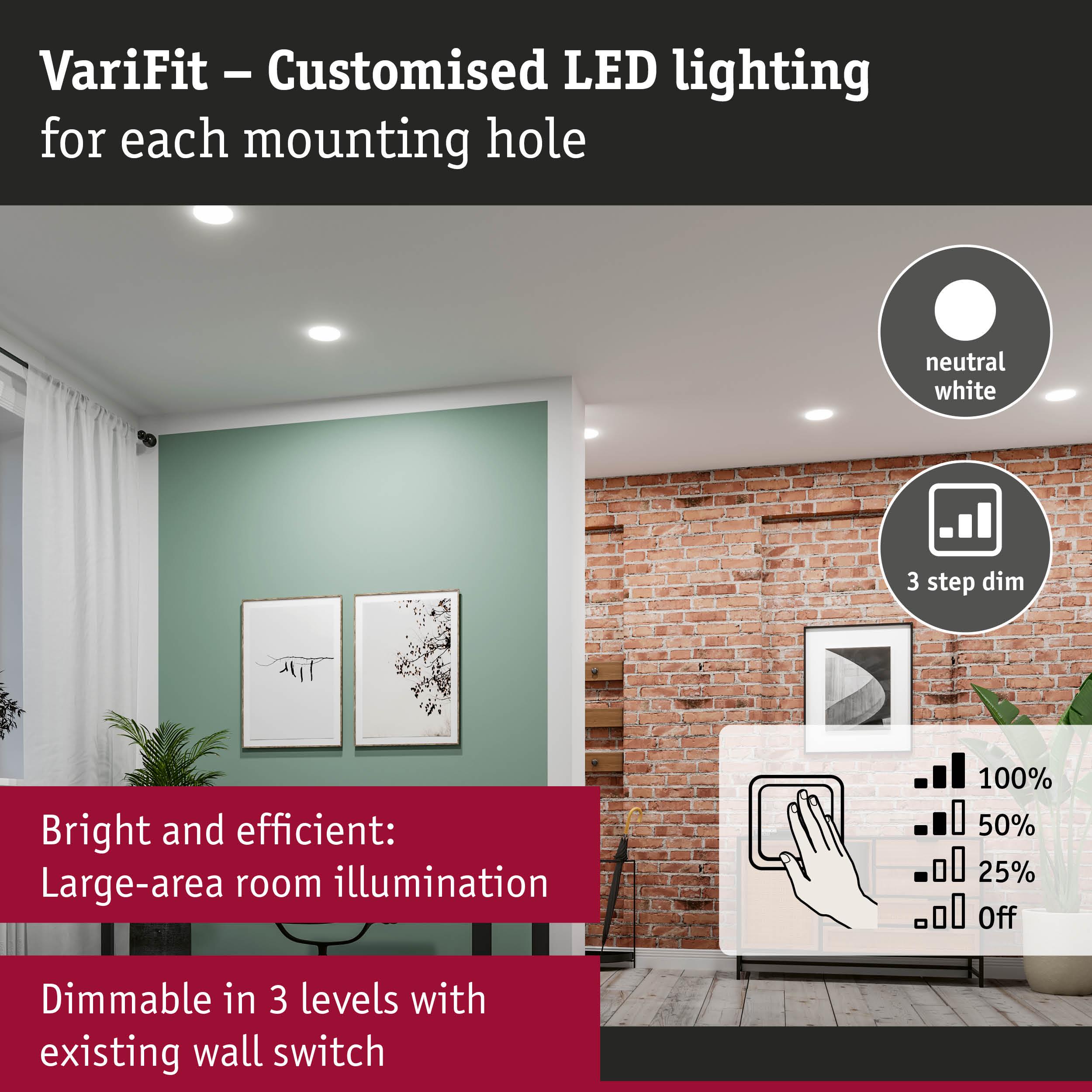

- Can be dimmed with a standard light switch, with 3 dimming levels
- For 230 V direct connection
| Dimension | |
|---|---|
| mounting hole 2 | 160 mm |
| Depth of hollow wall | 30-55 mm, 30 mm |
| Total Mounting depth | 45-70 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Ø | 185 mm |
| Mounting hole | 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 1400 lm |
| Luminous flux LED module | 1900 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 17,5 W |
| Technique | LED |

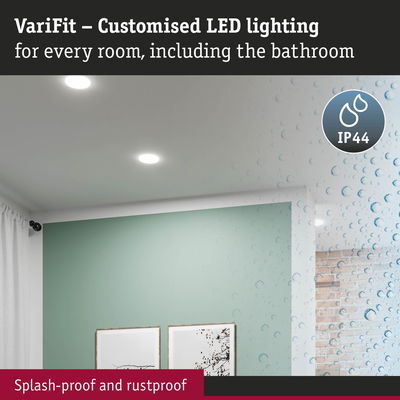

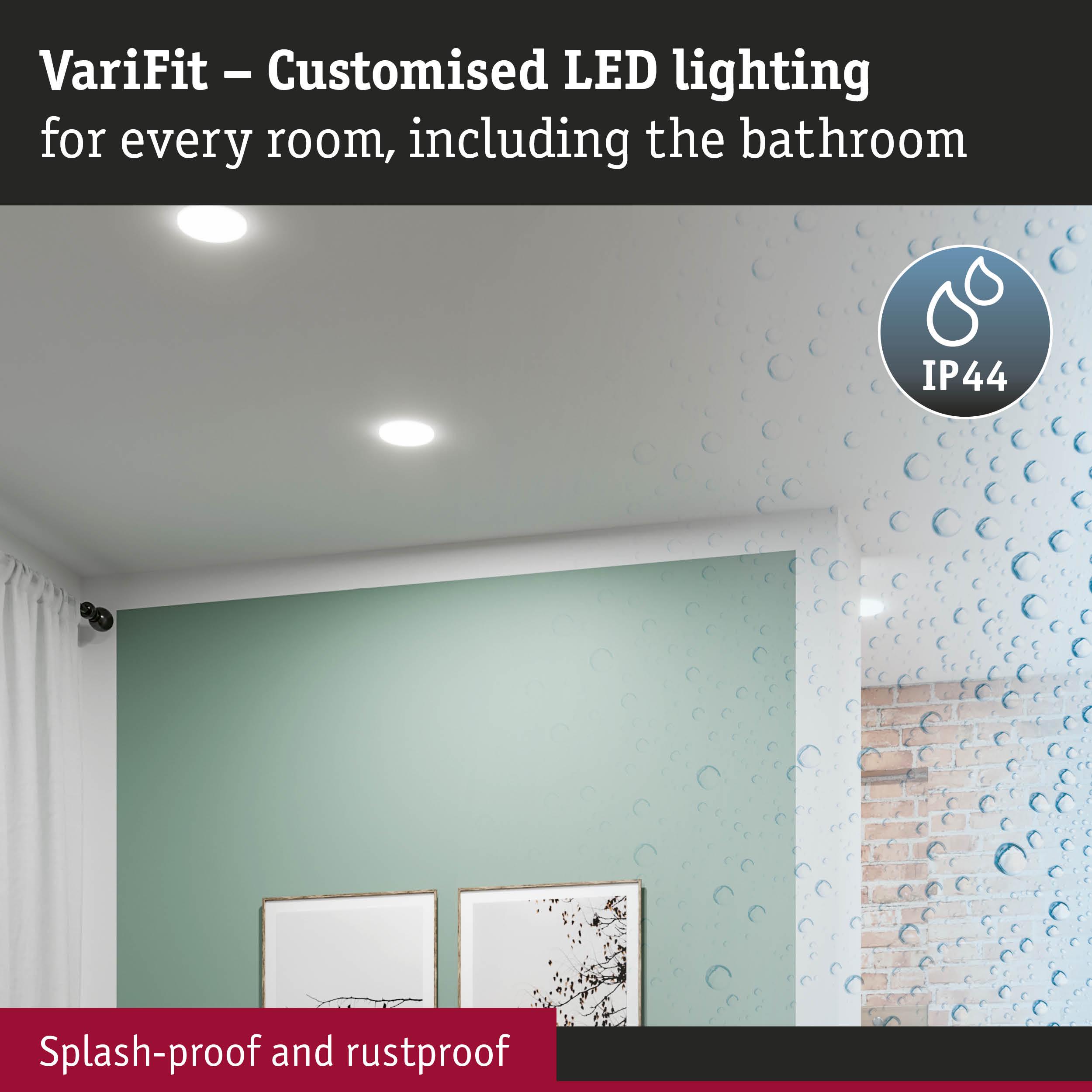

| IP protection | IP44 ceiling mounting |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 120 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 21,5 W |

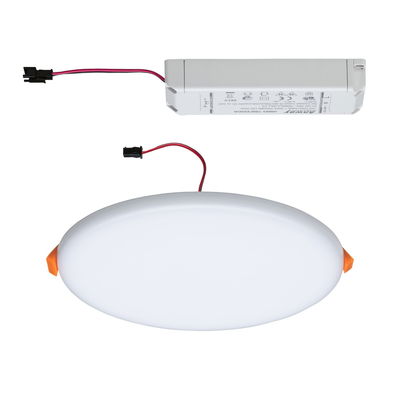

| Transformer | |
|---|---|
| apparent power | 23 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
