Article-No.:
79964
VariFitLED Recessed panel3-Step-Dim
Areo
IP44 round 175mm 13W 1300lm 3000K Black dimmable
IP44 round 175mm 13W 1300lm 3000K Black dimmable

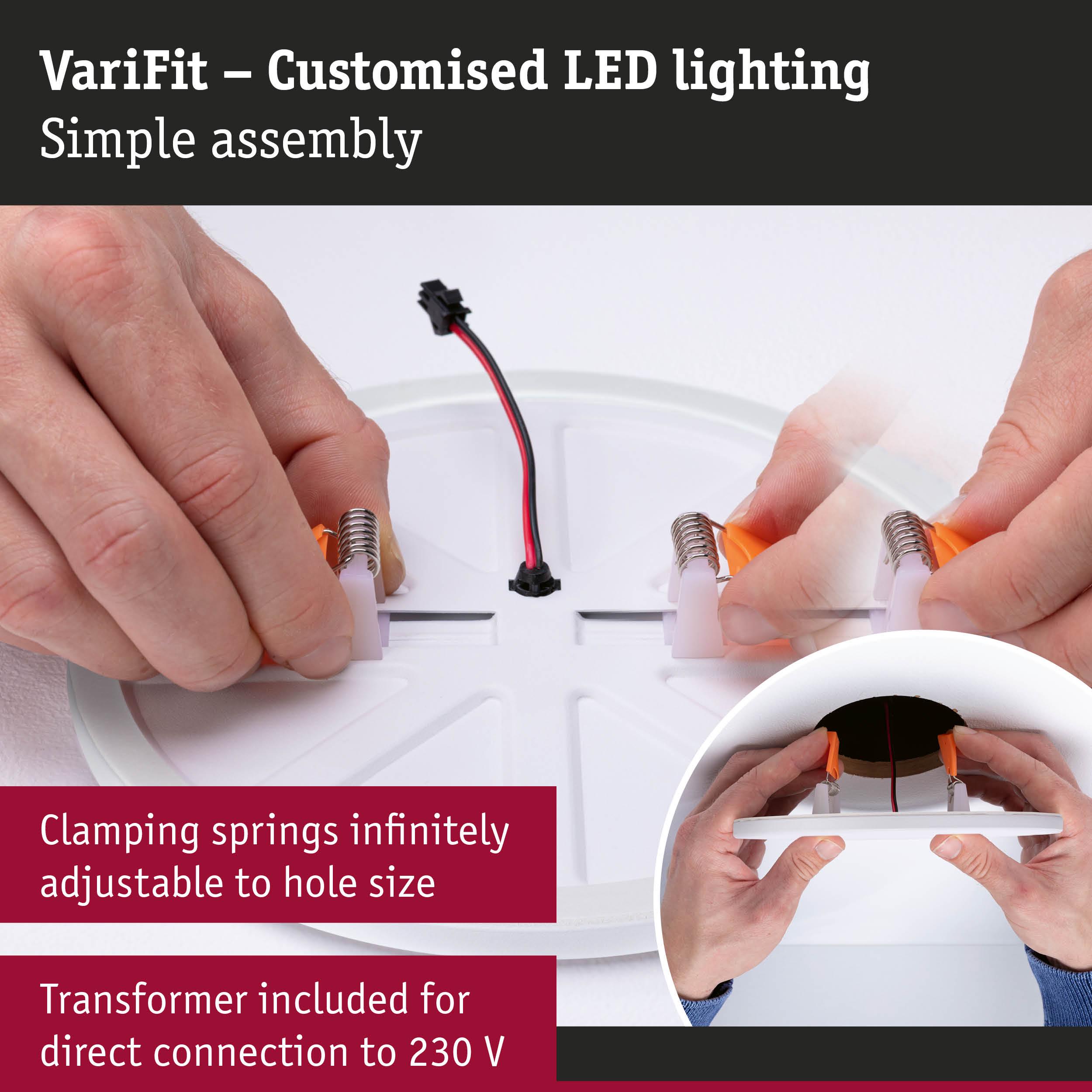

- VariFit – flexible installation with infinitely adjustable clamping springs

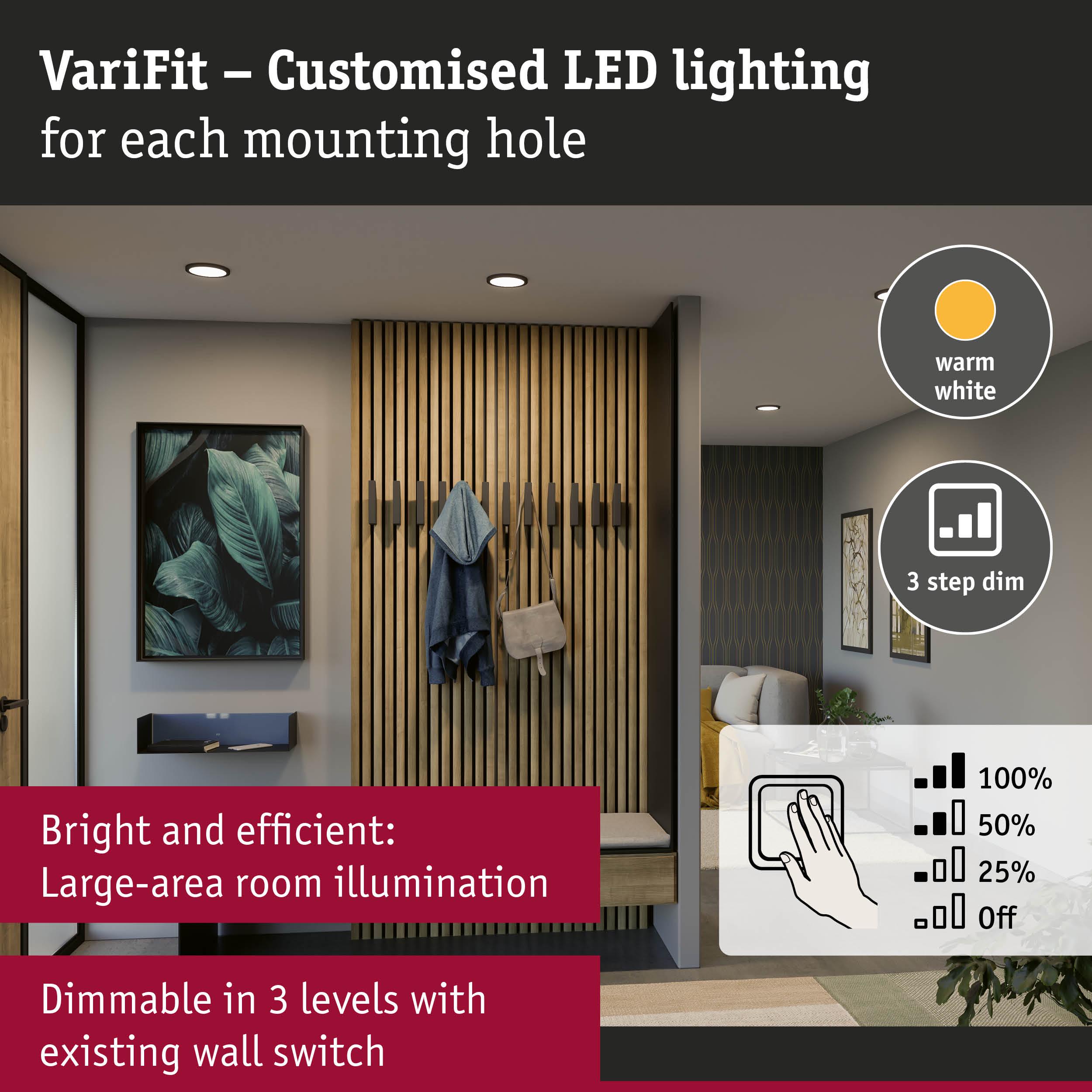

- Can be dimmed with a standard light switch, with 3 dimming levels
- With integrated LED bulb
VariFit LED Recessed panel 3-Step-Dim Areo IP44 round 175mm 13W 1300lm 3000K Black dimmable
With an output of 13W, the rounde Areo VariFit LED recessed panel in Black and 175mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. The integrated three-stage dimming function allows you to dim the panels in three increments using a standard light switch. The memory function stores the most recently used level until next activation. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 50 mm and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones.
- VariFit – flexible installation with infinitely adjustable clamping springs
- Can be dimmed with a standard light switch, with 3 dimming levels
- With integrated LED bulb
- Made of easy-care plastic
- For 230 V direct connection

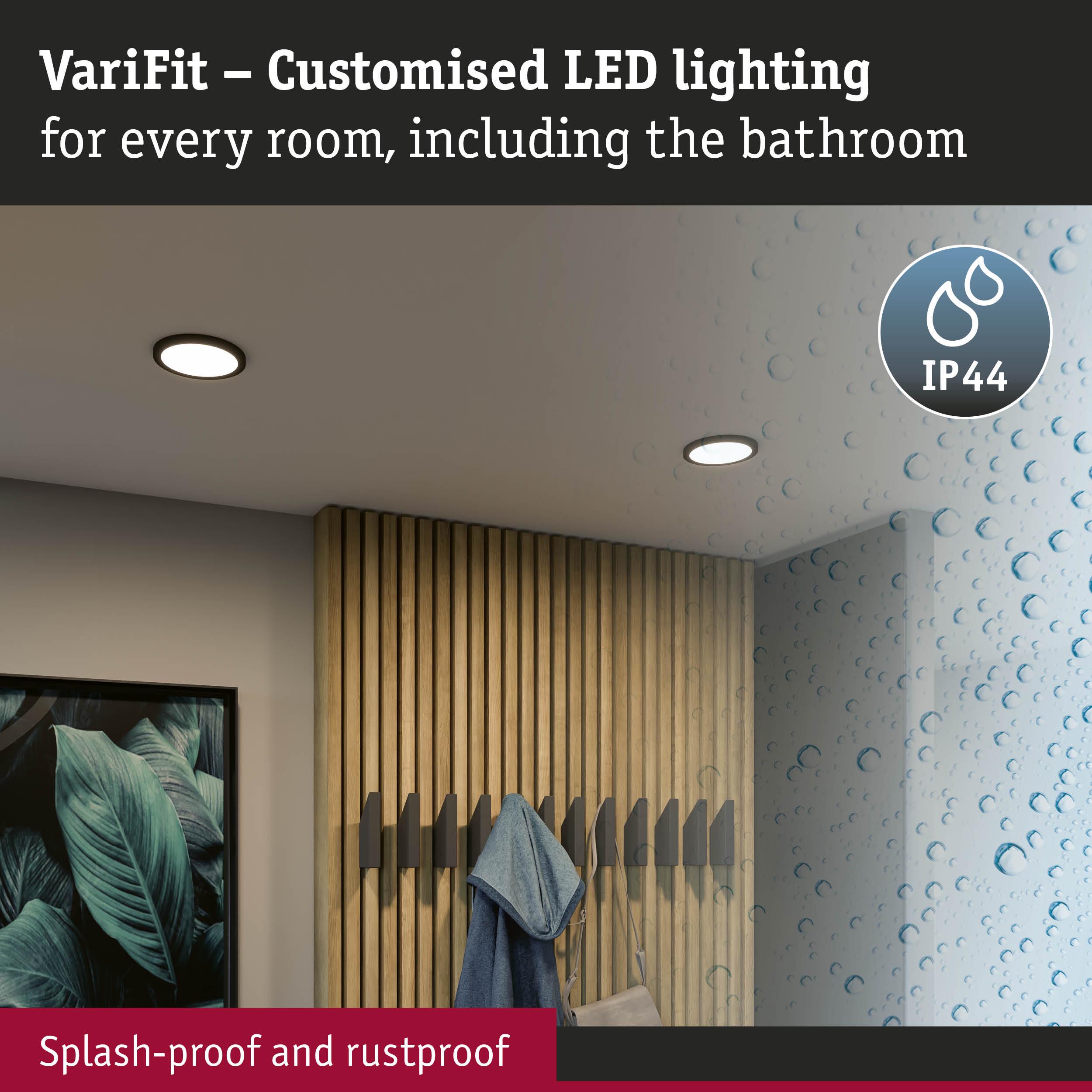

- IP protection: IP44 splash-protected
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 12 mm |
| Diameter | 175 mm |
| Built-in diameter | 50 - 85 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Black |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 1300 lm |
| Luminous flux LED module | 1800 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 115 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 13 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 15 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 16.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
