Article-No.:
96891
URail
LED Rail spot
Discus Individual Spot
375,6lm 5,3W 2700K dimmable 230V Chrome matt/Chrome
375,6lm 5,3W 2700K dimmable 230V Chrome matt/Chrome
- Suitable only for URail rails
- Surface/color: Chrome matt
- URail system lamp incl. assembly instructions

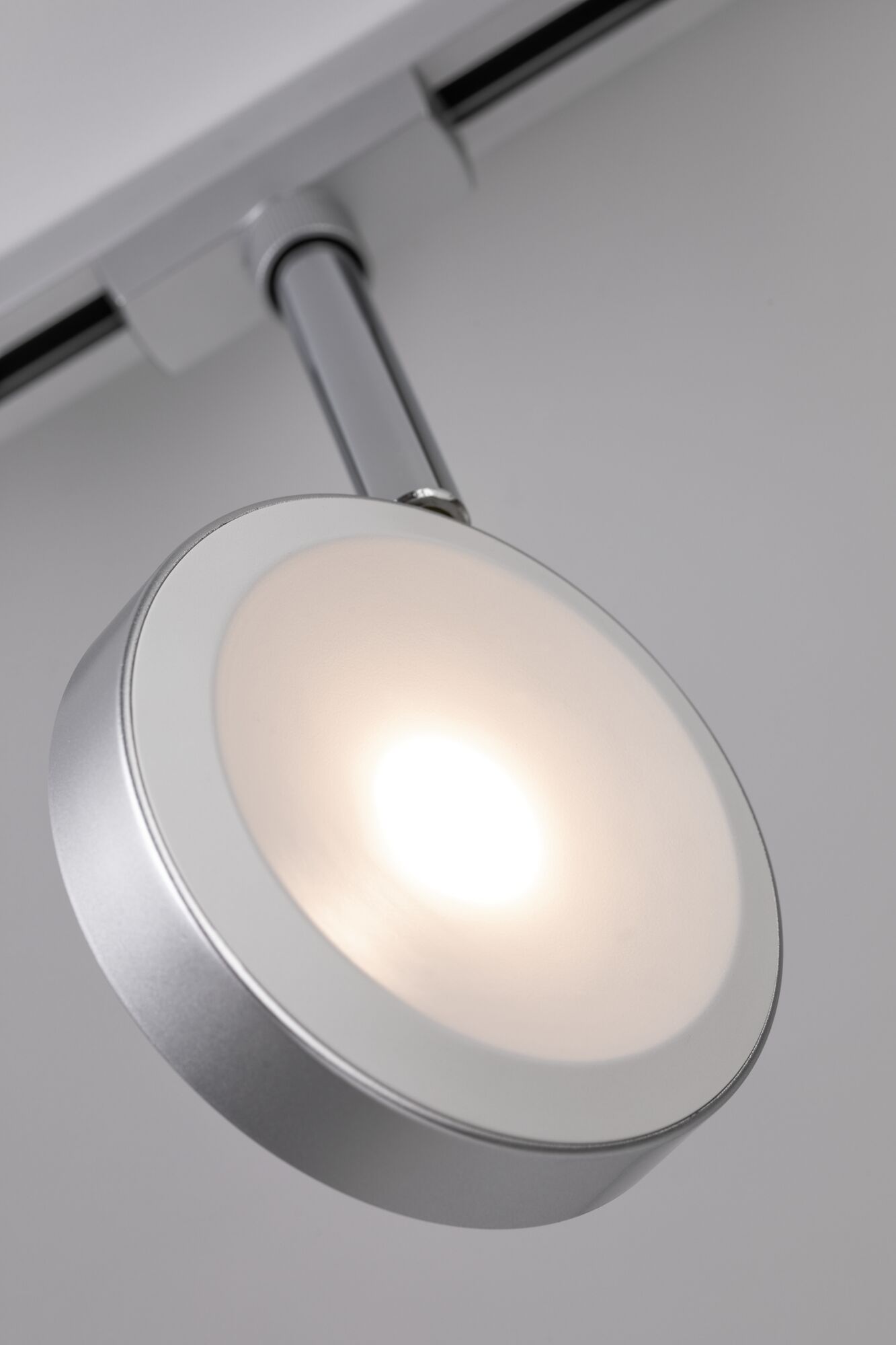

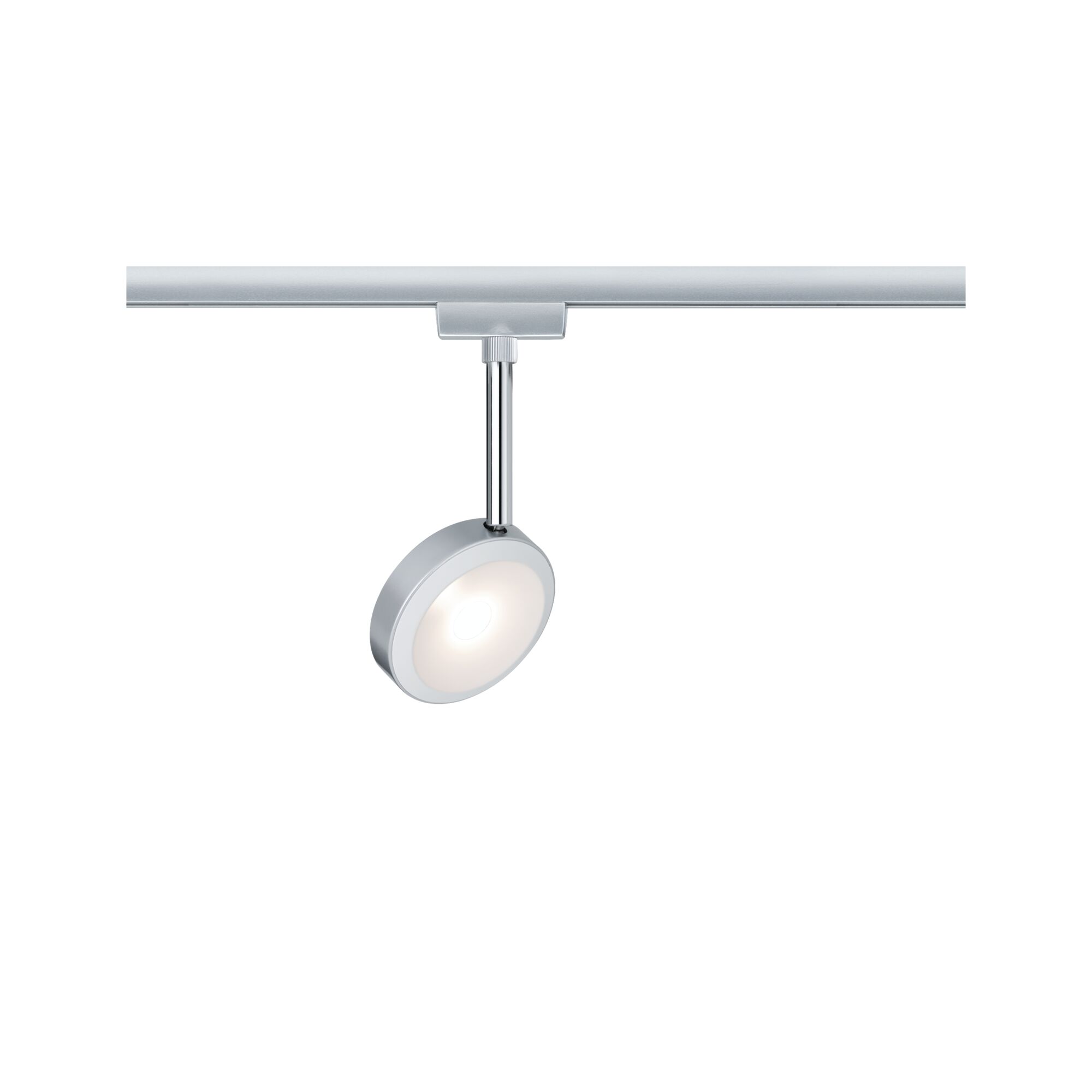

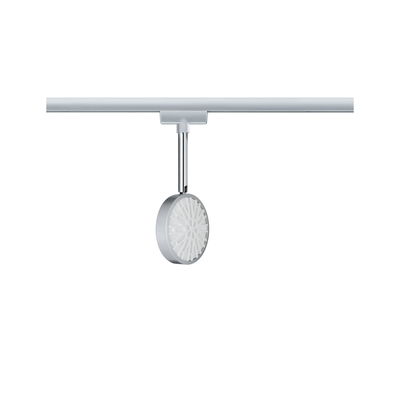

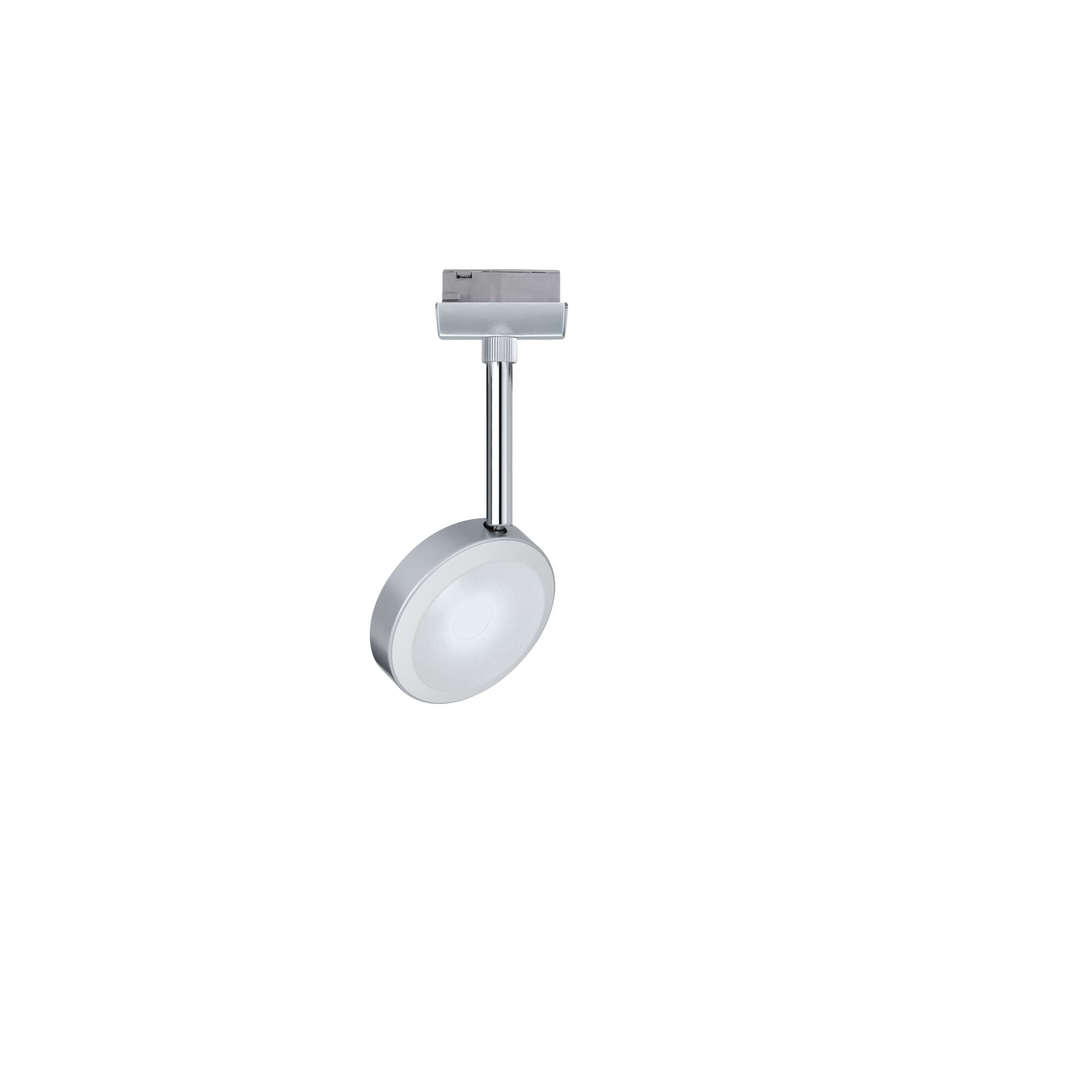

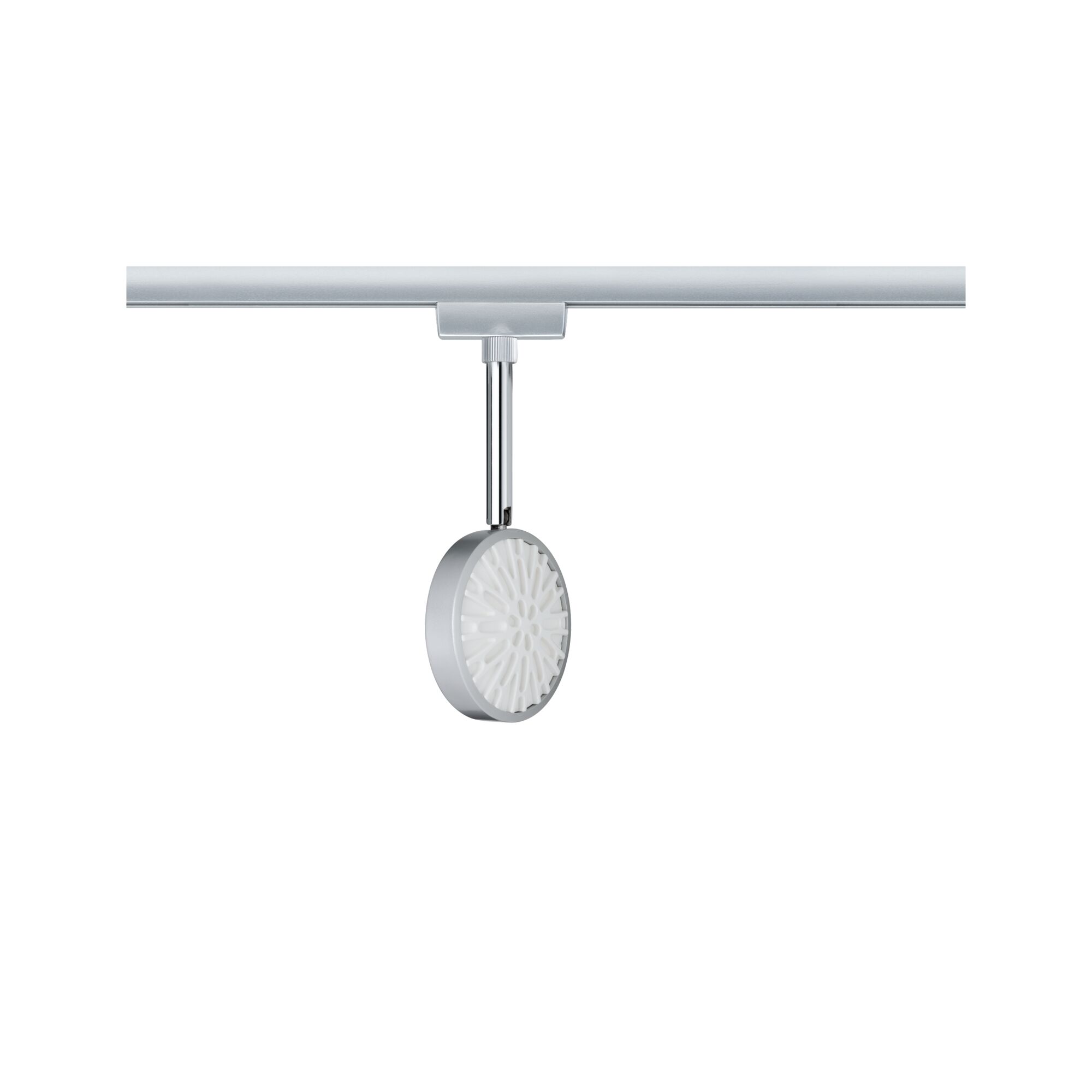

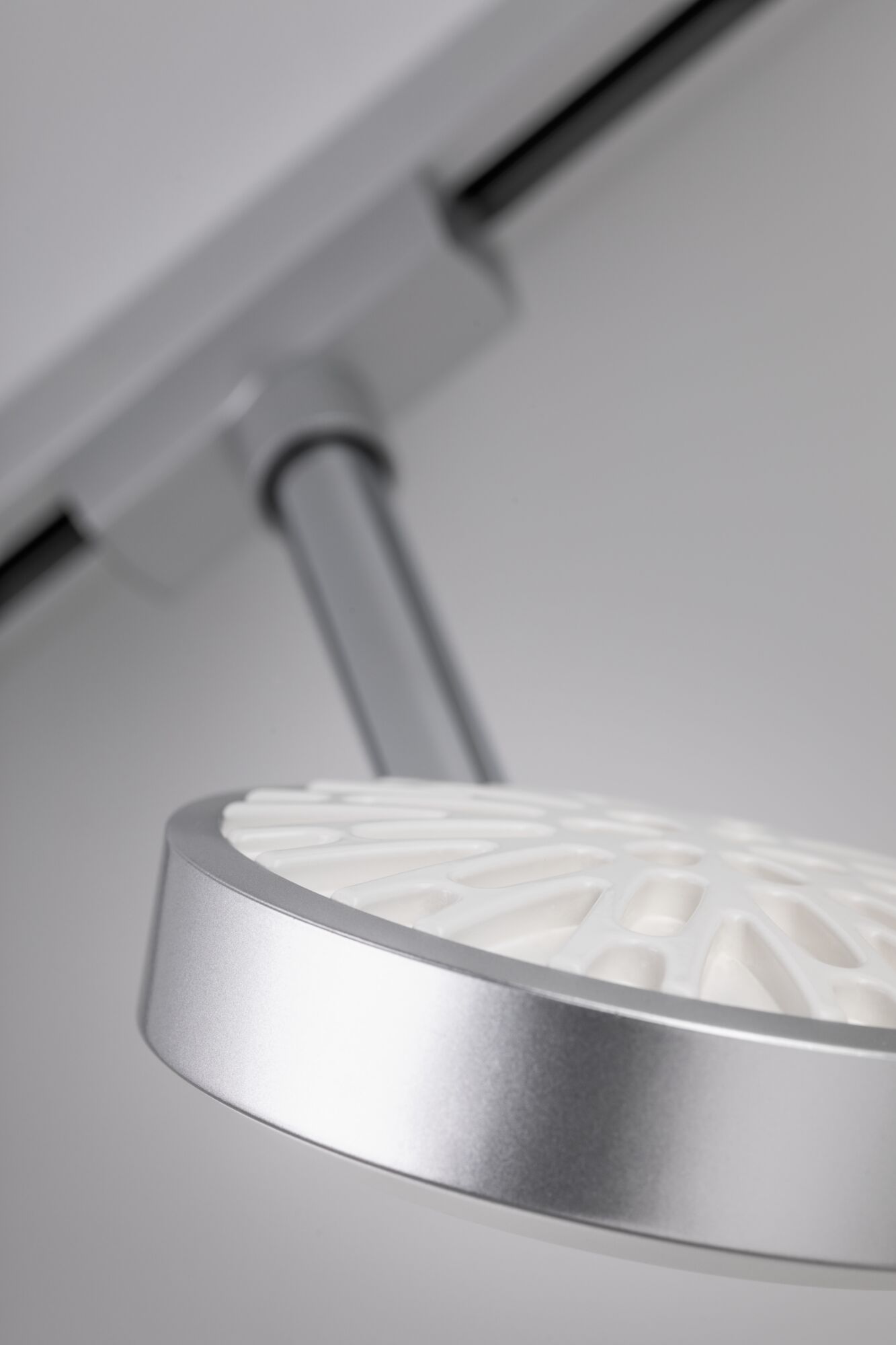

URail LED Rail spot Discus Individual Spot 375,6lm 5,3W 2700K dimmable 230V Chrome matt/Chrome

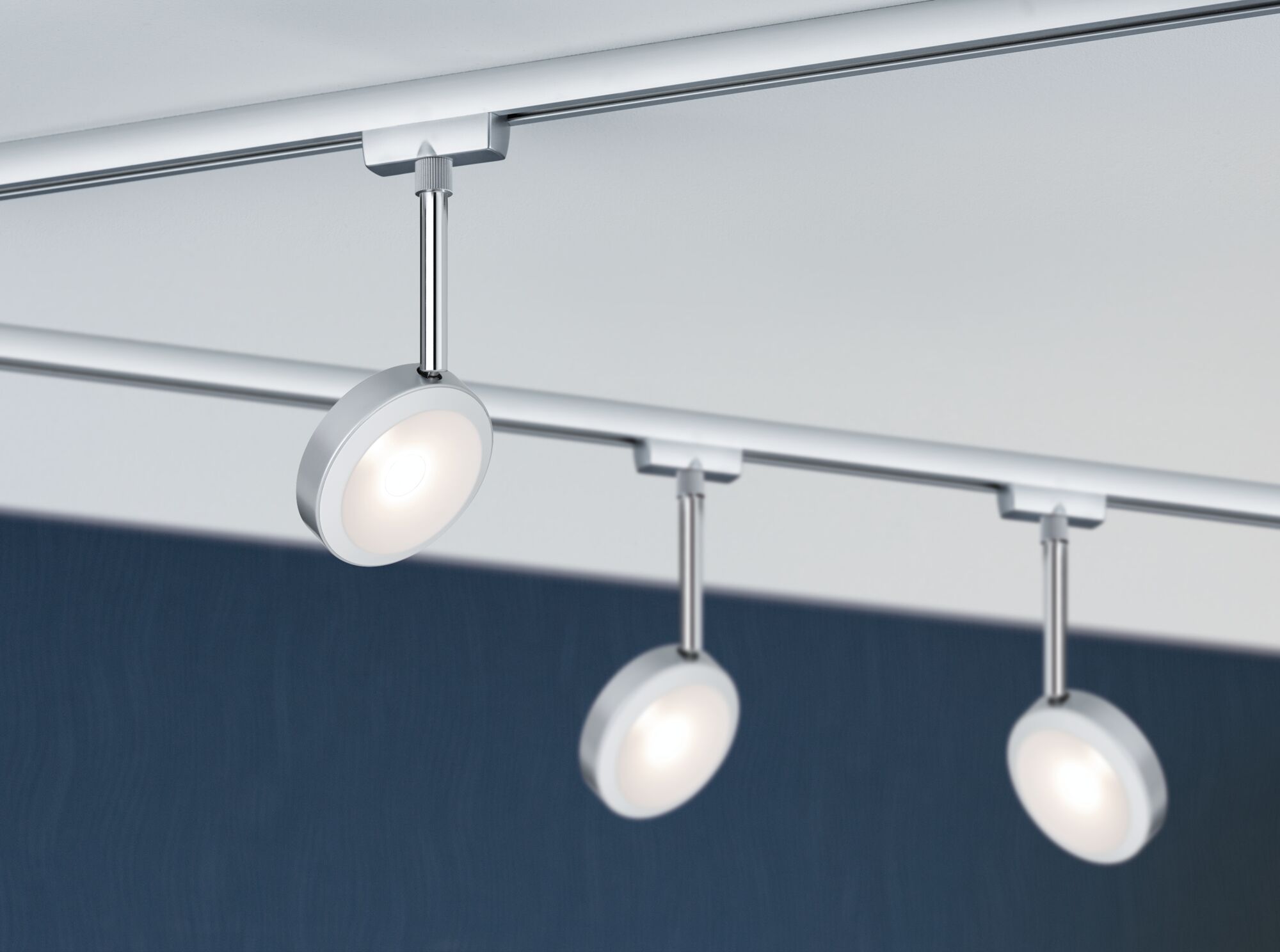

The URail Discus rail luminaire is fitted with LED technology and is compatible with all URail articles. In combination with the matching URail components, you can use it to create your own individual lighting system with a total output of up to 1,000 watt.
- Suitable only for URail rails
- Surface/color: Chrome matt
- URail system lamp incl. assembly instructions
- Including bulb (built-into lamp)
| Dimension | |
|---|---|

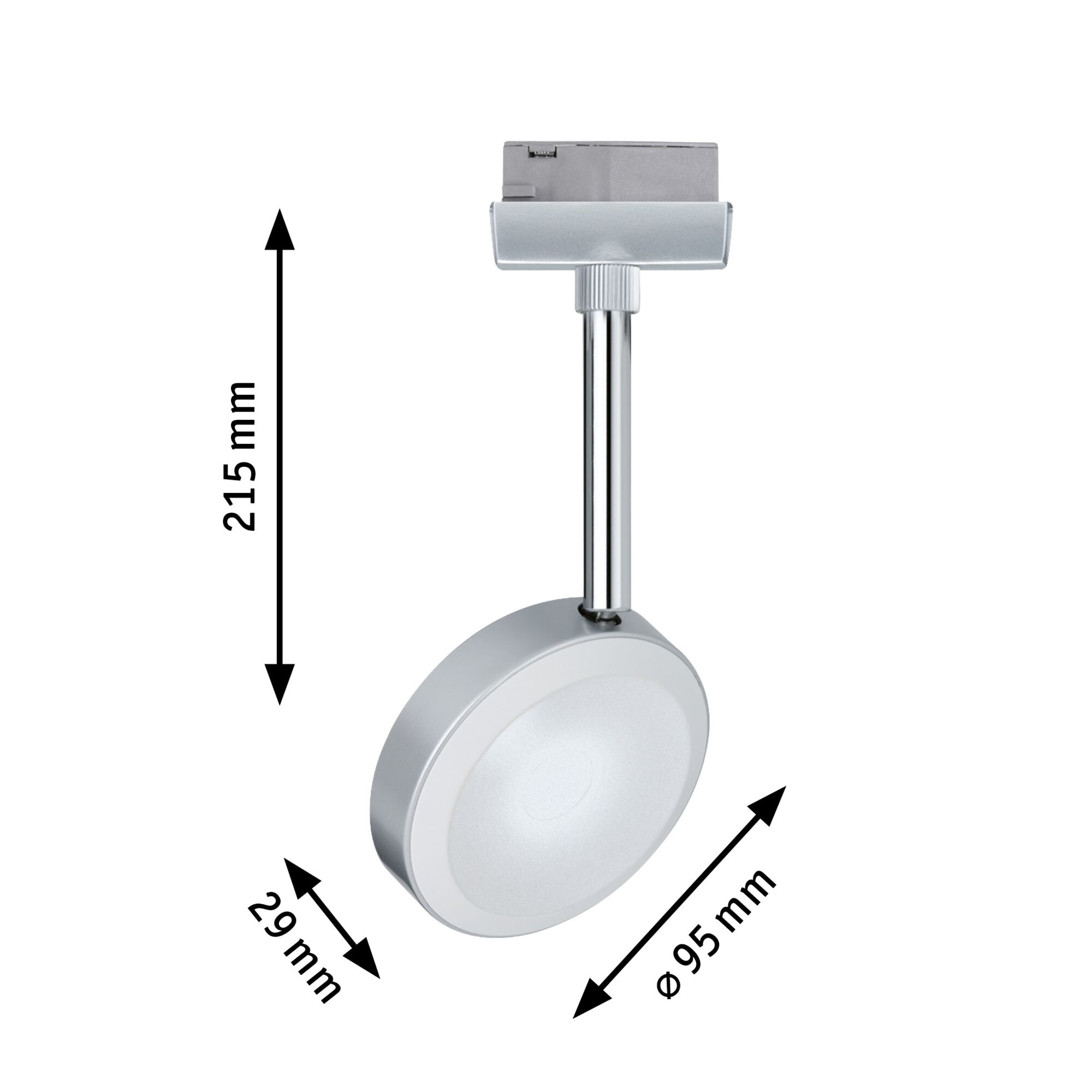

| Dimensions (Height x Width x Depth) | H: 215 x B: 29 x T: 95 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, RC Merten MEG 5136-0000, Paulmann URail ZB Middle-Feed 501.20/501.21/968.19, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, Paulmann URail 952.94/-95, Paul, Paulmann URail 500.50/-51/968.15, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 45 ° |
| Usable luminous flux | 375,6 lm |
| Luminous flux LED module | 440 lm |
| color temp | 2700 K |
| Beam angle LED module | 121 ° |
| Lamp Features | |
|---|---|
| Component parts | 5,3 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 29 mm |
| Incandescent Equivalent | 38 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,3 W |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
