Article-No.:
96939
URail
LED Rail spot
Circle Individual Spot
160lm 5W 4000K dimmable 230V Black matt/Chrome
160lm 5W 4000K dimmable 230V Black matt/Chrome
- Color temperatur: 4000K - Neutral white
- URail system lamp incl. assembly instructions
- Surface/color: Black matt

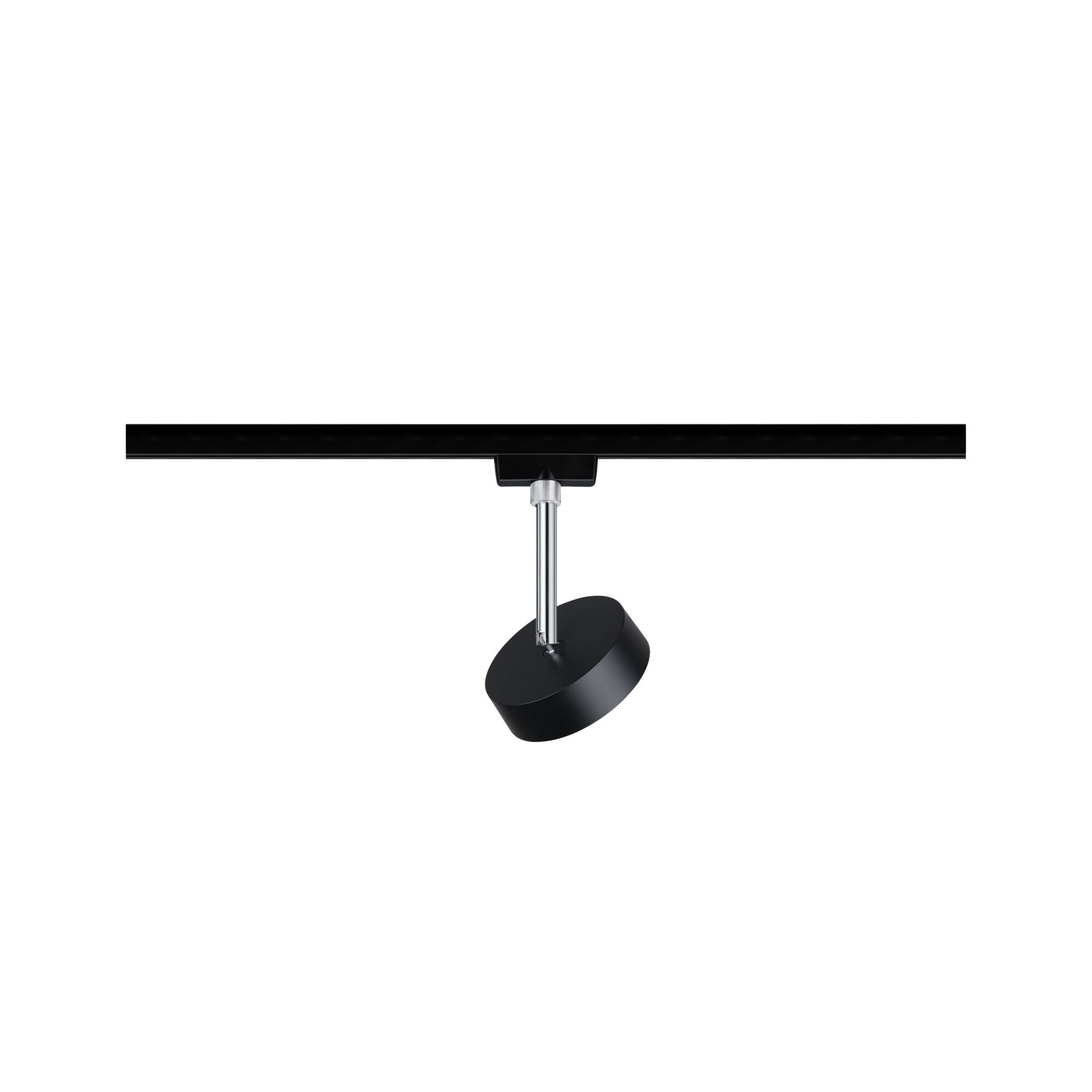

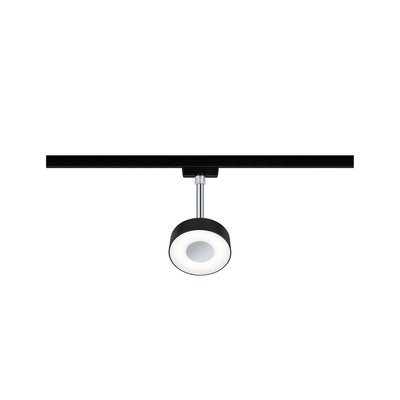

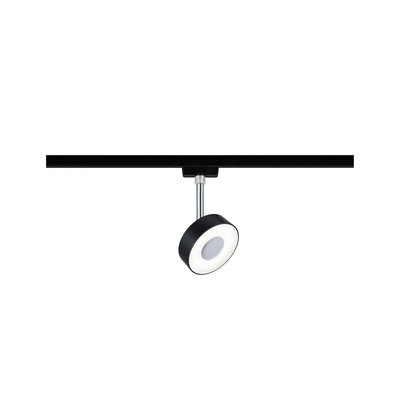

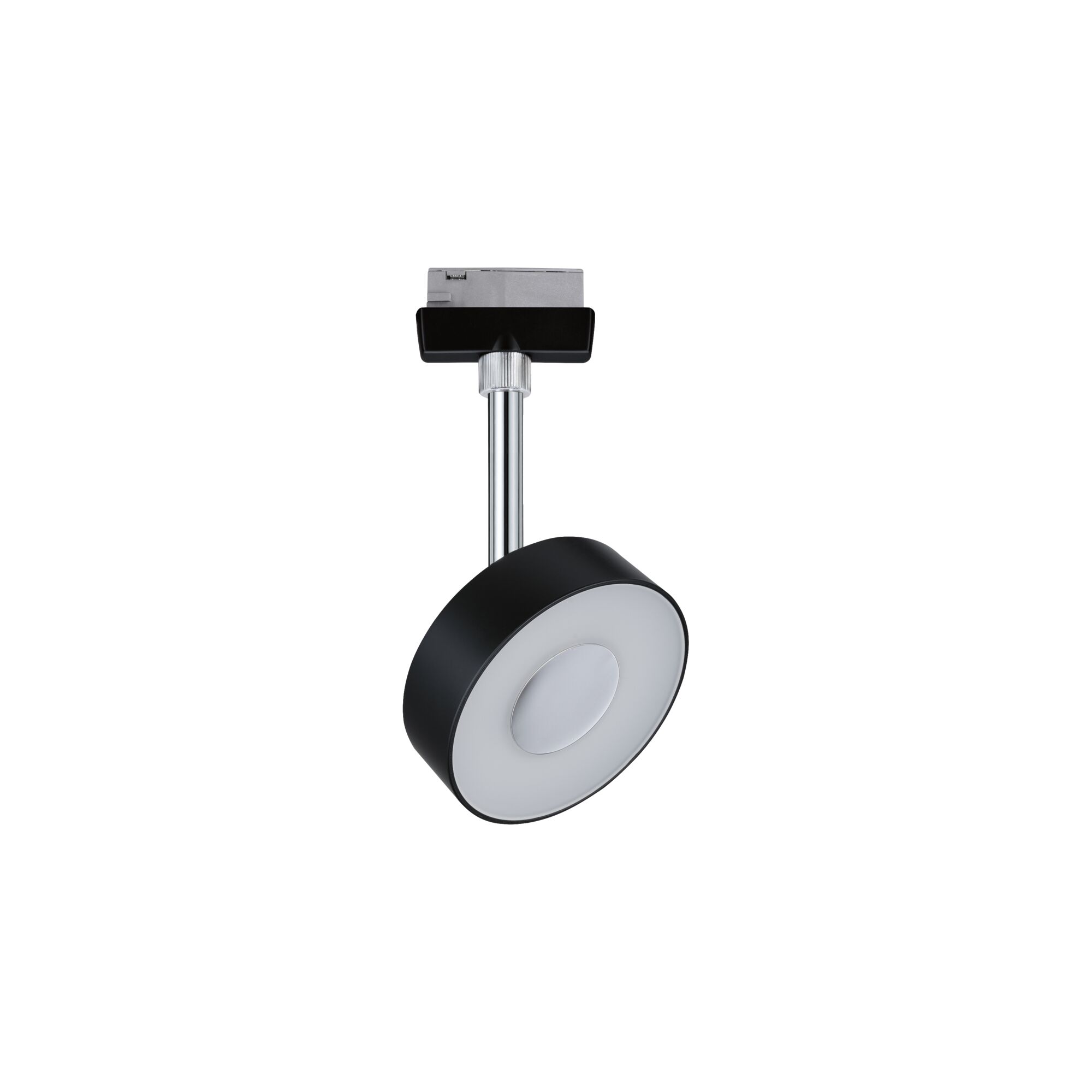

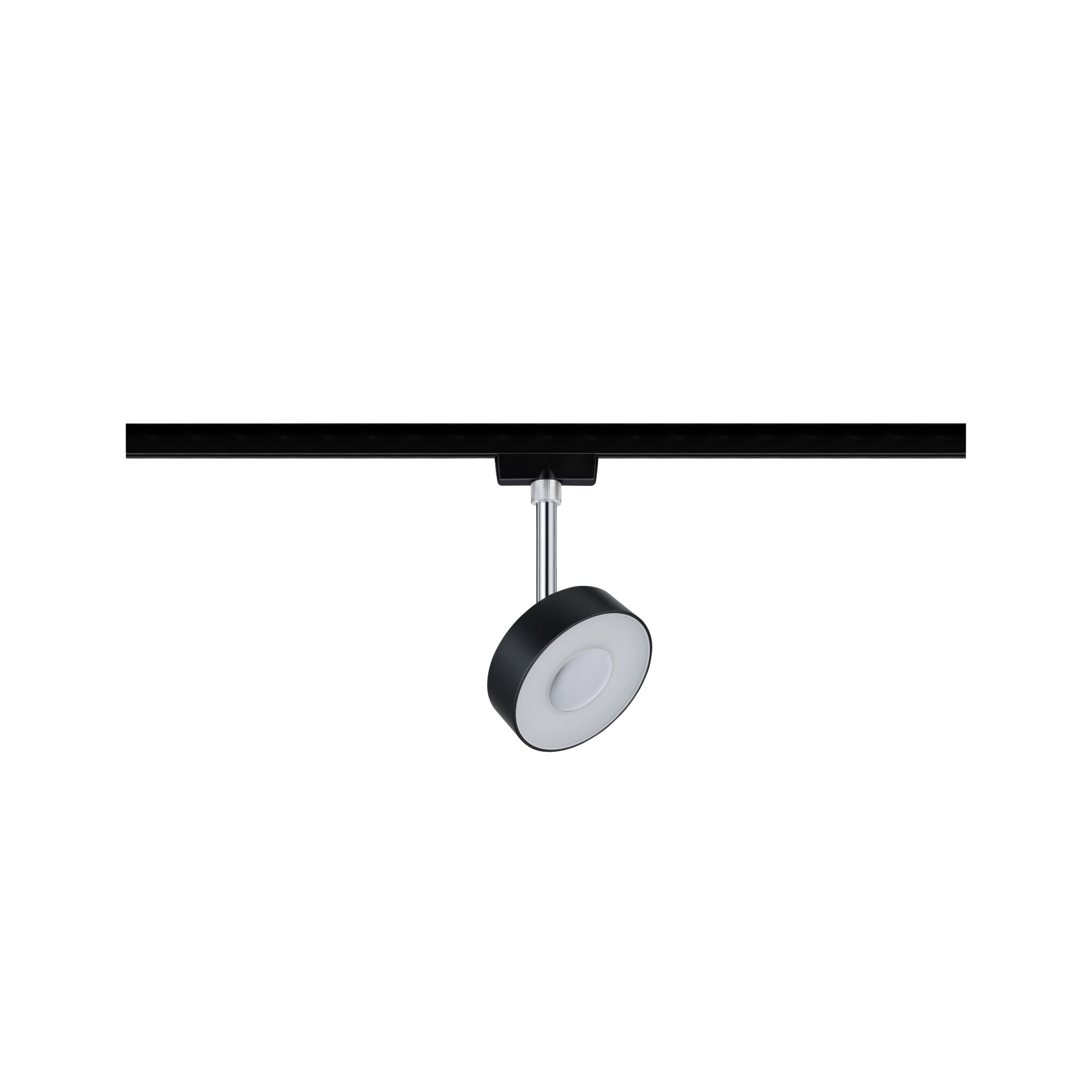

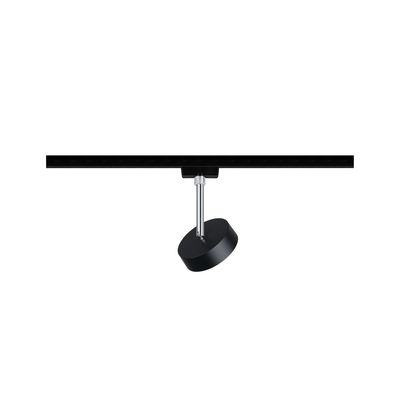

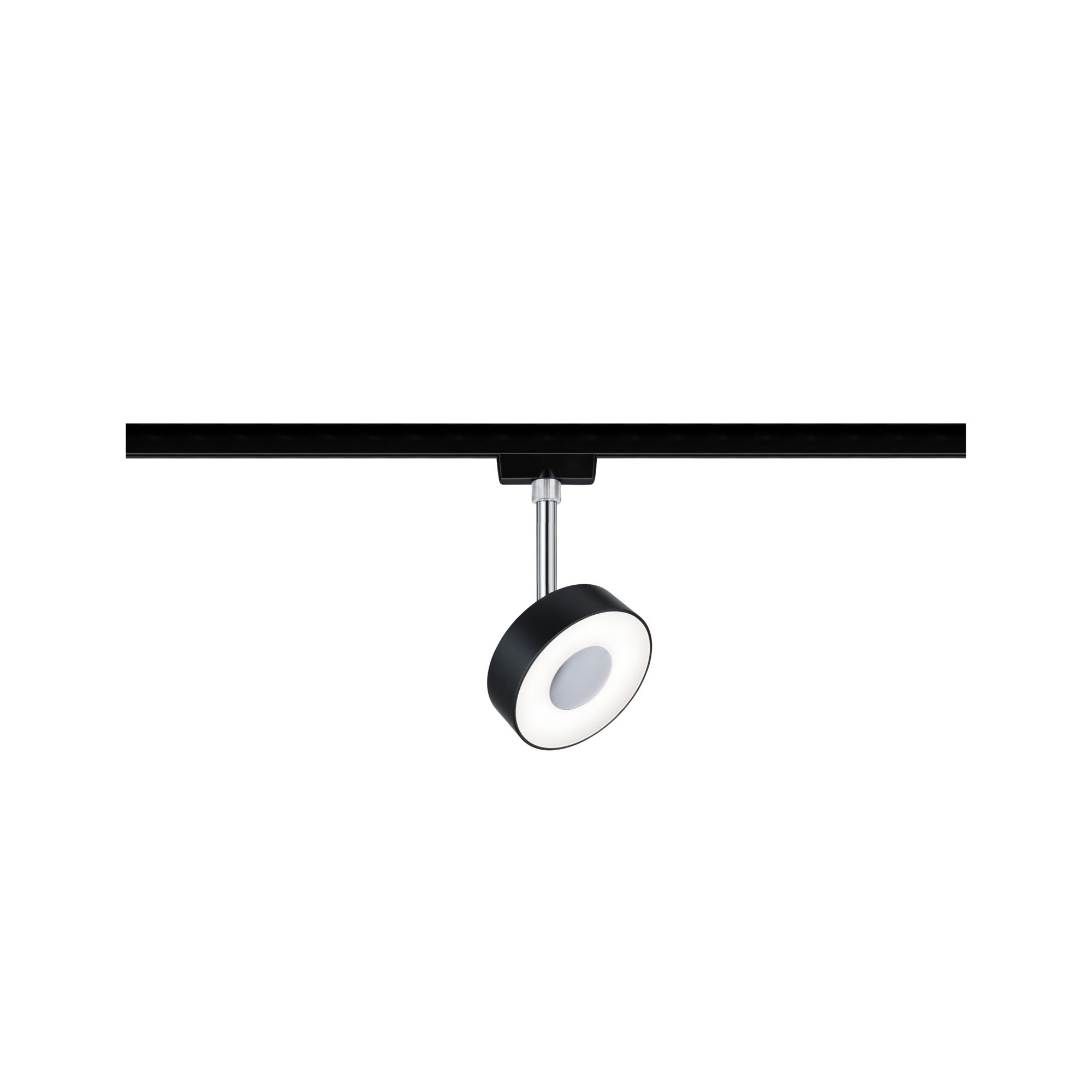

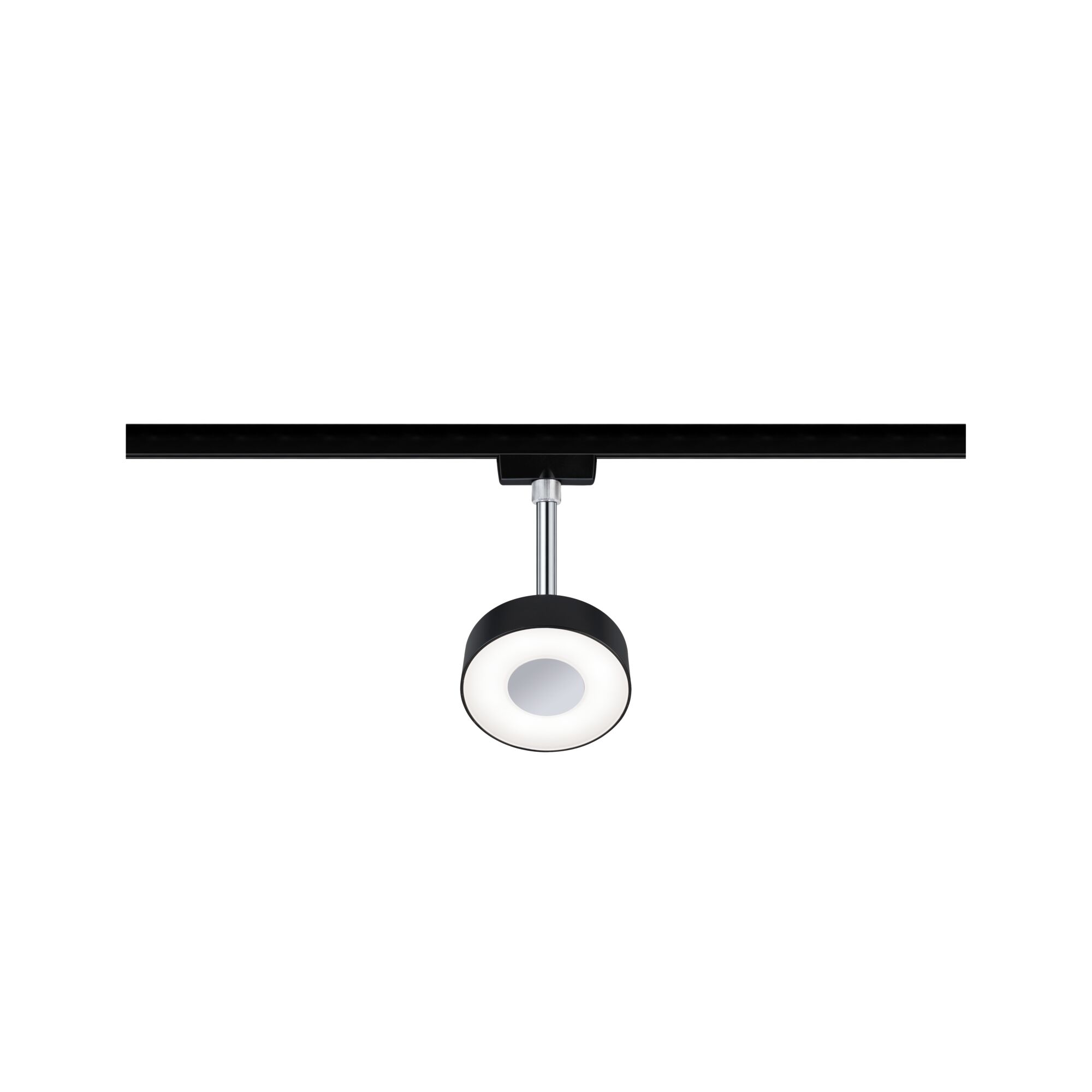

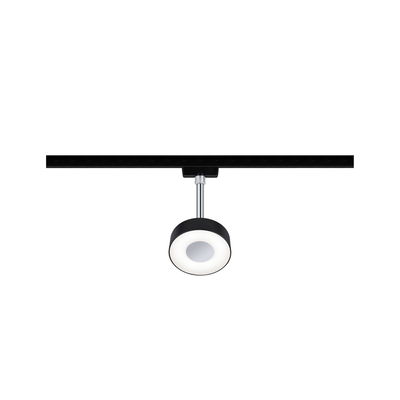

URail LED Rail spot Circle Individual Spot 160lm 5W 4000K dimmable 230V Black matt/Chrome

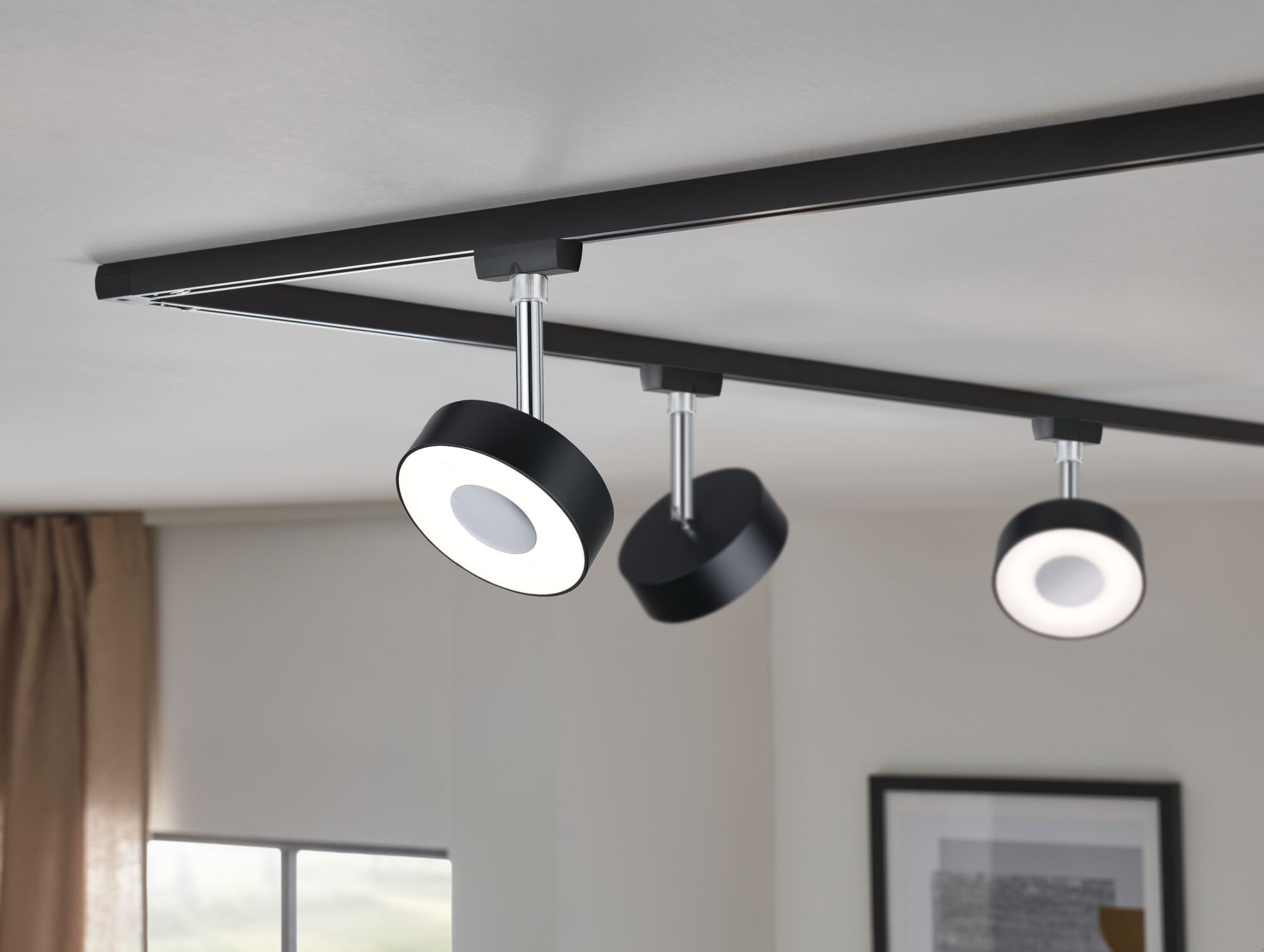

The URail rail luminaire Circle in black matt is equipped with neutral white LEDs and is compatible with all URail items. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000 watt.
- Color temperatur: 4000K - Neutral white
- URail system lamp incl. assembly instructions
- Surface/color: Black matt
- Including bulb (built-into lamp)
- Efficient LED technology
| Dimension | |
|---|---|

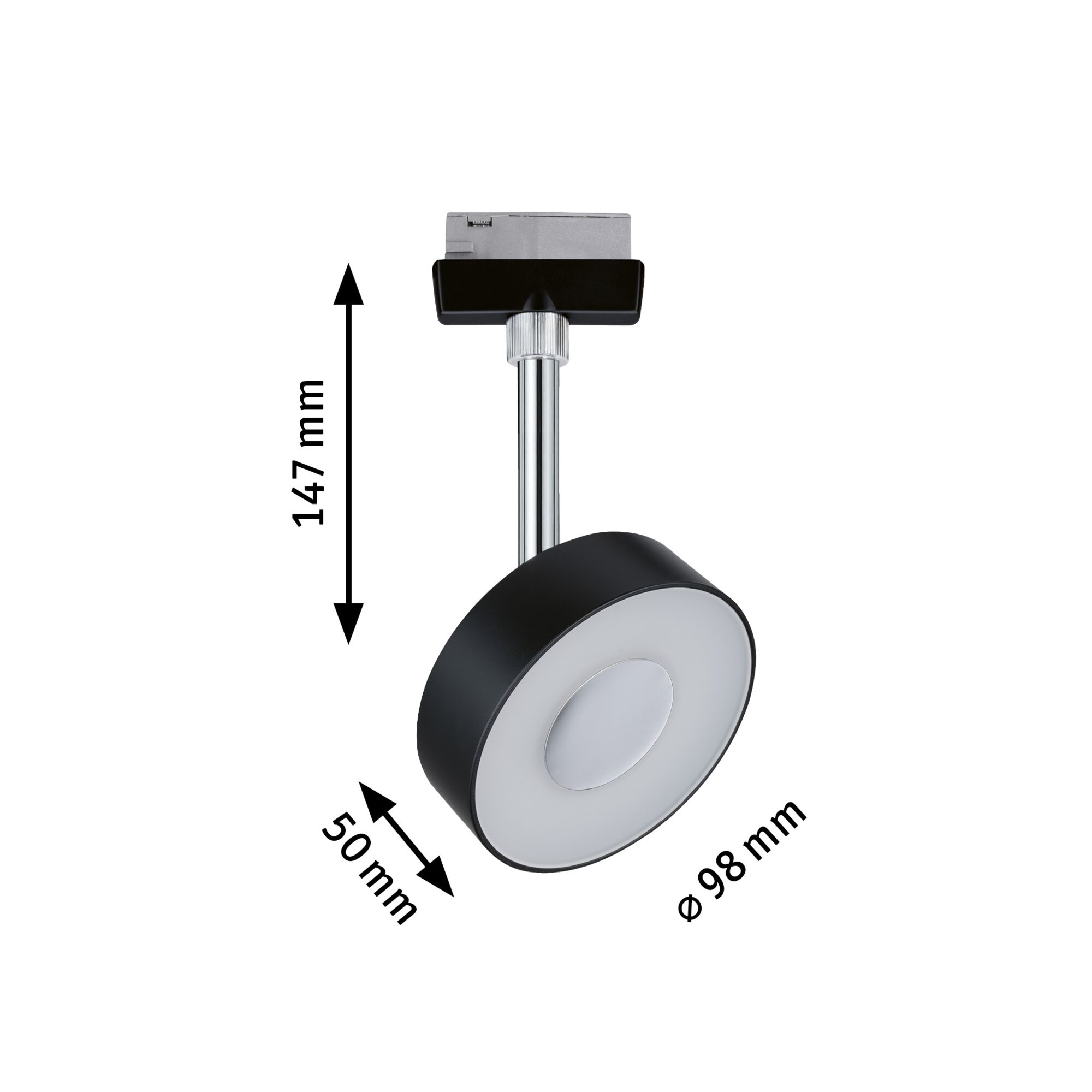

| Dimensions (Height x Width x Depth) | H: 147 x B: 98 x T: 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome, Black matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann URail ZB Middle-Feed 501.20/501.21/968.19, Paulmann URail 500.50/-51/968.15, Paulmann URail ZB Adapter On/Off/Dimm 50W 955.24/955.23/968.93 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 90 ° |
| Usable luminous flux | 160 lm |
| Luminous flux LED module | 425 lm |
| color temp | 4.000 K |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Total Width | 98 mm |
| Incandescent Equivalent | 36.7 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5 W |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
