Article-No.:
96814
URail
LED Rail spot
Arena Individual Spot
950lm 15,3W 4000K dimmable 230V Chrome matt/Chrome
950lm 15,3W 4000K dimmable 230V Chrome matt/Chrome
- URail system lamp incl. assembly instructions
- Color temperatur: 4000K - Neutral white
- Dimmable

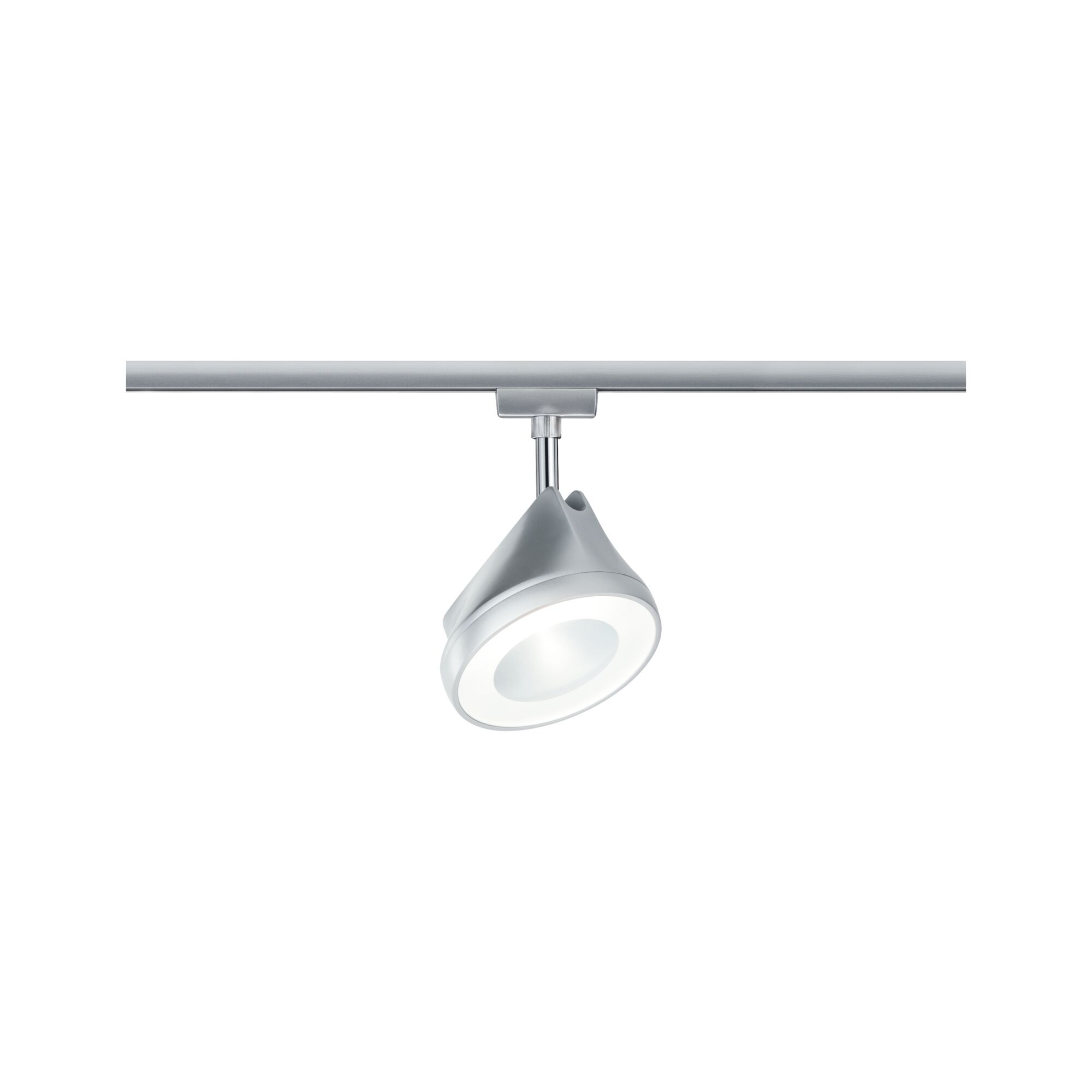

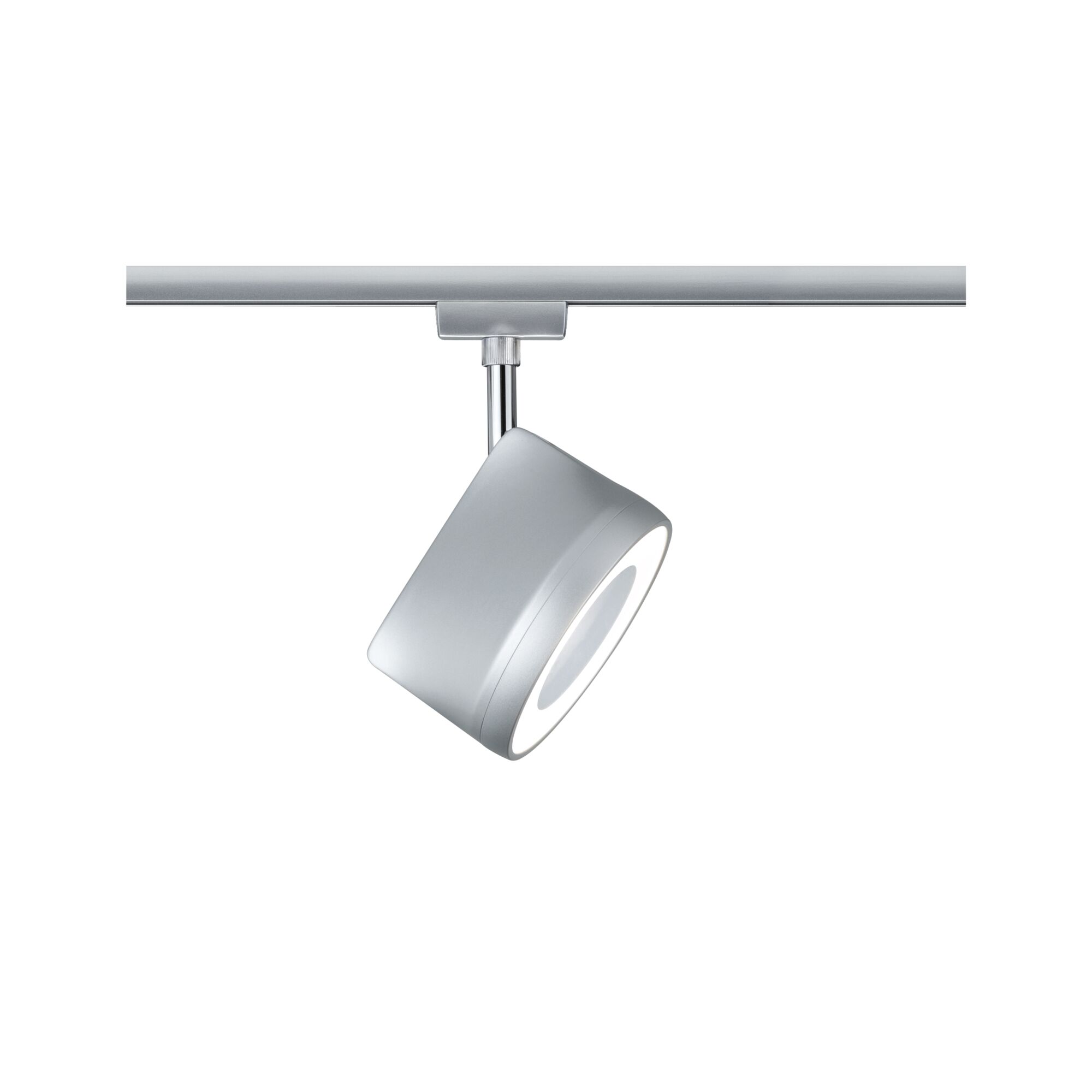

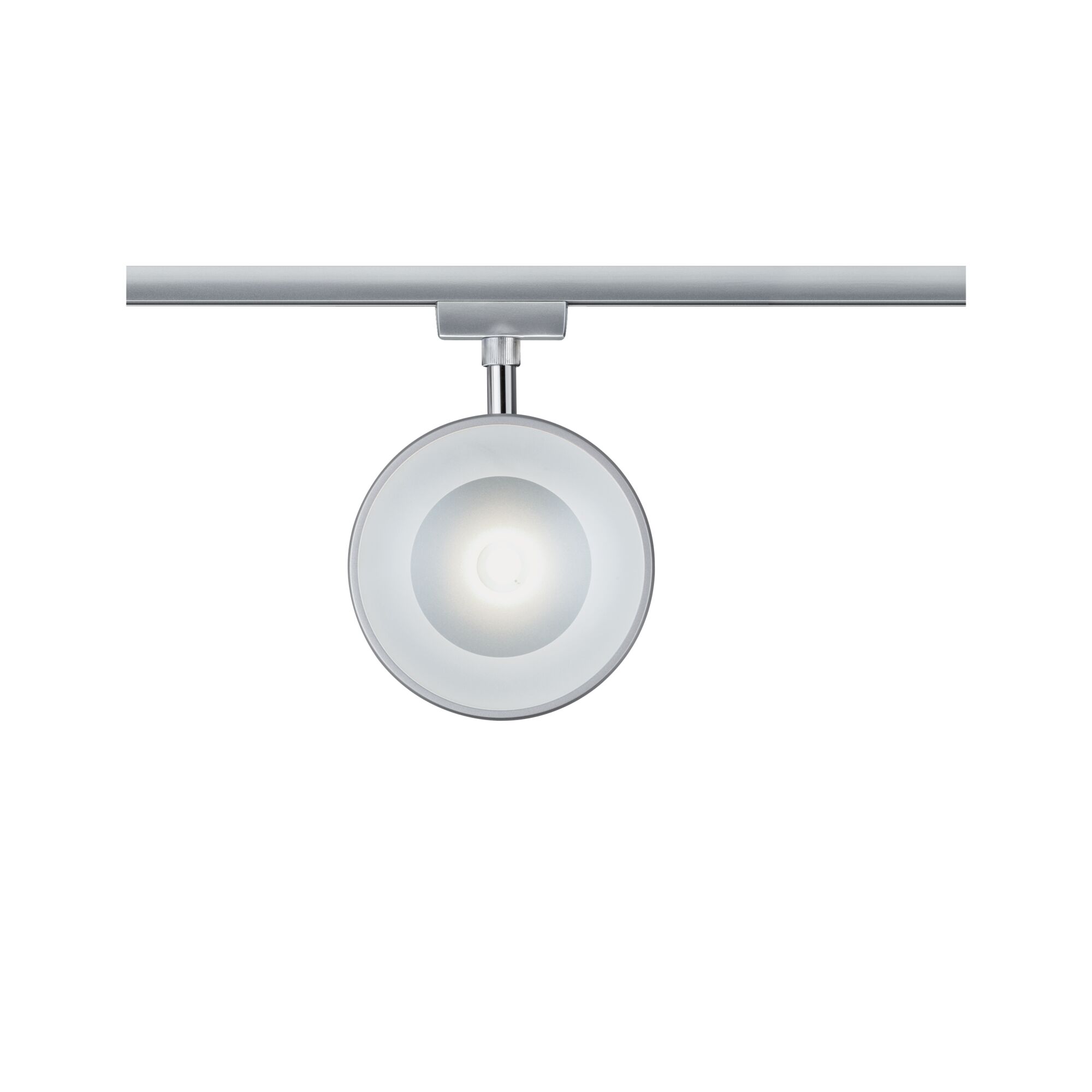

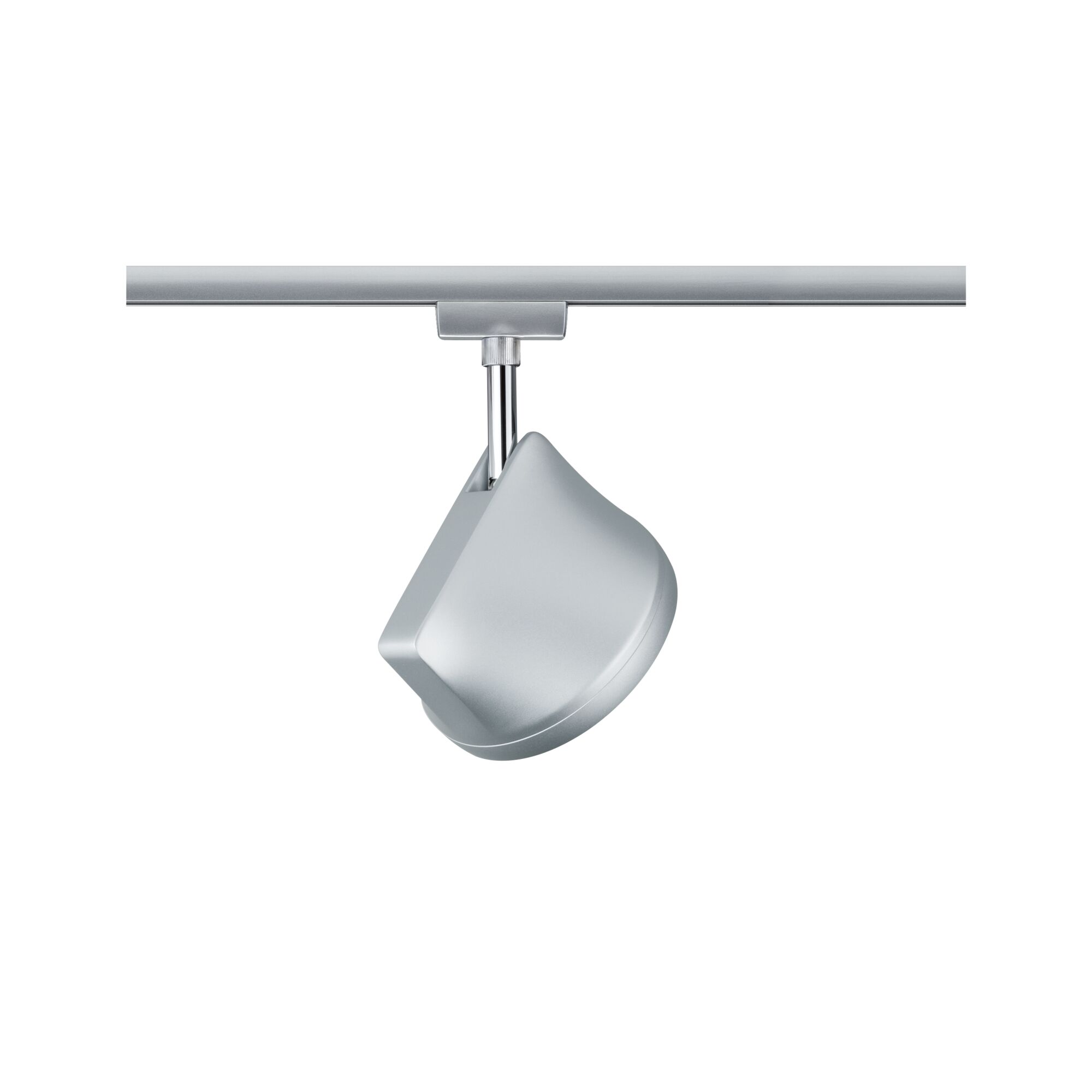

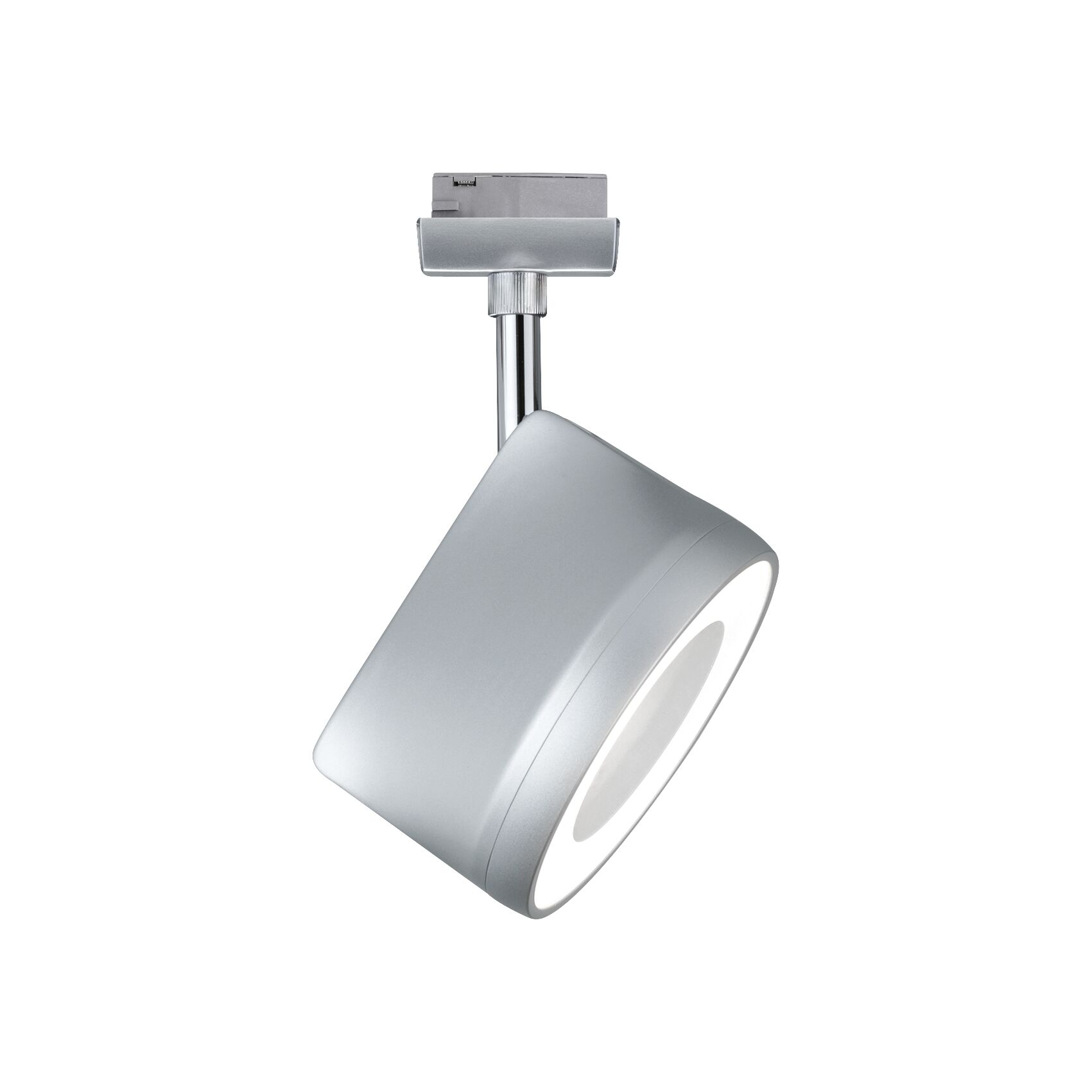

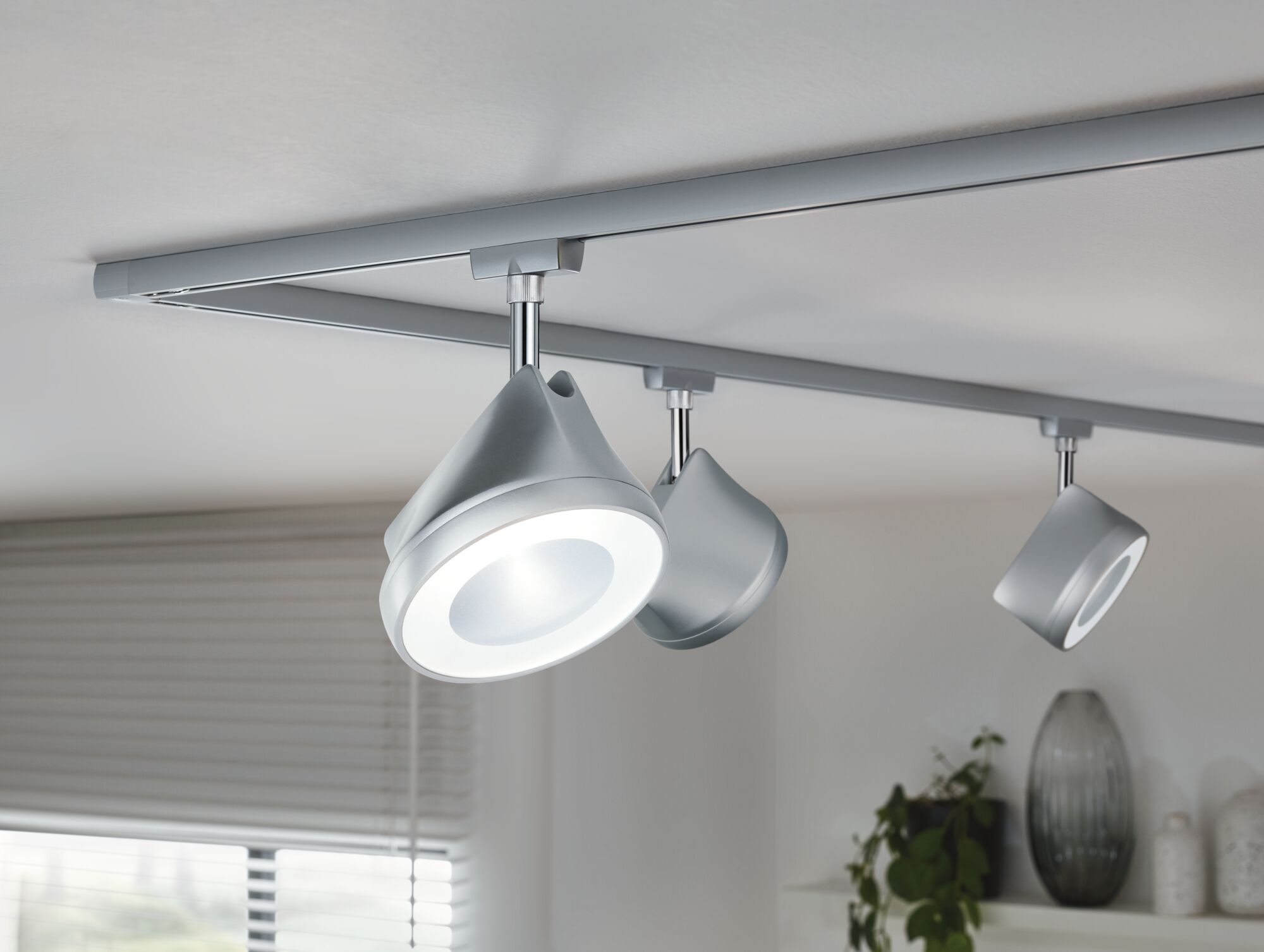

URail LED Rail spot Arena Individual Spot 950lm 15,3W 4000K dimmable 230V Chrome matt/Chrome
The matt chrome URail spot Arena is characterised by its high lumen output. Despite the flat design, the built-in lens provides directed light with a defined beam angle. The brightness can be adjusted using a wall dimmer.
- URail system lamp incl. assembly instructions
- Color temperatur: 4000K - Neutral white
- Dimmable
| Dimension | |
|---|---|

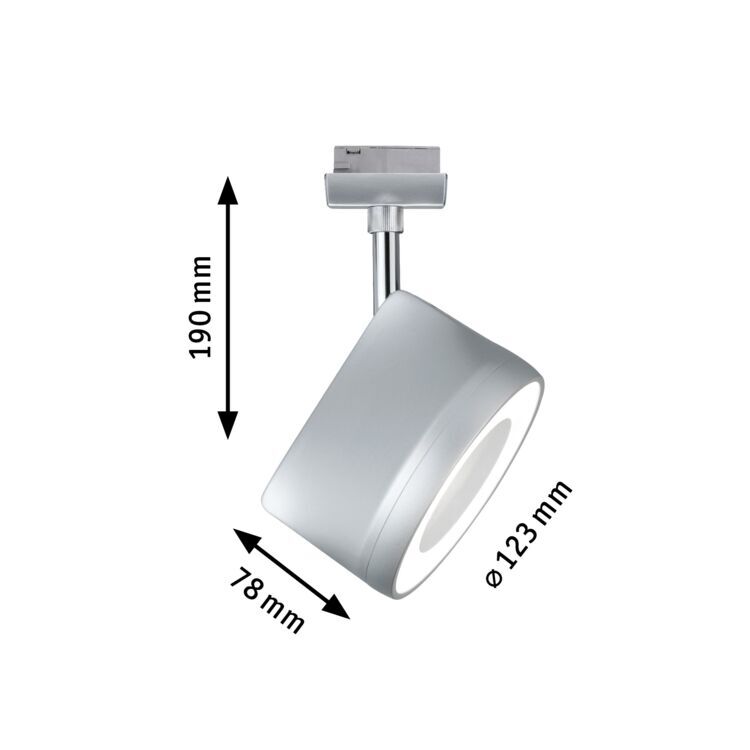

| Dimensions (Height x Width x Depth) | H: 181 x B: 123 x T: 78 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann URail ZB Middle-Feed 501.20/501.21/968.19, RLC Müller Paladin 873 030 LED, Paulmann URail 952.94/-95, Paulmann URail 500.50/-51/968.15, Paulmann URail ZB Adapter On/Off/Dimm 50W 955.24/955.23/968.93 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 82 ° |
| Usable luminous flux | 950 lm |
| Luminous flux LED module | 1470 lm |
| color temp | 4000 K |
| Lamp Features | |
|---|---|
| Component parts | 15,3 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Total Width | 123 mm |
| Incandescent Equivalent | 97 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 15,3 W |
| Transformer | |
|---|---|
| apparent power | 16 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
