Article-No.: 95446

URail LED Rail spot Arena Individual Spot

800lm 15W 2700K dimmable 230V Chrome matt/Chrome

System colour: Chrome matt

Black matt

Chrome matt

Pure white

Signal white

URail system lamp incl. assembly instructions
LED lamp (fixed) included in scope of delivery
Color temperatur: 2700K - Warm white

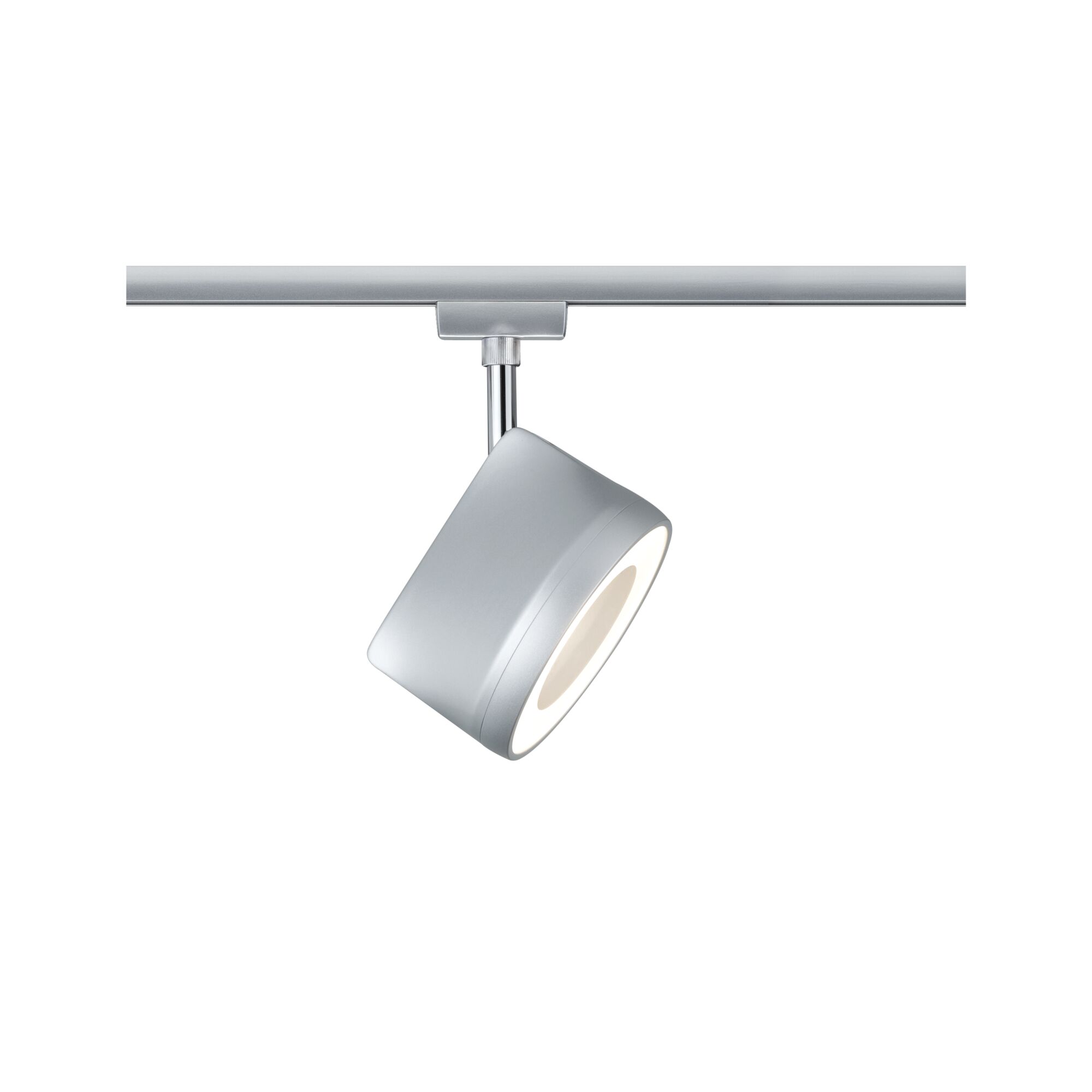

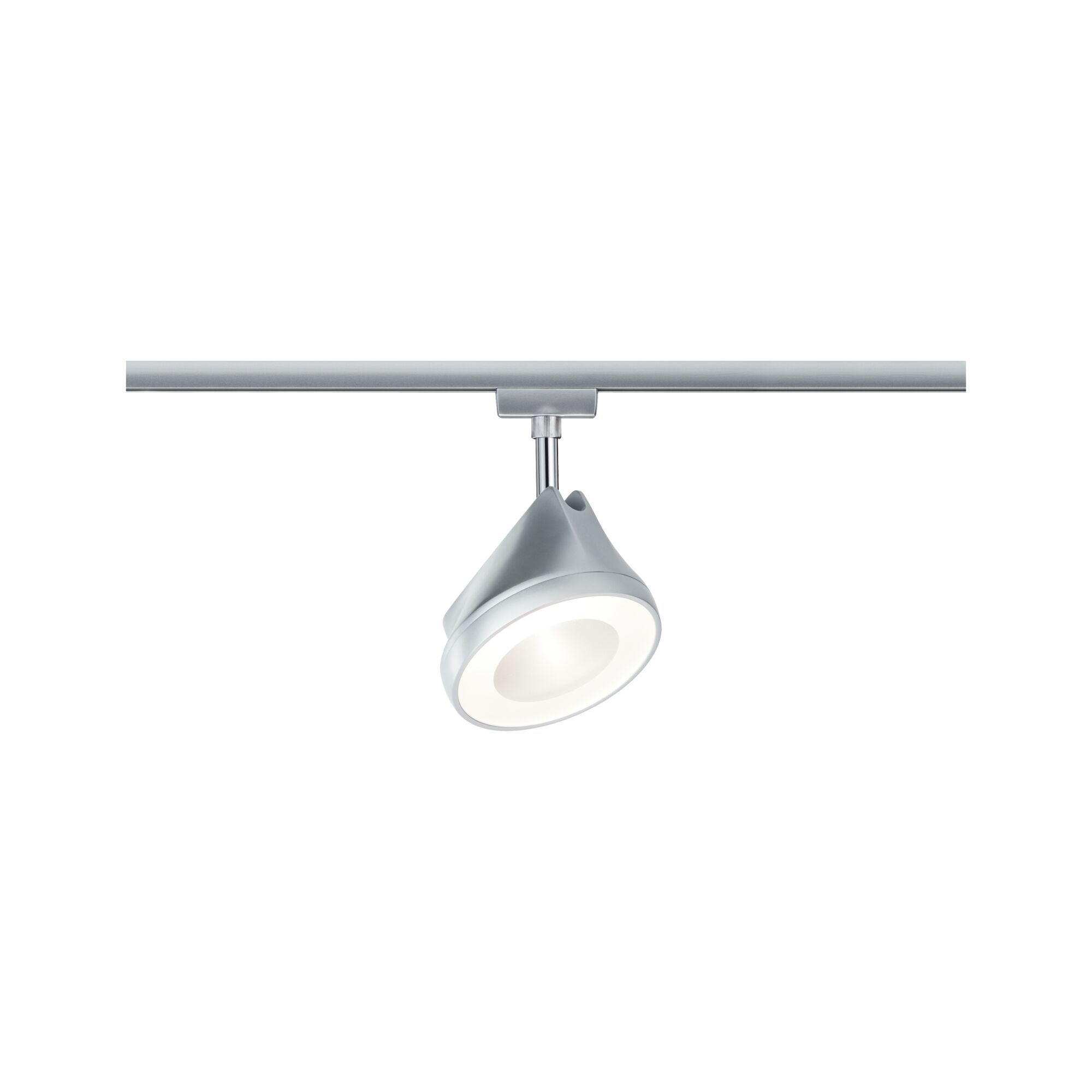

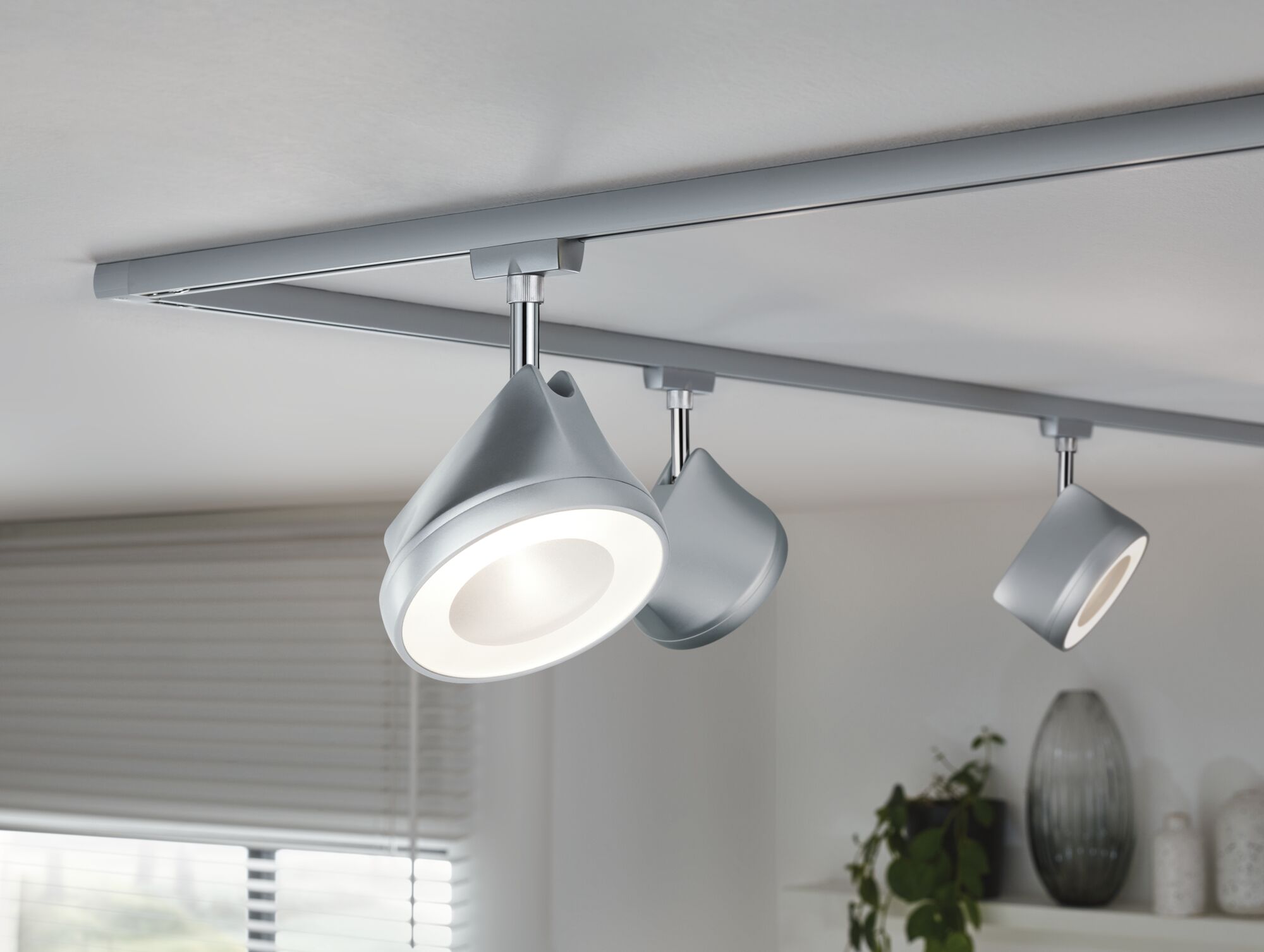

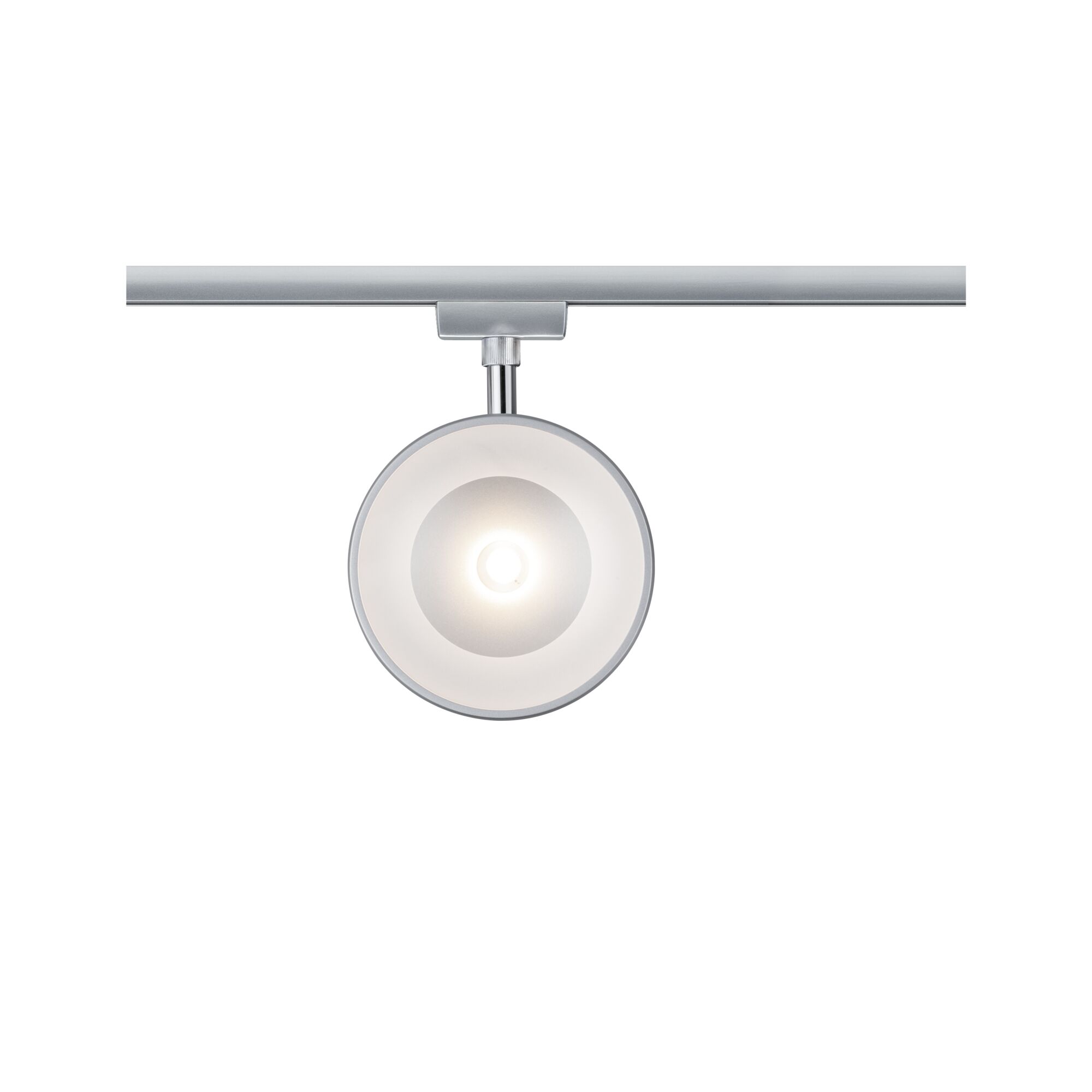

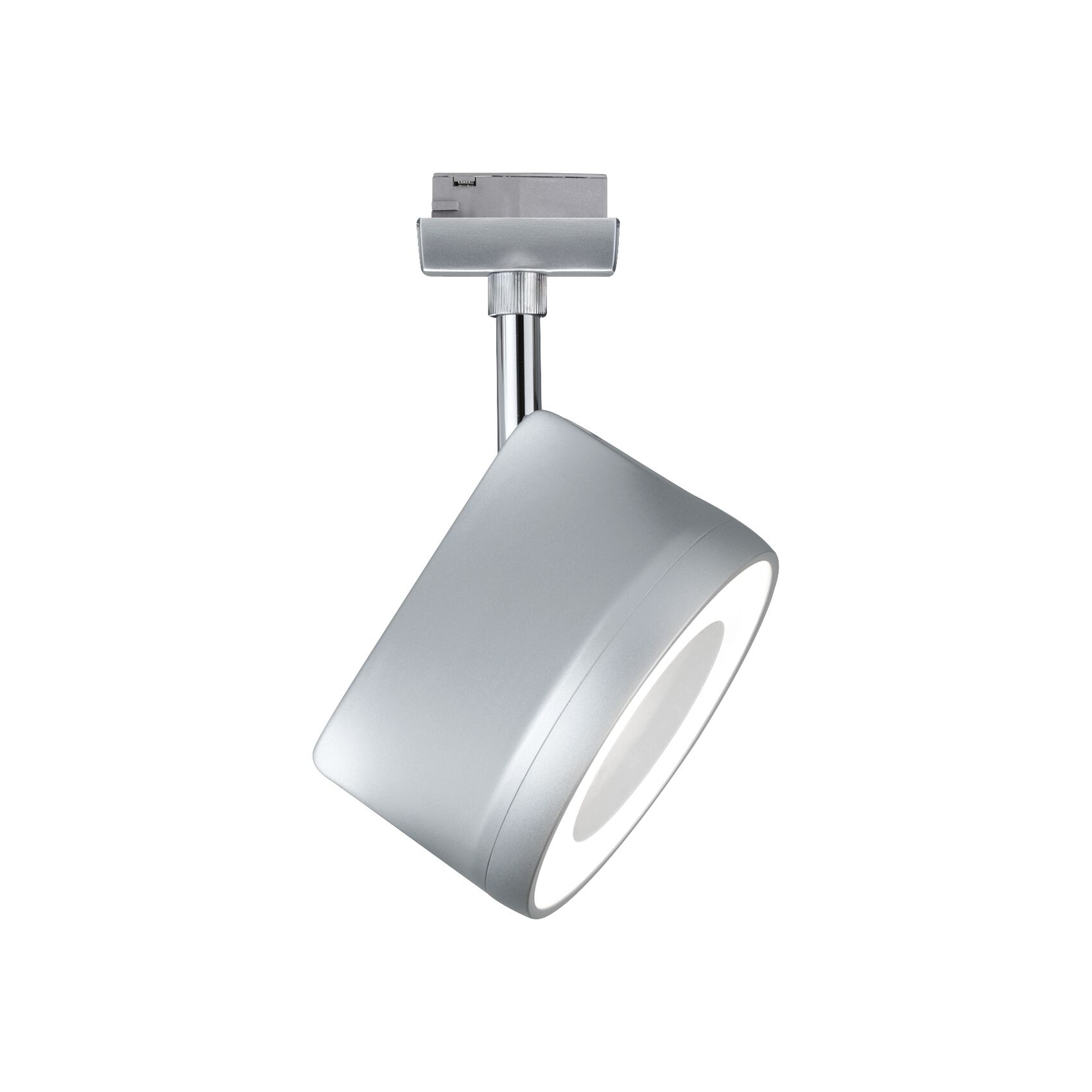

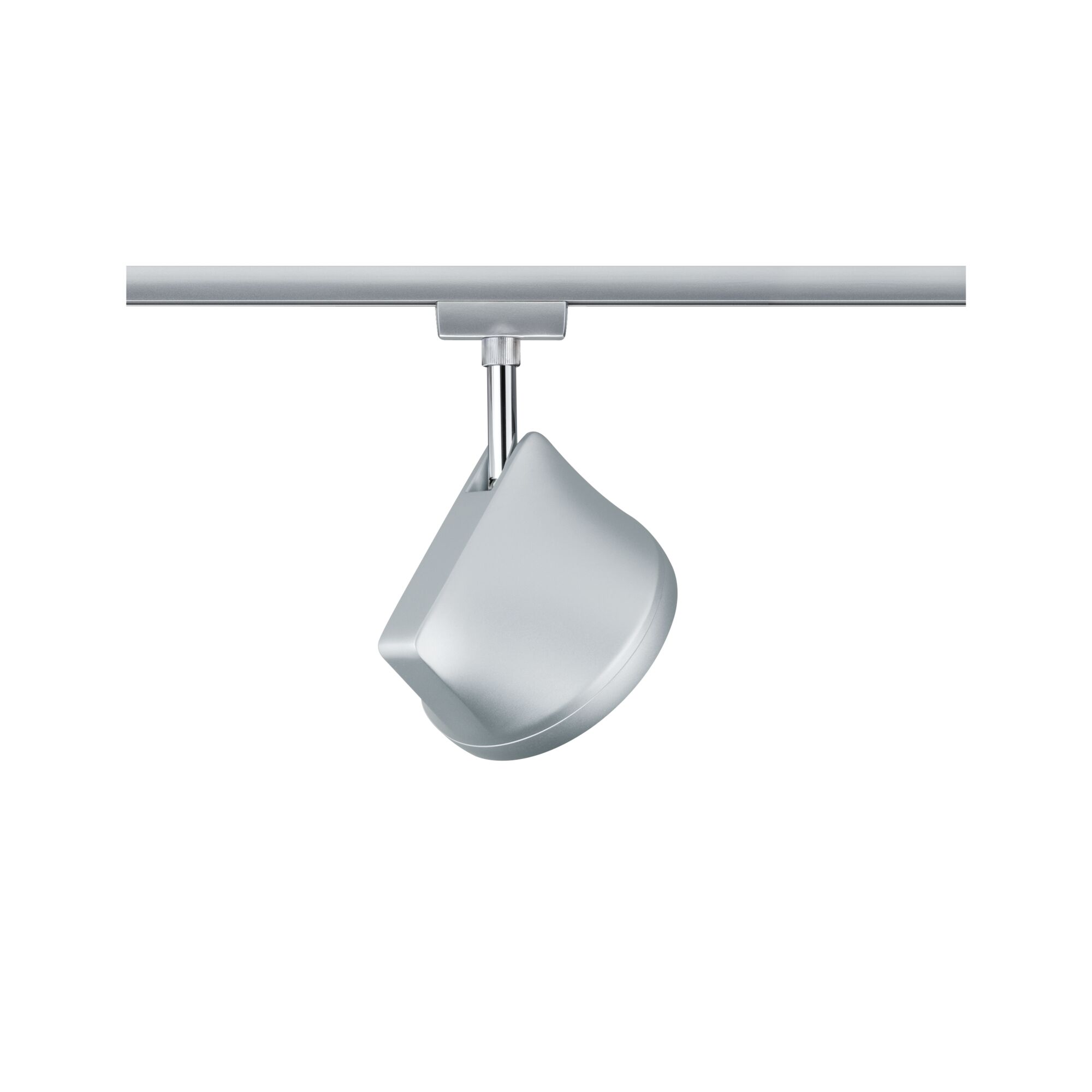

URail LED Rail spot Arena Individual Spot 800lm 15W 2700K dimmable 230V Chrome matt/Chrome

The matt chrome URail spot Arena with chrome-coloured accents is characterised by its high lumen output. Despite the flat design, the built-in lens provides directed light with a defined beam angle. The brightness can be adjusted using a wall dimmer.

URail system lamp incl. assembly instructions
LED lamp (fixed) included in scope of delivery
Color temperatur: 2700K - Warm white
Dimmable

Dimension

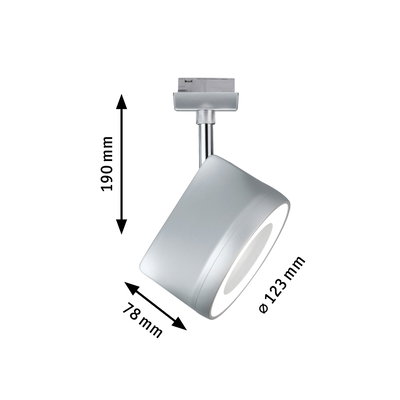

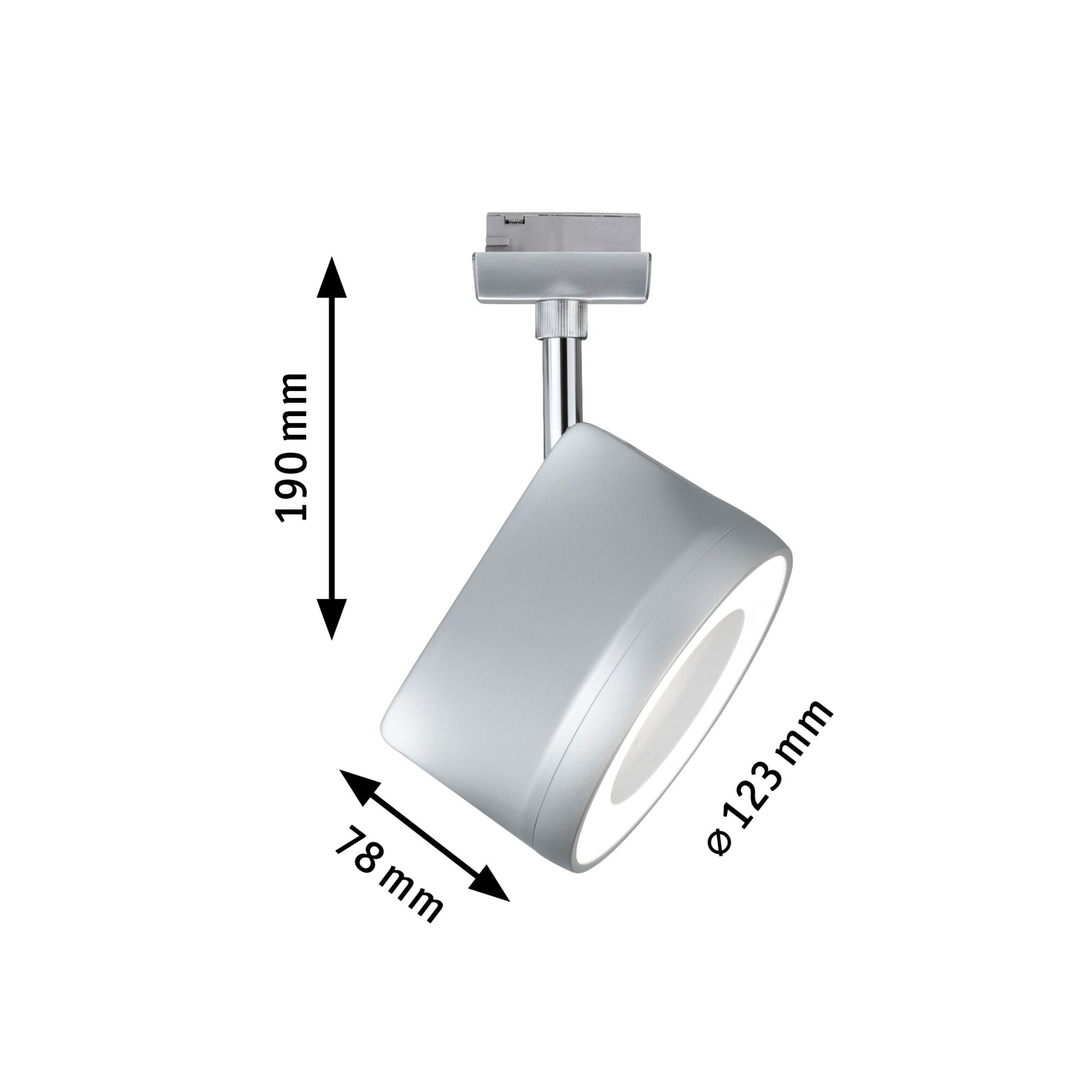

Dimensions (Height x Width x Depth)	H: 191 x B: 123 x T: 78 mm
Form	round

Design and Material
Colour	Chrome, Chrome matt
Material	Metal

Installation
can be used with the following dimmers	Paulmann URail ZB Middle-Feed 501.20/501.21/968.19, RLC Müller Paladin 873 030 LED, Paulmann URail 500.50/-51/968.15, RLC Busch-Jäger 6523-U-102, Paulmann URail ZB Adapter On/Off/Dimm 50W 955.24/955.23/968.93, RC Busch-Jäger 6513U-102

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
Beam angle	82 °
Usable luminous flux	800 lm
Luminous flux LED module	1500 lm
color temp	2700 K

Lamp Features
Component parts	15 W
Technique	LED
Dim	with dimmer
Dimmable	with dimmer R, L, C (universal compatibility)
Inclusive lamp	yes
Total Width	123 mm
Incandescent Equivalent	98.9 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.
Power consumption	15,1 W

Transformer
apparent power	15 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer

Planning document URail
