Article-No.:
95327
URailConnector
Maxiflex
440x18mm max. 1000W Chrome matt
440x18mm max. 1000W Chrome matt
- To bridge short distances between two URail rails
- Visually, hardly any difference to the rails
- Simple plug-in installation

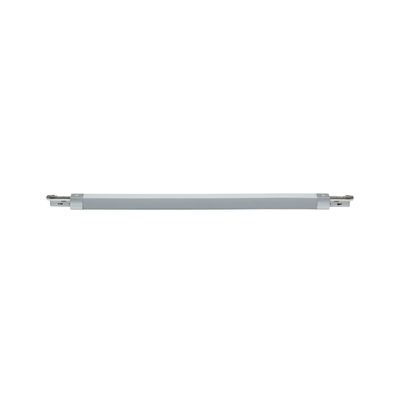

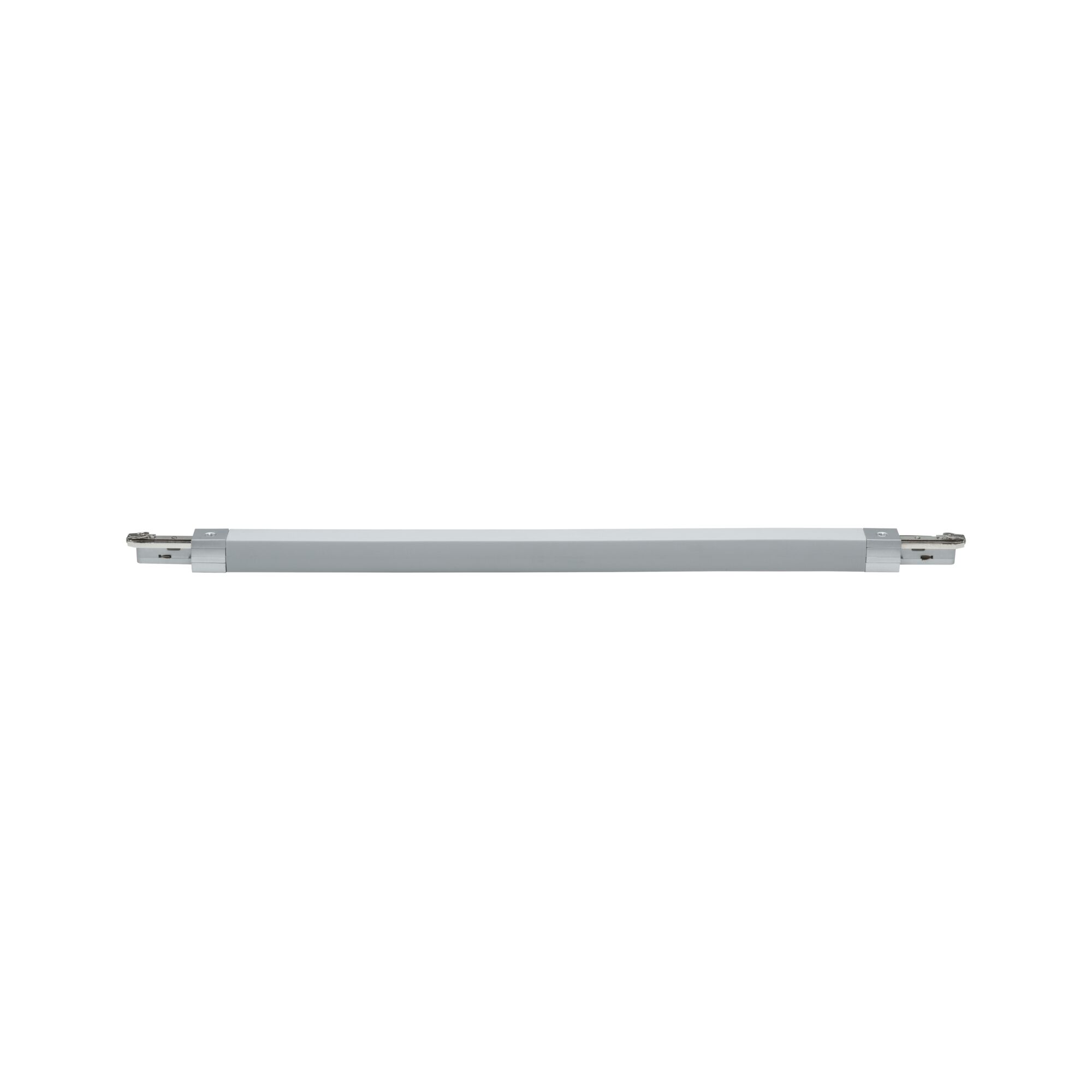

URail Connector Maxiflex 440x18mm max. 1000W Chrome matt

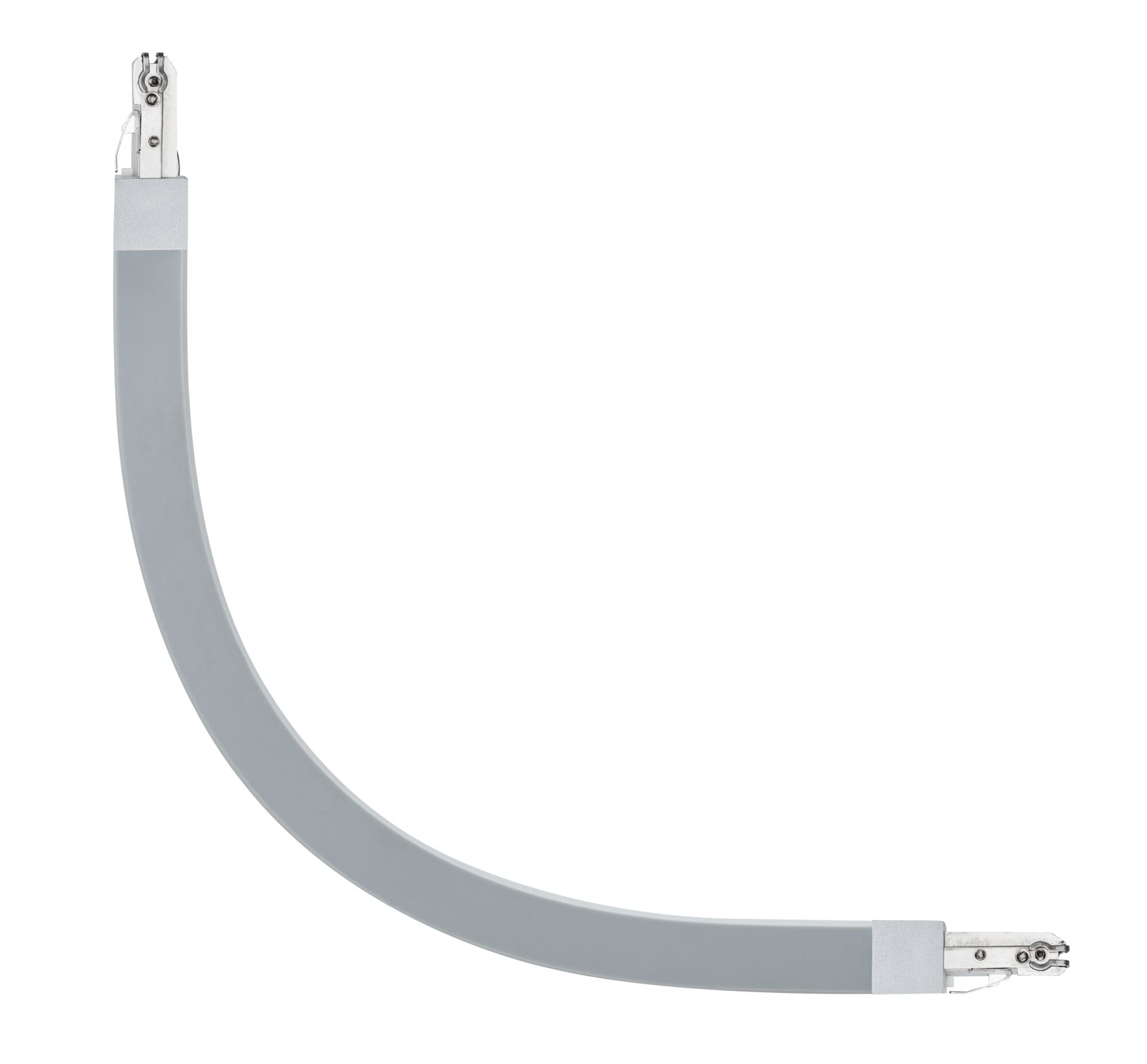

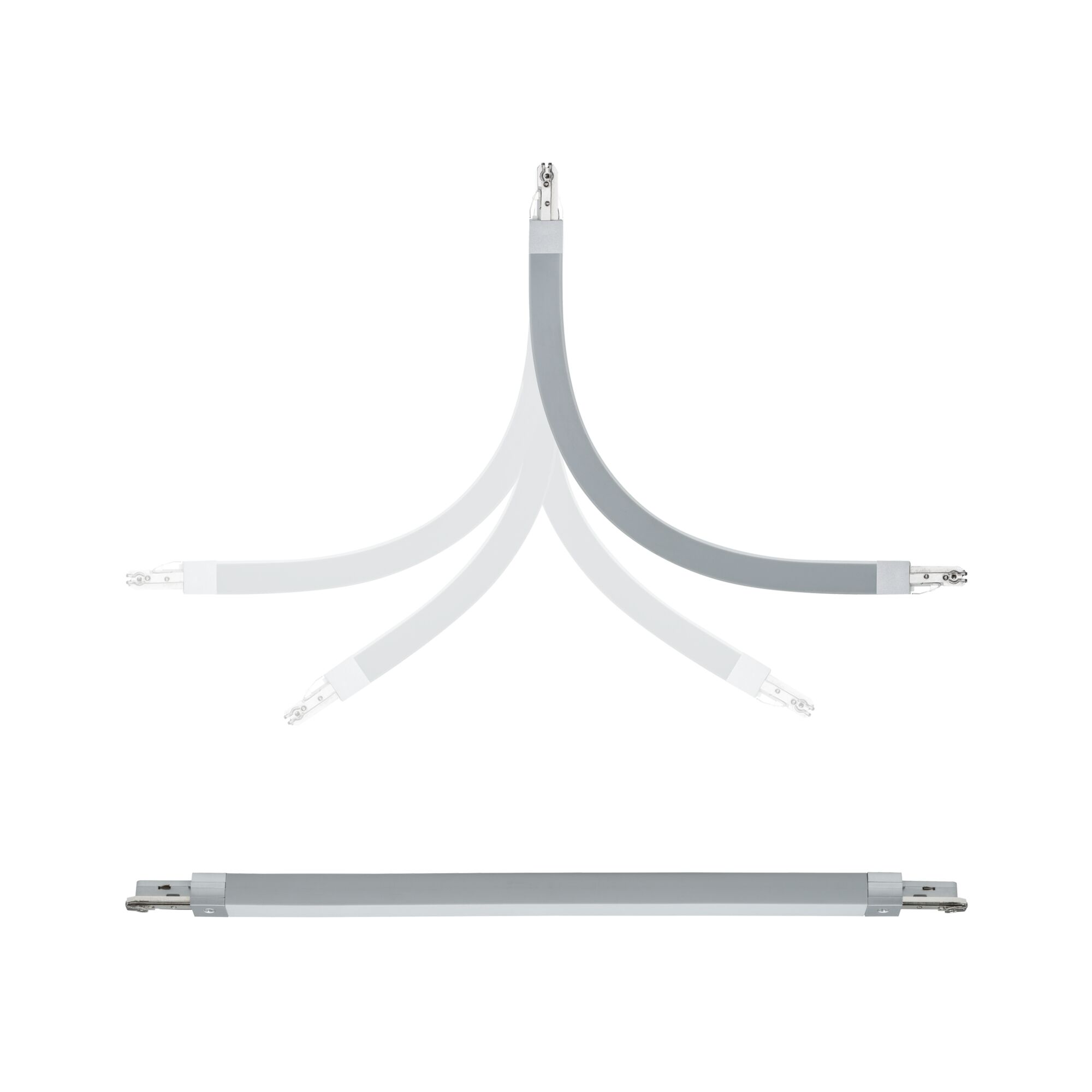

With the Maxiflex connector you individualise your URail 230V rail system. Depending on the application area and your personal taste, two rails can be connected at circular arcs up to 90° with each other. The connector is simply plugged into the rail and fixed with a small screw at each side. Thanks to the uniform design of the rails and connectors the transitions are hardly noticeable.
- To bridge short distances between two URail rails
- Visually, hardly any difference to the rails
- Simple plug-in installation
- Easy-to-clean surface
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 440 x T: 18 mm |
| Usable length | 370 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 1000 W |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
