Article-No.:
96995
URail
Connector
End caps
123x57mm 5,3W Black
123x57mm 5,3W Black
- Dimmable
- Suitable only for URail rails
- URail end cap incl. installation instructions

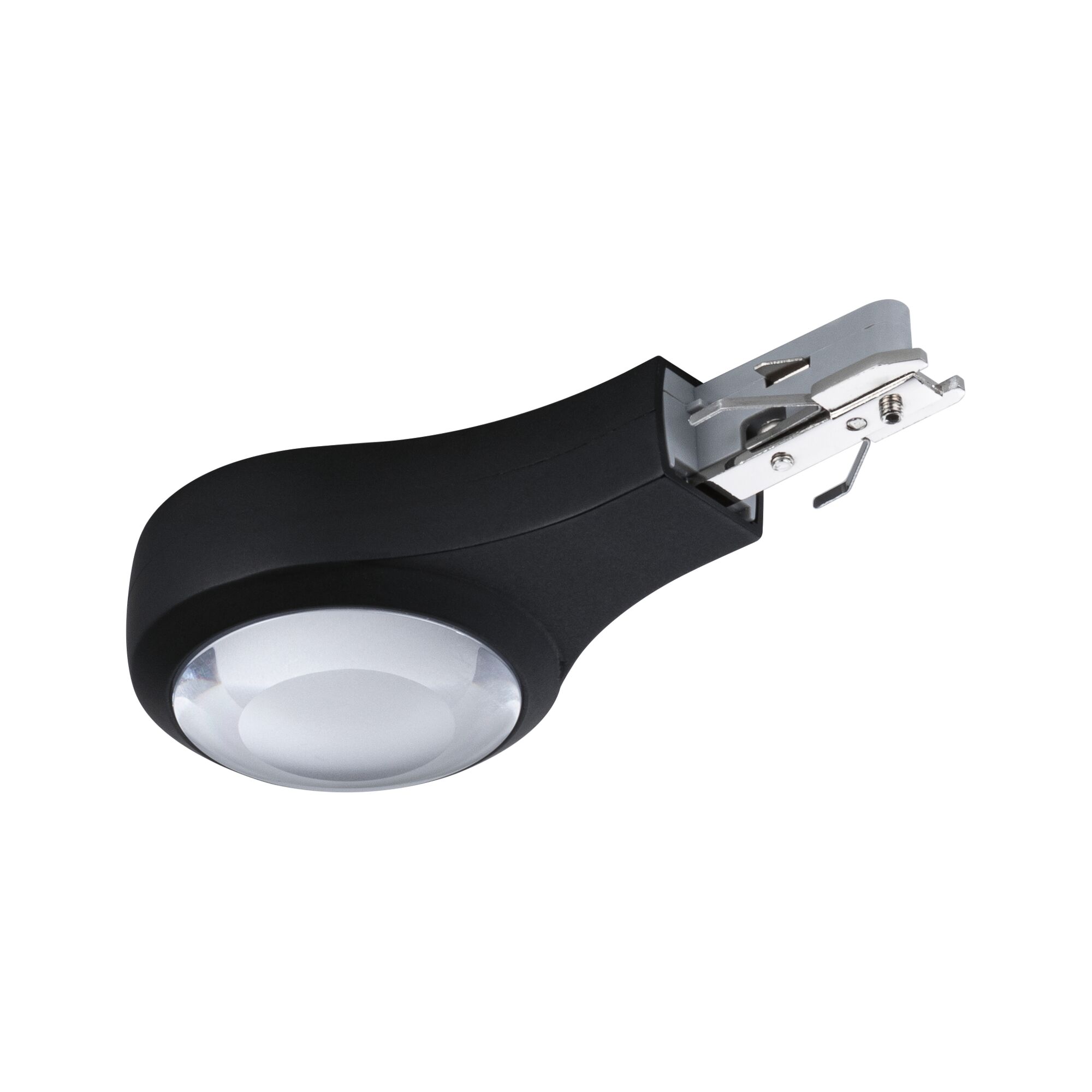

URail Connector End caps 123x57mm 5,3W Black

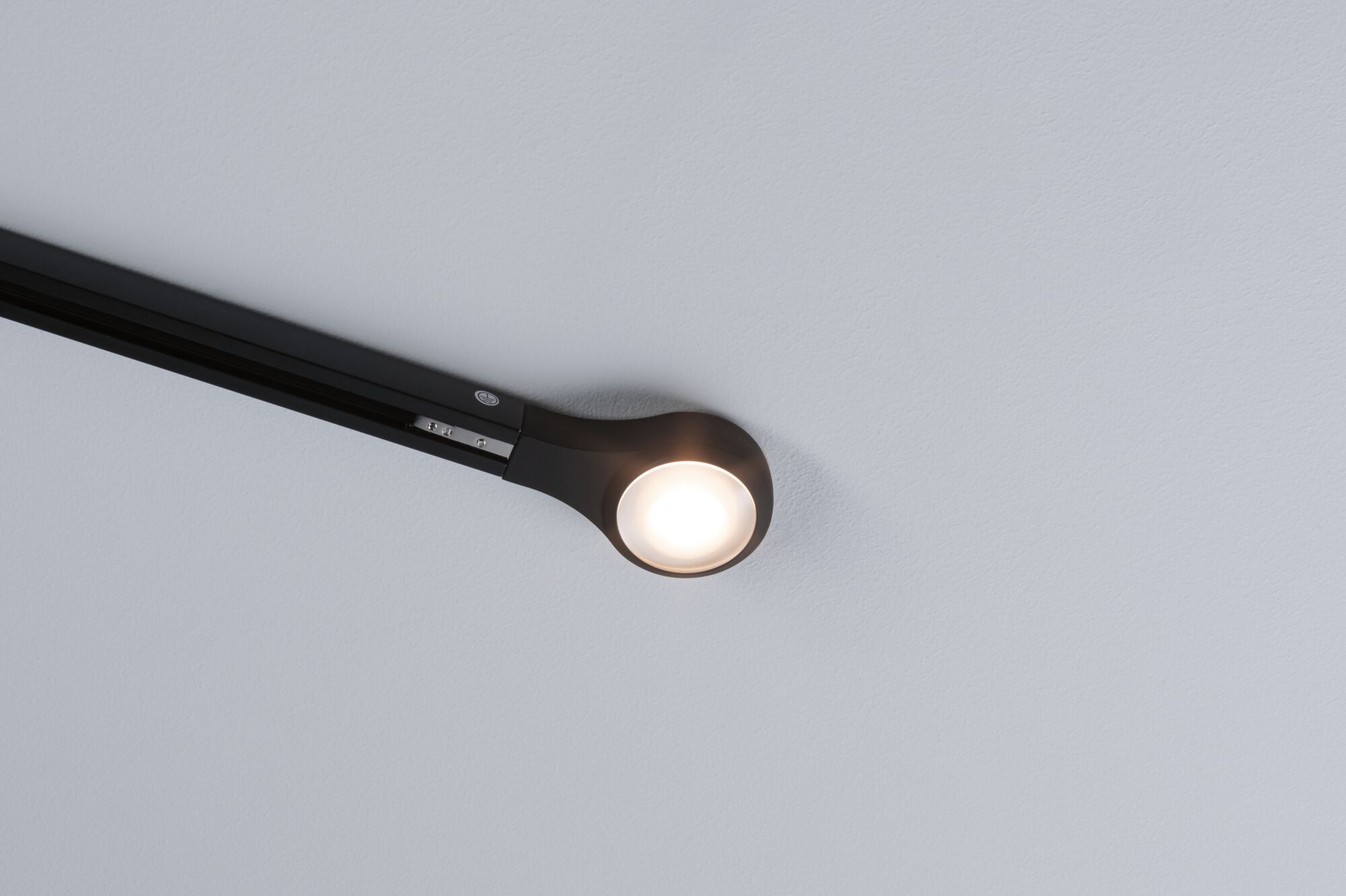

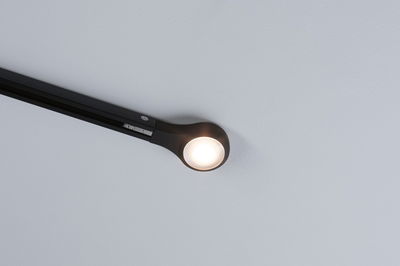

The illuminated, dimmable URail LED end cap in black can easily be combined with additional URail components by simply plugging them together. Together with other items in the URail product range, it lets you create an individual rail system for basic lighting in your living space.
- Dimmable
- Suitable only for URail rails
- URail end cap incl. installation instructions
| Dimension | |
|---|---|

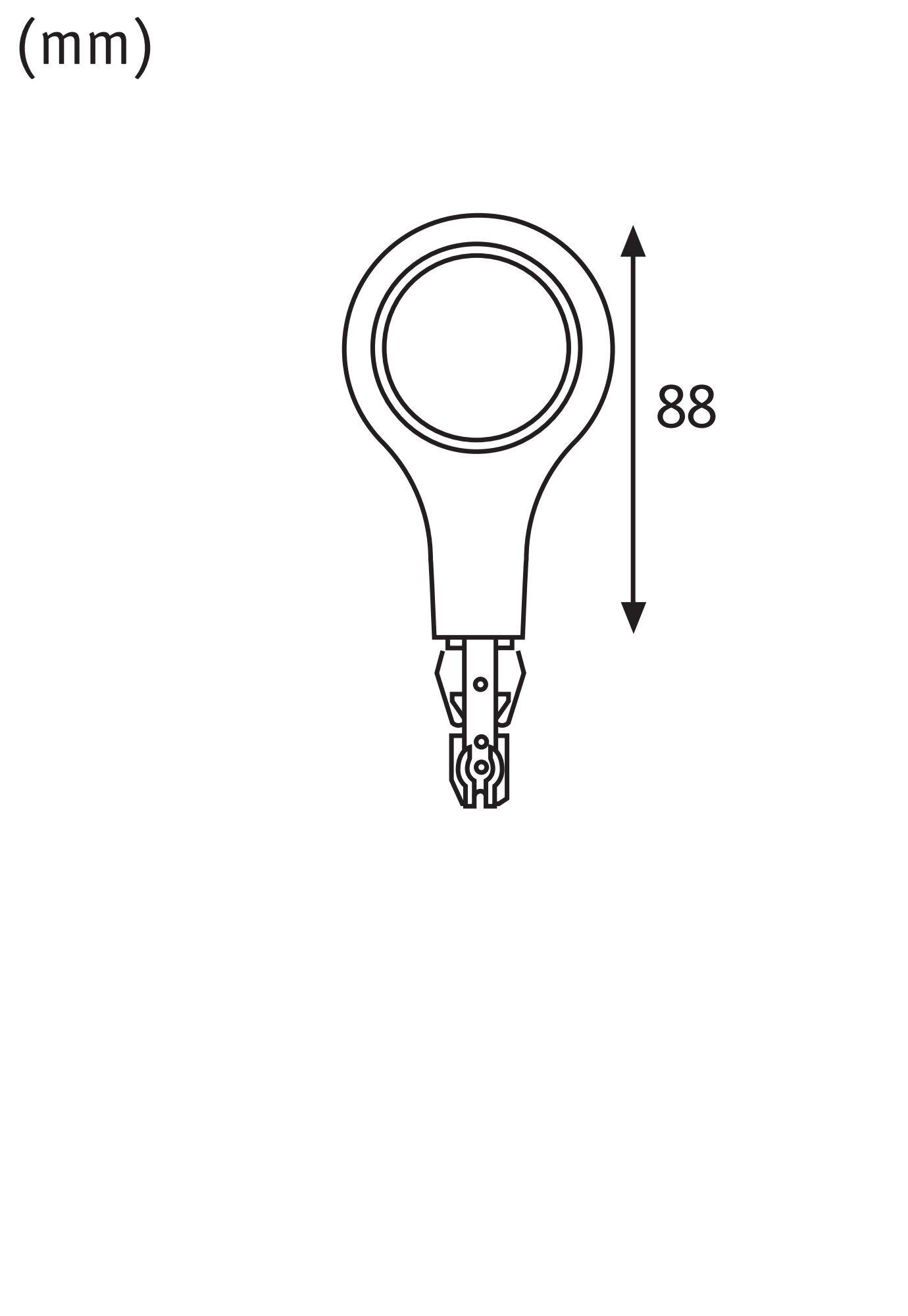

| Dimensions (Height x Width x Depth) | H: 27 x B: 123 x T: 57 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 80 ° |
| Usable luminous flux | 399,6 lm |
| Luminous flux LED module | 440 lm |
| color temp | 2700 K |
| Beam angle LED module | 125 ° |
| Lamp Features | |
|---|---|
| Component parts | 5,3 W |
| Technique | LED |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 123 mm |
| Incandescent Equivalent | 38 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,3 W |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
