Article-No.:
5273

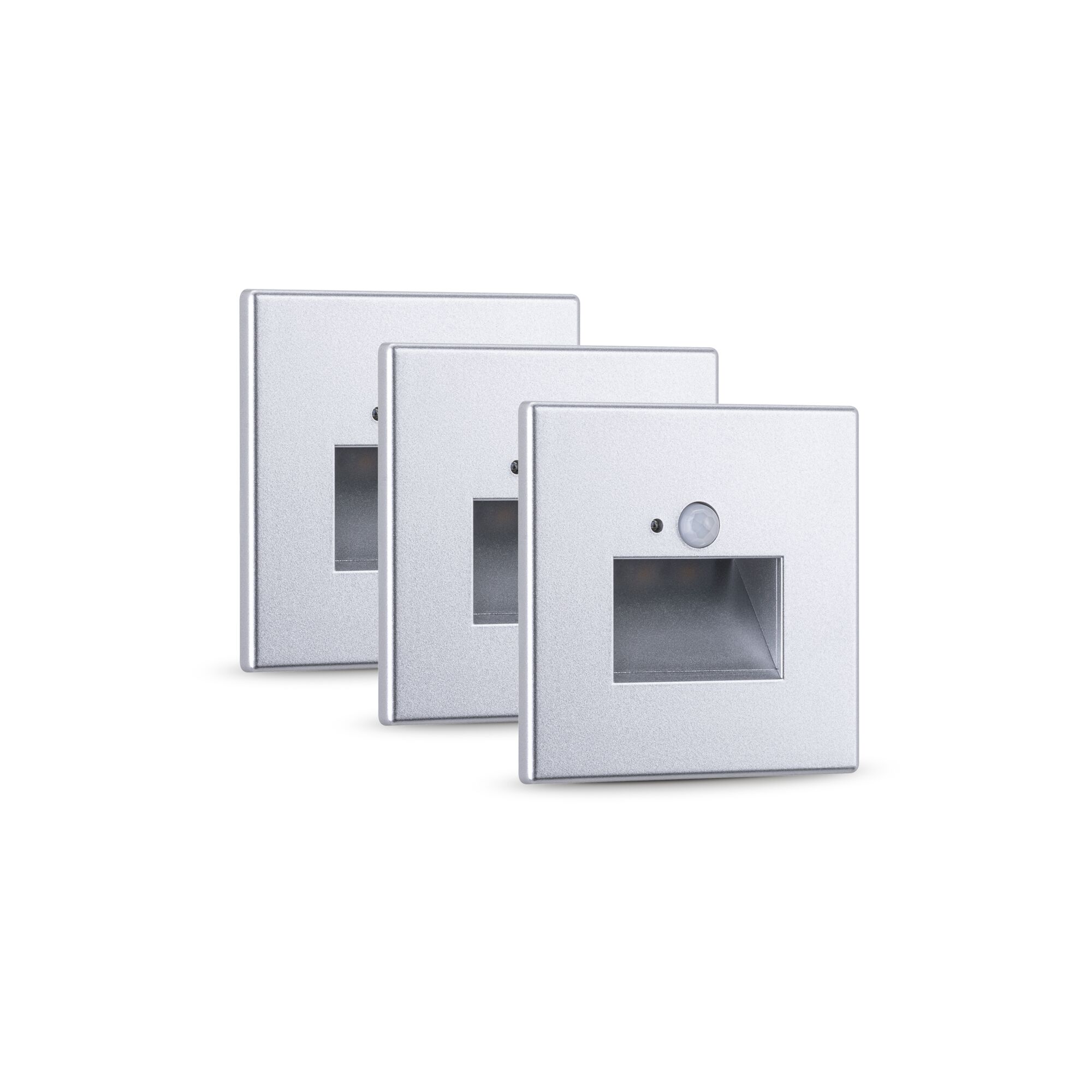

SetLED Recessed wall luminaire
Edge 3-piece set
80x80mm 3x1,2W 3x25lm 230V 2700K Chrome matt
80x80mm 3x1,2W 3x25lm 230V 2700K Chrome matt
- Set with attractive price advantage

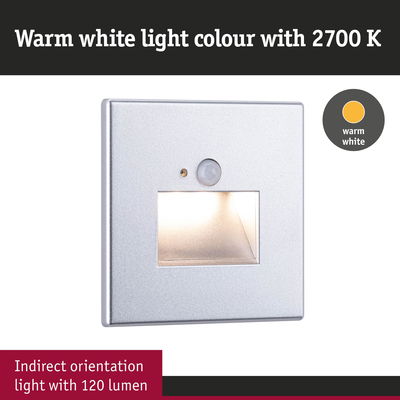

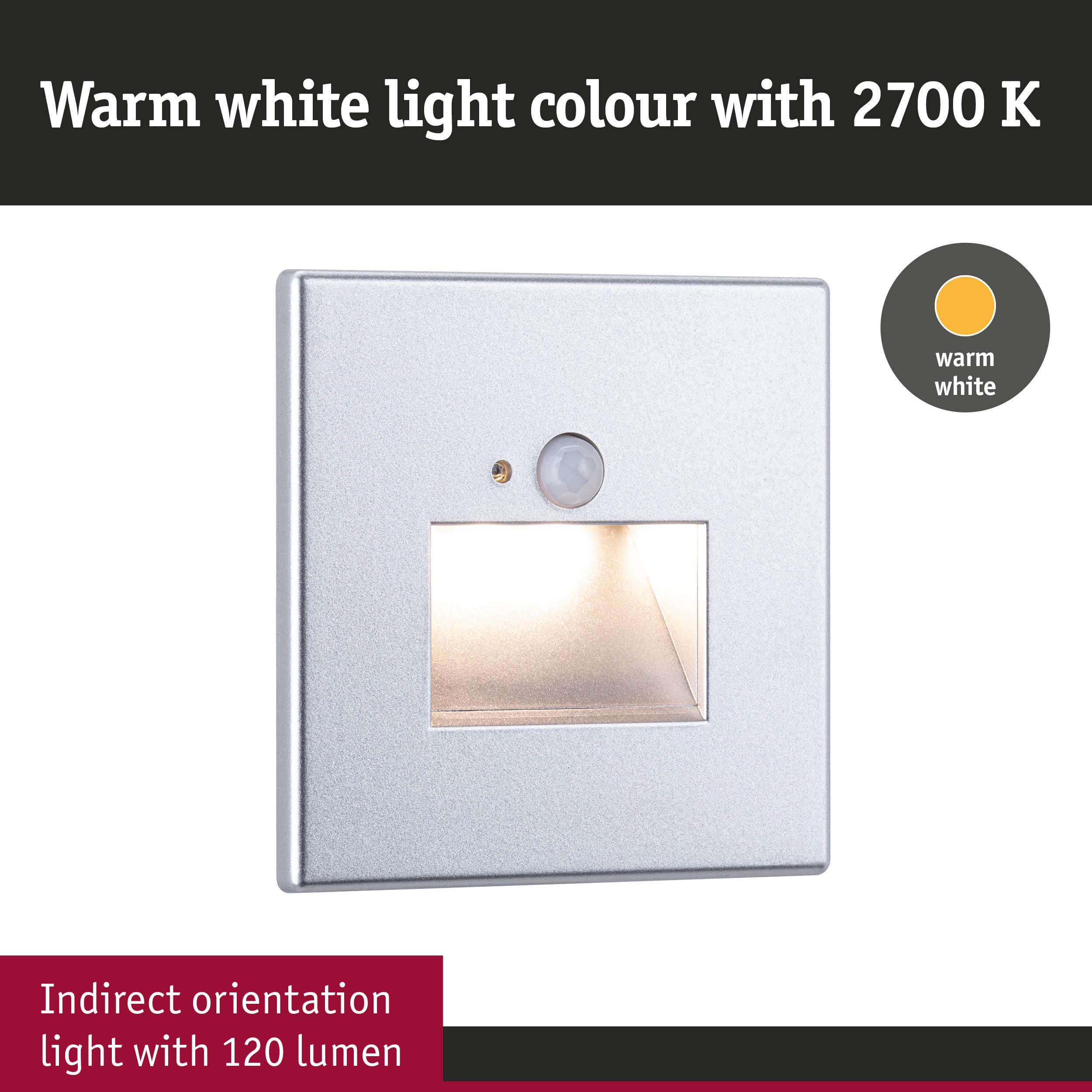

- Colour temperature: 2700K - Warm white

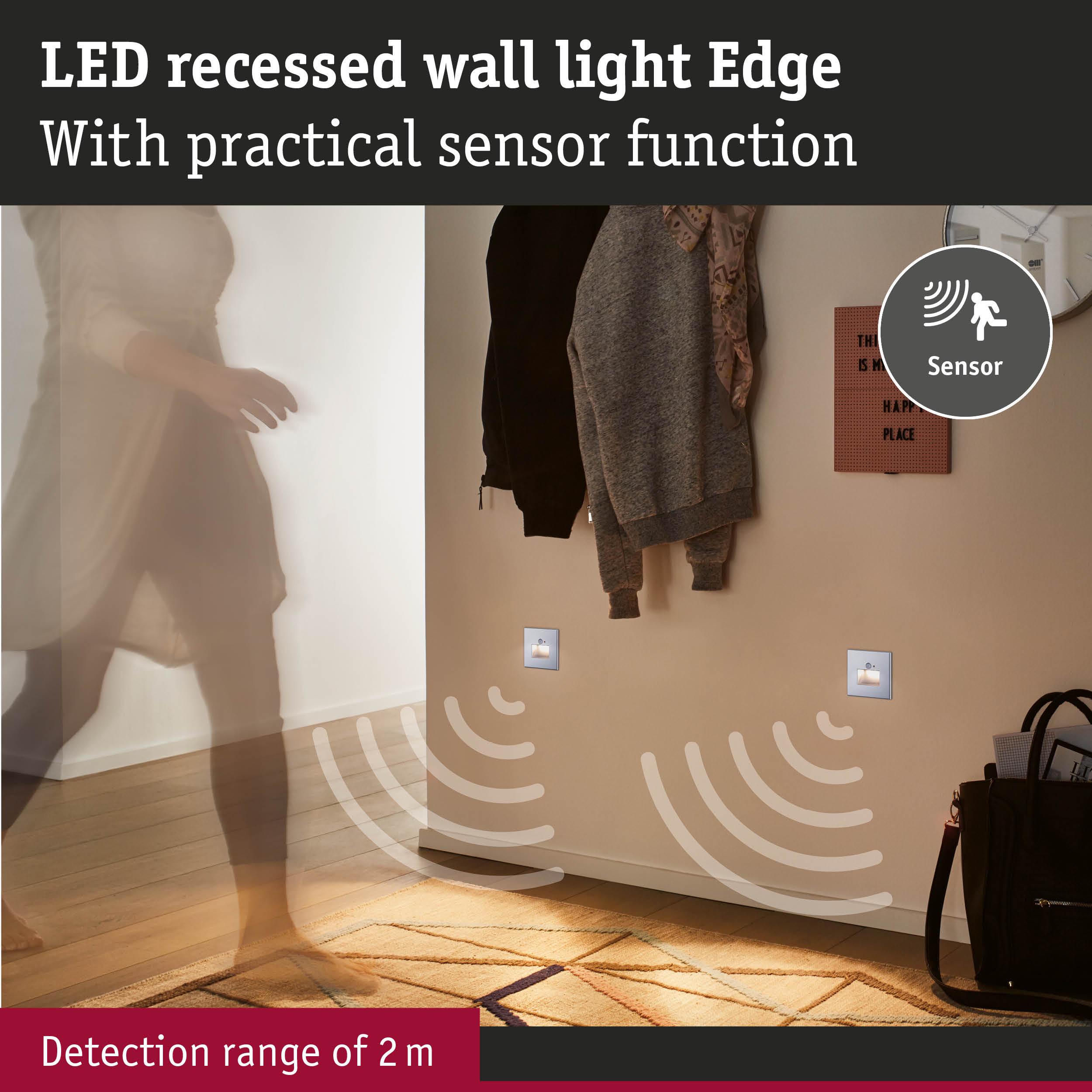

- Automatic switching with integrated motion detector
Set LED Recessed wall luminaire Edge 3-piece set 80x80mm 3x1,2W 3x25lm 230V 2700K Chrome matt

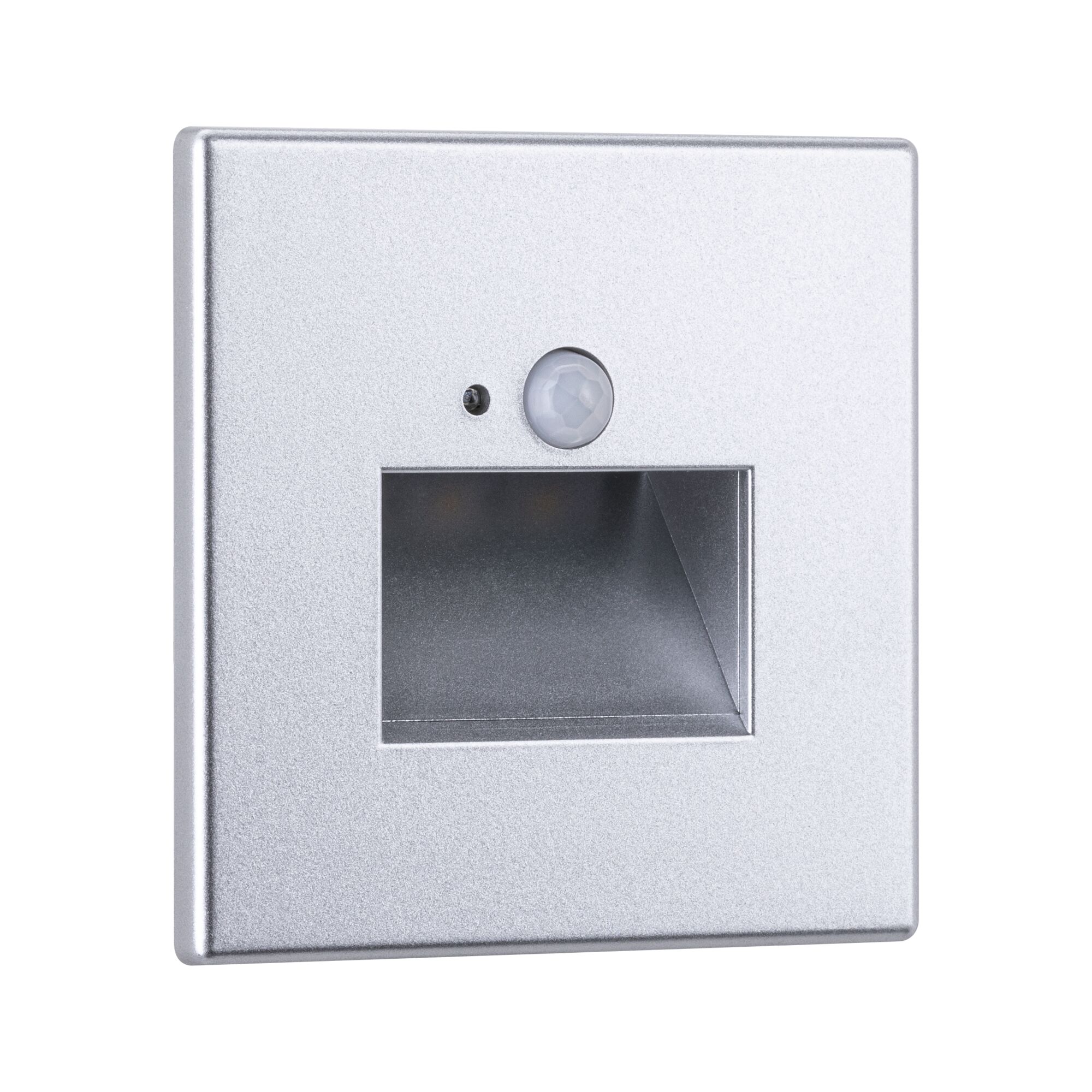

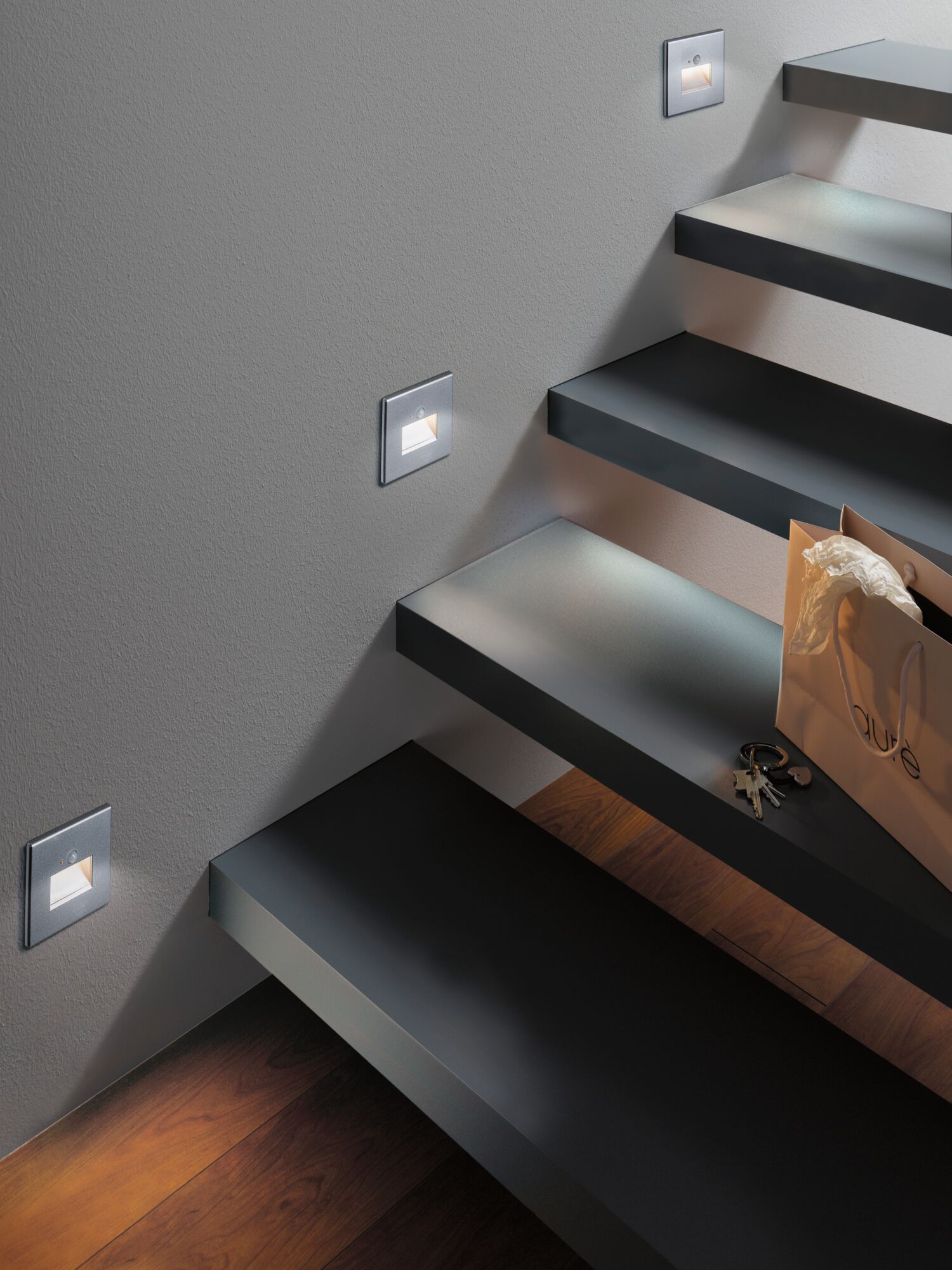

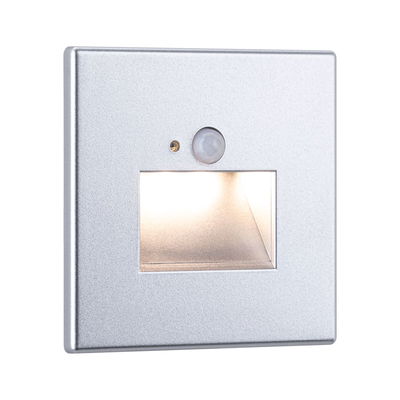

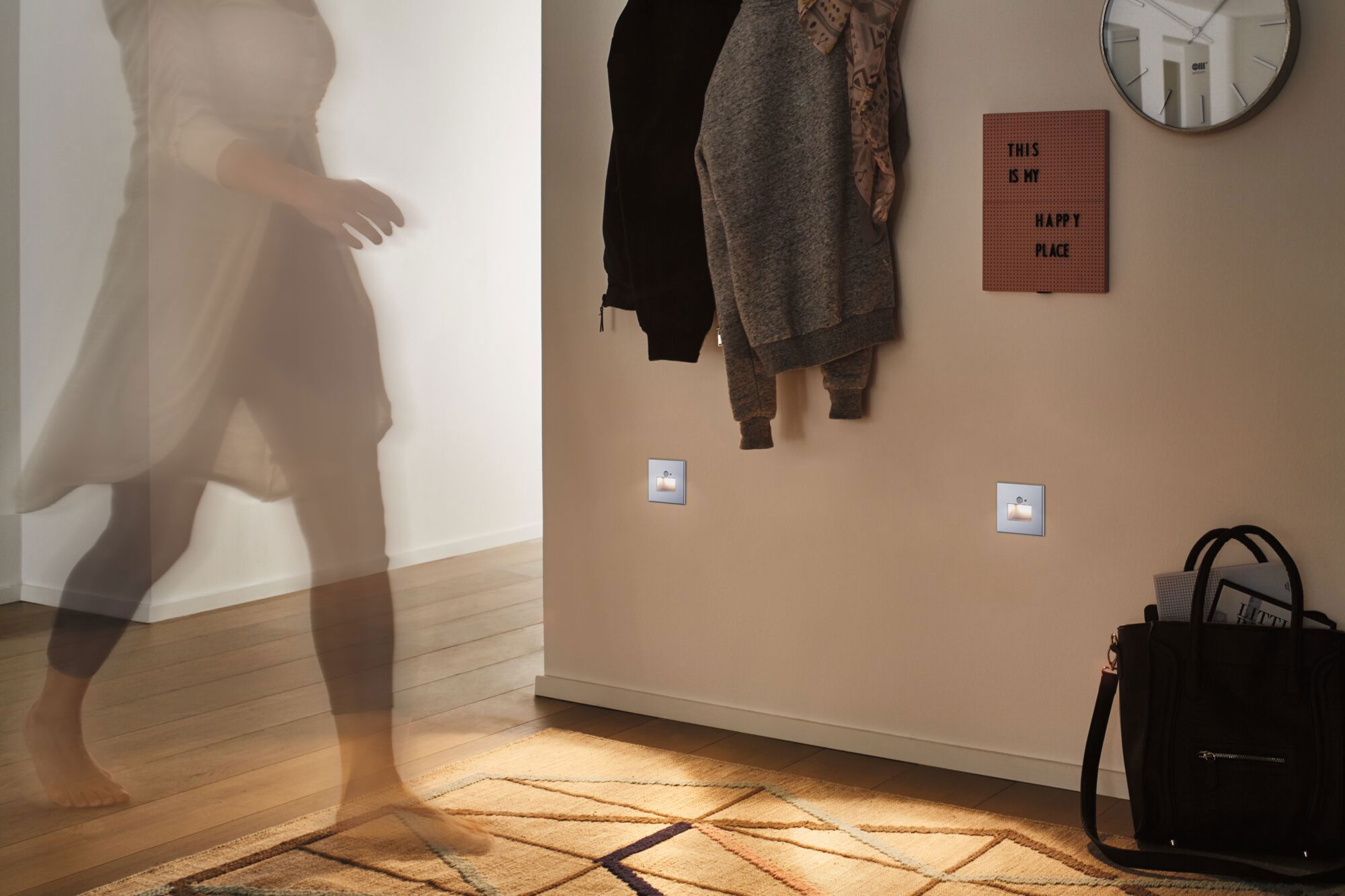

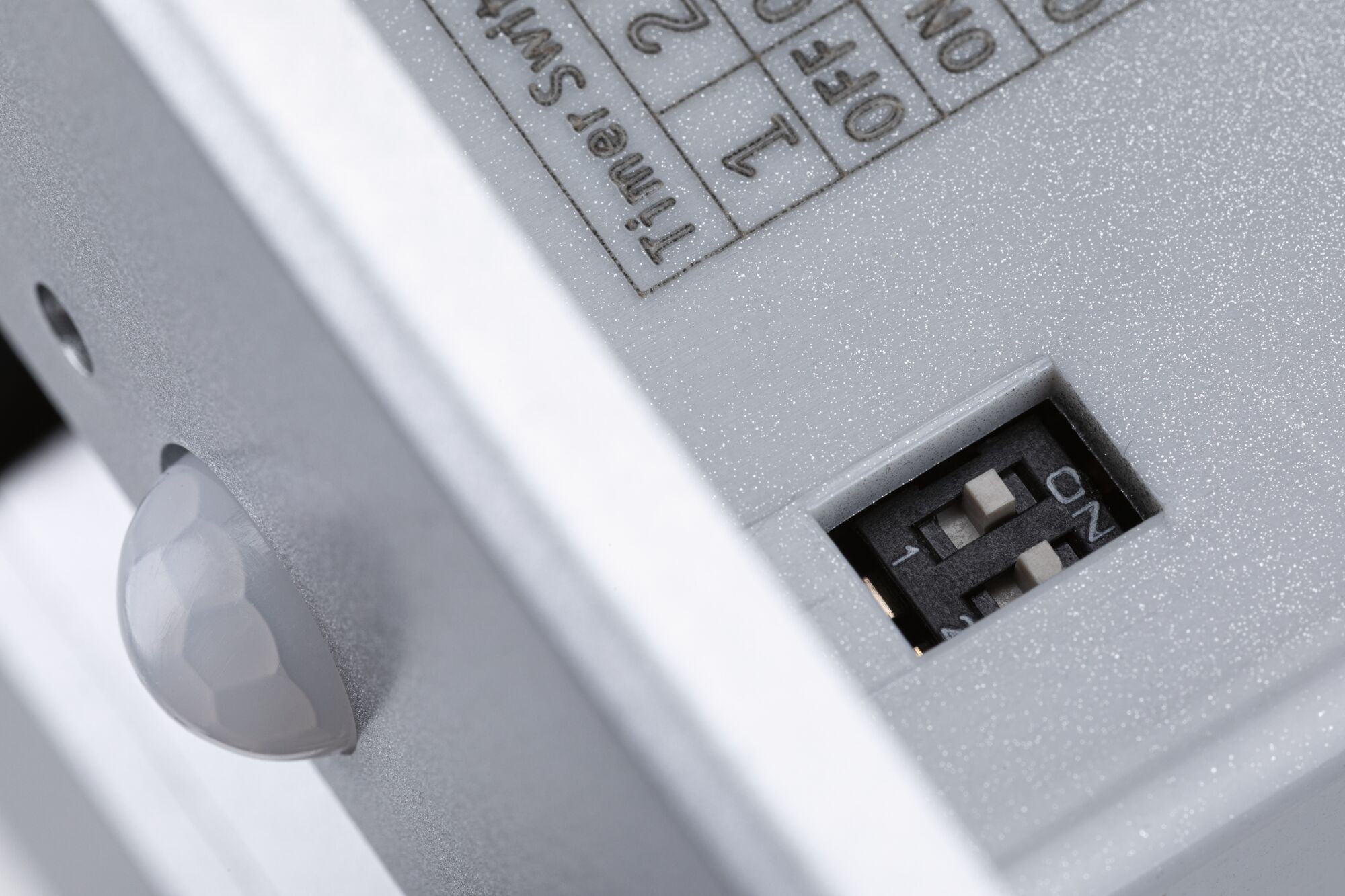

Light doesn't always have to come from the ceiling. The set, consisting of three warm white LED recessed wall luminaires Edge Quadro in chrome matt, is specially designed for recessed wall mounting, creates attractive lighting effects and increases safety in corridors or on stairs. The practical set of 3 is offered at a discounted price. The built-in LED light sources impress with their energy efficiency and long lifetime. Thanks to the PIR sensor, the light is automatically switched on when movement is detected, while the timer function controls the time interval and ensures that the light is automatically switched off.
- Set with attractive price advantage
- Colour temperature: 2700K - Warm white
- Automatic switching with integrated motion detector

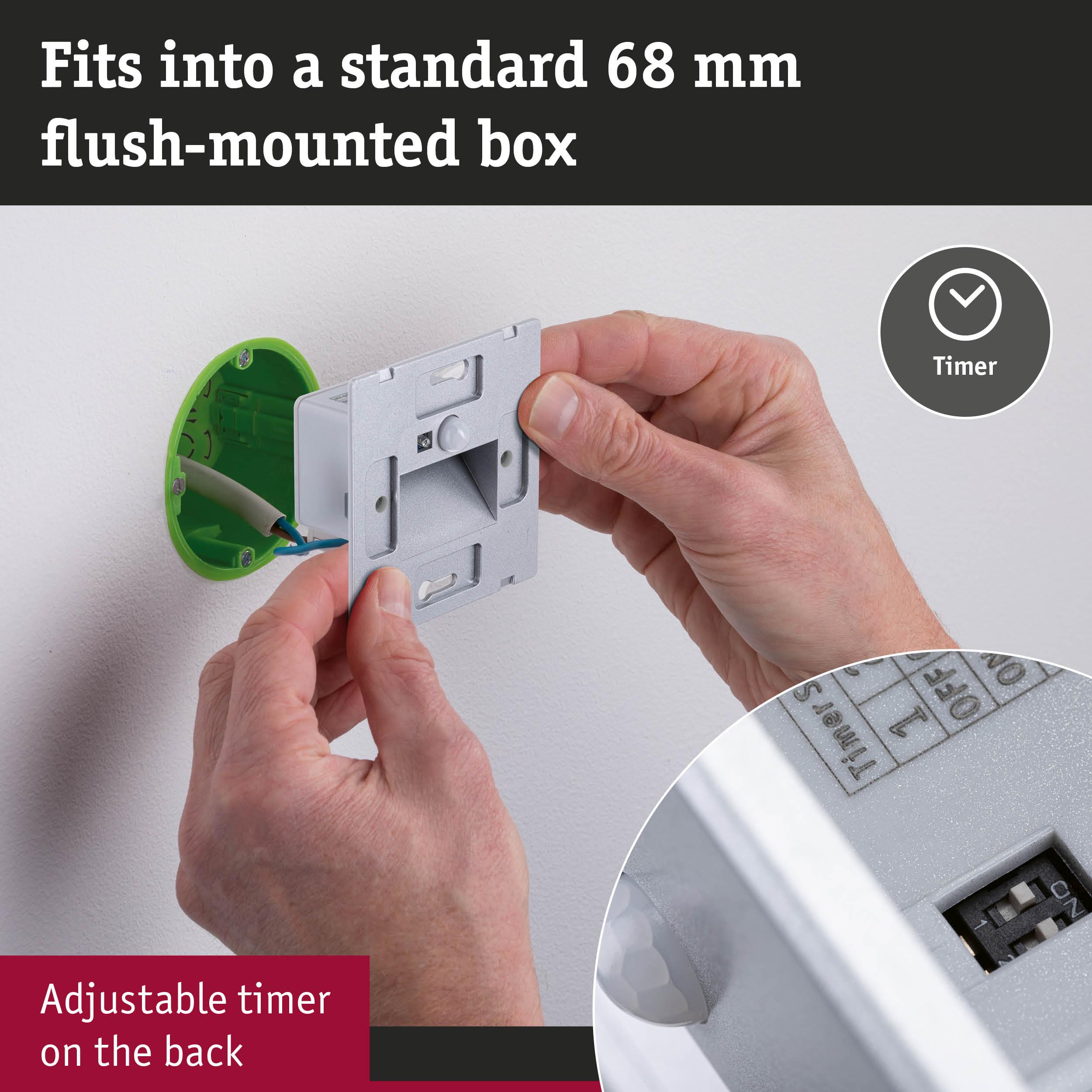

- For standard device installation boxes with a diameter of 68 mm
- LED light source (permanently installed) included in the scope of delivery
- Decorative light effects set the wall in scenes
- Efficient LED technology
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 42 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| net weight | 345 g |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Stainless | stainless polycarbonate |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) | F |
| Features | |
|---|---|
| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 25 lm |
| Luminous flux LED module | 120 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 78 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 13 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 1,2 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,2 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
