Article-No.:
93400
Recessed luminaire
Base Basic Set Swivelling
round 90mm 20° GU10 max. 10W 230V dimmable White
round 90mm 20° GU10 max. 10W 230V dimmable White

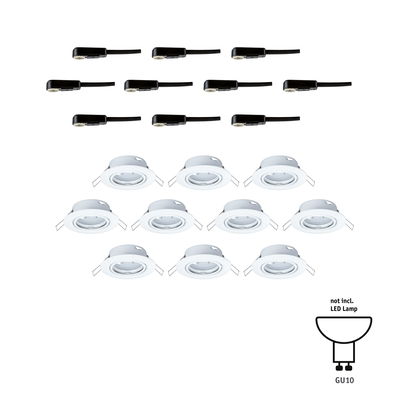

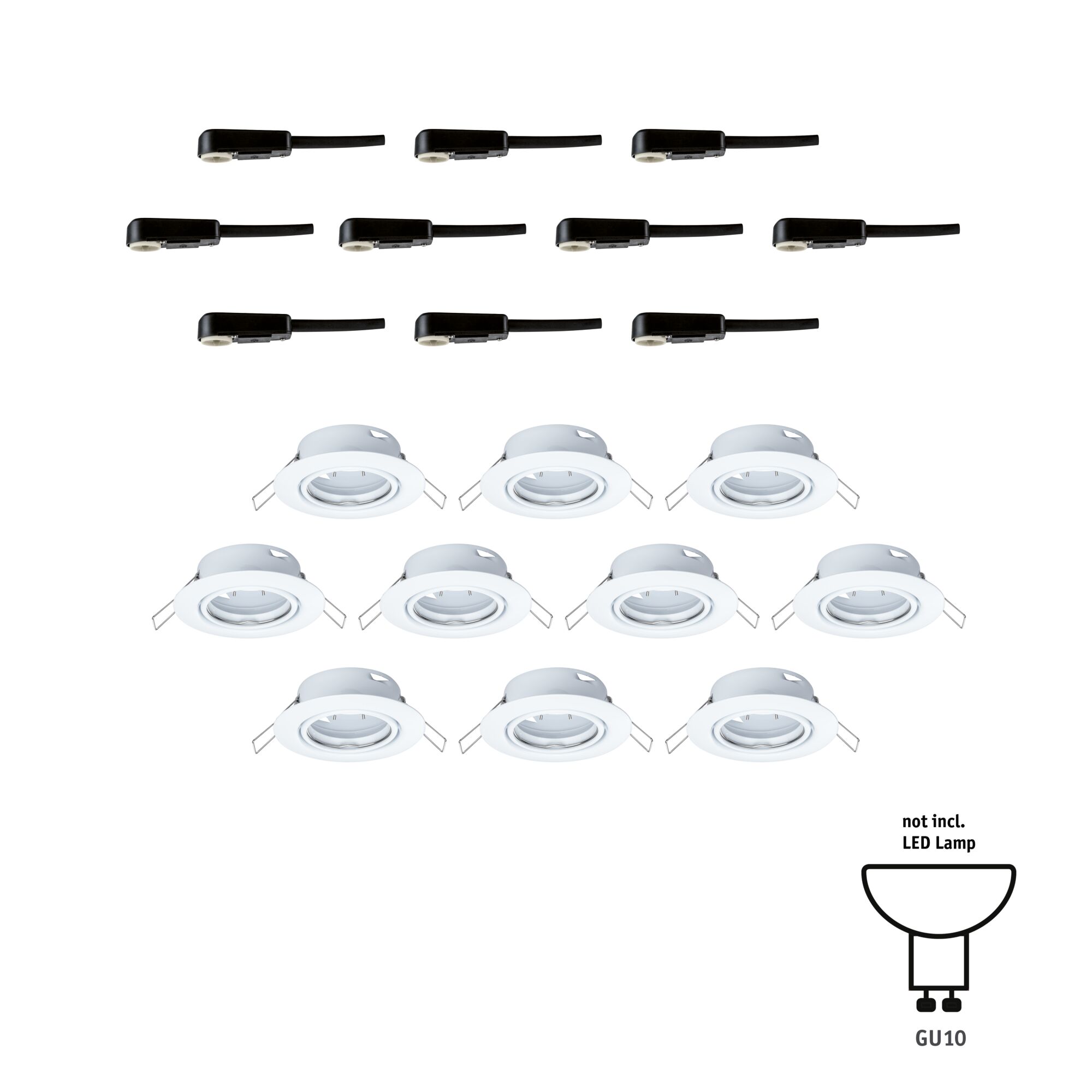

- Set of 10 luminaires
- With swivelling spots for ideal illumination
- For 230 V direct connection

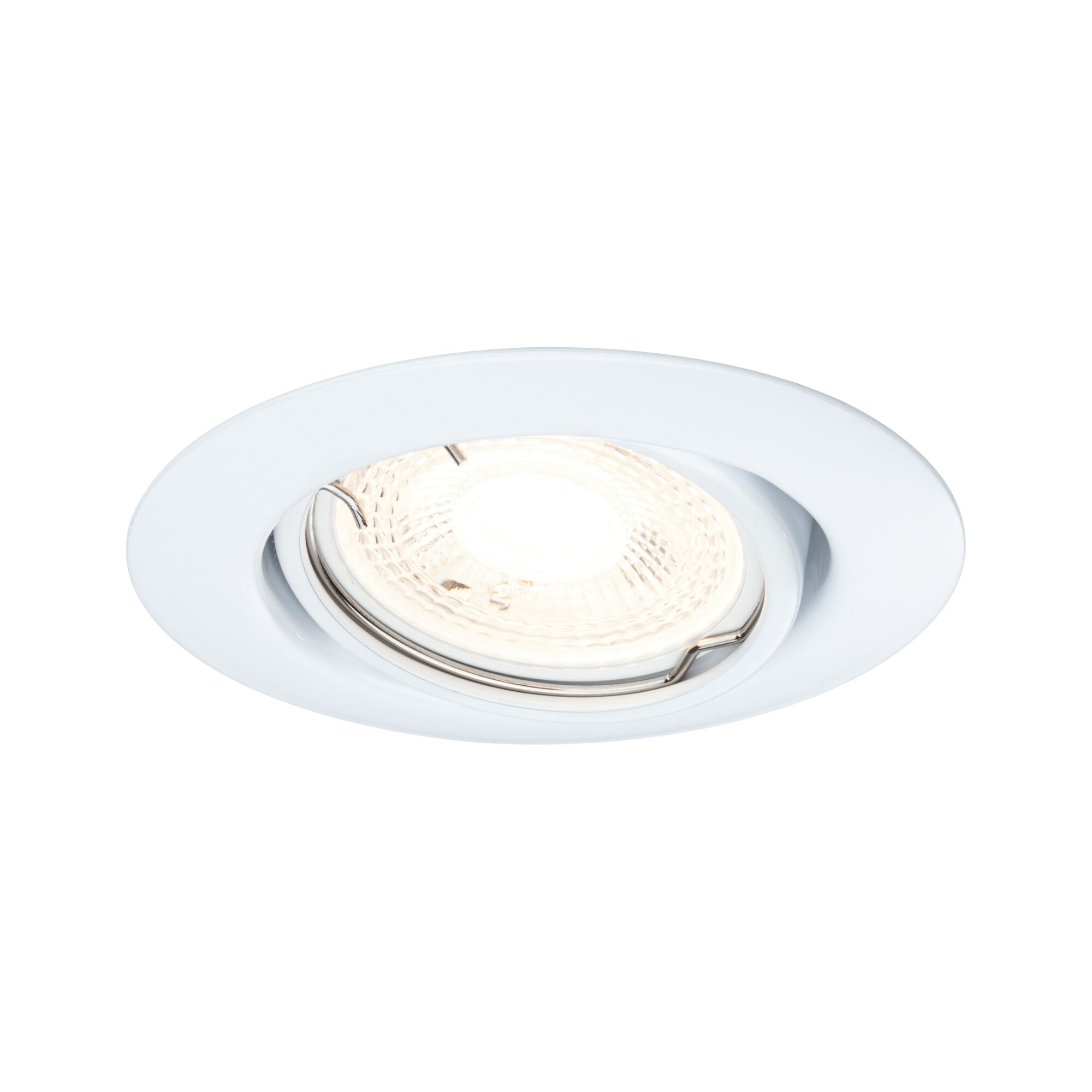

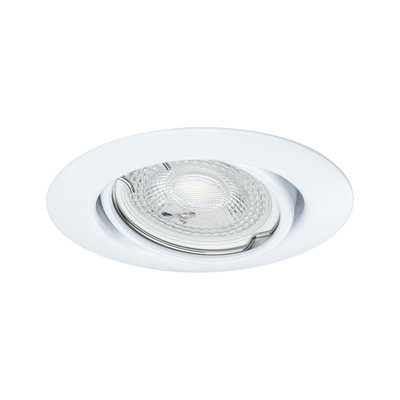

Recessed luminaire Base Basic Set Swivelling round 90mm 20° GU10 max. 10W 230V dimmable White

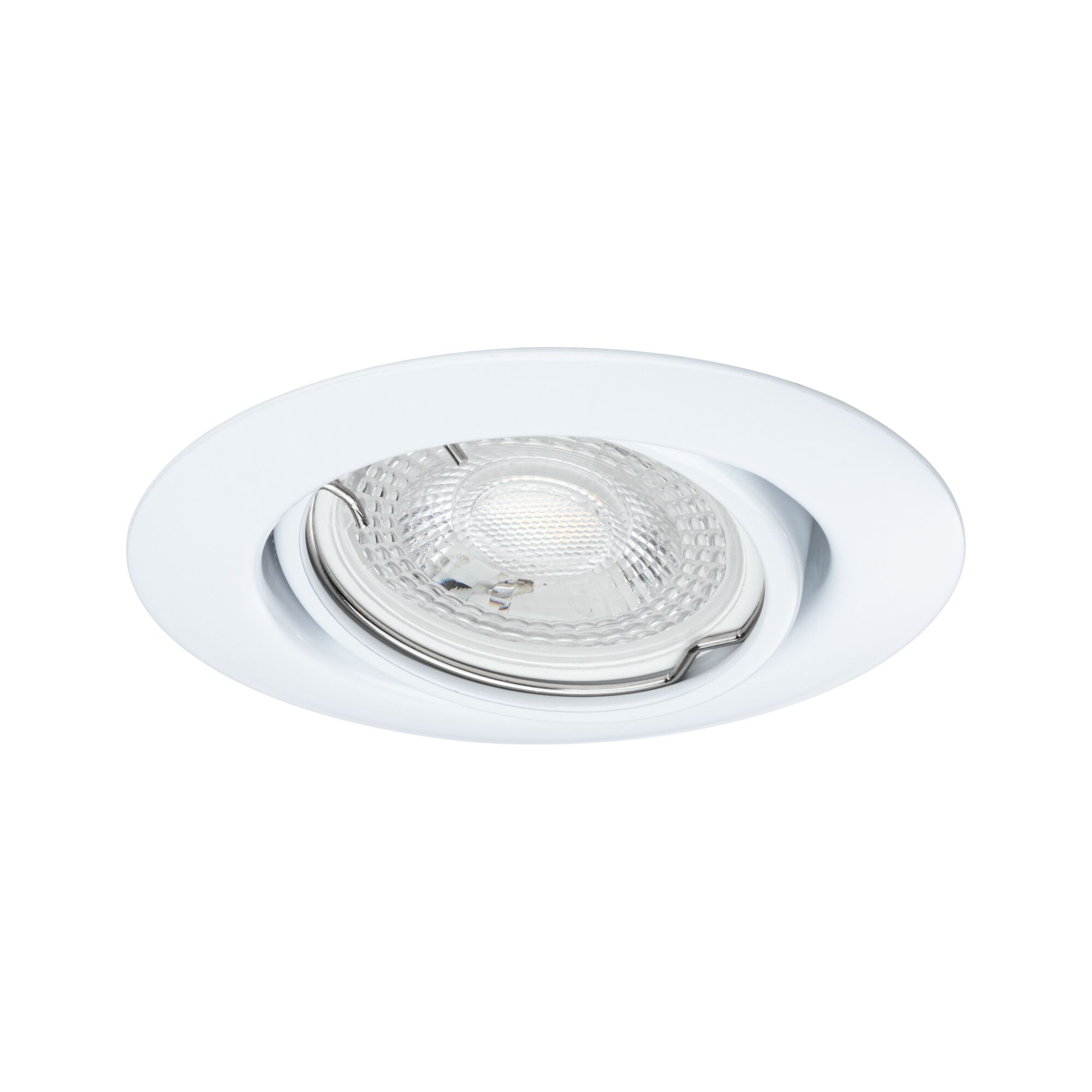

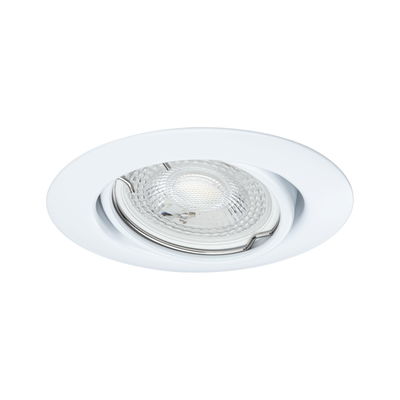

Base recessed spotlights in White, are robust and user-friendly recessed spotlights made of Metal, which are suitable for new installations as well as the replacement of existing installations. Thanks to the 230V direct connection, you can easily link an unlimited number of luminaires to one another.

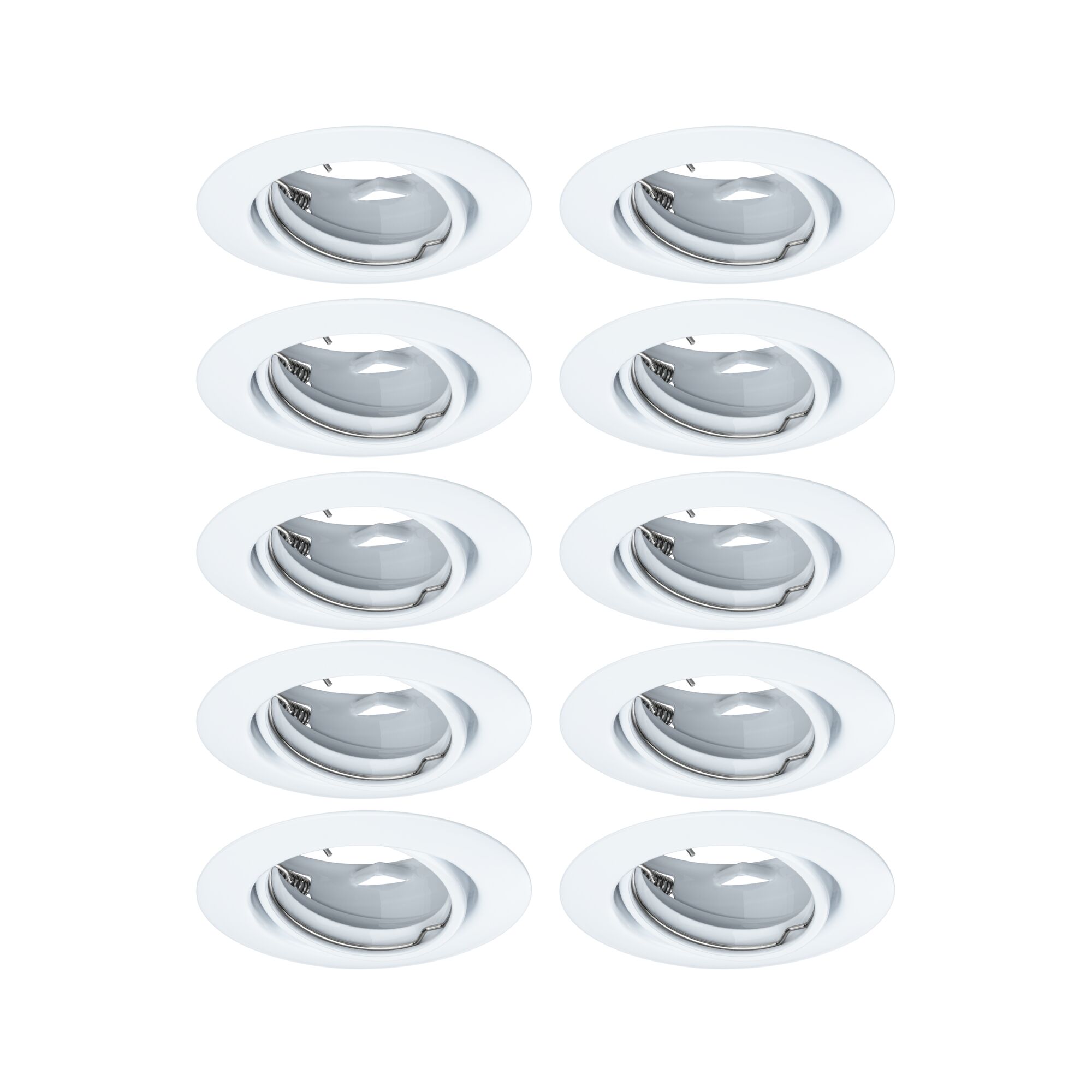

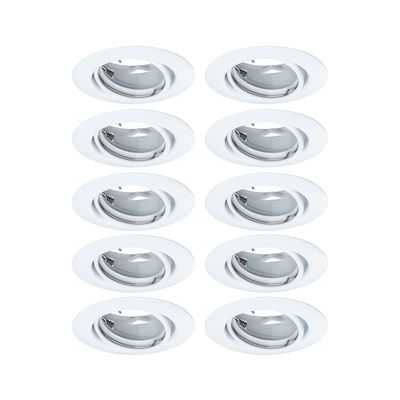

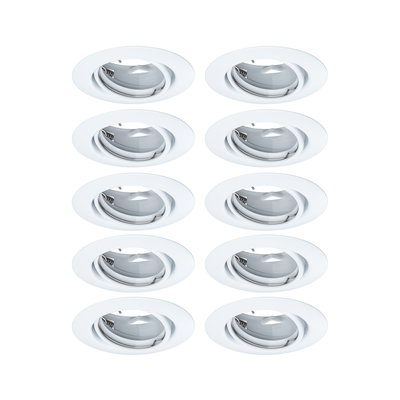

- Set of 10 luminaires

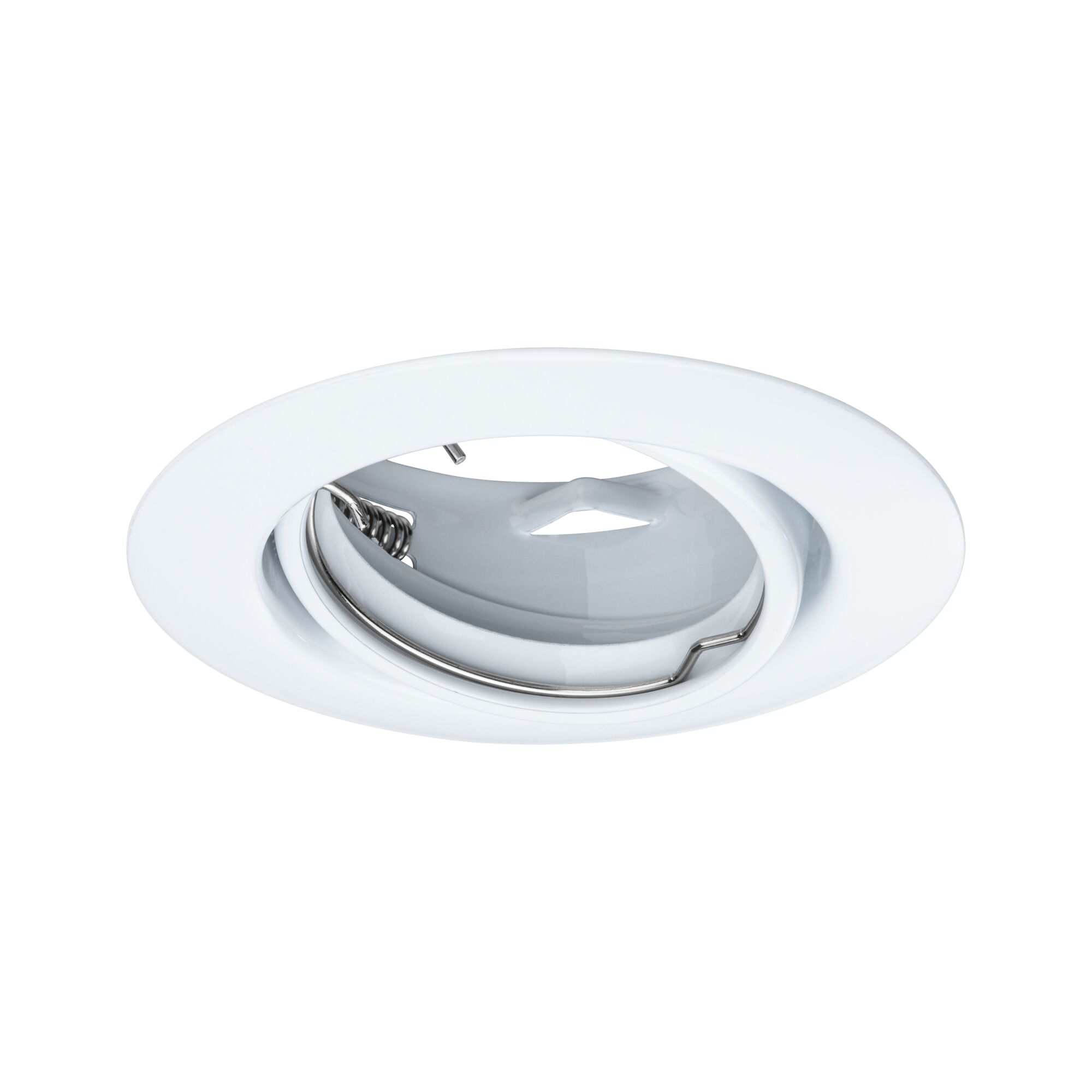

- With swivelling spots for ideal illumination
- For 230 V direct connection

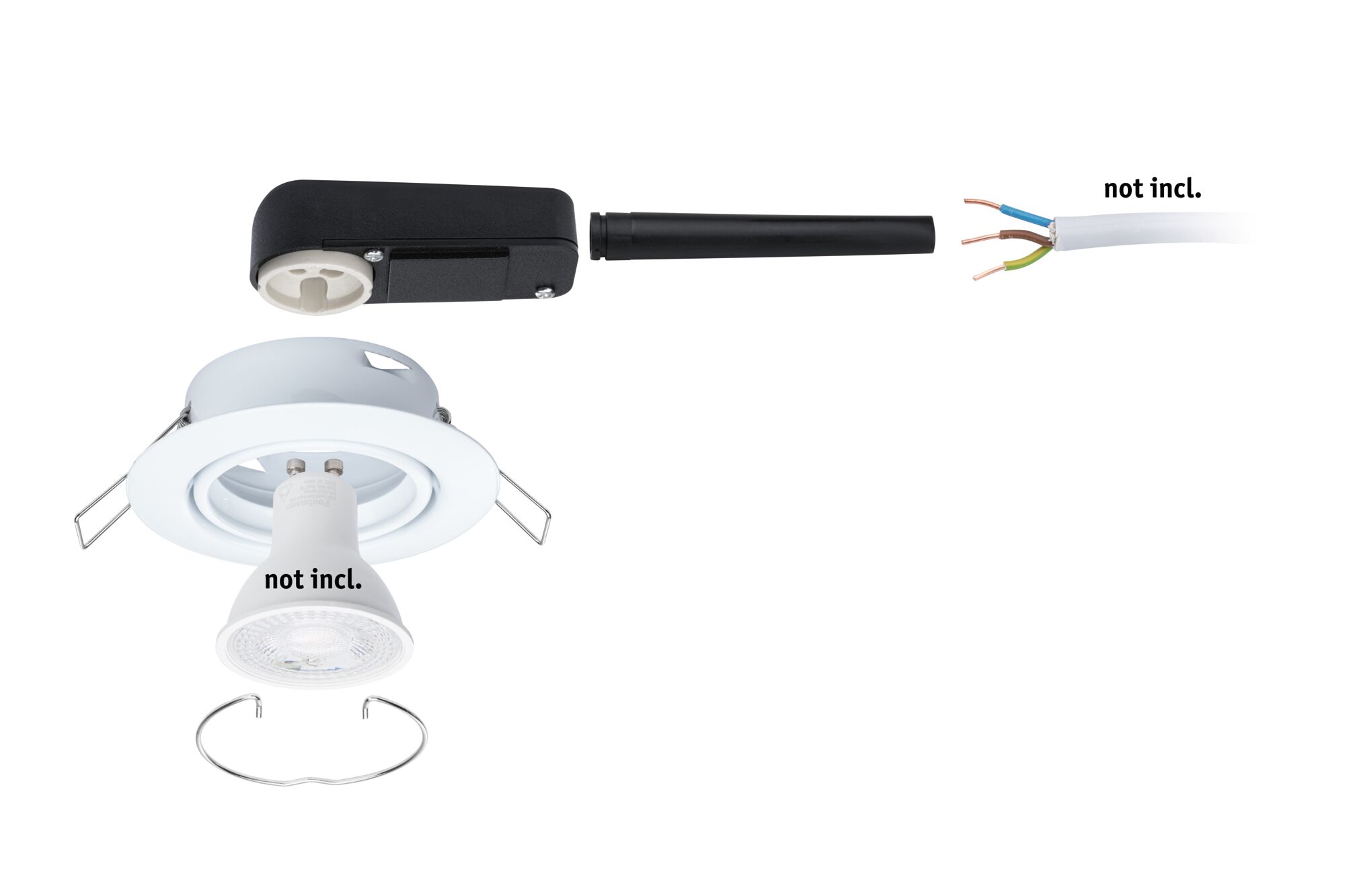

- Don’t forget: Include a suitable lamp in your order!

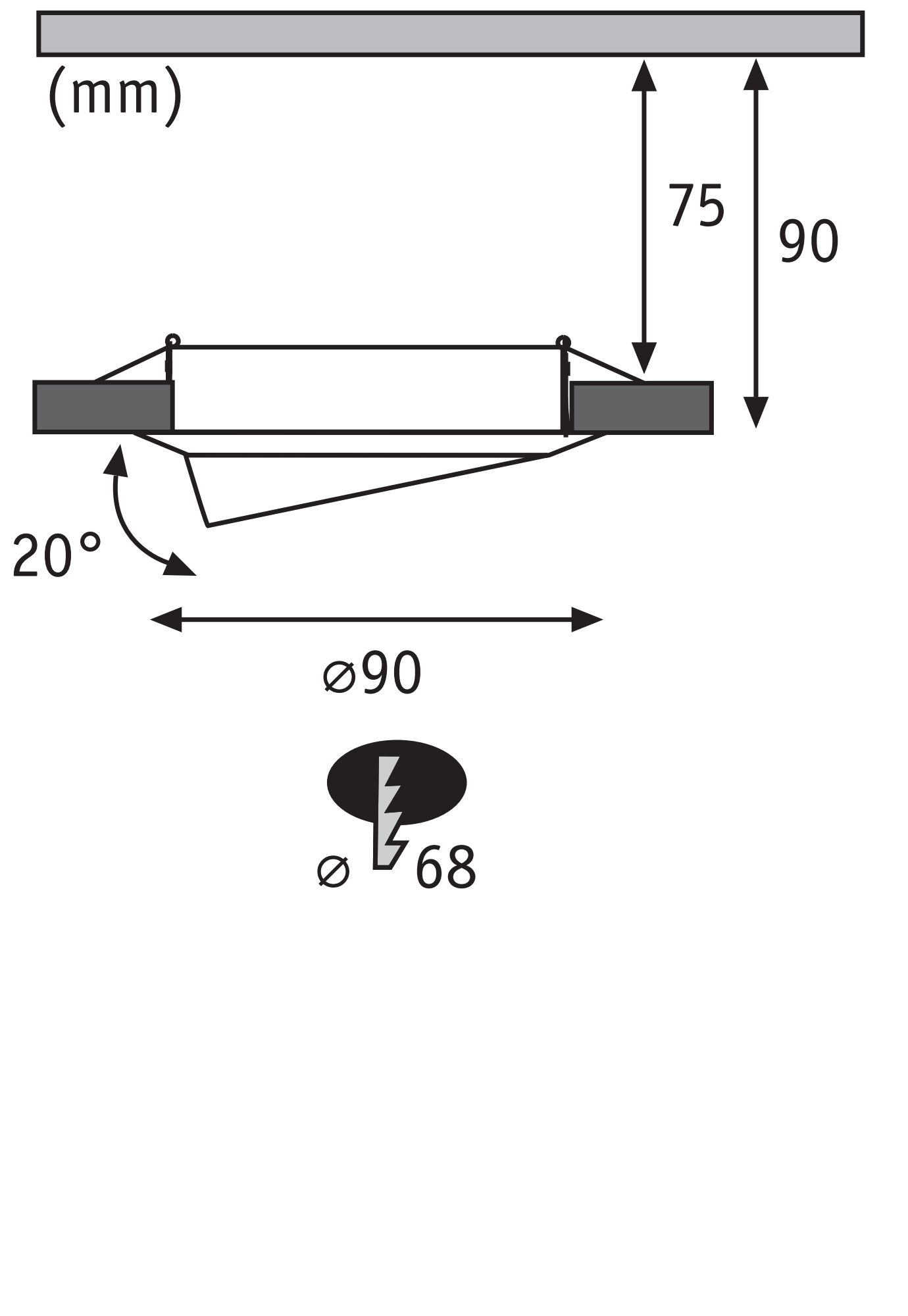

| Dimension | |
|---|---|
| mounting hole 2 | 73 mm |
| Depth of hollow wall | 75 mm, 75 mm |
| Total Mounting depth | 90 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|

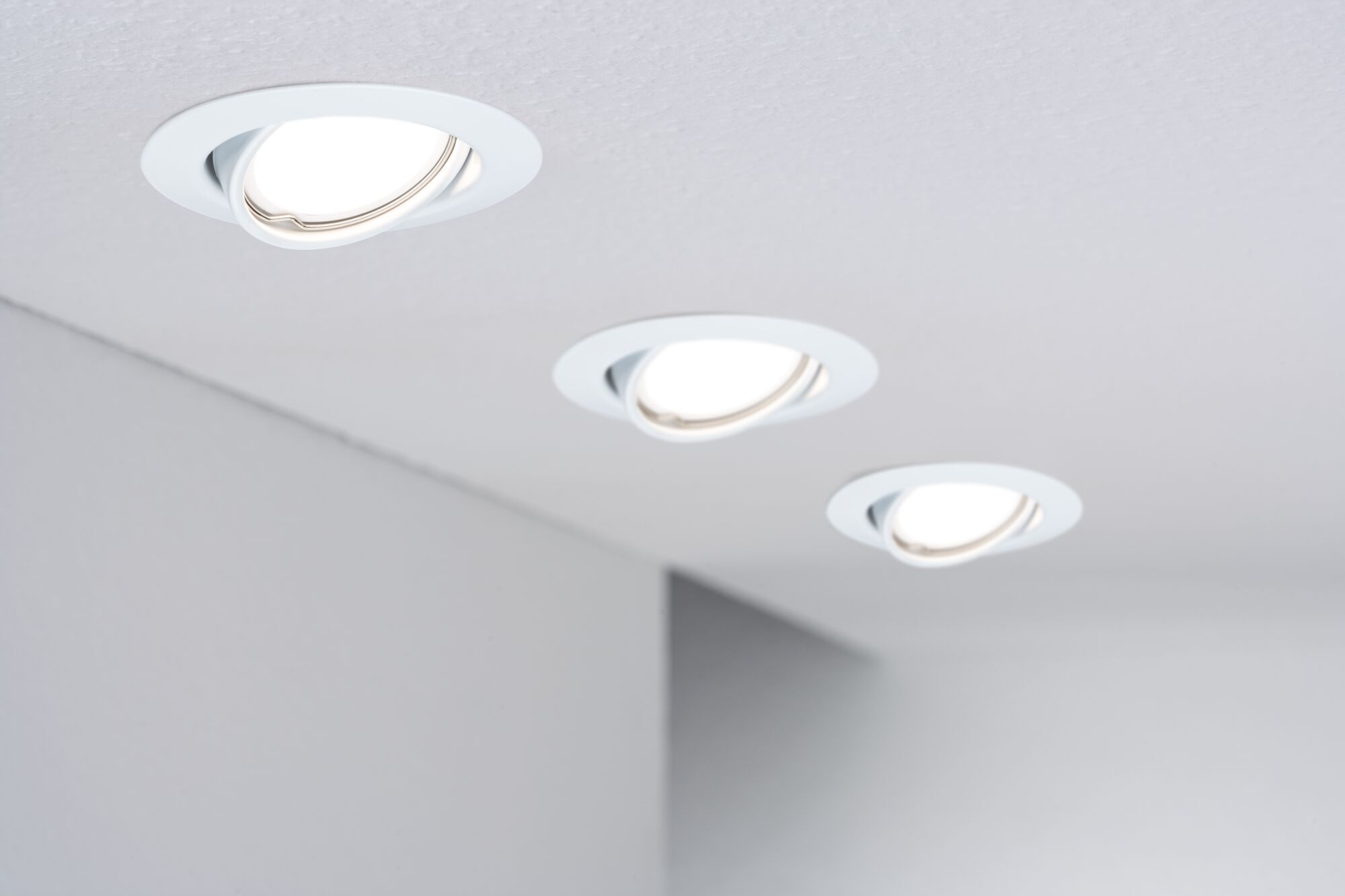

| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Lamp Features | |
|---|---|
| Swivel range | 20 ° |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP20 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Inclusive lamp | no |
| Adjustability | swivelling/tilting |
| Maximum wattage range | max. 10 W |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
