Article-No.:
98474
Recessed furniture luminaires
Micro Line Swivel
round 69mm max. 20W 12V dimmable Brushed iron
round 69mm max. 20W 12V dimmable Brushed iron
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Brushed iron

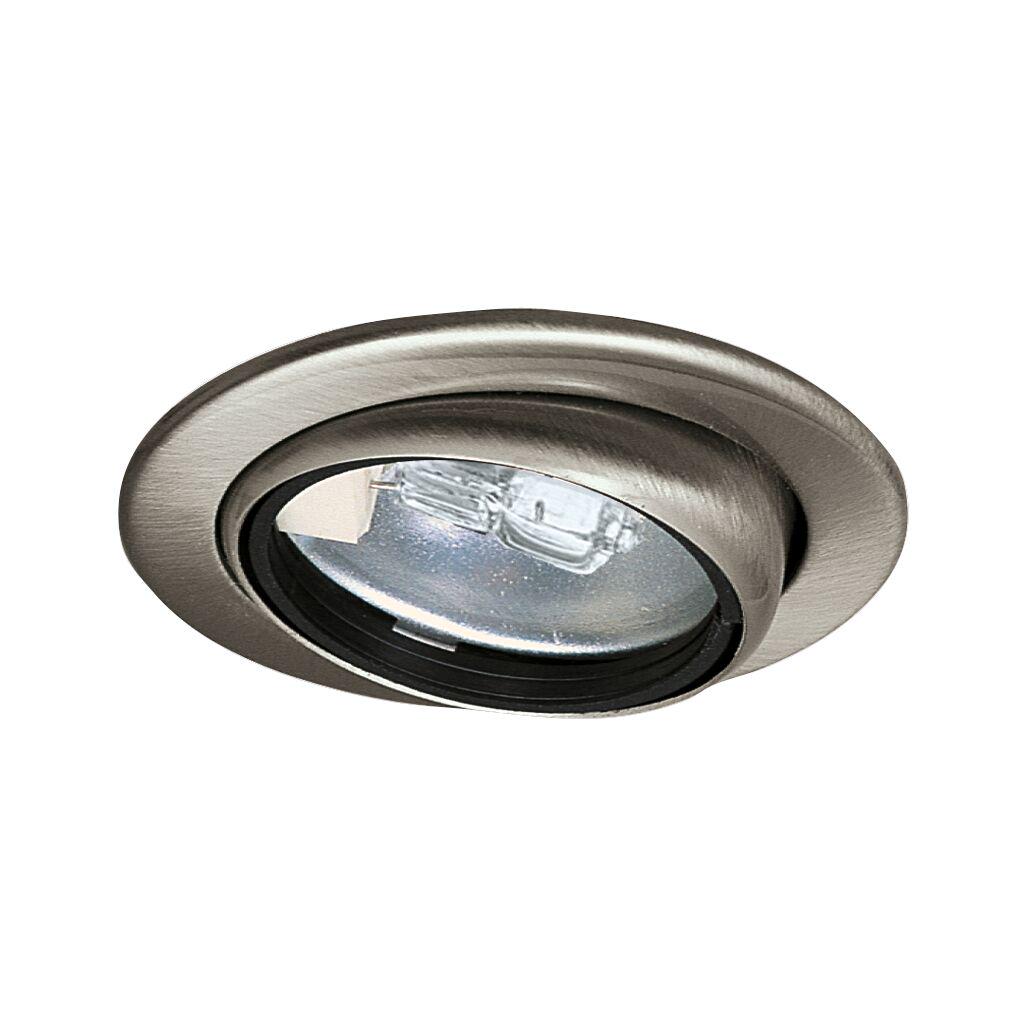

Recessed furniture luminaires Micro Line Swivel Swivelling round 69mm max. 20W 12V dimmable Brushed iron
The pivoting Swivel furniture recessed luminaire is suitable for all situations where the available installation depth is at least 25 mm. The 12 halogen technology provides brilliant light, and is also dimmable as an added extra.
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Brushed iron
- LED and halogen pin base bulbs fit in this lamp,
- Can be swivelled up to 17° – put the focus on individual spots.
- Low mounting depth: only 25 mm
- Diameter: 69mm
- Operating voltage: 12 V
- protection class III
- Incl. plug-in connection
- Don't forget: Order compatible bulbs and transformers as well!
| Dimension | |
|---|---|
| Total Mounting depth | 25 mm |
| Dimensions (Height x Width x Depth) | H: 22 mm |
| Ø | 69 mm |
| Mounting hole | 60 mm |
| Form | round |
| Depth of hollow wall | 10 mm, 10 mm |
| Design and Material | |
|---|---|
| Colour | Brushed iron |
| Material | Metal, Glass |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Lamp Features | |
|---|---|
| Swivel range | 17 ° |
| Technique | Lamp without bulb |
| Socket | G4 |
| IP protection | IP20 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 20 W |
| protection class | protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
