Article-No.:
91385
ProRail3
Pendant adapters
Universal
max. 1.150W 230V Silver
max. 1.150W 230V Silver
- ProRail3 pendant adapter incl. installation instructions
- For cables with a diameter of up to 7 mm
- Maximum load 3 kg

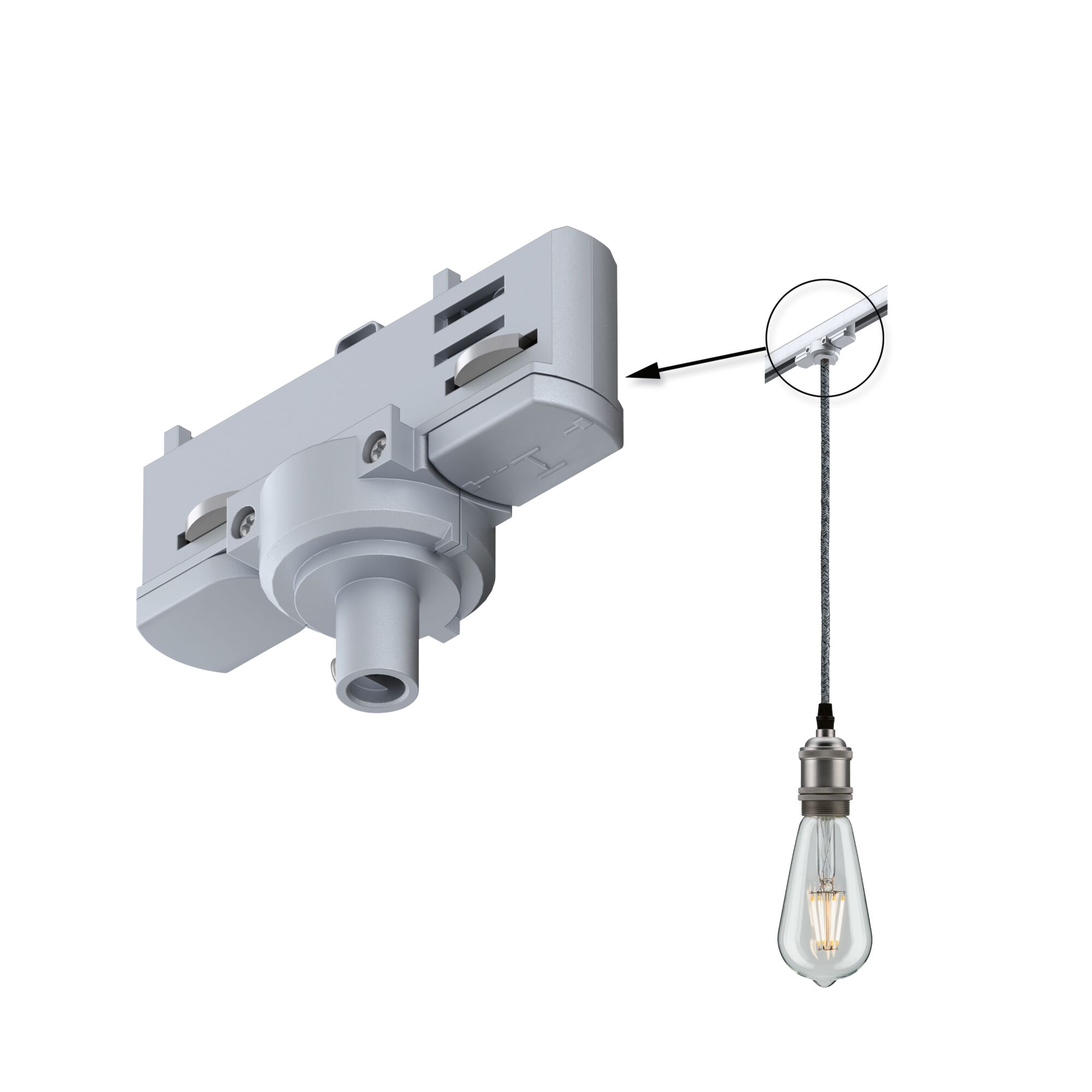

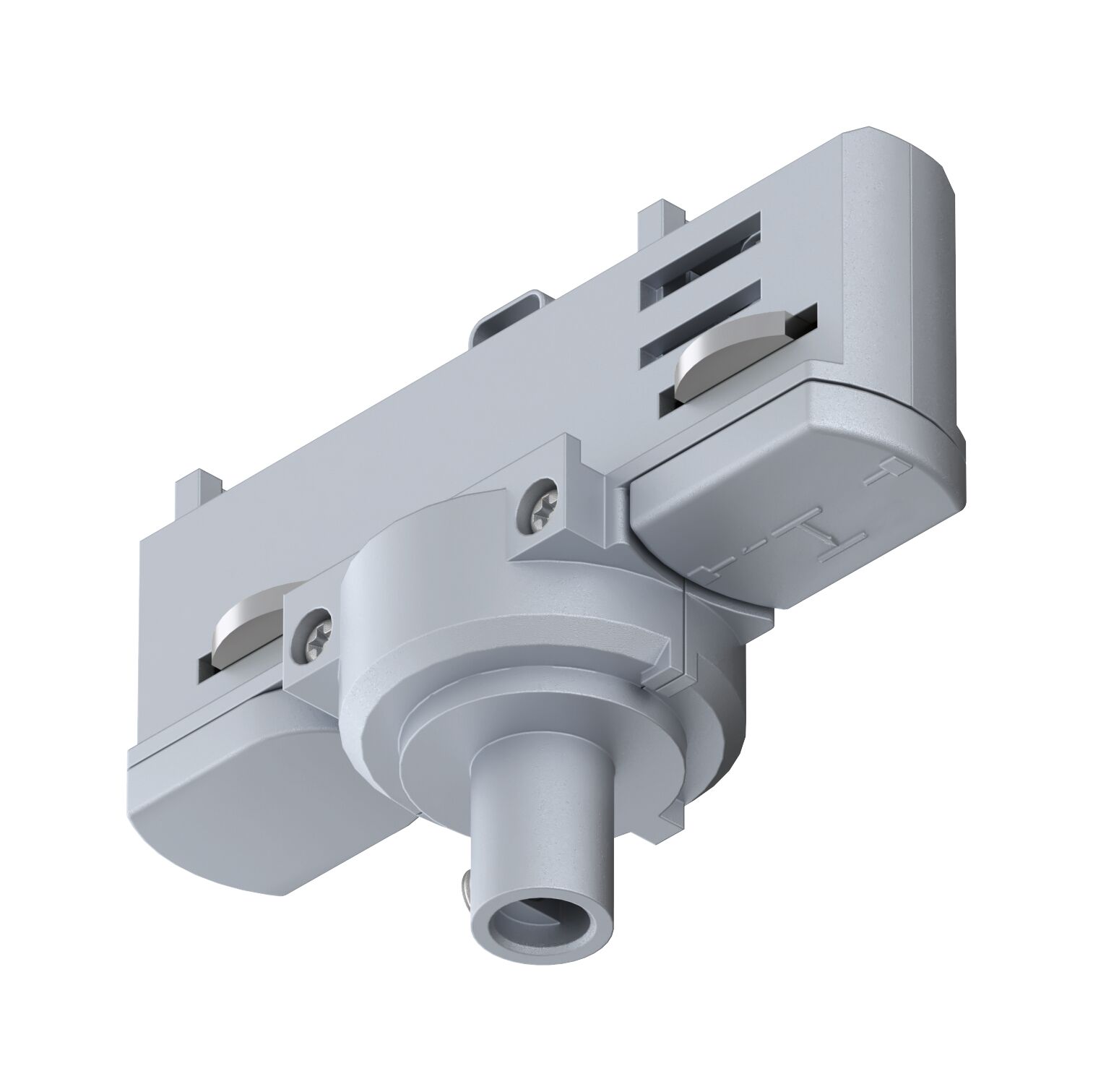

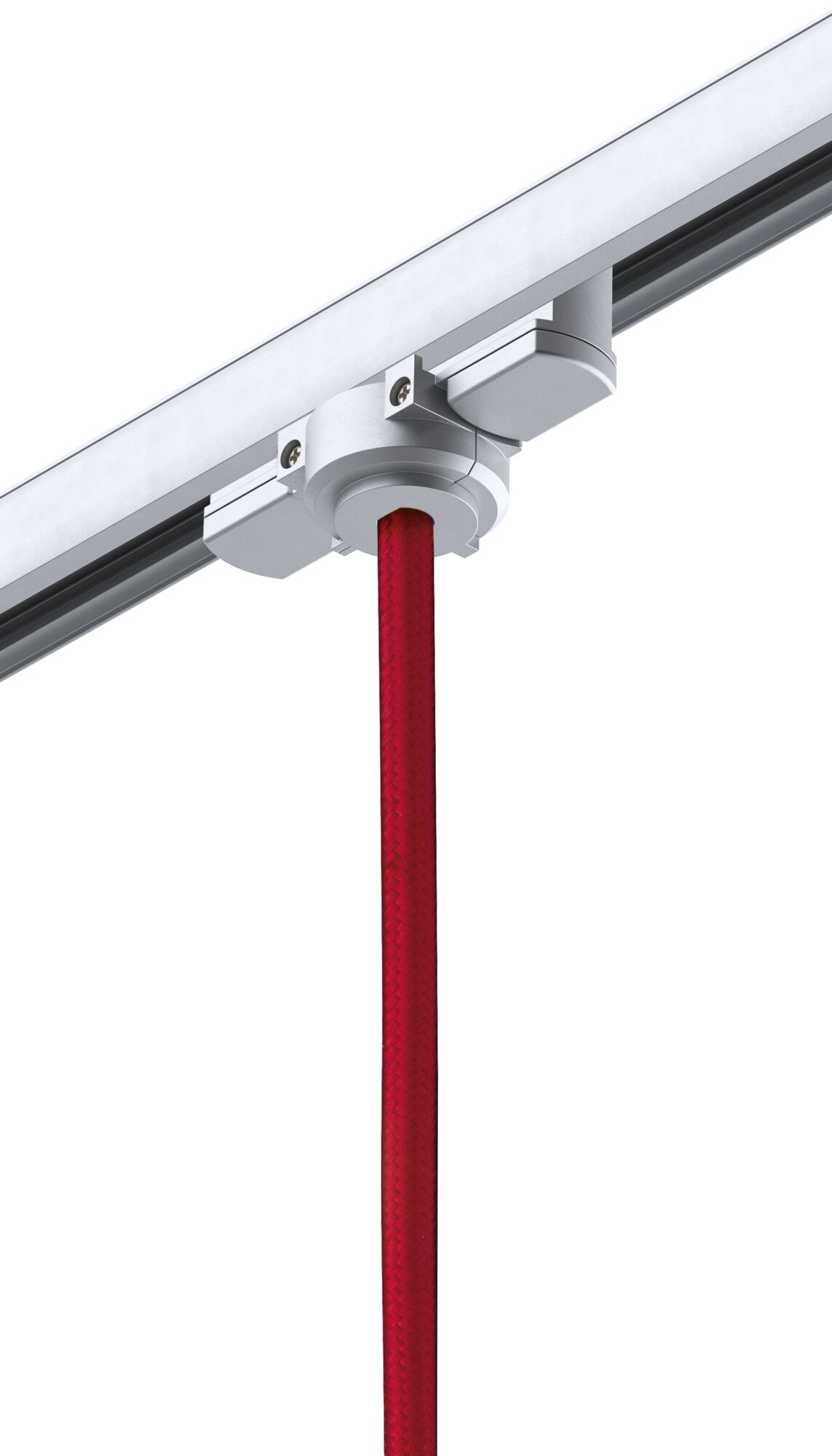

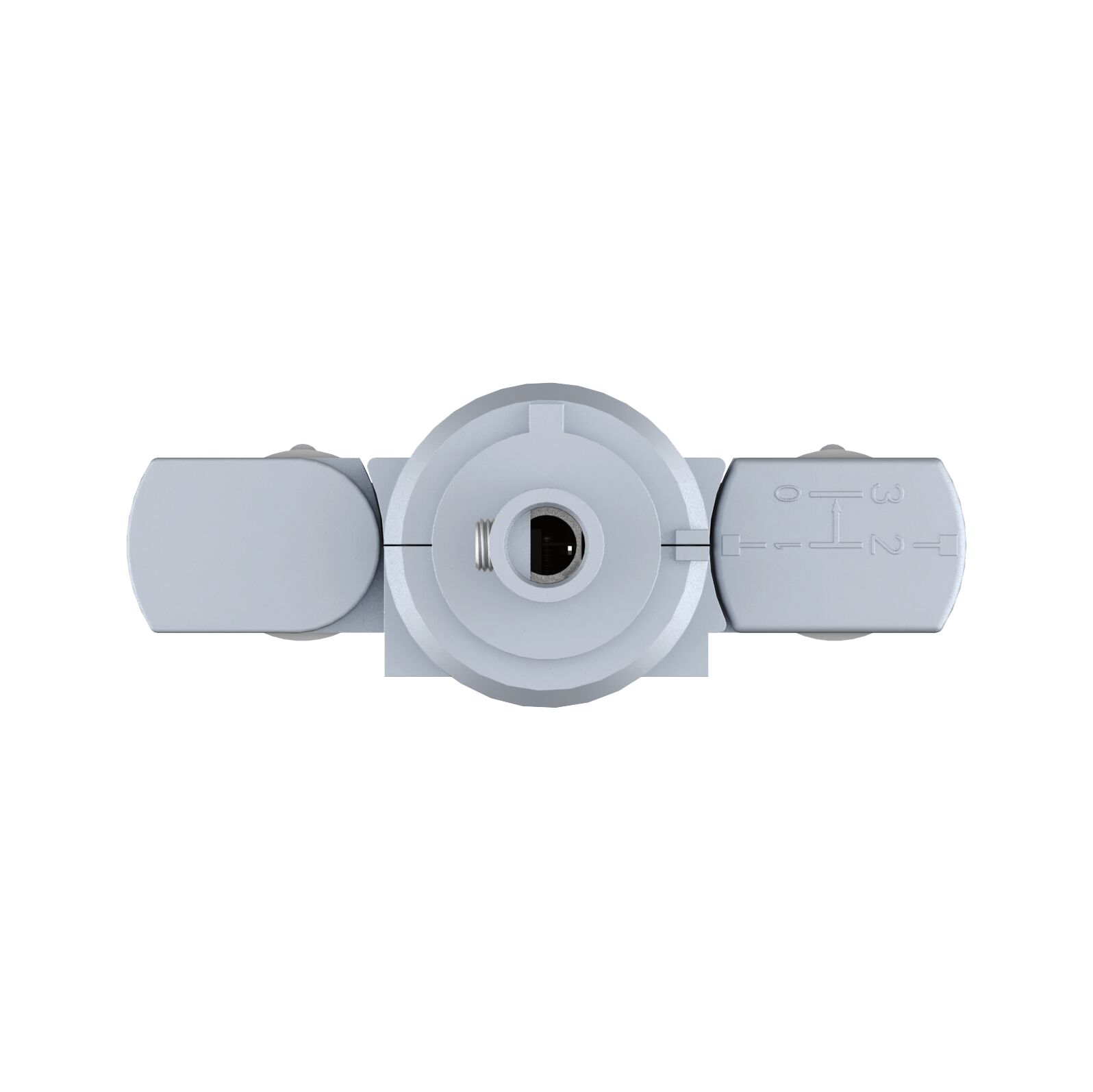

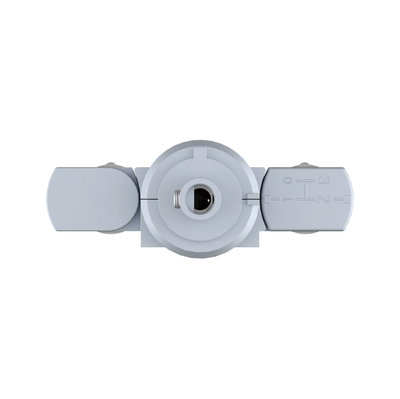

ProRail3 Pendant adapters Universal max. 1.150W 230V Silver

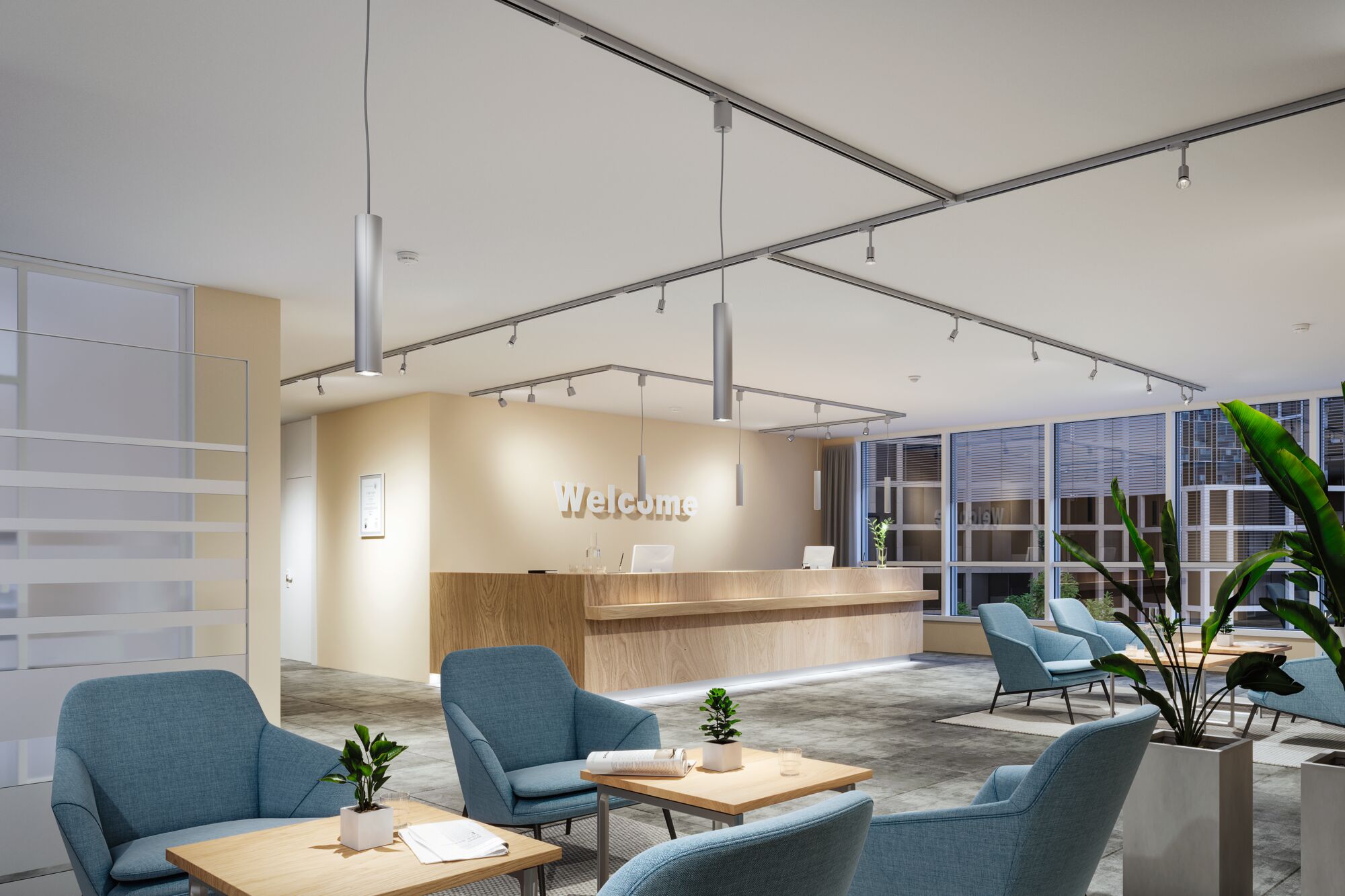

Pendant luminaires and living area luminaires can be integrated in the ProRail3 using an adapter. It is one of numerous modular parts from the ProRail3 series. Now you can create your very own three-phase rail system in combination with other components. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 pendant adapter incl. installation instructions
- For cables with a diameter of up to 7 mm
- Maximum load 3 kg
- delivery without pendant or lamp
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 62 x B: 96 x T: 37 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 96 mm |
| Maximum wattage range | max. 1.150 W |
| protection class | protection class I |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
