- Direct connector for strips with RGBW colour-change function (5-pole)
- Cut-and-clamp technology on both sides
- Max. current: 6A

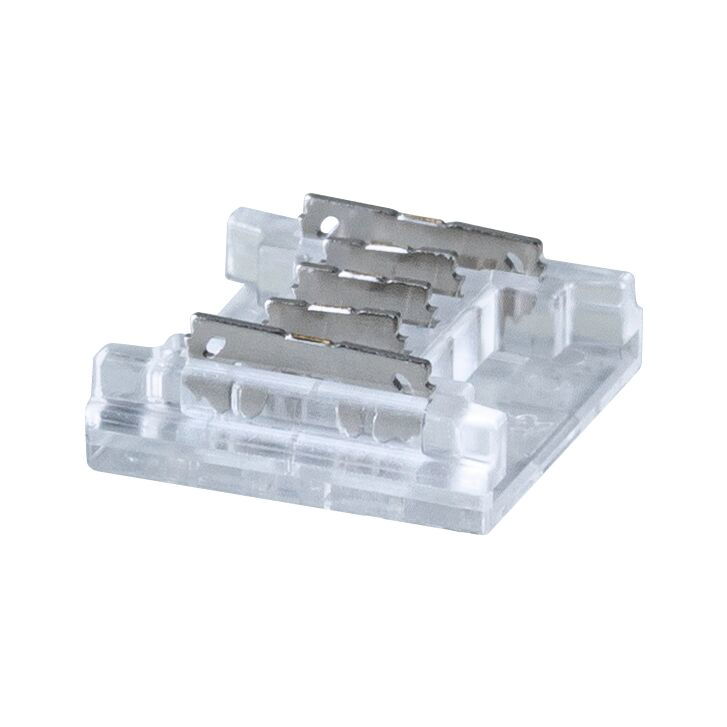

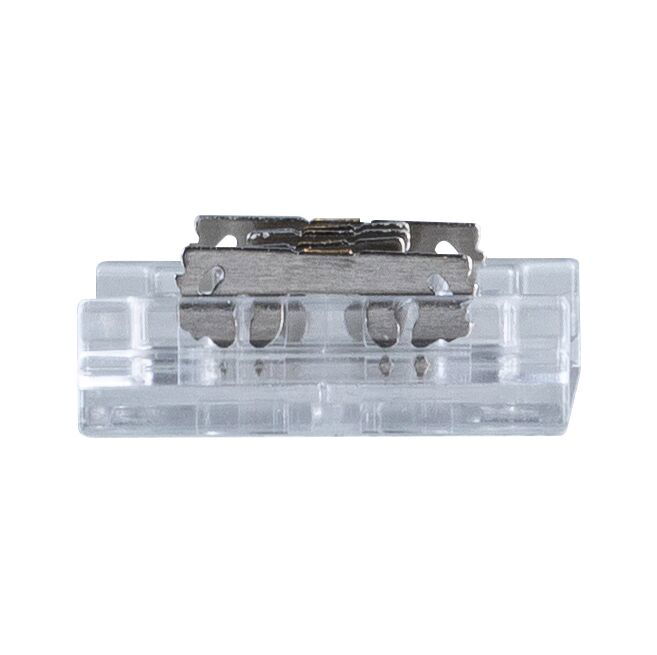

Pro Strip Connector RGBW Slim 14x13,5mm max. 144W mehrfarbig
The Pro direct connector RGBW Slim is specially designed for use with professional 24 V ProStrips Silver and Gold with RGBW colour-change function. The connector has two poles and enables a direct connection on both sides using cut-and-clamp technology. It is characterised by its slim structure, which is specially designed for tight installation spaces such as the inside of a profile. Trimmed sections can be directly reconnected to the strip without disturbing the lighting effect using the direct connector.
- Direct connector for strips with RGBW colour-change function (5-pole)
- Cut-and-clamp technology on both sides
- Max. current: 6A
- Slim – Suitable for tight installation spaces, e.g. inside a profile
- Specially for professional 24V Pro Strips Silver and Gold
- No disruption of the lighting effect, thanks to transparent housing
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 5,5 x B: 14 x T: 13,5 mm |
| Design and Material | |
|---|---|
| Colour | mehrfarbig |
| Material | Plastic |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| IP protection | IP20 |
| Inclusive lamp | no |
| Total Width | 14 mm |
| Maximum wattage range | max. 144 W |
| protection class | protection class III |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
