Article-No.:
93731
PremiumRecessed Luminaire
easyClick2
round 83mm 30° GU10 max. 50W 230V dimmable White
round 83mm 30° GU10 max. 50W 230V dimmable White
- Recessed light, suitable for 230V LED, energy-saving or halogen bulbs
- Material: Aluminium Zinc
- Color: White

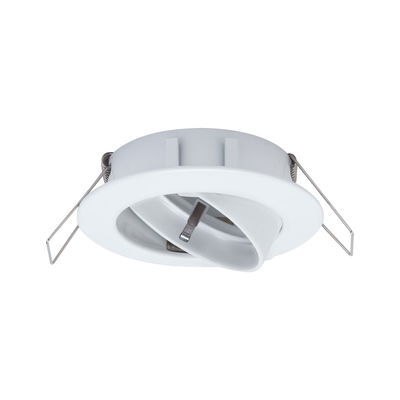

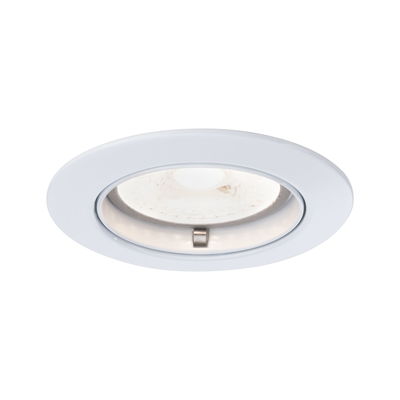

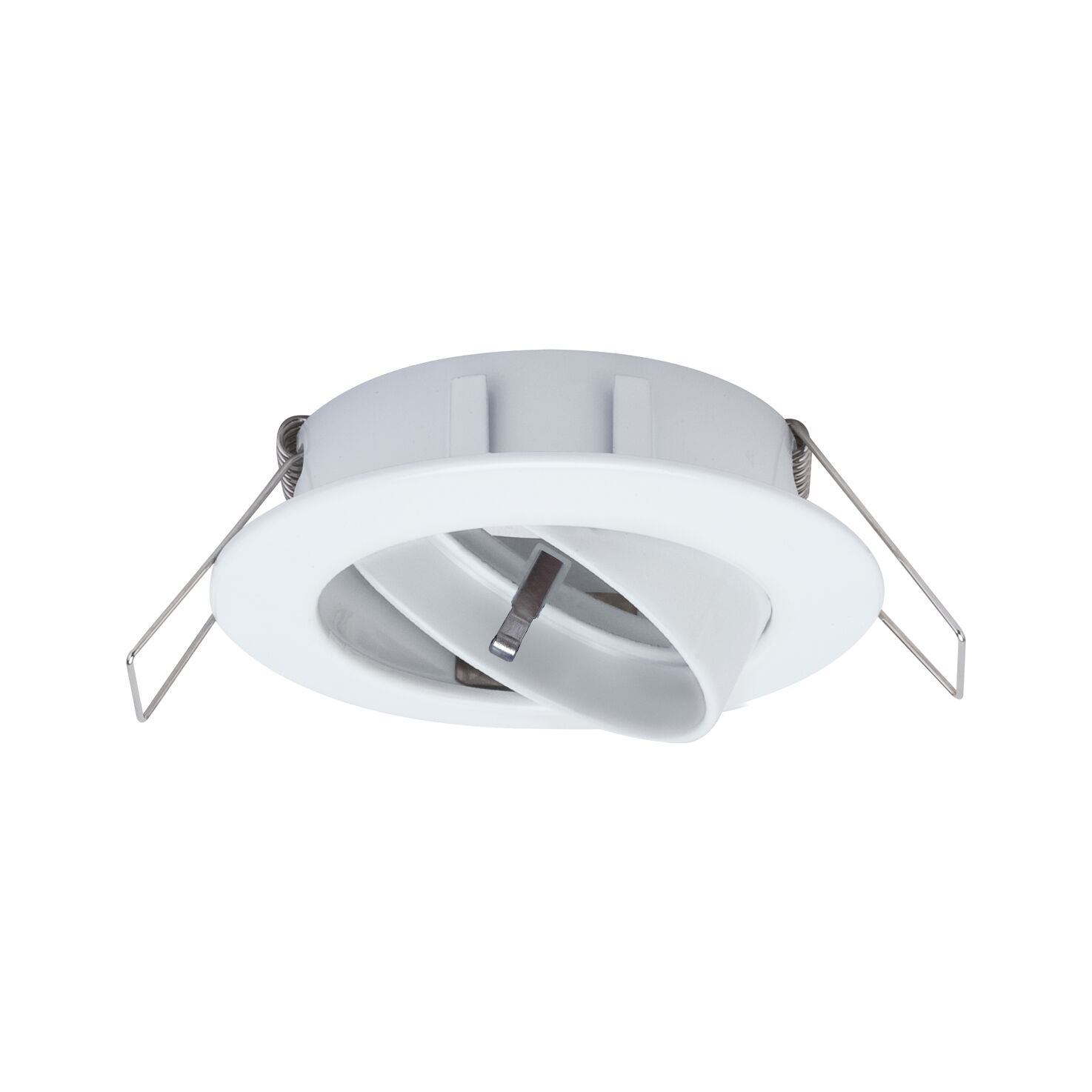

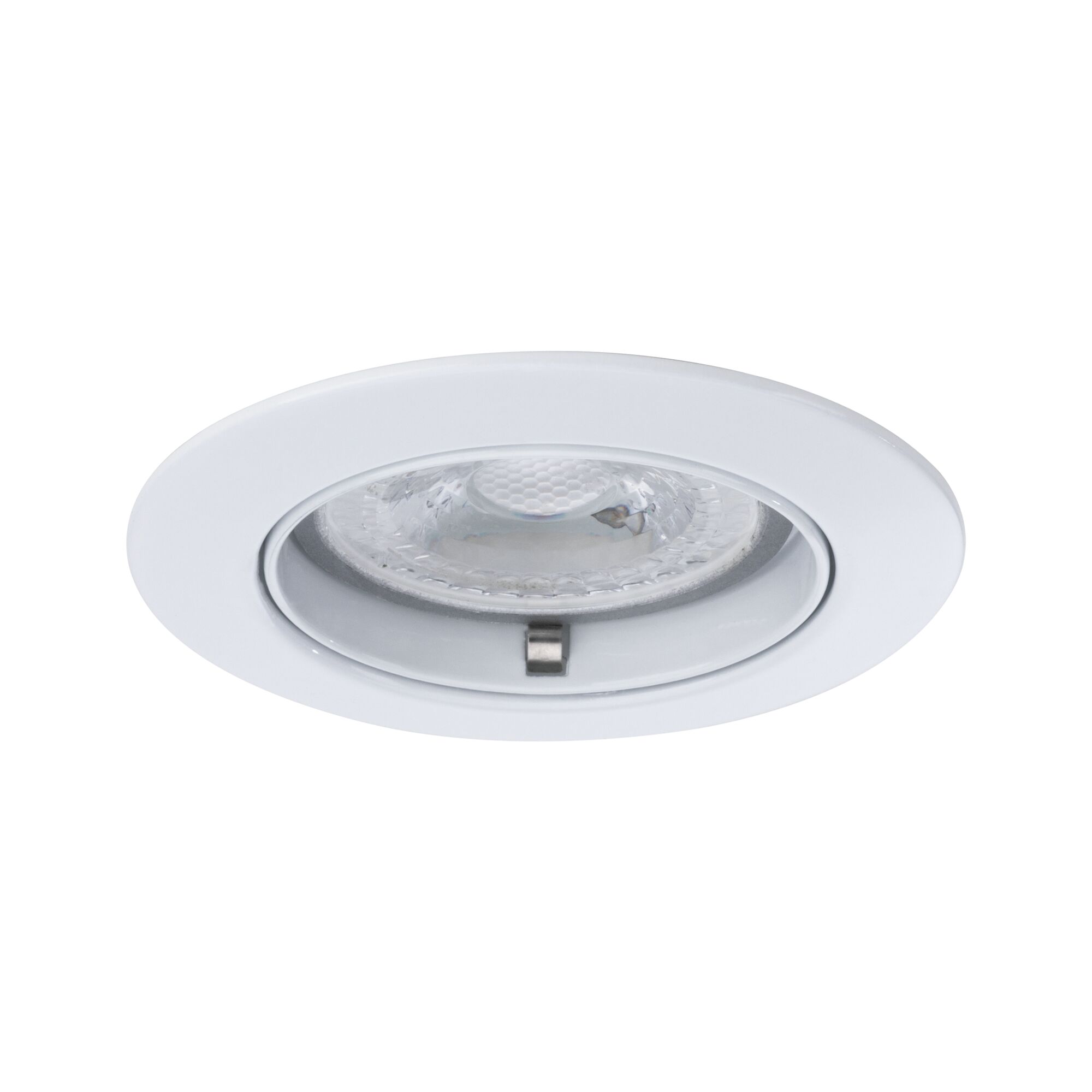

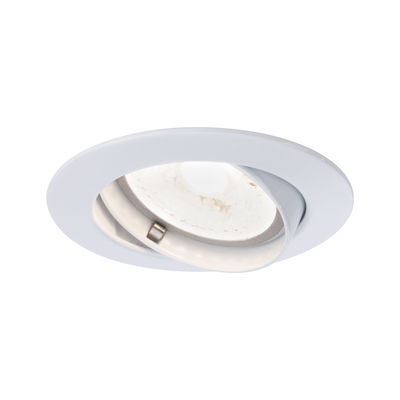

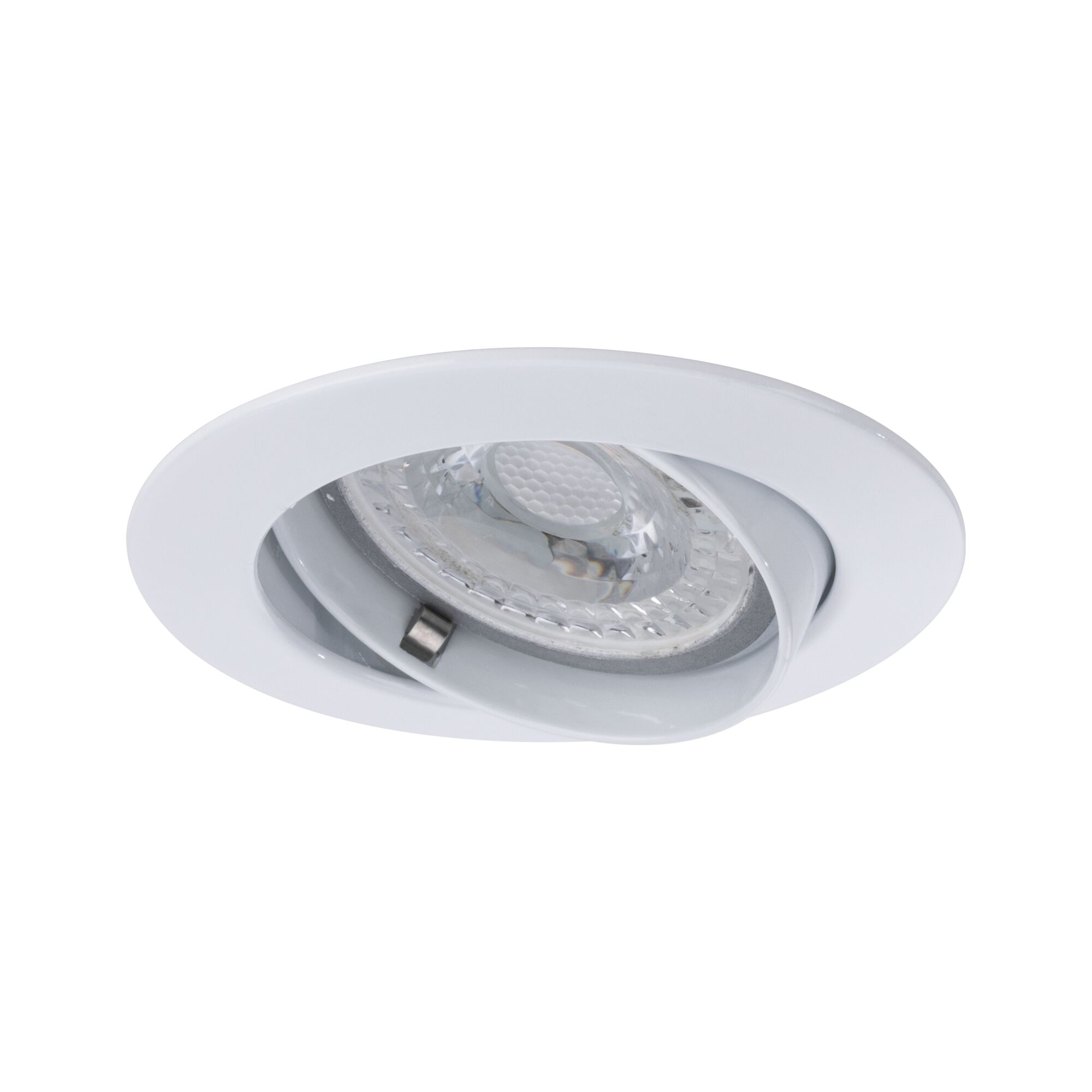

Premium Recessed Luminaire easyClick2 round 83mm 30° GU10 max. 50W 230V dimmable White
Elegant material – high-quality finish. The individually swivelling 230 V halogen recessed luminaires of the Premium Line offer a cosy light and fulfil even the highest expectations for material quality and design. With the re-designed Easy-Click lamp holder, you can change lamp just by pressing down with your finger. Depending on the light source used, the lamp is dimmable.
- Recessed light, suitable for 230V LED, energy-saving or halogen bulbs
- Material: Aluminium Zinc
- Color: White
- LED or energy-saving bulbs and bulbs with brilliant halogen technology fit in this lamp.
- Can be swivelled up to 30° – put the focus on individual spots.
- Type of protection: IP23 (ceiling mounting)
- Diameter: 83mm
- Operating voltage: 230 V
- Don’t forget: Include a suitable lamp in your order!

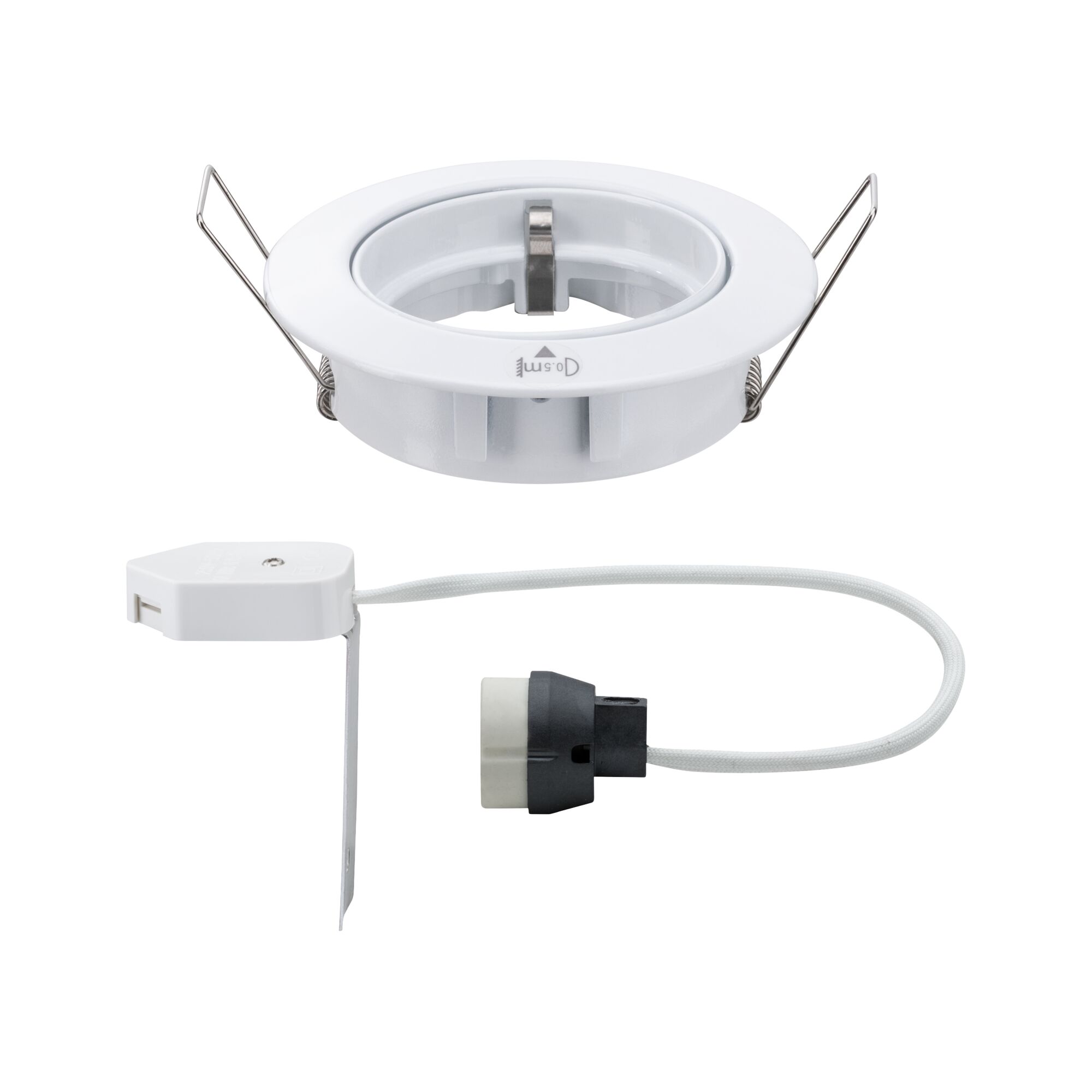

- Extremely quick and easy bulb change thanks to the clever Easy-Click system.

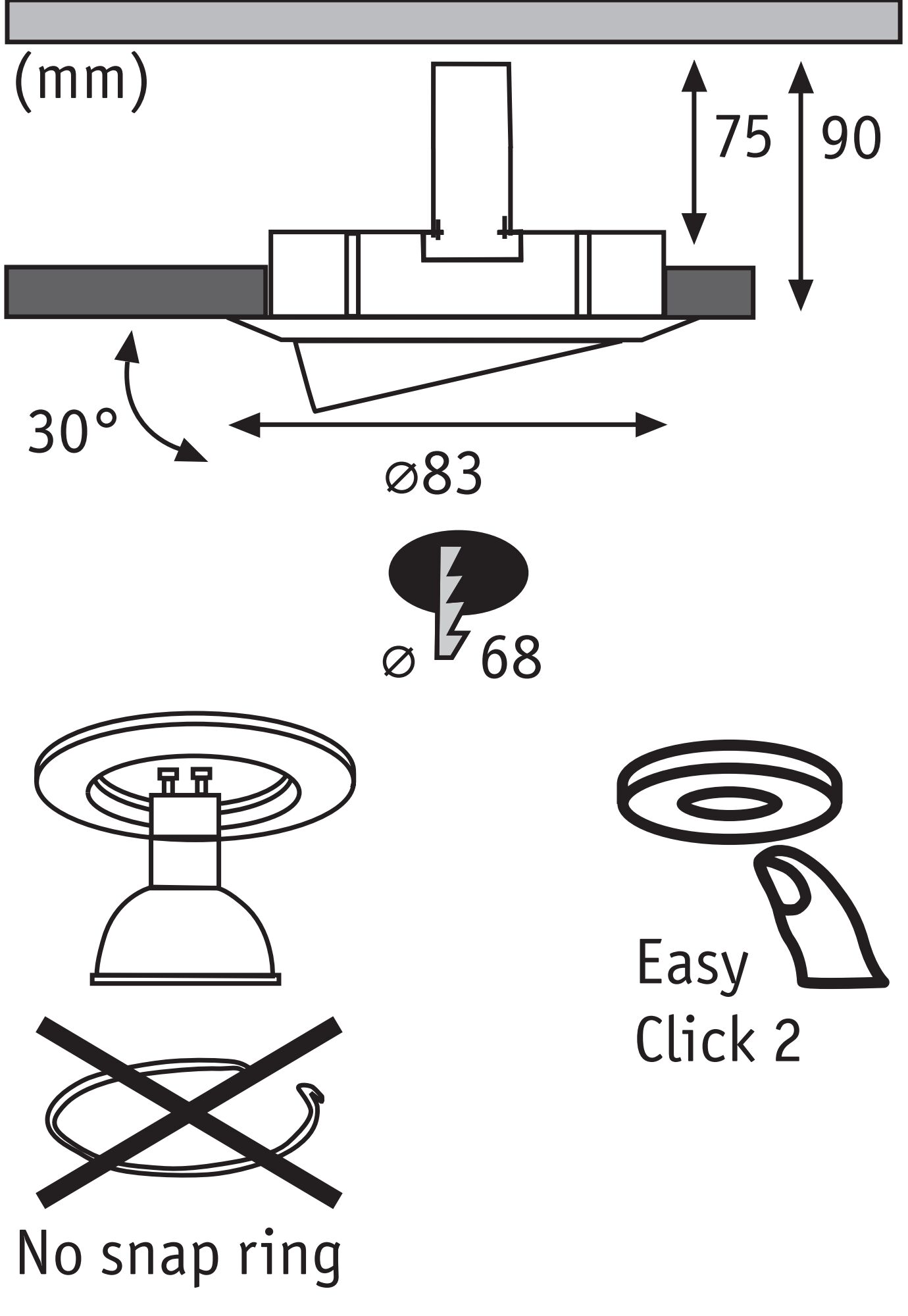

| Dimension | |
|---|---|
| Diameter | 83 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 90 mm |
| Depth of hollow wall | 75 mm |
| net weight | 186 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | White |
| Material | Aluminium zinc |
| Stainless | stainless alu |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Swivel range | 30 ° |
| Base/Socket | GU10 |
| Technique | Lamp without bulb |
| Adjustability | swivelling/tilting |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Maximum wattage range | max. 50 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
