Article-No.:
99942
Premium
LED Recessed luminaire
Dim to Warm
Suon Basic Set
IP44 round 90mm 3x5W 3x450lm 230V dimmable Dim to warm Satin/White
IP44 round 90mm 3x5W 3x450lm 230V dimmable Dim to warm Satin/White

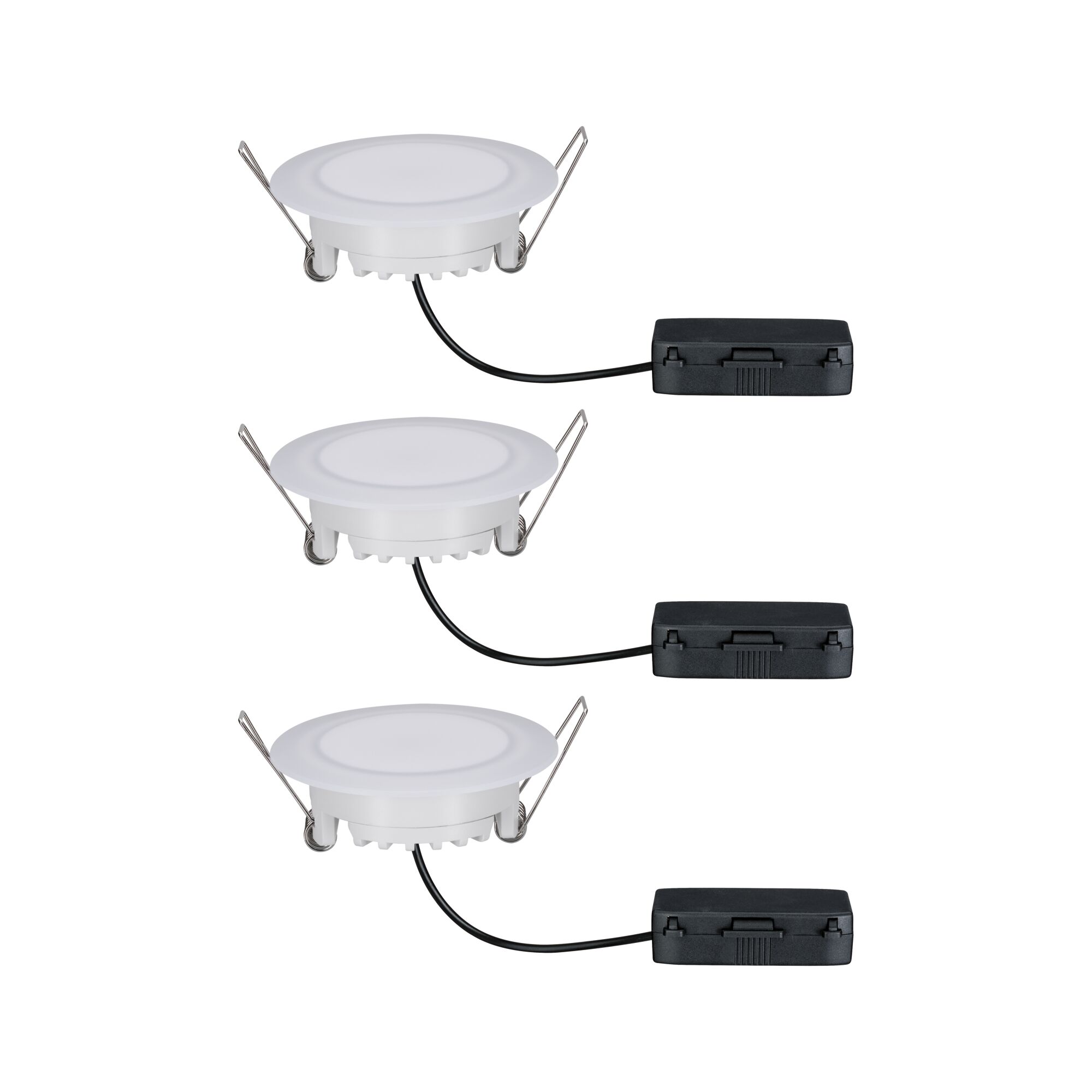

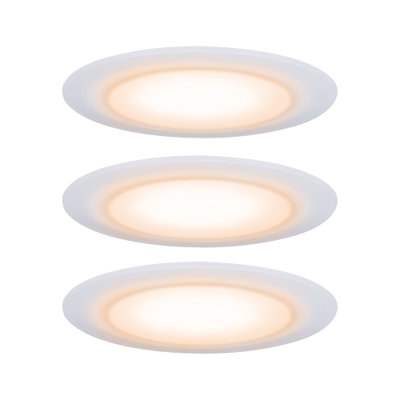

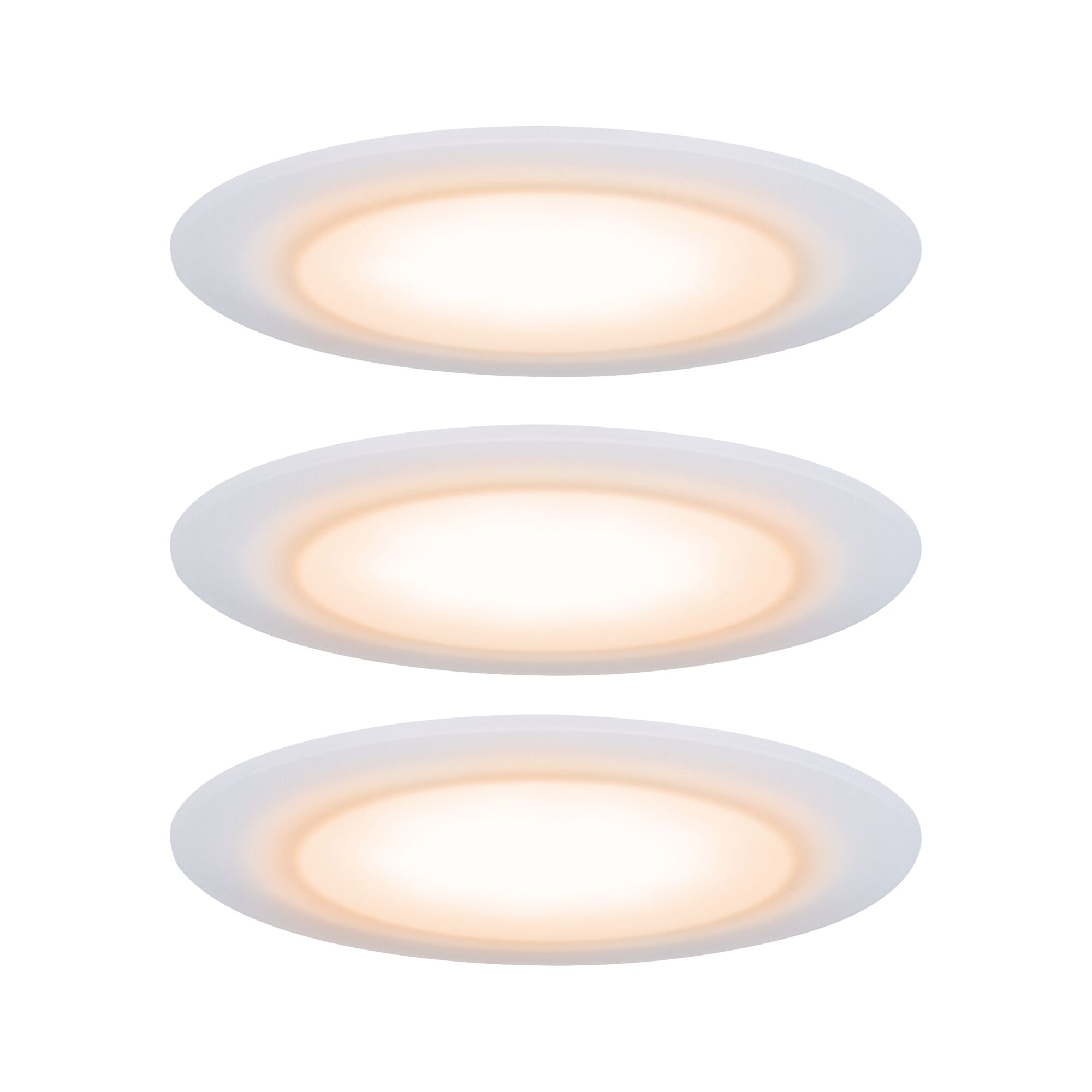

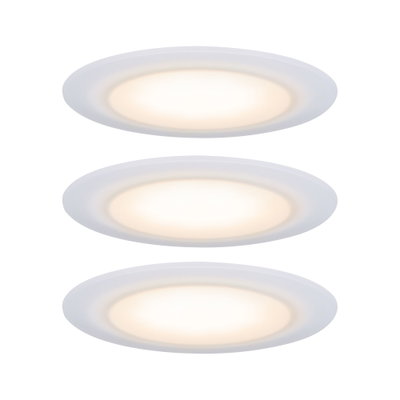

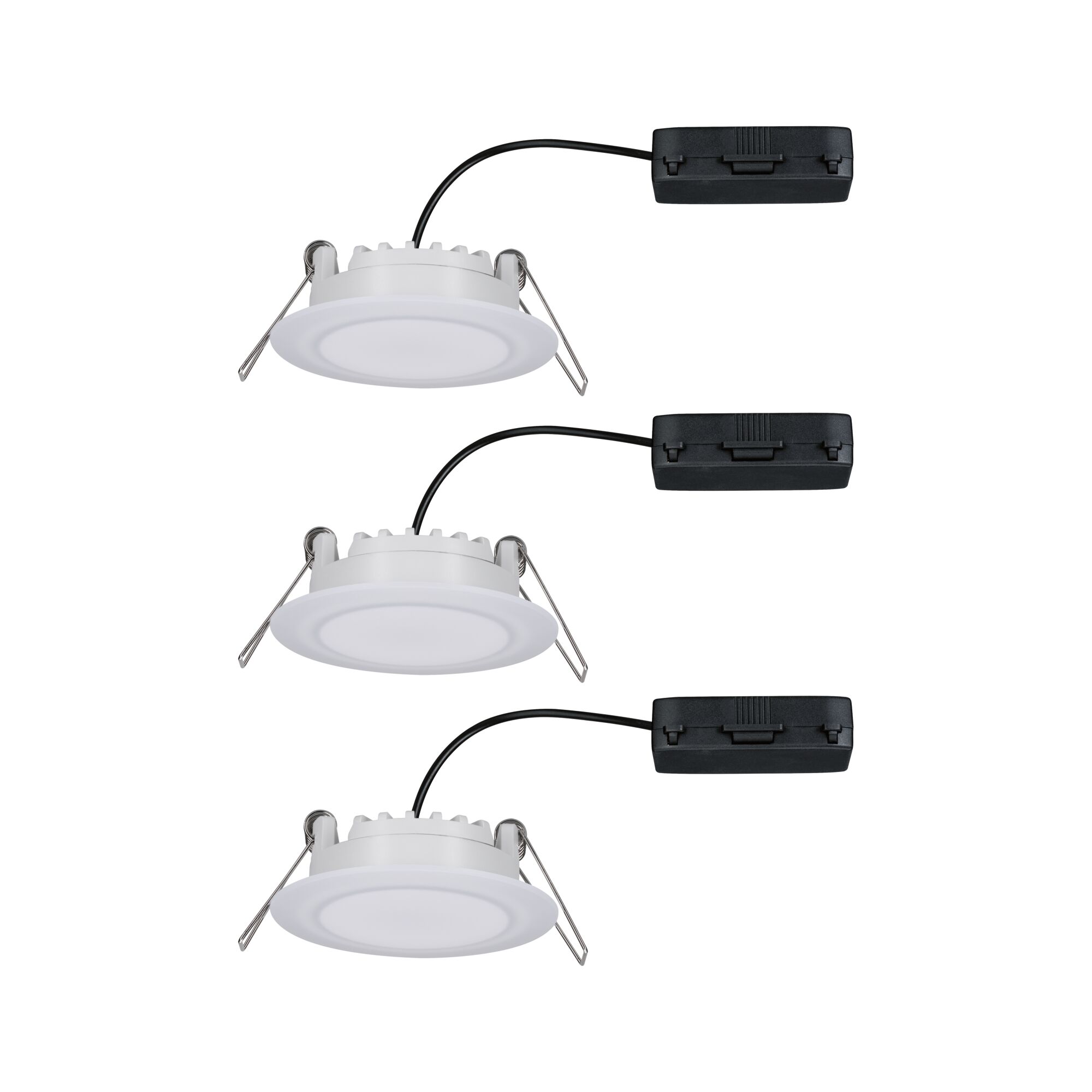

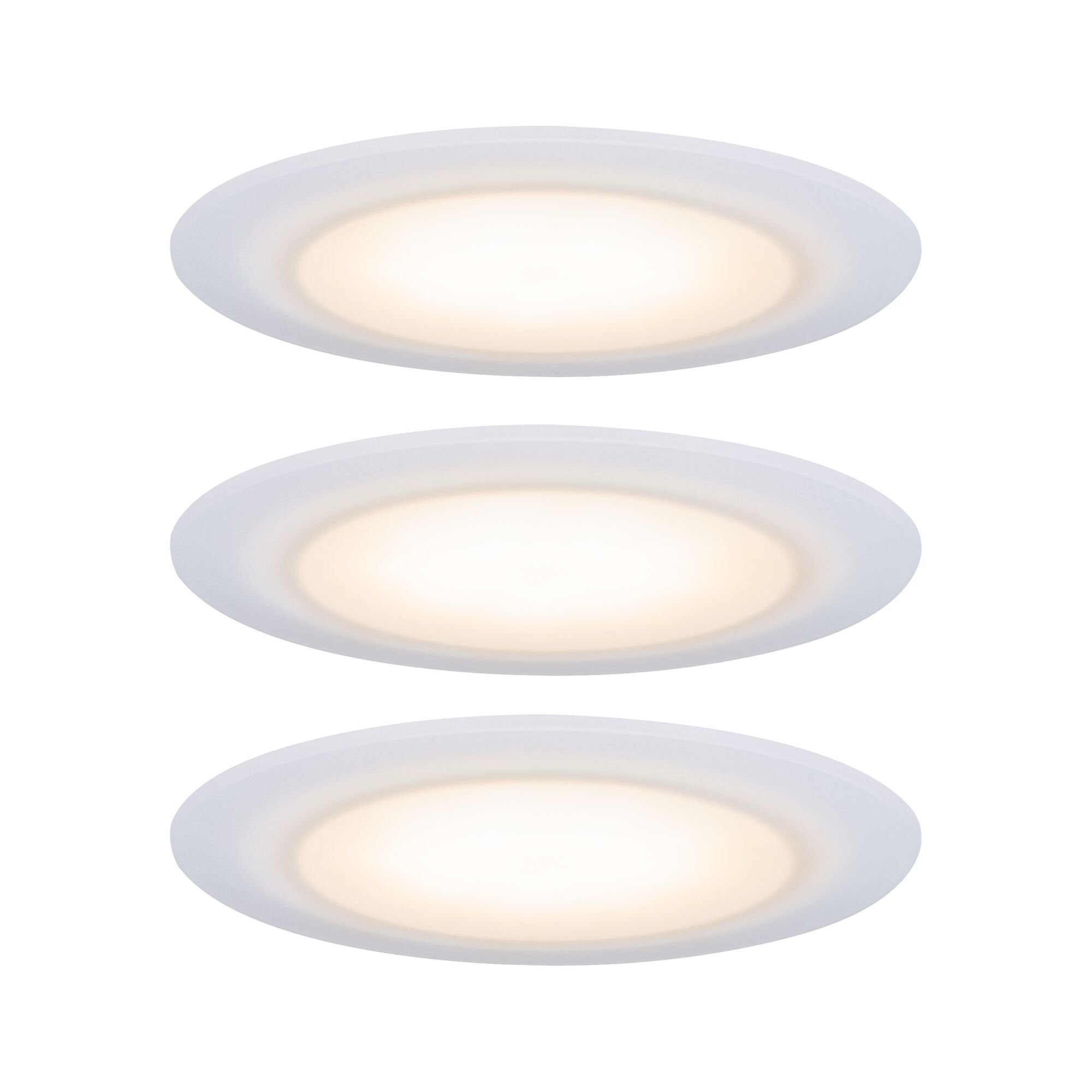

- Set of 3 luminaires incl. LED module
- Warmdimm function
- IP protection: IP44 splash-protected
Premium LED Recessed luminaire Dim to Warm Suon Basic Set IP44 round 90mm 3x5W 3x450lm 230V dimmable Dim to warm Satin/White

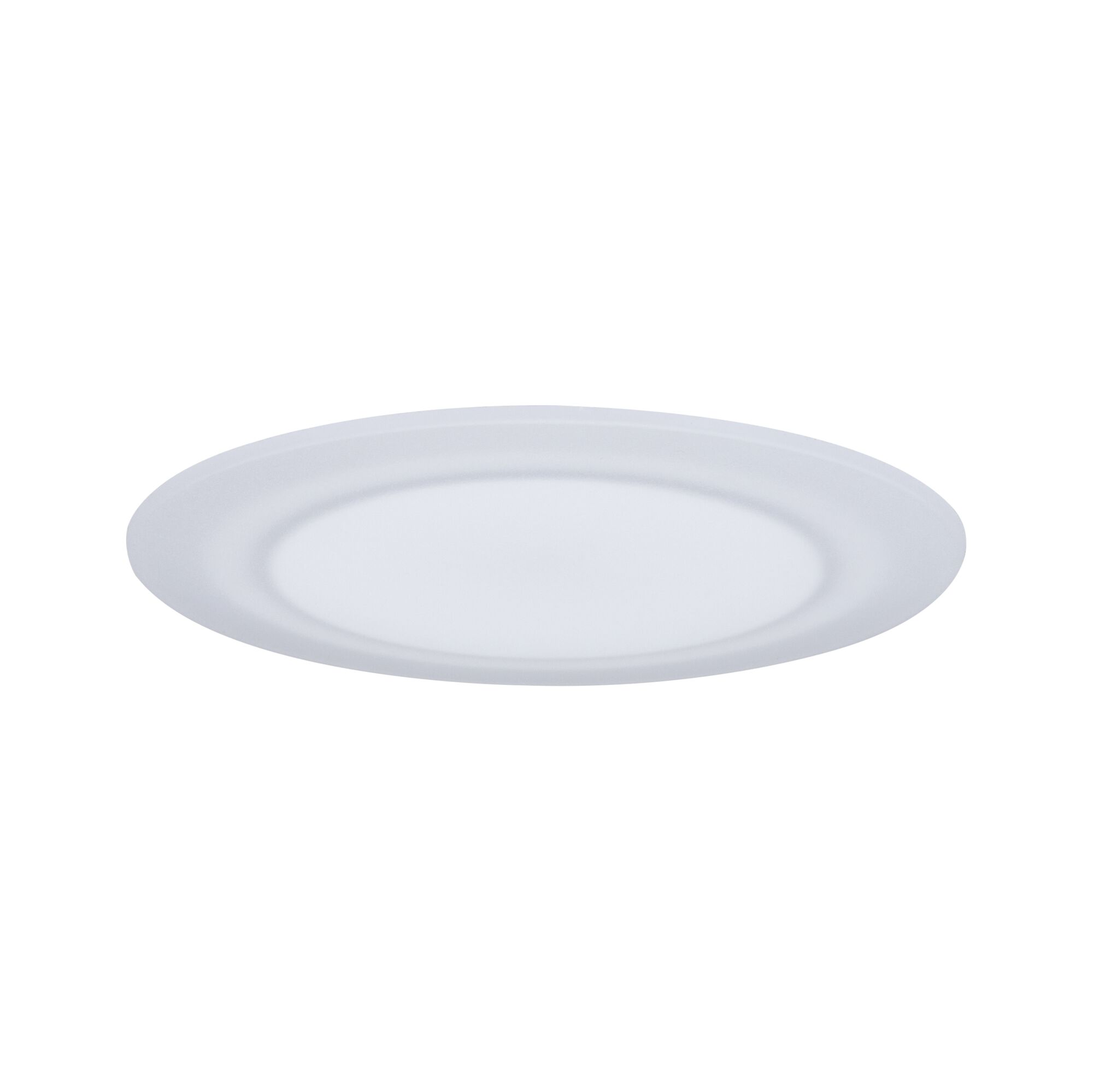

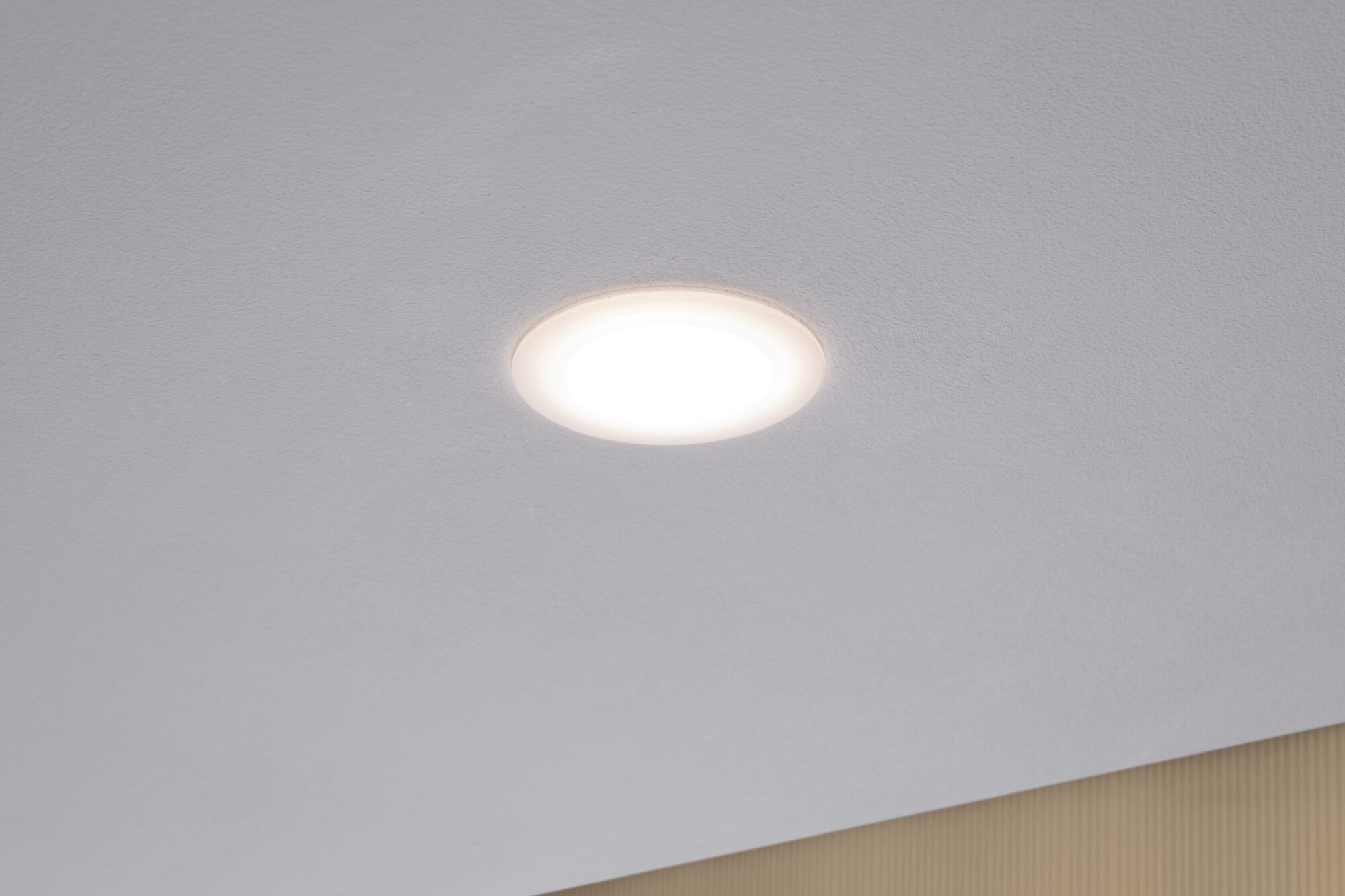

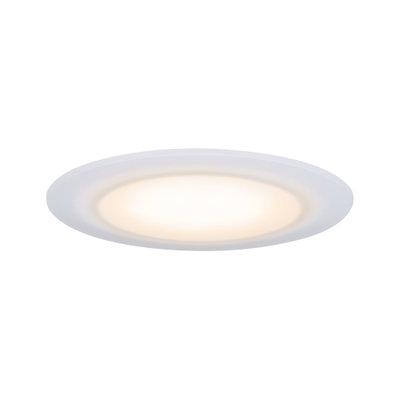

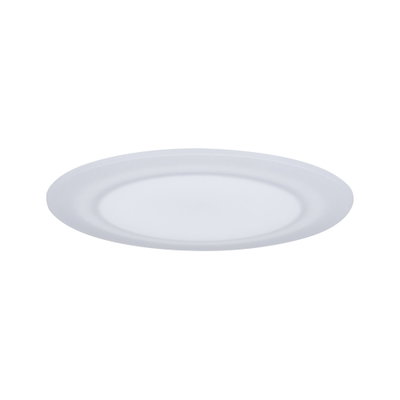

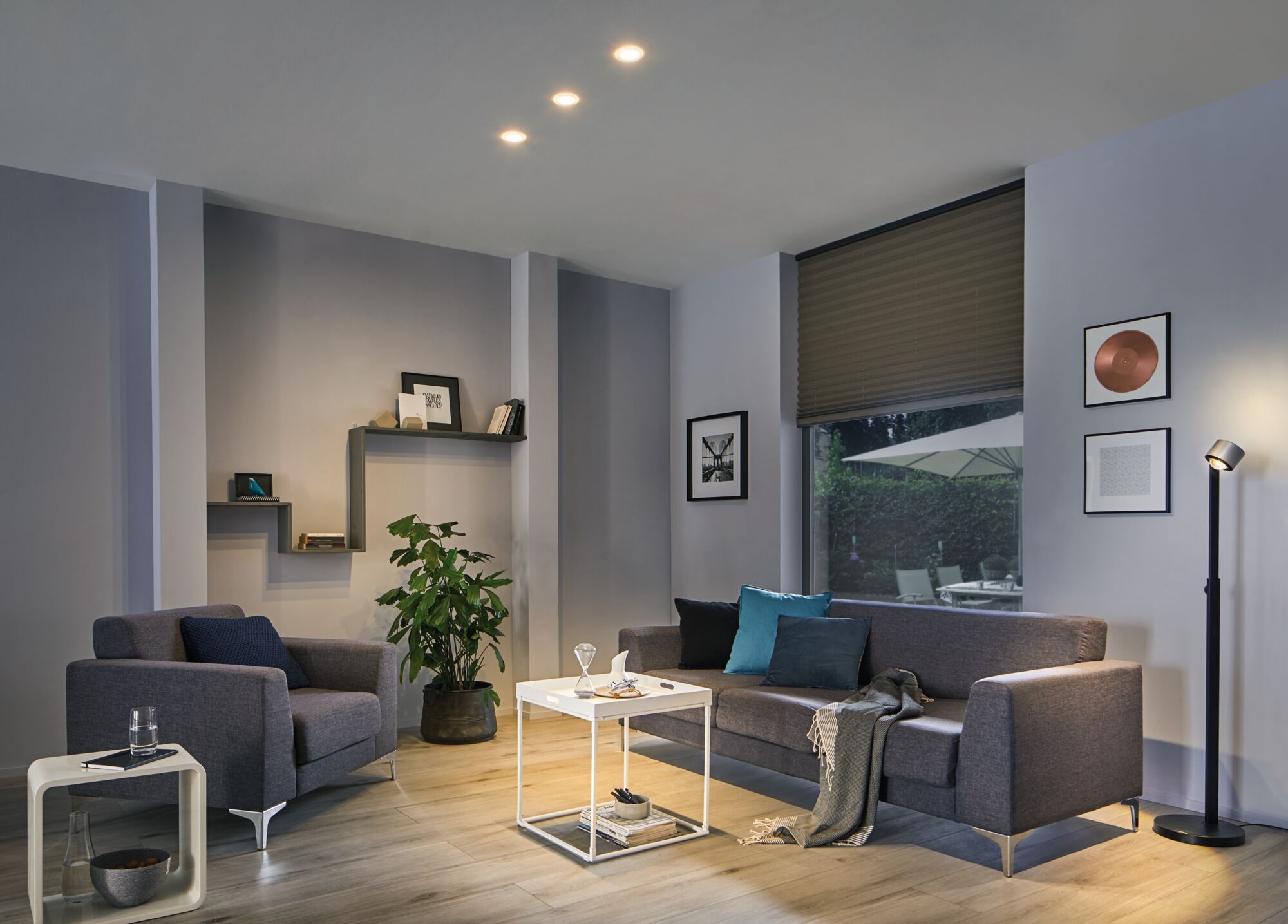

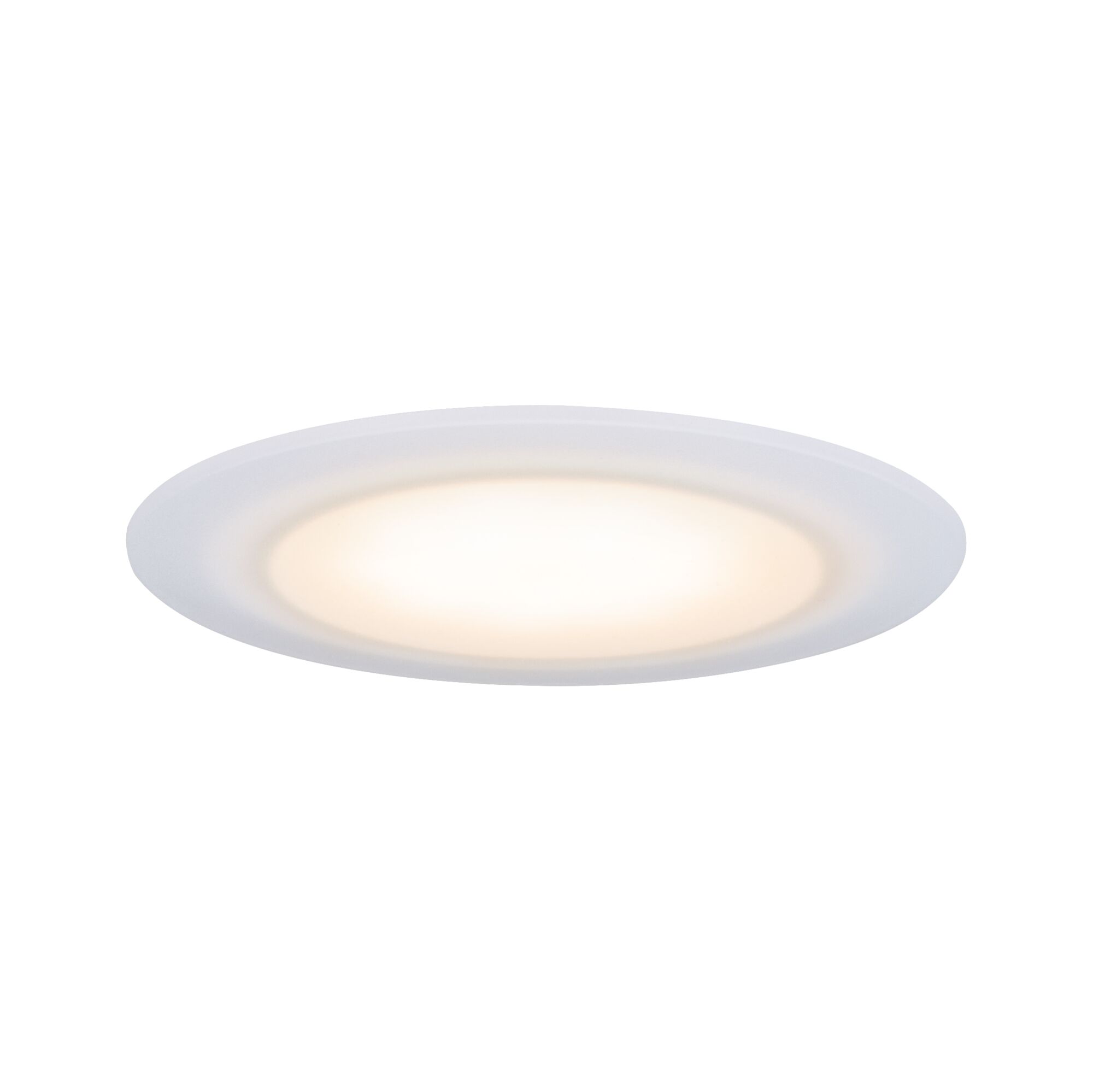

100% minimalist – Courtesy of their transparent materials, Suon premium frameless recessed luminaires are almost invisible while switched off. The entire lighting body forms a single lighting source spread over its entire surface, achieving a uniform light distribution. The light colour is infinitely variable between 2,000 Kelvin (gold light) and 2,700 Kelvin (warm white light). Use it to adjust the atmosphere in your home just as the mood suits you.
- Set of 3 luminaires incl. LED module
- Warmdimm function
- IP protection: IP44 splash-protected

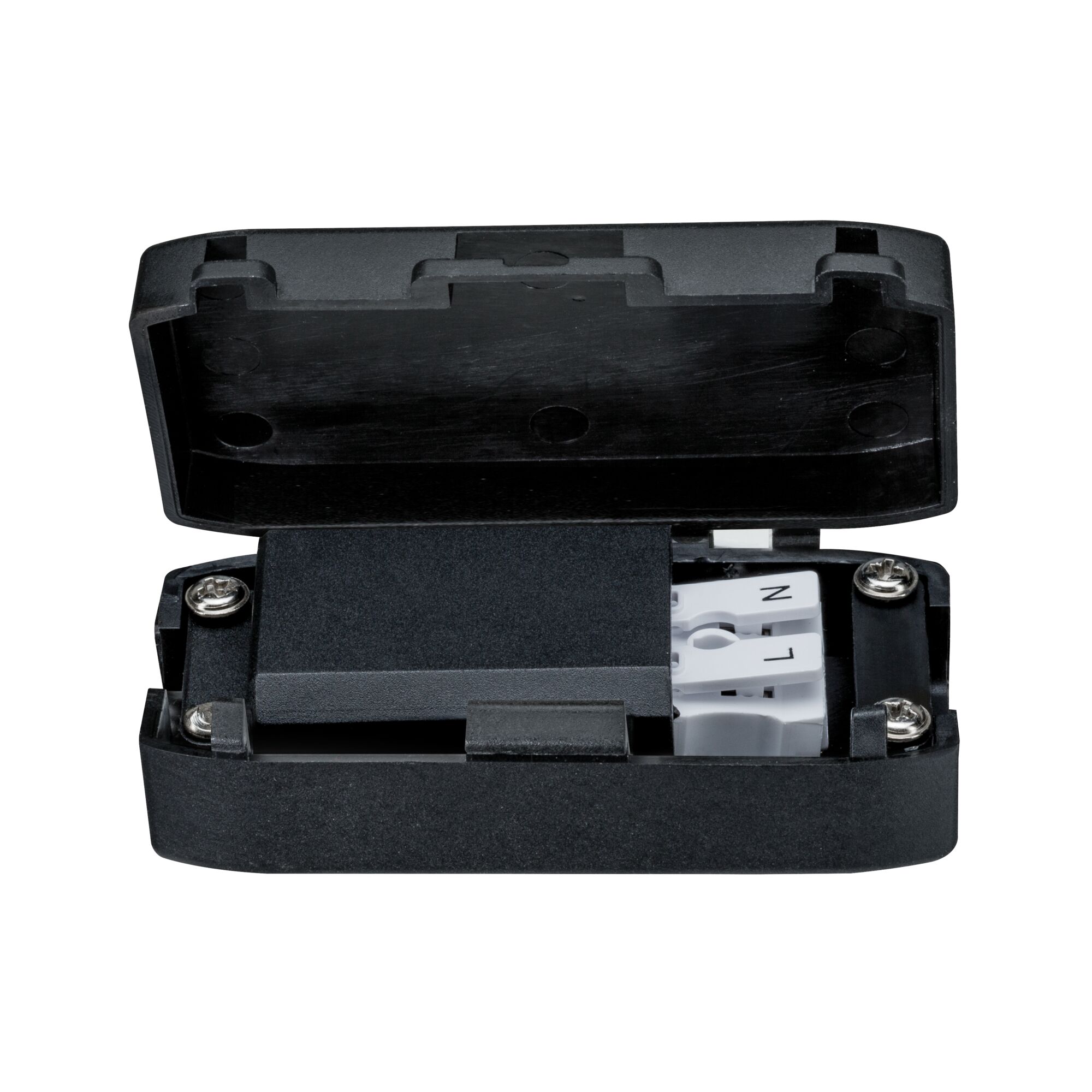

- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | H: 5 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White, Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2000 K |
| Colour change | Dim to warm |
| Usable luminous flux | 450 lm |
| Luminous flux LED module | 630 lm |
| color temp | 2000 - 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 48 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Transformer | |
|---|---|
| apparent power | 8 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
