Article-No.:
93942
PremiumLED Recessed luminaire

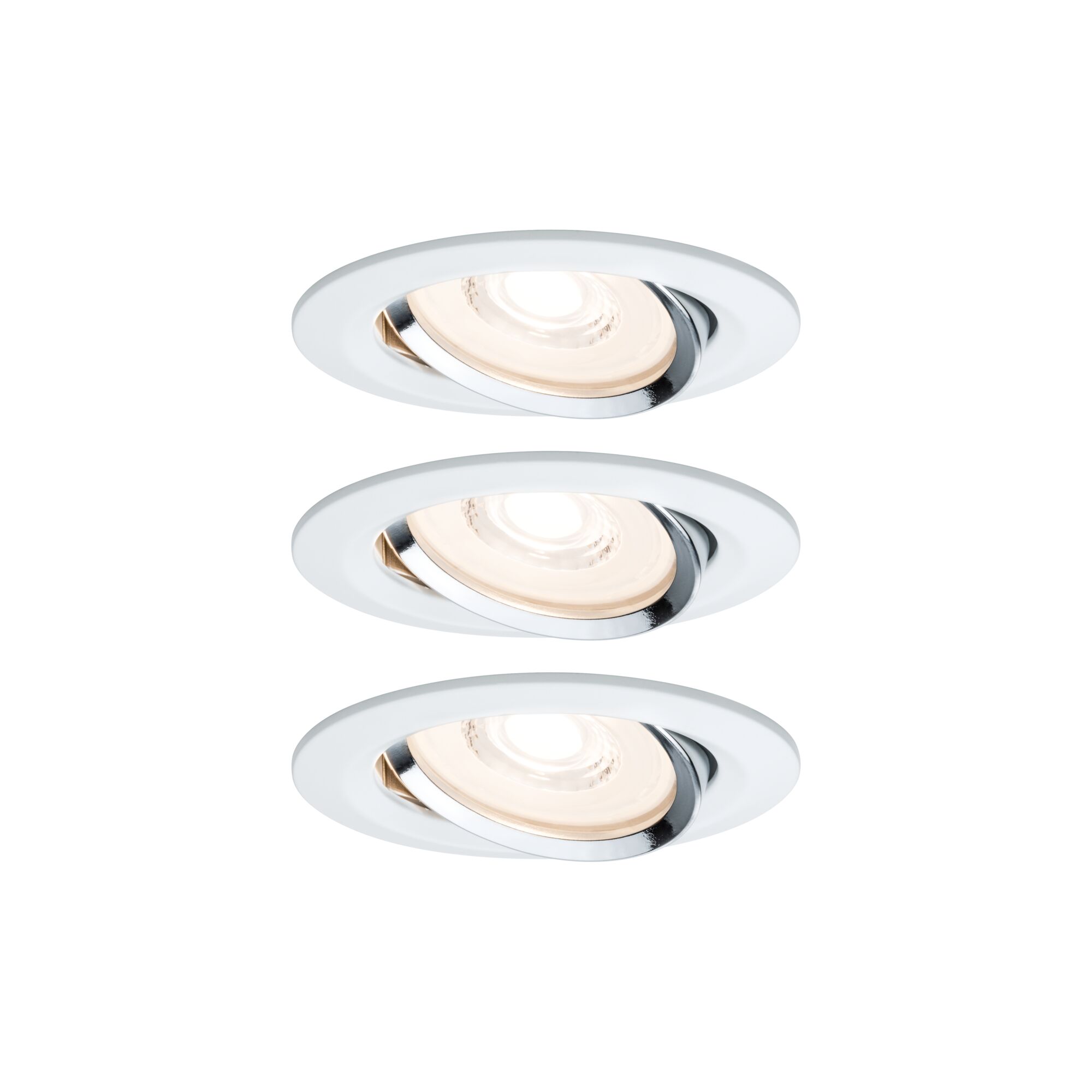

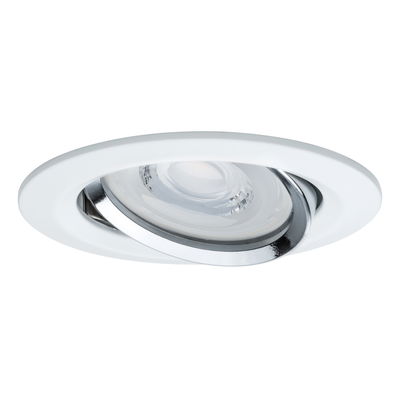

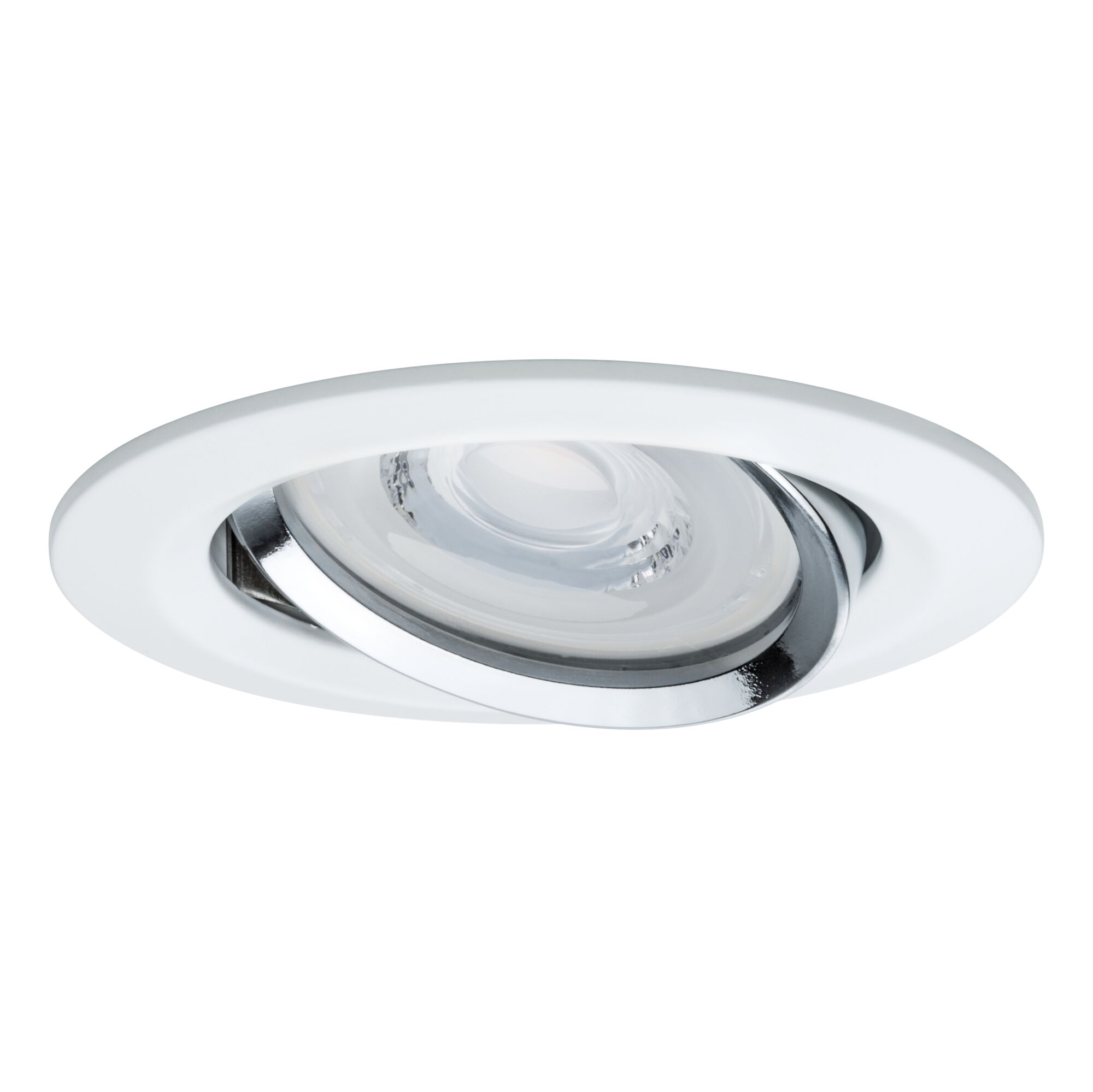

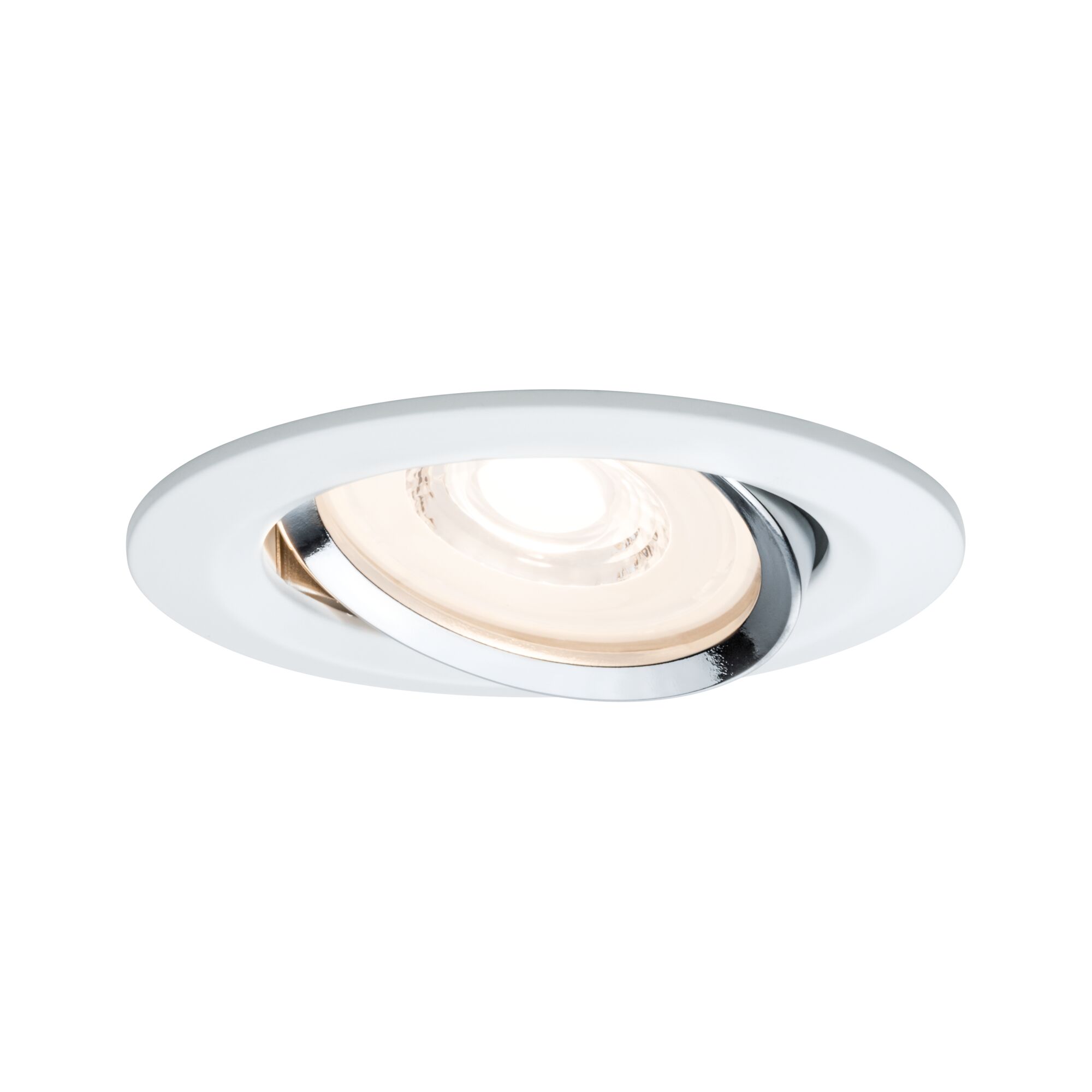

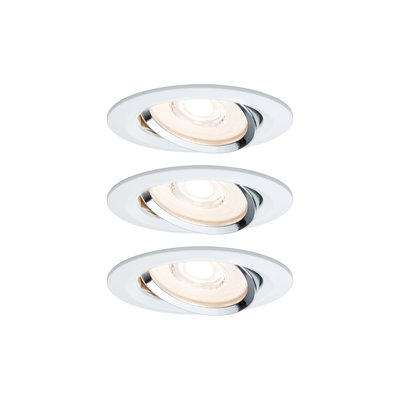

LED Recessed luminaire Coin Basic Set Swivelling
round 84mm 50° Coin 3x6,8W 3x463lm 230V dimmable 2700K White/Chrome
round 84mm 50° Coin 3x6,8W 3x463lm 230V dimmable 2700K White/Chrome

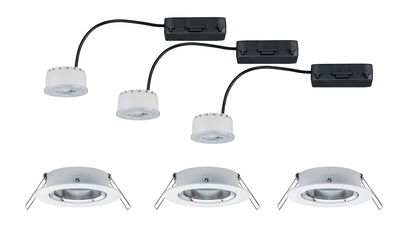

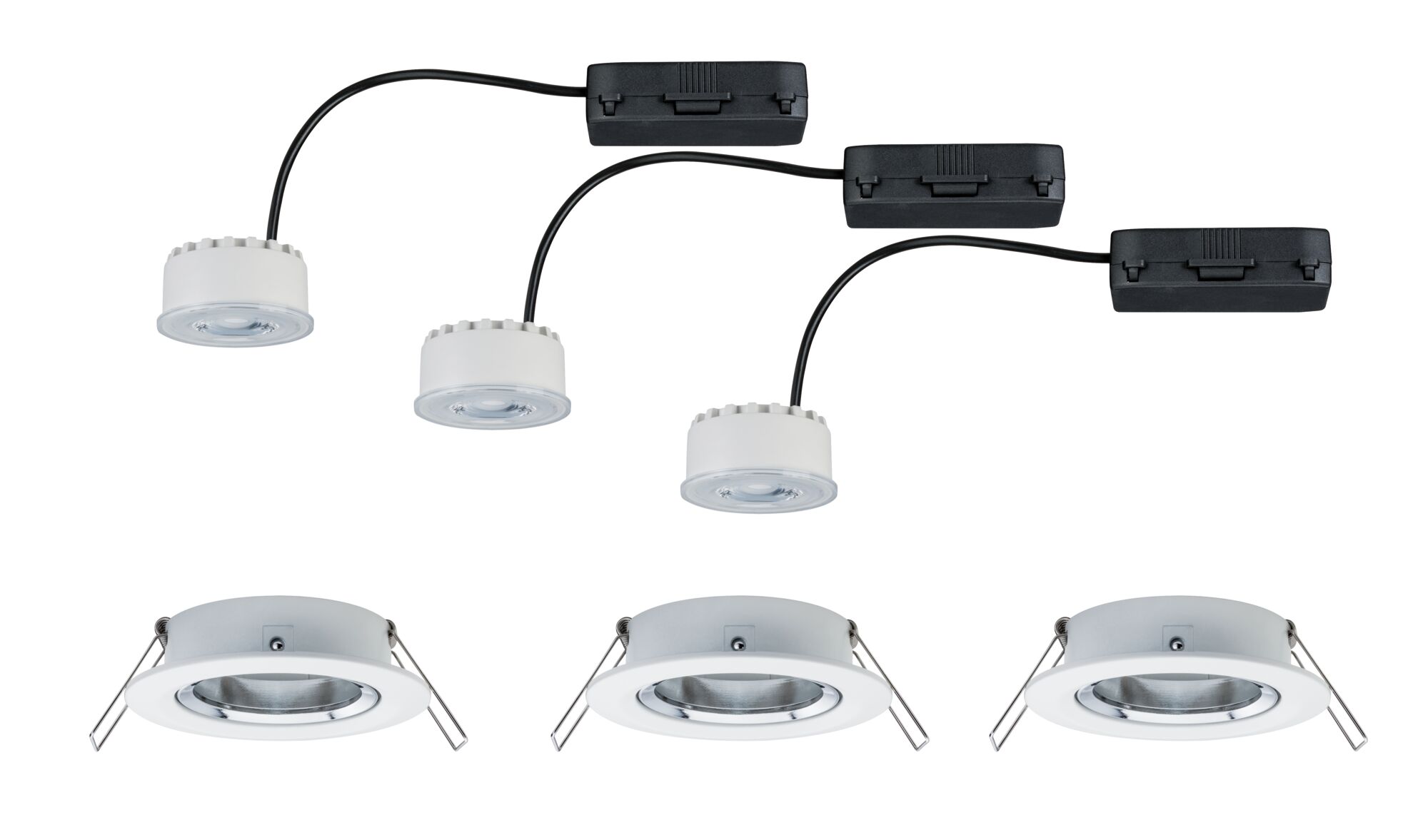

- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.
Premium LED Recessed luminaire Coin Basic Set Swivelling round 84mm 50° Coin 3x6,8W 3x463lm 230V dimmable 2700K White/Chrome
Coin reflectors are user-friendly recessed spotlights with directed light for accent lighting. They are suitable for new installations as well as for replacing existing installations. Their flat design means that they can be installed in ceilings with a cavity of only 30 millimetres. You yourself can determine the spacing between the recessed spots. The simple and tool-free linking of single luminaires using quick clips saves you time and stress. The dimming function enables you to adjust the brightness to your individual mood and ensures bright light to work in and a cosy living atmosphere.
- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.

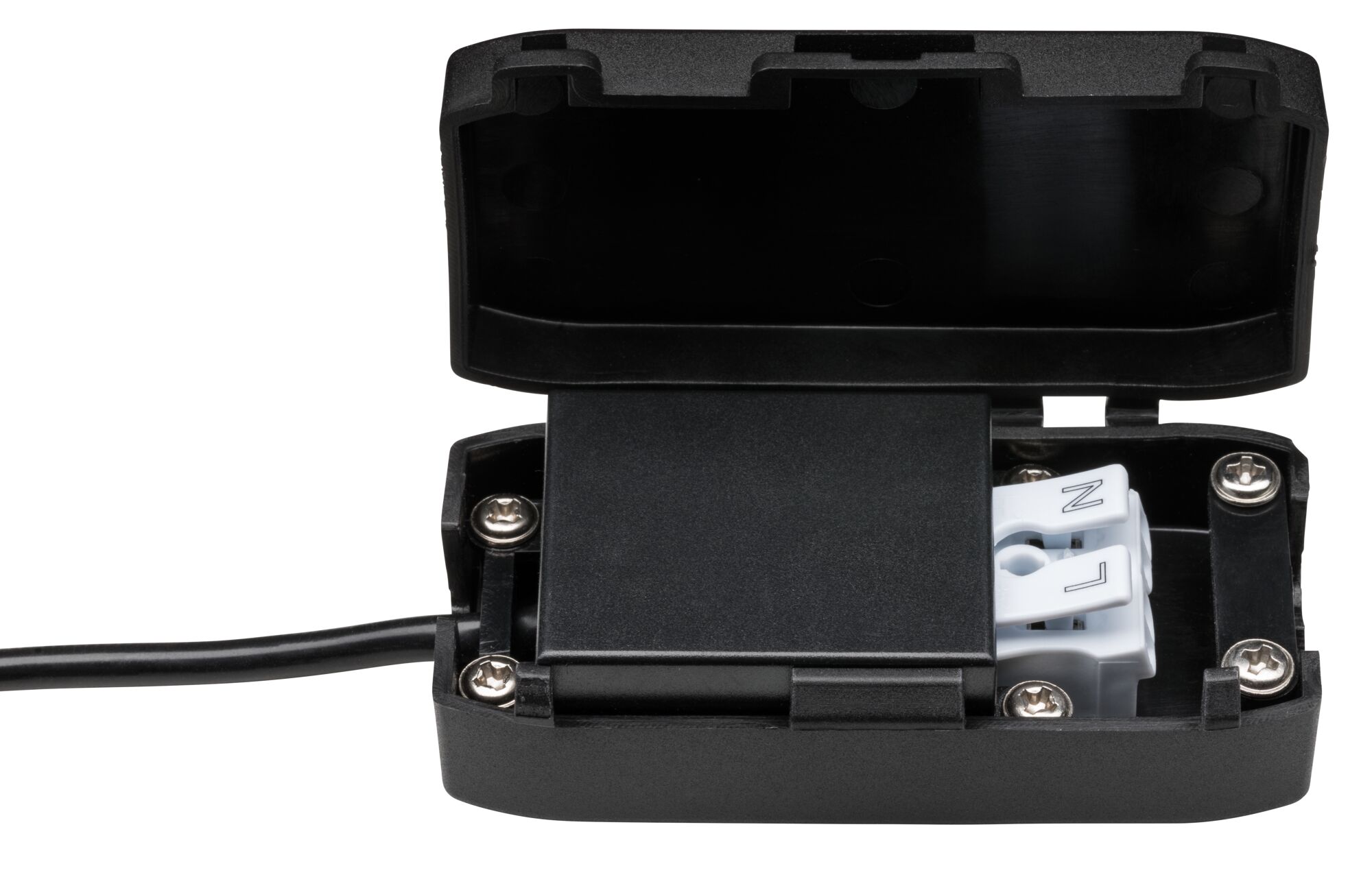

- For 230 V direct connection
- Efficient LED technology
- Color temperatur: 2700K - Warm white
- Dimmable

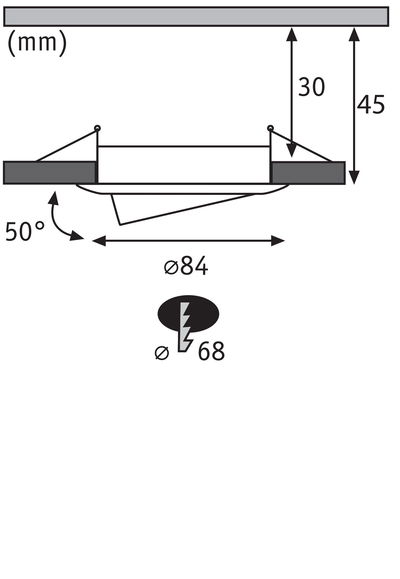

| Dimension | |
|---|---|
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | White, Chrome |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 463 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 50 ° |
| Incandescent Equivalent | 40 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6,8 W |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
