Article-No.:
93944
PremiumLED Recessed luminaire
LED Recessed luminaire Coin Basic Set Swivelling
round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron
round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron

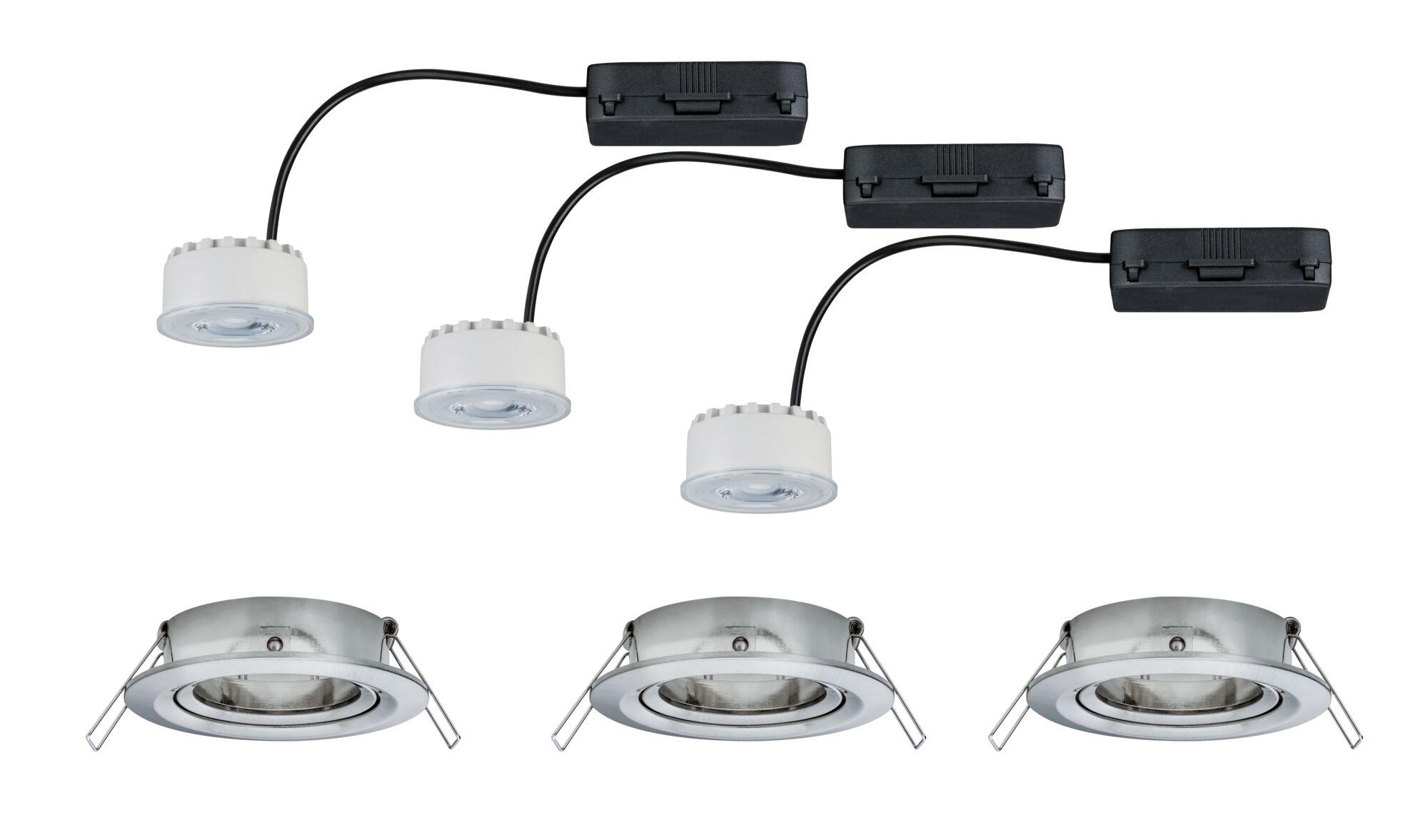

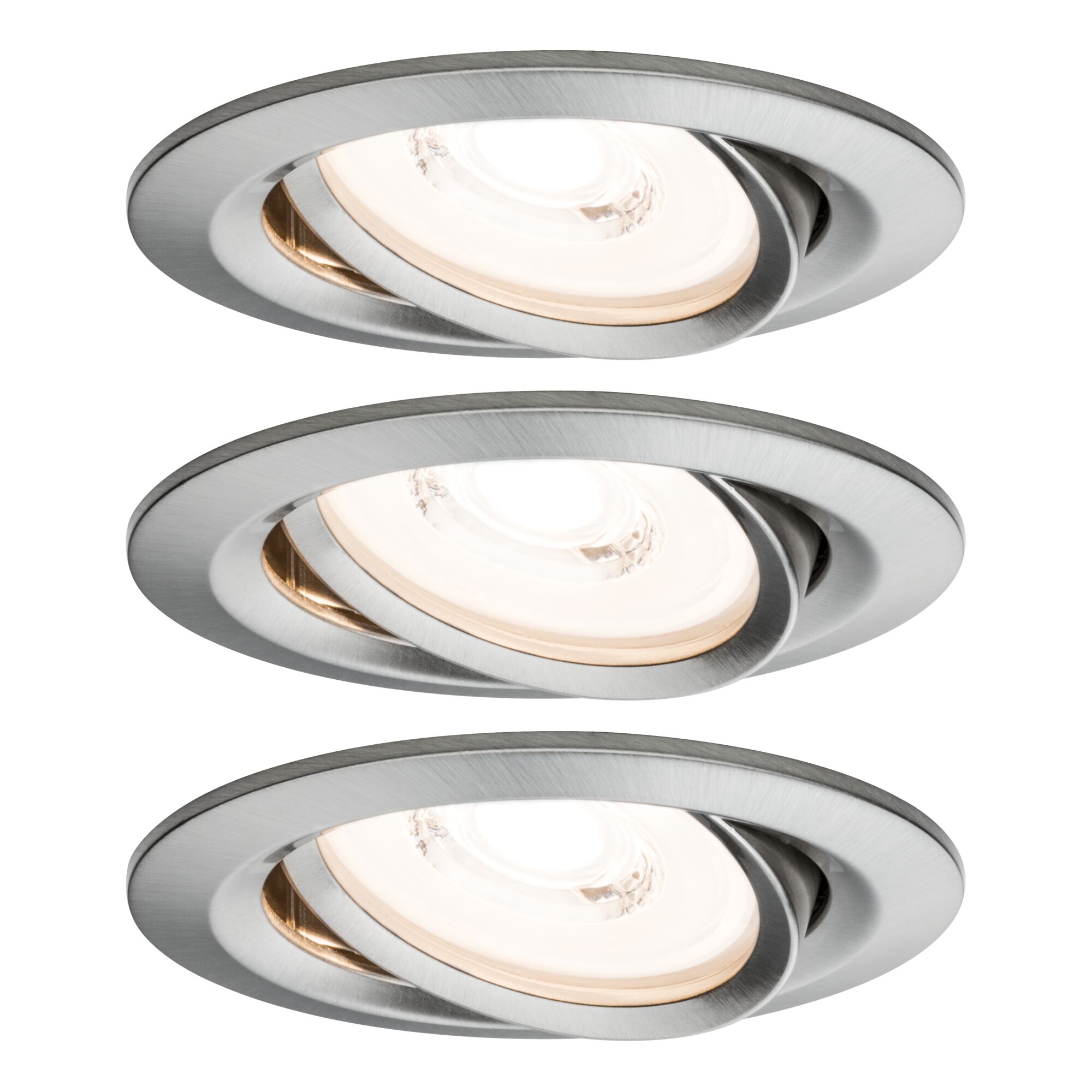

- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.
Premium LED Recessed luminaire Coin Basic Set Swivelling round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron
Coin reflectors are user-friendly recessed spotlights with directed light for accent lighting. They are suitable for new installations as well as for replacing existing installations. Their flat design means that they can be installed in ceilings with a cavity of only 30 millimetres. You yourself can determine the spacing between the recessed spots. The simple and tool-free linking of single luminaires using quick clips saves you time and stress. The dimming function enables you to adjust the brightness to your individual mood and ensures bright light to work in and a cosy living atmosphere.
- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.
- For 230 V direct connection
- Efficient LED technology
- Color temperatur: 2700K - Warm white
- Dimmable

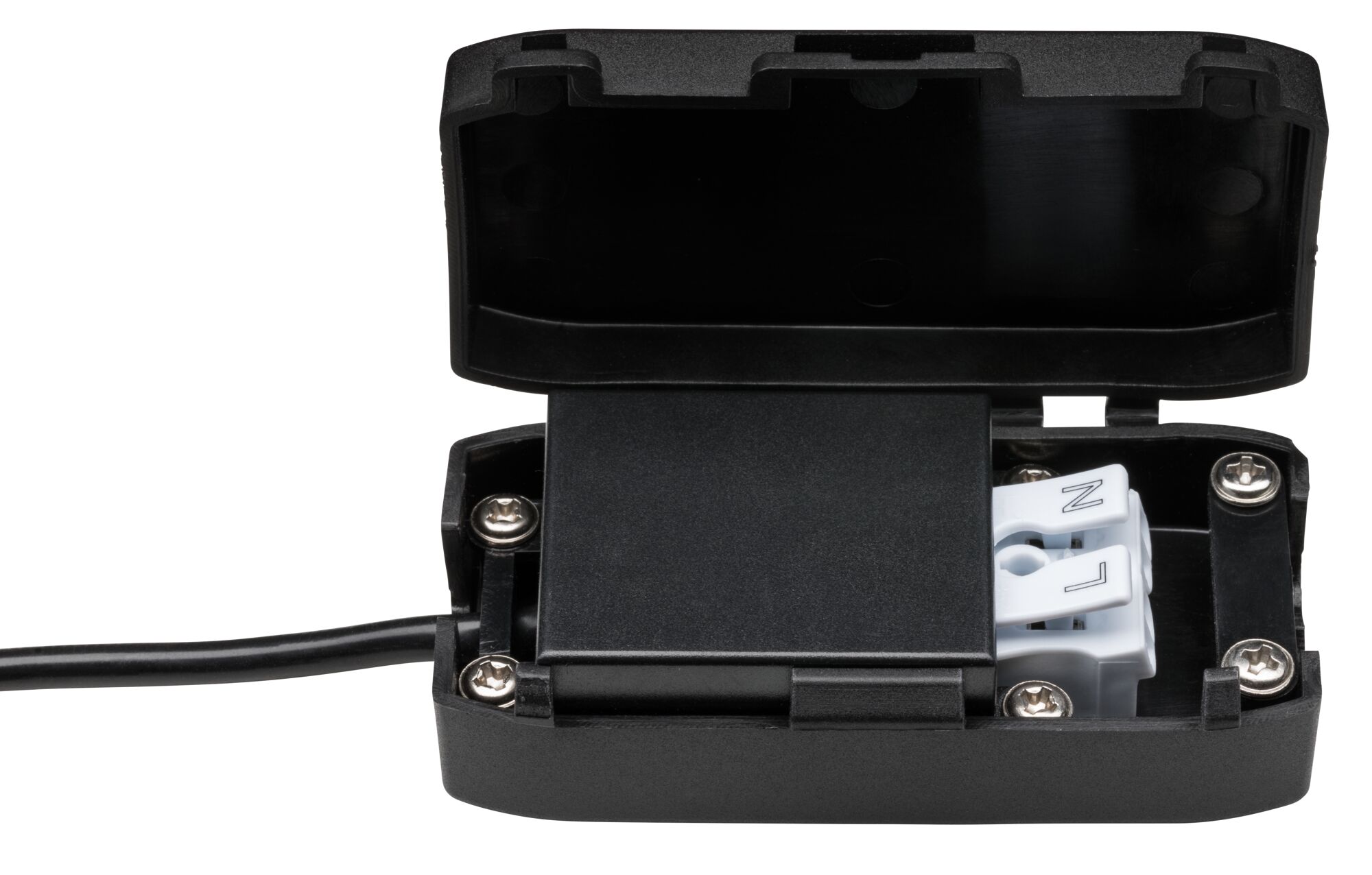

- Incl. junction box with double quick clamp for feeding through wires
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Brushed iron |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, Paulmann Smart Home BLE 500.18, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 38 ° |
| Usable luminous flux | 430 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6,3 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 37 W |
| Adjustability | swivelling/tilting |
| IP protection | IP23 ceiling mounting |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
