Article-No.:
93920
Plug & ShineLED Surface-mounted floor luminaire
Warm white Individual Spot Double light emission, 180°
IP67 3000K 2x3,3W Anthracite
IP67 3000K 2x3,3W Anthracite
- Max. load up to 2000 kg
- IP Protection: IP67 - protected against temporary immersion
- 24 V surface-mounted luminaire

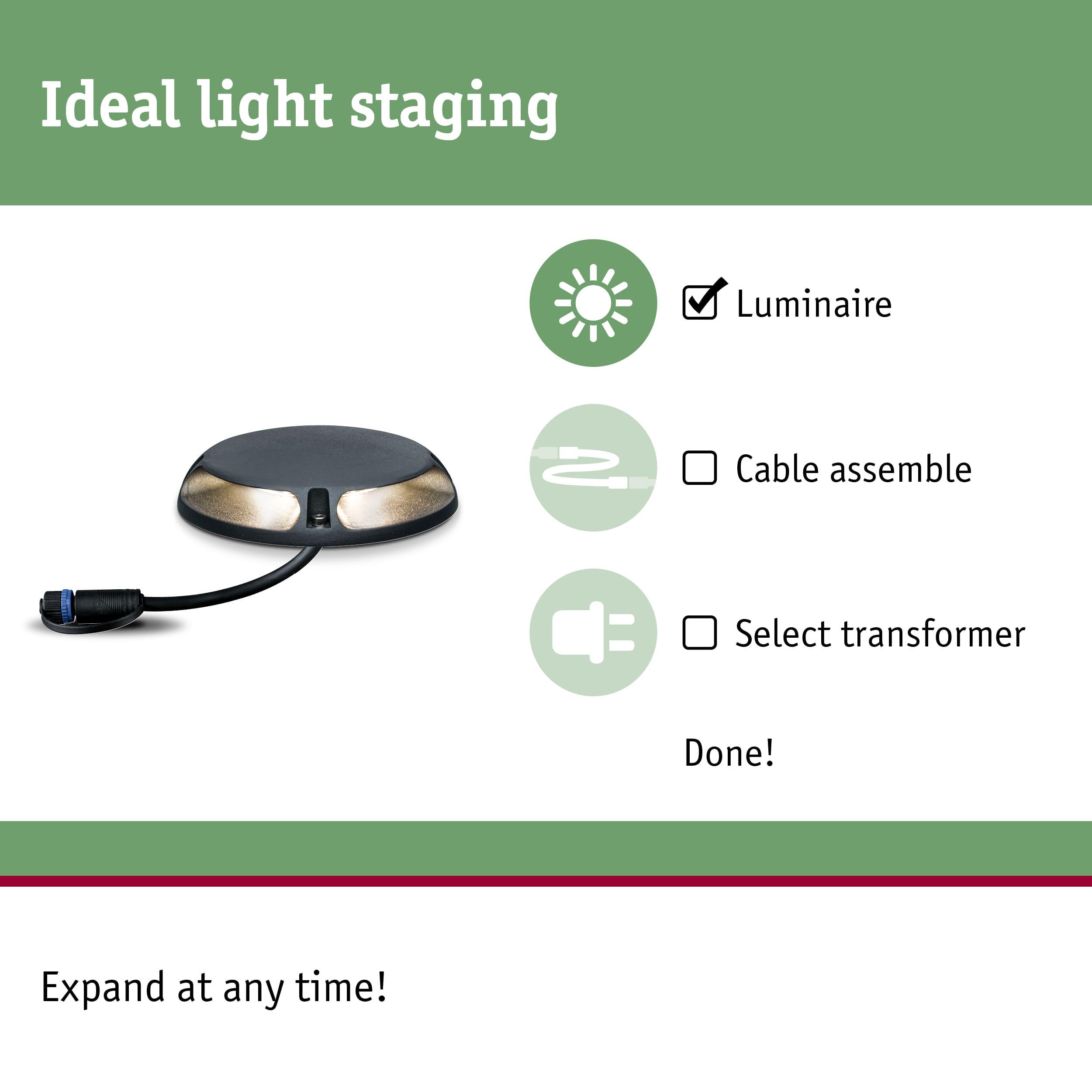

Plug & Shine LED Surface-mounted floor luminaire Warm white Individual Spot Double light emission, 180° IP67 3000K 2x3,3W Anthracite

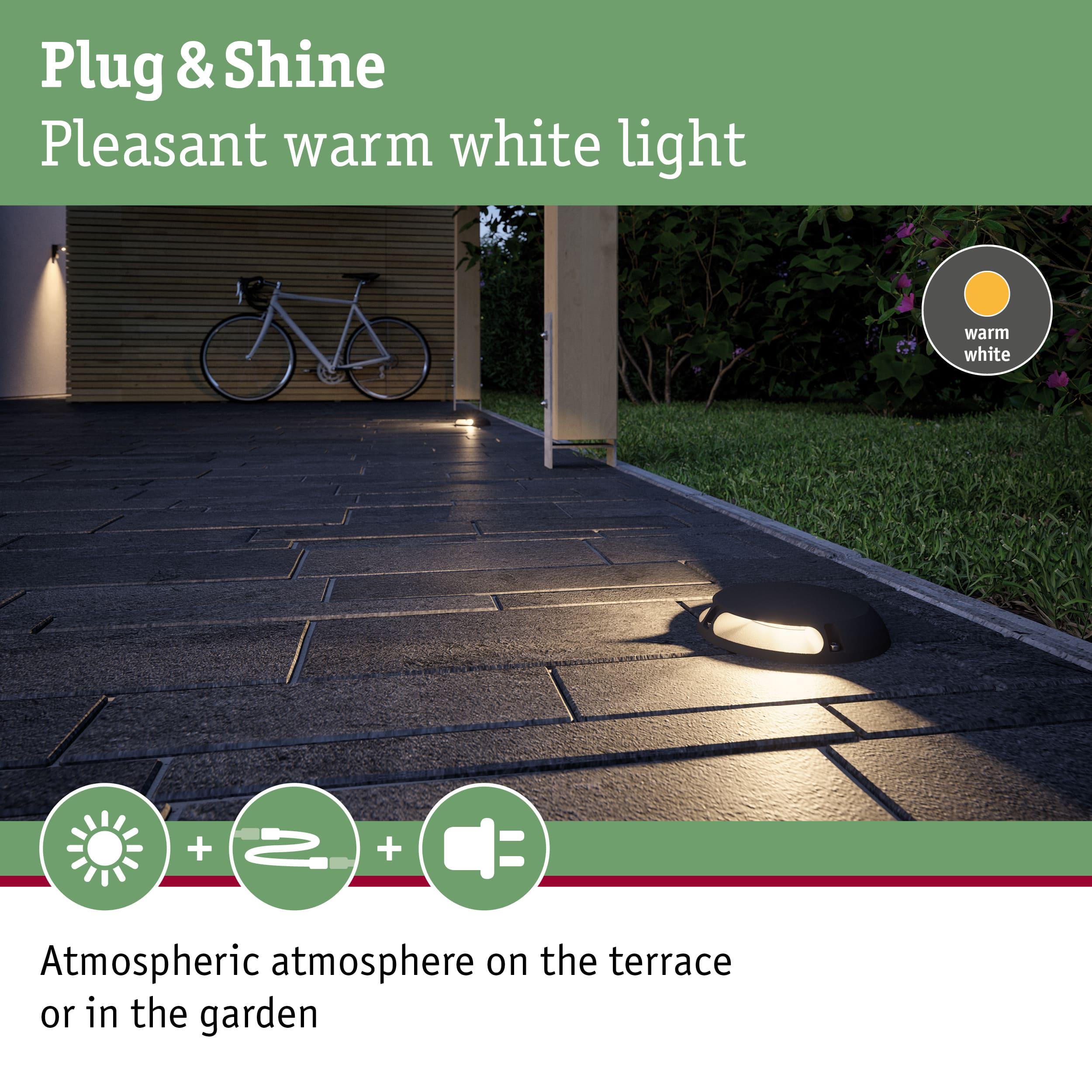

Plug & Shine surface-mounted luminaires, made of weather-resistant pressure-cast aluminium, illuminate your paths and driveways without glare, so you can easily find your way after dark. The luminaires can withstand weights of up to 2,000 kilograms and can be driven over by a car without a problem. The beam angle is 180 degrees. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile an individual lighting installation for your outdoor spaces.
- Max. load up to 2000 kg
- IP Protection: IP67 - protected against temporary immersion
- 24 V surface-mounted luminaire
- Glare-free light, directed to the side
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 39 mm |
| Ø | 160 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Anthracite |
| Material | Die cast aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For glare-free illumination of paths and driveways |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Beam angle | 180 ° |
| Usable luminous flux | 330 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 330 lm |
| Beam angle LED module | 116 ° |
| Lamp Features | |
|---|---|
| Component parts | 3,3 W |
| Technique | LED |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Incandescent Equivalent | 53 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel fest integriert |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 2x |
| protection class | Protection class III |
| Maximum load | 2000 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6 W |
| Transformer | |
|---|---|
| apparent power | 6.7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
