Article-No.:
94274

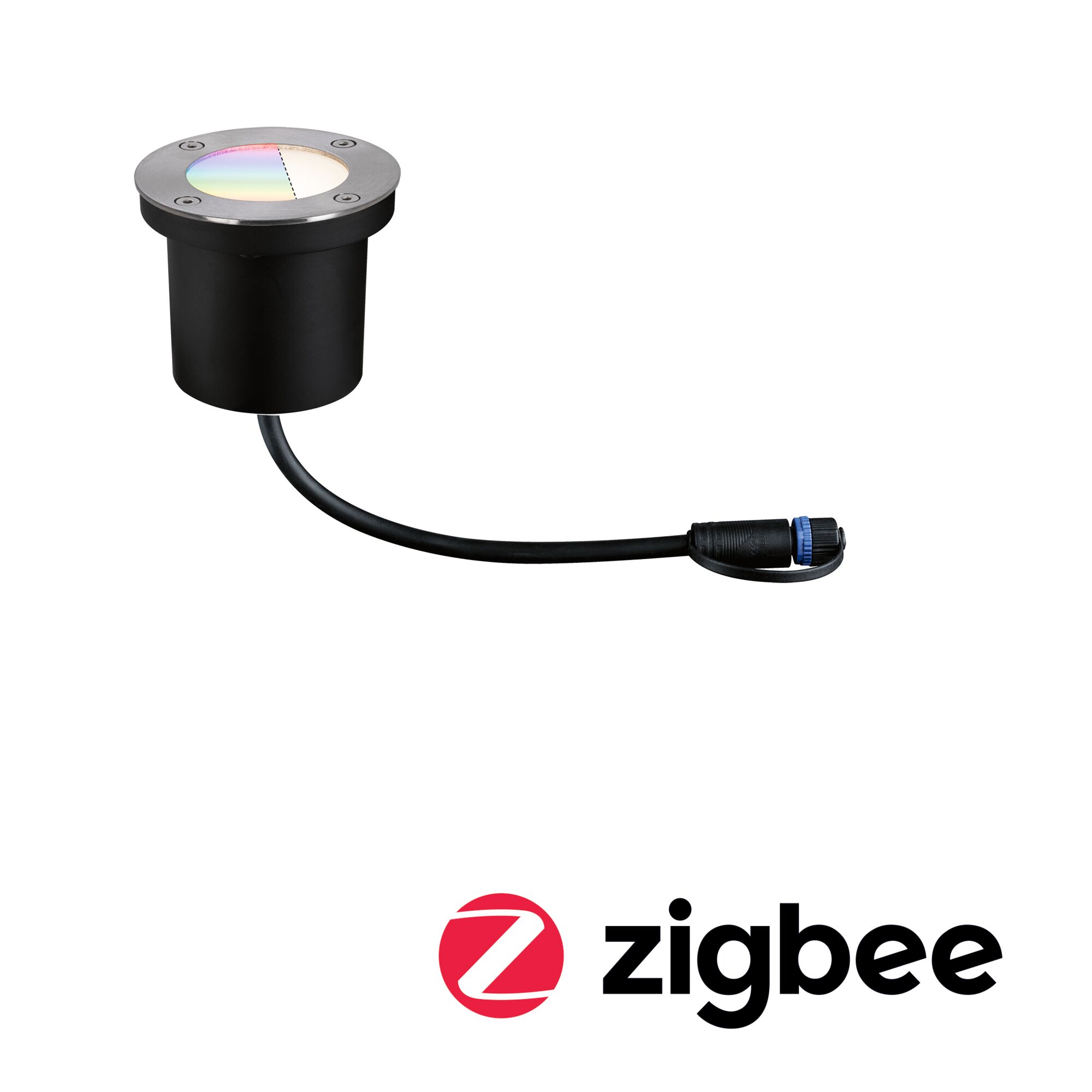

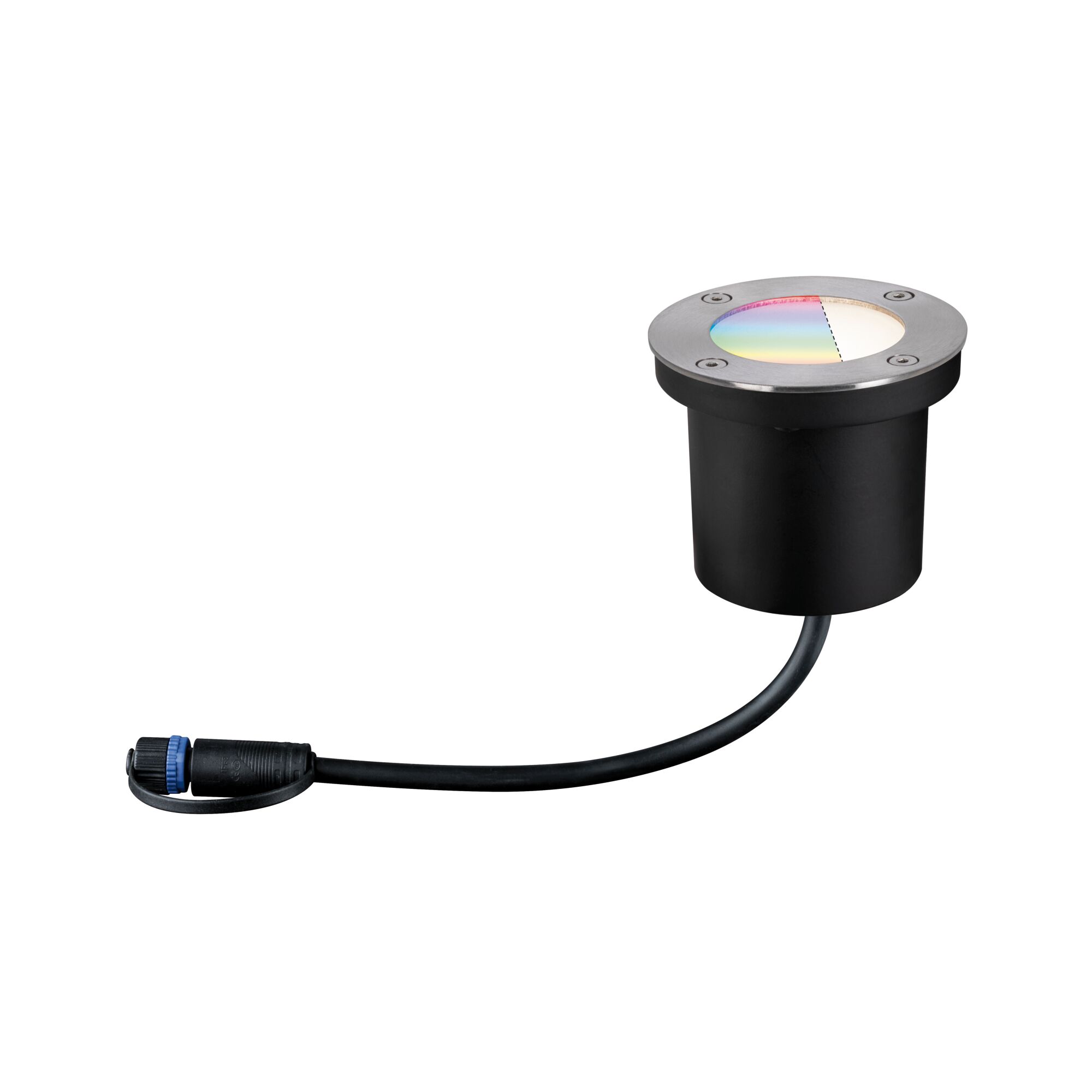

Plug & ShineLED Recessed floor luminaireSmart Home Zigbee 3.0
RGBW Individual Spot
IP67 RGBW+ 3,7W Silver
IP67 RGBW+ 3,7W Silver
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- 24 V floor recessed luminaire
Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 RGBW Individual Spot IP67 RGBW+ 3,7W Silver

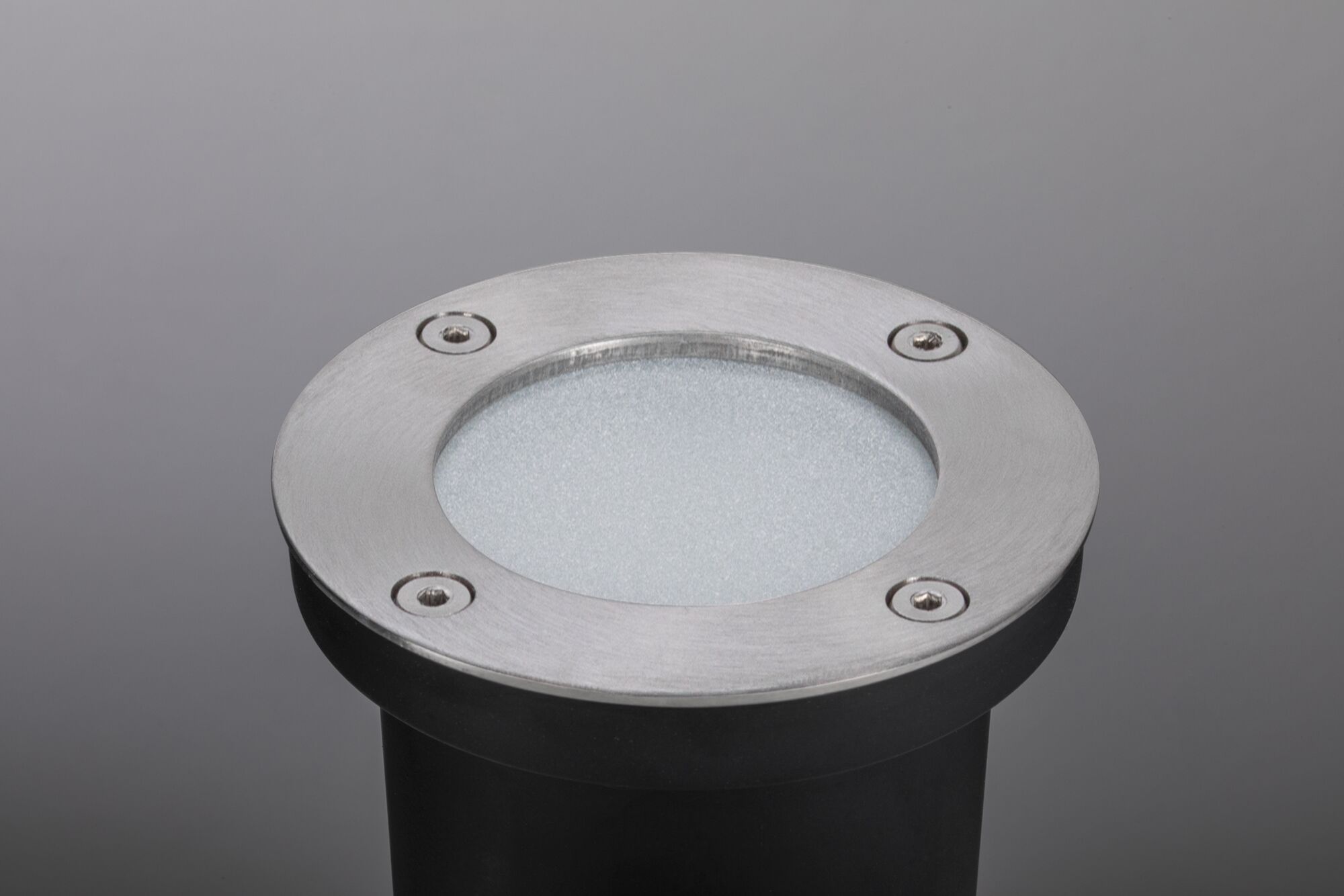

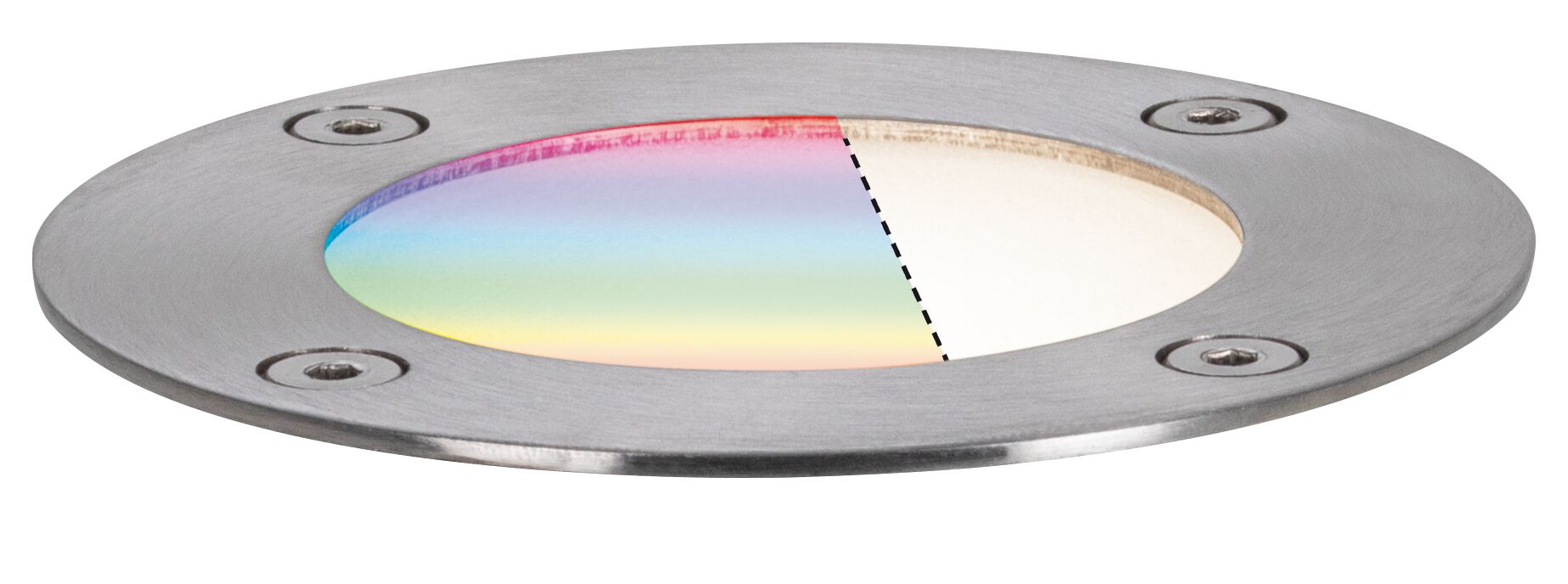

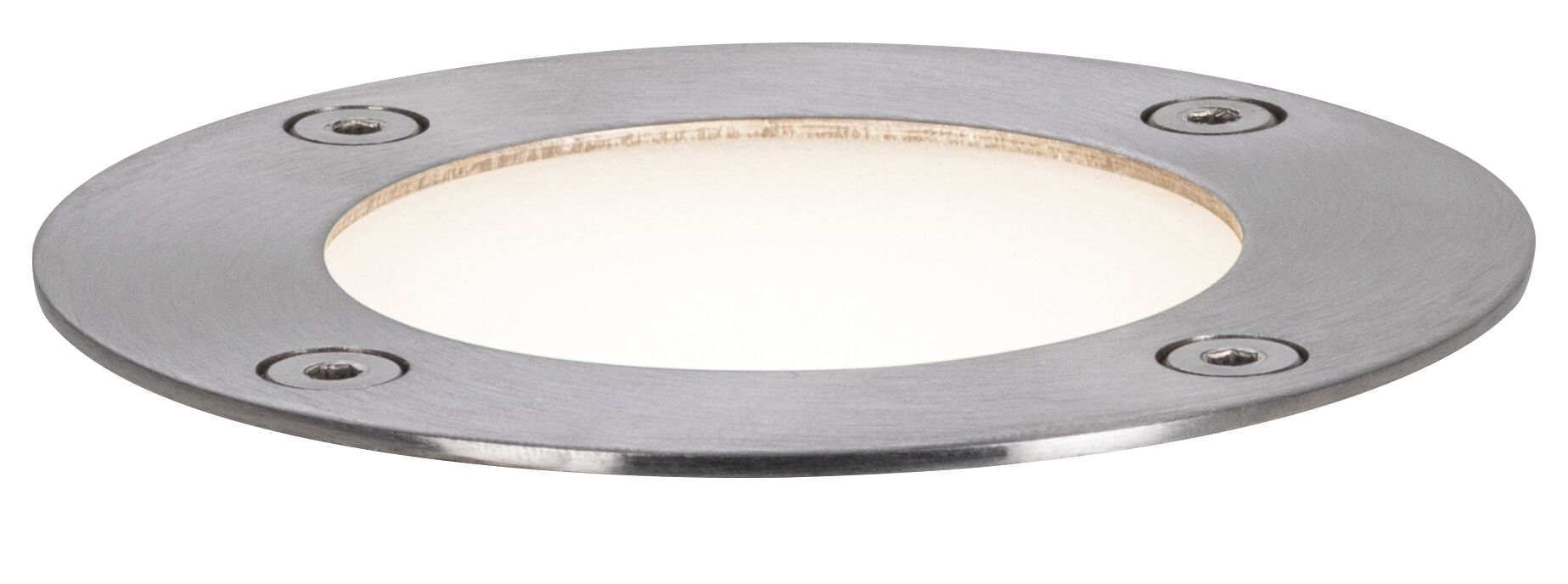

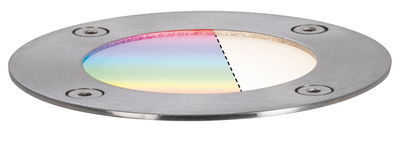

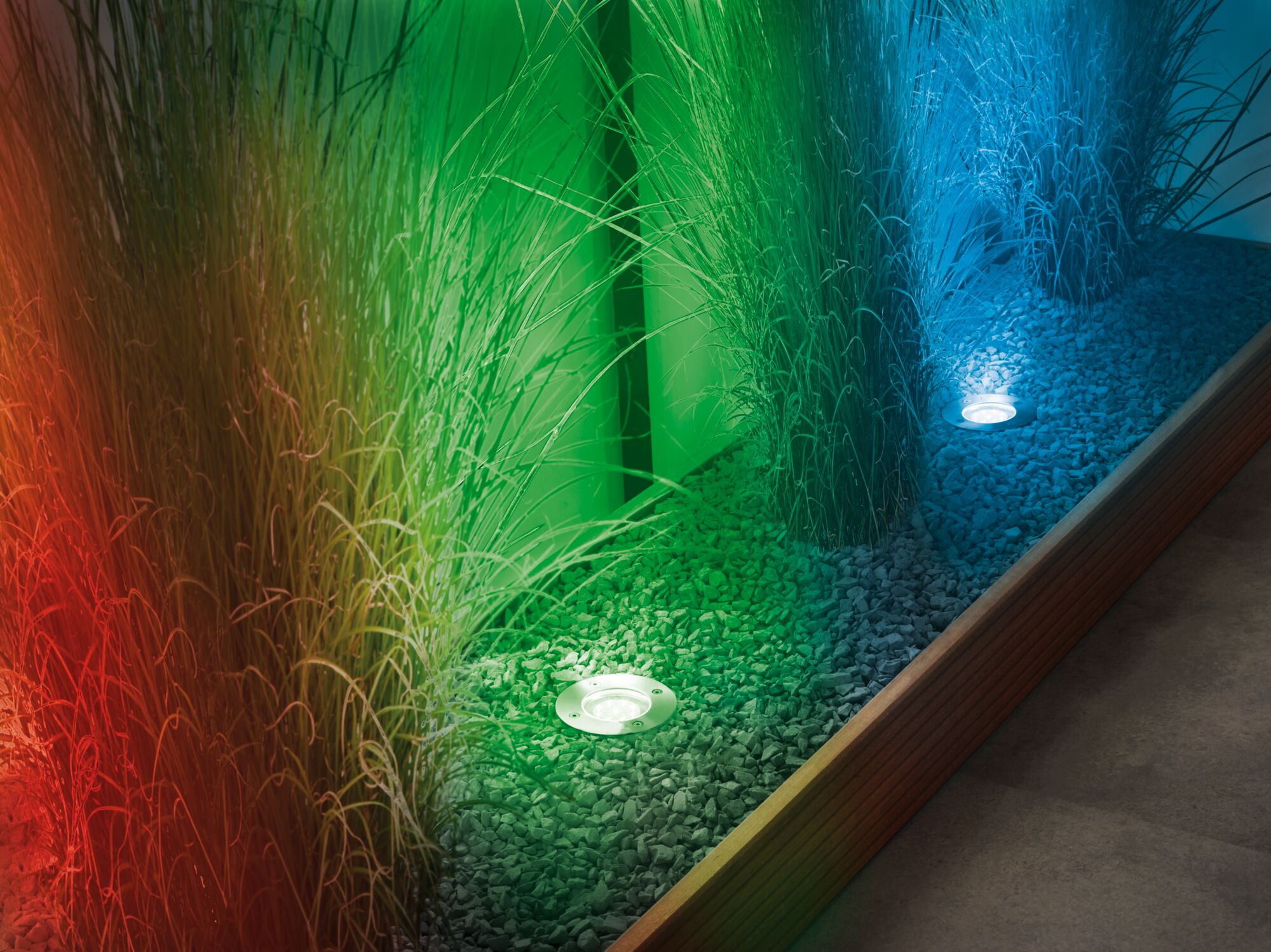

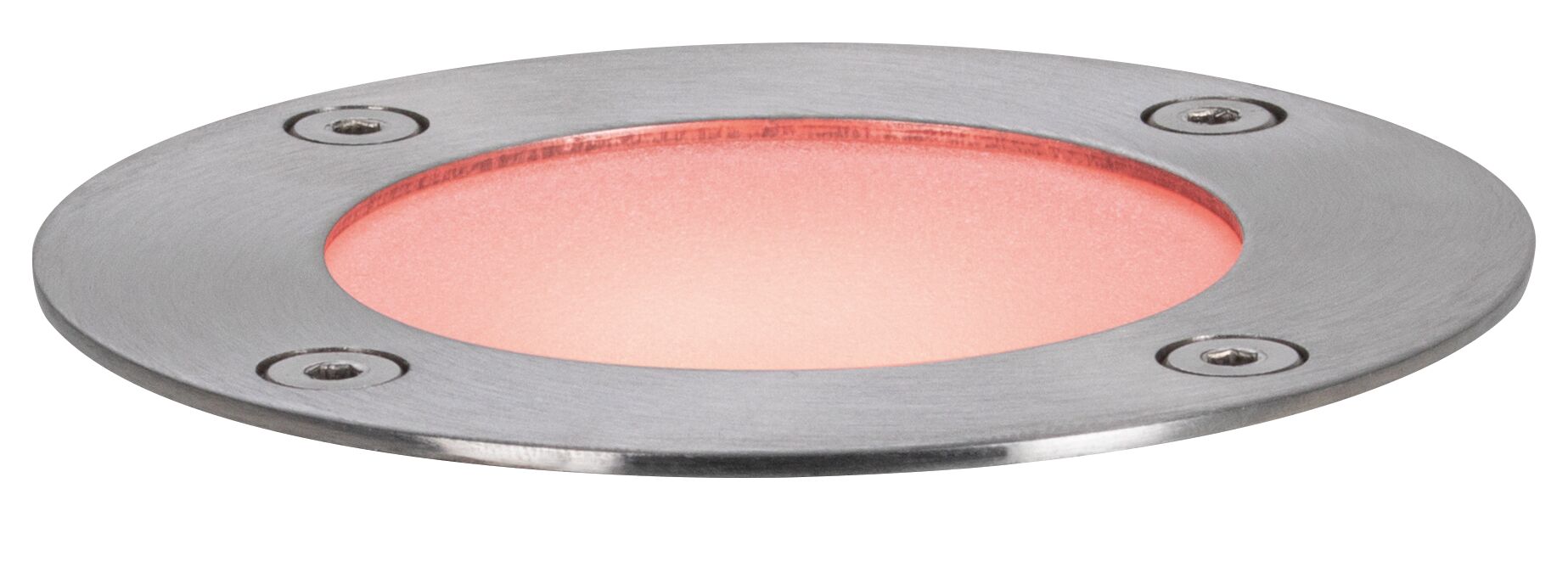

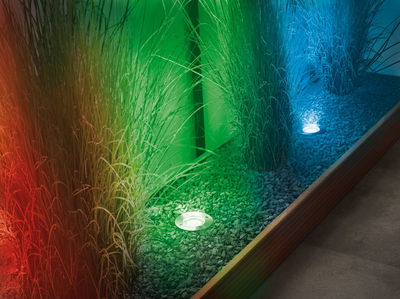

The round Plug & Shine floor recessed spotlight creates striking lighting accents and is the perfect addition to your garden lighting system. The permanently installed LED module can emit either coloured or white light. The colour settings can easily be adjusted via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- 24 V floor recessed luminaire

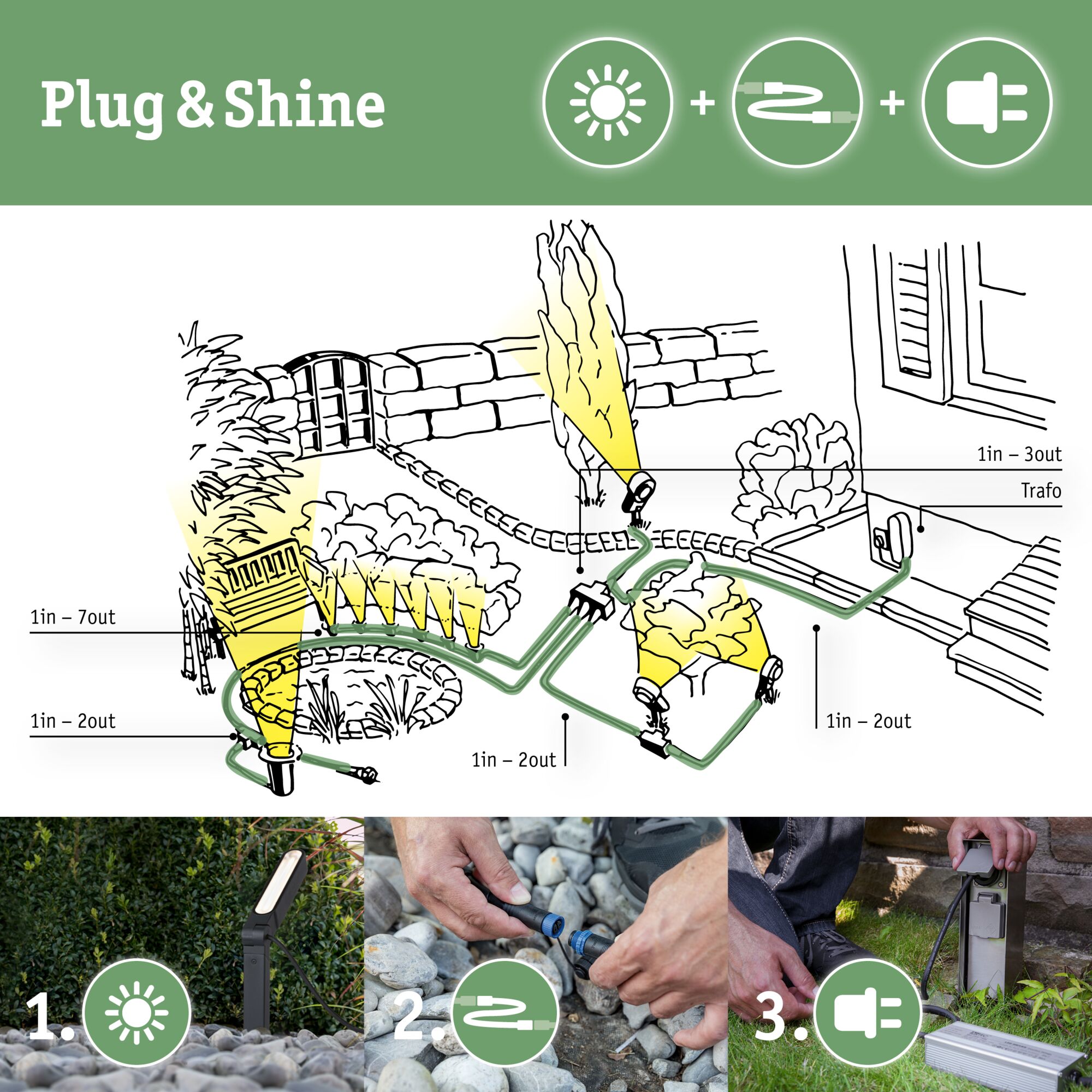

- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- RGBW multicolour colour change

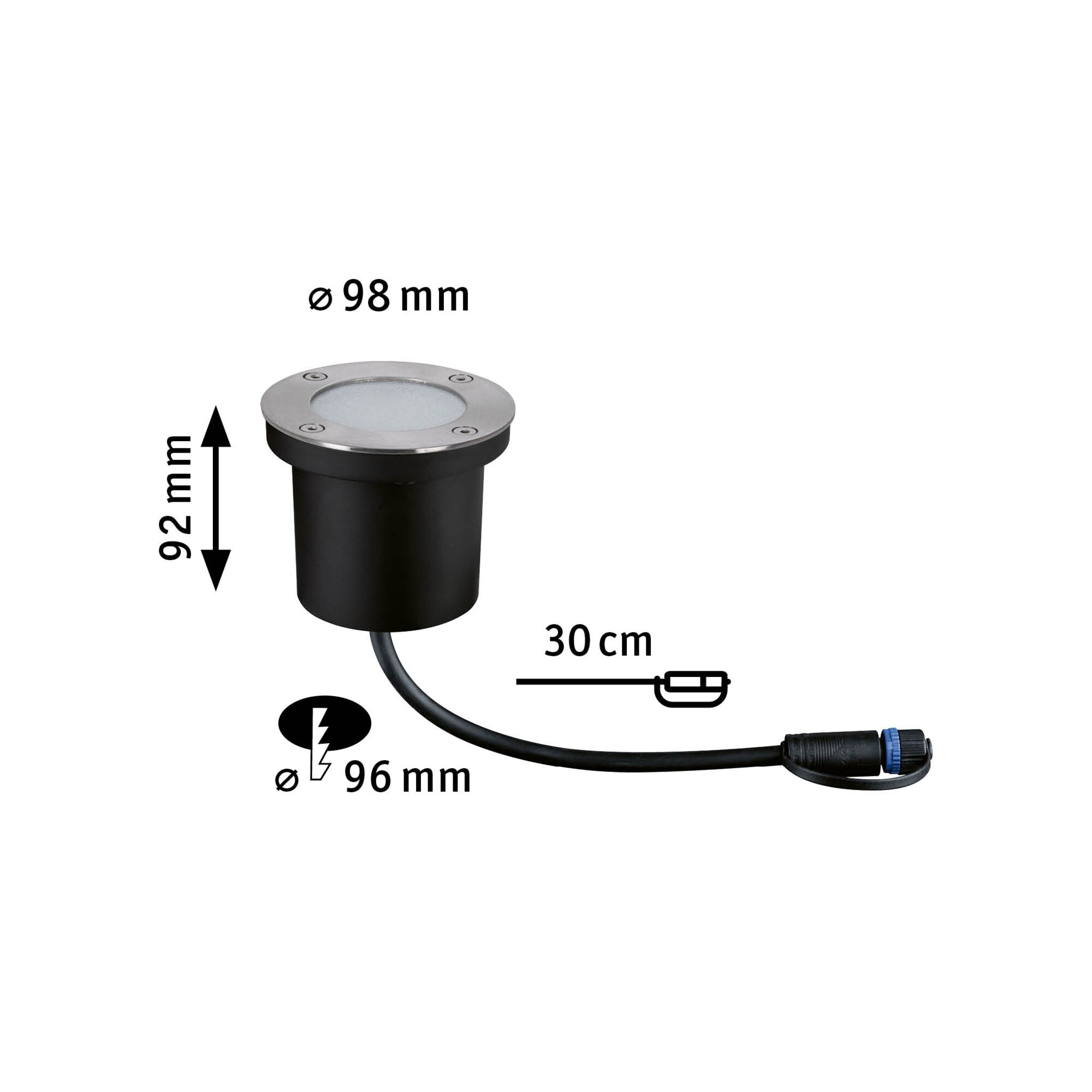

| Dimension | |
|---|---|
| Total Mounting depth | 105 mm |
| Dimensions (Height x Width x Depth) | H: 92 mm |
| Ø | 98 mm |
| Mounting hole | 96 mm |
| Form | cylindrical |
| Depth of hollow wall | 90 mm, 90 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| colour temperature to | 6500 K |
| color temp | 3000 - 6500 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 93 ° |
| Usable luminous flux | 190 lm |
| Luminous flux LED module | 374 lm |
| Lamp Features | |
|---|---|
| Component parts | 3,7 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP67 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 30 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 3,6 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
