Article-No.:
94691
Plug & ShineLED Recessed floor luminaireSmart Home Zigbee 3.0
RGBW CH
IP67 RGBW+ 3x3,7W Silver
IP67 RGBW+ 3x3,7W Silver
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Compatible with all accessories in the Plug & Shine series
Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 RGBW CH Basic Set IP67 RGBW+ 3x3,7W Silver

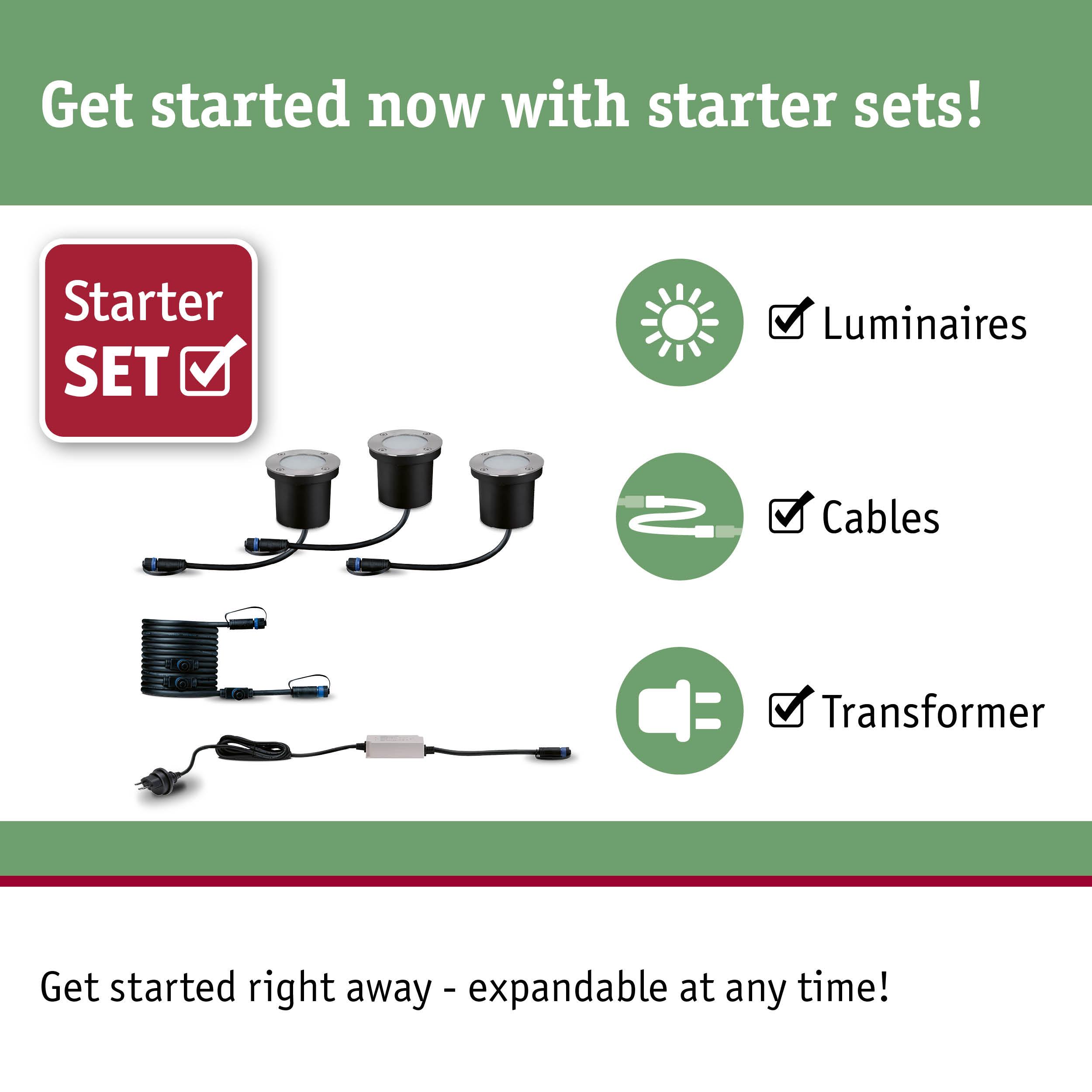

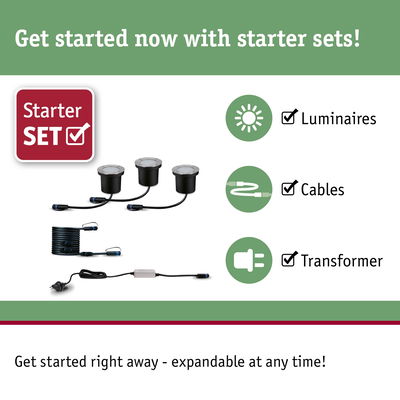

The round Plug & Shine floor recessed spotlights create striking lighting accents and are the perfect addition to your garden lighting system. This starter set contains three luminaires, one plug-in transformer and a connecting cable with sockets. The permanently installed LED modules can emit either coloured or white light. The colour settings can easily be adjusted via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery

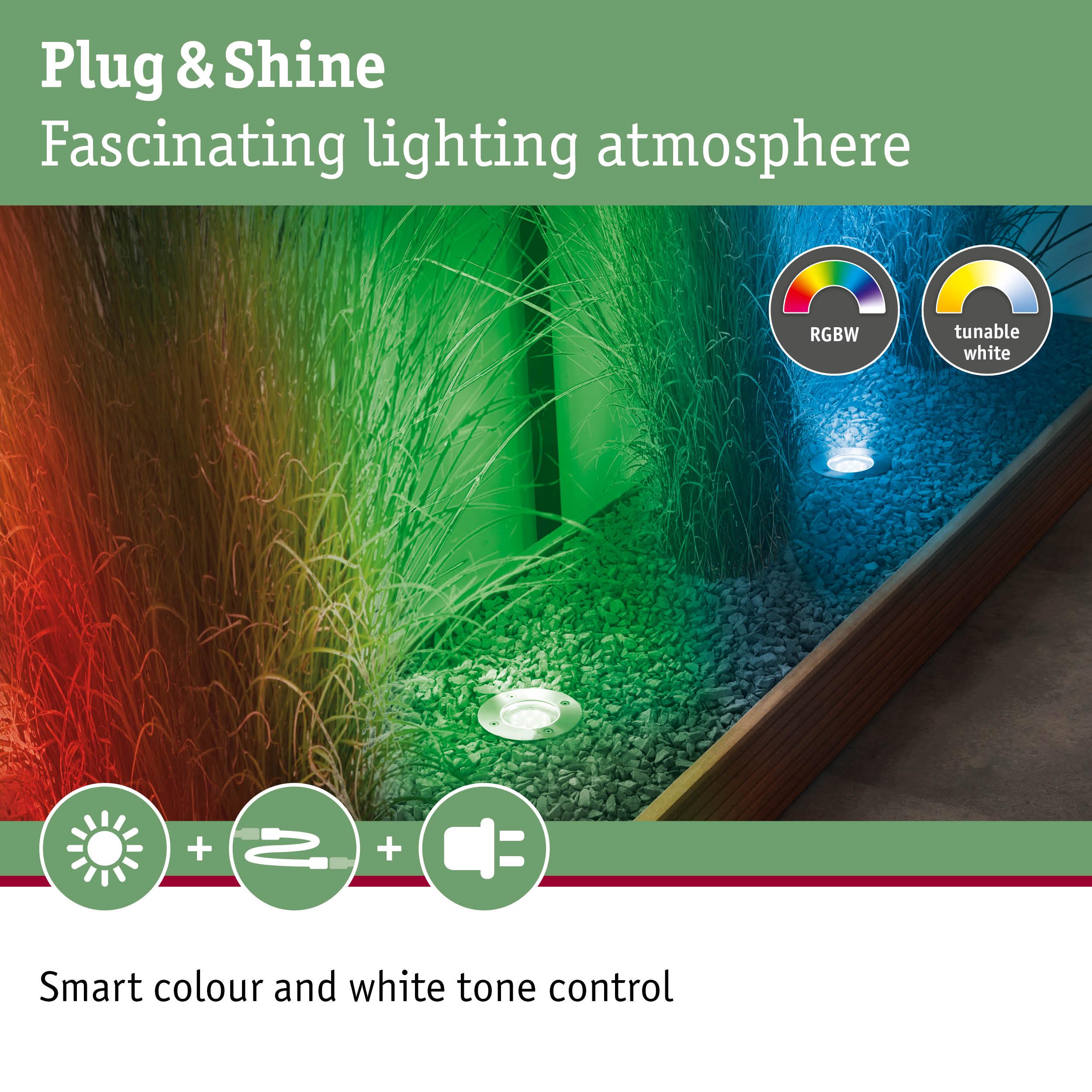

- RGBW multicolour colour change
| Dimension | |
|---|---|
| Total Mounting depth | 105 mm |
| Dimensions (Height x Width x Depth) | H: 92 mm |
| Ø | 98 mm |
| Mounting hole | 96 mm |
| Form | round |
| Depth of hollow wall | 90 mm, 90 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Plug | CH-IP55 |
| Energy consumption | |
|---|---|
| Energy efficiency | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| colour temperature to | 6500 K |
| color temp | Warm white to Daylight white |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Beam angle | 93 ° |
| Usable luminous flux | 250 lm |
| Luminous flux LED module | 400 lm |
| Lamp Features | |
|---|---|
| Component parts | 3,7 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 30 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 3x |
| protection class | Protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
