Article-No.:
94588
Plug & Shine
LED Recessed floor luminaire
Smart Home Zigbee 3.0
Gold light
IP67 Tunable Warm 4,6W Black
IP67 Tunable Warm 4,6W Black
- Colour temperature: 2000K - gold light

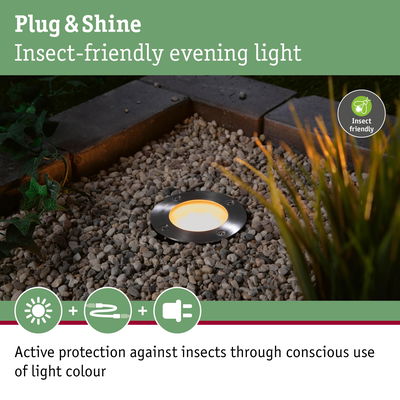

- Light with Tunable Warm function for cosy and insect-friendly evening light
- IP protection: IP65 – water jet-protected

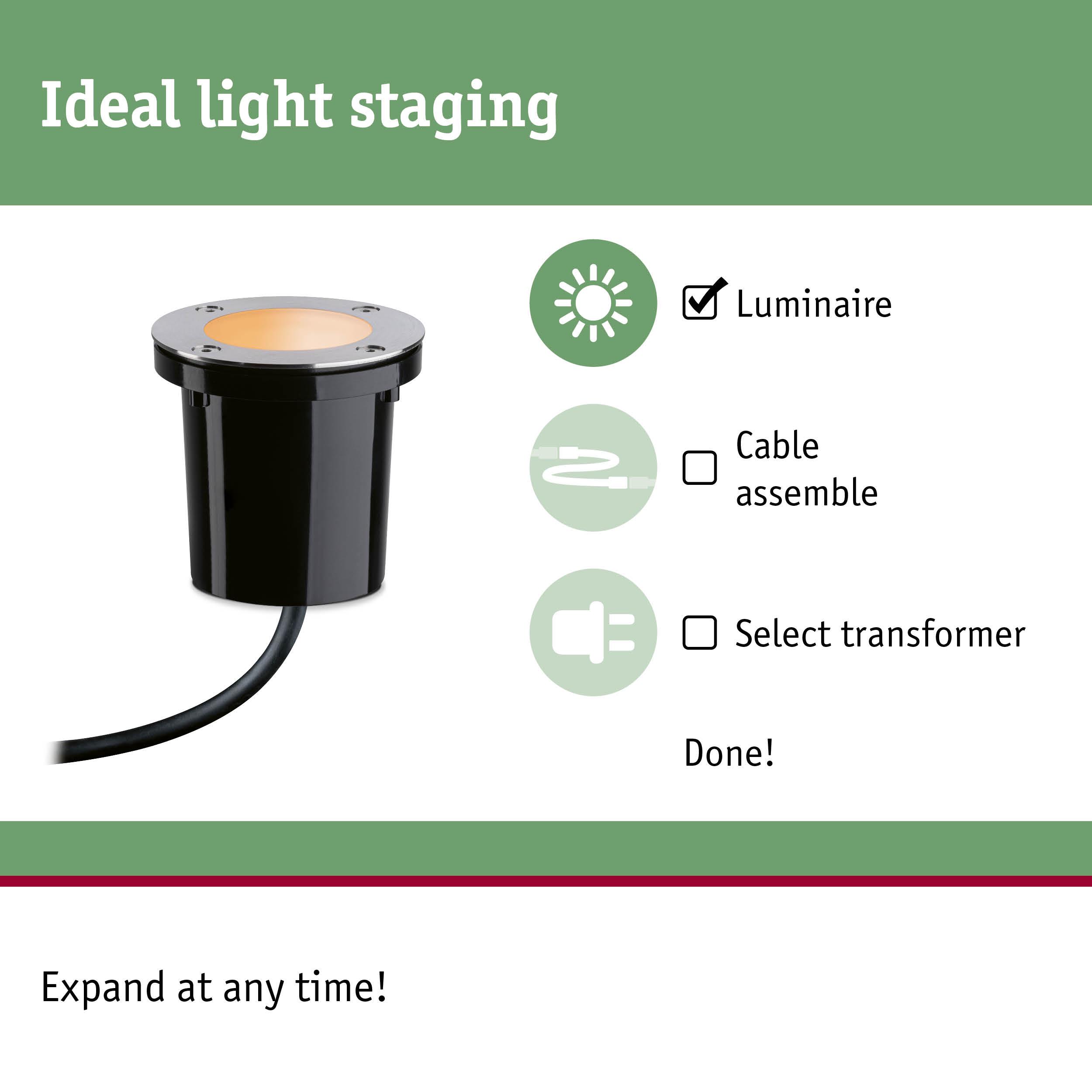

Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 Gold light Individual Spot Insect-friendly IP67 Tunable Warm 4,6W Black
This smart Plug & Shine recessed floor spotlight with an output of 4,6W provides decorative light points on pathways, driveways or patios and is the perfect smart addition to the Plug & Shine garden lighting system. The luminaire can withstand loads of up to 500 kilos, making it ideal for walkable outdoor areas. Rustproof, waterproof and dustproof, it provides light in all weather conditions. The Tunable Warm function offers free choice of colour temperature in the warm light range. The colour temperature can be set between 2,000 Kelvin and 2,700 Kelvin via the Zigbee 3.0 function and two modes can be selected. In mode 1, the luminaire lights up with 100% brightness in the dark. In mode 2, the luminaire shines with 20% luminosity (2,200 Kelvin) in the dark. This value lies outside the visible range for insects, so they are not attracted by the additional light source, making the luminaire particularly insect-friendly. Zigbee 3.0 is a radio transmission protocol that links devices from different manufacturers. Usable with smart home gateways that have a Zigbee 3.0 interface. It can't be walked on or driven over.
- Colour temperature: 2000K - gold light
- Light with Tunable Warm function for cosy and insect-friendly evening light
- IP protection: IP65 – water jet-protected
- LED lamp (fixed) included in scope of delivery
- Compatible with all accessories in the Plug & Shine series
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
- 24 V floor recessed luminaire
- Max. load up to 500 kg
Dimension | |
---|---|
Total Mounting depth | 92 mm |
Dimensions (Height x Width x Depth) | H: 92 mm |
Ø | 98 mm |
Mounting hole | 90 mm |
Form | round |
Depth of hollow wall | 77 mm, 77 mm |
Design and Material | |
---|---|
stainless | stainless |
Colour | Black |
Material | Metal |
Installation | |
---|---|
can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
Energy consumption | |
---|---|
Energy efficiency (A to G) | G |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2000 K |
Colour change | Tunable Warm |
Usable luminous flux | 250 lm |
Luminous flux LED module | 360 lm |
color temp | 2000 - 2700 K |
Lamp Features | |
---|---|
Component parts | 4,6 W |
Compatible Smart Home technology | Zigbee |
Technique | LED |
IP protection | IP67 |
Dim | with Smart Home |
Dimmable | Yes |
Inclusive lamp | yes |
Incandescent Equivalent | 30 W |
Number of component parts | 1x |
protection class | protection class III |
Maximum load | 500 kg |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
Power consumption | 5,2 W |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart_Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range | 10 m |
