Article-No.:
94690

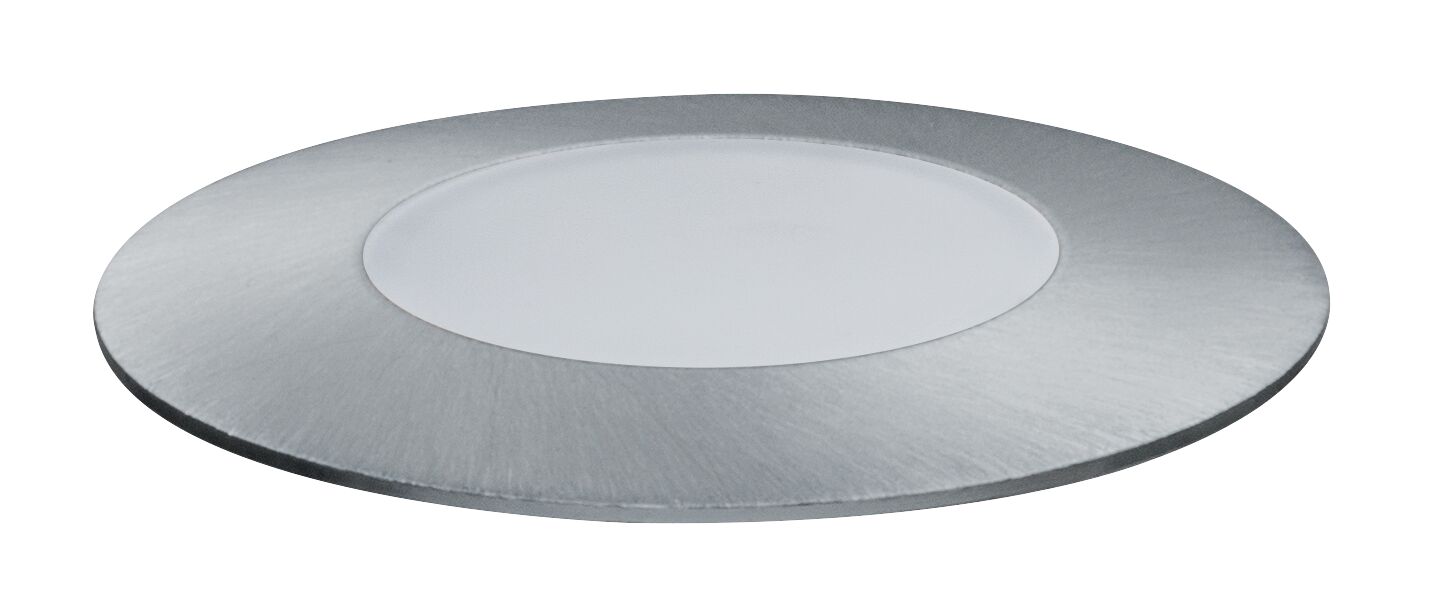

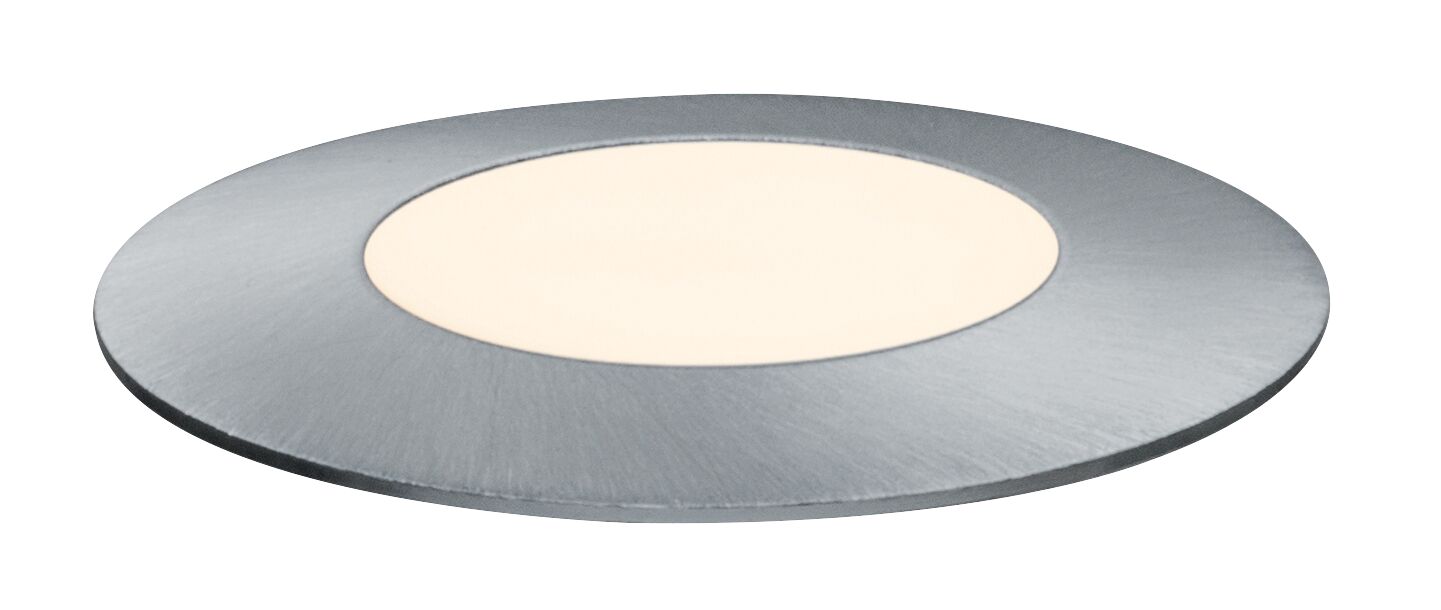

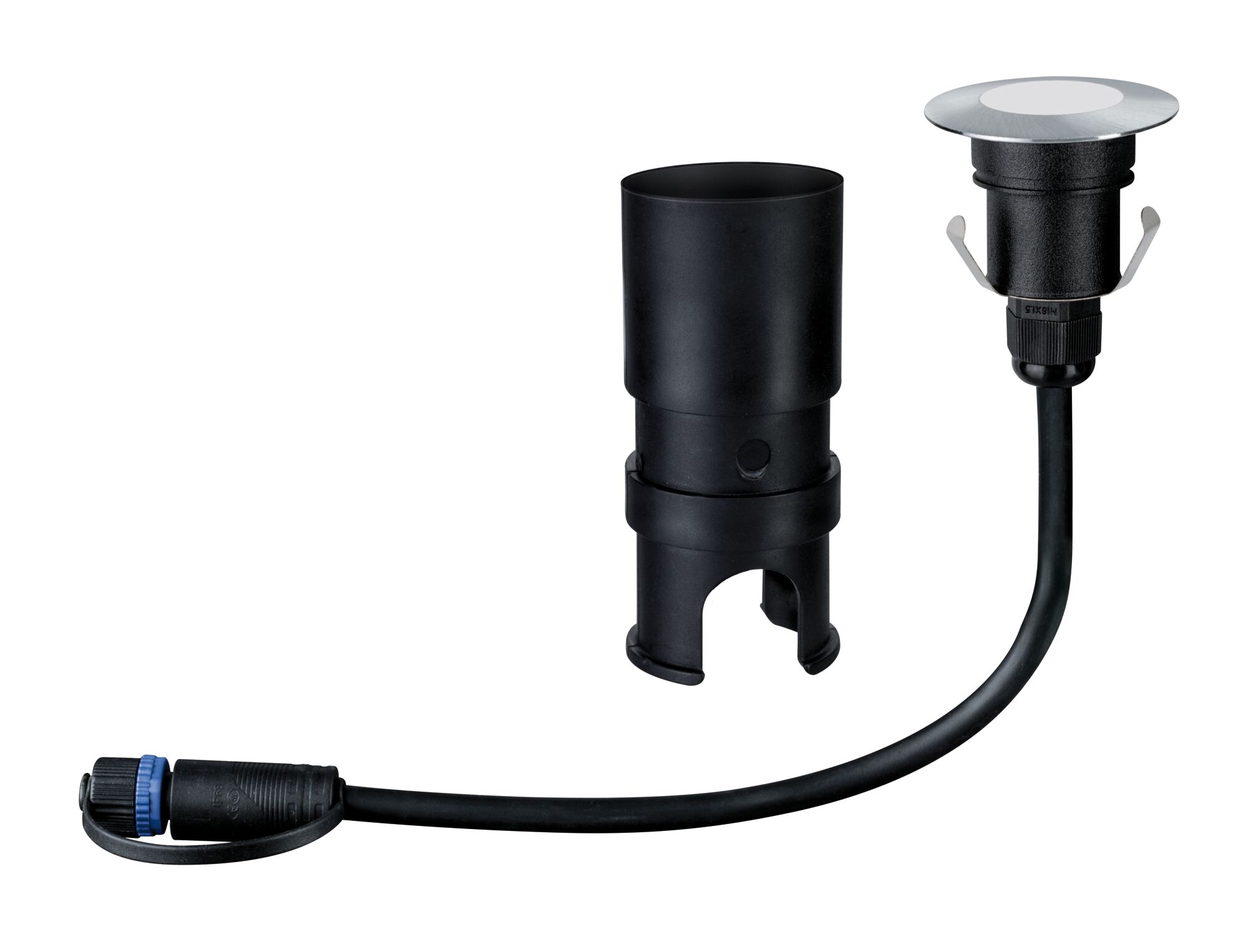

Plug & ShineLED Recessed floor luminaire
Floor Mini CH
IP67 3000K 3x2,5W 30VA Silver
IP67 3000K 3x2,5W 30VA Silver

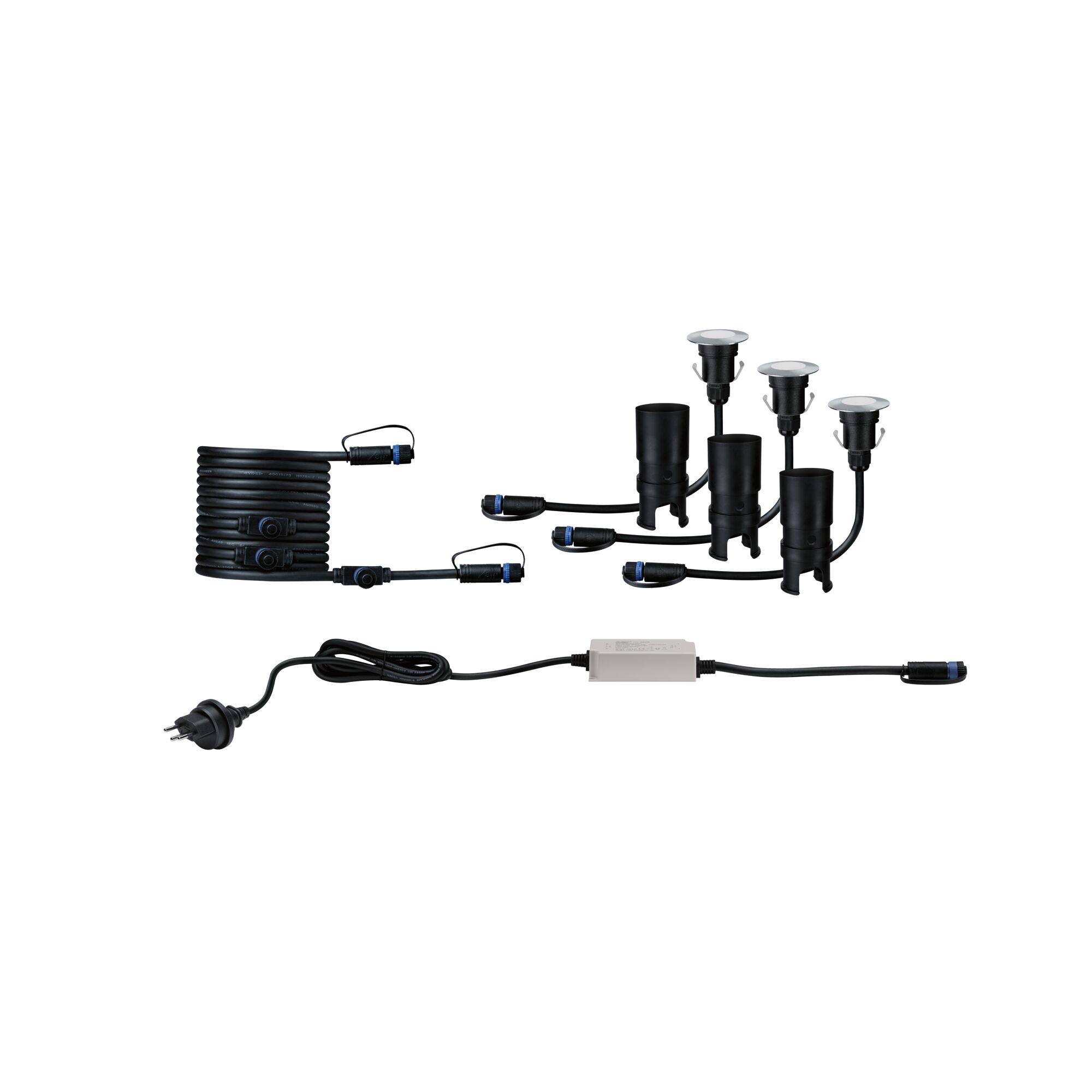

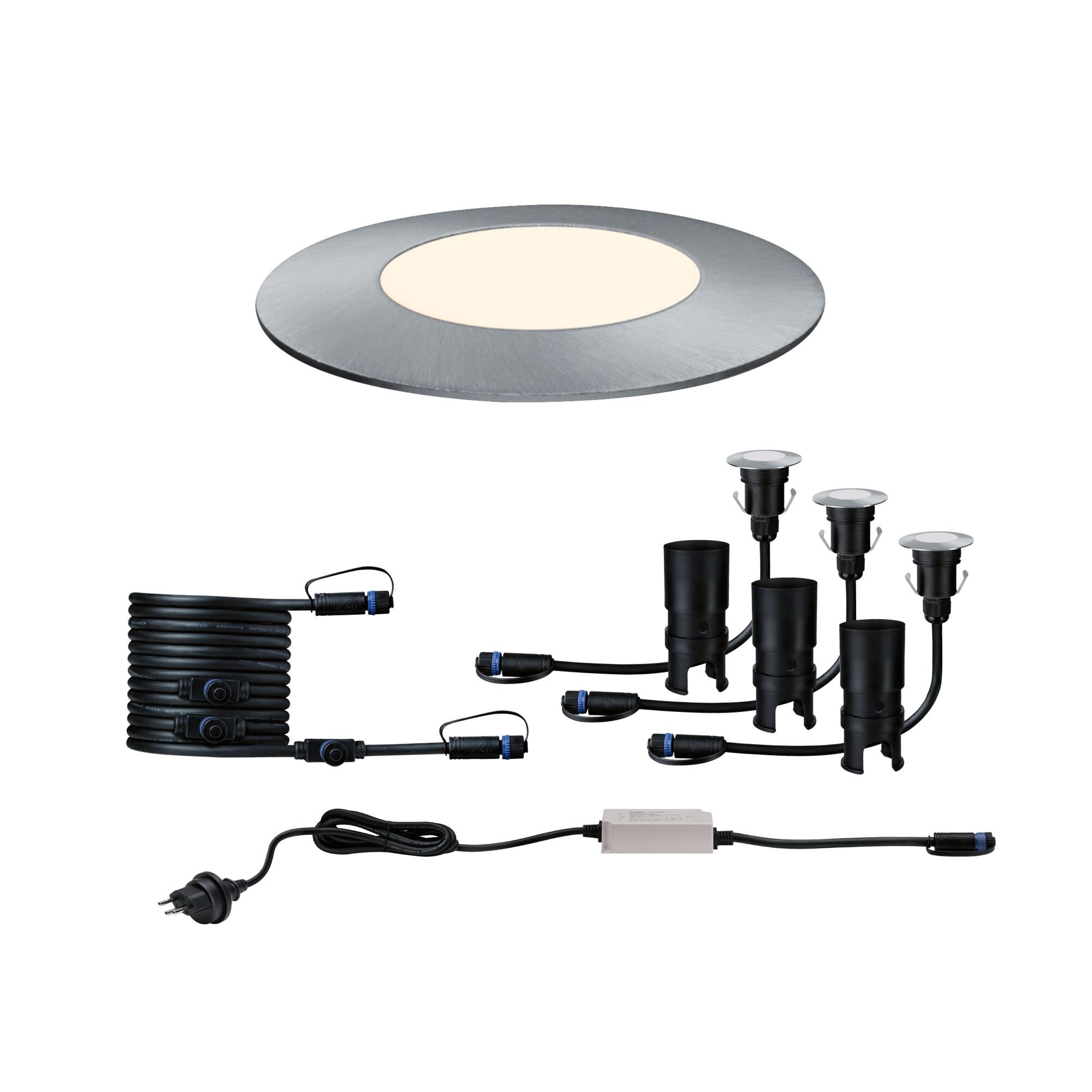

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Recessed floor luminaire Floor Mini CH Basic Set IP67 3000K 3x2,5W 30VA Silver

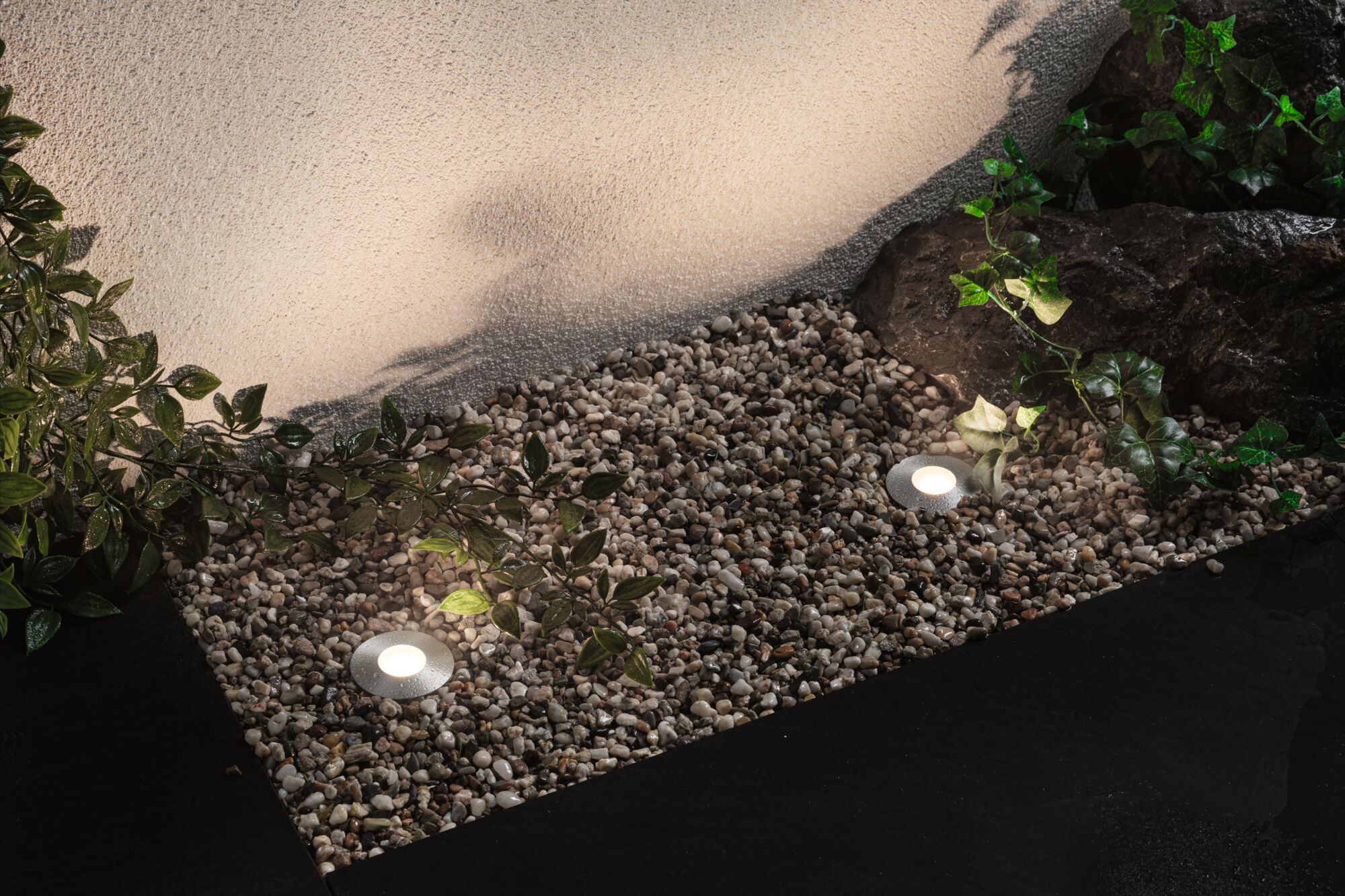

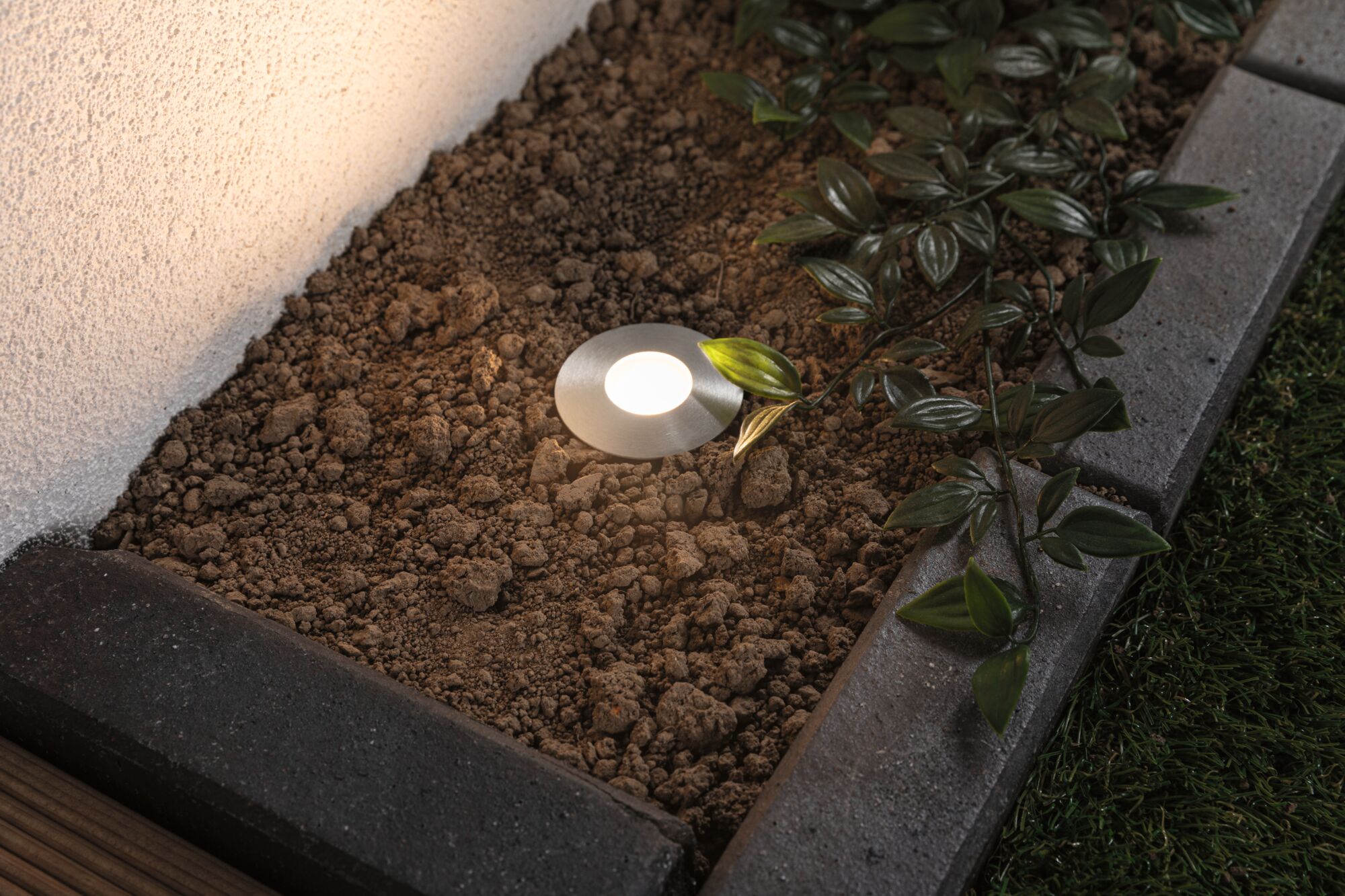

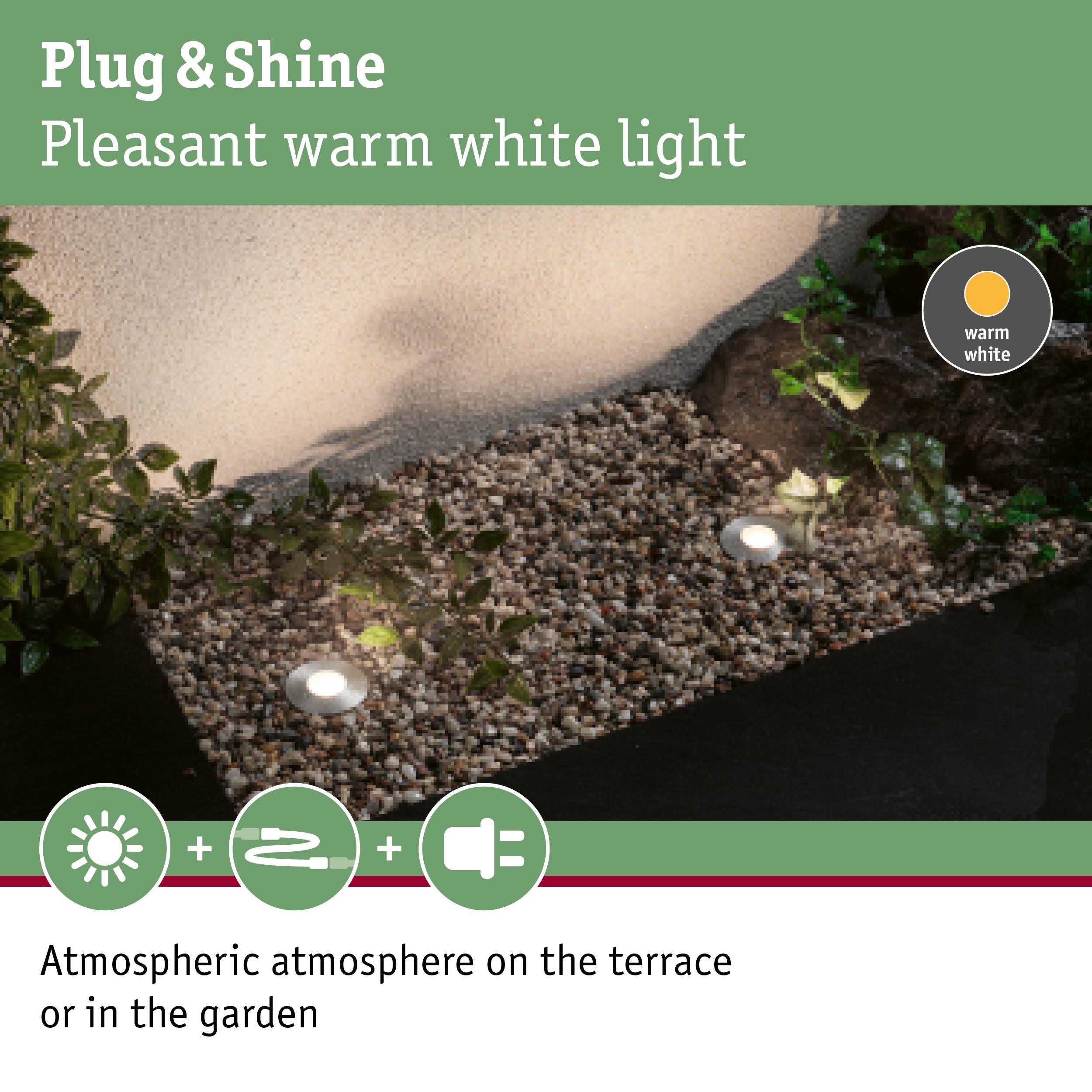

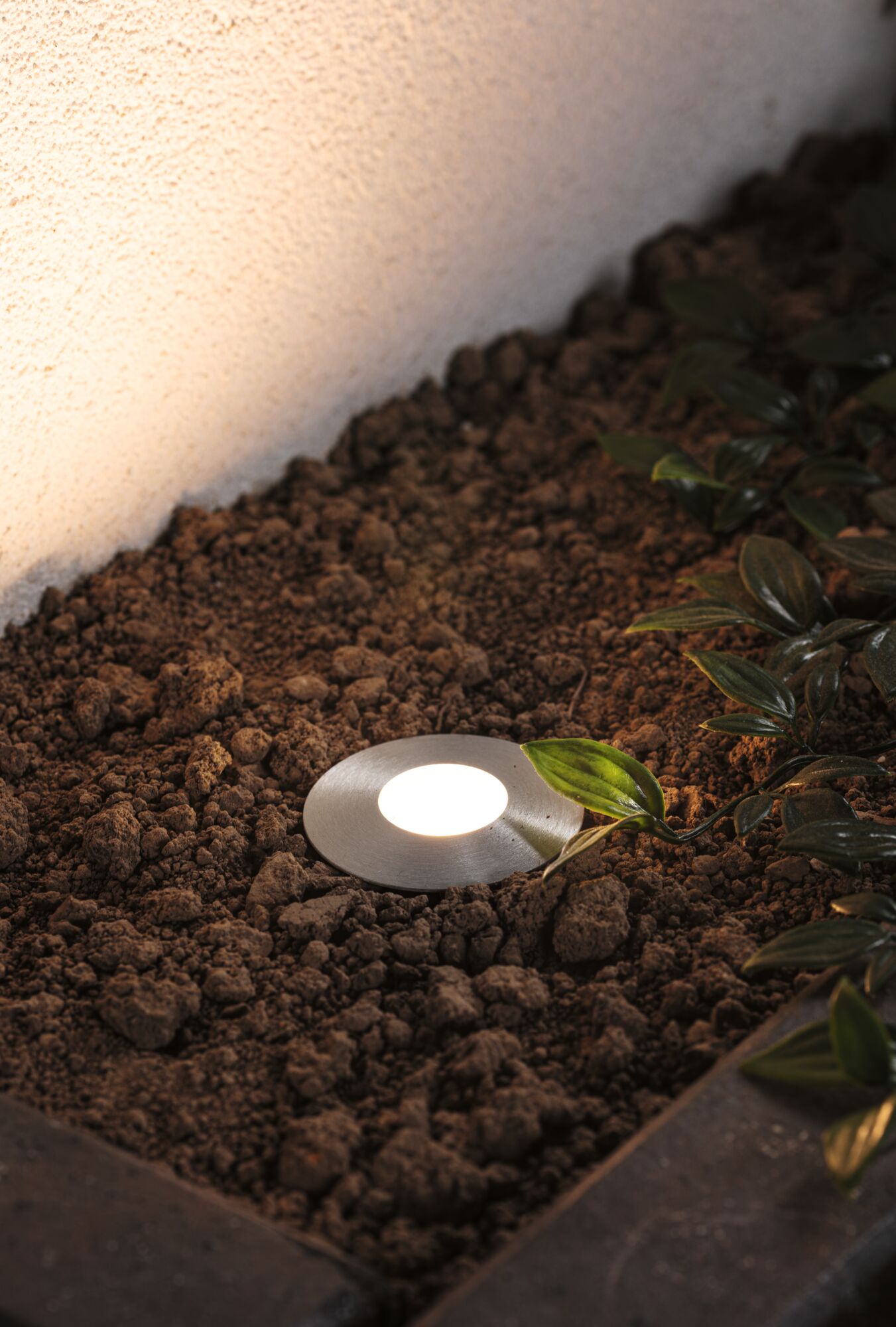

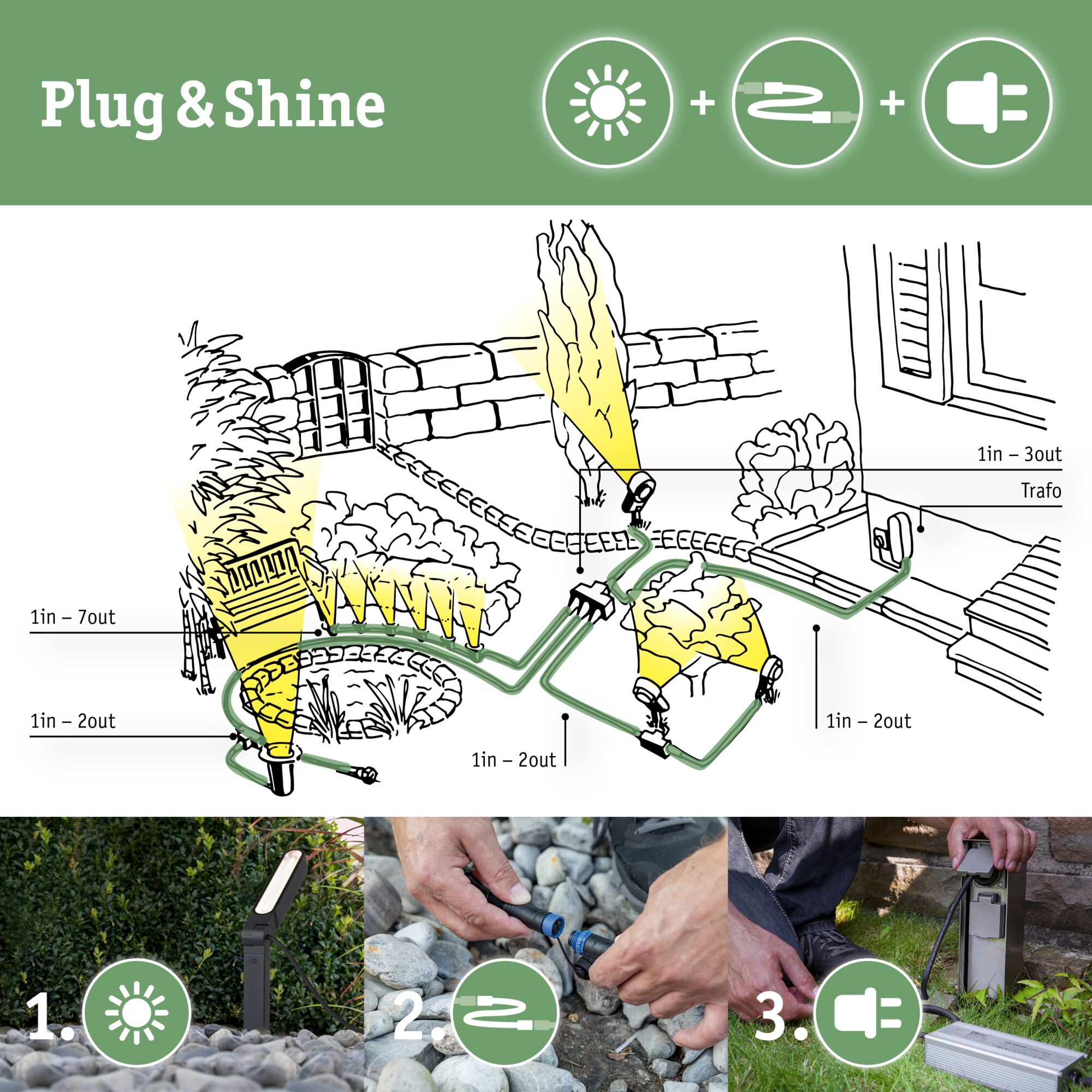

Just unpack, plug in, and illuminate your garden: the Plug & Shine Floor Mini starter set consisting of three warm white floor recessed spotlights, transformer and connecting cable offers you the ideal start into outdoor lighting. The luminaires create decorative light points on paths, driveways and patios. The system can be expanded with additional Plug & Shine components, if required.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
- IP Protection: IP67 - protected against temporary immersion

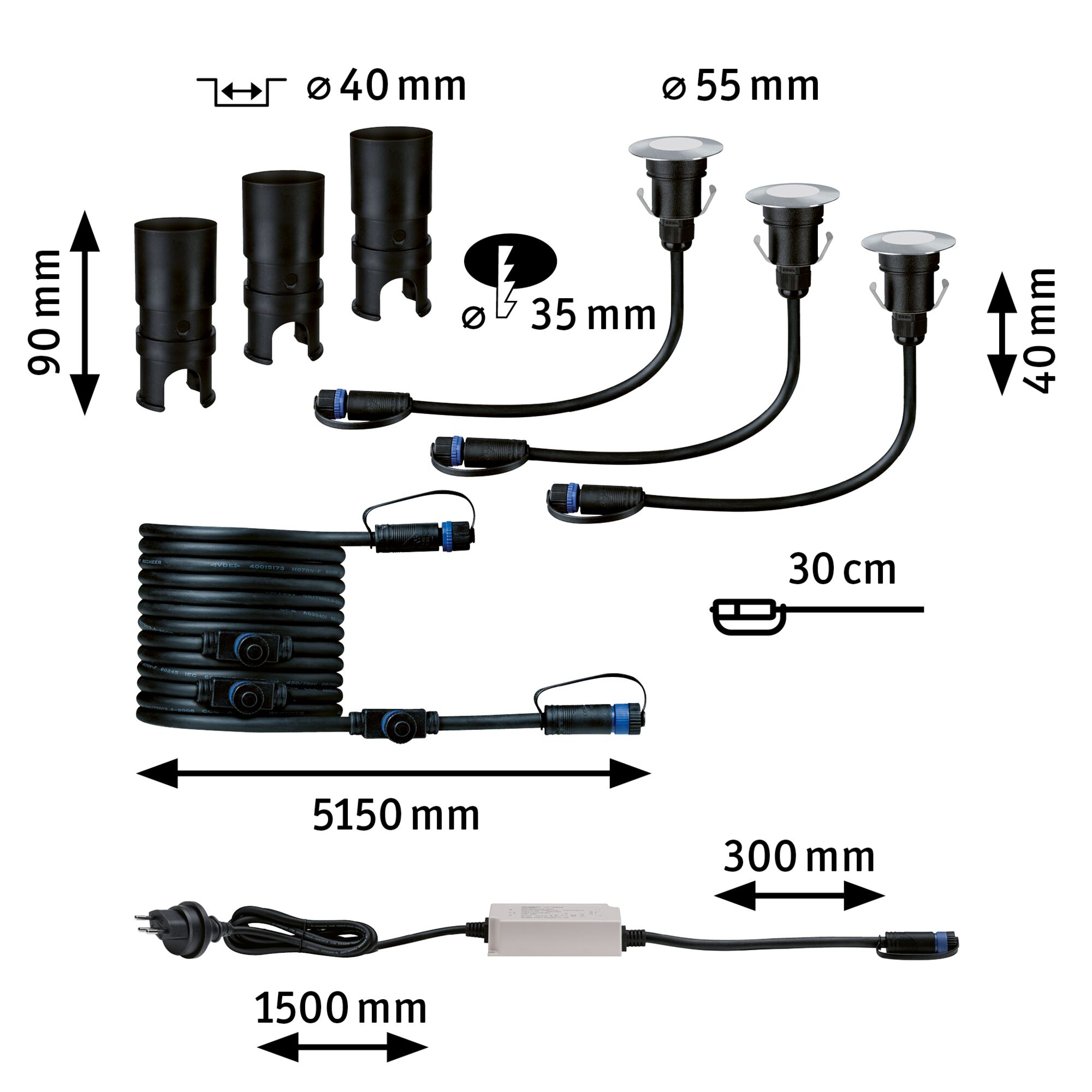

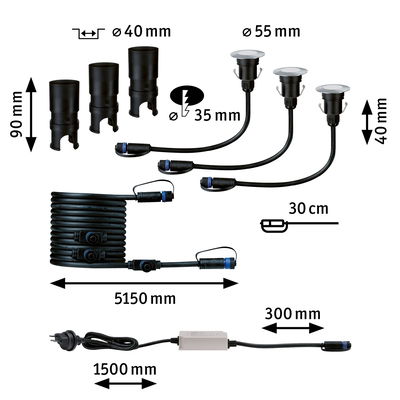

| Dimension | |
|---|---|
| Depth of hollow wall | 40 mm, 40 mm |
| Total Mounting depth | 55 mm |
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Ø | 55 mm |
| Mounting hole | 40 mm |
| Length | 5 m |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Plug | CH-IP55 |
| Energy consumption | |
|---|---|
| Energy efficiency | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Beam angle | 95 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 250 lm |
| Beam angle LED module | 120 ° |
| Lamp Features | |
|---|---|
| Component parts | 2,5 W |
| Technique | LED |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Number of component parts | 3x |
| protection class | Protection class II |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 7,5 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
