Article-No.:
94906
Plug & Shine
LED Recessed floor luminaire
Floor
IP67 3000K 3x1,3W 30VA Anthracite
IP67 3000K 3x1,3W 30VA Anthracite
- IP Protection: IP67 - protected against temporary immersion
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

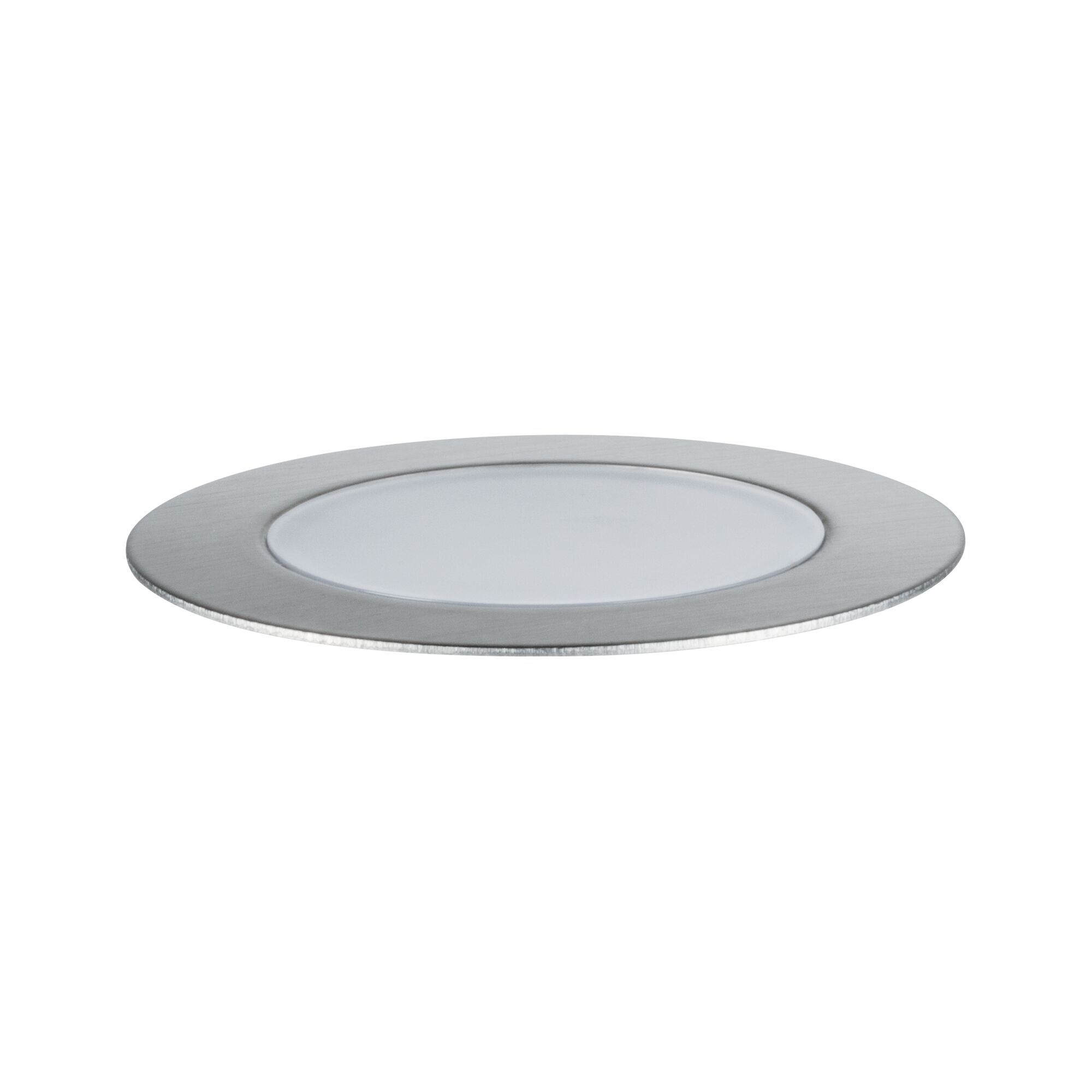

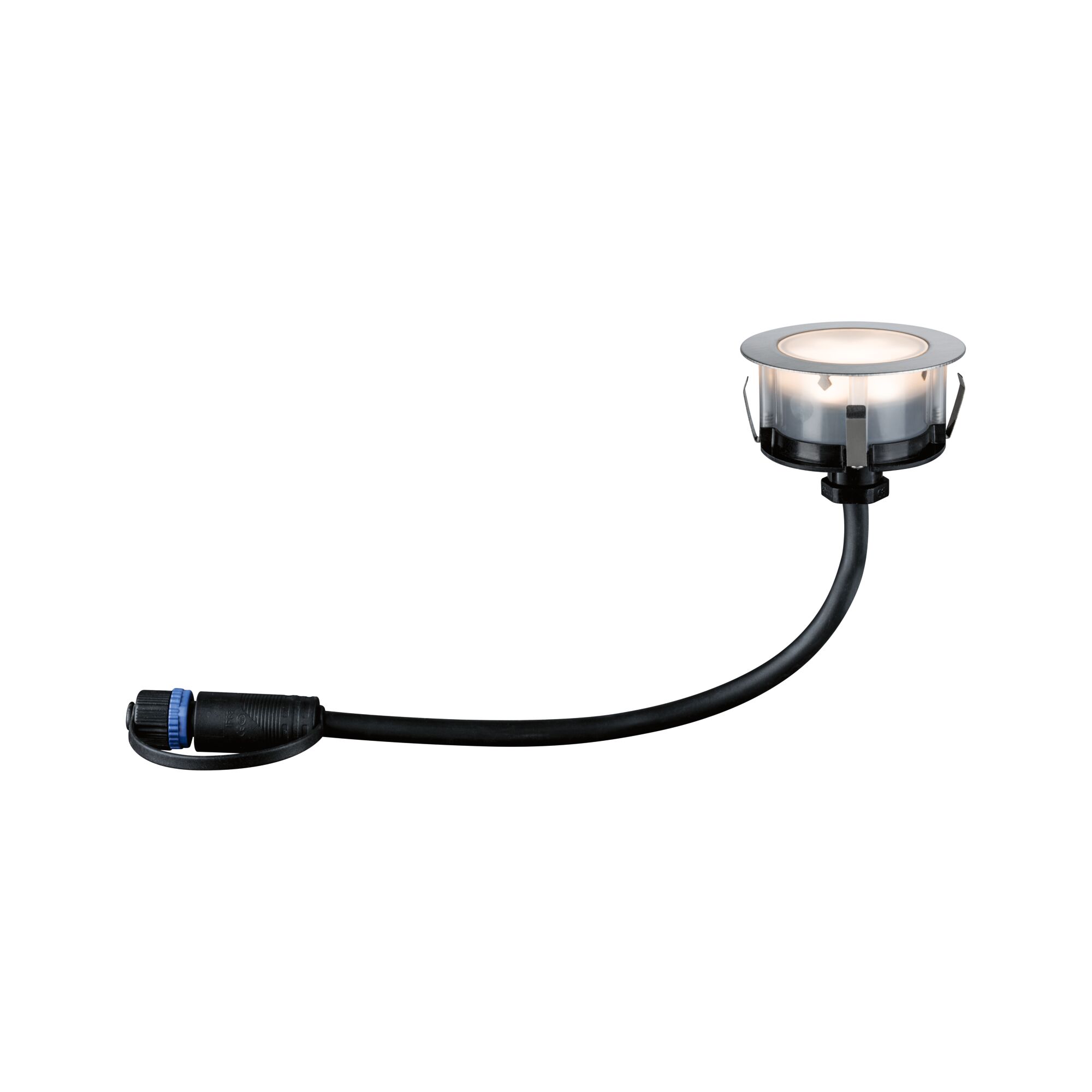

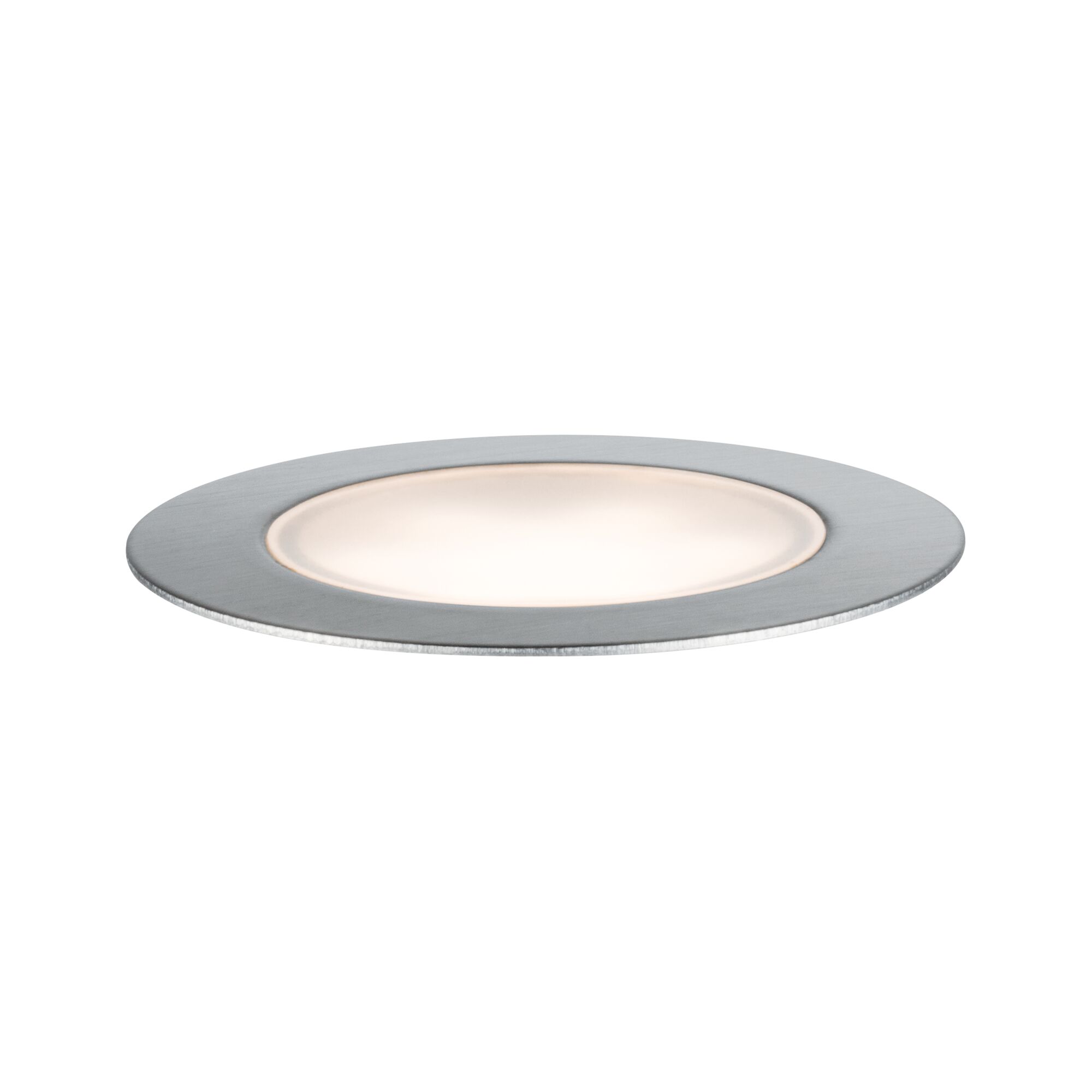

Plug & Shine LED Recessed floor luminaire Floor IP67 3000K 3x1,3W 30VA Anthracite

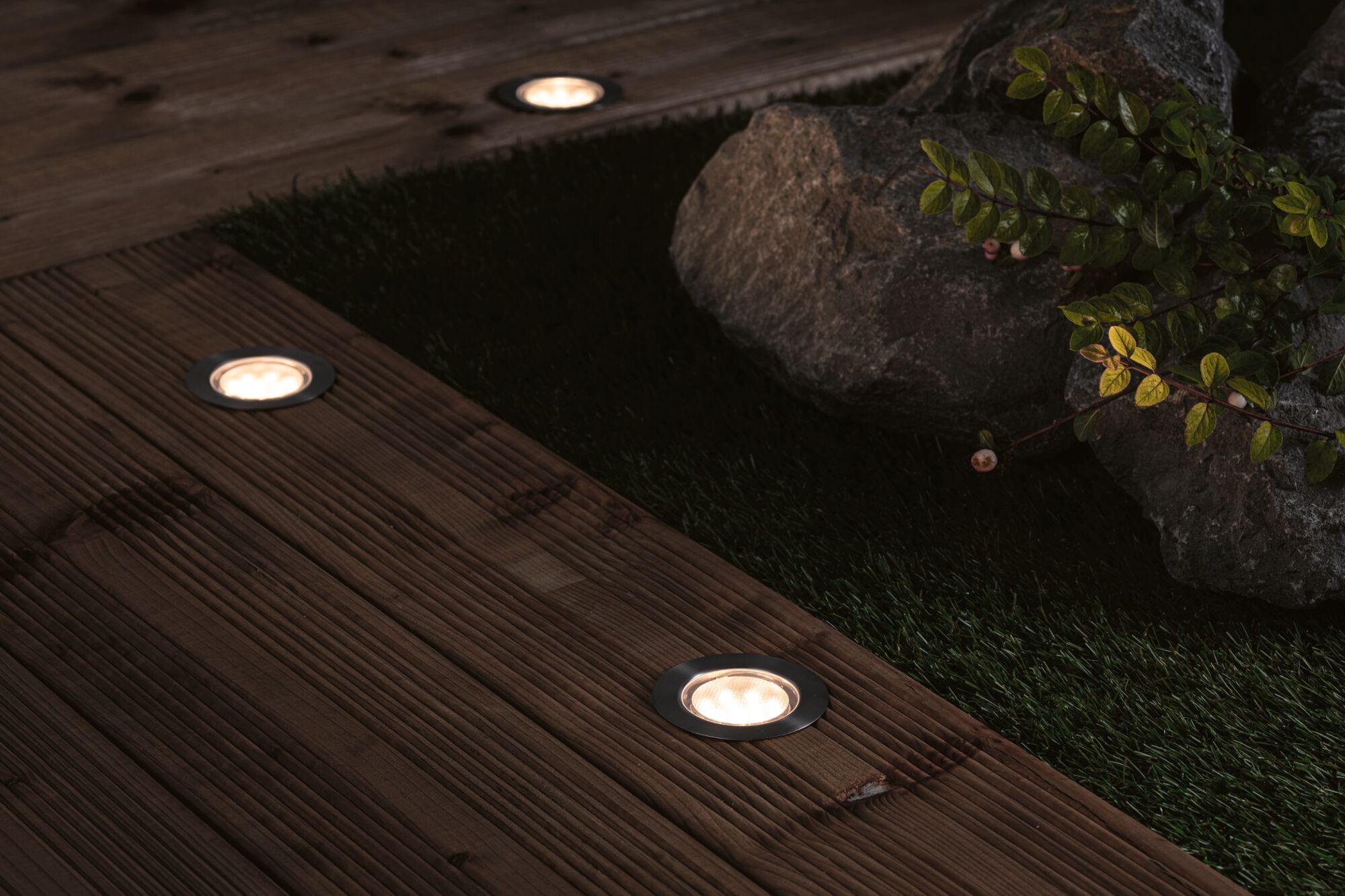

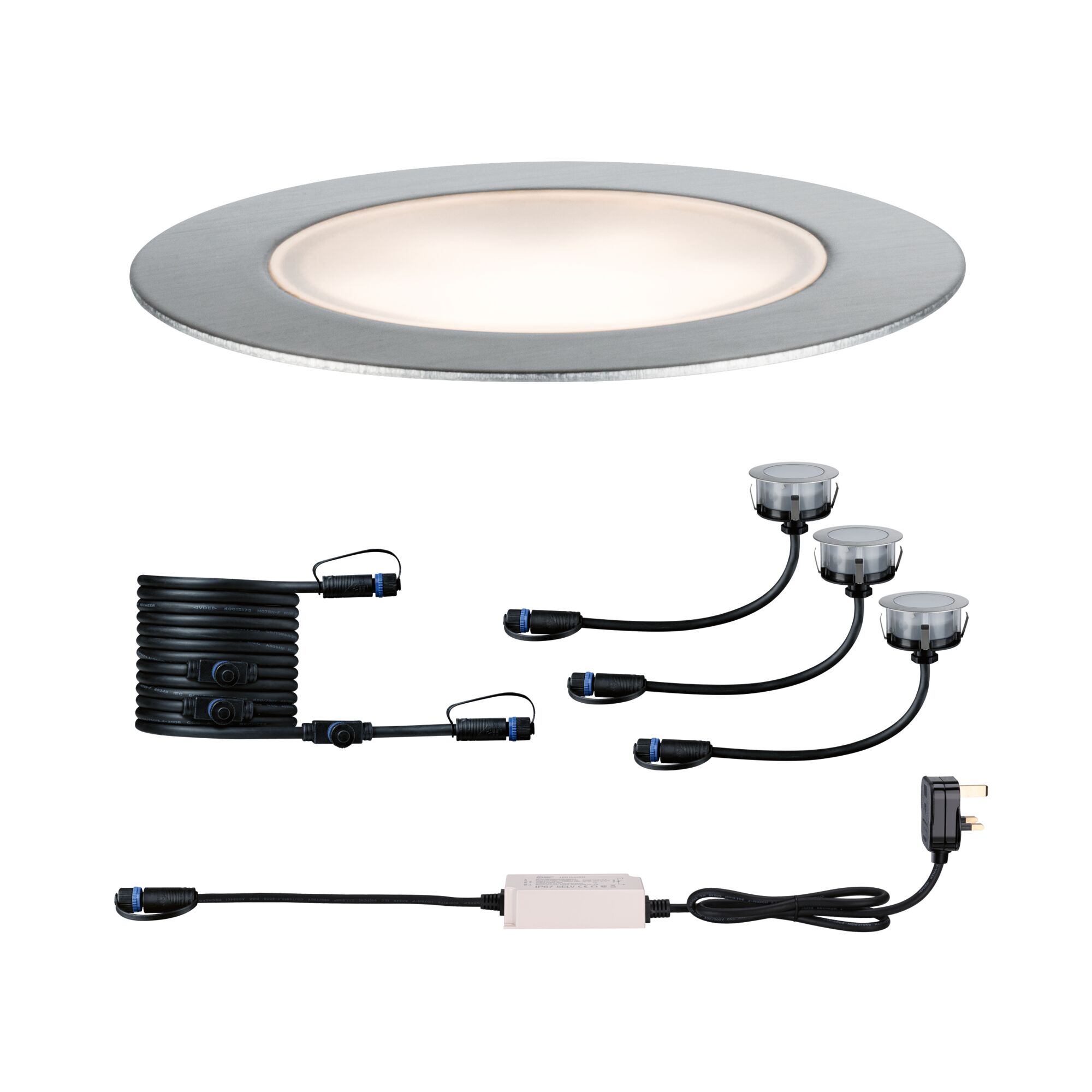

Plug & Shine Floor recessed spotlights create decorative, warm white points of light along footpaths or around the patio. This starter set contains three luminaires, one plug-in transformer and a connecting cable with three sockets. Unused ports can be sealed with the cover caps provided. The system can be expanded with additional Plug & Shine components, if required. It is not suitable for foot or vehicle traffic.
- IP Protection: IP67 - protected against temporary immersion
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

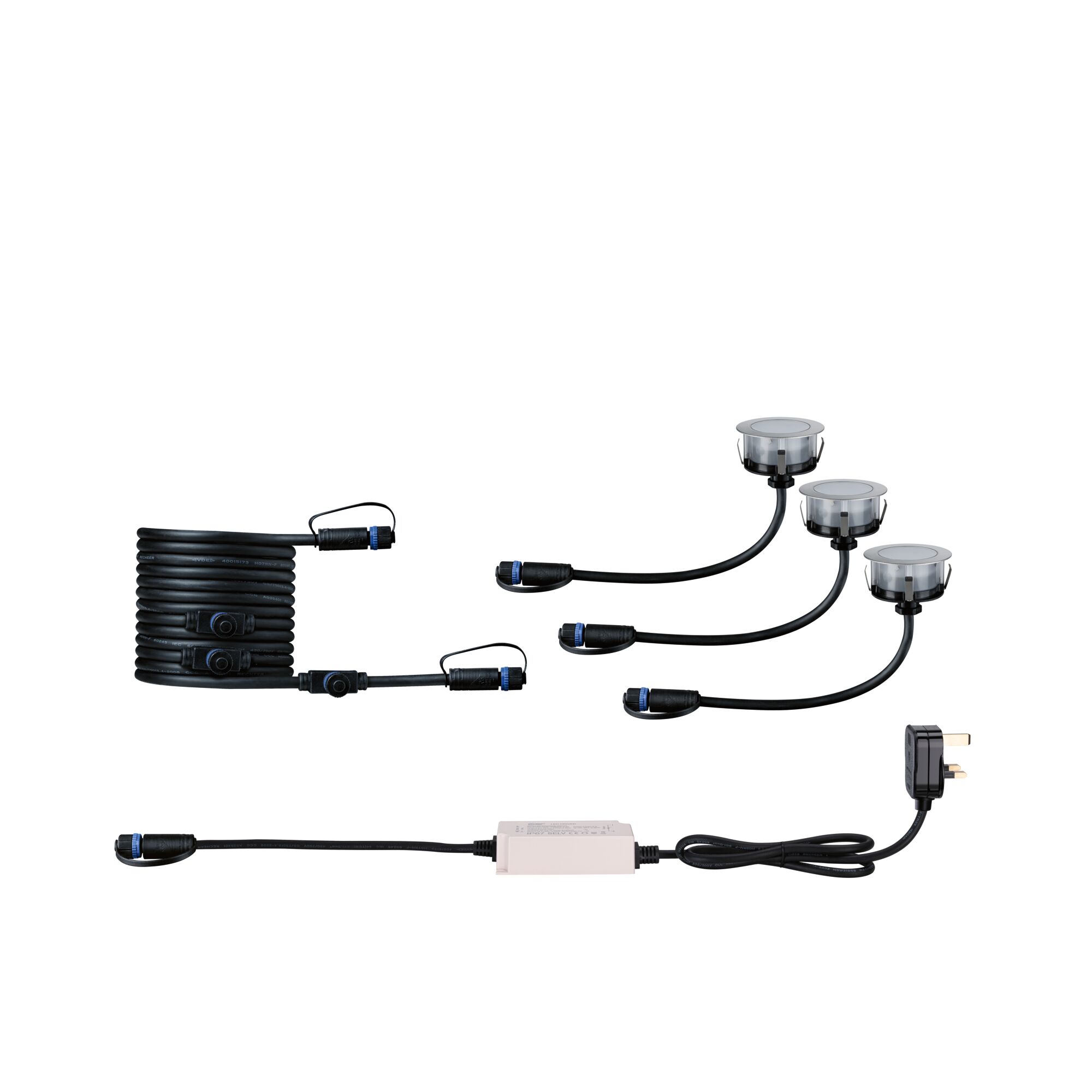

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 70 mm |
| Mounting hole | 63 mm |
| Length | 5 m |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Plug | Plug type G |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 90 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| color temp | 3000 K |
| Beam angle LED module | 120 ° |
| Lamp Features | |
|---|---|
| Component parts | 1,3 W |
| Technique | LED |
| IP protection | IP67 |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Number of component parts | 3x |
| protection class | protection class I |
| Maximum load | 100 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 4,5 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
